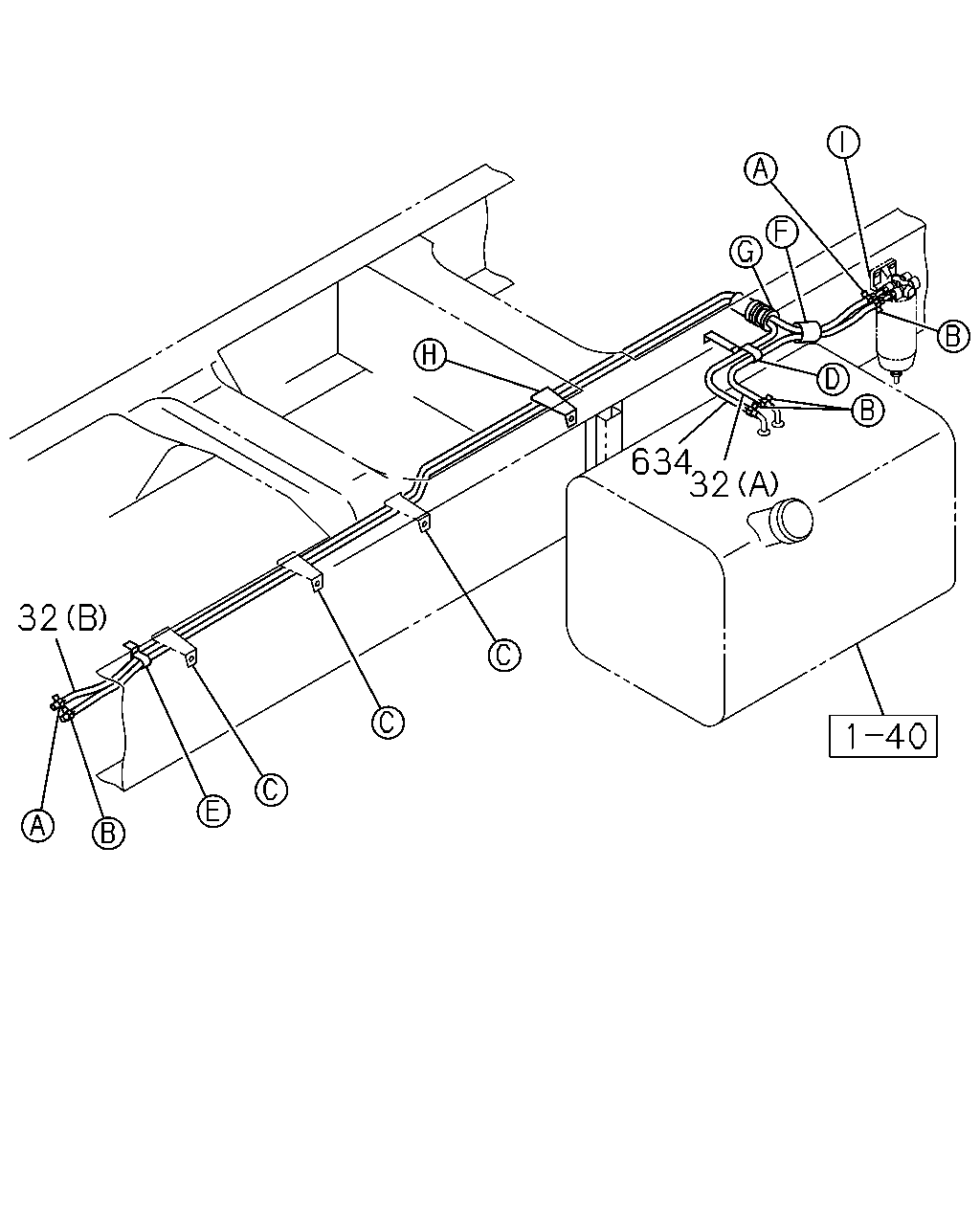

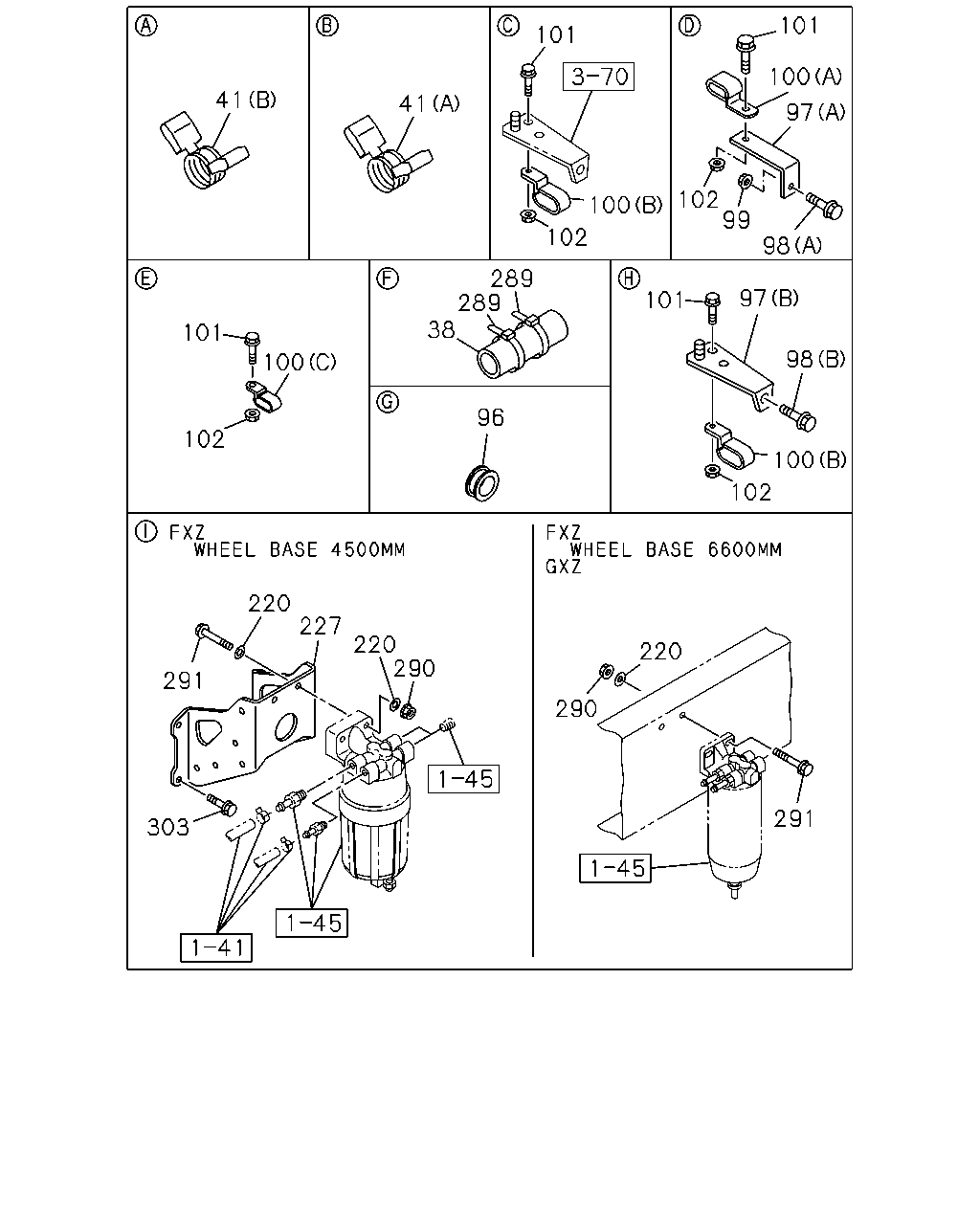

1-41 — FUEL PIPING; CHASSIS (#118684) — 50 parça

220 290 290 220 227 220 291 303 102 100 98 97 101 99 102 97 100 101 101 102 100 41 41 101 102 100 38 289 289 96 98 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1304-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	01	1	1304-1304	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6600MM(66W) (B) ID=19	8-94238-569-0	01	1	1304-1304	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	01	1	1304-1304		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1305-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6600MM(66W) (A) ID=14	1-09704-102-0	01	1	1304-1304	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	01	1	1304-1304		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	03	1	1304-1304	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1305-	●	●
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	01	1	1304-	●	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (B)	8-97609-096-0	01	1	1304-	●
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	1304-		●
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1304-	●	●
98	BOLT; BRKT,FUEL PIPE WHEEL BASE 4500MM(45W) (A) M8X35 FLANGE	0-28650-835-0	01	1	1304-	●
98	BOLT; BRKT,FUEL PIPE WHEEL BASE 6600MM(66W) (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
98	BOLT; BRKT,FUEL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-		●
98	BOLT; BRKT,FUEL PIPE WHEEL BASE 6600MM(66W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
98	BOLT; BRKT,FUEL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
100	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	03	1	1304-	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1304-	●
100	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1304-		●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1304-	●
100	CLIP; FUEL PIPE (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1304-		●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1304-	●
100	CLIP; FUEL PIPE (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1304-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 4500MM(45W) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	05	1	1304-	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	1304-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	03	1	1304-	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	06	1	1304-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	06	1	1304-		●
220	WASHER; PL WHEEL BASE 4500MM(45W) ID=10.5 OD=26	0-91614-710-0	04	1	1304-	●
220	WASHER; PL WHEEL BASE 6600MM(66W) ID=10.5 OD=26	0-91614-710-0	02	1	1304-	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1304-		●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 4500MM(45W)	8-98184-812-0	01	1	1304-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	1304-	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1304-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1304-	●	●
303	BOLT; BRKT WHEEL BASE 4500MM(45W) M10X40 FLANGE	0-28051-040-0	04	1	1304-	●

32 634 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) (B) L=1750 SERVICED BY L=3000	0-01262-300-0	01	1	1304-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1304-	●
32	PIPE; DELIVERY,FUEL TANK (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1304-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1304-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1304-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=2150 SERVICED BY L=3000	0-01262-300-0	01	1	1304-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4500MM(45W) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1304-1305	●
634	HOSE; RUBBER RETURN FUEL TANK 200L RECTANGULAR<NH6> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	1306-	●
634	HOSE; RUBBER RETURN WHEEL BASE 6600MM(66W) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1304-	●
634	HOSE; RUBBER RETURN L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1304-		●
