◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11493 - FXZ/GXZ(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#118683) — 36 parça

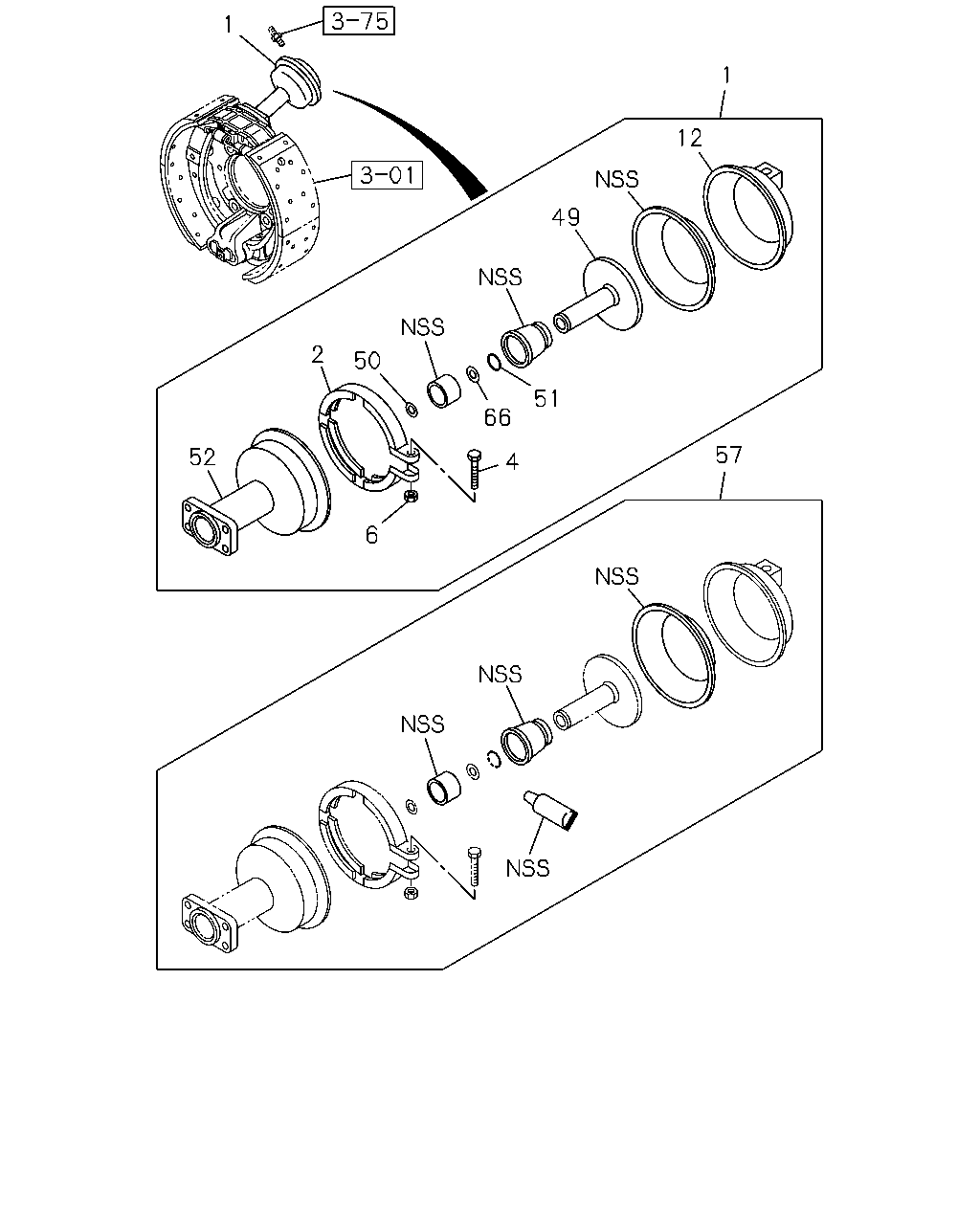

çizim 344875
1 1 12 49 50 2 52 4 66 51 57 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> FRONT AXLE F075<FH5> 		8-98145-680-0 02 1 1302-1302 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066<FAU> 		8-98145-680-0 02 1 1302-1302 ●
1 CHAMBER ASM; POWER,FRT BRK 8-98145-680-0 02 1 1302-1302 ●
1 CHAMBER ASM; POWER,FRT BRK
WHEEL BASE 5200MM<52W> FRONT AXLE F075<FH5> 		8-98145-677-1 02 1 1302-1302 ●
1 CHAMBER ASM; POWER,FRT BRK 8-98145-677-2 02 1 1303- ● ●
2 RING; CLAMP,SPR CHAMBER
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> FRONT AXLE F075<FH5> THA 		1-48269-256-0 02 1 1302-1302 ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066<FAU> THA 		1-48269-256-0 02 1 1302-1302 ●
2 RING; CLAMP,SPR CHAMBER
THA 		1-48269-256-0 02 1 1302-1302 ●
2 RING; CLAMP,SPR CHAMBER
WHEEL BASE 5200MM<52W> FRONT AXLE F075<FH5> THA 		8-98167-056-0 02 1 1302-1302 ●
2 RING; CLAMP,SPR CHAMBER
THA 		8-98167-056-0 02 1 1303- ● ●
4 BOLT; CLAMP RING
THA 		1-48269-257-0 02 1 1302- ● ●
6 NUT; CLAMP RING
THA 		1-48269-147-0 02 1 1302- ● ●
12 COVER ASM; LWR,SPR CHAMBER
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> FRONT AXLE F075<FH5> THA 		1-48251-103-0 02 1 1302-1302 ●
12 COVER ASM; LWR,SPR CHAMBER
FRONT AXLE F066<FAU> THA 		1-48251-103-0 02 1 1302-1302 ●
12 COVER ASM; LWR,SPR CHAMBER
THA 		1-48251-103-0 02 1 1302-1302 ●
12 COVER ASM; LWR,SPR CHAMBER
WHEEL BASE 5200MM<52W> FRONT AXLE F075<FH5> THA 		1-48251-102-0 02 1 1302-1302 ●
12 COVER ASM; LWR,SPR CHAMBER
THA 		1-48251-102-0 02 1 1303- ● ●
49 ROD; PUSH,SPR CHAMBER
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> FRONT AXLE F075<FH5> THA 		8-98146-969-0 02 1 1302-1302 ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066<FAU> THA 		8-98146-969-0 02 1 1302-1302 ●
49 ROD; PUSH,SPR CHAMBER
THA 		8-98146-969-0 02 1 1302-1302 ●
49 ROD; PUSH,SPR CHAMBER
WHEEL BASE 5200MM<52W> FRONT AXLE F075<FH5> THA 		8-98146-968-0 02 1 1302-1302 ●
49 ROD; PUSH,SPR CHAMBER 8-98146-968-1 02 1 1303- ● ●
50 GUIDE; SPR CHAMBER 8-98146-963-1 02 1 1302- ● ●
51 RING; SPR CHAMBER
THA 		8-98146-966-0 02 1 1302- ● ●
52 HOUSING; SPR CHAMBER
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> FRONT AXLE F075<FH5> 		1-48251-195-1 02 1 1302-1302 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066<FAU> 		1-48251-195-1 02 1 1302-1302 ●
52 HOUSING; SPR CHAMBER 1-48251-195-1 02 1 1302-1302 ●
52 HOUSING; SPR CHAMBER
WHEEL BASE 5200MM<52W> FRONT AXLE F075<FH5> 		1-48251-152-2 02 1 1302-1302 ●
52 HOUSING; SPR CHAMBER 1-48251-152-2 02 1 1303-1403 ● ●
52 HOUSING; SPR CHAMBER
THA 		8-98248-792-0 02 1 1404- ● ●
57 REPAIR KIT; SPR CHAMBER
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> FRONT AXLE F075<FH5> 		8-98146-978-0 02 1 1302-1302 ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066<FAU> 		8-98146-978-0 02 1 1302-1302 ●
57 REPAIR KIT; SPR CHAMBER 8-98146-978-0 02 1 1302-1302 ●
57 REPAIR KIT; SPR CHAMBER
WHEEL BASE 5200MM<52W> FRONT AXLE F075<FH5> THA 		8-98146-977-0 02 1 1302-1302 ●
57 REPAIR KIT; SPR CHAMBER
THA 		8-98146-977-0 02 1 1303- ● ●
66 SHIM
THA 		8-98146-965-0 AR 1 1302- ● ●
