7-20 — MIRROR AND MIRROR STAY (#118682) — 313 parça

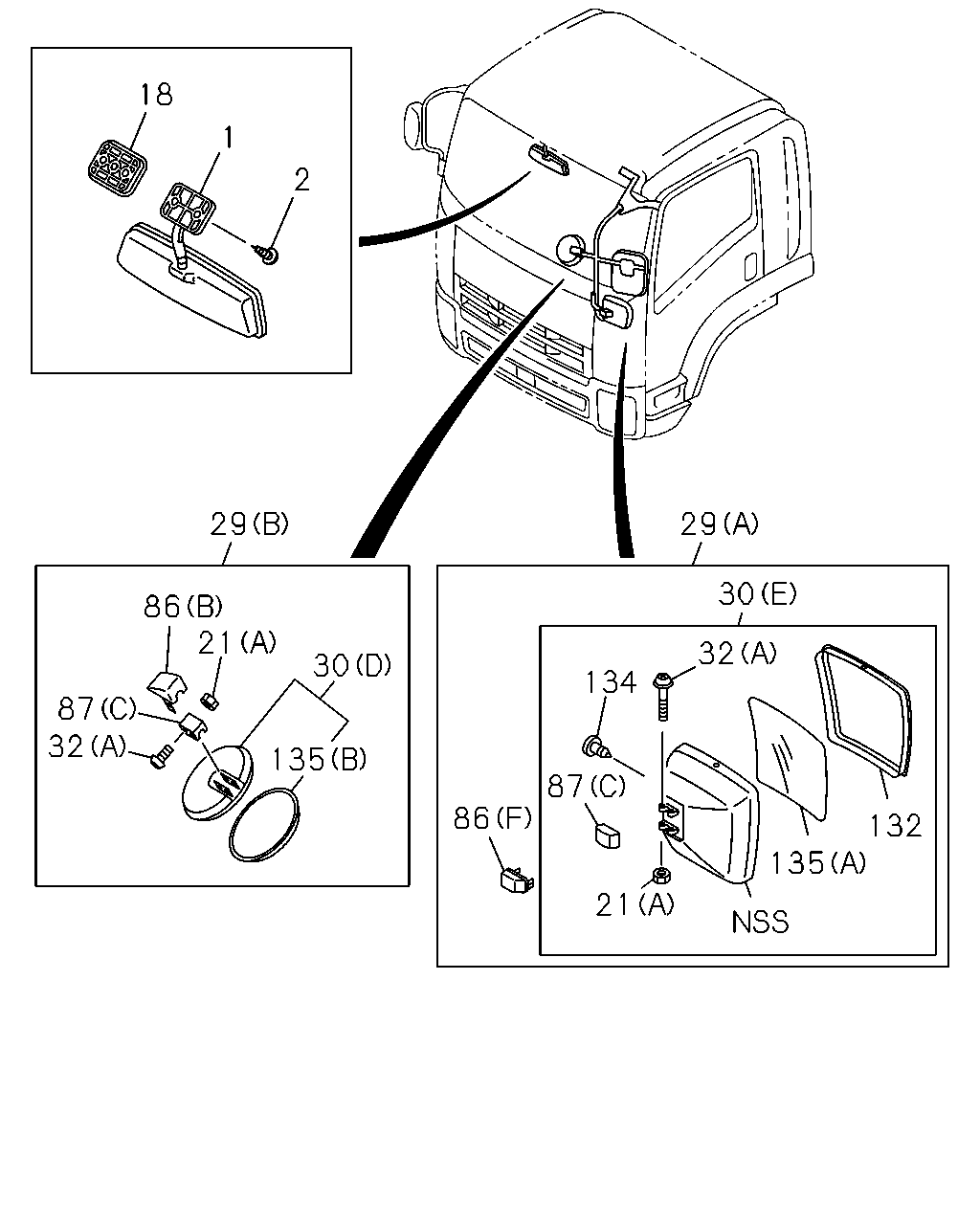

18 1 2 29 86 21 30 87 135 32 29 30 32 134 87 86 21 135 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM THA	8-97924-058-2	01	1	1302-	●	●
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1302-	●	●
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1302-	●	●
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5	1-09984-124-0	04	1	1302-	●	●
21	NUT; MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT	1-09984-134-0	02	1	1302-	●	●
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-421-1	01	1	1302-	●	●
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1302-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	1-71798-591-1	01	1	1302-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71798-592-1	01	1	1302-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-061-0	02	1	1302-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98043-065-0	01	1	1302-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-994-0	01	1	1302-	●	●
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5X40 W/PL WASHER	1-71737-797-0	04	1	1302-	●	●
32	SCREW; UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M8X26 W/PL WASHER	8-98067-249-2	04	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) BLACK	1-71737-652-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-803-2	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-802-2	01	1	1302-	●	●
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	02	1	1302-	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1302-	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	01	1	1302-	●	●
132	RING; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71737-935-0	01	1	1302-	●	●
134	CLIP; MIRROR LENS MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71737-936-0	01	1	1302-	●	●
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71737-929-0	01	1	1302-	●	●
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-838-0	01	1	1302-	●	●

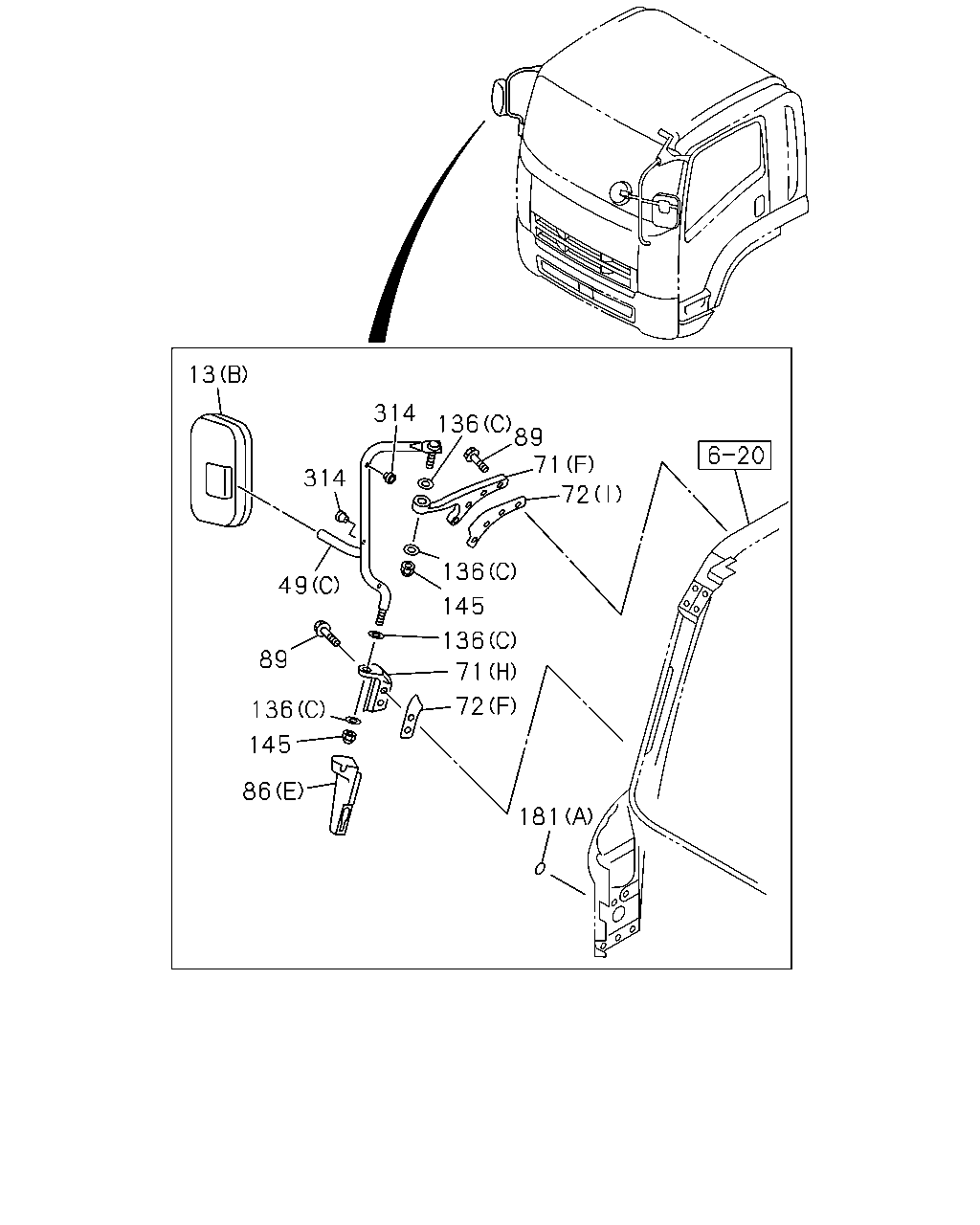

13 314 314 49 89 136 145 86 136 89 71 72 136 145 136 71 72 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98028-332-0	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98104-068-0	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-992-1	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-991-1	01	1	1302-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1302-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1302-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1302-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	04	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-022-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98201-957-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-021-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-543-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-484-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98060-240-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98092-492-3	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-535-0	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-537-1	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-351-0	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-353-1	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98031-797-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98060-245-1	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98064-776-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-605-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98031-796-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-604-0	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) BLACK	1-71737-652-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-803-2	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-802-2	01	1	1302-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1302-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=10	1-09985-180-0	01	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1302-	●	●
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1302-	●	●
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1302-	●	●
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1302-	●	●
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	01	1	1302-	●	●
314	BUFFER; STOPPER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94314-317-0	02	1	1302-	●	●

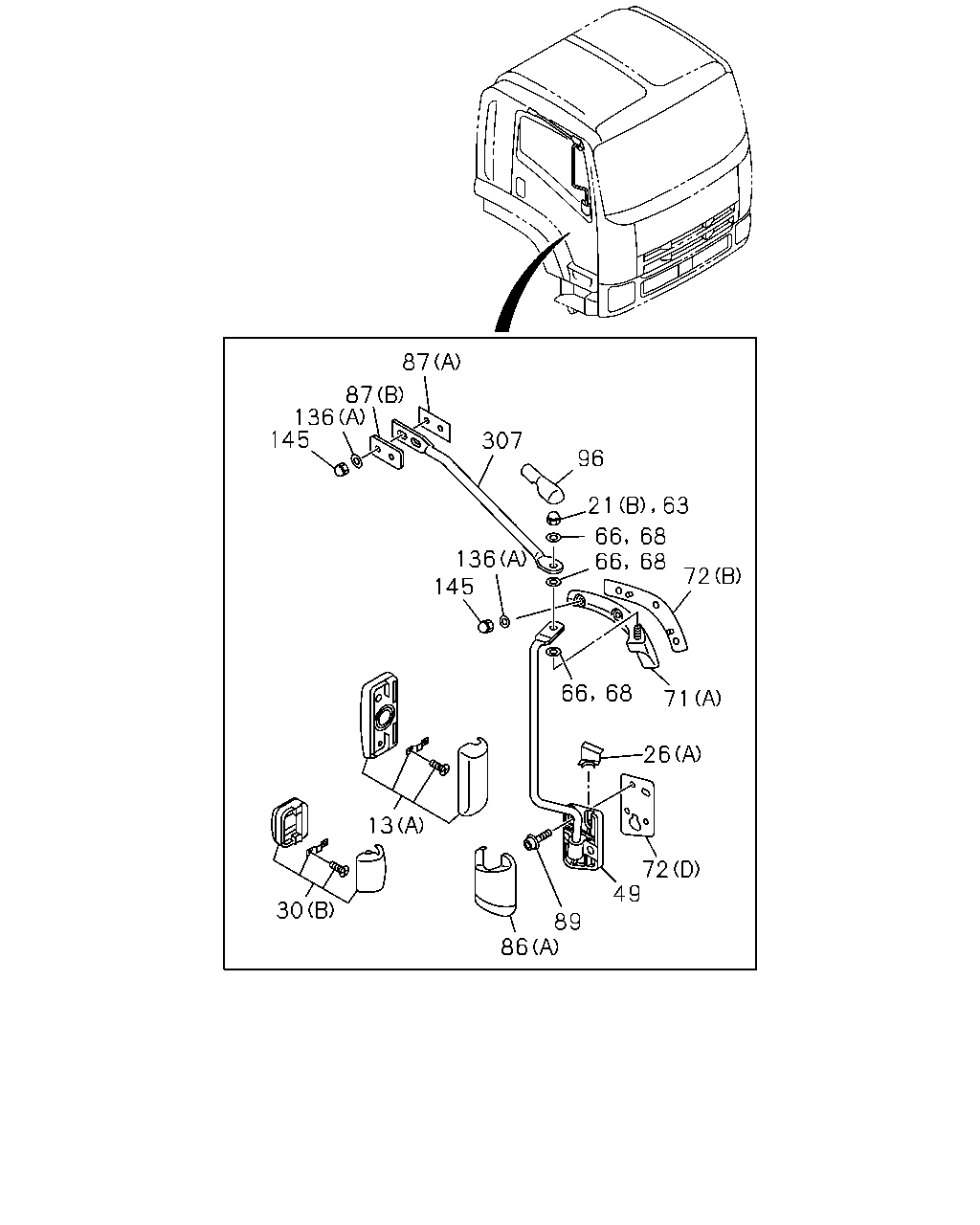

145 136 87 87 307 96 21 63 66 68 66 68 72 71 66 68 26 72 49 89 86 30 13 145 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98028-332-0	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98104-068-0	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-992-1	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-991-1	01	1	1302-	●	●
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5	1-09984-124-0	04	1	1302-	●	●
21	NUT; MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT	1-09984-134-0	02	1	1302-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-222-0	01	1	1302-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-221-0	01	1	1302-	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-806-0	01	1	1302-	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-805-0	01	1	1302-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	1-71798-591-1	01	1	1302-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71798-592-1	01	1	1302-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-061-0	02	1	1302-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98043-065-0	01	1	1302-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-994-0	01	1	1302-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1302-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1302-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1302-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1302-	●	●
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1302-	●	●
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1302-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER	0-91610-614-0	01	1	1302-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98201-756-0	01	1	1302-	●	●
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1302-	●	●
68	WASHER; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	04	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-022-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98201-957-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-021-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-543-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-484-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98060-240-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98092-492-3	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-535-0	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-537-1	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-351-0	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-353-1	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98031-797-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98060-245-1	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98064-776-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-605-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98031-796-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-604-0	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) BLACK	1-71737-652-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-803-2	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-802-2	01	1	1302-	●	●
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	02	1	1302-	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1302-	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	01	1	1302-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1302-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1302-	●	●
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=10	1-09985-180-0	01	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1302-	●	●
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1302-	●	●
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1302-	●	●
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	1302-	●	●
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	1302-	●	●

13 53 53 71 26 25 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98028-332-0	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98104-068-0	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-992-1	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-991-1	01	1	1302-	●	●
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98045-690-0	01	1	1302-	●	●
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98108-511-0	01	1	1302-	●	●
25	SCREW; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6X40	1-71707-223-0	04	1	1302-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-222-0	01	1	1302-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-221-0	01	1	1302-	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-806-0	01	1	1302-	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-805-0	01	1	1302-	●	●
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2	1-71736-489-2	04	1	1302-	●	●
53	PIVOT; SIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1 THA	1-71737-633-2	04	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	04	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-022-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98201-957-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-021-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-543-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-484-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98060-240-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98092-492-3	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	1302-	●	●

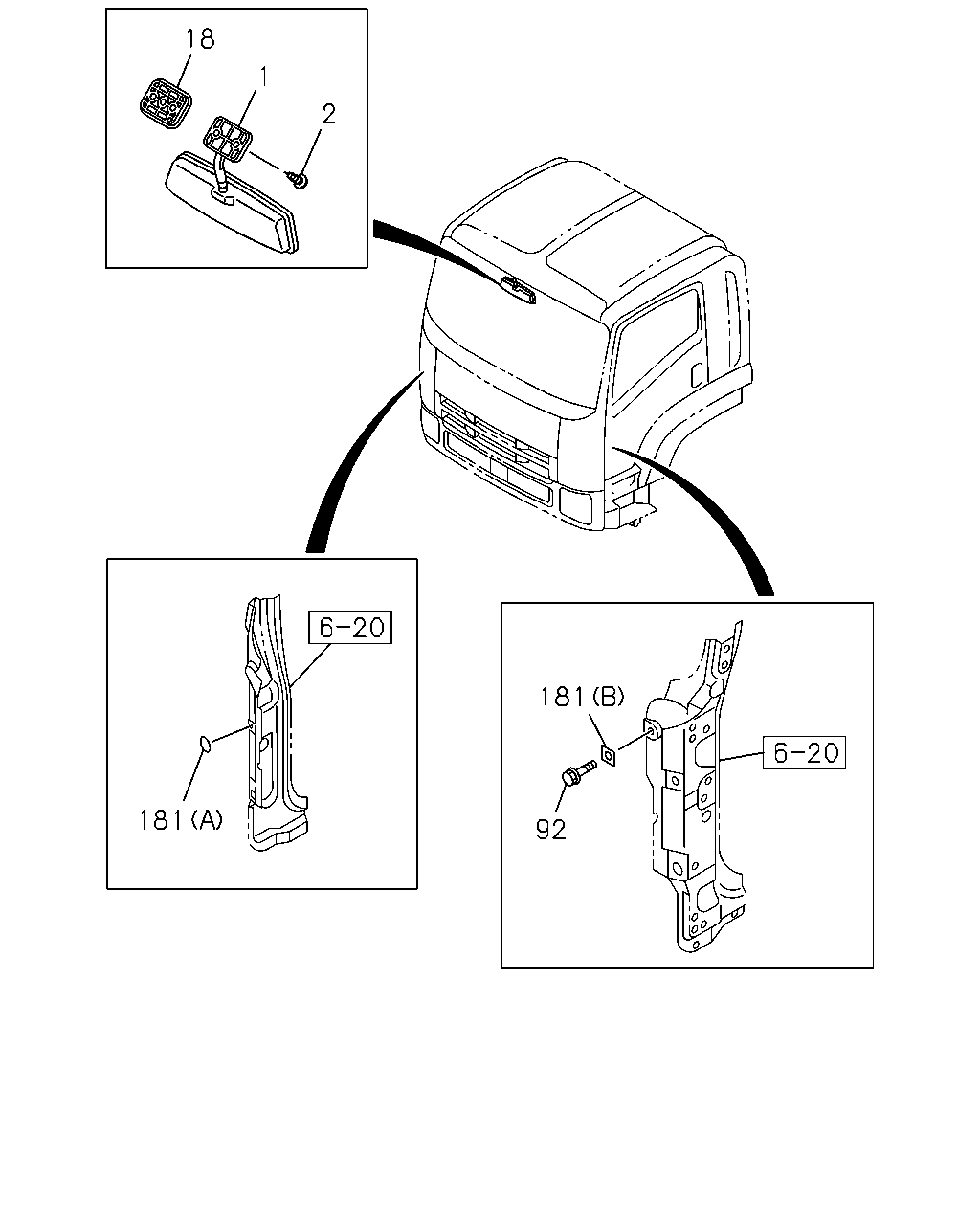

18 2 1 181 181 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM THA	8-97924-058-2	01	1	1302-	●	●
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1302-	●	●
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1302-	●	●
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-98076-109-0	04	1	1302-1306	●	●
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-97948-261-0	04	1	1307-	●	●
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-98076-109-0	01	1	1302-1306	●	●
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-97948-261-0	01	1	1307-	●	●
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1302-	●	●
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	01	1	1302-	●	●

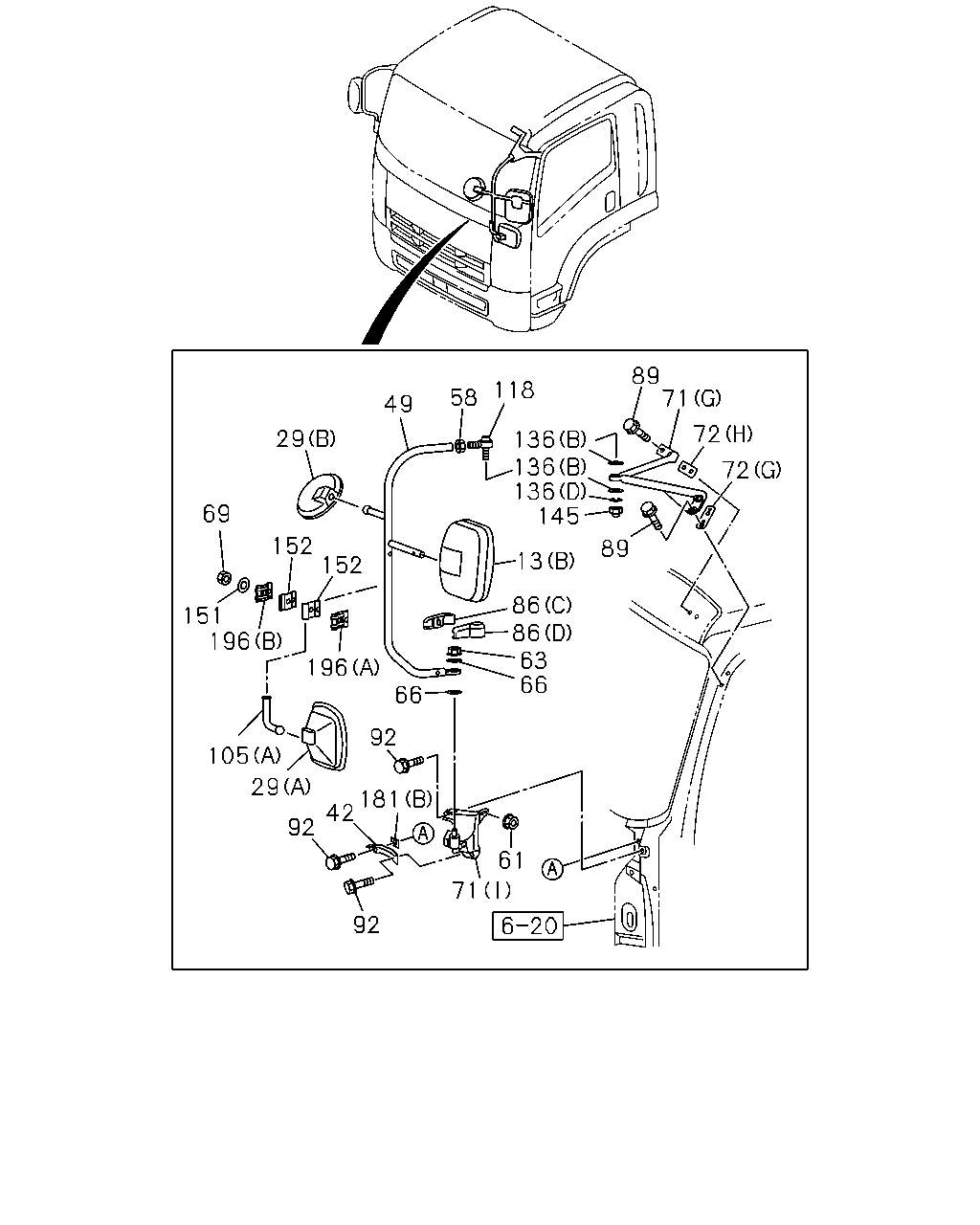

29 49 58 118 69 152 151 152 196 196 105 92 66 29 181 42 92 92 71 136 136 136 13 86 86 63 66 61 89 89 71 72 72 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98028-332-0	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98104-068-0	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-992-1	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-991-1	01	1	1302-	●	●
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-421-1	01	1	1302-	●	●
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1302-	●	●
42	ATTACHMENT; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98070-643-0	01	1	1302-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1302-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1302-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1302-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1302-	●	●
58	NUT; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98061-883-0	01	1	1302-	●	●
61	NUT; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 FLANGE THA	0-91180-108-0	01	1	1302-	●	●
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1302-	●	●
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1302-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER	0-91610-614-0	01	1	1302-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98201-756-0	01	1	1302-	●	●
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1302-	●	●
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	04	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-022-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98201-957-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-021-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-543-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-484-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98060-240-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98092-492-3	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-535-0	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-537-1	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-351-0	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-353-1	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98031-797-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98060-245-1	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98064-776-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-605-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98031-796-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-604-0	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) BLACK	1-71737-652-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-803-2	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-802-2	01	1	1302-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1302-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1302-	●	●
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-98076-109-0	04	1	1302-1306	●	●
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-97948-261-0	04	1	1307-	●	●
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-98076-109-0	01	1	1302-1306	●	●
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-97948-261-0	01	1	1307-	●	●
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98041-571-2	01	1	1302-	●	●
105	STAY; SUB UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98080-109-2	01	1	1302-	●	●
118	JOINT ASM; BALL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71798-356-2	01	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=10	1-09985-180-0	01	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1302-	●	●
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1302-	●	●
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1302-	●	●
151	WASHER; PL,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 T=2.0	1-09985-183-0	01	1	1302-	●	●
152	SHEET; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71798-445-1	02	1	1302-	●	●
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1302-	●	●
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	01	1	1302-	●	●
196	HOLDER; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-442-2	01	1	1302-	●	●
196	HOLDER; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-444-2	01	1	1302-	●	●

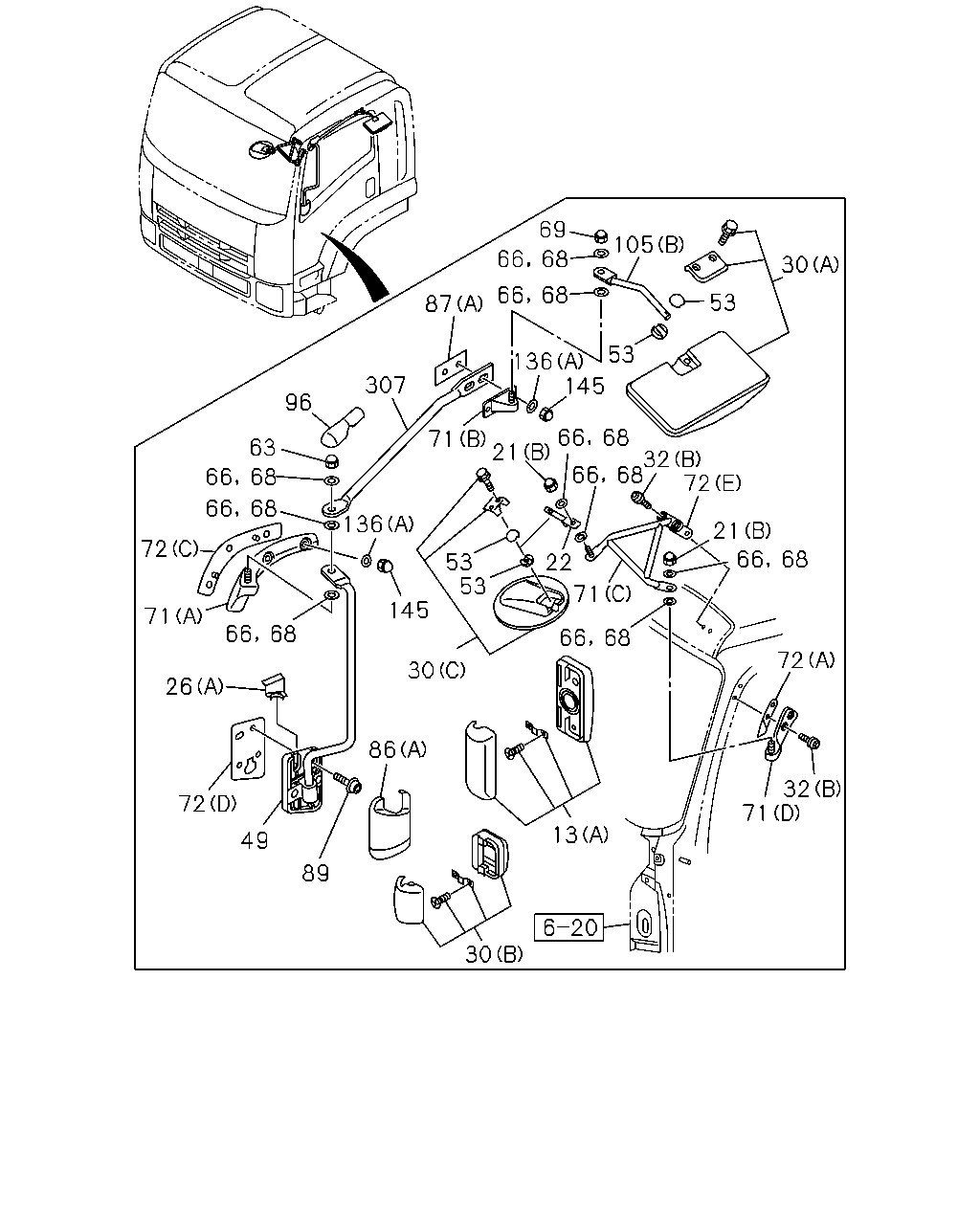

30 53 105 69 66 68 68 66 87 136 53 145 307 71 21 66 68 32 72 21 66 68 68 66 72 32 71 13 30 68 66 71 22 53 53 30 145 86 89 49 72 26 66 68 71 72 66 68 68 66 63 96 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98028-332-0	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98104-068-0	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-992-1	01	1	1302-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-991-1	01	1	1302-	●	●
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5	1-09984-124-0	04	1	1302-	●	●
21	NUT; MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT	1-09984-134-0	02	1	1302-	●	●
22	STAY; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98092-493-0	01	1	1302-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-222-0	01	1	1302-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-221-0	01	1	1302-	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-806-0	01	1	1302-	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-805-0	01	1	1302-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	1-71798-591-1	01	1	1302-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71798-592-1	01	1	1302-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-061-0	02	1	1302-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98043-065-0	01	1	1302-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-994-0	01	1	1302-	●	●
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5X40 W/PL WASHER	1-71737-797-0	04	1	1302-	●	●
32	SCREW; UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M8X26 W/PL WASHER	8-98067-249-2	04	1	1302-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1302-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1302-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1302-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1302-	●	●
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2	1-71736-489-2	04	1	1302-	●	●
53	PIVOT; SIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1 THA	1-71737-633-2	04	1	1302-	●	●
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1302-	●	●
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1302-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER	0-91610-614-0	01	1	1302-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98201-756-0	01	1	1302-	●	●
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1302-	●	●
68	WASHER; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1302-	●	●
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	04	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-022-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98201-957-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-021-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-543-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-484-1	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98060-240-0	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98092-492-3	01	1	1302-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-535-0	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-537-1	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-351-0	01	1	1302-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-353-1	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98031-797-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98060-245-1	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98064-776-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-605-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98031-796-0	01	1	1302-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-604-0	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) BLACK	1-71737-652-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-803-2	01	1	1302-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-802-2	01	1	1302-	●	●
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	02	1	1302-	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1302-	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	01	1	1302-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1302-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1302-	●	●
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	1302-	●	●
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98041-571-2	01	1	1302-	●	●
105	STAY; SUB UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98080-109-2	01	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=10	1-09985-180-0	01	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1302-	●	●
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1302-	●	●
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1302-	●	●
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1302-	●	●
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	1302-	●	●
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
