Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#118681) — 230 parça

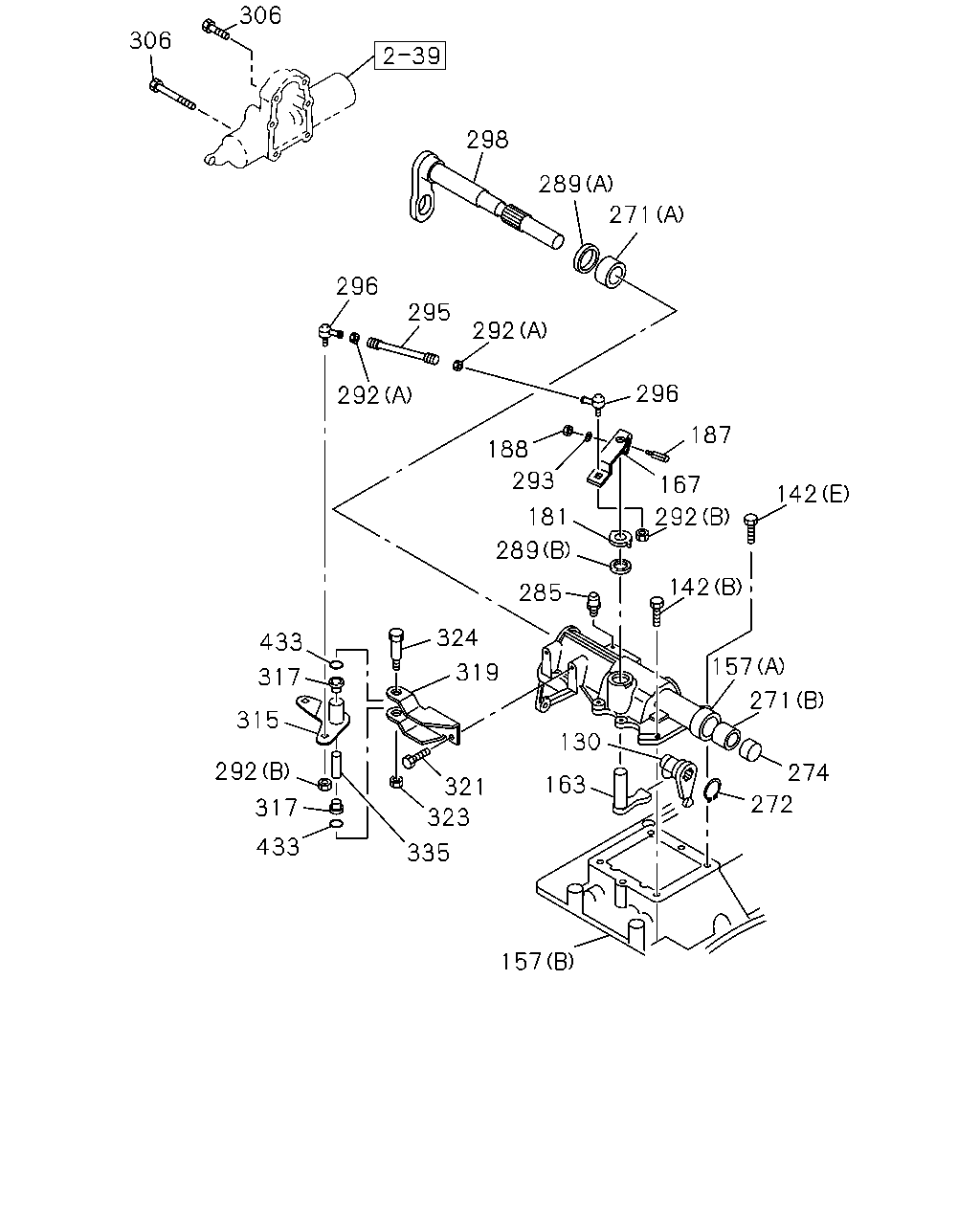

306 306 298 289 295 296 292 271 296 188 292 293 187 167 181 289 285 292 142 142 324 319 433 317 315 292 317 433 321 323 335 130 163 157 157 271 274 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	1302-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1302-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	1302-	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	03	1	1302-	●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	8-98010-335-0	01	1	1302-	●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	8-98032-017-0	01	1	1302-	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	11	1	1302-	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	1302-	●
157	BOX; QUAD,TRANS (A)	1-33541-507-3	01	1	1302-1311	●	●
157	BOX; QUAD,TRANS (A)	8-98231-390-0	01	1	1312-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-162-1	01	1	1302-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-163-0	01	1	1302-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	1302-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	1302-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	1302-	●	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	1302-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	1302-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	1302-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	1302-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	1302-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	1302-	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	1302-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	1302-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	1302-	●	●
295	ROD; LINK,RELAY LEVER	9-08400-816-0	01	1	1302-	●	●
296	ROD END	1-09760-108-0	02	1	1302-	●	●
298	SHAFT; SHIFT LEVER	1-33522-180-0	01	1	1302-	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE THA	0-28151-045-0	02	1	1302-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE THA	0-28151-080-0	04	1	1302-	●	●
315	LEVER; SELECT	8-98097-127-0	01	1	1302-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-	●	●
319	BRACKET; SELECT LEVER	1-33657-753-0	01	1	1302-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	1302-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	1302-	●	●
324	BOLT; SHAFT M10X60 FLANGE THA	0-28051-060-0	01	1	1302-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	1302-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	1302-	●	●

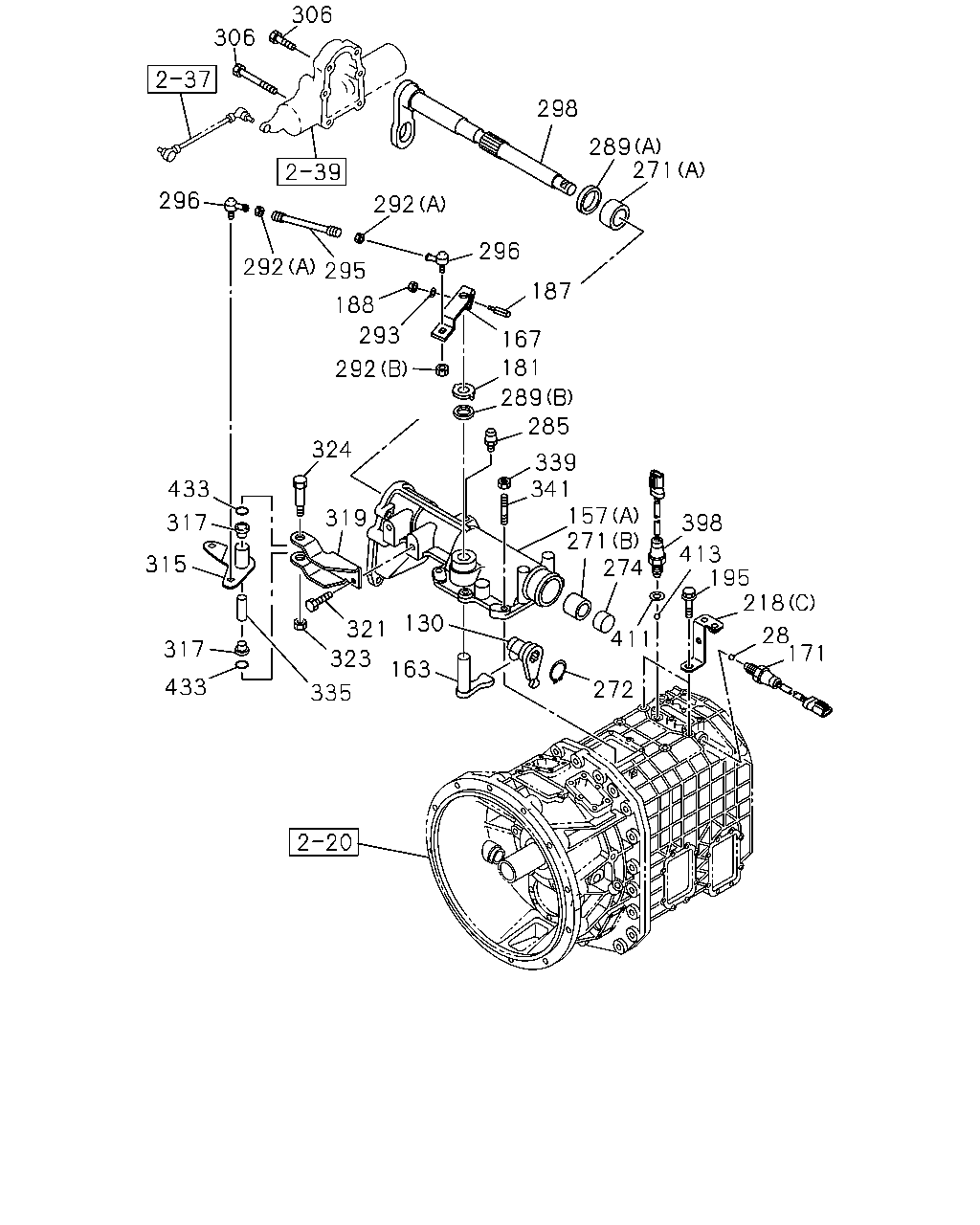

171 28 218 195 413 398 272 411 274 271 157 341 339 285 289 181 167 187 271 289 298 296 292 295 293 292 292 188 296 306 306 324 433 315 319 317 317 433 335 321 323 163 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BALL; INTER LK	9-00097-501-0	04	1	1302-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	1302-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	1302-	●
157	BOX; QUAD,TRANS (A)	1-33541-507-3	01	1	1302-1311	●	●
157	BOX; QUAD,TRANS (A)	8-98231-390-0	01	1	1312-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-162-1	01	1	1302-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-163-0	01	1	1302-	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1302-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	1302-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	1302-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	1302-	●	●
195	BOLT M10X25 FLANGE THA	0-28751-025-0	02	1	1302-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	1302-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	1302-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-639-1	02	1	1302-		●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	1302-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	1302-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	1302-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	1302-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	1302-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	1302-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	1302-	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	1302-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	1302-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	1302-	●	●
295	ROD; LINK,RELAY LEVER	9-08400-816-0	01	1	1302-	●	●
296	ROD END	1-09760-108-0	02	1	1302-	●	●
298	SHAFT; SHIFT LEVER	1-33522-180-0	01	1	1302-	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE THA	0-28151-045-0	02	1	1302-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE THA	0-28151-080-0	04	1	1302-	●	●
315	LEVER; SELECT	8-98097-127-0	01	1	1302-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-	●	●
319	BRACKET; SELECT LEVER	1-33657-753-0	01	1	1302-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	1302-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	1302-	●	●
324	BOLT; SHAFT M10X60 FLANGE THA	0-28051-060-0	01	1	1302-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	1302-	●	●
339	NUT; QUAD BOX M10 FLANGE THA	0-91180-210-0	06	1	1302-		●
341	STUD; QUAD BOX M10X25 L=40 THA	0-44011-025-0	06	1	1302-		●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	1302-	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1302-		●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 THA	8-94462-114-0	01	1	1302-		●
413	BALL; BACK SW	9-00097-013-0	01	1	1302-		●
433	GASKET; BUSHING	1-09623-636-0	02	1	1302-	●	●

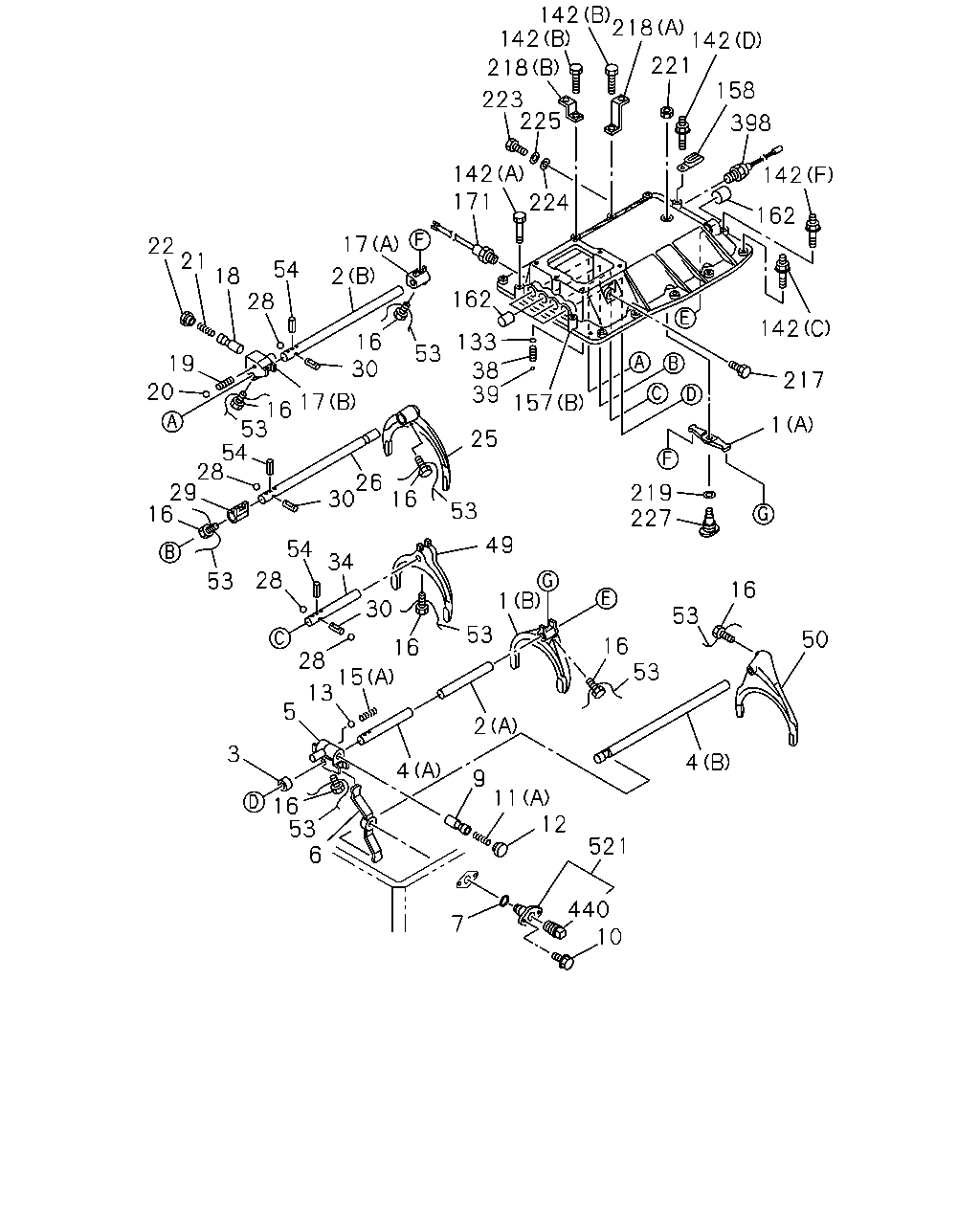

10 521 440 12 11 9 2 4 7 6 53 16 3 13 5 16 15 53 53 50 4 16 16 1 53 49 53 227 1 219 217 142 157 30 28 34 54 28 53 16 25 26 30 16 53 54 28 29 16 17 30 53 133 39 16 19 20 22 17 2 54 28 18 21 162 38 224 171 142 225 223 218 142 142 221 142 158 142 398 162 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	1302-	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	1302-	●
1	ARM; SHIFT,1ST & REV (C)	1-33511-579-0	01	1	1302-		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-400-1	01	1	1302-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-415-1	01	1	1302-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-438-0	01	1	1302-		●
2	ROD; SHIFT,1ST & REV (B)	1-33531-456-0	01	1	1302-		●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	1302-	●
4	ROD; SHIFT,6TH (A)	1-33531-405-1	01	1	1302-	●
4	ROD; SHIFT,6TH (B)	1-33531-407-1	01	1	1302-	●
4	ROD; SHIFT,6TH (A)	1-33531-443-1	01	1	1302-		●
4	ROD; SHIFT,6TH (B)	1-33531-445-0	01	1	1302-		●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	1302-	●
6	LEVER; RELAY	9-33511-402-1	01	1	1302-	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	1302-	●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	1302-	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	1302-	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	1302-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	1302-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	1302-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	1302-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	1302-	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	1302-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-439-0	01	1	1302-		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	1302-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	1302-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	1302-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-202-3	01	1	1302-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-552-1	01	1	1302-		●
17	BLOCK; SHIFT,1ST & REV (C)	1-33511-557-0	02	1	1302-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	1302-	●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	1302-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	1302-	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	1302-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	1302-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	1302-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	1302-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-435-0	01	1	1302-		●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	1302-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-440-1	01	1	1302-		●
28	BALL; INTER LK	9-00097-501-0	04	1	1302-	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	1302-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	1302-	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-402-1	01	1	1302-	●
38	SPRING; DETENT	1-09580-379-0	04	1	1302-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	1302-	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	1302-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-466-1	01	1	1302-		●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	1302-	●
50	ARM; SHIFT,6TH	1-33511-550-0	01	1	1302-		●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	1302-	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	1302-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	1302-	●	●
133	SEAT; SPR	1-33549-072-0	04	1	1302-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1302-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	1302-	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	03	1	1302-	●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	8-98010-335-0	01	1	1302-	●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	8-98032-017-0	01	1	1302-	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	11	1	1302-	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	1302-	●
157	BOX; QUAD,TRANS (A)	1-33541-507-3	01	1	1302-1311	●	●
157	BOX; QUAD,TRANS (A)	8-98231-390-0	01	1	1312-	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	1302-	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	1302-	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1302-	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	1302-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	1302-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	1302-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-639-1	02	1	1302-		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	1302-	●
221	NUT; SPINDLE M12 FLANGE THA	0-91180-212-0	01	1	1302-	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	1302-	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	1302-	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	1302-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	1302-	●
227	SPINDLE; 1ST & REV	1-33519-104-0	01	1	1302-		●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	1302-	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1302-		●
440	PLUG; OIL PT1/4	9-99204-513-0	01	1	1302-	●
521	SPINDLE; 6TH	1-33119-255-0	01	1	1302-	●

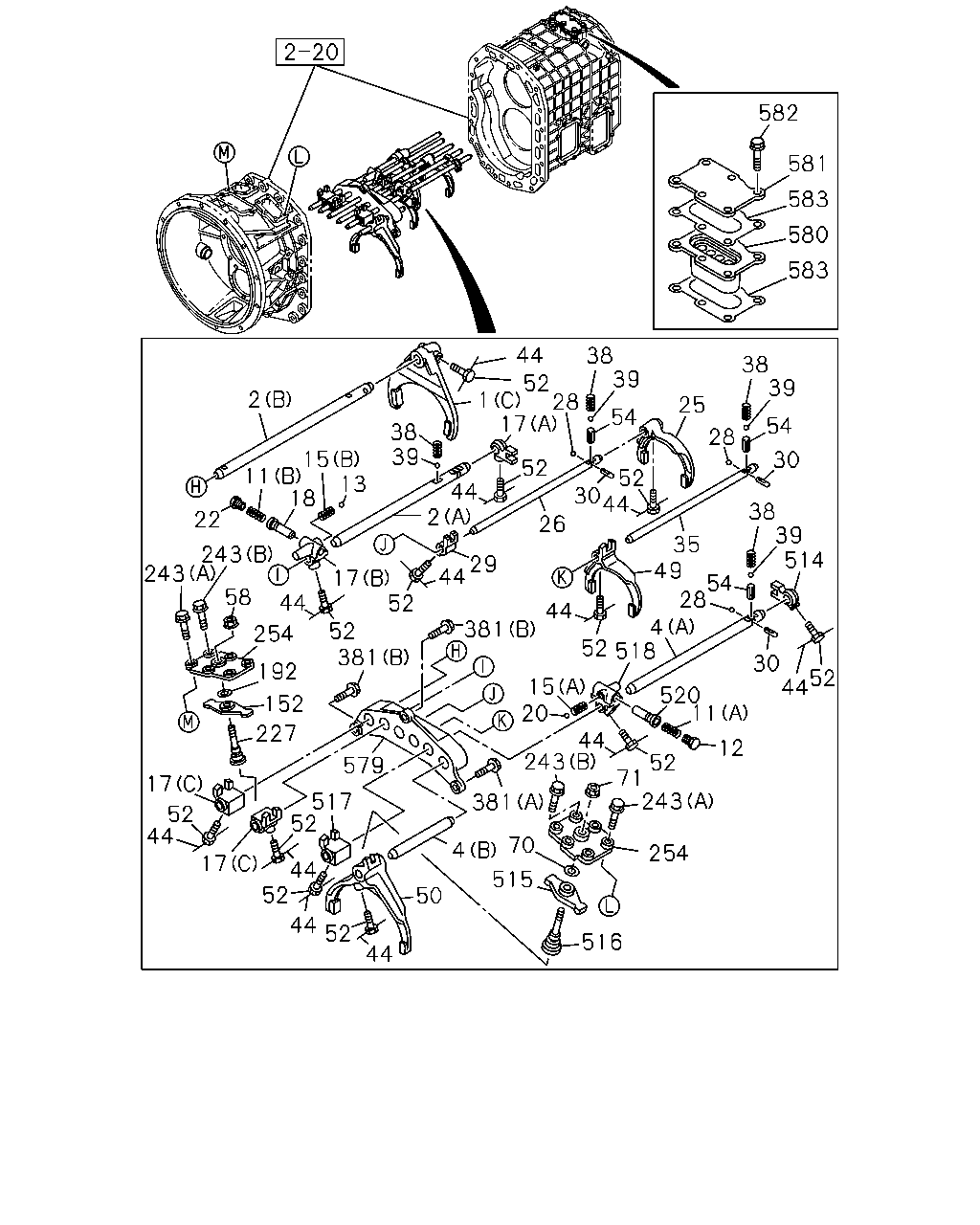

2 11 15 18 22 243 243 58 44 254 192 152 227 17 52 44 17 44 52 44 52 44 52 517 579 381 52 17 52 2 13 39 38 44 1 52 17 52 44 29 44 381 381 4 50 38 28 39 52 54 44 30 26 44 52 15 20 44 243 70 515 516 254 243 71 52 12 11 520 518 44 30 52 4 49 28 514 54 35 39 38 30 28 25 39 38 54 583 580 583 581 582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	1302-	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	1302-	●
1	ARM; SHIFT,1ST & REV (C)	1-33511-579-0	01	1	1302-		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-400-1	01	1	1302-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-415-1	01	1	1302-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-438-0	01	1	1302-		●
2	ROD; SHIFT,1ST & REV (B)	1-33531-456-0	01	1	1302-		●
4	ROD; SHIFT,6TH (A)	1-33531-405-1	01	1	1302-	●
4	ROD; SHIFT,6TH (B)	1-33531-407-1	01	1	1302-	●
4	ROD; SHIFT,6TH (A)	1-33531-443-1	01	1	1302-		●
4	ROD; SHIFT,6TH (B)	1-33531-445-0	01	1	1302-		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	1302-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	1302-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	1302-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	1302-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	1302-	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	1302-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-439-0	01	1	1302-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	1302-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	1302-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-202-3	01	1	1302-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-552-1	01	1	1302-		●
17	BLOCK; SHIFT,1ST & REV (C)	1-33511-557-0	02	1	1302-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	1302-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	1302-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	1302-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	1302-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	1302-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-435-0	01	1	1302-		●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	1302-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-440-1	01	1	1302-		●
28	BALL; INTER LK	9-00097-501-0	04	1	1302-	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	1302-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	1302-	●	●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-442-1	01	1	1302-		●
38	SPRING; DETENT	1-09580-379-0	04	1	1302-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	1302-	●	●
44	WIRE; LK L=180	1-09780-024-0	10	1	1302-		●
44	WIRE; LK L=200	9-08351-020-0	02	1	1302-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	1302-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-466-1	01	1	1302-		●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	1302-	●
50	ARM; SHIFT,6TH	1-33511-550-0	01	1	1302-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	12	1	1302-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	1302-	●	●
58	NUT M12 FLANGE THA	0-91180-212-0	01	1	1302-		●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	1302-		●
71	NUT; SHIFT LEVER M12 FLANGE THA	0-91180-212-0	01	1	1302-		●
152	LEVER; RELAY,SELECT	1-33511-560-1	01	1	1302-		●
192	WASHER; PL ID=16.5	9-09857-042-0	01	1	1302-		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	1302-	●
227	SPINDLE; 1ST & REV	1-33519-104-0	01	1	1302-		●
243	BOLT; COVER (A) M10X30 FLANGE	0-28151-030-0	08	1	1302-		●
243	BOLT; COVER (B) M10X28 FLANGE REAMER	8-97365-375-0	04	1	1302-		●
254	COVER; LEVER	1-33141-054-0	02	1	1302-		●
381	BOLT (A) M10X35 FLANGE THA	0-28751-035-0	01	1	1302-		●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1302-		●
514	BLOCK; 6-7 SETTING	1-33511-605-0	01	1	1302-		●
515	LEVER; SHIFT,6TH & 7TH	1-33511-560-1	01	1	1302-		●
516	SPINDLE; 6TH & 7TH	1-33519-104-0	01	1	1302-		●
517	BLOCK; SHIFT,6TH & 7TH	1-33511-557-0	01	1	1302-		●
518	BLOCK ASM; SHIFT,6TH & 7TH	1-33511-558-1	01	1	1302-		●
520	SLEEVE; 6TH & 7TH	1-33516-022-1	01	1	1302-		●
579	BLOCK; SHIFT,ROD GUIDE	1-33539-065-1	01	1	1302-		●
580	BLOCK; INTERLOCK	1-33539-064-1	01	1	1302-		●
581	COVER; BLOCK	1-33141-056-0	01	1	1302-		●
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28151-035-0	06	1	1302-		●
583	GASKET; SPRING GUIDE	1-33142-047-0	02	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
