2-26 — MANUAL TRANSMISSION GEAR (#118678) — 108 parça

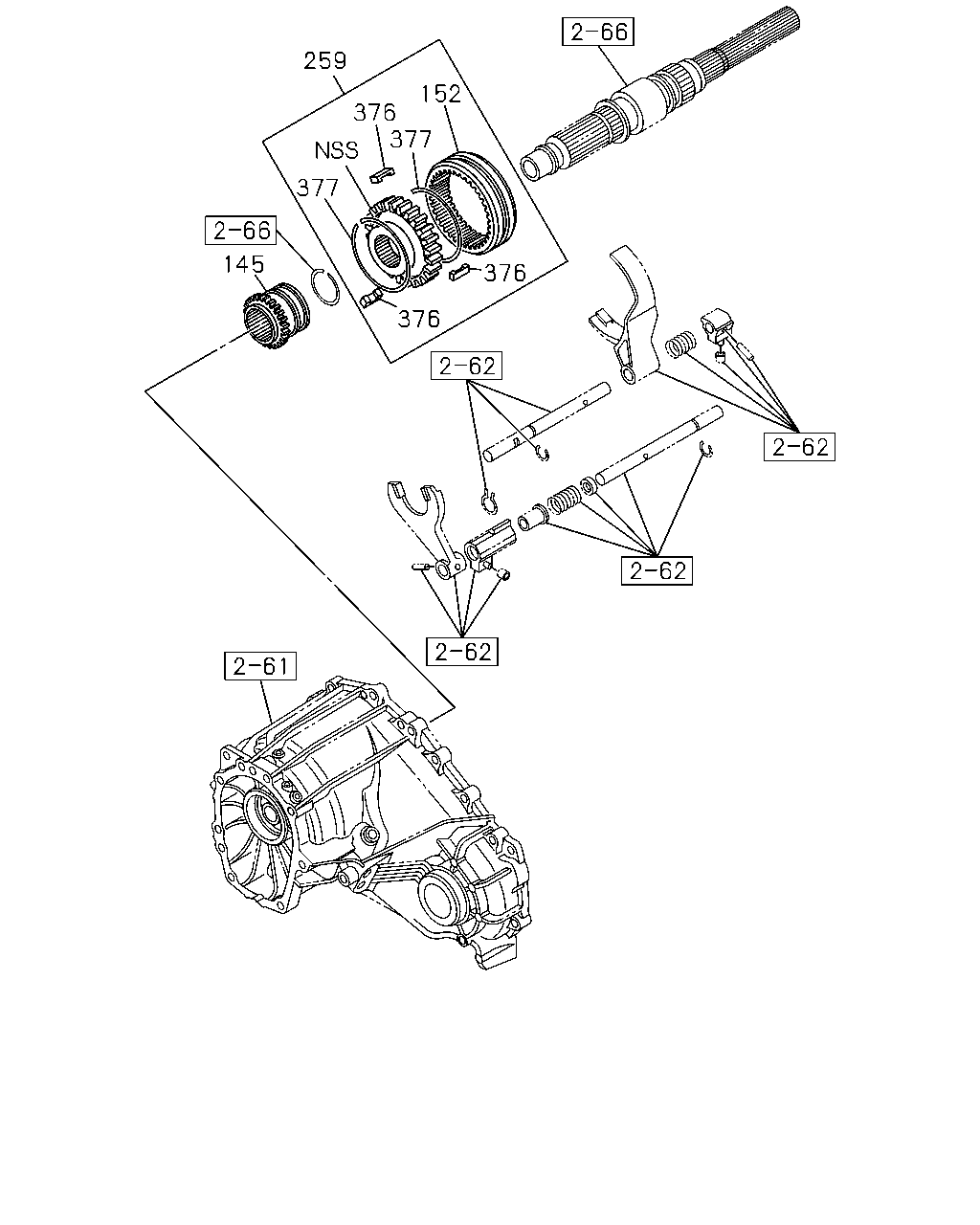

259 376 152 377 377 145 376 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1304-1304	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER	8-98063-369-1	01	1	1304-1304		●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1304-1306	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98063-369-1	01	1	1304-1306		●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1307-	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER	8-98063-369-1	01	1	1307-		●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1304-1304	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER	8-94363-060-0	01	1	1304-1304		●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1304-1306	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-060-0	01	1	1304-1306		●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1307-	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER	8-94363-060-0	01	1	1307-		●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1304-1304	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER	8-97234-225-0	01	1	1304-1304		●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1304-1306	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97234-225-0	01	1	1304-1306		●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1307-	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER	8-97234-225-0	01	1	1307-		●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1304-1304	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER	8-97238-590-0	03	1	1304-1304		●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1304-1306	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97238-590-0	03	1	1304-1306		●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1307-	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER	8-97238-590-0	03	1	1307-		●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	1304-1304	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94448-045-0	02	1	1304-1304		●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	1304-1306	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94448-045-0	02	1	1304-1306		●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	1307-	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94448-045-0	02	1	1307-		●

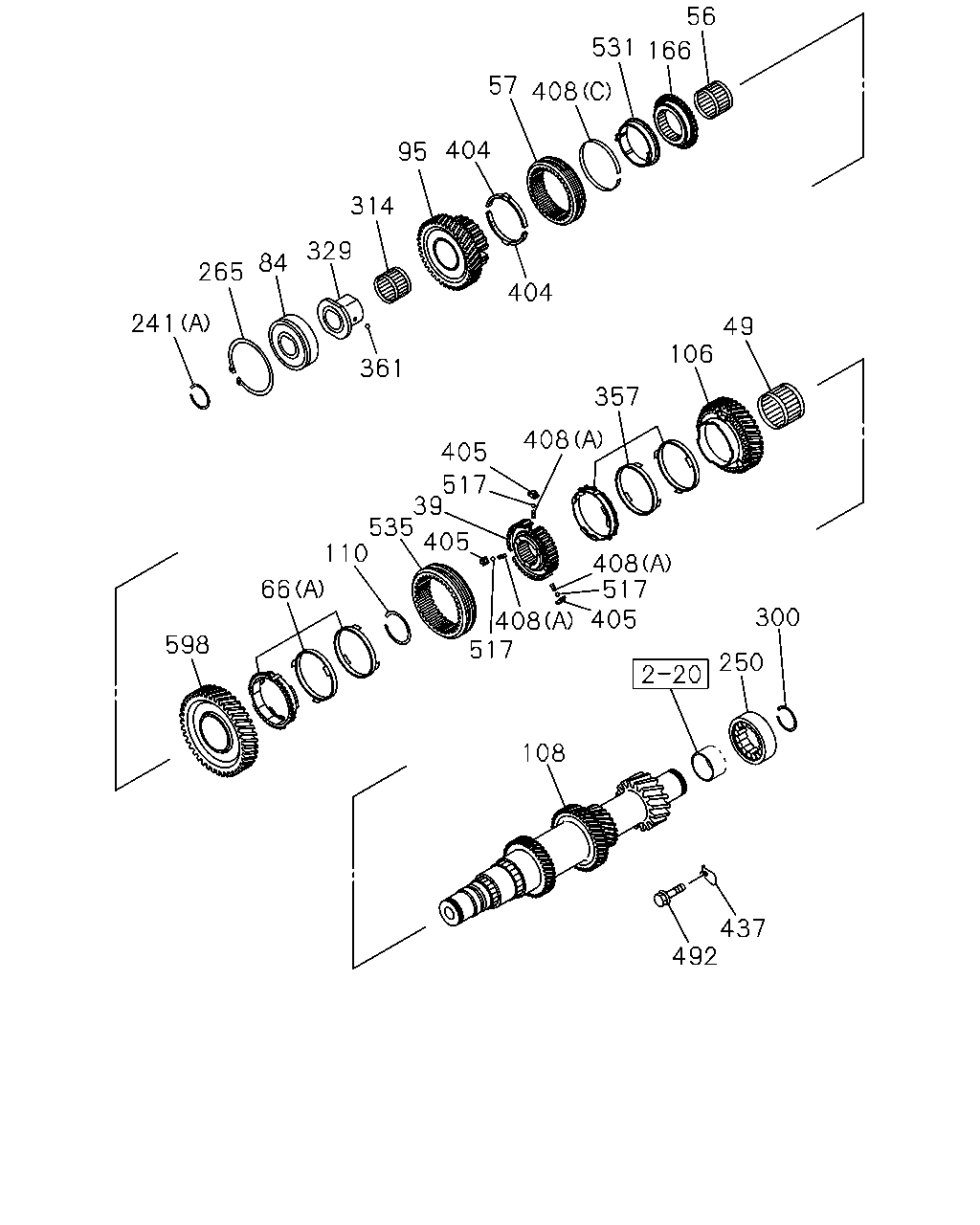

241 265 84 329 314 95 404 57 531 408 166 56 49 106 357 408 405 39 535 110 404 361 598 517 66 405 408 408 405 300 250 437 492 108 517 517

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
39	04.384 HUB; CLU,LOW & 2ND	8-98203-187-0	01	1	1304-	●
49	04.352 BEARING; NEEDLE,2ND GEAR	8-98203-208-0	01	1	1304-	●
56	04.419 BEARING; NEEDLE,1ST,REV	8-98203-207-0	01	1	1304-	●
57	04.419 SLEEVE; REV	8-98203-203-0	01	1	1304-	●
66	04.383 RING; BLOCK,SYN (A)	8-98203-181-0	01	1	1304-	●
66	04.383 RING; BLOCK,SYN (B)	8-98203-194-0	01	1	1304-	●
84	04.422 BEARING; COUNTER SHAFT,FRT	8-98203-206-0	01	1	1304-	●
95	04.417 GEAR; REV,COUNTER	8-98203-243-0	01	1	1304-	●
106	04.395 GEAR; 2ND,COUNTER	8-98203-237-0	01	1	1304-	●
108	04.428 SHAFT; COUNTER	8-98203-235-0	01	1	1304-	●
110	04.422 RING; SNAP,COUNTER BRG	8-98203-219-0	01	1	1304-	●
166	04.435 PIECE; DIST	8-98203-184-0	01	1	1304-	●
241	04.416 RING; SNAP (A)	8-98203-218-0	01	1	1304-	●
241	04.416 RING; SNAP (B)	8-98203-223-0	01	1	1304-	●
250	04.352 BEARING; COUNTER SHAFT RR	8-98203-215-0	01	1	1304-	●
265	04.525 RING; SNAP,BRG OUTER	8-98203-224-0	01	1	1304-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.416	8-98203-218-0	01	1	1304-	●
314	04.419 BEARING; NEEDLE,REV GEAR	8-98203-212-0	01	1	1304-	●
329	04.352 COLLAR; BEARING	8-98203-186-0	01	1	1304-	●
357	04.383 RING	8-98203-182-0	01	1	1304-	●
361	04.419 BALL; LK,THRUST WASHER,REV GEAR 04.345	8-89048-423-0	01	1	1304-	●
404	04.307 PLATE; THRUST	8-98203-202-0	02	1	1304-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-98203-191-0	03	1	1304-	●
408	04.384 SPRING (A)	8-98203-195-0	03	1	1304-	●
408	04.384 SPRING (B)	8-98203-196-0	06	1	1304-	●
408	04.384 SPRING (C)	8-98203-198-0	01	1	1304-	●
437	04.435 PLATE; LOCK	8-98203-107-0	01	1	1304-	●
492	04.435 BOLT; PLATE	8-98203-122-0	01	1	1304-	●
517	04.384 BALL; SYNCHRO,INDEX	8-98203-204-0	09	1	1304-	●
531	04.383 RING; BLOCK,REV	8-98203-197-0	01	1	1304-	●
535	04.395 SLEEVE; HUB,LOW-2ND	8-98203-189-0	01	1	1304-	●
598	04.421 GEAR; 1ST,COUNTER	8-98203-236-0	01	1	1304-	●

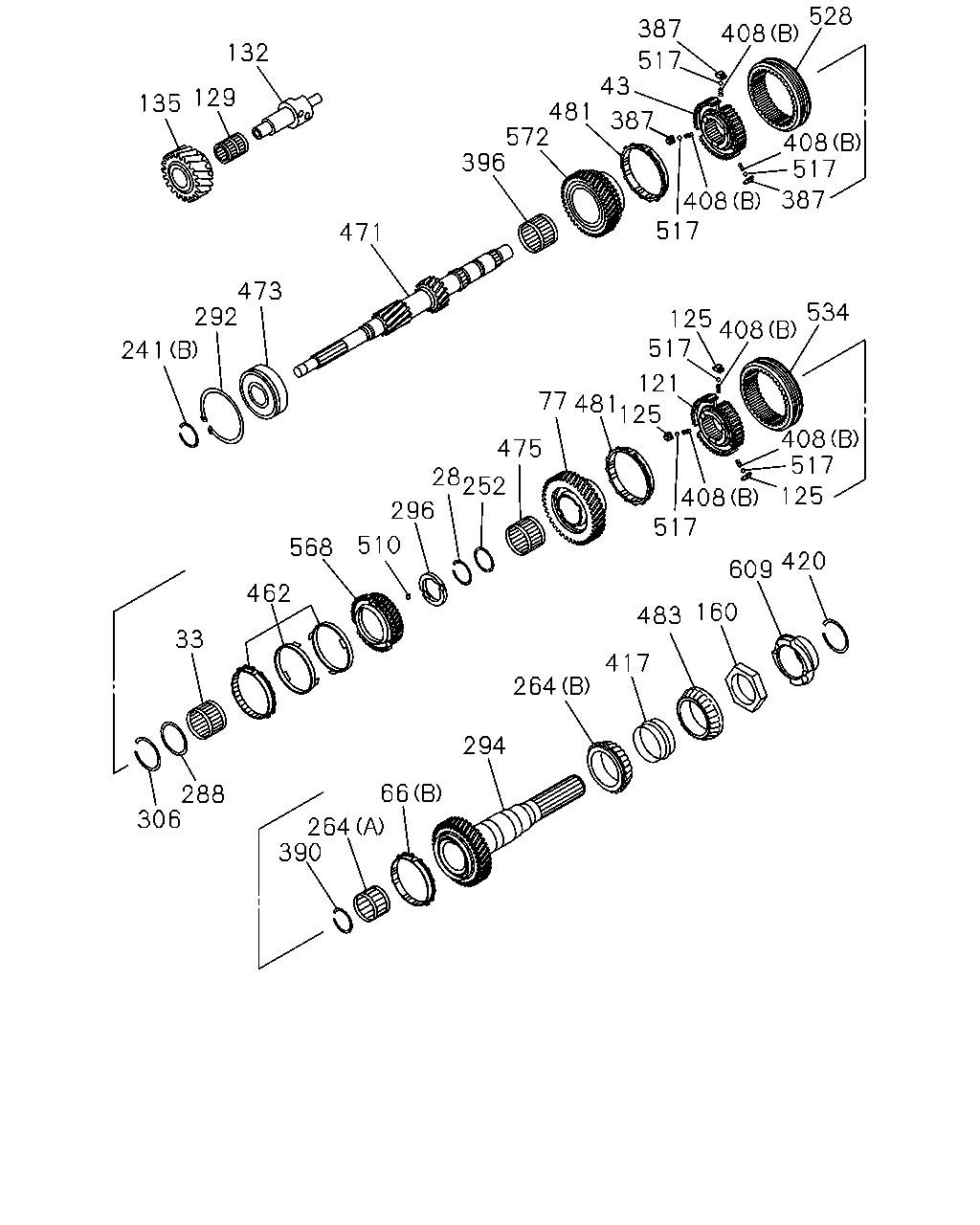

132 129 135 292 241 473 471 396 572 481 43 387 517 387 408 528 408 517 387 408 517 534 408 125 517 121 125 481 77 475 517 408 125 517 408 420 609 160 483 417 264 294 66 264 390 306 288 33 462 568 510 296 28 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
28	04.416 RING; SNAP,3RD GEAR	8-98203-222-0	01	1	1304-	●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-98203-209-0	01	1	1304-	●
43	04.384 HUB; CLU,3RD & 4TH,MAIN	8-98203-188-0	01	1	1304-	●
66	04.383 RING; BLOCK,SYN (A)	8-98203-181-0	01	1	1304-	●
66	04.383 RING; BLOCK,SYN (B)	8-98203-194-0	01	1	1304-	●
77	04.421 GEAR; 6TH,MAINSHAFT	8-98203-231-0	01	1	1304-	●
121	04.384 HUB; CLU,6TH	8-98203-199-0	01	1	1304-	●
125	04.384 INSERT; 6TH SYN	8-98203-192-0	03	1	1304-	●
129	04.431 BEARING; NEEDLE,IDLER	8-98203-213-0	01	1	1304-	●
132	04.433 SHAFT; REV	8-98203-238-0	01	1	1304-	●
135	04.430 GEAR; REV IDLER	8-98203-240-0	01	1	1304-	●
160	04.525 NUT; OUTPUT SHAFT END	8-98203-252-0	01	1	1304-	●
241	04.416 RING; SNAP (A)	8-98203-218-0	01	1	1304-	●
241	04.416 RING; SNAP (B)	8-98203-223-0	01	1	1304-	●
252	04.412 SPACER	8-98203-226-0	01	1	1304-	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT (A)	8-98203-214-0	01	1	1304-	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT (B)	8-98203-216-0	01	1	1304-	●
288	04.399 SPACER; BRG,MAINSHAFT	8-98203-227-0	01	1	1304-	●
292	04.422 RING; SNAP,BRG OUTER	8-98203-225-0	01	1	1304-	●
294	04.530 SHAFT; OUTPUT 4X2(TFB***)	8-98203-233-0	01	1	1304-	●
294	04.530 SHAFT; OUTPUT 4X4(TFS***)	8-98203-232-0	01	1	1304-	●
296	04.406 WASHER; THRUST	8-98203-185-0	01	1	1304-	●
306	04.416 RING; SNAP,MAINSHAFT	8-98203-220-0	01	1	1304-	●
387	04.384 INSERT; SYN,4TH & 3RD	8-98203-192-0	03	1	1304-	●
390	04.383 RING; SNAP,CLU HUB	8-98203-221-0	01	1	1304-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-98203-210-0	01	1	1304-	●
408	04.384 SPRING (A)	8-98203-195-0	03	1	1304-	●
408	04.384 SPRING (B)	8-98203-196-0	06	1	1304-	●
408	04.384 SPRING (C)	8-98203-198-0	01	1	1304-	●
417	04.384 SPACER; OUTPUT SHAFT 4X2(TFB***)	8-98203-255-0	01	1	1304-	●
417	04.384 SPACER; OUTPUT SHAFT 4X4(TFS***)	8-98203-254-0	01	1	1304-	●
420	04.416 RING; SNAP,OUTPUT SHAFT	8-98203-257-0	01	1	1304-	●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER	8-98203-183-0	01	1	1304-	●
471	04.530 SHAFT; INPUT	8-98203-234-0	01	1	1304-	●
473	04.352 BEARING; INPUT SHAFT	8-98203-205-0	01	1	1304-	●
475	04.419 BEARING; 6TH	8-98203-211-0	01	1	1304-	●
481	04.383 RING; BLOCK	8-98203-193-0	02	1	1304-	●
483	04.352 BEARING; TAPER	8-98203-217-0	01	1	1304-	●
510	04.540 PIN; STRAIGHT,ANTI LASH	8-98203-228-0	01	1	1304-	●
517	04.384 BALL; SYNCHRO,INDEX	8-98203-204-0	09	1	1304-	●
528	04.384 SLEEVE; 6TH	8-98203-190-0	01	1	1304-	●
534	04.395 SLEEVE; HUB,4TH-3RD 04.384	8-98203-190-0	01	1	1304-	●
568	04.415 GEAR; 3RD,INPUT SHAFT	8-98203-229-0	01	1	1304-	●
572	04.415 GEAR; 4TH,INPUT	8-98203-230-0	01	1	1304-	●
609	04.384 PIPE; OUTPUT SHAFT 4X2(TFB***)	8-98203-250-0	01	1	1304-	●
609	04.384 PIPE; OUTPUT SHAFT 4X4(TFS***)	8-98203-249-0	01	1	1304-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
