Isuzu WW
▶
PICKUP
▶
TFR
▶
51477 - TFR/TFS(EUROPE)-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#118674) — 51 parça
◀
[141A] NO.2 (25 parça)
[141A] NO.1 (26 parça)
▶

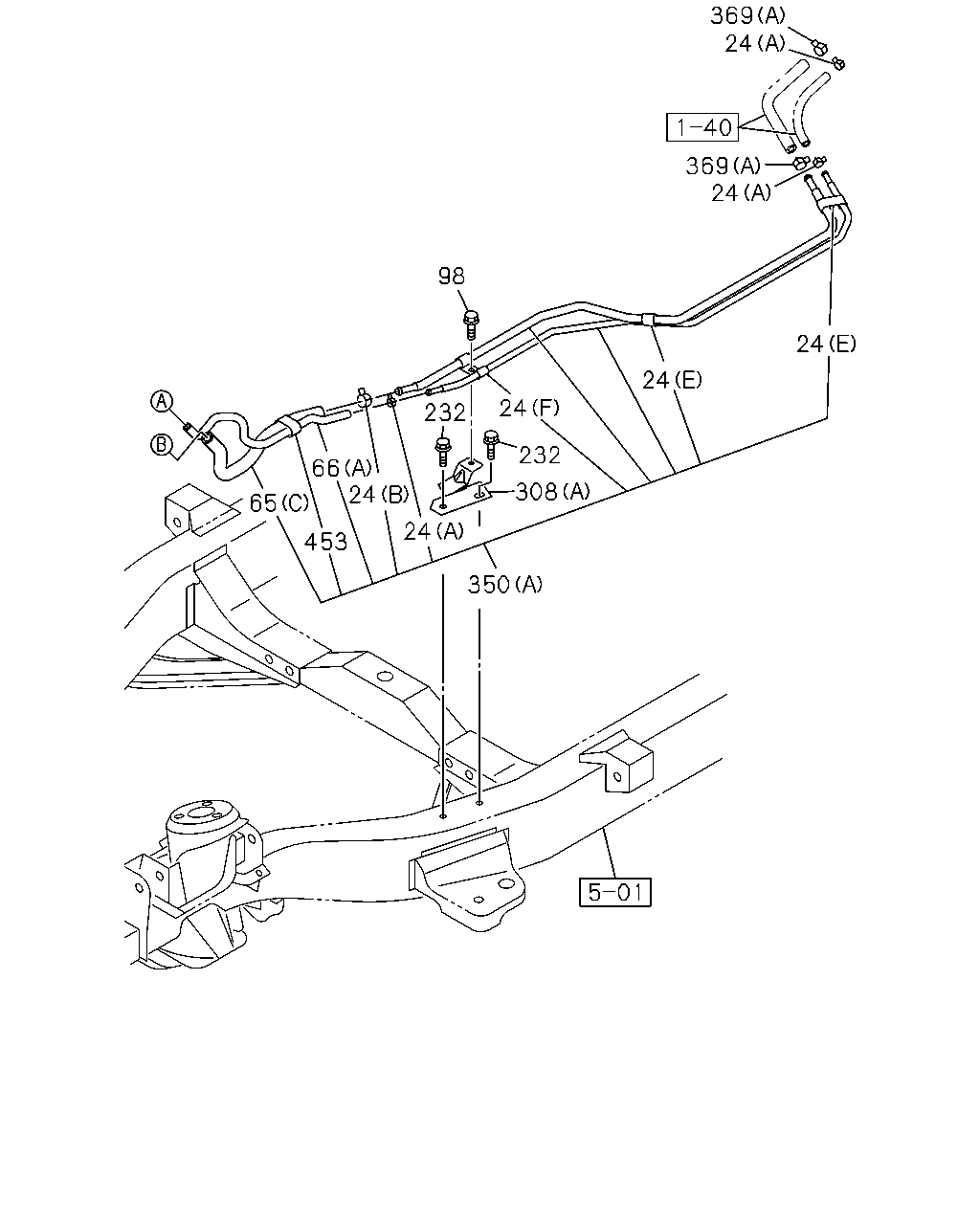

369
24
369
24
24
24
98
65
66
453
24
24
232
308
232
24
350
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
03.162 CLIP; FUEL HOSE
(E)
8-98233-886-0
02
1
1304-
24
03.162 CLIP; FUEL HOSE
(F)
8-98233-887-0
01
1
1304-
24
03.162 CLIP; FUEL HOSE
(D) ID=13
8-98150-357-0
02
1
1304-
24
03.162 CLIP; FUEL HOSE
01.762 (C) ID=16
8-98030-682-0
01
1
1304-
24
03.162 CLIP; FUEL HOSE
03.330 (A) ID=11.5
8-98051-892-0
06
1
1304-
24
03.162 CLIP; FUEL HOSE
03.330 (A) ID=11.5
8-98051-892-0
01
1
1304-
24
03.162 CLIP; FUEL HOSE
03.330 (A) ID=11.5
8-98051-892-0
01
1
1304-
24
03.162 CLIP; FUEL HOSE
03.145 (B) ID=17.2
8-98052-395-0
01
1
1304-
24
03.162 CLIP; FUEL HOSE
03.145 (B) ID=17.2
8-98052-395-0
01
1
1304-
65
03.163 HOSE; FUEL,DELIVERY PIPE
(C)
8-98206-278-0
01
1
1304-
65
03.163 HOSE; FUEL,DELIVERY PIPE
(A)
8-98206-281-1
01
1
1304-
65
03.163 HOSE; FUEL,DELIVERY PIPE
(B)
8-98206-283-1
01
1
1304-
66
03.163 HOSE; FUEL,RETURN PIPE
(B)
8-98206-269-1
01
1
1304-
66
03.163 HOSE; FUEL,RETURN PIPE
(A)
8-98206-279-0
01
1
1304-
98
03.162 BOLT; BRKT,FUEL PIPE
02.343 M6X16 FLANGE
0-28650-616-0
01
1
1304-
232
03.162 BOLT; CLIP,PIPE
06.509 M10X25 FLANGE
0-28061-025-0
02
1
1304-
308
03.162 BRACKET; FUEL PIPE
(B)
8-98233-889-0
01
1
1304-
308
03.162 BRACKET; FUEL PIPE
(C)
8-98233-890-0
01
1
1304-
308
03.162 BRACKET; FUEL PIPE
(A)
8-98128-259-0
01
1
1304-
350
03.163 PIPE; FUEL,DEL & RET
(B)
8-98206-138-1
01
1
1304-
350
03.163 PIPE; FUEL,DEL & RET
(C)
8-98206-146-3
01
1
1304-
350
03.163 PIPE; FUEL,DEL & RET
(A)
8-98206-132-1
01
1
1304-
369
03.162 CLAMP; HOSE,FUEL
01.762 (B) ID=16
8-98030-682-0
01
1
1304-
369
03.162 CLAMP; HOSE,FUEL
03.145 (A) ID=17.2
8-98052-395-0
06
1
1304-
453
03.162 BAND; FLEX HOSE
8-98233-888-0
01
1
1304-
82

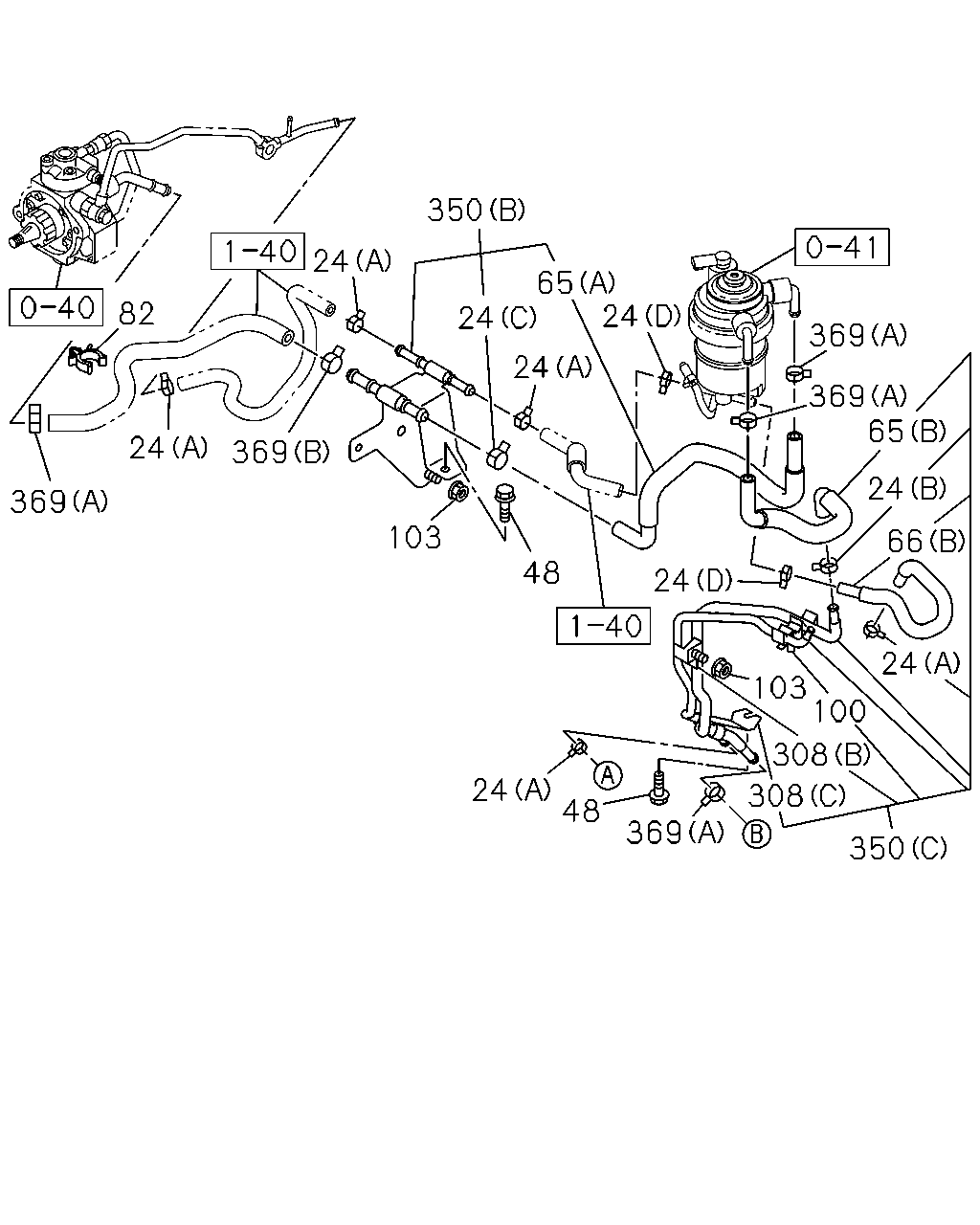

369
24
369
24
350
65
24
103
48
24
24
369
369
24
66
24
350
308
100
103
369
48
24
24
65
308
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
03.162 CLIP; FUEL HOSE
(E)
8-98233-886-0
02
1
1304-
24
03.162 CLIP; FUEL HOSE
(F)
8-98233-887-0
01
1
1304-
24
03.162 CLIP; FUEL HOSE
(D) ID=13
8-98150-357-0
02
1
1304-
24
03.162 CLIP; FUEL HOSE
01.762 (C) ID=16
8-98030-682-0
01
1
1304-
24
03.162 CLIP; FUEL HOSE
03.330 (A) ID=11.5
8-98051-892-0
06
1
1304-
24
03.162 CLIP; FUEL HOSE
03.330 (A) ID=11.5
8-98051-892-0
01
1
1304-
24
03.162 CLIP; FUEL HOSE
03.330 (A) ID=11.5
8-98051-892-0
01
1
1304-
24
03.162 CLIP; FUEL HOSE
03.145 (B) ID=17.2
8-98052-395-0
01
1
1304-
24
03.162 CLIP; FUEL HOSE
03.145 (B) ID=17.2
8-98052-395-0
01
1
1304-
48
03.162 BOLT; BRKT
02.343 M6X16 FLANGE
0-28650-616-0
02
1
1304-
65
03.163 HOSE; FUEL,DELIVERY PIPE
(C)
8-98206-278-0
01
1
1304-
65
03.163 HOSE; FUEL,DELIVERY PIPE
(A)
8-98206-281-1
01
1
1304-
65
03.163 HOSE; FUEL,DELIVERY PIPE
(B)
8-98206-283-1
01
1
1304-
66
03.163 HOSE; FUEL,RETURN PIPE
(B)
8-98206-269-1
01
1
1304-
66
03.163 HOSE; FUEL,RETURN PIPE
(A)
8-98206-279-0
01
1
1304-
82
03.163 CLIP; FUEL HOSE
06.672 ID=17
8-94382-792-1
01
1
1304-
100
03.162 CLIP; FUEL PIPE
8-98113-581-0
01
1
1304-
103
03.130 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
02
1
1304-
308
03.162 BRACKET; FUEL PIPE
(B)
8-98233-889-0
01
1
1304-
308
03.162 BRACKET; FUEL PIPE
(C)
8-98233-890-0
01
1
1304-
308
03.162 BRACKET; FUEL PIPE
(A)
8-98128-259-0
01
1
1304-
350
03.163 PIPE; FUEL,DEL & RET
(B)
8-98206-138-1
01
1
1304-
350
03.163 PIPE; FUEL,DEL & RET
(C)
8-98206-146-3
01
1
1304-
350
03.163 PIPE; FUEL,DEL & RET
(A)
8-98206-132-1
01
1
1304-
369
03.162 CLAMP; HOSE,FUEL
01.762 (B) ID=16
8-98030-682-0
01
1
1304-
369
03.162 CLAMP; HOSE,FUEL
03.145 (A) ID=17.2
8-98052-395-0
06
1
1304-
