Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#118669) — 212 parça

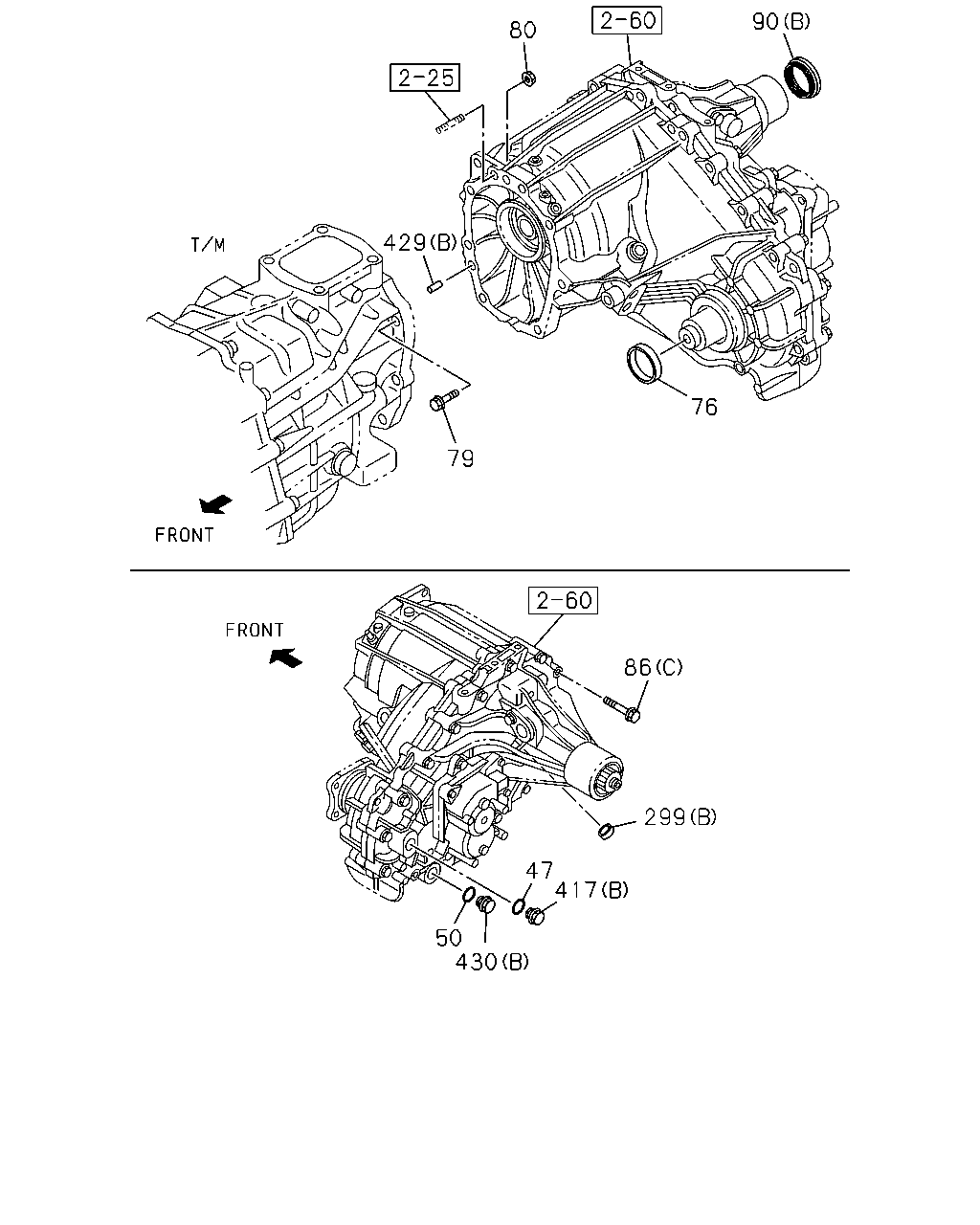

90 80 76 79 429 86 299 47 417 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1304-1304	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 04.105 ID=17	8-97115-712-0	01	1	1304-1304		●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1304-1306	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.105 ID=17	8-97115-712-0	01	1	1304-1306		●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1307-	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 04.105 ID=17	8-97115-712-0	01	1	1307-		●
50	04.105 GASKET; DRAIN PLUG 4X4(TFS***) ID=17	8-97115-712-0	01	1	1304-1304	●
50	04.105 GASKET; DRAIN PLUG ID=17	8-97115-712-0	01	1	1304-1304		●
50	04.105 GASKET; DRAIN PLUG 4X4(TFS***) ID=17	8-97115-712-0	01	1	1304-1306	●
50	04.105 GASKET; DRAIN PLUG EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1304-1306		●
50	04.105 GASKET; DRAIN PLUG 4X4(TFS***) ID=17	8-97115-712-0	01	1	1307-	●
50	04.105 GASKET; DRAIN PLUG ID=17	8-97115-712-0	01	1	1307-		●
76	04.510 SEAL; OIL,TRANSFER CASE 4X4(TFS***) NOK	8-97238-999-0	01	1	1304-1304	●
76	04.510 SEAL; OIL,TRANSFER CASE NOK	8-97238-999-0	01	1	1304-1304		●
76	04.510 SEAL; OIL,TRANSFER CASE 4X4(TFS***) NOK	8-97238-999-0	01	1	1304-1306	●
76	04.510 SEAL; OIL,TRANSFER CASE EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97238-999-0	01	1	1304-1306		●
76	04.510 SEAL; OIL,TRANSFER CASE 4X4(TFS***) NOK	8-97238-999-0	01	1	1307-	●
76	04.510 SEAL; OIL,TRANSFER CASE NOK	8-97238-999-0	01	1	1307-		●
79	04.510 BOLT; TRANSFER CASE 00.685 M10X45 FLANGE	0-28051-045-0	07	1	1304-		●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1304-	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1304-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A)	8-98203-180-0	08	1	1304-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) (B)	8-98203-112-0	04	1	1304-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1304-1304	●
86	04.317 BOLT; RR COVER 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1304-1304		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306	●
86	04.317 BOLT; RR COVER EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1307-	●
86	04.317 BOLT; RR COVER 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1307-		●
90	04.318 SEAL; OIL,RR COVER (A)	8-98203-102-0	01	1	1304-	●
90	04.318 SEAL; OIL,RR COVER 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1304-1304	●
90	04.318 SEAL; OIL,RR COVER (B) NOK	8-97046-705-3	01	1	1304-1304		●
90	04.318 SEAL; OIL,RR COVER 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1304-1306	●
90	04.318 SEAL; OIL,RR COVER EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1307-	●
90	04.318 SEAL; OIL,RR COVER (B) NOK	8-97046-705-3	01	1	1307-		●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1304-	●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1304	●
299	04.317 PLUG; SHIFTER ROD 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1304		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1306	●
299	04.317 PLUG; SHIFTER ROD EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1306		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1307-	●
299	04.317 PLUG; SHIFTER ROD 00.034 (B) OD=15.6	8-94173-641-0	02	1	1307-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (A)	8-98203-118-0	02	1	1304-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-98203-118-0	01	1	1304-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	1304-1304	●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	1304-1304		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	1304-1306	●
417	04.105 PLUG; OIL FILLER,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97365-373-0	01	1	1304-1306		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	1307-	●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	1307-		●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (A)	8-98203-096-0	04	1	1304-	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (A)	8-98203-096-0	02	1	1304-	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1304-	●
429	04.105 PIN; STRAIGHT 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1304-		●
430	04.105 PLUG; OIL DRAIN (A)	8-97164-953-0	01	1	1304-	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	1304-1304	●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	1304-1304		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	1304-1306	●
430	04.105 PLUG; OIL DRAIN EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97365-374-0	01	1	1304-1306		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	1307-	●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	1307-		●

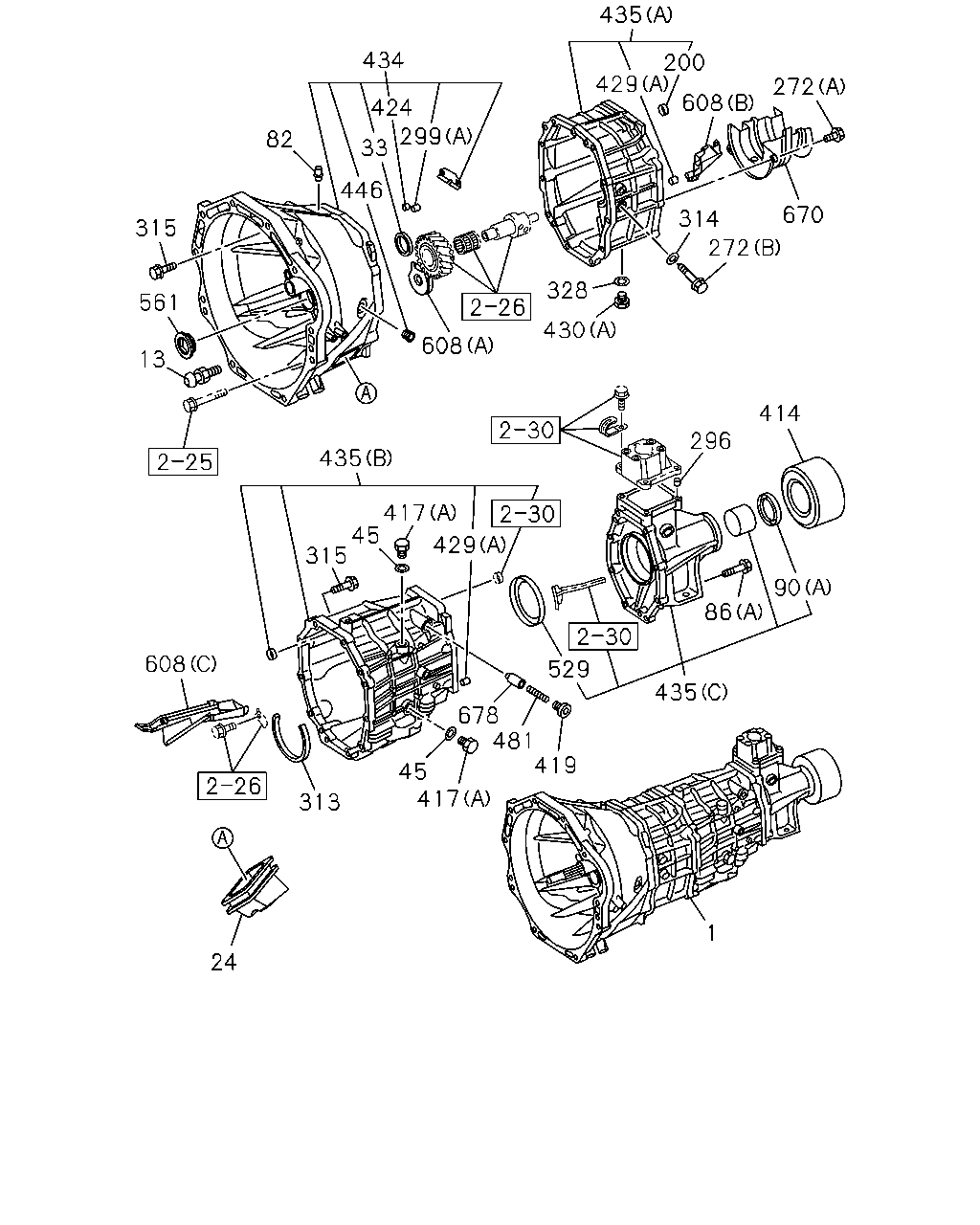

315 561 13 608 24 313 315 45 435 417 429 45 417 481 678 419 435 1 529 86 296 82 446 33 424 434 299 608 430 328 90 414 314 670 272 608 429 200 435 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-98147-061-2	01	1	1304-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98147-062-3	01	1	1304-	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1304-	●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1304-	●
33	04.318 SEAL; OIL,FRT COVER,T/M	8-98203-098-0	01	1	1304-	●
45	04.105 GASKET; FILLER PLUG 4X2(TFB***)	8-97164-900-0	02	1	1304-	●
45	04.105 GASKET; FILLER PLUG 4X4(TFS***)	8-97164-900-0	01	1	1304-	●
82	04.105 PLUG; SCREW,CASE	8-98203-115-0	01	1	1304-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A)	8-98203-180-0	08	1	1304-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) (B)	8-98203-112-0	04	1	1304-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1304-1304	●
86	04.317 BOLT; RR COVER 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1304-1304		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306	●
86	04.317 BOLT; RR COVER EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1307-	●
86	04.317 BOLT; RR COVER 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1307-		●
90	04.318 SEAL; OIL,RR COVER (A)	8-98203-102-0	01	1	1304-	●
90	04.318 SEAL; OIL,RR COVER 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1304-1304	●
90	04.318 SEAL; OIL,RR COVER (B) NOK	8-97046-705-3	01	1	1304-1304		●
90	04.318 SEAL; OIL,RR COVER 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1304-1306	●
90	04.318 SEAL; OIL,RR COVER EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1307-	●
90	04.318 SEAL; OIL,RR COVER (B) NOK	8-97046-705-3	01	1	1307-		●
200	04.317 BUSHING; SHIFT FORK SHAFT	8-89048-304-0	01	1	1304-	●
272	00.683 BOLT (A)	8-89048-559-0	02	1	1304-	●
272	00.683 BOLT (B)	8-98203-117-0	01	1	1304-	●
296	04.510 PIN; QUAD BOX TO CASE	8-98203-099-0	02	1	1304-	●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1304-	●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1304	●
299	04.317 PLUG; SHIFTER ROD 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1304		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1306	●
299	04.317 PLUG; SHIFTER ROD EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1306		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1307-	●
299	04.317 PLUG; SHIFTER ROD 00.034 (B) OD=15.6	8-94173-641-0	02	1	1307-		●
313	04.318 SEAL; OIL	8-98203-113-0	01	1	1304-	●
314	04.318 GASKET; CASE	8-98203-119-0	01	1	1304-	●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1304-	●
328	04.105 GASKET; PLUG	8-97164-900-0	01	1	1304-	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98203-251-0	01	1	1304-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (A)	8-98203-118-0	02	1	1304-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-98203-118-0	01	1	1304-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	1304-1304	●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	1304-1304		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	1304-1306	●
417	04.105 PLUG; OIL FILLER,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97365-373-0	01	1	1304-1306		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	1307-	●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	1307-		●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1304-	●
424	04.384 RING; INSERT 04.510	8-98203-099-0	02	1	1304-	●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (A)	8-98203-096-0	04	1	1304-	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (A)	8-98203-096-0	02	1	1304-	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1304-	●
429	04.105 PIN; STRAIGHT 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1304-		●
430	04.105 PLUG; OIL DRAIN (A)	8-97164-953-0	01	1	1304-	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	1304-1304	●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	1304-1304		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	1304-1306	●
430	04.105 PLUG; OIL DRAIN EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97365-374-0	01	1	1304-1306		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	1307-	●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	1307-		●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X2(TFB***) (B)	8-98203-111-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X2(TFB***) (C)	8-98203-177-0	01	1	1304-	●
435	04.103 CASE; TRANS (A)	8-98203-088-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X4(TFS***) (E)	8-98203-101-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X4(TFS***) (D)	8-98203-108-0	01	1	1304-	●
446	04.105 PLUG; CASE,TRANS 4X2(TFB***)	8-98203-100-0	01	1	1304-	●
446	04.105 PLUG; CASE,TRANS 4X4(TFS***)	8-98203-100-0	02	1	1304-	●
481	04.317 SPRING; SHIFTER ROD,OIL PUMP	8-98203-169-0	01	1	1304-	●
529	04.083 BRACKET; MISSION CASE 4X2(TFB***)	8-98203-179-0	01	1	1304-	●
561	04.104 PLUG	8-98203-114-0	01	1	1304-	●
608	04.317 GUTTER; OIL (A)	8-98203-103-0	01	1	1304-	●
608	04.317 GUTTER; OIL (B)	8-98203-104-0	01	1	1304-	●
608	04.317 GUTTER; OIL (C)	8-98203-105-0	01	1	1304-	●
670	04.457 BAFFLE	8-98203-106-0	01	1	1304-	●
678	04.317 PIN	8-98203-165-0	01	1	1304-	●

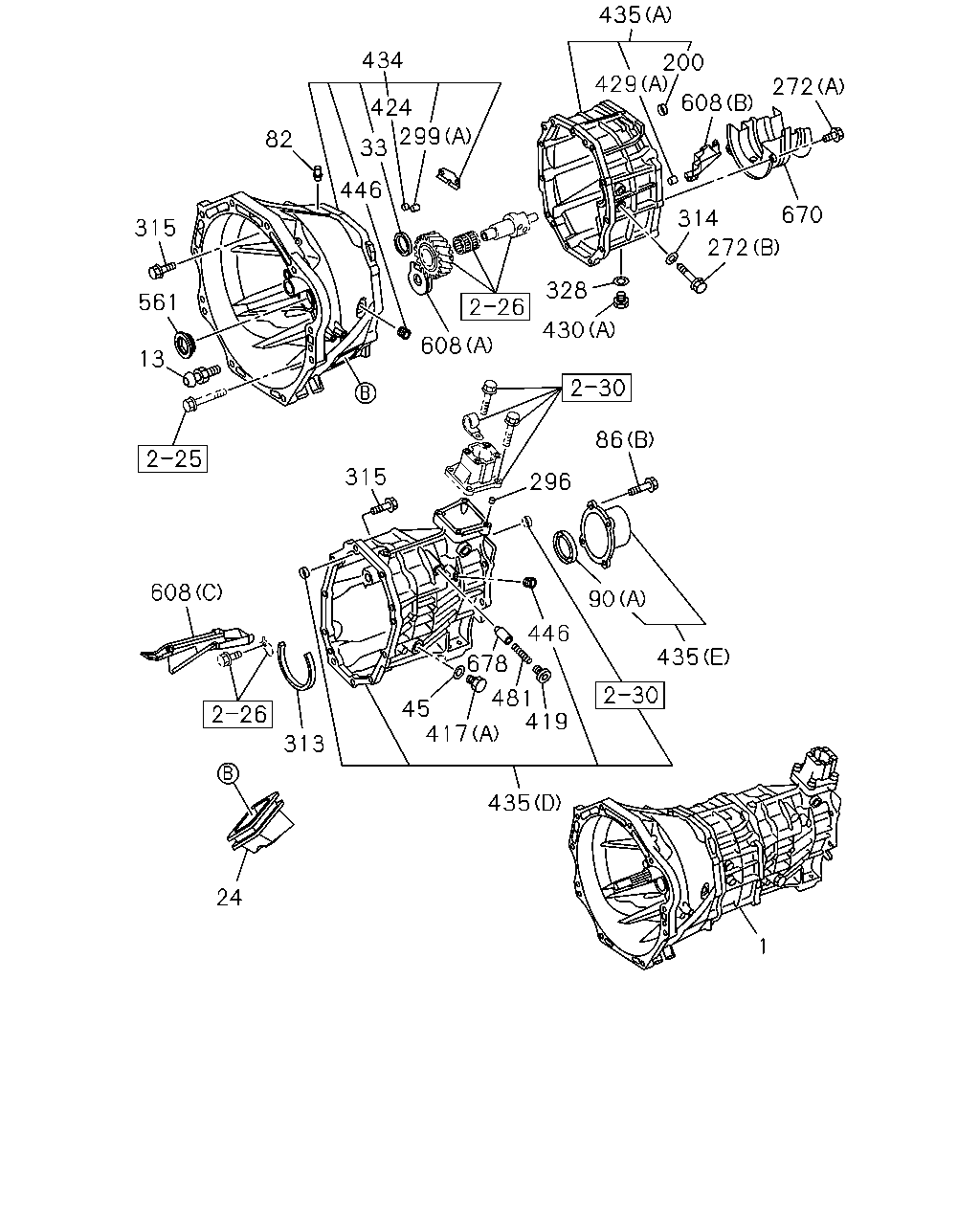

435 419 435 417 45 313 24 608 315 608 430 328 272 314 670 272 608 429 200 435 434 424 299 446 82 315 561 13 86 296 90 446 678 481 1 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-98147-061-2	01	1	1304-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98147-062-3	01	1	1304-	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1304-	●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1304-	●
33	04.318 SEAL; OIL,FRT COVER,T/M	8-98203-098-0	01	1	1304-	●
45	04.105 GASKET; FILLER PLUG 4X2(TFB***)	8-97164-900-0	02	1	1304-	●
45	04.105 GASKET; FILLER PLUG 4X4(TFS***)	8-97164-900-0	01	1	1304-	●
82	04.105 PLUG; SCREW,CASE	8-98203-115-0	01	1	1304-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) (A)	8-98203-180-0	08	1	1304-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) (B)	8-98203-112-0	04	1	1304-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1304-1304	●
86	04.317 BOLT; RR COVER 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1304-1304		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306	●
86	04.317 BOLT; RR COVER EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1307-	●
86	04.317 BOLT; RR COVER 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1307-		●
90	04.318 SEAL; OIL,RR COVER (A)	8-98203-102-0	01	1	1304-	●
90	04.318 SEAL; OIL,RR COVER 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1304-1304	●
90	04.318 SEAL; OIL,RR COVER (B) NOK	8-97046-705-3	01	1	1304-1304		●
90	04.318 SEAL; OIL,RR COVER 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1304-1306	●
90	04.318 SEAL; OIL,RR COVER EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1307-	●
90	04.318 SEAL; OIL,RR COVER (B) NOK	8-97046-705-3	01	1	1307-		●
200	04.317 BUSHING; SHIFT FORK SHAFT	8-89048-304-0	01	1	1304-	●
272	00.683 BOLT (A)	8-89048-559-0	02	1	1304-	●
272	00.683 BOLT (B)	8-98203-117-0	01	1	1304-	●
296	04.510 PIN; QUAD BOX TO CASE	8-98203-099-0	02	1	1304-	●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1304-	●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1304	●
299	04.317 PLUG; SHIFTER ROD 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1304		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1306	●
299	04.317 PLUG; SHIFTER ROD EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1306		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1307-	●
299	04.317 PLUG; SHIFTER ROD 00.034 (B) OD=15.6	8-94173-641-0	02	1	1307-		●
313	04.318 SEAL; OIL	8-98203-113-0	01	1	1304-	●
314	04.318 GASKET; CASE	8-98203-119-0	01	1	1304-	●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1304-	●
328	04.105 GASKET; PLUG	8-97164-900-0	01	1	1304-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (A)	8-98203-118-0	02	1	1304-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-98203-118-0	01	1	1304-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	1304-1304	●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	1304-1304		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	1304-1306	●
417	04.105 PLUG; OIL FILLER,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97365-373-0	01	1	1304-1306		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	1307-	●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	1307-		●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1304-	●
424	04.384 RING; INSERT 04.510	8-98203-099-0	02	1	1304-	●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (A)	8-98203-096-0	04	1	1304-	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (A)	8-98203-096-0	02	1	1304-	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1304-	●
429	04.105 PIN; STRAIGHT 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1304-		●
430	04.105 PLUG; OIL DRAIN (A)	8-97164-953-0	01	1	1304-	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	1304-1304	●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	1304-1304		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	1304-1306	●
430	04.105 PLUG; OIL DRAIN EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97365-374-0	01	1	1304-1306		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	1307-	●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	1307-		●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X2(TFB***) (B)	8-98203-111-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X2(TFB***) (C)	8-98203-177-0	01	1	1304-	●
435	04.103 CASE; TRANS (A)	8-98203-088-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X4(TFS***) (E)	8-98203-101-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X4(TFS***) (D)	8-98203-108-0	01	1	1304-	●
446	04.105 PLUG; CASE,TRANS 4X2(TFB***)	8-98203-100-0	01	1	1304-	●
446	04.105 PLUG; CASE,TRANS 4X4(TFS***)	8-98203-100-0	02	1	1304-	●
481	04.317 SPRING; SHIFTER ROD,OIL PUMP	8-98203-169-0	01	1	1304-	●
561	04.104 PLUG	8-98203-114-0	01	1	1304-	●
608	04.317 GUTTER; OIL (A)	8-98203-103-0	01	1	1304-	●
608	04.317 GUTTER; OIL (B)	8-98203-104-0	01	1	1304-	●
608	04.317 GUTTER; OIL (C)	8-98203-105-0	01	1	1304-	●
670	04.457 BAFFLE	8-98203-106-0	01	1	1304-	●
678	04.317 PIN	8-98203-165-0	01	1	1304-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
