6-30 — FRONT DOOR AND HINGE (#118667) — 63 parça

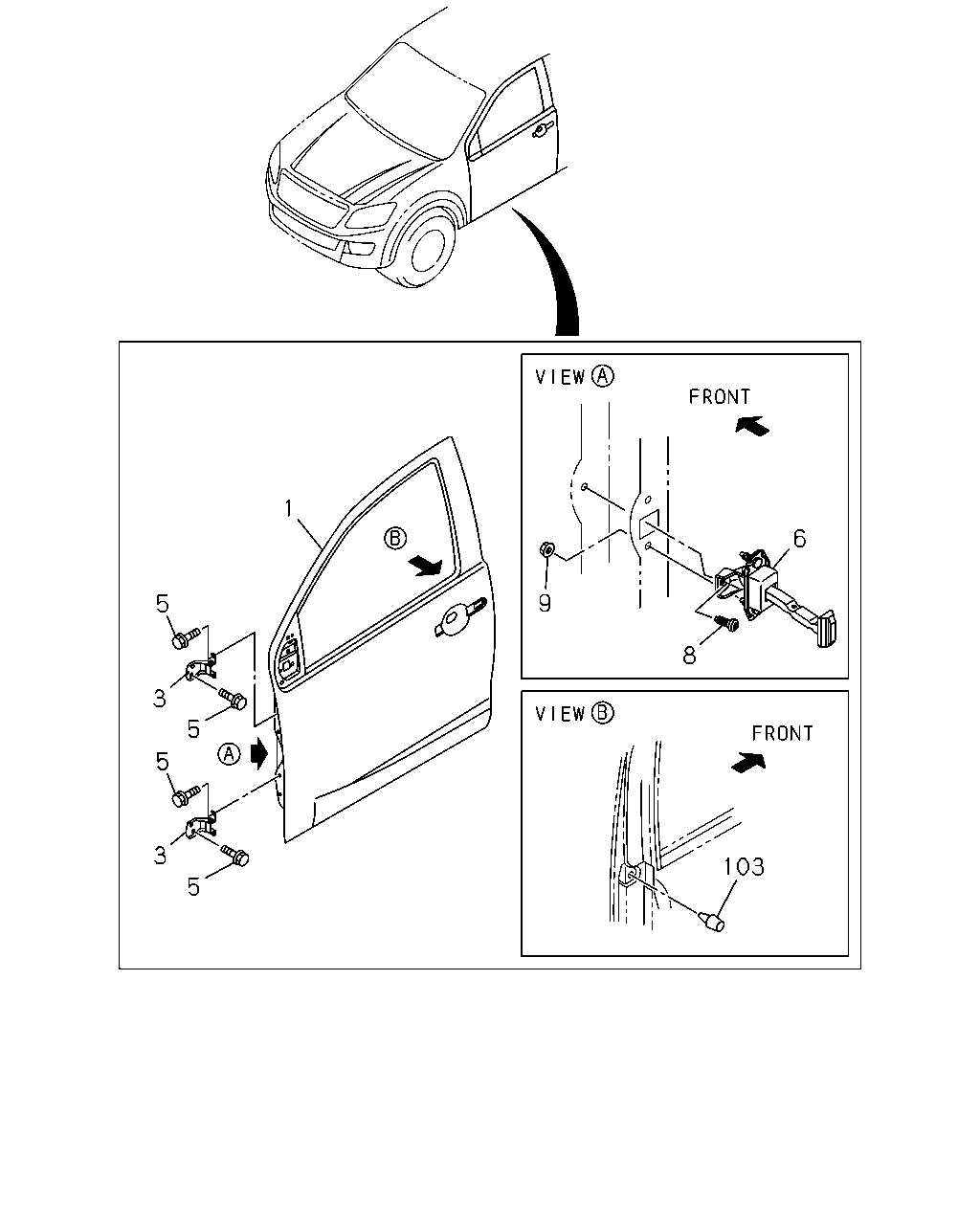

çizim 343825
6 8 9 103 1 5 3 5 5 3 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.150 DOOR ASM; FRT,WO/TRIM
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98120-693-4 01 1 1304-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98268-837-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98120-694-4 01 1 1304-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98268-836-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98162-202-2 01 1 1304-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98268-843-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98162-203-2 01 1 1304-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98268-842-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> 		8-98108-131-4 01 1 1304-1312 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC H EATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98108-131-4 01 1 1401-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC H EATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98268-839-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> 		8-98108-132-4 01 1 1304-1312 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC H EATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98108-132-4 01 1 1401-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC H EATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98268-838-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) DOOR MIRROR<RT9> 		8-98108-129-4 01 1 1304-1312 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) DOOR MIRROR<RT9> 		8-98108-129-4 01 1 1401-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) DOOR MIRROR<RT9> 		8-98268-841-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) DOOR MIRROR<RT9> 		8-98108-130-4 01 1 1304-1312 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) DOOR MIRROR<RT9> 		8-98108-130-4 01 1 1401-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) DOOR MIRROR<RT9> 		8-98268-840-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-200-2 01 1 1304-1312 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98162-200-2 01 1 1304-1312 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98162-200-2 01 1 1401-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98162-200-2 01 1 1401-1503 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98268-845-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98268-845-0 01 1 1504- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-201-2 01 1 1304-1312 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98162-201-2 01 1 1304-1312 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98162-201-2 01 1 1401-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98162-201-2 01 1 1401-1503 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98268-844-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98268-844-0 01 1 1504- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-198-2 01 1 1304-1312 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98162-198-2 01 1 1304-1312 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98162-198-2 01 1 1401-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98162-198-2 01 1 1401-1503 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98268-847-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98268-847-0 01 1 1504- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-199-2 01 1 1304-1312 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98162-199-2 01 1 1304-1312 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98162-199-2 01 1 1401-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98162-199-2 01 1 1401-1503 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98268-846-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98268-846-0 01 1 1504- ●
3 16.320 HINGE; DOOR FRT
UPR RH & LWR LH 		8-98105-296-0 02 1 1304-1312 ● ●
3 16.320 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,DOOR MIRROR<RT9> UPR RH & LWR LH 		8-98105-296-0 02 1 1304-1312 ● ●
3 16.320 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIRROR<RT9> UPR RH & LWR LH 		8-98105-296-0 02 1 1304-1312 ●
3 16.320 HINGE; DOOR FRT 8-98105-296-0 02 1 1401- ● ●
3 16.320 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,DOO R MIRROR<RT9> 		8-98105-296-0 02 1 1401- ● ●
3 16.320 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIRROR<RT9> 		8-98105-296-0 02 1 1401- ●
3 16.320 HINGE; DOOR FRT
LWR RH & UPR LH 		8-98105-297-0 02 1 1304-1312 ● ●
3 16.320 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,DOOR MIRROR<RT9> LWR RH & UPR LH 		8-98105-297-0 02 1 1304-1312 ● ●
3 16.320 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIRROR<RT9> LWR RH & UPR LH 		8-98105-297-0 02 1 1304-1312 ●
3 16.320 HINGE; DOOR FRT 8-98105-297-0 02 1 1401- ● ●
3 16.320 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>,DOO R MIRROR<RT9> 		8-98105-297-0 02 1 1401- ● ●
3 16.320 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIRROR<RT9> 		8-98105-297-0 02 1 1401- ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1304- ● ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1304- ● ● ● ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-98103-030-5 02 1 1304- ● ● ● ● ●
8 16.320 BOLT; CHECK ARM
M8X23 		8-98166-694-0 02 1 1304- ● ● ● ● ●
9 16.320 NUT; CHECK ARM
M6 FLANGE 		8-98049-362-0 04 1 1304- ● ● ● ● ●
103 16.165 PROTECTOR; FRT DOOR 8-98202-864-0 04 1 1304- ● ● ● ● ●

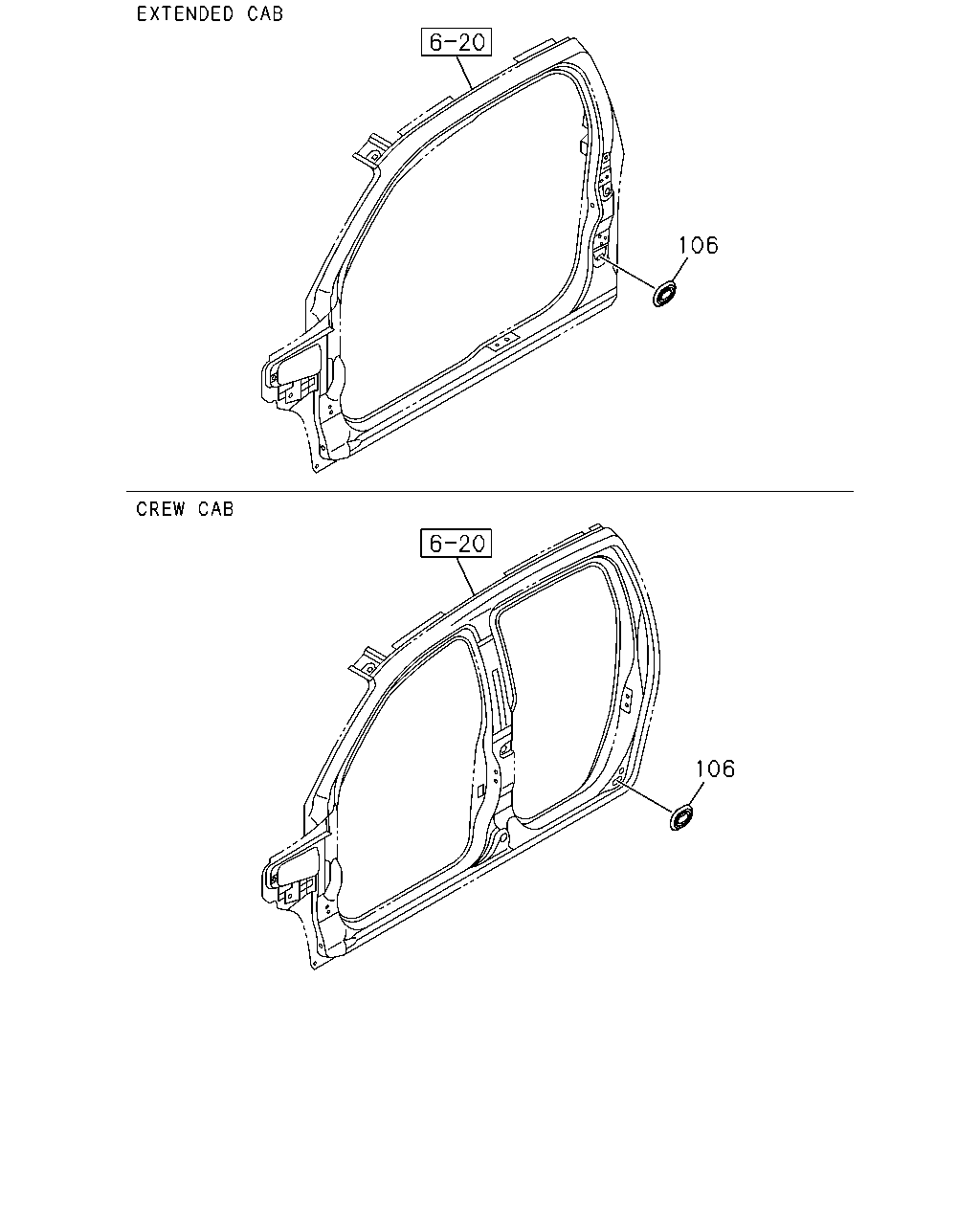

çizim 345451
106 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E
106 16.165 GROMMET; PROTECTOR
16.570 		8-94279-724-0 02 1 1304- ● ● ●
