5-01 — FRAME AND OTHER PARTS (#118664) — 128 parça

70 148 86 148 72 72 79 57 70 21 21 19 148 2 148

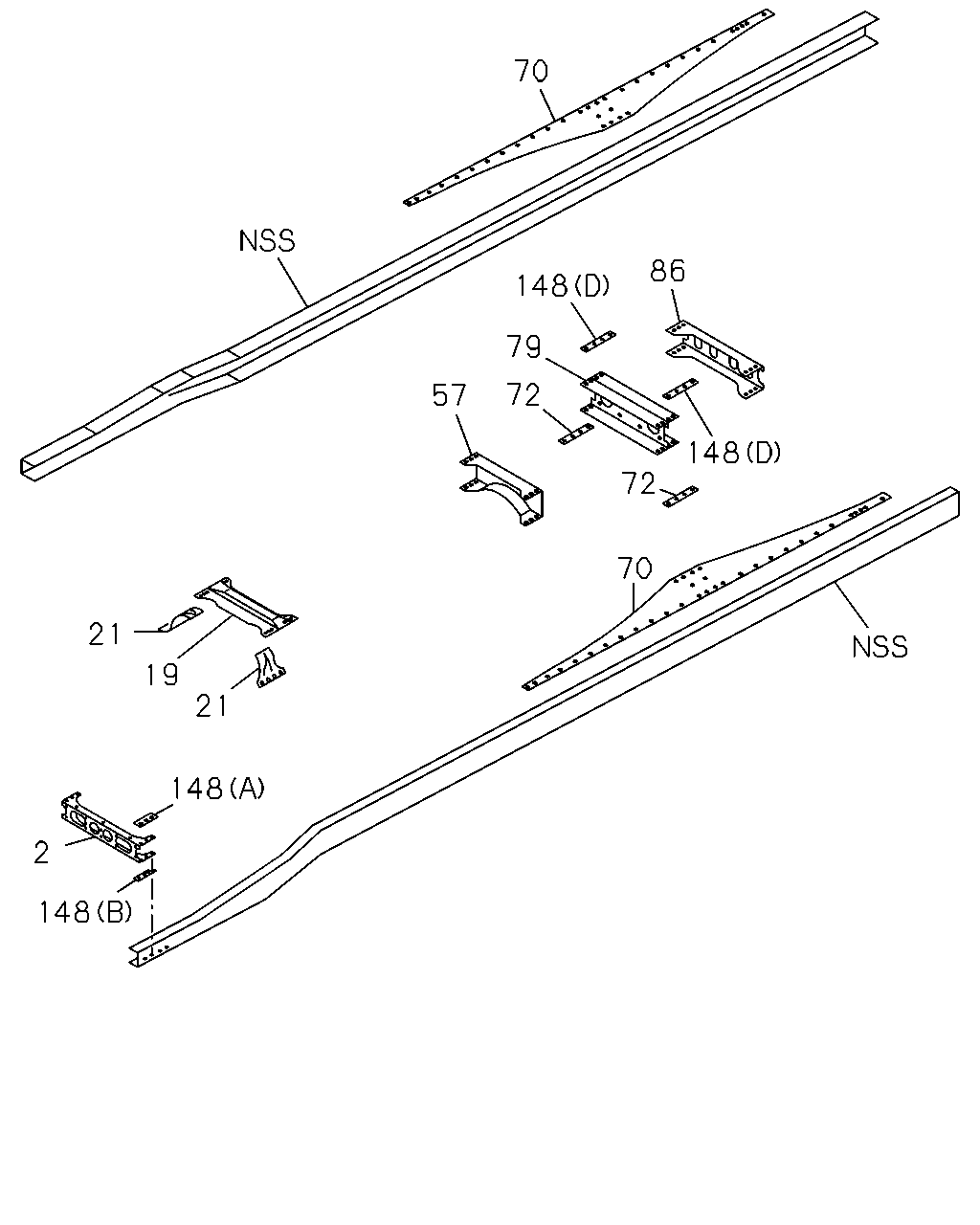

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1302-	●	●	●
19	MEMBER; CROSS,2ND FXZ<FG****>	1-53174-231-1	01	1	1302-	●
19	MEMBER; CROSS,2ND GXZ<GG****>	8-98187-273-0	01	1	1302-	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1302-		●	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-226-1	01	1	1302-	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-227-1	01	1	1302-	●
21	GUSSET; 2ND CROSS GXZ<GG****>	8-98098-306-0	02	1	1302-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1302-		●	●
57	MEMBER; CROSS,RR SUSP FRT THA	1-53181-994-1	01	1	1302-		●	●
70	GUSSET; TRUNNION,UPR FXZ<FG****>	1-53161-477-0	02	1	1302-	●
70	GUSSET; TRUNNION,UPR	1-53161-478-0	02	1	1302-		●
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	1302-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM FXZ<FG****> THA	1-53181-923-0	01	1	1302-	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****>	1-53181-729-6	01	1	1302-	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1302-		●	●
86	MEMBER; CROSS,RR SUSP RR FXZ<FG****>	8-98105-054-0	01	1	1302-	●
86	MEMBER; CROSS,RR SUSP RR GXZ<GG****>	8-97623-323-0	01	1	1302-	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-757-3	01	1	1302-		●	●
148	SPACER; C/MBR GXZ<GG****> (C) THA	1-53168-100-0	02	1	1302-	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1302-	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1302-	●	●	●
148	SPACER; C/MBR (D)	8-97623-199-0	02	1	1302-		●

84 82 82 84 79 84 84 80 81 81 82 81 82 80 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
79	MEMBER; CROSS,TRUNNION ASM FXZ<FG****> THA	1-53181-923-0	01	1	1302-	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****>	1-53181-729-6	01	1	1302-	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1302-		●	●

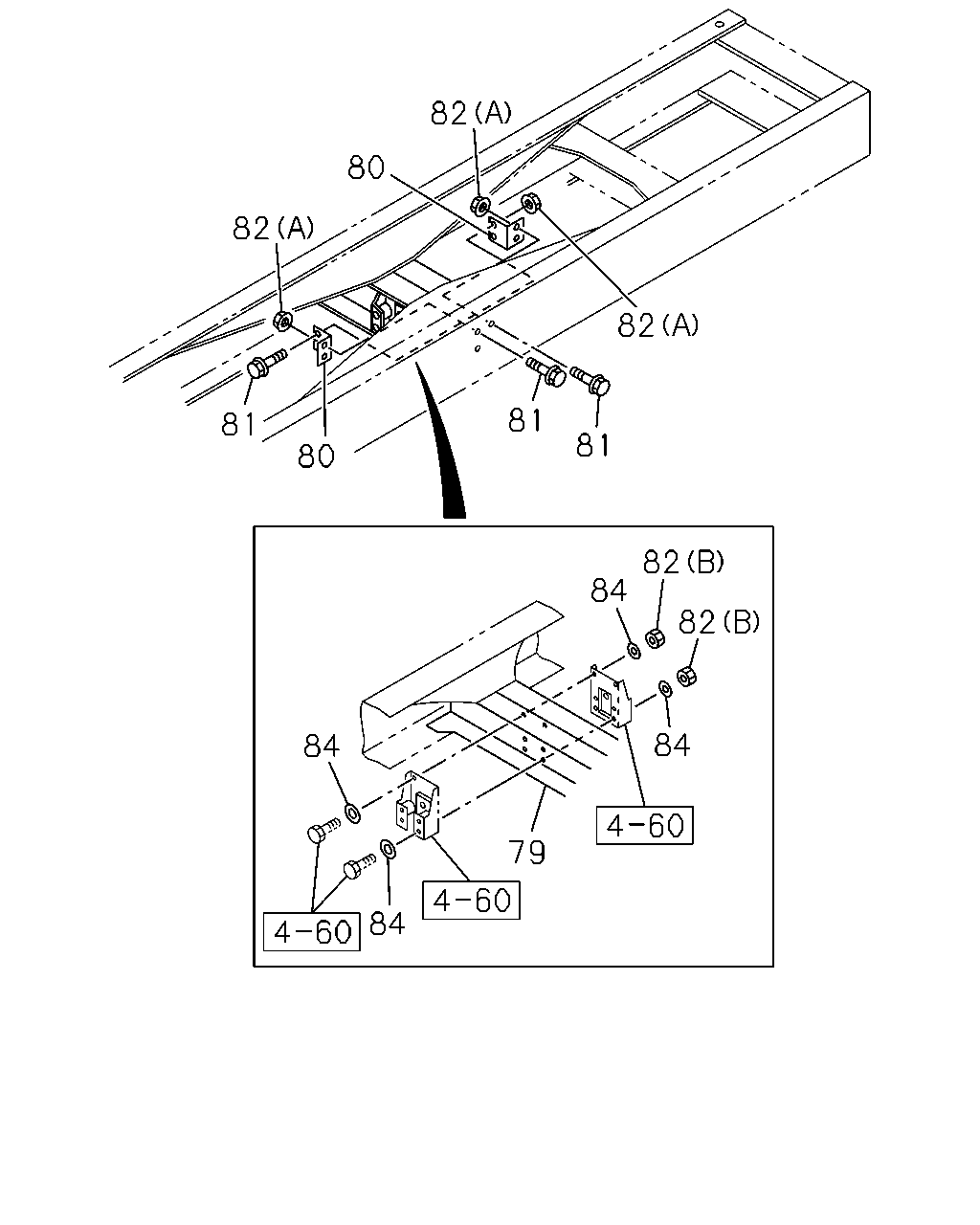

80	BRACKET; C/MBR THA	1-53167-610-0	04	1	1302-	●
81	BOLT; BRKT M14X35 FLANGE	0-28861-435-0	08	1	1302-	●
81	BOLT; BRKT M14X50 FLANGE	0-28861-450-0	04	1	1302-	●
82	NUT; BRKT (A) M14 FLANGE THA	0-91180-214-0	12	1	1302-	●
82	NUT; BRKT (B) M14 THA	0-91110-514-0	04	1	1302-	●	●	●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1302-	●	●	●

131 254 132 86 130 79 72 72 57 34 41 41 21 19 21 148 2 148

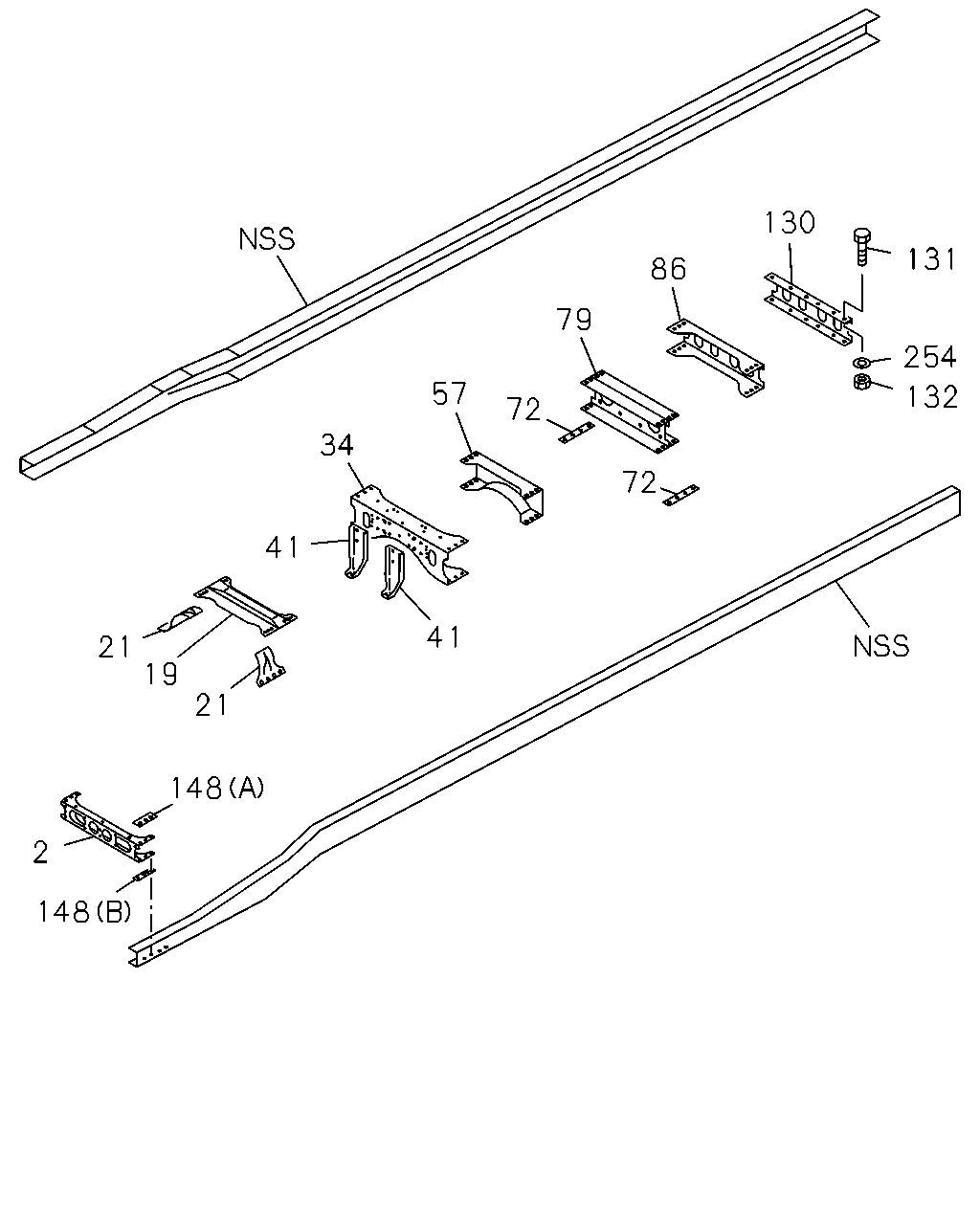

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1302-	●	●	●
19	MEMBER; CROSS,2ND FXZ<FG****>	1-53174-231-1	01	1	1302-	●
19	MEMBER; CROSS,2ND GXZ<GG****>	8-98187-273-0	01	1	1302-	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1302-		●	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-226-1	01	1	1302-	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-227-1	01	1	1302-	●
21	GUSSET; 2ND CROSS GXZ<GG****>	8-98098-306-0	02	1	1302-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1302-		●	●
34	MEMBER; CROSS,3RD	1-53181-638-3	01	1	1302-			●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97614-136-0	02	1	1302-			●
57	MEMBER; CROSS,RR SUSP FRT THA	1-53181-994-1	01	1	1302-		●	●
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	1302-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM FXZ<FG****> THA	1-53181-923-0	01	1	1302-	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****>	1-53181-729-6	01	1	1302-	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1302-		●	●
86	MEMBER; CROSS,RR SUSP RR FXZ<FG****>	8-98105-054-0	01	1	1302-	●
86	MEMBER; CROSS,RR SUSP RR GXZ<GG****>	8-97623-323-0	01	1	1302-	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-757-3	01	1	1302-		●	●
130	MEMBER; CROSS,END FXZ<FG****>	8-98105-054-0	01	1	1302-	●
130	MEMBER; CROSS,END THA	8-98103-326-1	01	1	1302-			●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1302-			●
132	NUT; END C/MBR M14 THA	0-91110-514-0	04	1	1302-			●
148	SPACER; C/MBR GXZ<GG****> (C) THA	1-53168-100-0	02	1	1302-	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1302-	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1302-	●	●	●
148	SPACER; C/MBR (D)	8-97623-199-0	02	1	1302-		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1302-			●

86 130 79 70 19 21 72 72 194 197 71 148 21 148 2 70 79 86 148 148 72 194 72 19 21 71 21 148 2 148 197

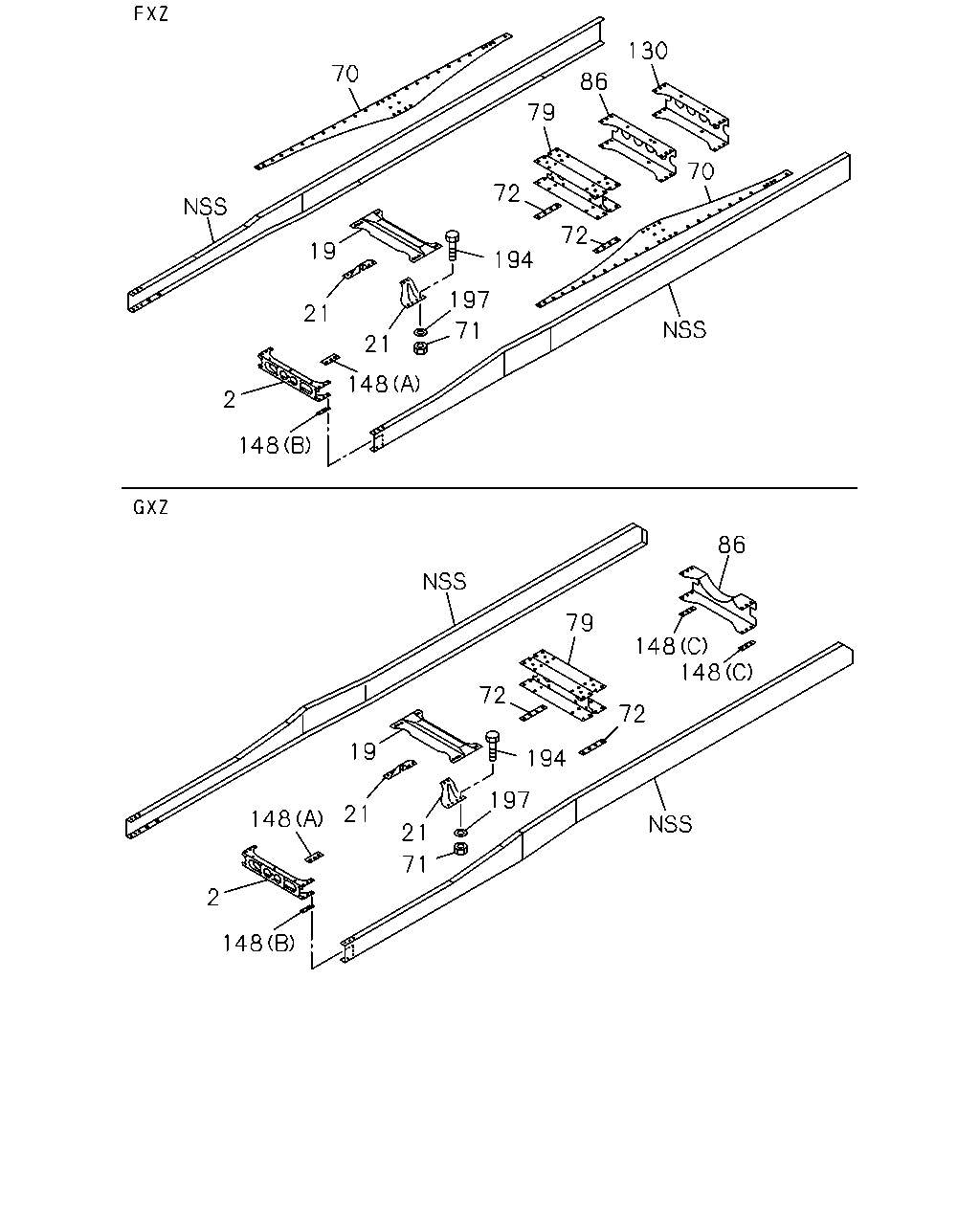

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1302-	●	●	●
19	MEMBER; CROSS,2ND FXZ<FG****>	1-53174-231-1	01	1	1302-	●
19	MEMBER; CROSS,2ND GXZ<GG****>	8-98187-273-0	01	1	1302-	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1302-		●	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-226-1	01	1	1302-	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-227-1	01	1	1302-	●
21	GUSSET; 2ND CROSS GXZ<GG****>	8-98098-306-0	02	1	1302-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1302-		●	●
70	GUSSET; TRUNNION,UPR FXZ<FG****>	1-53161-477-0	02	1	1302-	●
70	GUSSET; TRUNNION,UPR	1-53161-478-0	02	1	1302-		●
71	NUT; 2ND C/MBR FXZ<FG****> M14 THA	0-91110-514-0	08	1	1302-	●
71	NUT; 2ND C/MBR GXZ<GG****>	8-98187-193-0	10	1	1302-	●
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	1302-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM FXZ<FG****> THA	1-53181-923-0	01	1	1302-	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****>	1-53181-729-6	01	1	1302-	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1302-		●	●
86	MEMBER; CROSS,RR SUSP RR FXZ<FG****>	8-98105-054-0	01	1	1302-	●
86	MEMBER; CROSS,RR SUSP RR GXZ<GG****>	8-97623-323-0	01	1	1302-	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-757-3	01	1	1302-		●	●
130	MEMBER; CROSS,END FXZ<FG****>	8-98105-054-0	01	1	1302-	●
130	MEMBER; CROSS,END THA	8-98103-326-1	01	1	1302-			●
148	SPACER; C/MBR GXZ<GG****> (C) THA	1-53168-100-0	02	1	1302-	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1302-	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1302-	●	●	●
148	SPACER; C/MBR (D)	8-97623-199-0	02	1	1302-		●
194	BOLT; 2ND C/MBR FXZ<FG****> M14X60	0-20951-460-0	08	1	1302-	●
194	BOLT; 2ND C/MBR GXZ<GG****> M14X50	8-98097-158-0	10	1	1302-	●
197	WASHER; PL,2ND C/MBR FXZ<FG****> ID=15	8-98010-627-1	16	1	1302-	●
197	WASHER; PL,2ND C/MBR GXZ<GG****> ID=15	8-98010-627-1	10	1	1302-	●

11 12 13 11 12 13 26 23 23 25 25 26 24 23 25 127 26 127 126 25 46 102 25 126 102 46 39 26 35 36 37 44 26 25 126 24 25 23 23 25 25 26 25 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

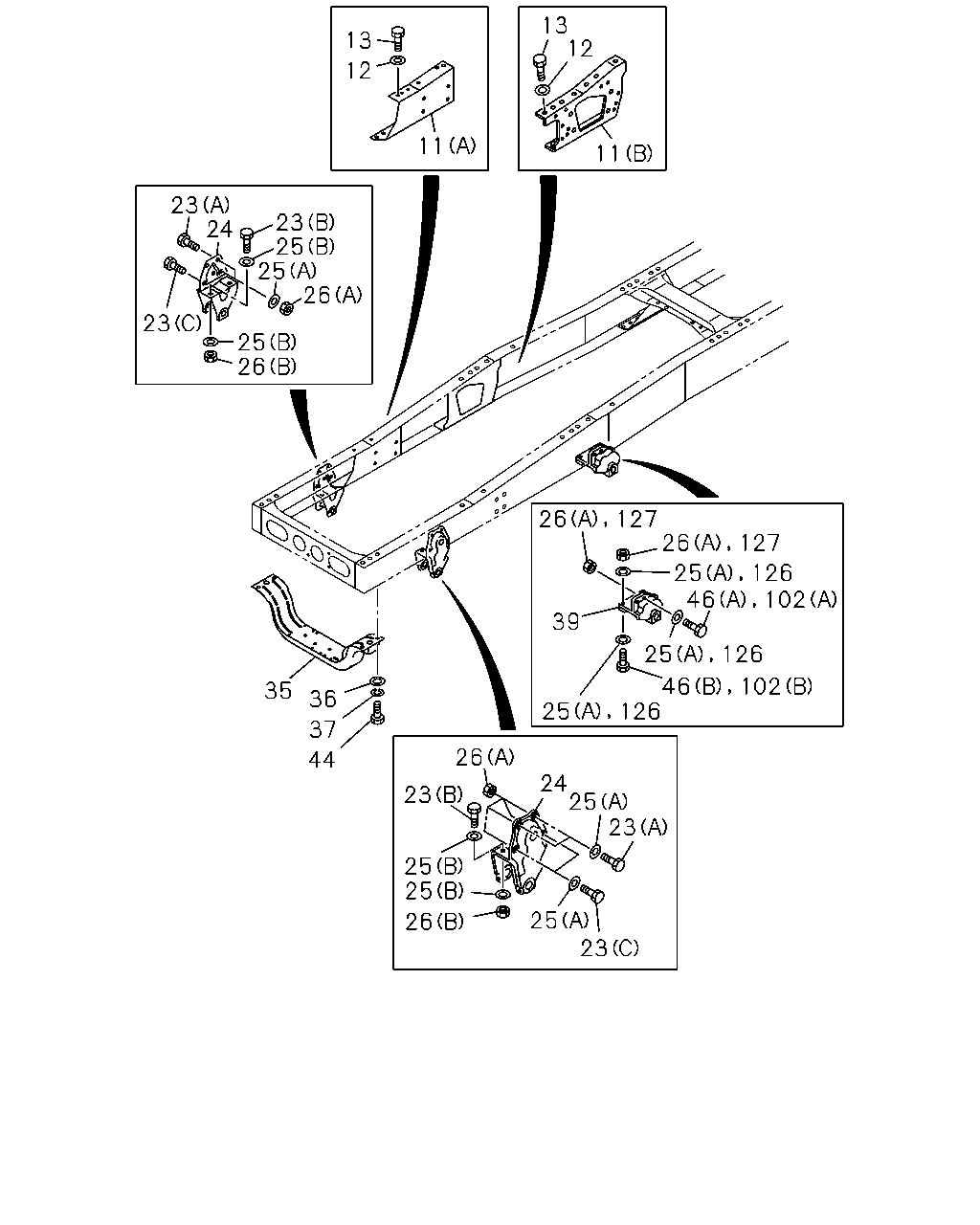

11	BRACKET; ENG MTG (B) THA	8-98055-432-1	01	1	1302-	●
11	BRACKET; ENG MTG (B) THA	8-98055-433-0	01	1	1302-	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1302-	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1302-	●
11	BRACKET; ENG MTG (B) THA	8-98055-430-1	01	1	1302-		●	●
11	BRACKET; ENG MTG (B) THA	8-98055-431-0	01	1	1302-		●	●
11	BRACKET; ENG MTG (A)	8-98059-880-1	01	1	1302-		●	●
11	BRACKET; ENG MTG (A)	8-98059-881-1	01	1	1302-		●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	16	1	1302-	●	●	●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	1302-	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	12	1	1302-	●
13	BOLT; BRKT,ENG MTG M14X50	0-20951-450-0	12	1	1302-		●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	1302-	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1302-	●	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1302-	●
23	BOLT; BRKT,SPR (C) M14X50	8-98097-158-0	04	1	1302-		●	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1302-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1302-	●	●	●
25	WASHER; PL,BRKT GXZ<GG****> (A) ID=15	8-98010-627-1	20	1	1302-	●
25	WASHER; PL,BRKT FXZ<FG****> (A) ID=15	8-98010-627-1	08	1	1302-	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1302-		●	●
26	NUT; BRKT,SPR GXZ<GG****> (A) M14 THA	0-91110-514-0	08	1	1302-	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	1302-	●	●	●
26	NUT; BRKT,SPR FXZ<FG****> (A) M14 THA	0-91110-514-0	08	1	1302-	●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	08	1	1302-		●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1302-	●	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1302-	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1302-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	1302-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	1302-	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1302-	●	●	●
46	BOLT; BRKT FIX GXZ<GG****> (A) M14X40	0-20951-440-0	04	1	1302-	●
46	BOLT; BRKT FIX GXZ<GG****> (B) M14X40	8-98097-157-0	04	1	1302-	●
102	BOLT; BRKT,RR SPR FXZ<FG****> (A) M14X40	0-20951-440-0	04	1	1302-	●
102	BOLT; BRKT,RR SPR FXZ<FG****> (B) M14X40	8-98097-157-0	04	1	1302-	●
102	BOLT; BRKT,RR SPR (A) M14X50	0-20951-450-0	04	1	1302-		●	●
102	BOLT; BRKT,RR SPR (B) M14X50	8-98097-158-0	04	1	1302-		●	●
126	WASHER; PL,BRKT FXZ<FG****> ID=15	8-98010-627-1	12	1	1302-	●
126	WASHER; PL,BRKT ID=15	8-98010-627-1	12	1	1302-		●	●
127	NUT; BRKT FXZ<FG****> M14 THA	0-91110-514-0	08	1	1302-	●
127	NUT; BRKT M14 THA	0-91110-514-0	08	1	1302-		●	●
