4-10 — FRONT AXLE (#118619) — 101 parça

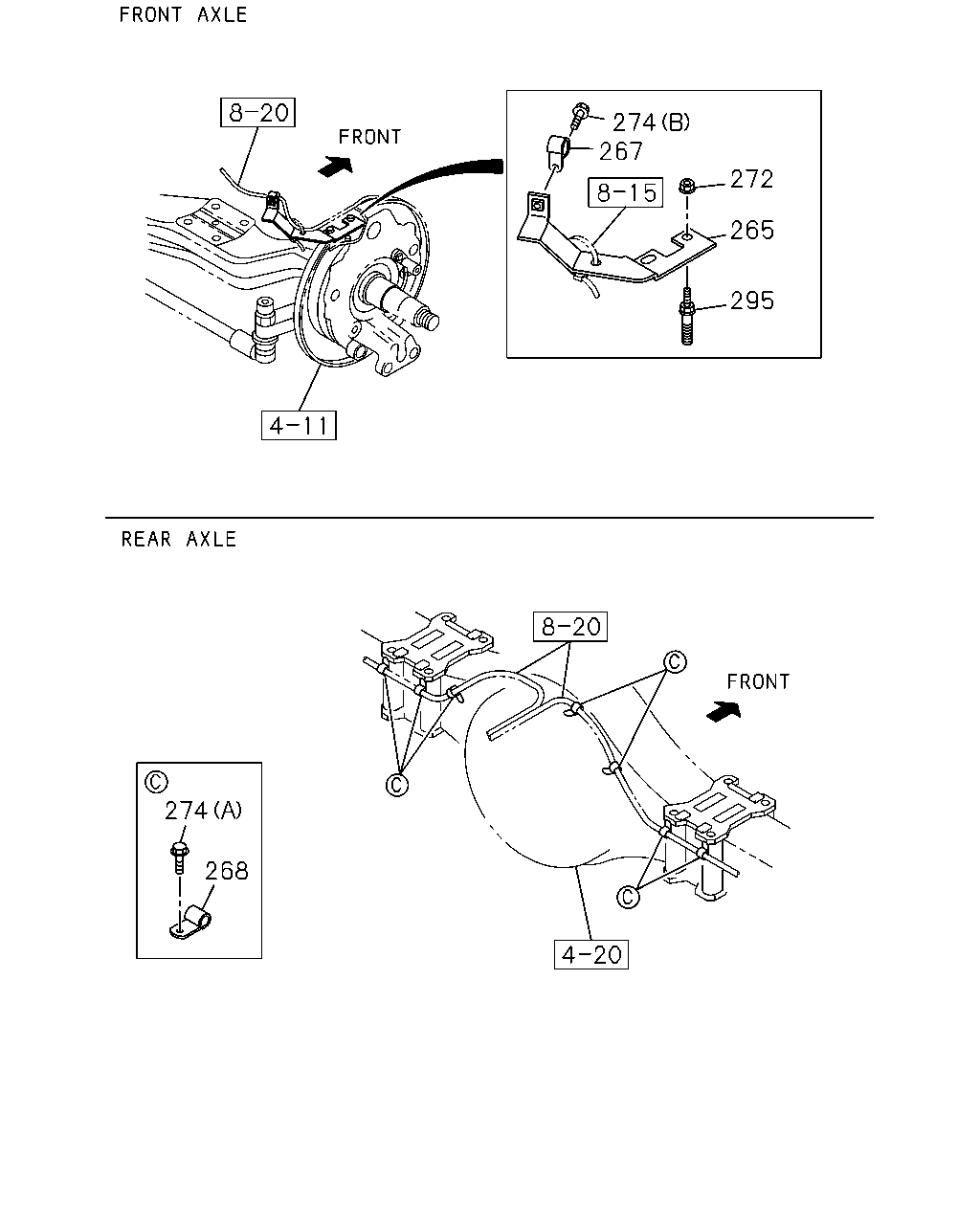

274 272 265 295 274 268 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM(BFA)	1-82698-426-0	01	1	1304-1308	●	●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM(BFA)	1-82698-426-0	01	1	1309-	●	●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM(BFA)	1-82698-427-0	01	1	1304-1308	●	●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM(BFA)	1-82698-427-0	01	1	1309-	●	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) ID=11 L=20	0-95235-035-0	02	1	1304-	●	●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) ID=11 L=20	0-95235-035-0	08	1	1304-	●	●
272	NUT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-110-0	04	1	1304-	●	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) (A) M8X10 FLANGE	0-28050-810-0	08	1	1304-	●	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-	●	●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM(BFA) M10X20,M10X26 L=56	8-98010-334-0	04	1	1304-	●	●

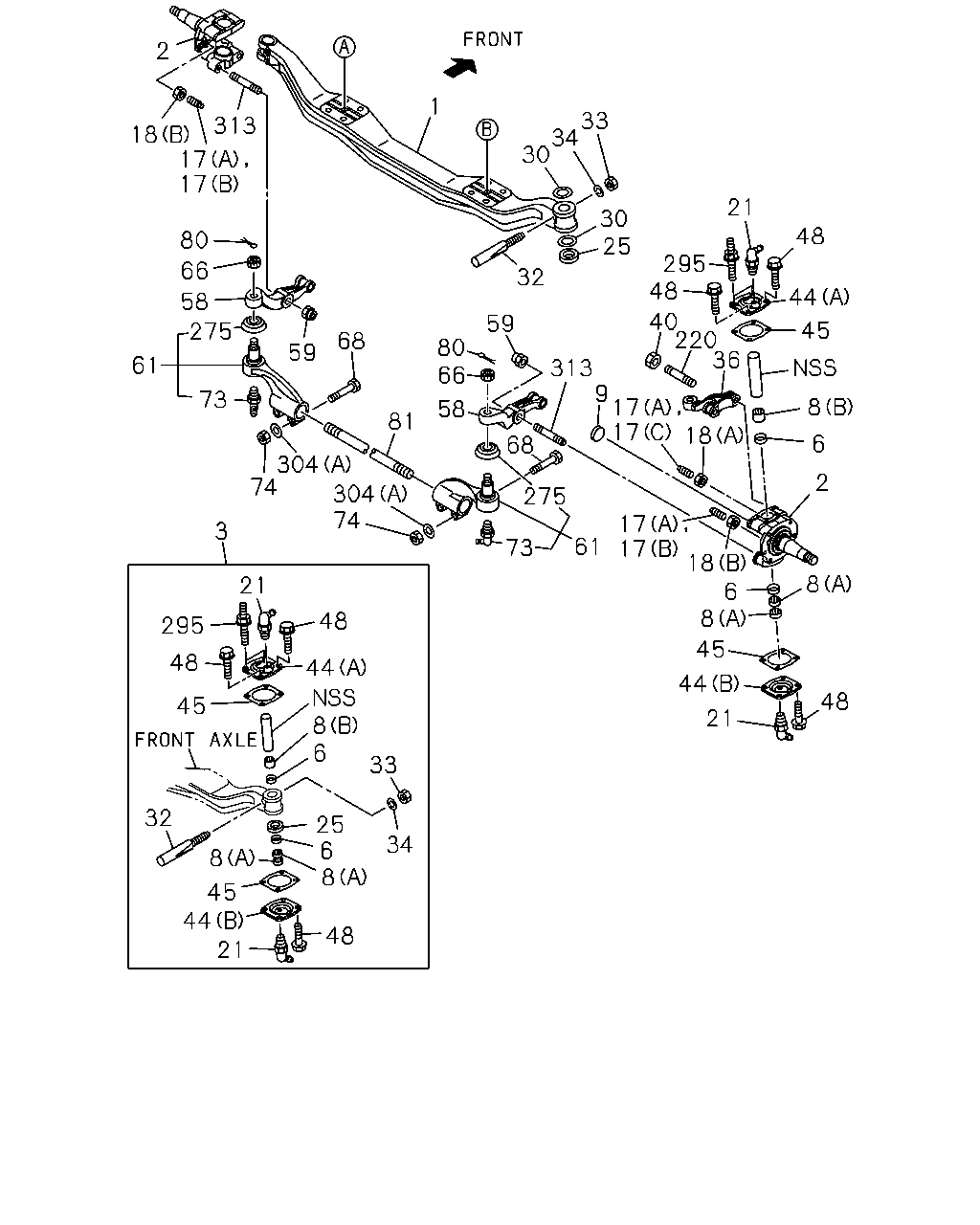

2 1 30 34 33 30 25 32 21 48 44 45 8 6 2 8 48 21 44 45 8 6 18 17 17 18 17 17 9 36 220 40 48 295 313 59 80 66 58 68 275 61 73 81 304 74 304 74 73 61 59 68 275 58 66 80 17 17 18 313 21 3 48 44 8 6 33 34 25 6 8 48 21 44 45 8 32 45 48 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1304-	●	●
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1304-	●	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1304-1308	●	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1309-	●	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1304-1308	●	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1309-	●	●
3	KING PIN SET	1-87831-349-2	02	1	1304-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1304-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1304-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1304-	●	●
9	PLUG; KNUCKLE EXC. ANTILOCK BRAKE SYSTEM(BFA) OD=22	1-09600-011-2	02	1	1304-	●	●
17	BOLT; STOPPER KNUCKLE TIRE 12R22.5-152/148L RIB LUG(5A7),TIRE 12R22.5-16RIB(75N) (A) M18X53	1-09009-066-0	03	1	1304-	●	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) (C) M18X53	1-09009-066-0	01	1	1304-	●	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) (B) M18X43	1-09009-190-0	02	1	1304-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1304-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1304-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1304-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1304-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1304-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1304-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1304-	●	●
36	ARM; KNUCKLE	8-98061-893-0	01	1	1304-	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1304-	●	●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1304-	●	●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1304-	●	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1304-	●	●
48	BOLT; COVER ANTILOCK BRAKE SYSTEM(BFA) M10X25 FLANGE	0-28751-025-0	12	1	1304-	●	●
48	BOLT; COVER EXC. ANTILOCK BRAKE SYSTEM(BFA) M10X25 FLANGE	0-28751-025-0	16	1	1304-	●	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1304-1308	●	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1309-	●	●
58	ARM; TIE ROD	1-43135-049-4	01	1	1304-1308	●	●
58	ARM; TIE ROD	1-43135-049-4	01	1	1309-	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1304-	●	●
61	ROD END; TIE ROD	8-98096-753-0	01	1	1304-1306	●	●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-1308	●	●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1309-	●	●
61	ROD END; TIE ROD	8-98096-754-0	01	1	1304-1306	●	●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-1308	●	●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1309-	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1304-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1304-	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1304-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1304-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1304-	●	●
81	ROD; TIE	8-98105-064-0	01	1	1304-	●	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1304-	●	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1304-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM(BFA) M10X20,M10X26 L=56	8-98010-334-0	04	1	1304-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1304-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1304-	●	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1304-	●	●

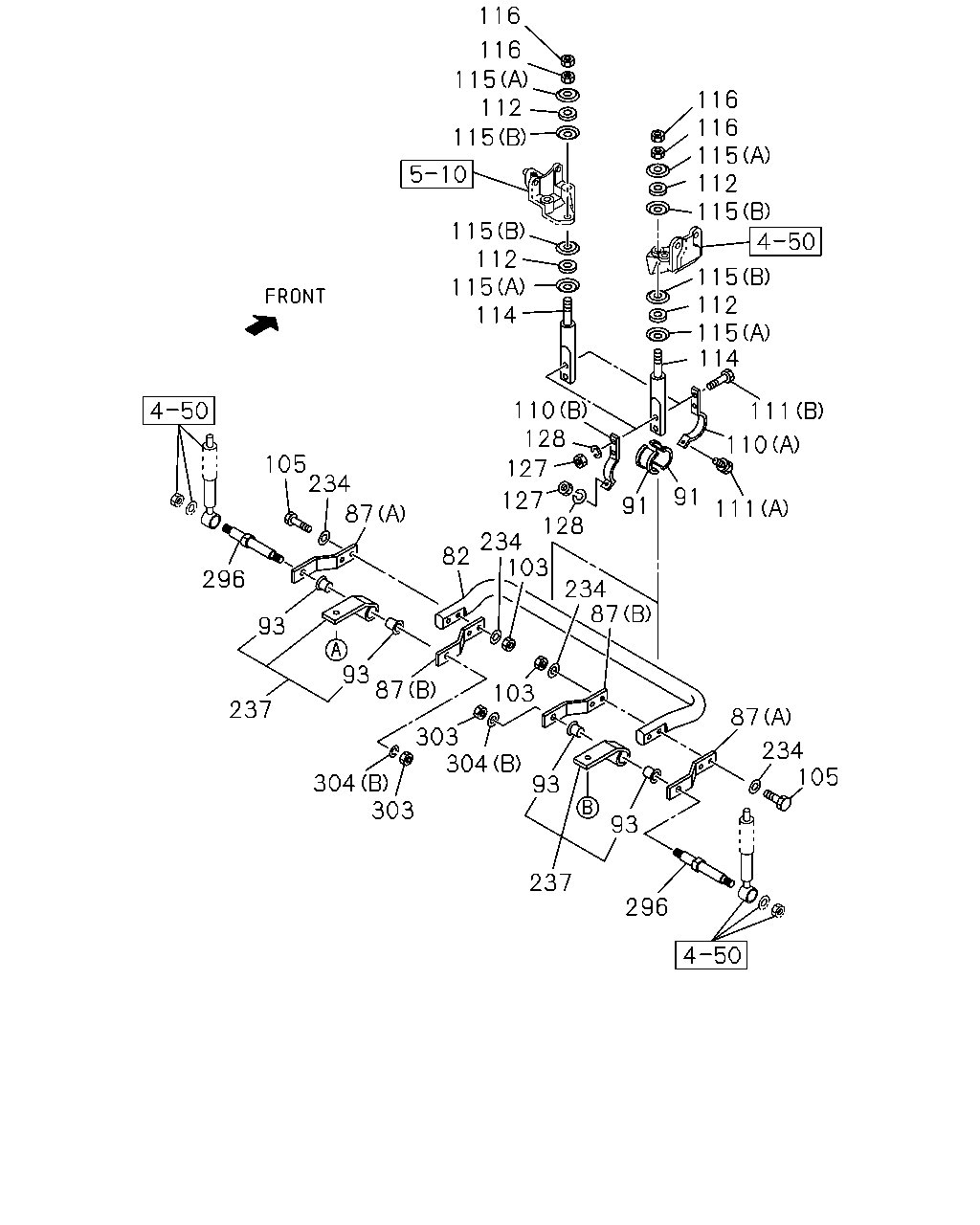

116 116 115 112 115 115 112 115 114 110 128 127 127 91 91 111 110 111 114 115 112 115 115 112 115 116 116 105 234 87 82 234 103 234 87 87 234 105 296 237 93 93 304 303 103 303 304 87 93 237 93 296 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-136-1	01	1	1304-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1304-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1304-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	1304-	●	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1304-	●	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1304-	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1304-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1304-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1304-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1304-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1304-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	1304-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	1304-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	1304-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	1304-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1304-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1304-	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1304-	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1304-	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1304-	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1304-	●	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1304-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1304-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1304-	●	●
