Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11493 - FXZ/GXZ(THAI)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶
2-85 — POWER TAKE OFF CONTROL
(#118618) — 28 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

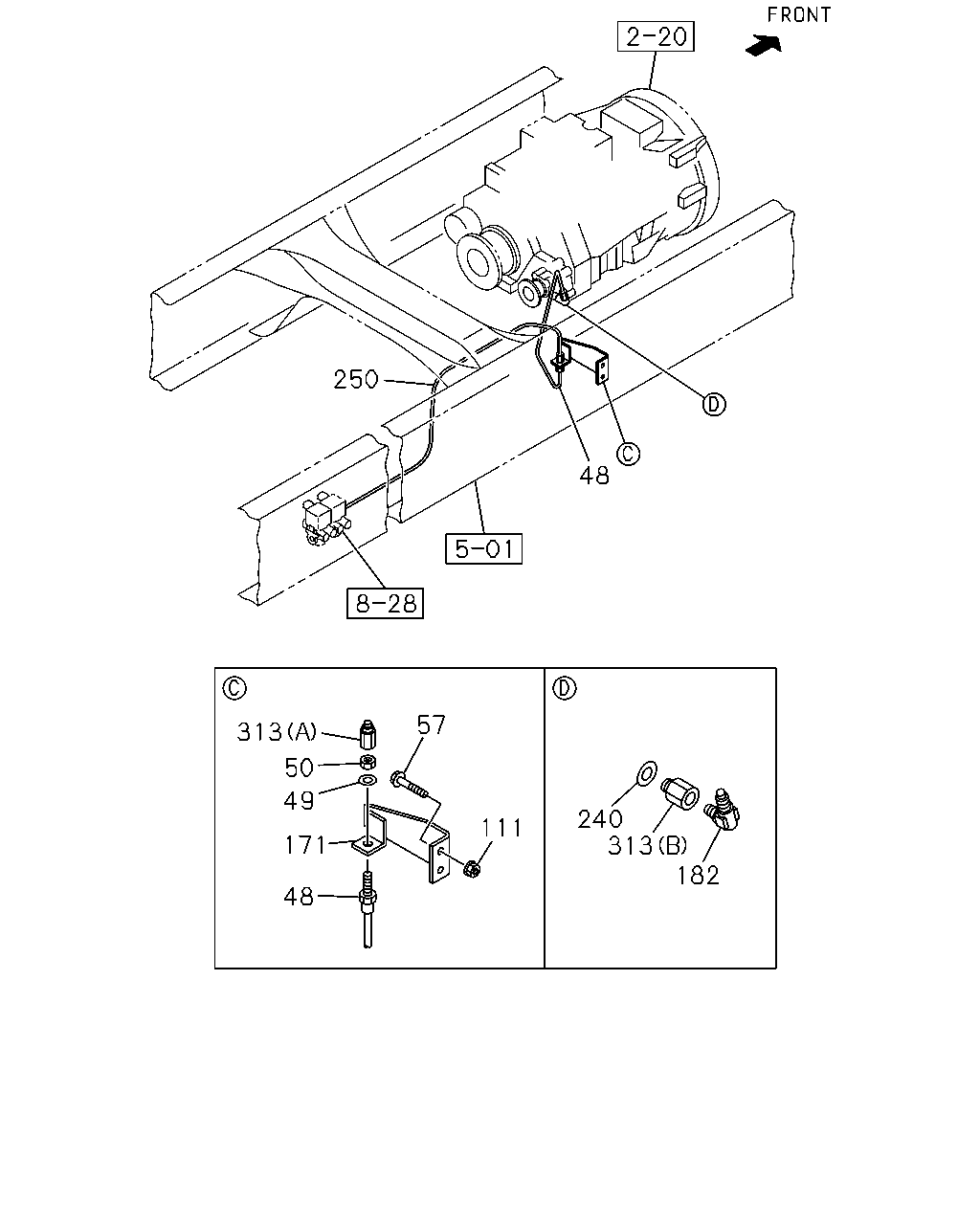

[285A] ZF PTO PIPING (15 parça)

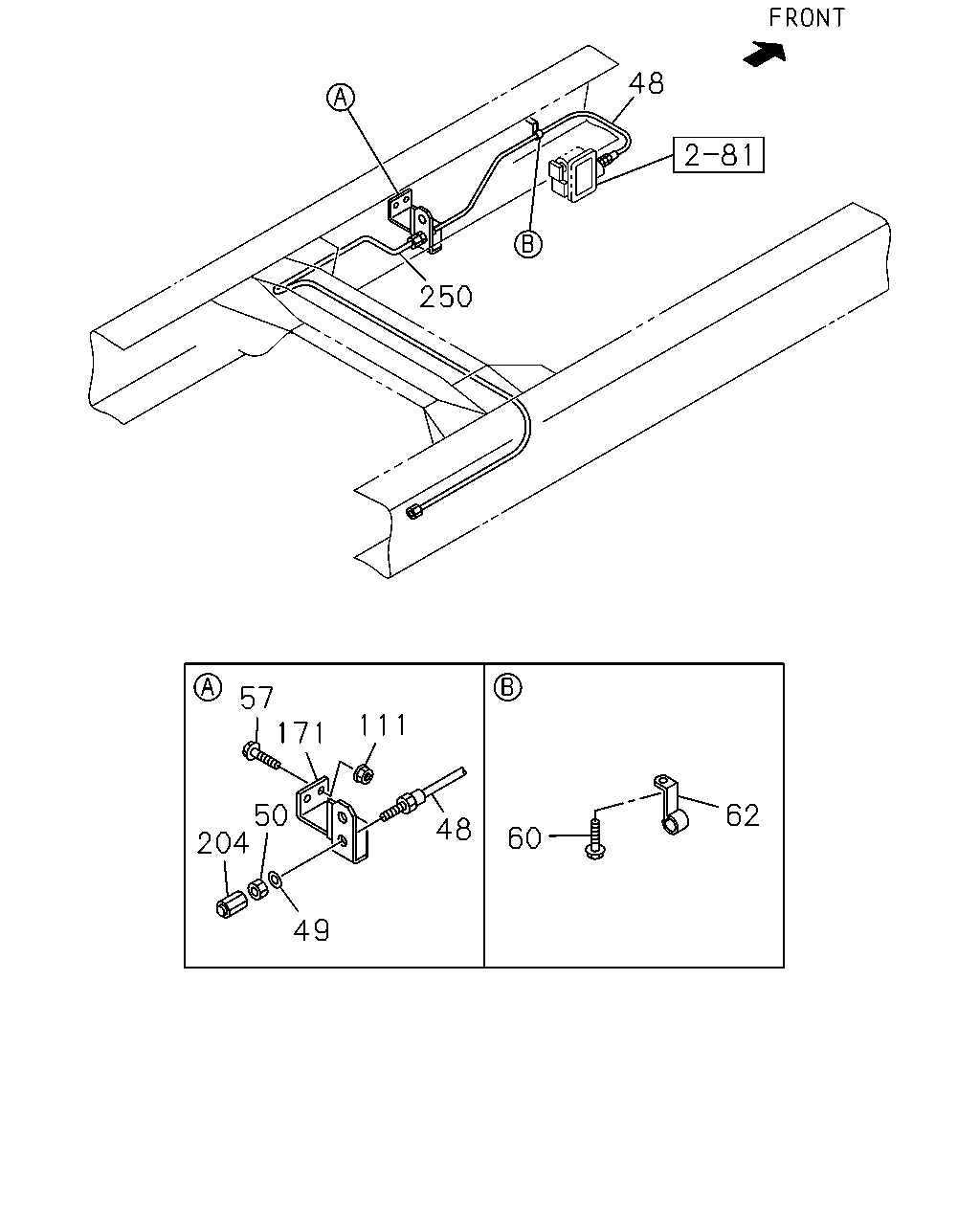

[285A] MJT PTO PIPING (13 parça)
▶
250
48
313
50
49
171
48
111
57
240
313
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
HOSE; FLEX,PTO
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> L=720
1-09363-801-0
01
1
1302-
●
48
HOSE; FLEX,PTO
PTO ZF TRANS RR<BDM> L=400
1-09363-606-0
01
1
1302-
●
●
49
WASHER; LK,FLEX HOSE
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=12.2
0-91510-512-0
01
1
1302-
●
●
50
NUT; FLEX HOSE
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M12
9-09840-280-0
01
1
1302-
●
●
57
BOLT; BRKT
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X35 FLANGE THA
0-28650-835-0
02
1
1302-
●
●
111
NUT; BRKT
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE THA
0-91180-108-0
02
1
1302-
●
●
171
BRACKET; FLEX HOSE
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5>
1-47471-088-0
01
1
1302-
●
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR<BDM> THA
8-98086-261-0
01
1
1302-
●
●
182
CONNECTOR; FLARE
PTO ZF TRANS RR<BDM> M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1302-
●
●
240
GASKET; CONNECTOR,PTO
PTO ZF TRANS RR<BDM> ID=12.2
1-09630-084-0
01
1
1302-1312
●
●
240
GASKET; CONNECTOR,PTO
PTO ZF TRANS RR<BDM> ID=12.2
8-98251-344-0
01
1
1401-
●
●
250
TUBE; NYLON
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=4000 OD=8 THA
1-87411-007-0
01
1
1302-
●
250
TUBE; NYLON
PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA
1-87411-006-0
01
1
1302-
●
●
313
ADAPTER
PTO ZF TRANS RR<BDM> (B)
1-09654-396-0
01
1
1302-
●
●
313
ADAPTER
PTO ZF TRANS RR<BDM> (A) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1302-
●
●
62
60
48
49
204
171
57
111
250
48
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
HOSE; FLEX,PTO
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> L=720
1-09363-801-0
01
1
1302-
●
48
HOSE; FLEX,PTO
PTO ZF TRANS RR<BDM> L=400
1-09363-606-0
01
1
1302-
●
●
49
WASHER; LK,FLEX HOSE
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=12.2
0-91510-512-0
01
1
1302-
●
●
50
NUT; FLEX HOSE
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M12
9-09840-280-0
01
1
1302-
●
●
57
BOLT; BRKT
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X35 FLANGE THA
0-28650-835-0
02
1
1302-
●
●
60
BOLT; CLIP FIX
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA
0-28650-820-0
01
1
1302-
●
62
CLIP; PIPE,AIR
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=15 L=22 H=30
1-09701-215-1
01
1
1302-
●
111
NUT; BRKT
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE THA
0-91180-108-0
02
1
1302-
●
●
171
BRACKET; FLEX HOSE
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5>
1-47471-088-0
01
1
1302-
●
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR<BDM> THA
8-98086-261-0
01
1
1302-
●
●
204
CONNECTOR; NYLON TUBE
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1302-
●
250
TUBE; NYLON
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=4000 OD=8 THA
1-87411-007-0
01
1
1302-
●
250
TUBE; NYLON
PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA
1-87411-006-0
01
1
1302-
●
●
