◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51477 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#118612) — 17 parça

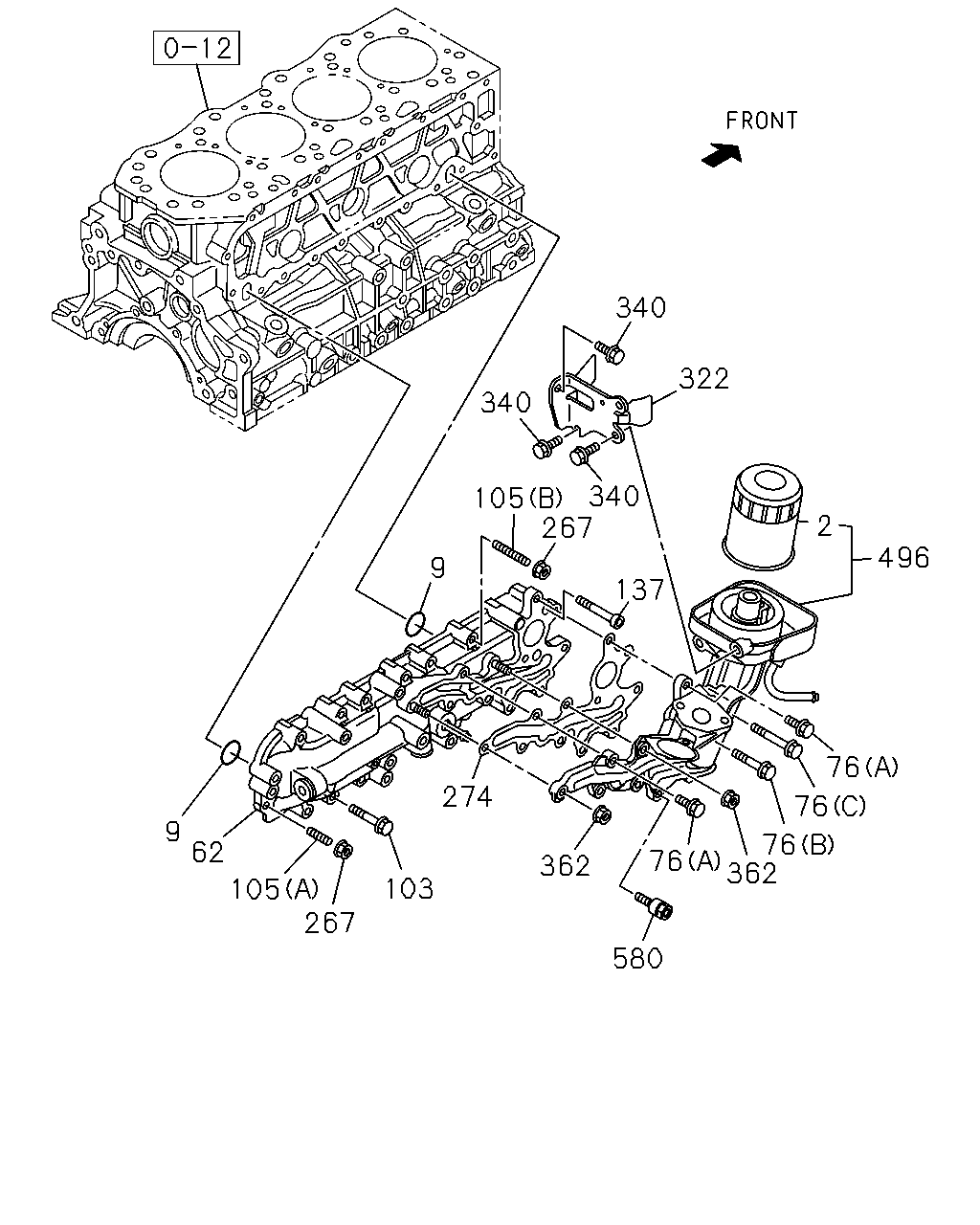

çizim 342403
340 322 340 340 2 496 137 267 105 9 274 362 103 267 105 62 9 580 76 362 76 76 76
BalonParca AdiParca NoAdetTipApplied Date
2 01.836 ELEMENT; OIL FILTER 8-98165-071-0 01 1 1304-
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 		9-09566-226-0 02 1 1304-
62 01.540 COOLER ASM; OIL 8-98185-691-0 01 1 1304-
76 01.840 BOLT; OIL FILTER
03.275 (A) M8X25 FLANGE 		0-28050-825-0 06 1 1304-
76 01.840 BOLT; OIL FILTER
09.173 (B) M8X45 FLANGE 		0-28050-845-0 01 1 1304-
76 01.840 BOLT; OIL FILTER
04.686 (C) M8X60 FLANGE 		0-28050-860-0 01 1 1304-
103 01.540 BOLT; OIL COOLER
09.173 M8X45 FLANGE 		0-28050-845-0 15 1 1304-
105 01.540 STUD; OIL COOLER
02.510 (A) M8X20 L=32 		0-41010-820-0 01 1 1304-
105 01.540 STUD; OIL COOLER
01.252 (B) M8X45 L=57 		0-41010-845-0 01 1 1304-
137 01.840 BOLT
00.206 M8X60 HEX SOCKET 		0-58330-860-0 03 1 1304-
267 01.840 NUT; OIL COOLER
01.540 M8 FLANGE 		0-91180-208-0 02 1 1304-
274 01.844 GASKET; OIL FILTER 8-98124-080-1 01 1 1304-
322 01.840 BRACKET; OIL FILTER 8-98132-020-1 01 1 1304-
340 01.840 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1304-
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 1304-
496 01.835 FILTER ASM; OIL 8-98186-452-1 01 1 1304-
580 01.540 ADAPTER 8-98181-435-0 01 1 1304-
