Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#118604) — 433 parça

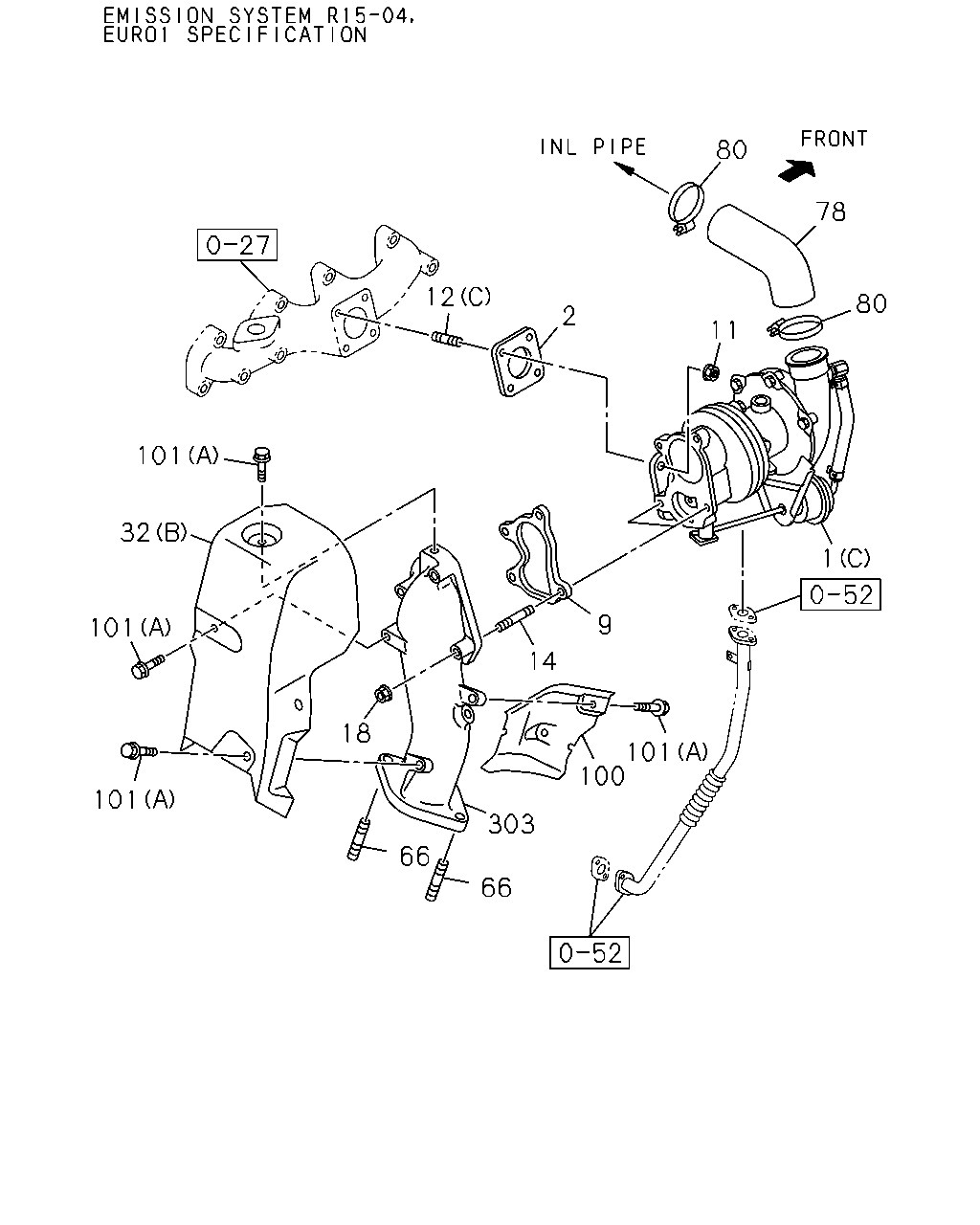

80 78 80 11 2 12 101 32 101 101 66 66 303 101 100 14 18 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM (C)	8-97240-210-2	01	1	1304-	●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (E)	8-98150-688-3	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1304-			●
1	03.342 TURBOCHARGER ASM (F)	8-98132-070-3	01	1	1304-				●
1	03.342 TURBOCHARGER ASM (A)	8-98132-069-2	01	1	1304-					●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1304-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1304-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1304-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1304-			●	●	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97139-726-0	01	1	1304-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1304-	●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1304-		●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1304-			●	●	●	●
12	03.342 STUD; TURBOCHARGER (C) M8X20 L=31	8-97378-060-0	04	1	1304-	●
12	03.342 STUD; TURBOCHARGER (D) M10X28.5 L=41.5	8-97378-063-0	06	1	1304-		●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1304-			●	●	●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1304-			●	●	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.601 M8X25 L=36	8-97378-062-0	04	1	1304-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> M8X43 L=54	8-97378-067-0	04	1	1304-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1304-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-97087-029-0	01	1	1304-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98159-563-1	01	1	1304-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1304-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1304-				●	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1304-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1304-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1304-			●	●	●	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	1304-	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-98179-013-1	01	1	1304-		●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	1304-	●
100	03.417 PROTECTOR; HEAT,EXH MANIF EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>	8-97038-109-1	01	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1304-		●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1304-				●	●
303	03.440 ADAPTER; THROTTLE BODY,EXH EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>	8-98189-770-0	01	1	1304-	●

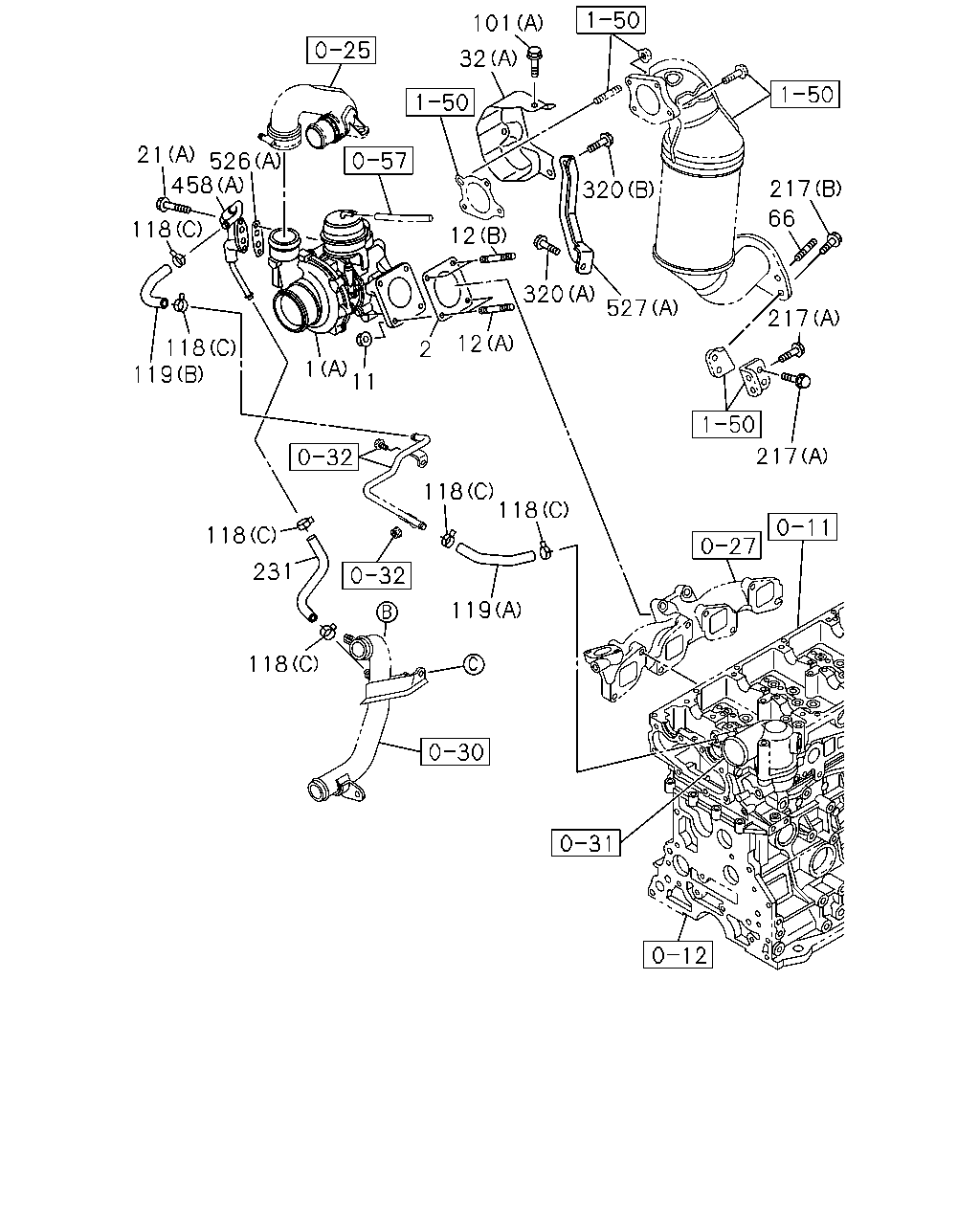

21 458 526 118 118 119 1 11 118 231 118 119 118 2 12 12 32 101 320 320 527 118 217 217 66 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM (C)	8-97240-210-2	01	1	1304-	●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (E)	8-98150-688-3	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1304-			●
1	03.342 TURBOCHARGER ASM (F)	8-98132-070-3	01	1	1304-				●
1	03.342 TURBOCHARGER ASM (A)	8-98132-069-2	01	1	1304-					●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1304-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1304-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1304-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1304-			●	●	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1304-	●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1304-		●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1304-			●	●	●	●
12	03.342 STUD; TURBOCHARGER (C) M8X20 L=31	8-97378-060-0	04	1	1304-	●
12	03.342 STUD; TURBOCHARGER (D) M10X28.5 L=41.5	8-97378-063-0	06	1	1304-		●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1304-			●	●	●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1304-			●	●	●	●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-					●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-		●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1304-		●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1304-		●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1304-				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-97087-029-0	01	1	1304-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98159-563-1	01	1	1304-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1304-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1304-				●	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1304-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1304-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1304-			●	●	●	●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1304-		●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1304-				●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-		●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=26.2	8-98202-540-0	02	1	1304-					●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1304-		●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-		●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1304-		●	●	●	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1304-				●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1304-		●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1304-		●	●	●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1304-			●	●	●	●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1304-		●		●	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1304-						●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1304-		●		●	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1304-						●
217	03.417 BOLT; BRKT (C) M10X25 FLANGE	8-98189-923-0	03	1	1304-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1304-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1304-				●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1304-			●			●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
320	03.342 BOLT; BRKT,TURBOCHARGER 02.277 (D) M10X35 FLANGE	0-28651-035-0	01	1	1304-		●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1304-				●	●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1304-				●	●
458	03.373 PIPE; WATER,TURBOCHARGER (C)	8-98151-200-0	01	1	1304-		●
458	03.373 PIPE; WATER,TURBOCHARGER (B)	8-98151-201-0	01	1	1304-		●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1304-				●	●
526	03.342 GASKET; PLATE (B)	8-98178-929-1	01	1	1304-		●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1304-		●		●	●
527	03.373 BRACKET; TURBOCHARGER (C)	8-98151-382-0	01	1	1304-		●
527	03.373 BRACKET; TURBOCHARGER (B)	8-98182-781-0	01	1	1304-		●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1304-				●	●

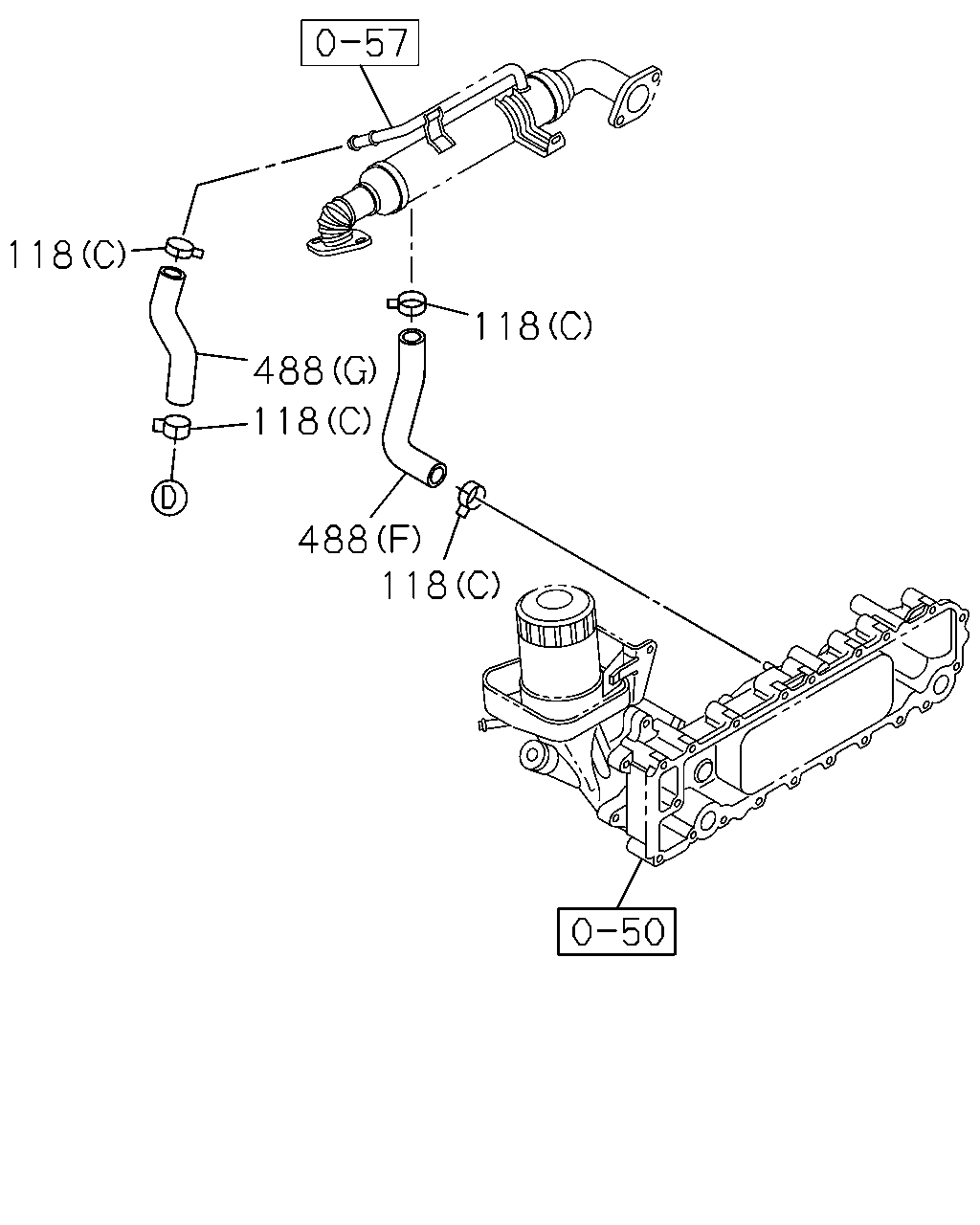

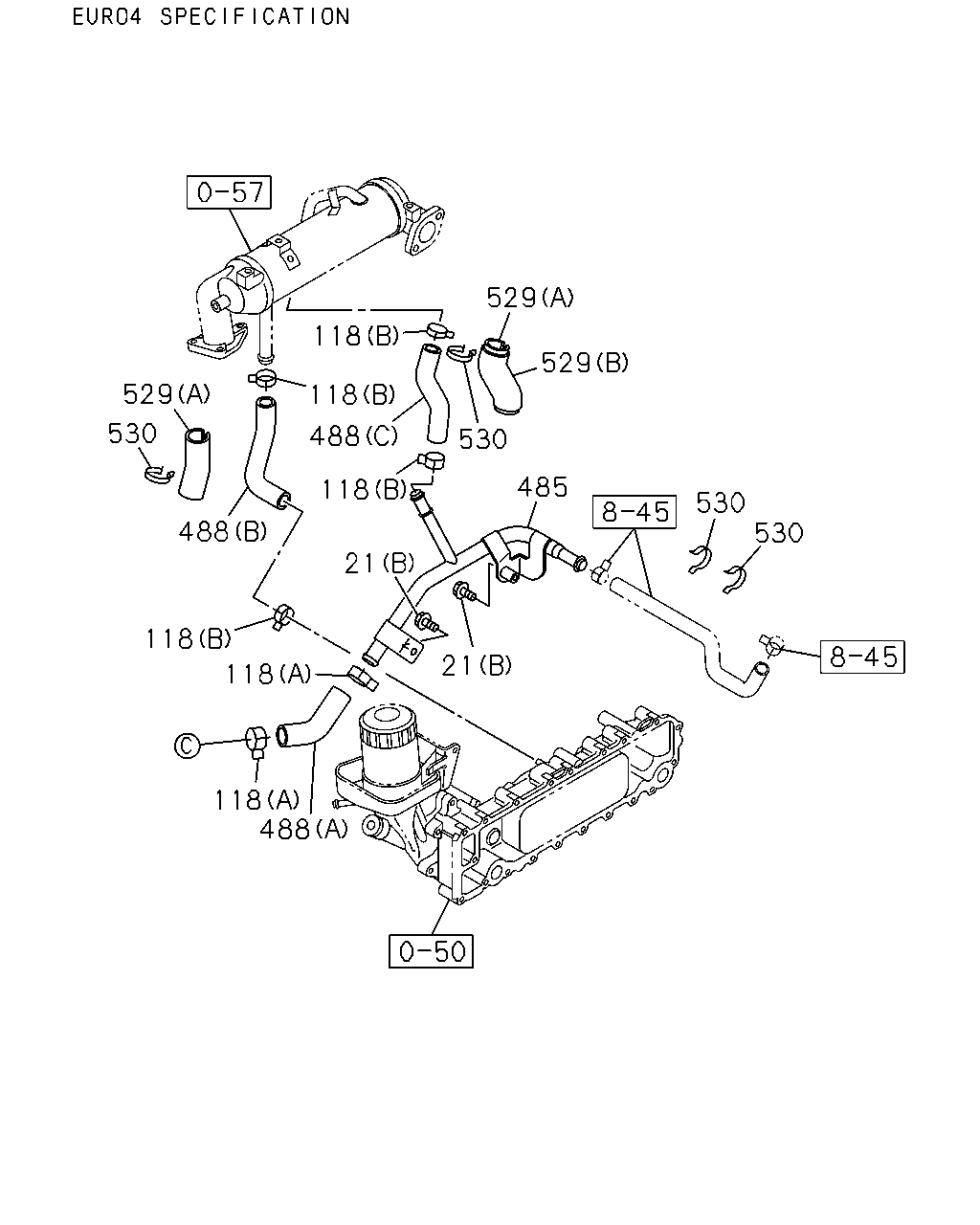

488 488 118 118 118 118

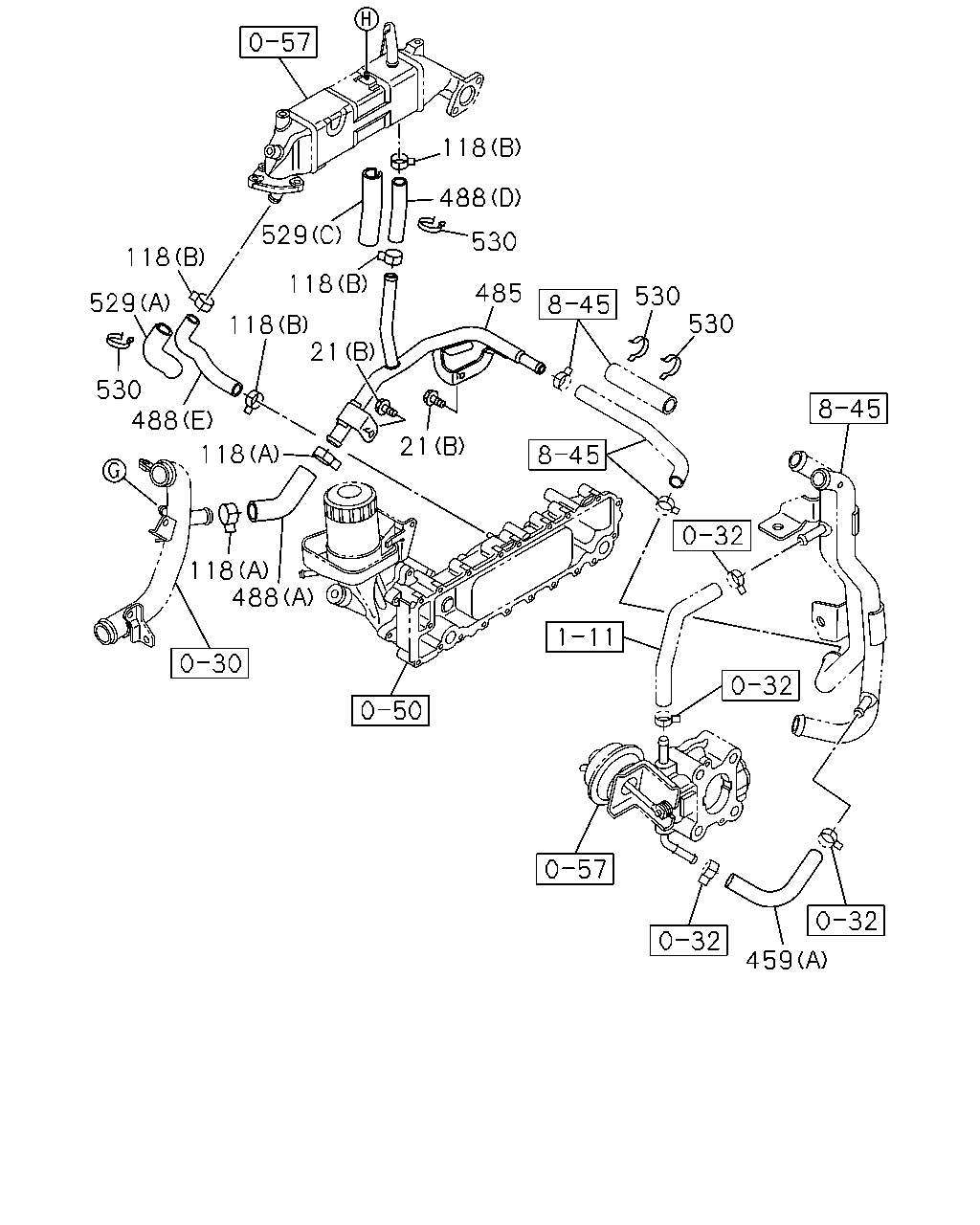

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E	F
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=26.2	8-98202-540-0	02	1	1304-				●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1304-	●	●	●	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1304-			●	●	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A)	8-98132-446-0	01	1	1304-				●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1304-	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98132-447-0	01	1	1304-				●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98202-356-1	01	1	1304-				●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1304-	●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1304-	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (F)	8-98132-445-2	01	1	1304-			●	●	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (G)	8-98179-202-0	01	1	1304-			●	●	●

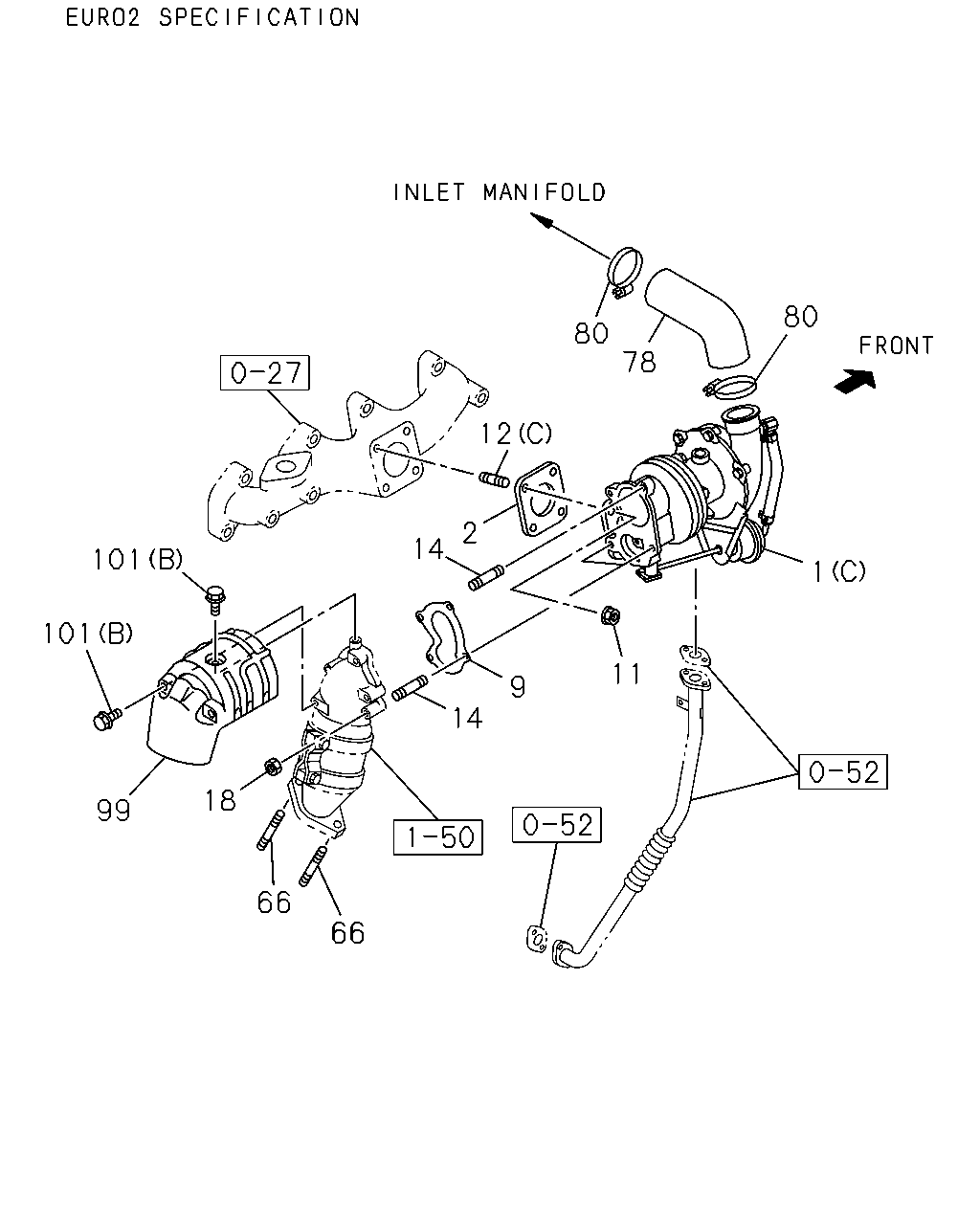

80 80 1 2 12 14 14 9 11 66 66 18 99 101 101 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM (C)	8-97240-210-2	01	1	1304-	●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (E)	8-98150-688-3	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1304-			●
1	03.342 TURBOCHARGER ASM (F)	8-98132-070-3	01	1	1304-				●
1	03.342 TURBOCHARGER ASM (A)	8-98132-069-2	01	1	1304-					●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1304-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1304-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1304-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1304-			●	●	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97139-726-0	01	1	1304-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1304-	●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1304-		●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1304-			●	●	●	●
12	03.342 STUD; TURBOCHARGER (C) M8X20 L=31	8-97378-060-0	04	1	1304-	●
12	03.342 STUD; TURBOCHARGER (D) M10X28.5 L=41.5	8-97378-063-0	06	1	1304-		●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1304-			●	●	●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1304-			●	●	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.601 M8X25 L=36	8-97378-062-0	04	1	1304-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> M8X43 L=54	8-97378-067-0	04	1	1304-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1304-	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1304-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1304-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1304-			●	●	●	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	1304-	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-98179-013-1	01	1	1304-		●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	1304-	●
99	03.602 PROTECTOR; HEAT EURO2 SPECIFICATION<NT2>	8-97318-472-0	01	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1304-		●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1304-				●	●

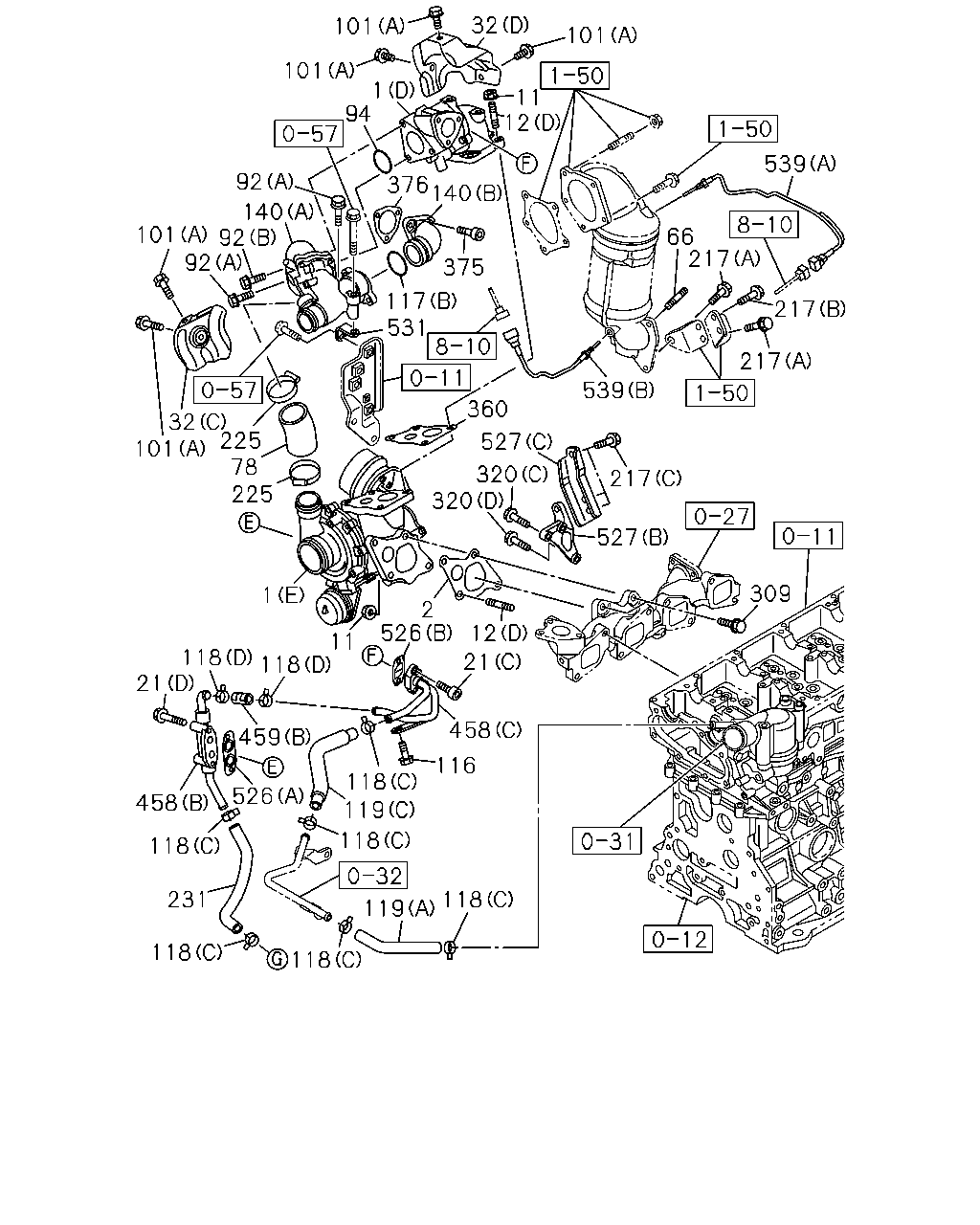

66 16 1 12 12 2 66 217 217 217 118 119 118 138 117 117 11 115 118 119 118 118 231 118 117 117 138 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM (C)	8-97240-210-2	01	1	1304-	●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (E)	8-98150-688-3	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1304-			●
1	03.342 TURBOCHARGER ASM (F)	8-98132-070-3	01	1	1304-				●
1	03.342 TURBOCHARGER ASM (A)	8-98132-069-2	01	1	1304-					●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1304-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1304-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1304-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1304-			●	●	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1304-	●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1304-		●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1304-			●	●	●	●
12	03.342 STUD; TURBOCHARGER (C) M8X20 L=31	8-97378-060-0	04	1	1304-	●
12	03.342 STUD; TURBOCHARGER (D) M10X28.5 L=41.5	8-97378-063-0	06	1	1304-		●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1304-			●	●	●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1304-			●	●	●	●
16	03.609 ADAPTER; EXH PIPE	8-98132-080-0	01	1	1304-			●
16	03.609 ADAPTER; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98132-080-0	01	1	1304-						●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1304-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1304-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1304-			●	●	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98132-443-0	01	1	1304-			●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.724 (B) ID=47.7	1-09623-465-0	01	1	1304-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1304-			●			●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-		●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=26.2	8-98202-540-0	02	1	1304-					●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1304-		●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-		●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1304-		●	●	●	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1304-				●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1304-		●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1304-		●	●	●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1304-			●	●	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98132-444-1	01	1	1304-			●			●
138	03.342 BOLT; EYE,WATER PIPE M14X31 EYE-BOLT	8-98037-067-0	02	1	1304-			●			●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1304-		●		●	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1304-						●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1304-		●		●	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1304-						●
217	03.417 BOLT; BRKT (C) M10X25 FLANGE	8-98189-923-0	03	1	1304-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1304-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1304-				●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1304-			●			●

118 529 118 529 529 530 488 488 530 118 118 21 485 118 530 118 488 21 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E	F
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-				●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-	●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1304-	●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1304-	●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1304-			●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=26.2	8-98202-540-0	02	1	1304-				●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1304-	●	●	●	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1304-			●	●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4>	8-98132-418-2	01	1	1304-				●
485	01.097 PIPE; WATER EGR	8-98172-521-4	01	1	1304-	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A)	8-98132-446-0	01	1	1304-				●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1304-	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98132-447-0	01	1	1304-				●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98202-356-1	01	1	1304-				●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1304-	●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1304-	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (F)	8-98132-445-2	01	1	1304-			●	●	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (G)	8-98179-202-0	01	1	1304-			●	●	●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (A)	8-98031-883-0	02	1	1304-				●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (B)	8-98181-397-0	01	1	1304-				●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	1304-	●
529	03.374 INSULATOR; HOSE (C)	8-98190-325-0	01	1	1304-	●
530	03.374 CLIP; INSULATOR EURO4 SPECIFICATION<NT4> 01.540	8-97101-337-0	04	1	1304-				●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	1304-	●

217 217 66 217 119 118 231 118 11 2 118 118 12 320 320 527 12 32 101 119 118 118 21 458 526 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM (C)	8-97240-210-2	01	1	1304-	●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (E)	8-98150-688-3	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1304-			●
1	03.342 TURBOCHARGER ASM (F)	8-98132-070-3	01	1	1304-				●
1	03.342 TURBOCHARGER ASM (A)	8-98132-069-2	01	1	1304-					●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1304-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1304-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1304-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1304-			●	●	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1304-	●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1304-		●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1304-			●	●	●	●
12	03.342 STUD; TURBOCHARGER (C) M8X20 L=31	8-97378-060-0	04	1	1304-	●
12	03.342 STUD; TURBOCHARGER (D) M10X28.5 L=41.5	8-97378-063-0	06	1	1304-		●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1304-			●	●	●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1304-			●	●	●	●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-					●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-		●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1304-		●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1304-		●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1304-				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-97087-029-0	01	1	1304-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98159-563-1	01	1	1304-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1304-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1304-				●	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1304-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1304-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1304-			●	●	●	●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1304-		●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1304-				●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-		●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=26.2	8-98202-540-0	02	1	1304-					●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1304-		●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-		●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1304-		●	●	●	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1304-				●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1304-		●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1304-		●	●	●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1304-			●	●	●	●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1304-		●		●	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1304-						●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1304-		●		●	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1304-						●
217	03.417 BOLT; BRKT (C) M10X25 FLANGE	8-98189-923-0	03	1	1304-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1304-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1304-				●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1304-			●			●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
320	03.342 BOLT; BRKT,TURBOCHARGER 02.277 (D) M10X35 FLANGE	0-28651-035-0	01	1	1304-		●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1304-				●	●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1304-				●	●
458	03.373 PIPE; WATER,TURBOCHARGER (C)	8-98151-200-0	01	1	1304-		●
458	03.373 PIPE; WATER,TURBOCHARGER (B)	8-98151-201-0	01	1	1304-		●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1304-				●	●
526	03.342 GASKET; PLATE (B)	8-98178-929-1	01	1	1304-		●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1304-		●		●	●
527	03.373 BRACKET; TURBOCHARGER (C)	8-98151-382-0	01	1	1304-		●
527	03.373 BRACKET; TURBOCHARGER (B)	8-98182-781-0	01	1	1304-		●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1304-				●	●

118 488 118 118 488 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E	F
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=26.2	8-98202-540-0	02	1	1304-				●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1304-	●	●	●	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1304-			●	●	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A)	8-98132-446-0	01	1	1304-				●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1304-	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98132-447-0	01	1	1304-				●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98202-356-1	01	1	1304-				●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1304-	●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1304-	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (F)	8-98132-445-2	01	1	1304-			●	●	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (G)	8-98179-202-0	01	1	1304-			●	●	●

118 529 118 488 530 485 118 118 529 530 21 488 118 118 488 21 530 530 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E	F
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-				●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-	●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1304-	●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1304-	●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1304-			●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=26.2	8-98202-540-0	02	1	1304-				●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1304-	●	●	●	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1304-			●	●	●
459	03.341 HOSE; WATER (A) L=100 SERVICED BY L=3000	0-03657-300-0	01	1	1304-	●
459	03.341 HOSE; WATER (B)	8-98159-561-0	01	1	1304-	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4>	8-98132-418-2	01	1	1304-				●
485	01.097 PIPE; WATER EGR	8-98172-521-4	01	1	1304-	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A)	8-98132-446-0	01	1	1304-				●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1304-	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98132-447-0	01	1	1304-				●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98202-356-1	01	1	1304-				●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1304-	●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1304-	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (F)	8-98132-445-2	01	1	1304-			●	●	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (G)	8-98179-202-0	01	1	1304-			●	●	●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (A)	8-98031-883-0	02	1	1304-				●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (B)	8-98181-397-0	01	1	1304-				●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	1304-	●
529	03.374 INSULATOR; HOSE (C)	8-98190-325-0	01	1	1304-	●
530	03.374 CLIP; INSULATOR EURO4 SPECIFICATION<NT4> 01.540	8-97101-337-0	04	1	1304-				●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	1304-	●

488 488 118 118 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E	F
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=26.2	8-98202-540-0	02	1	1304-				●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1304-	●	●	●	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1304-			●	●	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A)	8-98132-446-0	01	1	1304-				●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1304-	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98132-447-0	01	1	1304-				●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98202-356-1	01	1	1304-				●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1304-	●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1304-	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (F)	8-98132-445-2	01	1	1304-			●	●	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (G)	8-98179-202-0	01	1	1304-			●	●	●

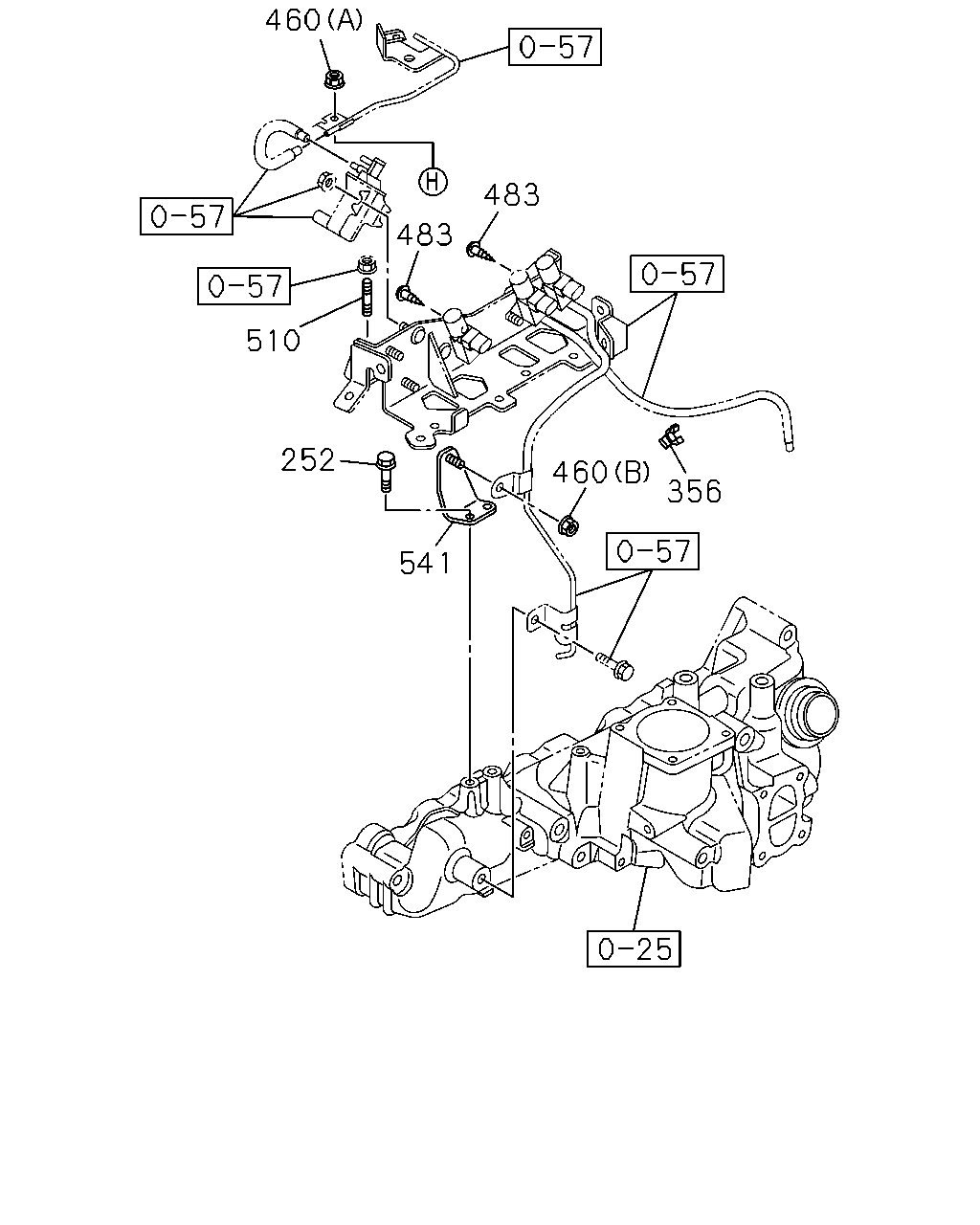

460 483 483 510 252 541 460 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
252	03.417 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1304-	●
356	03.417 CLIP; HOSE,VAC 03.162 ID=6.8 & 22.5	8-97081-816-0	01	1	1304-	●
460	03.374 NUT; PIPE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1304-	●
460	03.374 NUT; PIPE 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1304-	●
483	01.531 SCREW 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1304-	●
510	03.417 STUD; BRKT 02.510 M8X20 L=32	0-41010-820-0	01	1	1304-	●
541	03.616 BRACKET; HOSE	8-98164-824-0	01	1	1304-	●

101 32 101 101 94 1 11 12 376 92 140 140 101 92 375 117 531 92 32 101 225 78 225 360 527 320 320 1 526 11 118 118 21 459 458 526 118 231 118 118 119 118 118 119 118 116 458 21 12 527 217 309 539 217 217 217 66 539 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM (C)	8-97240-210-2	01	1	1304-	●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (E)	8-98150-688-3	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1304-			●
1	03.342 TURBOCHARGER ASM (F)	8-98132-070-3	01	1	1304-				●
1	03.342 TURBOCHARGER ASM (A)	8-98132-069-2	01	1	1304-					●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1304-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1304-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1304-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1304-			●	●	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1304-	●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1304-		●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1304-			●	●	●	●
12	03.342 STUD; TURBOCHARGER (C) M8X20 L=31	8-97378-060-0	04	1	1304-	●
12	03.342 STUD; TURBOCHARGER (D) M10X28.5 L=41.5	8-97378-063-0	06	1	1304-		●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1304-			●	●	●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1304-			●	●	●	●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION<NT4> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-					●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-		●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1304-		●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1304-		●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1304-				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-97087-029-0	01	1	1304-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98159-563-1	01	1	1304-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1304-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1304-				●	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1304-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1304-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1304-			●	●	●	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	1304-	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-98179-013-1	01	1	1304-		●
92	03.417 BOLT; INL PIPE 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1304-		●
92	03.417 BOLT; INL PIPE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	1304-		●
94	01.531 GASKET; INL PIPE 03.162 ID=49.7	1-09623-541-0	01	1	1304-		●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1304-		●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1304-				●	●
116	03.342 BOLT; WATER PIPE 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1304-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.724 (B) ID=47.7	1-09623-465-0	01	1	1304-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1304-			●			●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-		●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=26.2	8-98202-540-0	02	1	1304-					●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1304-		●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-		●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1304-		●	●	●	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1304-				●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1304-		●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1304-		●	●	●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1304-			●	●	●	●
140	03.417 PIPE; AIR PIPE (A)	8-98151-283-0	01	1	1304-		●
140	03.417 PIPE; AIR PIPE (B)	8-98162-352-0	01	1	1304-		●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1304-		●		●	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1304-						●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1304-		●		●	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1304-						●
217	03.417 BOLT; BRKT (C) M10X25 FLANGE	8-98189-923-0	03	1	1304-		●
225	03.616 CLIP; CONN HOSE 03.407 ID=60-65	8-98096-418-0	02	1	1304-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1304-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1304-				●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1304-			●			●
309	03.342 BOLT; TURBOCHARGER M10X30 FLANGE	8-98173-443-0	02	1	1304-		●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
320	03.342 BOLT; BRKT,TURBOCHARGER 02.277 (D) M10X35 FLANGE	0-28651-035-0	01	1	1304-		●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1304-				●	●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1304-				●	●
360	03.342 GASKET; ADAPTER TO TURBOCHARGER	8-98151-216-0	01	1	1304-		●
375	03.342 BOLT; FLANGE 01.428 M6X25 HEX SOCKET	0-58330-625-0	03	1	1304-		●
376	03.342 GASKET; FLANGE CONNECTOR	8-98089-661-0	01	1	1304-		●
458	03.373 PIPE; WATER,TURBOCHARGER (C)	8-98151-200-0	01	1	1304-		●
458	03.373 PIPE; WATER,TURBOCHARGER (B)	8-98151-201-0	01	1	1304-		●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1304-				●	●
459	03.341 HOSE; WATER (A) L=100 SERVICED BY L=3000	0-03657-300-0	01	1	1304-		●
459	03.341 HOSE; WATER (B)	8-98159-561-0	01	1	1304-		●
526	03.342 GASKET; PLATE (B)	8-98178-929-1	01	1	1304-		●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1304-		●		●	●
527	03.373 BRACKET; TURBOCHARGER (C)	8-98151-382-0	01	1	1304-		●
527	03.373 BRACKET; TURBOCHARGER (B)	8-98182-781-0	01	1	1304-		●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1304-				●	●
531	03.616 BRACKET; DUCT	8-98158-725-0	01	1	1304-		●
539	03.337 SENSOR; TURBOCHARGER (A)	8-98031-605-1	01	1	1304-		●
539	03.337 SENSOR; TURBOCHARGER (B)	8-98199-353-0	01	1	1304-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
