0-36 — TURBOCHARGER SYSTEM (#118598) — 42 parça

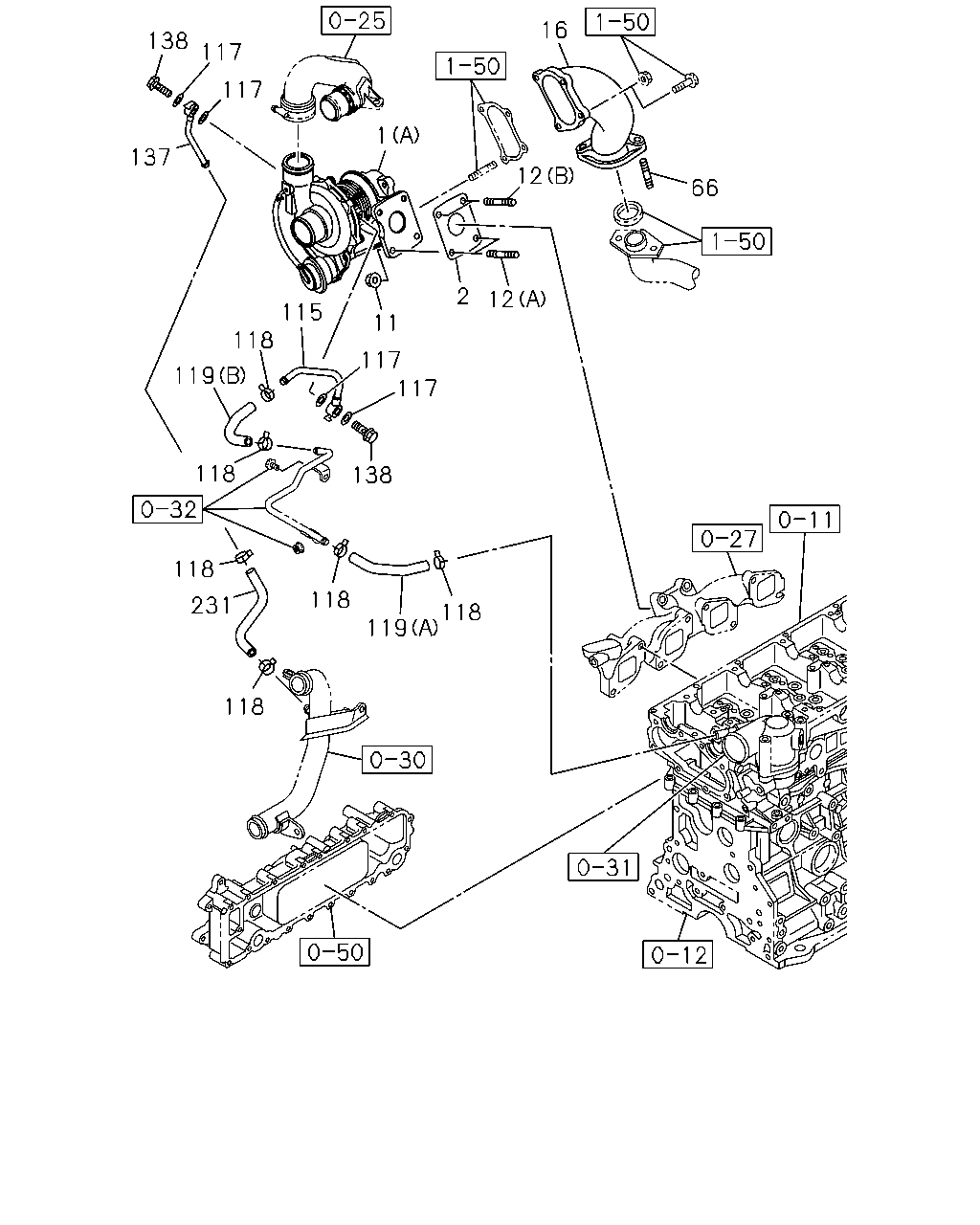

çizim 342312
138 117 117 137 1 16 12 2 12 115 118 11 117 119 118 138 118 231 118 119 118 118 66 117
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.342 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98132-071-0 01 1 1304- ●
1 03.342 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98132-072-0 01 1 1304- ●
1 03.342 TURBOCHARGER ASM
(B) 		8-97240-210-2 01 1 1304- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98132-073-0 01 1 1304- ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 1304- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1304- ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1304- ●
12 03.342 STUD; TURBOCHARGER
03.601 (A) M8X25 L=36 		8-97378-062-0 02 1 1304- ● ●
12 03.342 STUD; TURBOCHARGER
03.604 (B) M8X30 L=41 		8-97378-064-0 02 1 1304- ● ●
12 03.342 STUD; TURBOCHARGER
(C) M8X20 L=31 		8-97378-060-0 04 1 1304- ●
16 03.609 ADAPTER; EXH PIPE 8-98132-080-0 01 1 1304- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1304- ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 1304- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98132-443-0 01 1 1304- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 04 1 1304- ● ●
118 03.342 CLIP; WATER HOSE
ID=15.1 		8-98179-581-0 06 1 1304- ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(A) 		8-98179-510-0 01 1 1304- ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(B) 		8-98179-580-0 01 1 1304- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-98132-444-1 01 1 1304- ● ●
138 03.342 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT 		8-98037-067-0 02 1 1304- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98168-392-2 01 1 1304- ● ●

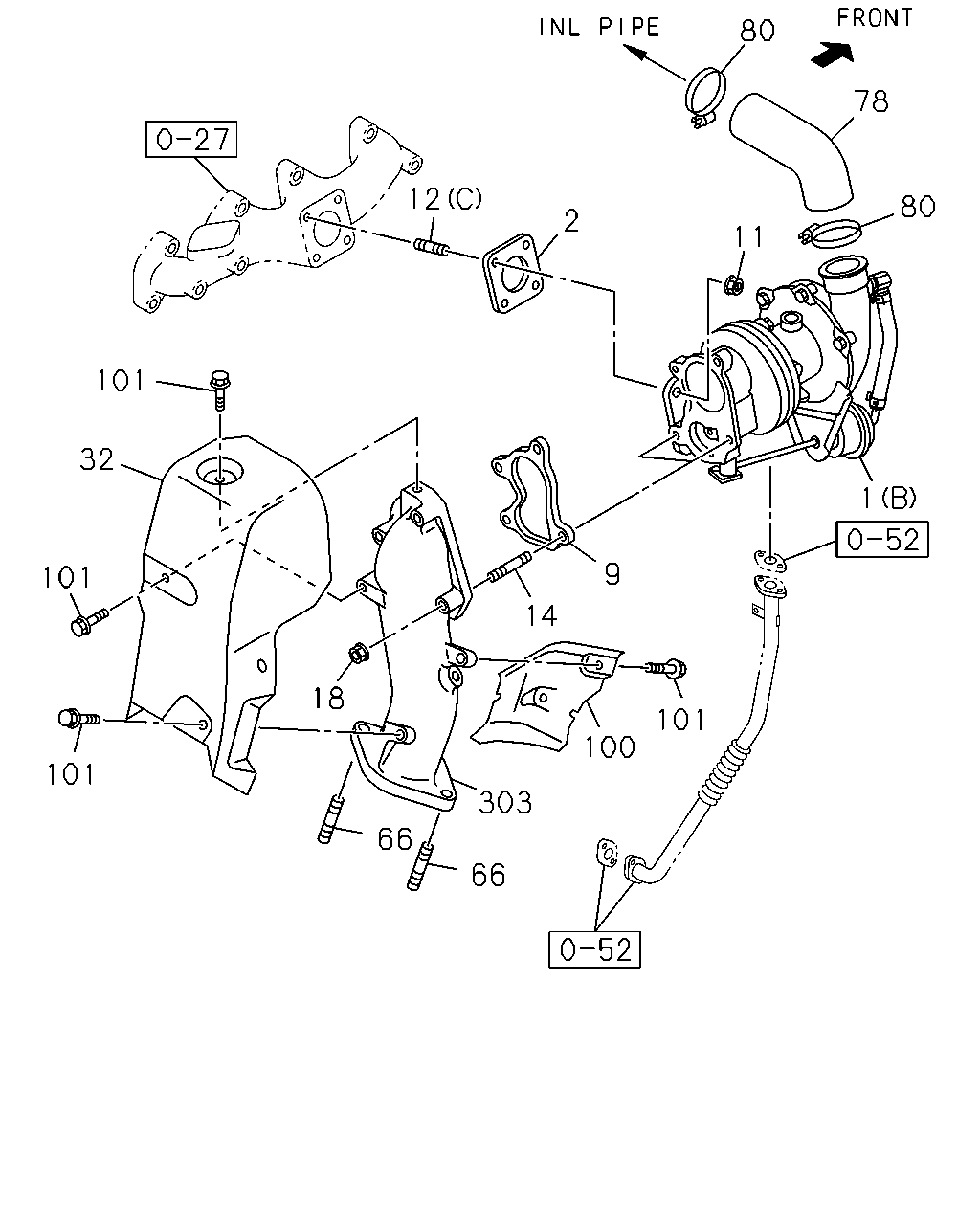

çizim 342313
101 32 101 101 18 66 66 303 100 101 14 9 1 11 2 12 80 78 80
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.342 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98132-071-0 01 1 1304- ●
1 03.342 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98132-072-0 01 1 1304- ●
1 03.342 TURBOCHARGER ASM
(B) 		8-97240-210-2 01 1 1304- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98132-073-0 01 1 1304- ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 1304- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 1304- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1304- ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1304- ●
12 03.342 STUD; TURBOCHARGER
03.601 (A) M8X25 L=36 		8-97378-062-0 02 1 1304- ● ●
12 03.342 STUD; TURBOCHARGER
03.604 (B) M8X30 L=41 		8-97378-064-0 02 1 1304- ● ●
12 03.342 STUD; TURBOCHARGER
(C) M8X20 L=31 		8-97378-060-0 04 1 1304- ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 1304- ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 1304- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-97087-029-0 01 1 1304- ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1304- ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 1304- ●
78 03.342 HOSE; INL PIPE,TURBOCHARGER 8-97096-628-3 01 1 1304- ●
80 03.407 CLIP; CONN HOSE,TURBOCHARGER
ID=45.5-56.5 		8-97131-943-0 02 1 1304- ●
100 03.417 PROTECTOR; HEAT,EXH MANIF 8-97038-109-1 01 1 1304- ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 06 1 1304- ●
303 03.440 ADAPTER; THROTTLE BODY,EXH 8-98189-770-0 01 1 1304- ●
