Sayfa 2-26A - Isuzu EPC

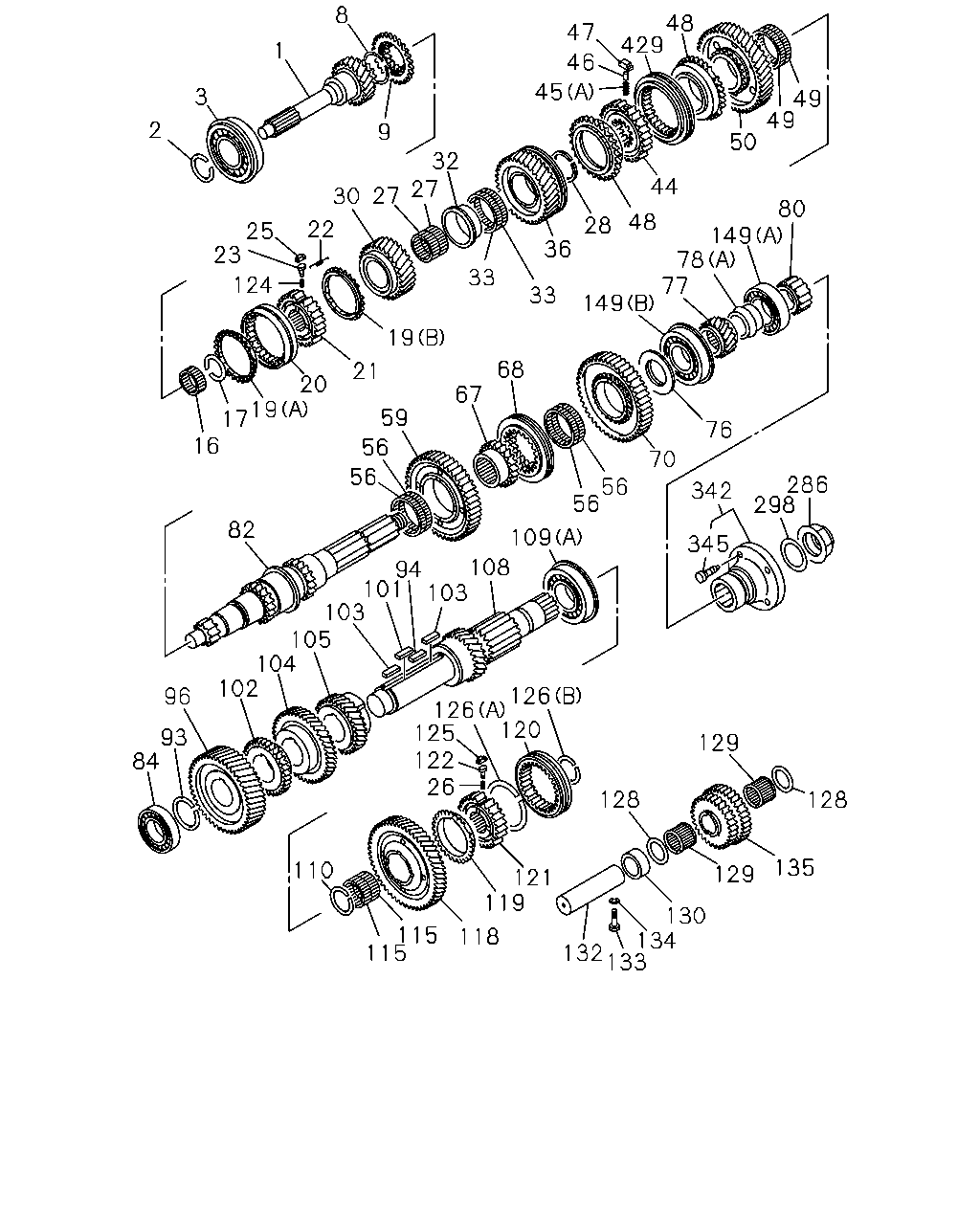

2-26A — MANUAL TRANSMISSION GEAR (#118597) — 304 parça

1 3 2 9 27 27 30 22 25 23 32 45 47 48 429 49 49 50 44 48 28 124 33 36 19 21 20 19 17 16 59 56 56 82 67 68 149 78 80 149 33 77 46 8 76 70 56 109 108 103 101 103 105 104 102 96 93 110 84 342 286 298 345 56 126 125 122 26 126 120 128 129 128 135 129 130 134 133 132 119 118 121 115 115 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-699-1	01	1	1302-	●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-991-0	01	1	1302-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	1302-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	1302-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	1302-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	1302-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1302-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1302-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1302-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1302-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	1302-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	1302-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1302-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1302-		●
8	CLIP; DOG CLU	1-33219-008-0	01	1	1302-	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	1302-		●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	1302-	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	1302-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	1302-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	1302-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1302-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1302-		●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	1302-	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-8	01	1	1302-	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	1302-	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-1	02	1	1302-		●
20	SLEEVE	1-33262-097-1	01	1	1302-	●
20	SLEEVE	1-33262-222-0	01	1	1302-		●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	1302-	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	1302-		●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	1302-	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	1302-	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	1302-	●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	1302-	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	1302-1311	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	1302-	●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	1302-1311		●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	1302-		●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	1302-	●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-657-0	01	1	1302-	●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-690-0	01	1	1302-		●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	1302-	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	1302-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	1302-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	1302-1311		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	1302-		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	1302-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	1302-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	1302-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	1302-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1302-	●	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	1302-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1302-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1302-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	1302-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	1302-		●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	1302-	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	1302-	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	1302-1308		●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	1302-		●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	1302-	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-392-1	01	1	1302-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	1302-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	1302-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	1302-1311		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1302-		●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	1302-	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1302-		●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	1302-	●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	1302-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1302-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	1302-	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1302-		●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	1302-	●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-333-2	01	1	1302-	●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-074-0	01	1	1302-	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-098-0	01	1	1302-		●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	1302-		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	1302-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1302-		●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	1302-	●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-298-0	01	1	1302-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1302-1405	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1302-1405	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1302-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	1302-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1302-		●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	1302-	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	1302-		●
96	GEAR; COUNTER DRIVE Z=39	1-33331-195-0	01	1	1302-	●
96	GEAR; COUNTER DRIVE Z=43	1-33331-271-0	01	1	1302-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	1302-	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	1302-	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	1302-	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	1302-	●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	1302-		●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	1302-		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-366-0	01	1	1302-	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-379-0	01	1	1302-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	1302-	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	1302-	●
108	SHAFT; COUNTER Z=24-16-12	1-33311-332-0	01	1	1302-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	1302-	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	1302-	●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-186-0	01	1	1302-		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1302-		●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1302-		●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-207-0	01	1	1302-		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	1302-	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1302-		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	1302-1311	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	1302-	●
118	GEAR; 6TH,COUNTER Z=45	1-33338-304-0	01	1	1302-	●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	1302-	●
120	SLEEVE	1-33262-098-2	01	1	1302-	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	1302-	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	1302-	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	1302-	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	1302-	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	1302-	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	1302-	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1302-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	1302-	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	1302-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1302-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1302-		●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	1302-	●
132	SHAFT; REV	1-33351-012-2	01	1	1302-	●
132	SHAFT; REV	1-33351-025-4	01	1	1302-		●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	1302-	●
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	1302-	●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	1302-	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1302-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-021-1	01	1	1302-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-163-0	01	1	1302-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-172-0	01	1	1302-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-173-0	01	1	1302-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-203-0	01	1	1302-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-204-0	01	1	1302-		●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	1302-	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	1302-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	1302-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	1302-		●
342	FLANGE; OUTPUT	8-98210-979-0	01	1	1302-	●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1302-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1302-	●	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	1302-	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	1302-		●

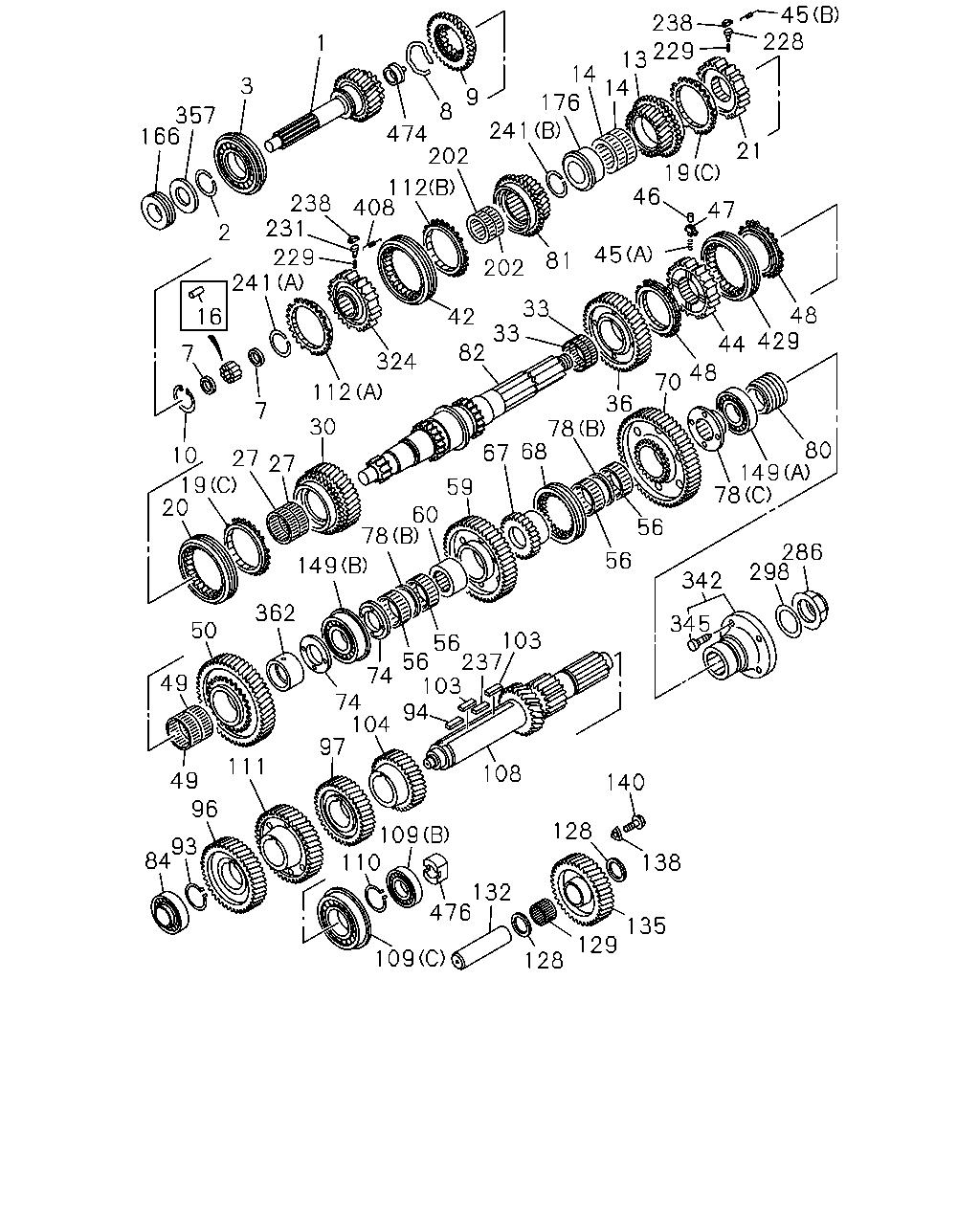

3 357 166 1 9 8 474 202 112 408 238 231 229 241 16 7 7 10 20 19 27 27 30 112 324 82 42 202 33 33 81 45 46 19 21 47 228 45 238 229 13 14 14 176 241 48 429 44 48 70 36 78 68 67 59 60 78 149 362 50 49 49 96 93 84 111 74 74 97 104 56 56 237 103 103 34 56 56 78 149 80 286 298 342 345 140 138 128 108 109 110 109 476 132 128 129 135 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-699-1	01	1	1302-	●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-991-0	01	1	1302-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	1302-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	1302-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	1302-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	1302-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1302-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1302-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1302-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1302-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	1302-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	1302-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1302-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1302-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1302-		●
8	CLIP; DOG CLU	1-33219-008-0	01	1	1302-	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	1302-		●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	1302-	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	1302-		●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1302-		●
13	GEAR; 5TH,MAINSHAFT Z=30	1-33253-667-0	01	1	1302-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	1302-1311		●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	1302-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	1302-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	1302-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1302-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1302-		●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-8	01	1	1302-	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	1302-	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-1	02	1	1302-		●
20	SLEEVE	1-33262-097-1	01	1	1302-	●
20	SLEEVE	1-33262-222-0	01	1	1302-		●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	1302-	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	1302-		●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	1302-1311	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	1302-	●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	1302-1311		●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	1302-		●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-657-0	01	1	1302-	●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-690-0	01	1	1302-		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	1302-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	1302-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	1302-1311		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	1302-		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	1302-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	1302-		●
42	SLEEVE	1-33262-222-0	01	1	1302-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	1302-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	1302-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1302-	●	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	1302-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1302-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1302-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	1302-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	1302-		●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	1302-	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	1302-	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	1302-1308		●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	1302-		●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	1302-	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-392-1	01	1	1302-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	1302-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	1302-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	1302-1311		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1302-		●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	1302-	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1302-		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	1302-		●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	1302-	●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	1302-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1302-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	1302-	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1302-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	1302-		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-074-0	01	1	1302-	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-098-0	01	1	1302-		●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	1302-		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	1302-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1302-		●
81	GEAR; 7TH,MAIN Z=23	1-33253-653-0	01	1	1302-		●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	1302-	●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-298-0	01	1	1302-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1302-1405	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1302-1405	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1302-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	1302-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1302-		●
96	GEAR; COUNTER DRIVE Z=39	1-33331-195-0	01	1	1302-	●
96	GEAR; COUNTER DRIVE Z=43	1-33331-271-0	01	1	1302-		●
97	GEAR; 5TH,COUNTER Z=37	1-33338-385-0	01	1	1302-		●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	1302-	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	1302-	●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	1302-		●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	1302-		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-366-0	01	1	1302-	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-379-0	01	1	1302-		●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	1302-	●
108	SHAFT; COUNTER Z=24-16-12	1-33311-332-0	01	1	1302-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	1302-	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	1302-	●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-186-0	01	1	1302-		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1302-		●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1302-		●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-207-0	01	1	1302-		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	1302-	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1302-		●
111	GEAR; 7TH COUNTER SHAFT Z=51	1-33338-387-0	01	1	1302-		●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-7	01	1	1302-		●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-1	01	1	1302-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1302-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	1302-	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	1302-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1302-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1302-		●
132	SHAFT; REV	1-33351-012-2	01	1	1302-	●
132	SHAFT; REV	1-33351-025-4	01	1	1302-		●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	1302-	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1302-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	1302-		●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	1302-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-021-1	01	1	1302-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-163-0	01	1	1302-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-172-0	01	1	1302-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-173-0	01	1	1302-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-203-0	01	1	1302-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-204-0	01	1	1302-		●
166	PIECE; DIST	1-33363-032-1	01	1	1302-		●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	1302-		●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	1302-1311		●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	1302-		●
228	PLUNGER; SYN	1-33263-020-0	03	1	1302-		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	1302-		●
231	PLUNGER	1-33263-020-0	03	1	1302-		●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	1302-		●
238	INSERT	1-33263-025-2	06	1	1302-		●
241	RING; SNAP (A)	1-09588-185-0	01	1	1302-		●
241	RING; SNAP (B)	1-09588-189-0	01	1	1302-		●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	1302-	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	1302-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	1302-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	1302-		●
324	HUB; CLU	1-33261-238-0	01	1	1302-		●
342	FLANGE; OUTPUT	8-98210-979-0	01	1	1302-	●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1302-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1302-	●	●
357	RING	1-31349-015-0	01	1	1302-		●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	1302-		●
408	SPRING	1-09583-171-0	03	1	1302-		●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	1302-	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	1302-		●
474	NOZZLE; OIL	1-33219-257-0	01	1	1302-		●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
