Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#118591) — 432 parça

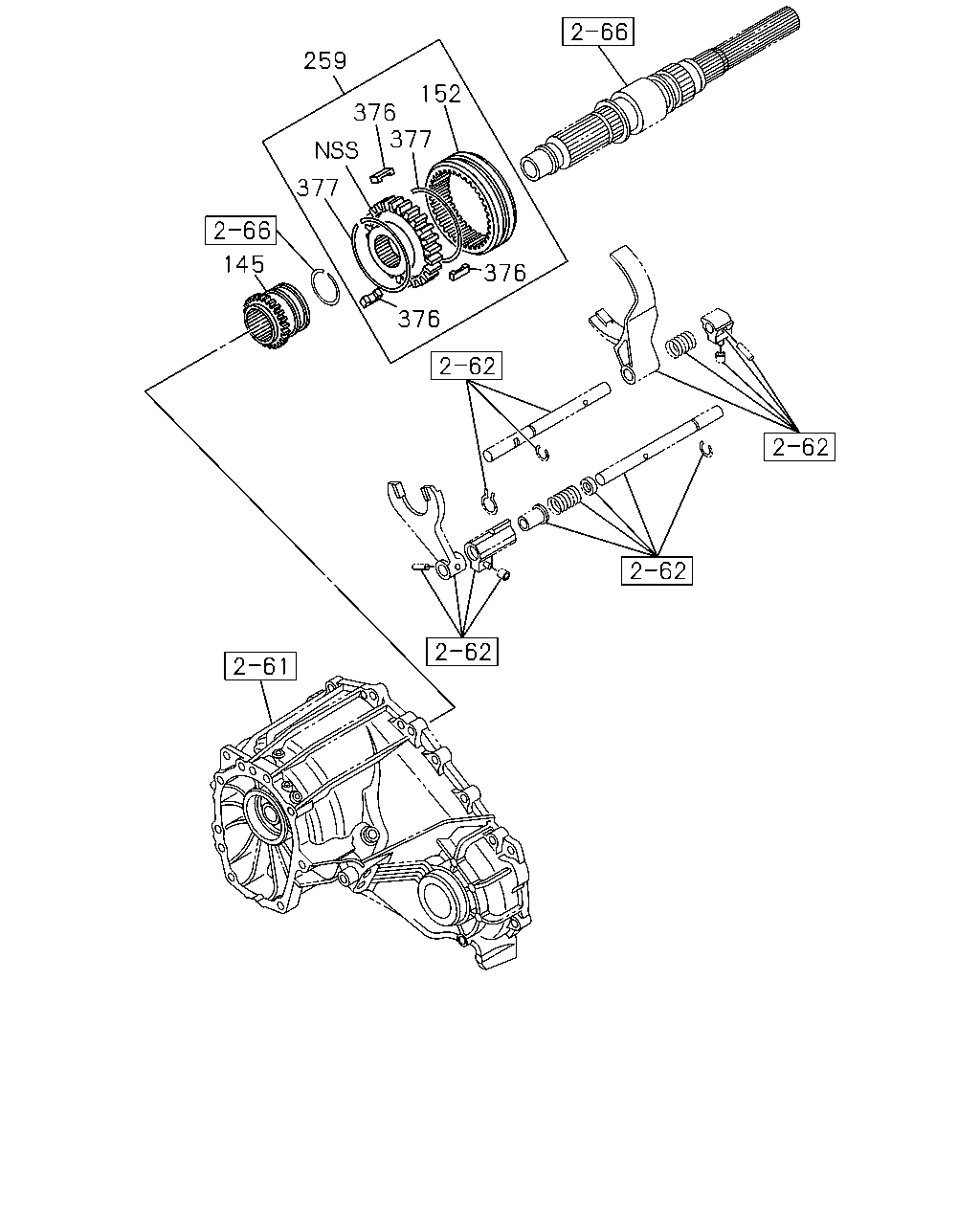

259 376 152 377 377 376 376 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1304-	●	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1304-	●	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1304-	●	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1304-	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	1304-	●	●

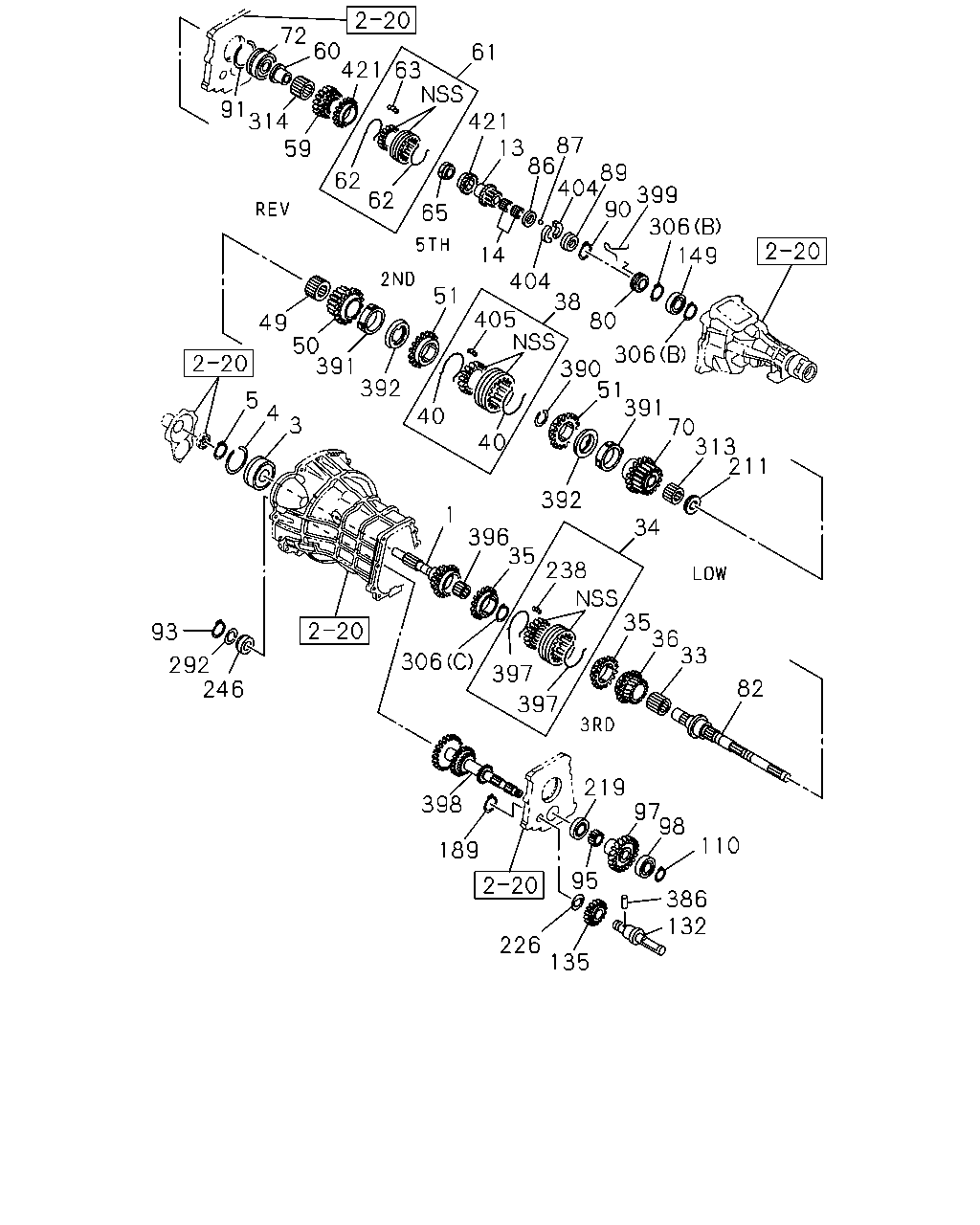

91 421 72 61 59 60 62 314 63 13 65 62 14 86 89 404 421 87 499 394 306 404 34 238 35 397 36 82 33 51 38 405 51 392 391 313 211 70 306 35 396 392 391 50 49 40 40 390 110 386 132 135 226 189 398 219 95 97 98 246 292 93 4 5 3 397 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1304-1307	●	●
1	04.351 SHAFT; TOP GEAR,TRANS IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1308-	●	●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1304-	●	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	1304-			●
3	04.403 BEARING; TOP GEAR SHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97943-879-0	01	1	1304-	●	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-015-1	01	1	1304-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	1304-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1304-	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	1304-			●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1304-	●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1304-			●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1304-	●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1304-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	1304-			●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1304-		●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1304-		●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1304-	●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1304-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1304-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1402-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	1304-1401	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1402-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1304-			●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1304-	●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	1304-			●
36	04.415 GEAR; 3RD,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98233-597-0	01	1	1304-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98210-226-0	01	1	1304-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	1304-			●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1402-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	1304-1401	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1402-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1304-			●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1304-	●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1304-			●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1304-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97301-183-1	01	1	1304-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97300-953-1	01	1	1304-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	1304-			●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1304-	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1304-			●
59	04.417 GEAR; REV MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1304-	●	●
59	04.417 GEAR; REV MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1304-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	1304-			●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	1304-	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1304-	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	1304-			●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1304-	●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	1304-			●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1304-	●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	1304-			●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1304-	●	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	1304-			●
70	04.417 GEAR; 1ST,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97301-182-1	01	1	1304-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97300-952-1	01	1	1304-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	1304-			●
72	04.352 BEARING; BALL,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1304-	●	●
72	04.352 BEARING; BALL,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1304-	●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1304-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1304-		●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	1304-			●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) Z=28-34-26-27	8-97300-980-0	01	1	1304-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1304-	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1304-	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1304-	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1304-	●	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	1304-			●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1304-	●	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1304-	●	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1304-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	1304-	●	●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=16	8-94377-433-0	01	1	1304-	●	●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1304-	●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1304-			●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1304-	●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1304-	●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1304-			●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1304-		●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1304-		●
98	04.422 BEARING; BALL,COUNTER END IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1304-	●	●
98	04.422 BEARING; BALL,COUNTER END EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1304-	●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	1304-			●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1304-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1304-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1304-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1304-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1304-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1304-	●	●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1309-	●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	1304-1308	●	●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1309-	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1304-			●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1304-	●	●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1304-	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1304-			●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1304-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1304-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1304-	●	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1304-	●	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1304-	●	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1304-	●	●
238	04.384 INSERT	8-94448-202-2	03	1	1304-	●	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	1304-	●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1304-	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1304-	●
306	04.416 RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1304-		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1304-	●	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1304-	●	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1304-	●	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) ID=27.9	9-09180-030-0	01	1	1304-	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1304-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1304-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1304-	●	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1304-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1304-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1304-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1304-	●	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1304-	●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1304-	●	●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> 04.352 NSK	8-97018-921-1	01	1	1304-	●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.352 NSK	8-97018-921-1	01	1	1304-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1304-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1304-			●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1304-	●	●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	1304-			●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1304-	●	●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1304-	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1304-			●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	1304-	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1304-	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1304-			●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1304-	●	●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT>	8-97300-954-0	01	1	1304-	●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97300-954-0	01	1	1304-	●

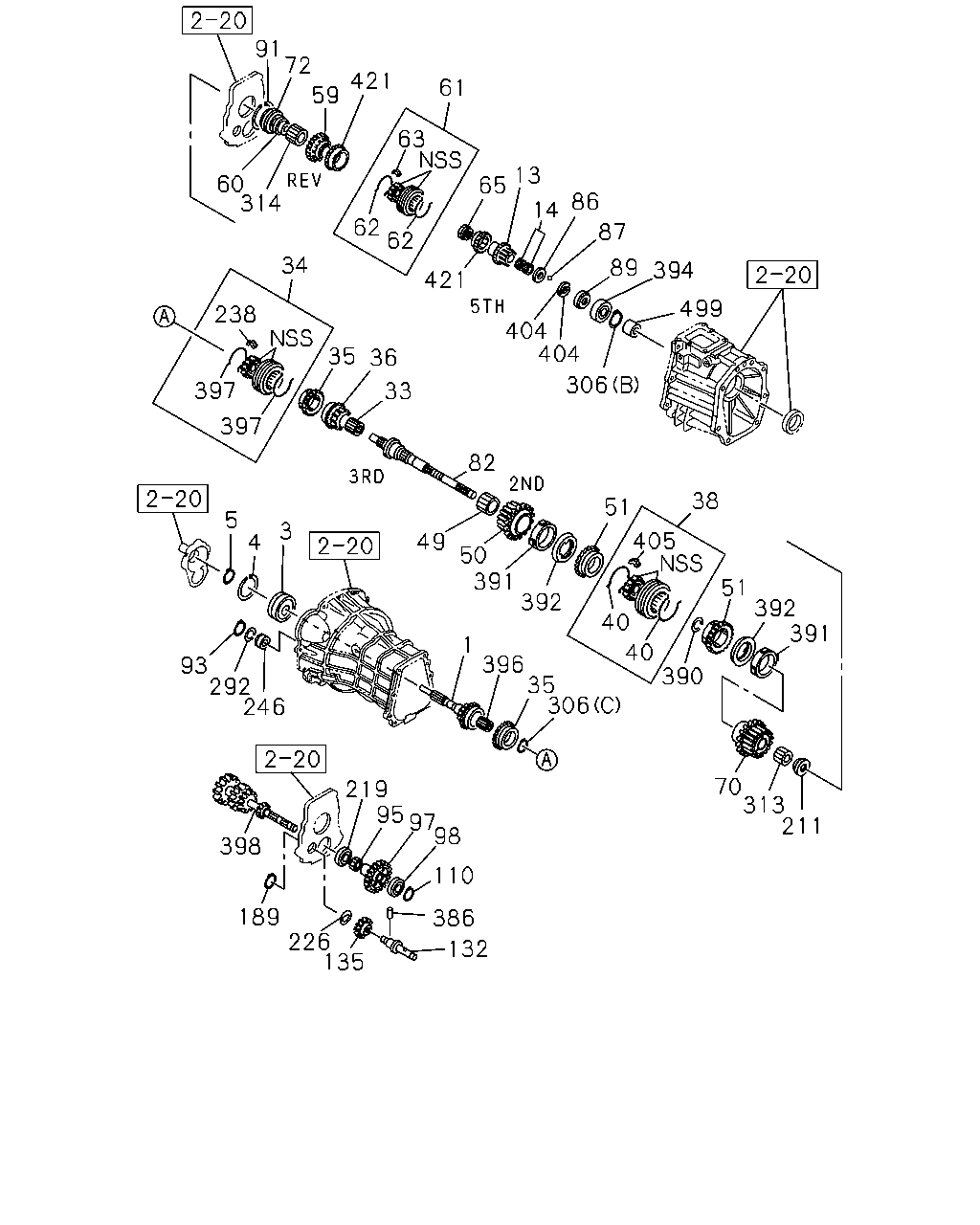

72 63 61 421 60 91 62 59 314 421 89 86 13 87 399 90 404 65 62 49 392 391 50 5 93 4 396 3 40 392 40 390 404 14 51 306 80 38 306 313 391 51 211 34 238 35 1 292 246 398 189 226 135 132 110 219 95 98 97 82 36 397 397 306 33 149 70 405 35 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1304-1307	●	●
1	04.351 SHAFT; TOP GEAR,TRANS IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1308-	●	●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1304-	●	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	1304-			●
3	04.403 BEARING; TOP GEAR SHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97943-879-0	01	1	1304-	●	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-015-1	01	1	1304-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	1304-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1304-	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	1304-			●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1304-	●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1304-			●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1304-	●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1304-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	1304-			●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1304-		●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1304-		●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1304-	●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1304-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1304-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1402-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	1304-1401	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1402-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1304-			●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1304-	●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	1304-			●
36	04.415 GEAR; 3RD,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98233-597-0	01	1	1304-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98210-226-0	01	1	1304-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	1304-			●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1402-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	1304-1401	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1402-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1304-			●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1304-	●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1304-			●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1304-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97301-183-1	01	1	1304-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97300-953-1	01	1	1304-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	1304-			●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1304-	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1304-			●
59	04.417 GEAR; REV MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1304-	●	●
59	04.417 GEAR; REV MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1304-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	1304-			●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	1304-	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1304-	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	1304-			●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1304-	●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	1304-			●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1304-	●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	1304-			●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1304-	●	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	1304-			●
70	04.417 GEAR; 1ST,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97301-182-1	01	1	1304-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97300-952-1	01	1	1304-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	1304-			●
72	04.352 BEARING; BALL,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1304-	●	●
72	04.352 BEARING; BALL,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1304-	●	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1304-	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	1304-		●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	1304-			●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1304-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1304-		●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	1304-			●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) Z=28-34-26-27	8-97300-980-0	01	1	1304-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1304-	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1304-	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1304-	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1304-	●	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	1304-			●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1304-	●	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1304-	●	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	1304-	●
90	04.416 RING; SNAP,THRUST RING 04.422 ID=29.6	9-09180-032-0	01	1	1304-		●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	1304-			●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1304-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	1304-	●	●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=16	8-94377-433-0	01	1	1304-	●	●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1304-	●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1304-			●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1304-	●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1304-	●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1304-			●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1304-		●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1304-		●
98	04.422 BEARING; BALL,COUNTER END IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1304-	●	●
98	04.422 BEARING; BALL,COUNTER END EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1304-	●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	1304-			●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1304-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1304-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1304-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1304-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1304-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1304-	●	●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1309-	●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	1304-1308	●	●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1309-	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1304-			●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1304-	●	●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1304-	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1304-			●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1304-	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1304-		●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1304-	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1304-		●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1304-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1304-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1304-	●	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1304-	●	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1304-	●	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1304-	●	●
238	04.384 INSERT	8-94448-202-2	03	1	1304-	●	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	1304-	●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1304-	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1304-	●
306	04.416 RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1304-		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1304-	●	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1304-	●	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1304-	●	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) ID=27.9	9-09180-030-0	01	1	1304-	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1304-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1304-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1304-	●	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1304-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1304-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1304-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1304-	●	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1304-	●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1304-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1304-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1304-			●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1304-	●	●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	1304-			●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1304-	●	●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1304-	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1304-			●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	1304-	●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	1304-		●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	1304-	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1304-	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1304-			●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1304-	●	●

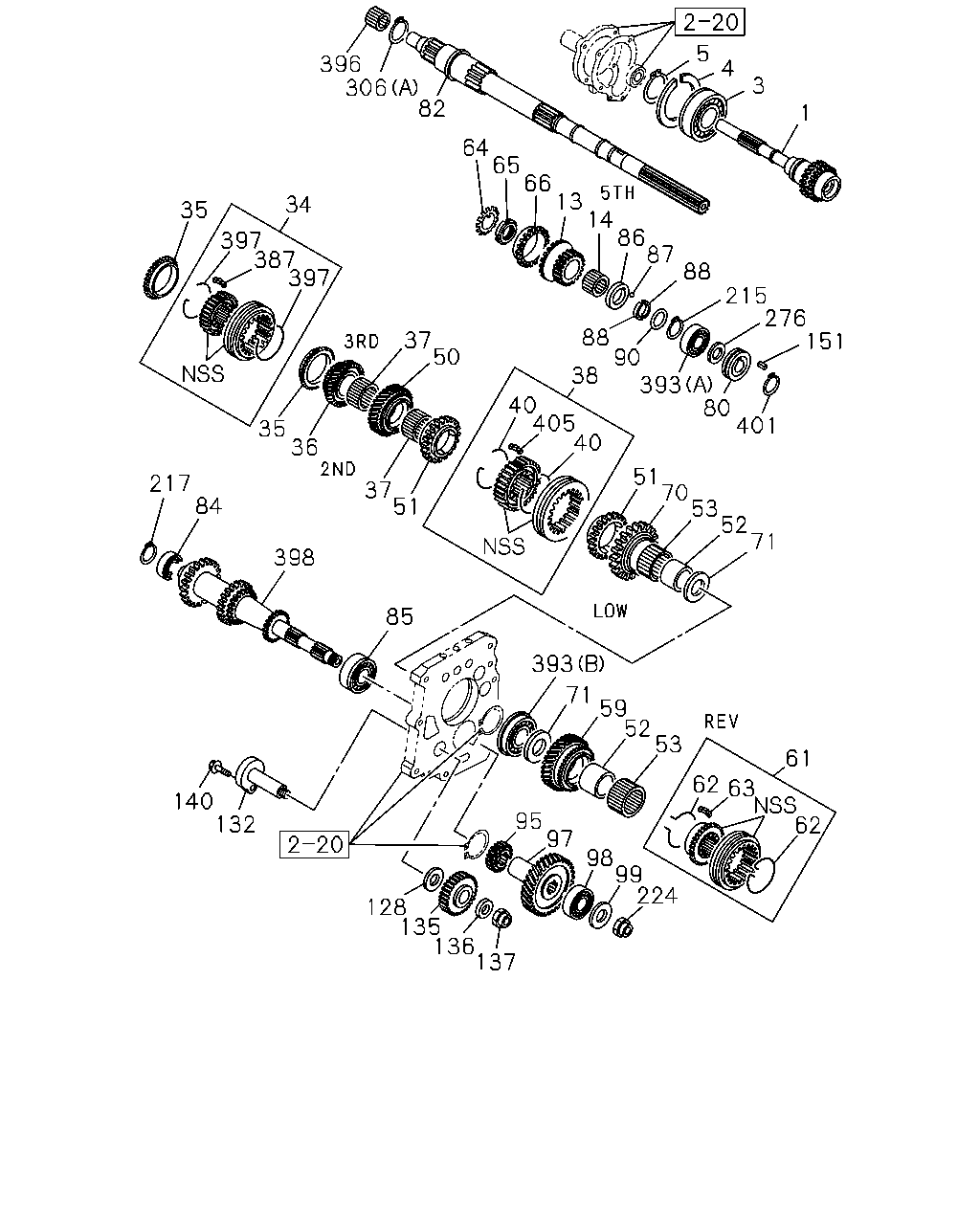

5 4 3 1 215 276 151 88 87 86 14 13 66 65 64 82 306 396 35 34 397 387 397 35 36 37 51 50 37 217 84 398 85 140 132 128 135 136 137 95 97 98 99 224 62 61 63 62 53 52 59 71 393 71 52 53 70 51 40 405 40 38 88 90 393 80 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1304-1307	●	●
1	04.351 SHAFT; TOP GEAR,TRANS IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1308-	●	●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1304-	●	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	1304-			●
3	04.403 BEARING; TOP GEAR SHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97943-879-0	01	1	1304-	●	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-015-1	01	1	1304-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	1304-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1304-	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	1304-			●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1304-	●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1304-			●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1304-	●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1304-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	1304-			●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1304-		●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1304-		●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1304-	●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1304-			●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1402-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	1304-1401	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1402-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1304-			●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1304-	●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	1304-			●
36	04.415 GEAR; 3RD,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98233-597-0	01	1	1304-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98210-226-0	01	1	1304-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	1304-			●
37	04.352 BEARING; NEEDLE,2ND & 3RD NTN	8-94161-988-2	02	1	1304-			●
37	04.352 BEARING; NEEDLE,2ND & 3RD NSK	8-94161-989-0	02	1	1304-			●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1402-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	1304-1401	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1402-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1304-			●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1304-	●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1304-			●
50	04.395 GEAR; 2ND,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97301-183-1	01	1	1304-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97300-953-1	01	1	1304-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	1304-			●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1304-	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1304-			●
52	04.419 COLLAR; NEEDLE BRG,LOW	8-97238-834-0	02	1	1304-			●
53	04.419 BEARING; NEEDLE,LOW & REV NTN	8-94161-990-2	02	1	1304-			●
53	04.419 BEARING; NEEDLE,LOW & REV NSK	8-94161-991-0	02	1	1304-			●
59	04.417 GEAR; REV MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1304-	●	●
59	04.417 GEAR; REV MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1304-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	1304-			●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1304-	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	1304-			●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1304-	●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	1304-			●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1304-	●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	1304-			●
64	04.419 WASHER; LK,LOW 04.412	8-94238-095-0	01	1	1304-			●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1304-	●	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	1304-			●
66	04.383 RING; BLOCK,SYN Z=30	8-94463-830-1	01	1	1304-			●
70	04.417 GEAR; 1ST,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97301-182-1	01	1	1304-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97300-952-1	01	1	1304-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	1304-			●
71	04.406 WASHER; THRUST,LOW ID=32.0	5-33239-043-3	02	1	1304-			●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1304-	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	1304-		●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	1304-			●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1304-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1304-		●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	1304-			●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) Z=28-34-26-27	8-97300-980-0	01	1	1304-	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	1304-			●
85	04.422 BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-97365-931-0	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1304-	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1304-	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1304-	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1304-	●	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	1304-			●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	1304-			●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1304-	●	●	●
88	04.416 RING; THRUST,THRUST WASHER	8-94473-936-2	02	1	1304-			●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	1304-	●
90	04.416 RING; SNAP,THRUST RING 04.422 ID=29.6	9-09180-032-0	01	1	1304-		●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	1304-			●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=16	8-94377-433-0	01	1	1304-	●	●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1304-	●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1304-			●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1304-	●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1304-	●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1304-			●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1304-		●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1304-		●
98	04.422 BEARING; BALL,COUNTER END IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1304-	●	●
98	04.422 BEARING; BALL,COUNTER END EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1304-	●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	1304-			●
99	04.429 WASHER; PL,COUNTER 5TH GEAR ID=17 OD=30	0-91610-516-0	01	1	1304-			●
128	04.437 WASHER; THRUST,REV SHAFT ID=22.0	5-33363-004-0	01	1	1304-			●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1309-	●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	1304-1308	●	●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1309-	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1304-			●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1304-	●	●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1304-	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1304-			●
136	04.437 WASHER; THRUST,REV IDLE,RR ID=16.2	5-33363-003-3	01	1	1304-			●
137	04.429 NUT; REV GEAR M16	8-98035-678-0	01	1	1304-			●
140	04.435 BOLT; LK PIECE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1304-			●
151	04.345 KEY; FEATHER,SPD DRIVE GEAR 08.960	9-08020-510-0	01	1	1304-			●
215	04.416 RING; SNAP,BALL BRG ID=27.9	9-09180-030-0	01	1	1304-			●
217	04.376 RING; SNAP,COUNTER FRT BRG 04.422 ID=18.5	9-09180-020-0	01	1	1304-			●
224	04.429 NUT; SELF LK,COUNTER M16	8-98035-678-0	01	1	1304-			●
276	04.419 SPACER; BRG TO DRIVE GEAR 04.423	8-94161-087-0	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1304-	●
306	04.416 RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1304-		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1304-	●	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1304-	●	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1304-	●	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1304-			●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) ID=27.9	9-09180-030-0	01	1	1304-	●
387	04.384 INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	1304-			●
393	04.352 BEARING; MAINSHAFT END 04.408 (B) NSK	8-94173-866-0	01	1	1304-			●
393	04.352 BEARING; MAINSHAFT END 04.422 (A) NSK	8-94173-863-0	01	1	1304-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1304-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1304-			●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1304-	●	●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	1304-			●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1304-	●	●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1304-	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1304-			●
401	04.345 RING; SNAP,SPD DRIVE GEAR 04.416 ID=27.9	9-09180-030-0	01	1	1304-			●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1304-	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1304-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
