◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51473 - TFR/TFS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#118580) — 38 parça

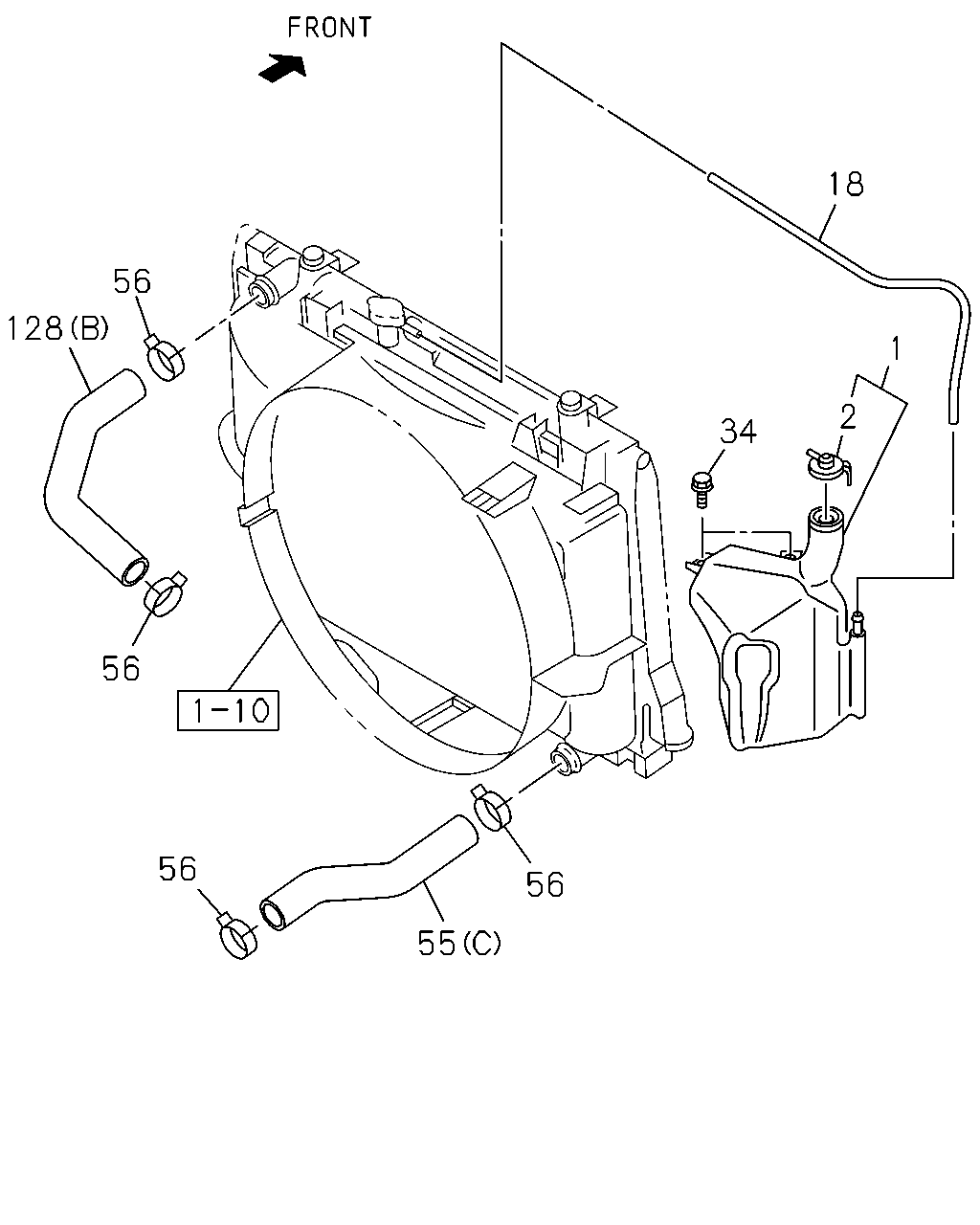

çizim 342615
18 1 2 34 56 55 56 56 128 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.219 TANK; SURGE,RAD 8-98095-701-2 01 1 1304- ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-98189-898-0 01 1 1304- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580 		8-98102-344-2 01 1 1304- ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 02 1 1304- ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-325-1 01 1 1304- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-324-2 01 1 1304-1310 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98093-324-2 01 1 1304-1310 ●
55 01.173 HOSE; WATER,RAD OUTLET
RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-324-2 01 1 1311- ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98093-324-2 01 1 1311- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-98093-327-1 01 1 1304- ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-98179-012-1 01 1 1304- ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 04 1 1304-1306 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1307-1310 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1307-1310 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) ID=40.5 		8-97313-472-0 02 1 1307-1310 ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1311- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1311- ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1304- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-98093-326-0 01 1 1304- ●

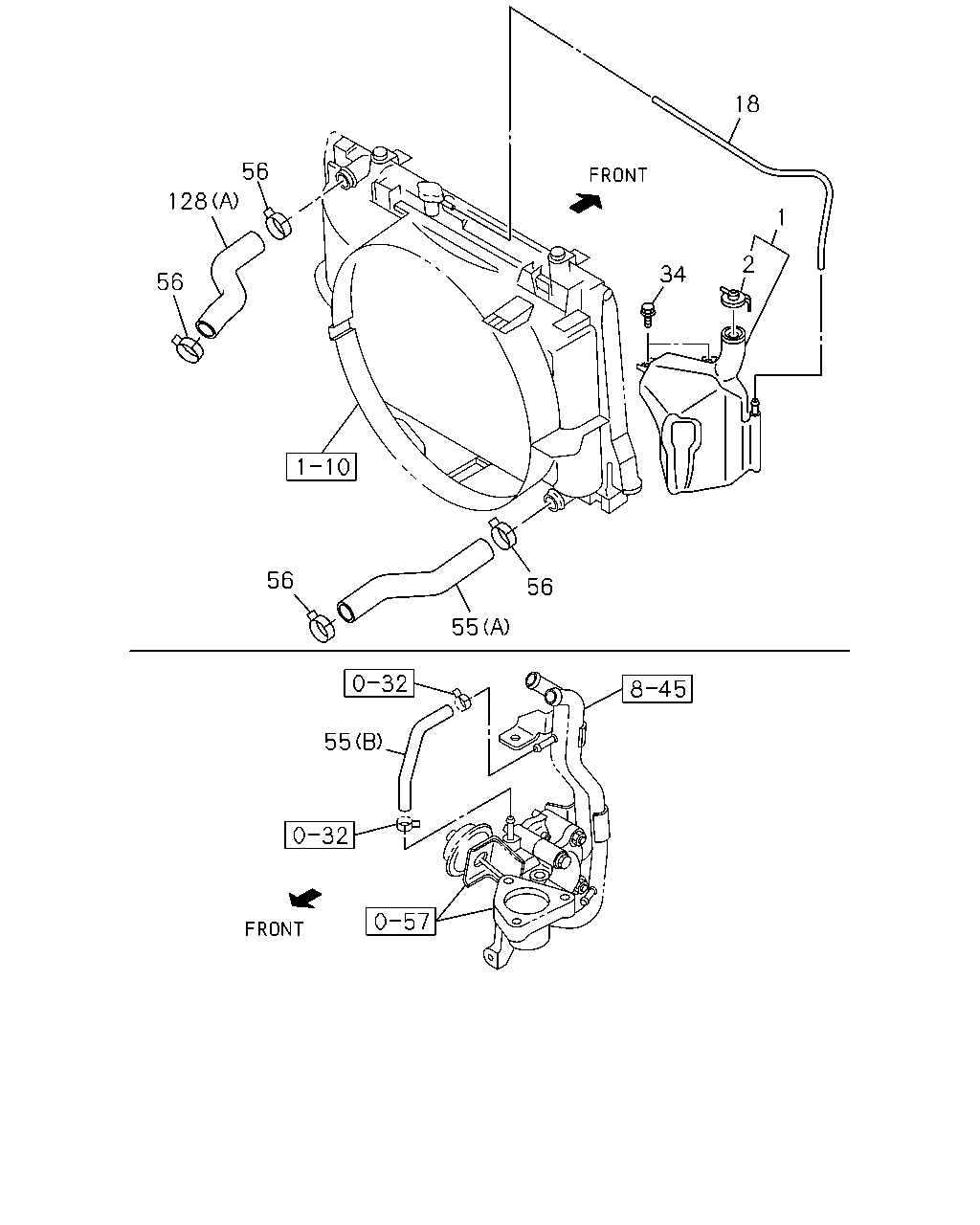

çizim 342623
128 56 56 56 56 55 34 2 1 18 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.219 TANK; SURGE,RAD 8-98095-701-2 01 1 1304- ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-98189-898-0 01 1 1304- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580 		8-98102-344-2 01 1 1304- ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 02 1 1304- ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-325-1 01 1 1304- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-324-2 01 1 1304-1310 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98093-324-2 01 1 1304-1310 ●
55 01.173 HOSE; WATER,RAD OUTLET
RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-324-2 01 1 1311- ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98093-324-2 01 1 1311- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-98093-327-1 01 1 1304- ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-98179-012-1 01 1 1304- ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 04 1 1304-1306 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1307-1310 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1307-1310 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) ID=40.5 		8-97313-472-0 02 1 1307-1310 ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1311- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1311- ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1304- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-98093-326-0 01 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
