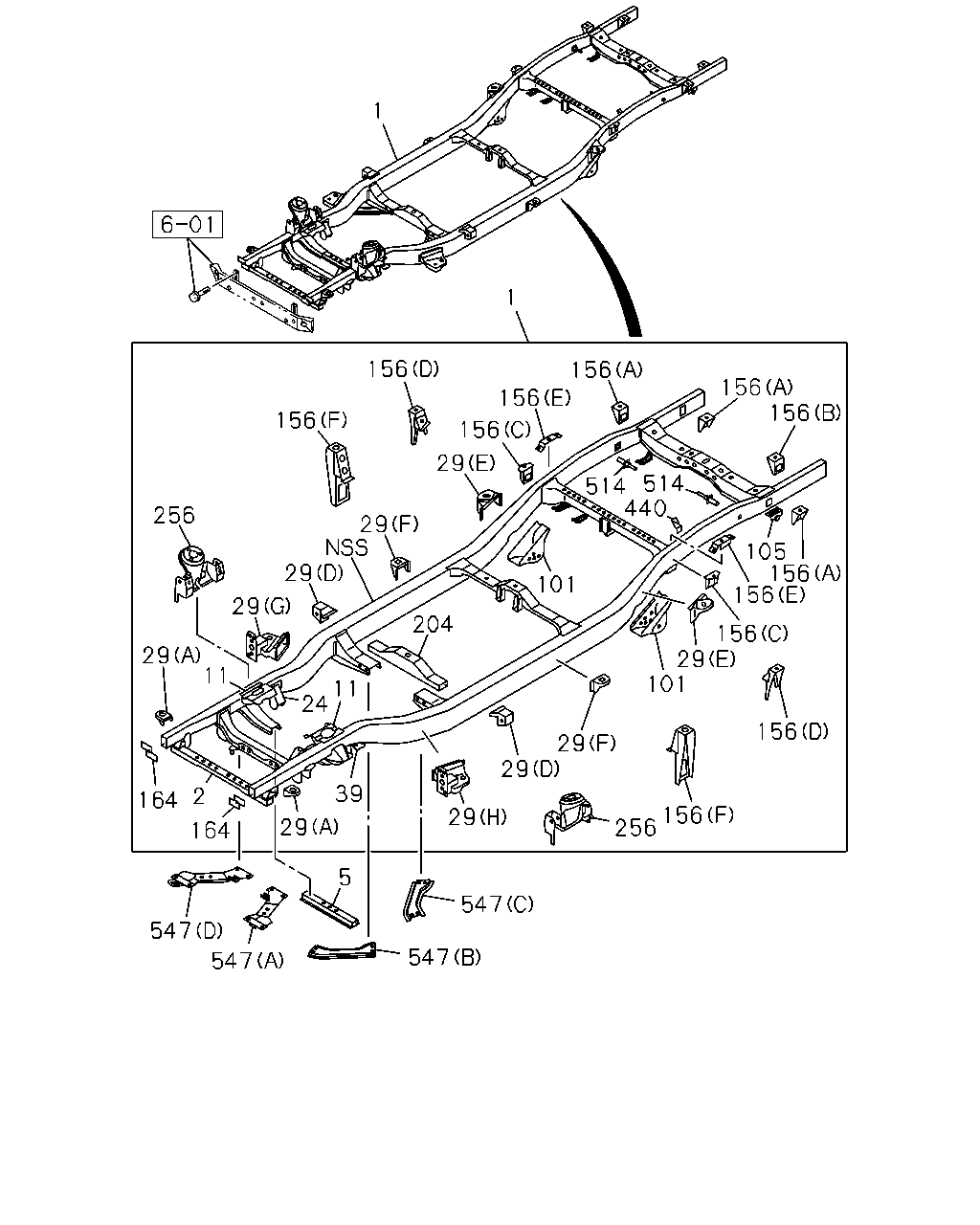

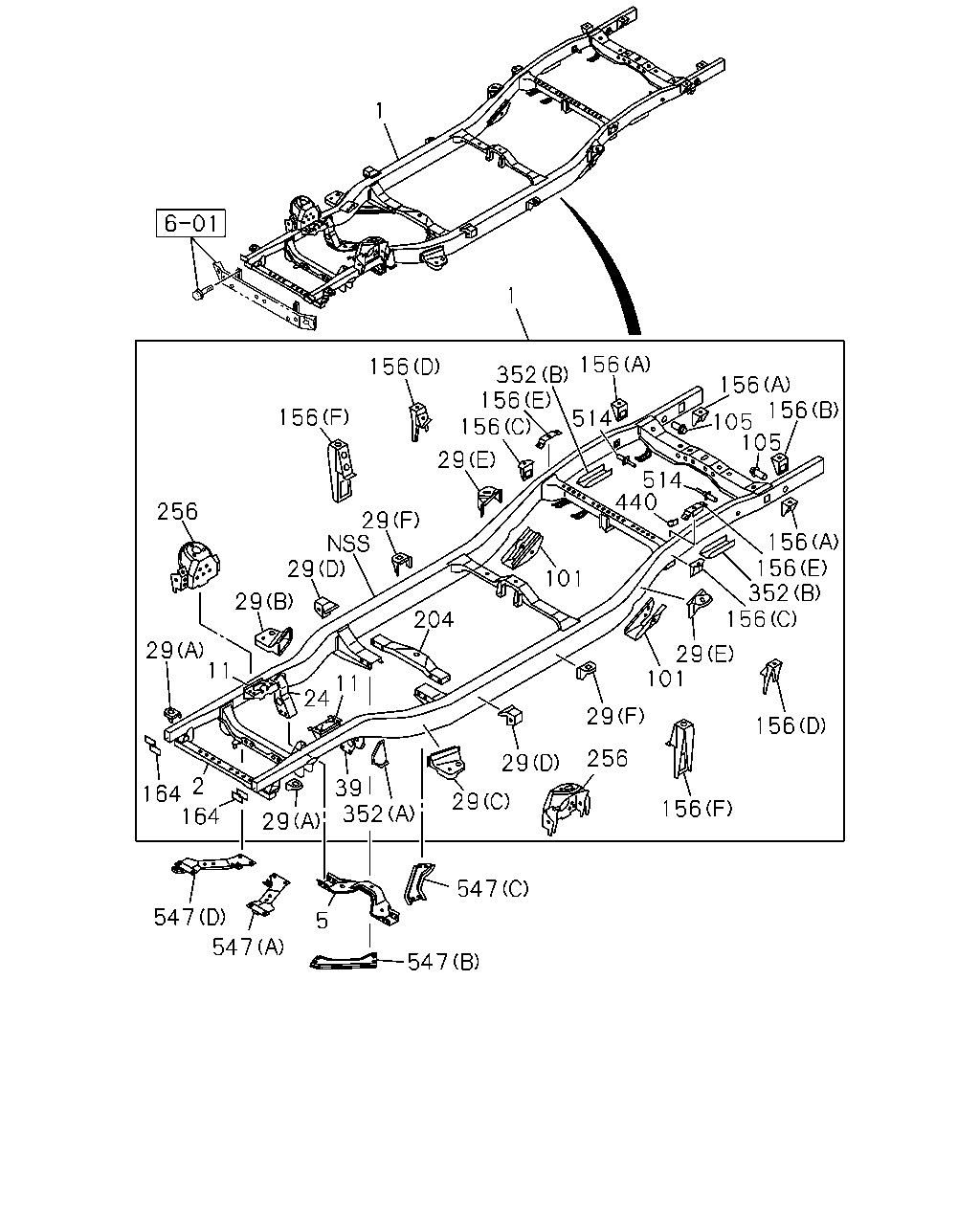

5-01 — FRAME AND OTHER PARTS (#118578) — 199 parça

497 497 497 497 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
485	07.039 NUT; TRANS MTG MBR,FRAME 04.085 M10 FLANGE	0-91180-210-0	04	1	1304-	●	●	●	●
497	07.006 BOLT; C/MBR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. SKID PLATE<7WE> 01.267 (A) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1304-	●	●
497	07.006 BOLT; C/MBR 4JA1-T ENG(LP0) EXC. SKID PLATE<7WE> 01.267 (A) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	1304-	●	●
497	07.006 BOLT; C/MBR 02.277 (C) M10X120 FLANGE	0-28066-012-0	04	1	1304-	●	●	●	●
497	07.006 BOLT; C/MBR 07.395 (D) M12X30 FLANGE	0-28651-230-0	08	1	1304-	●	●	●	●
497	07.006 BOLT; C/MBR 03.023 (B) M10X35 FLANGE	0-28661-035-0	04	1	1304-	●
497	07.006 BOLT; C/MBR EXC. HIGH RIDE SUSPENSION(7YC) 03.023 (B) M10X35 FLANGE	0-28661-035-0	04	1	1304-		●
497	07.006 BOLT; C/MBR HIGH RIDE SUSPENSION(7YC) 03.023 (B) M10X35 FLANGE	0-28661-035-0	06	1	1304-		●
497	07.006 BOLT; C/MBR 03.023 (B) M10X35 FLANGE	0-28661-035-0	06	1	1304-			●	●

1 1 156 156 105 156 105 156 156 352 156 29 101 156 29 256 29 29 547 204 101 440 514 514 352 156 156 156 156 29 29 29 256 29 11 24 11 39 352 29 164 164 2 547 547 5 156 547 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP)	8-98102-255-5	01	1	1304-	●
1	07.003 FRAME ASM A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)	8-98102-287-3	01	1	1304-		●
1	07.003 FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-98102-290-4	01	1	1304-		●
1	07.003 FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-98102-257-5	01	1	1304-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98102-275-3	01	1	1304-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1)	8-98102-249-3	01	1	1304-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98102-273-3	01	1	1304-				●
2	07.010 MEMBER; CROSS,1ST	8-98106-701-1	01	1	1304-	●	●	●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98106-736-2	01	1	1304-	●
5	07.010 MEMBER; CROSS,SUSPENSION EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-736-2	01	1	1304-		●
5	07.010 MEMBER; CROSS,SUSPENSION HIGH RIDE SUSPENSION(7YC)	8-98173-915-1	01	1	1304-		●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98173-916-0	01	1	1304-1307			●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98229-450-0	01	1	1308-			●	●
11	00.029 BRACKET; ENG MTG	8-98106-793-2	01	1	1304-	●
11	00.029 BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-793-2	01	1	1304-		●
11	00.029 BRACKET; ENG MTG	8-98106-795-1	01	1	1304-	●
11	00.029 BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-795-1	01	1	1304-		●
11	00.029 BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-98106-794-2	01	1	1304-		●
11	00.029 BRACKET; ENG MTG	8-98106-794-2	01	1	1304-			●	●
11	00.029 BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-98106-796-2	01	1	1304-		●
11	00.029 BRACKET; ENG MTG	8-98106-796-2	01	1	1304-			●	●
24	07.105 BRACKET; FRT SPR,FRT	8-98106-806-3	01	1	1304-	●
24	07.105 BRACKET; FRT SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-806-3	01	1	1304-		●
24	07.105 BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-807-1	01	1	1304-		●
24	07.105 BRACKET; FRT SPR,FRT	8-98106-807-1	01	1	1304-			●	●
29	07.330 BRACKET; CAB MTG (A)	8-97942-341-3	02	1	1304-	●	●	●	●
29	07.330 BRACKET; CAB MTG (D)	8-98107-534-0	02	1	1304-	●	●	●	●
29	07.330 BRACKET; CAB MTG (F)	8-98173-497-0	02	1	1304-	●	●	●	●
29	07.330 BRACKET; CAB MTG (G)	8-98186-495-1	01	1	1304-	●
29	07.330 BRACKET; CAB MTG EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98186-495-1	01	1	1304-		●
29	07.330 BRACKET; CAB MTG (H)	8-98186-496-1	01	1	1304-	●
29	07.330 BRACKET; CAB MTG EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-98186-496-1	01	1	1304-		●
29	07.330 BRACKET; CAB MTG (E)	8-98106-844-2	01	1	1304-		●		●
29	07.330 BRACKET; CAB MTG (E)	8-98106-845-2	01	1	1304-		●		●
29	07.330 BRACKET; CAB MTG HIGH RIDE SUSPENSION(7YC) (B)	8-98106-784-3	01	1	1304-		●
29	07.330 BRACKET; CAB MTG (B)	8-98106-784-3	01	1	1304-			●	●
29	07.330 BRACKET; CAB MTG HIGH RIDE SUSPENSION(7YC) (C)	8-98106-791-3	01	1	1304-		●
29	07.330 BRACKET; CAB MTG (C)	8-98106-791-3	01	1	1304-			●	●
39	07.112 BRACKET; FRT SPR,RR	8-98106-808-3	01	1	1304-	●
39	07.112 BRACKET; FRT SPR,RR EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-808-3	01	1	1304-		●
39	07.112 BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION(7YC)	8-98106-809-1	01	1	1304-		●
39	07.112 BRACKET; FRT SPR,RR	8-98106-809-1	01	1	1304-			●	●
101	07.112 BRACKET; RR SPR,FRT	8-98106-866-0	01	1	1304-	●
101	07.112 BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-866-0	01	1	1304-		●
101	07.112 BRACKET; RR SPR,FRT	8-98106-867-0	01	1	1304-	●
101	07.112 BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-867-0	01	1	1304-		●
101	07.112 BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-868-0	01	1	1304-		●
101	07.112 BRACKET; RR SPR,FRT	8-98106-868-0	01	1	1304-			●	●
101	07.112 BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-869-0	01	1	1304-		●
101	07.112 BRACKET; RR SPR,FRT	8-98106-869-0	01	1	1304-			●	●
105	07.112 BRACKET; RR SPR,RR	8-97942-294-0	02	1	1304-	●
105	07.112 BRACKET; RR SPR,RR EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-294-0	02	1	1304-		●
105	07.112 BRACKET; RR SPR,RR HIGH RIDE SUSPENSION(7YC)	8-98106-870-0	02	1	1304-		●
105	07.112 BRACKET; RR SPR,RR	8-98106-870-0	02	1	1304-			●	●
156	07.330 BRACKET; RR BODY MTG (C)	8-98214-084-0	02	1	1304-		●		●
156	07.330 BRACKET; RR BODY MTG (A)	8-98213-874-0	03	1	1304-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (B)	8-98213-875-0	01	1	1304-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (E)	8-98106-864-0	01	1	1304-	●		●
156	07.330 BRACKET; RR BODY MTG (E)	8-98106-865-0	01	1	1304-	●		●
156	07.330 BRACKET; RR BODY MTG (F)	8-98213-870-0	01	1	1304-	●		●
156	07.330 BRACKET; RR BODY MTG (F)	8-98213-871-0	01	1	1304-	●		●
156	07.330 BRACKET; RR BODY MTG (D)	8-98213-872-0	01	1	1304-	●		●
156	07.330 BRACKET; RR BODY MTG (D)	8-98213-873-0	01	1	1304-	●		●
164	07.112 PLATE; FRT	8-98106-814-0	01	1	1304-	●	●	●	●
164	07.112 PLATE; FRT	8-98106-815-0	01	1	1304-	●	●	●	●
204	07.010 MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP)	8-98106-759-4	01	1	1304-	●	●
204	07.010 MEMBER; CROSS,TRANS MTG A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)	8-98106-760-5	01	1	1304-		●
204	07.010 MEMBER; CROSS,TRANS MTG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98106-761-4	01	1	1304-			●	●
204	07.010 MEMBER; CROSS,TRANS MTG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1)	8-98106-762-4	01	1	1304-				●
256	07.395 BRACKET; S/ABS	8-98106-800-2	01	1	1304-	●
256	07.395 BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-800-2	01	1	1304-		●
256	07.395 BRACKET; S/ABS	8-98106-802-1	01	1	1304-	●
256	07.395 BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-802-1	01	1	1304-		●
256	07.395 BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-98106-801-6	01	1	1304-		●
256	07.395 BRACKET; S/ABS	8-98106-801-6	01	1	1304-			●	●
256	07.395 BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-98106-803-4	01	1	1304-		●
256	07.395 BRACKET; S/ABS	8-98106-803-4	01	1	1304-			●	●
352	07.039 BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION(7YC) (A)	8-98106-835-3	01	1	1304-		●
352	07.039 BRACKET; BUMPER RUBBER (A)	8-98106-835-3	01	1	1304-			●	●
352	07.039 BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION(7YC) (A)	8-98106-836-3	01	1	1304-		●
352	07.039 BRACKET; BUMPER RUBBER (A)	8-98106-836-3	01	1	1304-			●	●
352	07.039 BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION(7YC) (B)	8-98106-871-1	02	1	1304-		●
352	07.039 BRACKET; BUMPER RUBBER (B)	8-98106-871-1	02	1	1304-			●	●
440	07.039 BRACKET; HOSE	8-98106-872-1	01	1	1304-	●
440	07.039 BRACKET; HOSE EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-872-1	01	1	1304-		●
440	07.039 BRACKET; HOSE HIGH RIDE SUSPENSION(7YC)	8-98106-873-1	01	1	1304-		●
440	07.039 BRACKET; HOSE	8-98106-873-1	01	1	1304-			●	●
514	07.388 PIN; S/ABS	8-97942-395-1	02	1	1304-	●	●	●	●
547	07.039 BRACE; C/MBR (D)	8-98173-909-3	01	1	1304-	●	●
547	07.039 BRACE; C/MBR (B)	8-98173-913-0	01	1	1304-	●	●
547	07.039 BRACE; C/MBR (C)	8-98173-914-0	01	1	1304-	●	●
547	07.039 BRACE; C/MBR (A)	8-98177-569-1	01	1	1304-	●	●
547	07.039 BRACE; C/MBR (D)	8-98173-907-1	01	1	1304-1307			●	●
547	07.039 BRACE; C/MBR (D)	8-98229-465-0	01	1	1308-			●	●
547	07.039 BRACE; C/MBR (A)	8-98173-908-0	01	1	1304-1307			●	●
547	07.039 BRACE; C/MBR (A)	8-98229-466-0	01	1	1308-			●	●
547	07.039 BRACE; C/MBR (B)	8-98173-911-0	01	1	1304-			●	●
547	07.039 BRACE; C/MBR (C)	8-98173-912-0	01	1	1304-			●	●

1 156 156 256 29 29 24 164 164 29 39 29 156 156 156 514 514 156 105 29 156 156 156 156 256 29 29 29 547 547 547 5 547 101 204 29 101 1 156 29 2 11 440 156 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP)	8-98102-255-5	01	1	1304-	●
1	07.003 FRAME ASM A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)	8-98102-287-3	01	1	1304-		●
1	07.003 FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-98102-290-4	01	1	1304-		●
1	07.003 FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-98102-257-5	01	1	1304-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98102-275-3	01	1	1304-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1)	8-98102-249-3	01	1	1304-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98102-273-3	01	1	1304-				●
2	07.010 MEMBER; CROSS,1ST	8-98106-701-1	01	1	1304-	●	●	●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98106-736-2	01	1	1304-	●
5	07.010 MEMBER; CROSS,SUSPENSION EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-736-2	01	1	1304-		●
5	07.010 MEMBER; CROSS,SUSPENSION HIGH RIDE SUSPENSION(7YC)	8-98173-915-1	01	1	1304-		●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98173-916-0	01	1	1304-1307			●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98229-450-0	01	1	1308-			●	●
11	00.029 BRACKET; ENG MTG	8-98106-793-2	01	1	1304-	●
11	00.029 BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-793-2	01	1	1304-		●
11	00.029 BRACKET; ENG MTG	8-98106-795-1	01	1	1304-	●
11	00.029 BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-795-1	01	1	1304-		●
11	00.029 BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-98106-794-2	01	1	1304-		●
11	00.029 BRACKET; ENG MTG	8-98106-794-2	01	1	1304-			●	●
11	00.029 BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-98106-796-2	01	1	1304-		●
11	00.029 BRACKET; ENG MTG	8-98106-796-2	01	1	1304-			●	●
24	07.105 BRACKET; FRT SPR,FRT	8-98106-806-3	01	1	1304-	●
24	07.105 BRACKET; FRT SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-806-3	01	1	1304-		●
24	07.105 BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-807-1	01	1	1304-		●
24	07.105 BRACKET; FRT SPR,FRT	8-98106-807-1	01	1	1304-			●	●
29	07.330 BRACKET; CAB MTG (A)	8-97942-341-3	02	1	1304-	●	●	●	●
29	07.330 BRACKET; CAB MTG (D)	8-98107-534-0	02	1	1304-	●	●	●	●
29	07.330 BRACKET; CAB MTG (F)	8-98173-497-0	02	1	1304-	●	●	●	●
29	07.330 BRACKET; CAB MTG (G)	8-98186-495-1	01	1	1304-	●
29	07.330 BRACKET; CAB MTG EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98186-495-1	01	1	1304-		●
29	07.330 BRACKET; CAB MTG (H)	8-98186-496-1	01	1	1304-	●
29	07.330 BRACKET; CAB MTG EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-98186-496-1	01	1	1304-		●
29	07.330 BRACKET; CAB MTG (E)	8-98106-844-2	01	1	1304-		●		●
29	07.330 BRACKET; CAB MTG (E)	8-98106-845-2	01	1	1304-		●		●
29	07.330 BRACKET; CAB MTG HIGH RIDE SUSPENSION(7YC) (B)	8-98106-784-3	01	1	1304-		●
29	07.330 BRACKET; CAB MTG (B)	8-98106-784-3	01	1	1304-			●	●
29	07.330 BRACKET; CAB MTG HIGH RIDE SUSPENSION(7YC) (C)	8-98106-791-3	01	1	1304-		●
29	07.330 BRACKET; CAB MTG (C)	8-98106-791-3	01	1	1304-			●	●
39	07.112 BRACKET; FRT SPR,RR	8-98106-808-3	01	1	1304-	●
39	07.112 BRACKET; FRT SPR,RR EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-808-3	01	1	1304-		●
39	07.112 BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION(7YC)	8-98106-809-1	01	1	1304-		●
39	07.112 BRACKET; FRT SPR,RR	8-98106-809-1	01	1	1304-			●	●
101	07.112 BRACKET; RR SPR,FRT	8-98106-866-0	01	1	1304-	●
101	07.112 BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-866-0	01	1	1304-		●
101	07.112 BRACKET; RR SPR,FRT	8-98106-867-0	01	1	1304-	●
101	07.112 BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-867-0	01	1	1304-		●
101	07.112 BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-868-0	01	1	1304-		●
101	07.112 BRACKET; RR SPR,FRT	8-98106-868-0	01	1	1304-			●	●
101	07.112 BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-869-0	01	1	1304-		●
101	07.112 BRACKET; RR SPR,FRT	8-98106-869-0	01	1	1304-			●	●
105	07.112 BRACKET; RR SPR,RR	8-97942-294-0	02	1	1304-	●
105	07.112 BRACKET; RR SPR,RR EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-294-0	02	1	1304-		●
105	07.112 BRACKET; RR SPR,RR HIGH RIDE SUSPENSION(7YC)	8-98106-870-0	02	1	1304-		●
105	07.112 BRACKET; RR SPR,RR	8-98106-870-0	02	1	1304-			●	●
156	07.330 BRACKET; RR BODY MTG (C)	8-98214-084-0	02	1	1304-		●		●
156	07.330 BRACKET; RR BODY MTG (A)	8-98213-874-0	03	1	1304-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (B)	8-98213-875-0	01	1	1304-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (E)	8-98106-864-0	01	1	1304-	●		●
156	07.330 BRACKET; RR BODY MTG (E)	8-98106-865-0	01	1	1304-	●		●
156	07.330 BRACKET; RR BODY MTG (F)	8-98213-870-0	01	1	1304-	●		●
156	07.330 BRACKET; RR BODY MTG (F)	8-98213-871-0	01	1	1304-	●		●
156	07.330 BRACKET; RR BODY MTG (D)	8-98213-872-0	01	1	1304-	●		●
156	07.330 BRACKET; RR BODY MTG (D)	8-98213-873-0	01	1	1304-	●		●
164	07.112 PLATE; FRT	8-98106-814-0	01	1	1304-	●	●	●	●
164	07.112 PLATE; FRT	8-98106-815-0	01	1	1304-	●	●	●	●
204	07.010 MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP)	8-98106-759-4	01	1	1304-	●	●
204	07.010 MEMBER; CROSS,TRANS MTG A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)	8-98106-760-5	01	1	1304-		●
204	07.010 MEMBER; CROSS,TRANS MTG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98106-761-4	01	1	1304-			●	●
204	07.010 MEMBER; CROSS,TRANS MTG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1)	8-98106-762-4	01	1	1304-				●
256	07.395 BRACKET; S/ABS	8-98106-800-2	01	1	1304-	●
256	07.395 BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-800-2	01	1	1304-		●
256	07.395 BRACKET; S/ABS	8-98106-802-1	01	1	1304-	●
256	07.395 BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-802-1	01	1	1304-		●
256	07.395 BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-98106-801-6	01	1	1304-		●
256	07.395 BRACKET; S/ABS	8-98106-801-6	01	1	1304-			●	●
256	07.395 BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-98106-803-4	01	1	1304-		●
256	07.395 BRACKET; S/ABS	8-98106-803-4	01	1	1304-			●	●
440	07.039 BRACKET; HOSE	8-98106-872-1	01	1	1304-	●
440	07.039 BRACKET; HOSE EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-872-1	01	1	1304-		●
440	07.039 BRACKET; HOSE HIGH RIDE SUSPENSION(7YC)	8-98106-873-1	01	1	1304-		●
440	07.039 BRACKET; HOSE	8-98106-873-1	01	1	1304-			●	●
514	07.388 PIN; S/ABS	8-97942-395-1	02	1	1304-	●	●	●	●
547	07.039 BRACE; C/MBR (D)	8-98173-909-3	01	1	1304-	●	●
547	07.039 BRACE; C/MBR (B)	8-98173-913-0	01	1	1304-	●	●
547	07.039 BRACE; C/MBR (C)	8-98173-914-0	01	1	1304-	●	●
547	07.039 BRACE; C/MBR (A)	8-98177-569-1	01	1	1304-	●	●
547	07.039 BRACE; C/MBR (D)	8-98173-907-1	01	1	1304-1307			●	●
547	07.039 BRACE; C/MBR (D)	8-98229-465-0	01	1	1308-			●	●
547	07.039 BRACE; C/MBR (A)	8-98173-908-0	01	1	1304-1307			●	●
547	07.039 BRACE; C/MBR (A)	8-98229-466-0	01	1	1308-			●	●
547	07.039 BRACE; C/MBR (B)	8-98173-911-0	01	1	1304-			●	●
547	07.039 BRACE; C/MBR (C)	8-98173-912-0	01	1	1304-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
