Isuzu WW
▶
TRUCKS
▶
GXR
▶
11529 - GXR(RHD)EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-04 - CAB ASM
▶

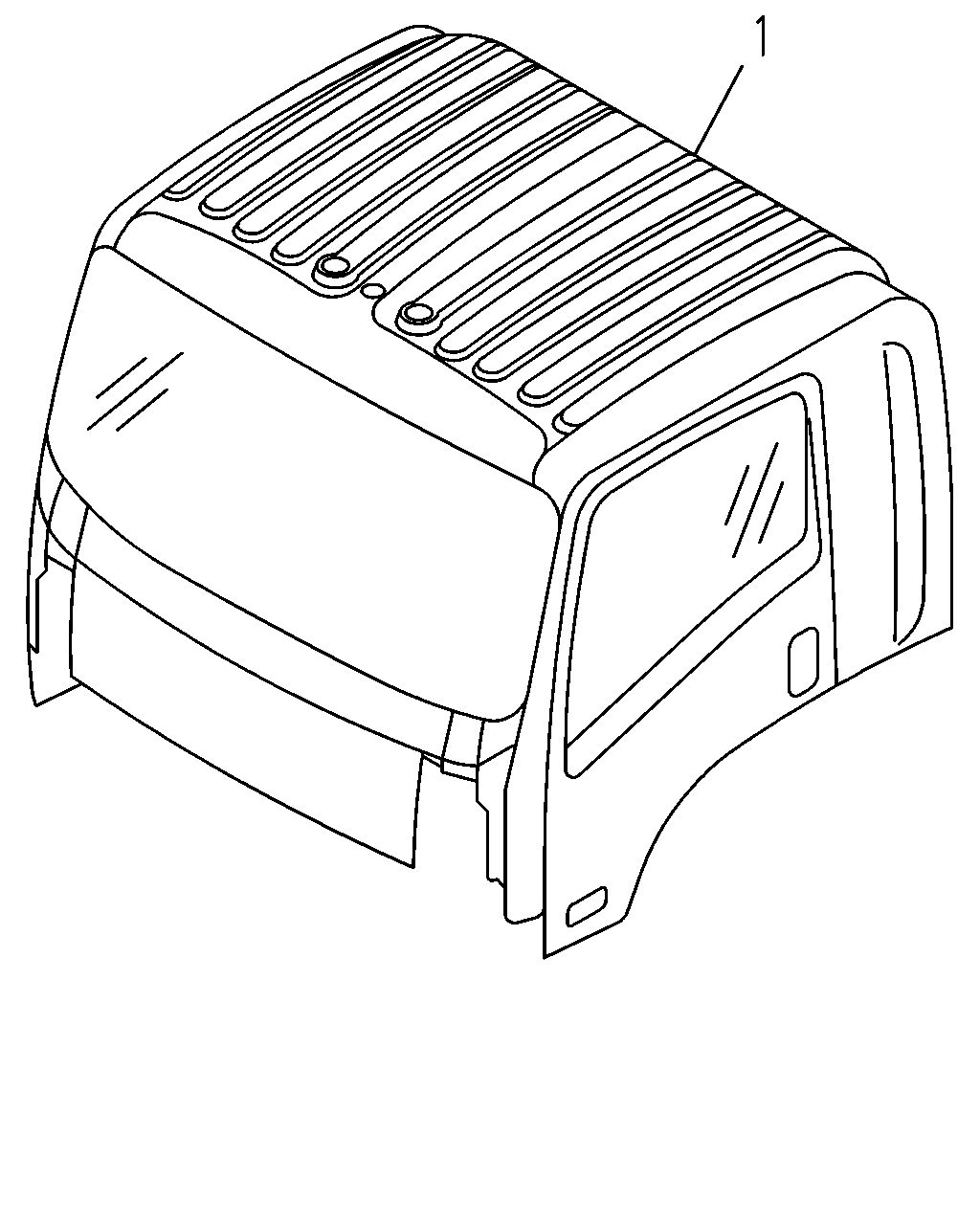

6-04 — CAB ASM
(#118574) — 2 parça
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) POWER WINDOW FRT DOOR<A32> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> HONG KONG EQUIPMENT(PQ1) INTERIOR FULL TRIM<WM3> SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> FLUORESCENT LAMP<6UC> EXC. ASH TRAY PASSENGER DOOR<8LX>
1-61089-990-0
01
1
1304-
1
CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) POWER WINDOW FRT DOOR<A32> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> SINGAPORE EQUIPMENT(WQ3) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. INTERIOR FULL TRIM<WM3>,FLUORESCENT LAMP<6UC>, ASH TRAY PASSENGER DOOR<8LX>
1-61089-991-0
01
1
1304-
