Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#118550) — 557 parça

103 100 126 126 101 101 369 352 126 352 126 176 257 107 369 176 257 107 102 103 102 126 352 369 176 257 100 107 352 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

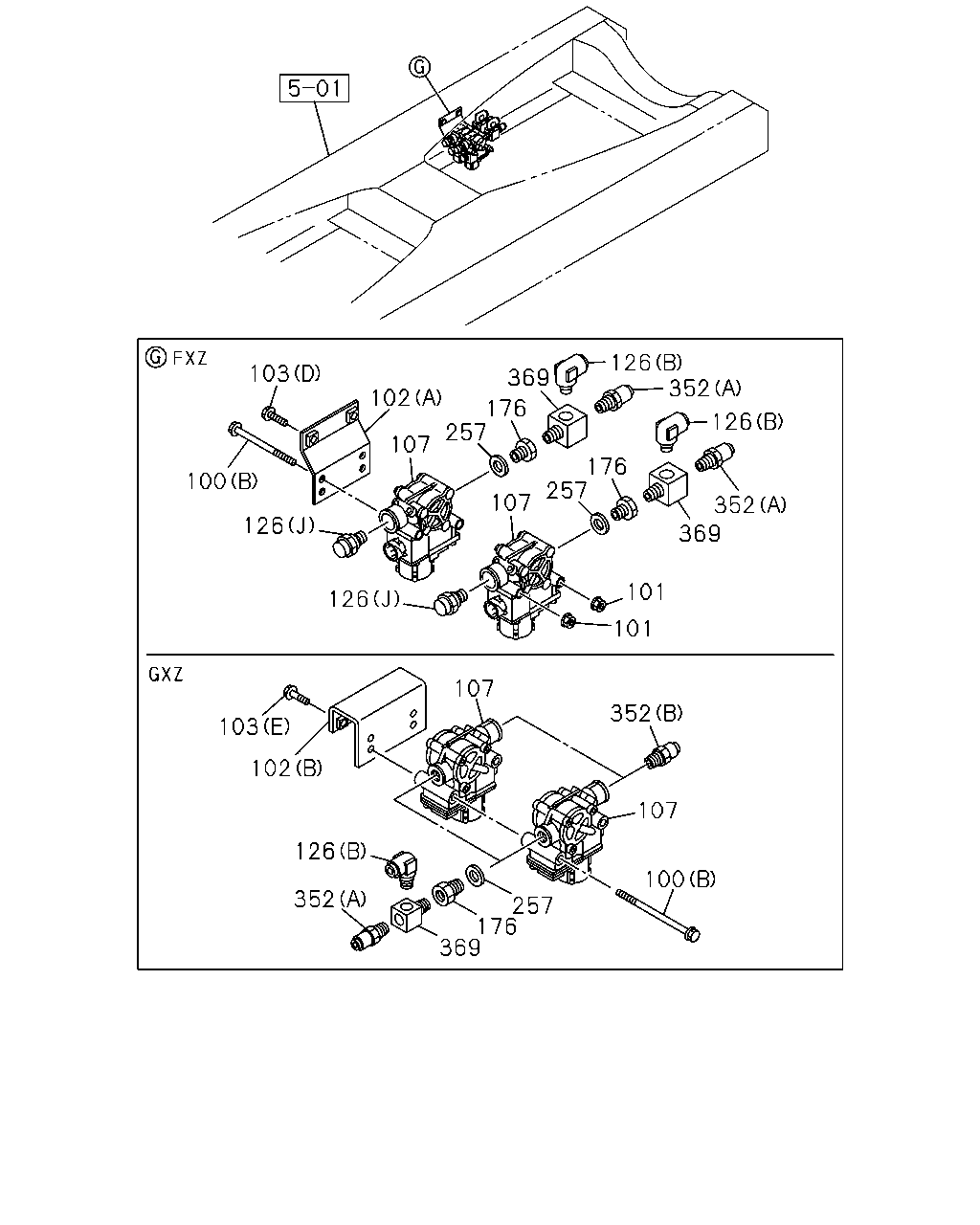

100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A) M8X80 FLANGE	0-28050-880-0	04	1	1304-	●	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) M8X140 FLANGE	0-28055-814-0	02	1	1304-	●	●
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1304-	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47471-372-0	01	1	1304-1504		●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98300-012-0	01	1	1505-		●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98034-539-2	01	1	1304-1504	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98272-821-0	01	1	1505-	●
103	BOLT; BRKT MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (A) M10X25 FLANGE	0-28651-025-0	04	1	1304-	●
103	BOLT; BRKT WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (A) M10X25 FLANGE	0-28651-025-0	04	1	1304-	●
103	BOLT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (A) M10X25 FLANGE	0-28651-025-0	04	1	1304-	●
103	BOLT; BRKT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) M10X25 FLANGE	0-28651-025-0	04	1	1304-		●
103	BOLT; BRKT WHEEL BASE 6600MM(66W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (E) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (D) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
103	BOLT; BRKT WHEEL BASE 4500MM(45W) (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-	●
103	BOLT; BRKT (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-		●
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	1-48240-115-0	02	1	1304-1504	●	●
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	8-98215-454-0	02	1	1505-	●	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW RIGID SEAT WO/ARM REST(TAZ) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (H) PT3/8 4WAY	1-09661-489-0	02	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (J) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1304-1504	●
126	CONNECTOR; ELBOW (I)	1-09660-778-1	02	1	1304-		●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1304-	●	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1304-	●	●
257	GASKET; PLUG ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	02	1	1304-	●	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1304-1504		●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1505-	●	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1304-	●	●
369	CONNECTOR; 3WAY ANTILOCK BRAKE SYSTEM(BFA) PT3/8 3WAY	1-09661-300-0	02	1	1304-	●	●

126 166 10 126 342 381 37 30 166 10 10 30 46 46 46 46 30 10 37 6 7 1 5 5 39 5 10 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

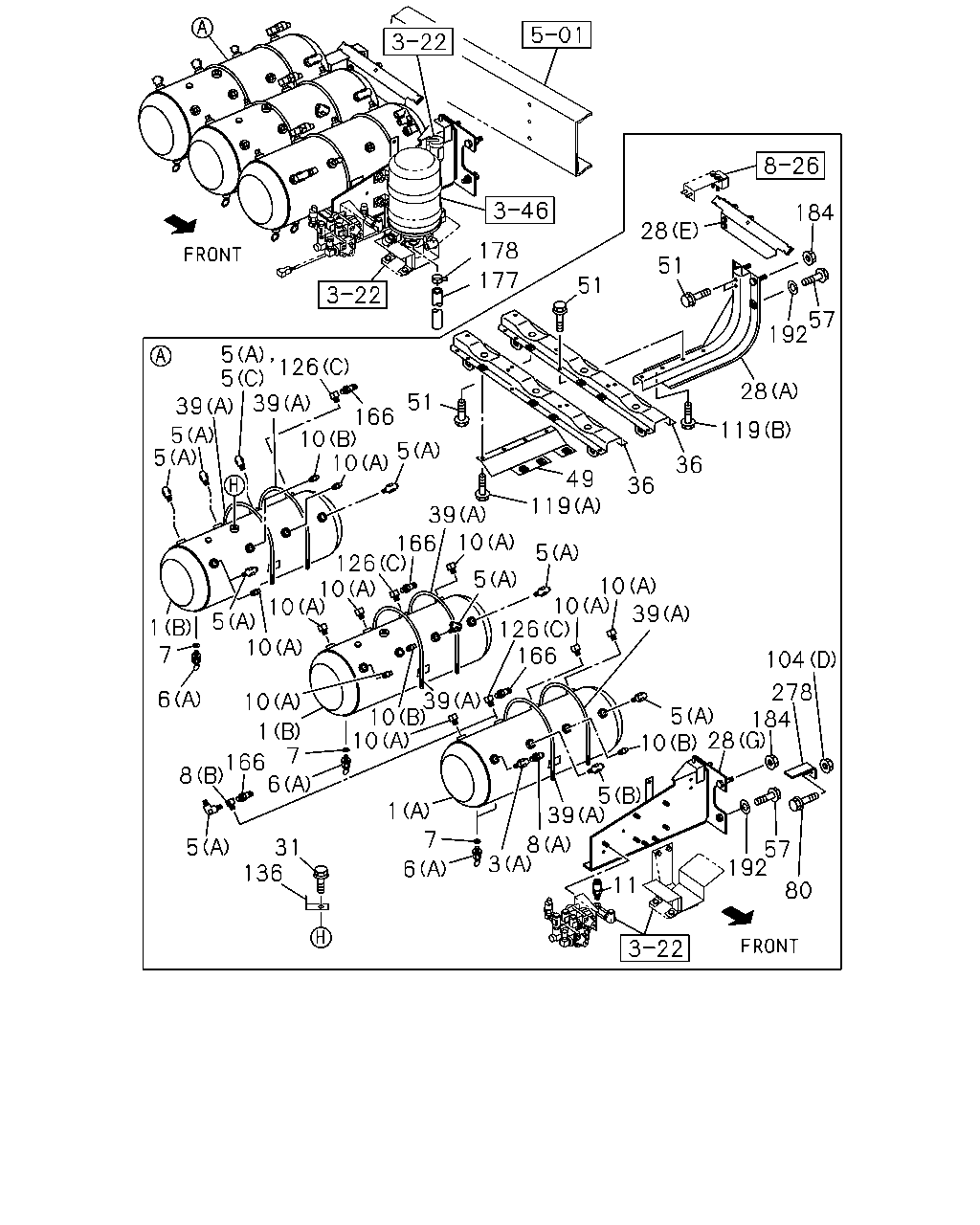

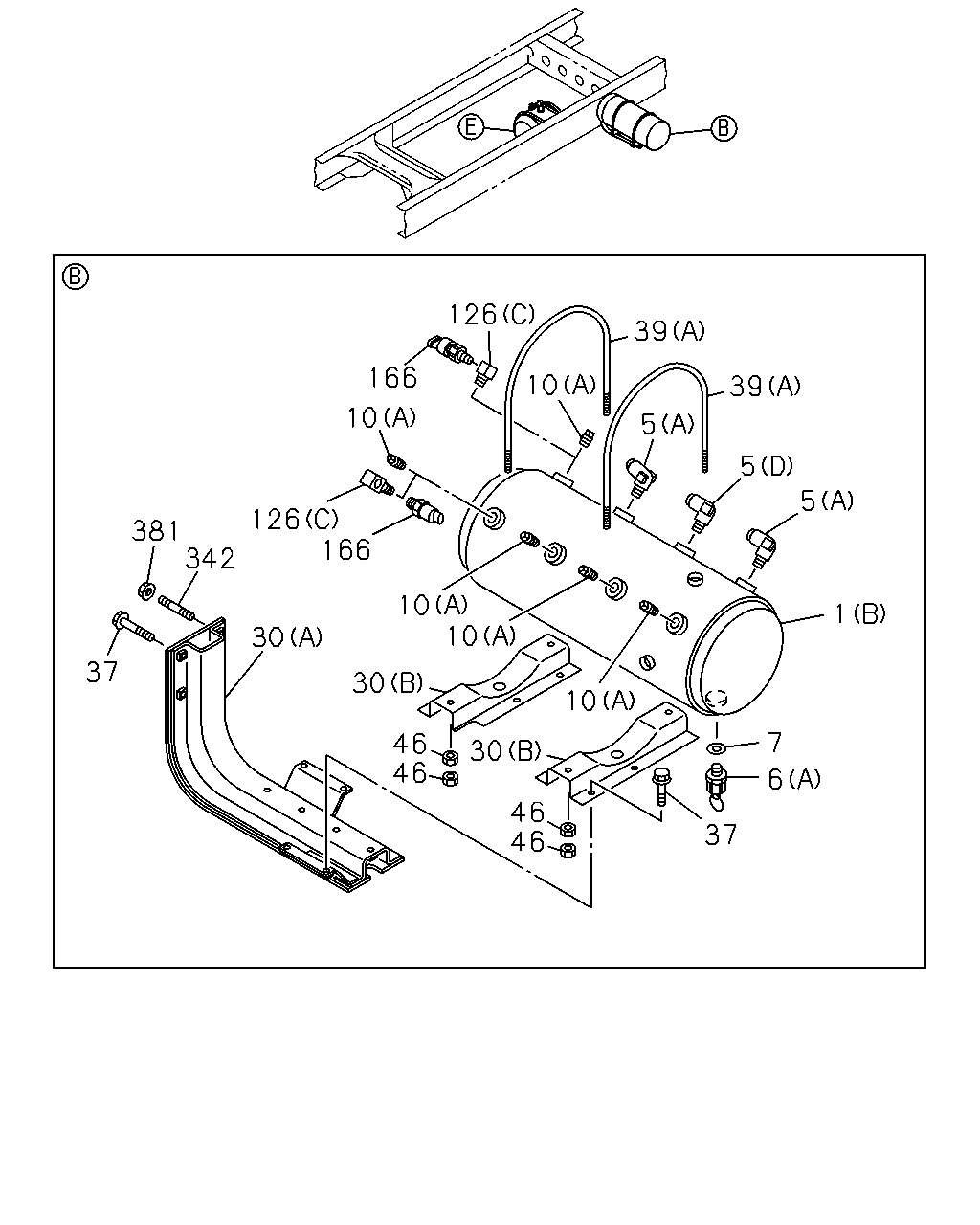

1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●
1	TANK ASM; AIR (B)	8-98187-713-0	02	1	1304-		●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1304-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1304-		●
5	UNION; AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A)	1-48312-015-0	01	1	1304-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1304-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	04	1	1304-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	04	1	1304-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1304-	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	07	1	1304-		●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	02	1	1304-		●
30	BRACKET; AIR TANK,SUB (A)	8-97618-393-0	01	1	1304-	●
30	BRACKET; AIR TANK,SUB (B)	8-97618-394-0	02	1	1304-	●
30	BRACKET; AIR TANK,SUB (C)	8-98234-793-0	01	1	1304-		●
37	BOLT; AIR TANK M12X35 FLANGE	0-28651-235-0	02	1	1304-		●
37	BOLT; AIR TANK M10X25 FLANGE	0-28651-025-0	08	1	1304-	●
37	BOLT; AIR TANK M10X40 FLANGE	0-28651-040-0	02	1	1304-	●
39	U-BOLT; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B) L=210	1-48317-458-1	02	1	1304-	●
39	U-BOLT; AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (B) L=210	1-48317-458-1	02	1	1304-	●
39	U-BOLT; AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (B) L=210	1-48317-458-1	02	1	1304-	●
39	U-BOLT; AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (B) L=210	1-48317-458-1	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1304-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1304-		●
39	U-BOLT; AIR TANK (C)	1-48317-289-0	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1304-	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-	●	●
46	NUT; U-BOLT MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW RIGID SEAT WO/ARM REST(TAZ) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (H) PT3/8 4WAY	1-09661-489-0	02	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (J) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1304-1504	●
126	CONNECTOR; ELBOW (I)	1-09660-778-1	02	1	1304-		●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●
342	STUD M12X30,M12X16 L=56	8-98144-947-0	02	1	1304-		●
342	STUD M10X30 L=45	8-98035-675-0	02	1	1304-	●
381	NUT; SUB TANK M12 FLANGE	0-91180-212-0	02	1	1304-		●
381	NUT; SUB TANK M10 FLANGE	0-91180-210-0	02	1	1304-	●

6 2 7 39 39 3 126 126 126 126 167 126 26 26 26 30 131 126 131 137 46 29 137 46 10 10 7 6 10 381 37 46 46 28 46 46 342 1 10 10 10 10 5 39 39 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

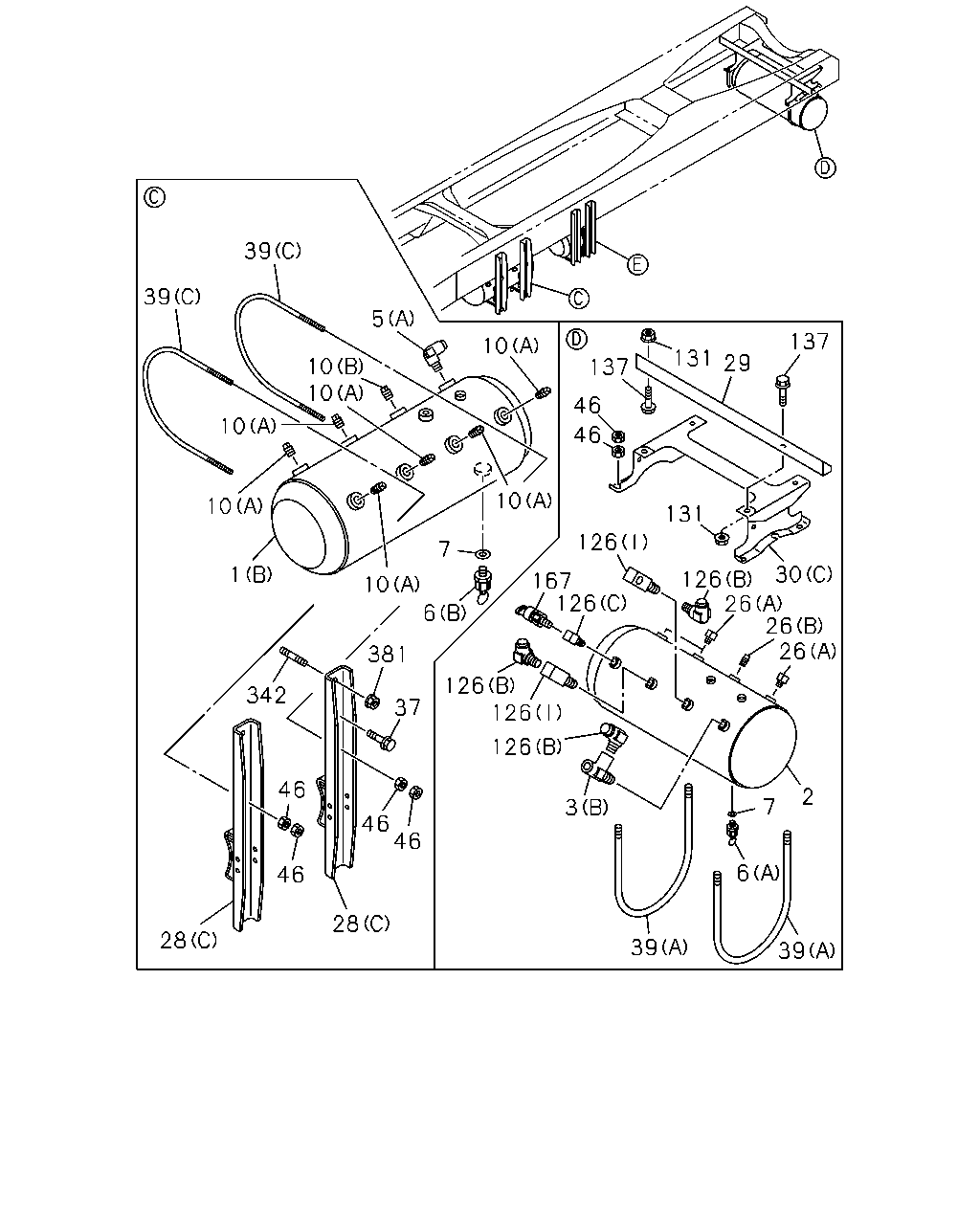

1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●
1	TANK ASM; AIR (B)	8-98187-713-0	02	1	1304-		●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1304-	●	●
2	TANK; AIR	8-98187-713-0	01	1	1304-		●
3	VALVE; CHECK,AIR TANK (A)	1-48320-031-1	01	1	1304-	●	●
3	VALVE; CHECK,AIR TANK (B) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1304-		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1304-		●
5	UNION; AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A)	1-48312-015-0	01	1	1304-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1304-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	04	1	1304-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	04	1	1304-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1304-	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	07	1	1304-		●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	02	1	1304-		●
26	PLUG; SUB AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	01	1	1304-	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-		●
26	PLUG; SUB AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-		●
26	PLUG; SUB AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-		●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (B)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (B)	8-98100-973-1	02	1	1304-		●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (D)	8-98092-756-1	01	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (D)	8-98092-756-1	01	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (D)	8-98092-756-1	01	1	1304-	●
28	BRACKET; AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D)	8-98092-756-1	01	1	1304-		●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (F)	8-98100-985-0	01	1	1304-	●
28	BRACKET; AIR TANK (C)	8-98237-155-1	02	1	1304-		●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (G)	8-98093-562-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (E)	8-98112-257-0	01	1	1304-	●	●
29	BRACKET; AIR TANK	8-97619-245-1	01	1	1304-		●
30	BRACKET; AIR TANK,SUB (A)	8-97618-393-0	01	1	1304-	●
30	BRACKET; AIR TANK,SUB (B)	8-97618-394-0	02	1	1304-	●
30	BRACKET; AIR TANK,SUB (C)	8-98234-793-0	01	1	1304-		●
37	BOLT; AIR TANK M12X35 FLANGE	0-28651-235-0	02	1	1304-		●
37	BOLT; AIR TANK M10X25 FLANGE	0-28651-025-0	08	1	1304-	●
37	BOLT; AIR TANK M10X40 FLANGE	0-28651-040-0	02	1	1304-	●
39	U-BOLT; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B) L=210	1-48317-458-1	02	1	1304-	●
39	U-BOLT; AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (B) L=210	1-48317-458-1	02	1	1304-	●
39	U-BOLT; AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (B) L=210	1-48317-458-1	02	1	1304-	●
39	U-BOLT; AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (B) L=210	1-48317-458-1	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1304-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1304-		●
39	U-BOLT; AIR TANK (C)	1-48317-289-0	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1304-	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-	●	●
46	NUT; U-BOLT MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW RIGID SEAT WO/ARM REST(TAZ) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (H) PT3/8 4WAY	1-09661-489-0	02	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (J) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1304-1504	●
126	CONNECTOR; ELBOW (I)	1-09660-778-1	02	1	1304-		●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	05	1	1304-		●
137	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	06	1	1304-		●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1304-		●
342	STUD M12X30,M12X16 L=56	8-98144-947-0	02	1	1304-		●
342	STUD M10X30 L=45	8-98035-675-0	02	1	1304-	●
381	NUT; SUB TANK M12 FLANGE	0-91180-212-0	02	1	1304-		●
381	NUT; SUB TANK M10 FLANGE	0-91180-210-0	02	1	1304-	●

105 105 100 405 176 126 101 109 126 317 126 405 176 100 176 405 126 317 126 109 101 126 405 176 100 105 100 105

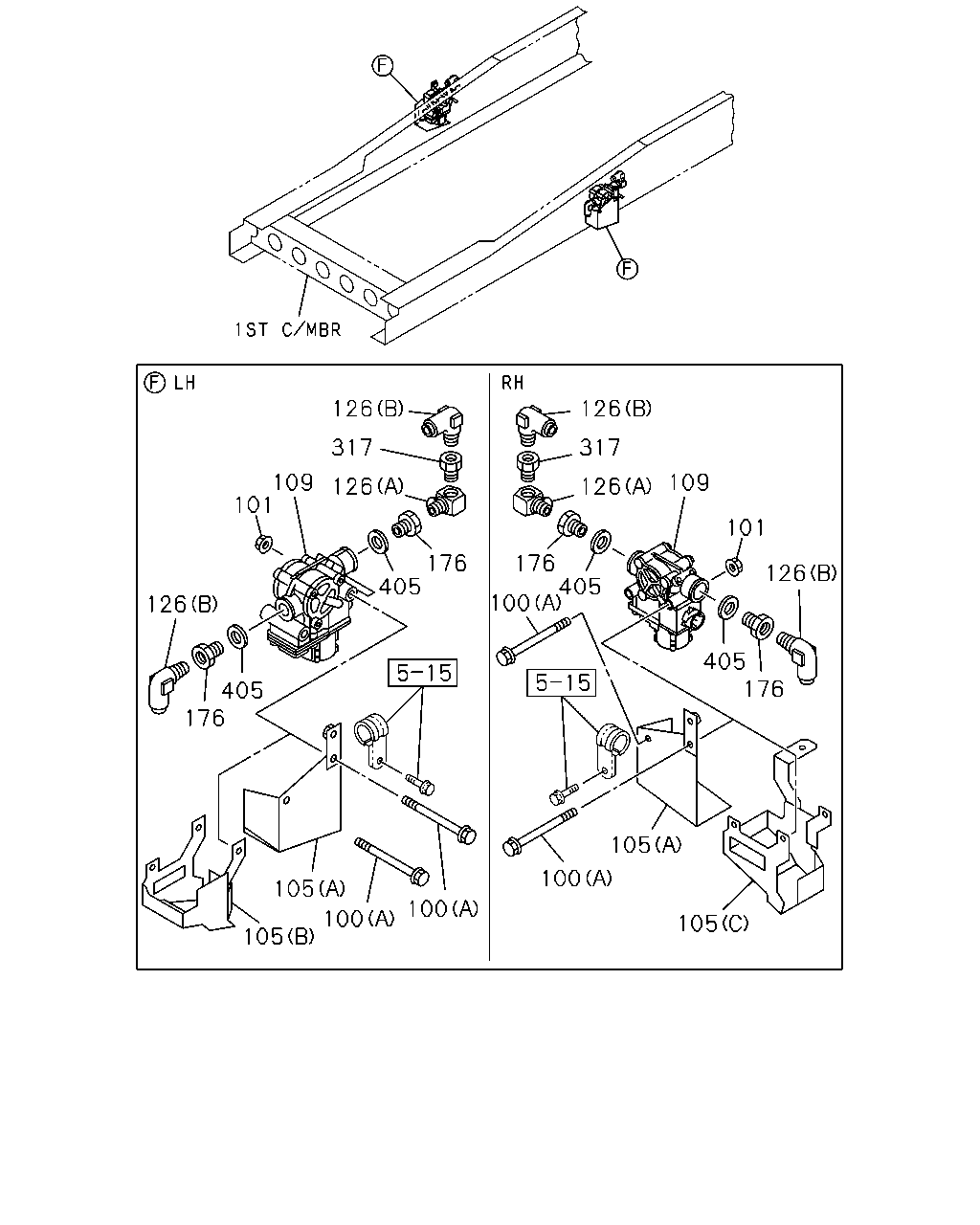

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A) M8X80 FLANGE	0-28050-880-0	04	1	1304-	●	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) M8X140 FLANGE	0-28055-814-0	02	1	1304-	●	●
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1304-	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98061-815-0	01	1	1304-1504	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98300-152-0	01	1	1505-	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98164-196-0	01	1	1304-1504	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98300-155-0	01	1	1505-	●	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	1-48240-115-0	02	1	1304-1504	●	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	8-98215-454-0	02	1	1505-	●	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW RIGID SEAT WO/ARM REST(TAZ) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (H) PT3/8 4WAY	1-09661-489-0	02	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (J) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1304-1504	●
126	CONNECTOR; ELBOW (I)	1-09660-778-1	02	1	1304-		●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1304-	●	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1304-	●	●
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) PT3/8	1-09664-210-0	01	1	1304-	●	●
405	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	04	1	1304-	●	●

241 241

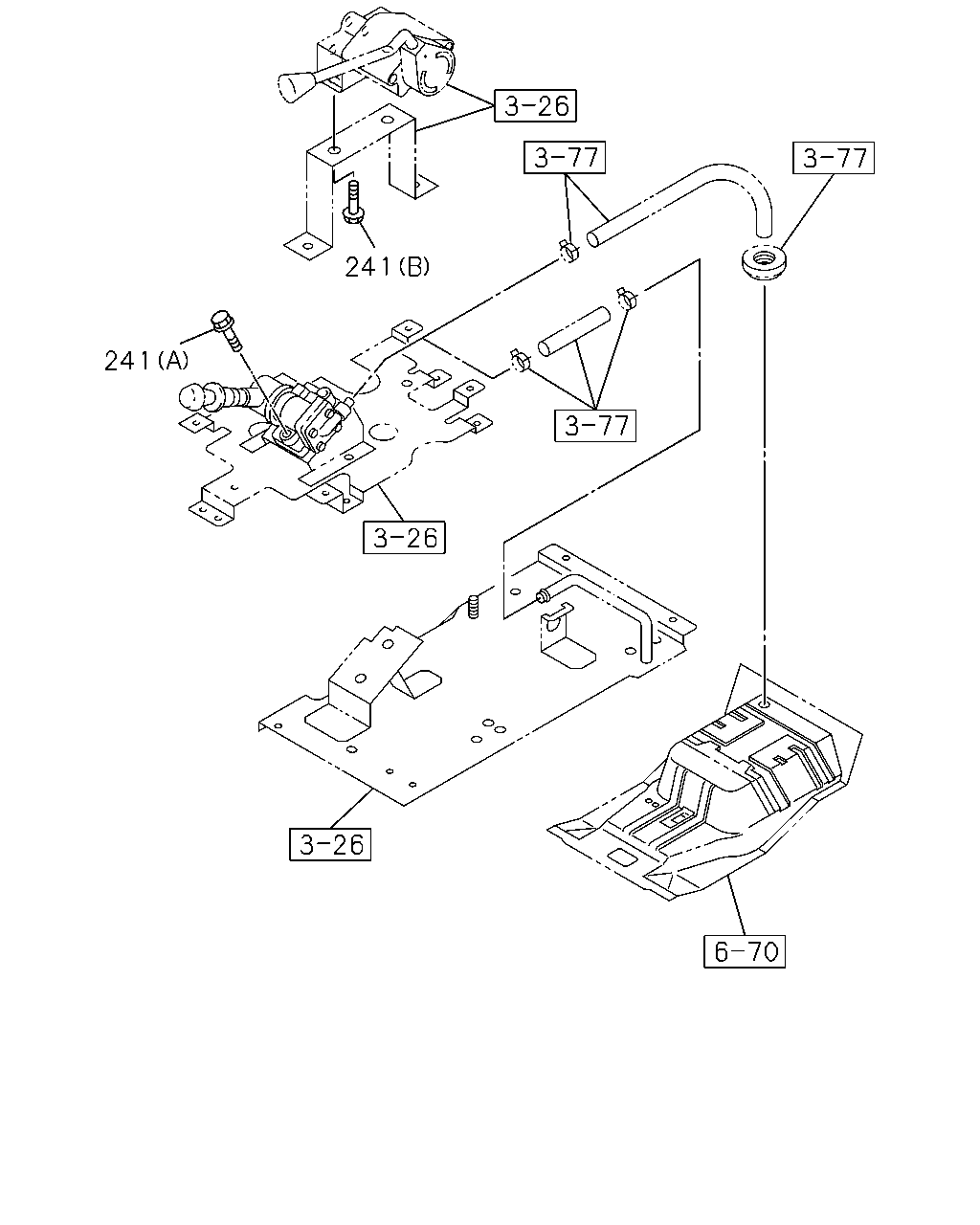

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1304-1309	●	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1310-	●	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1310-	●
241	BOLT; SET,CONT VLV (B) M10X20 FLANGE	0-28051-020-0	02	1	1304-		●

241 158

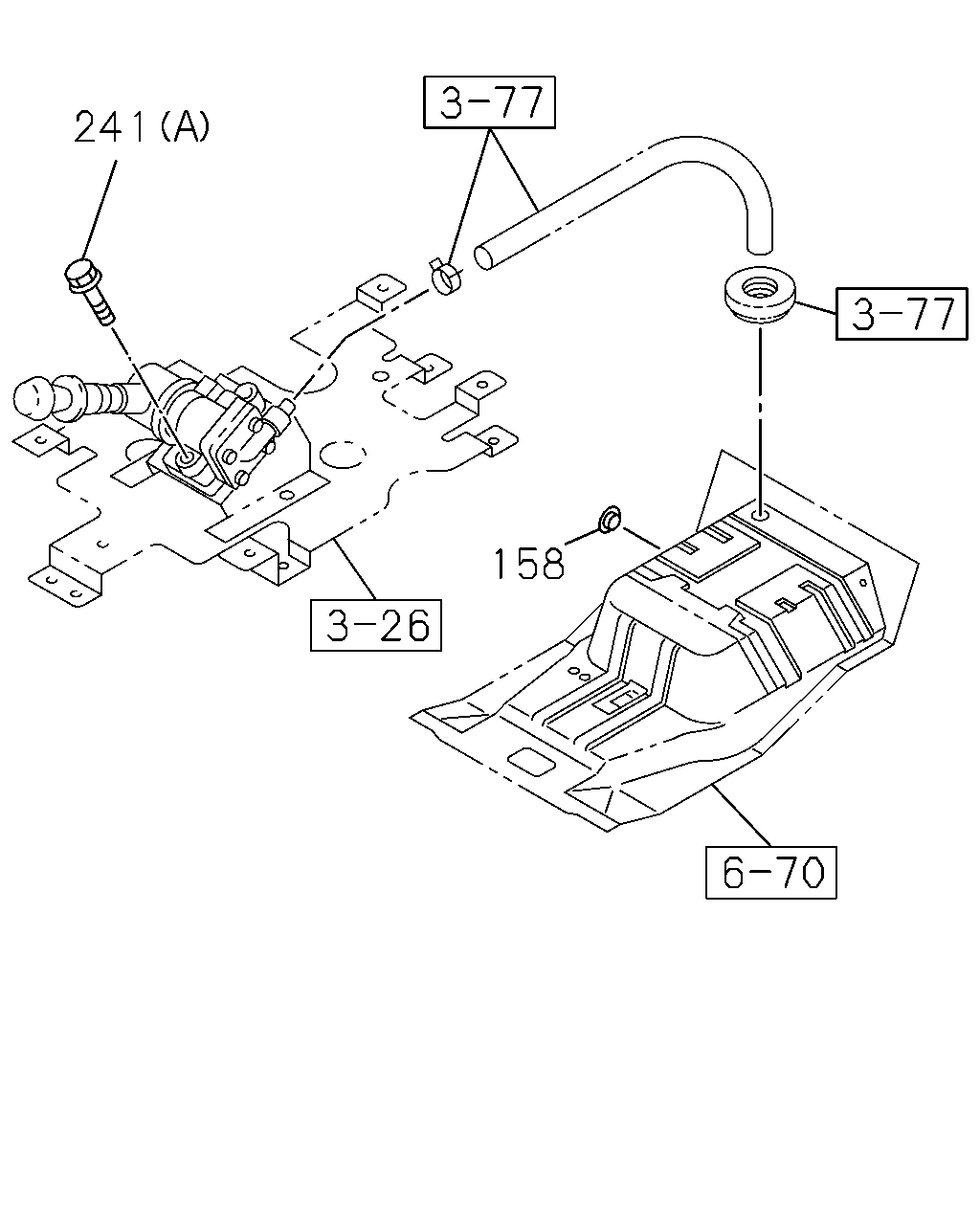

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	GROMMET; PIPE OD=35	8-94122-971-0	01	1	1304-	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1304-1309	●	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1310-	●	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1310-	●
241	BOLT; SET,CONT VLV (B) M10X20 FLANGE	0-28051-020-0	02	1	1304-		●

184 57 192 28 119 36 36 49 119 39 5 10 10 10 39 126 166 104 278 184 28 5 10 57 80 192 11 8 39 5 3 6 7 39 10 10 1 31 136 5 6 8 166 7 1 10 6 7 1 5 10 10 10 126 166 5 51 166 10 10 39 126 5 5 39 5 5 177 178 51 51 28 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

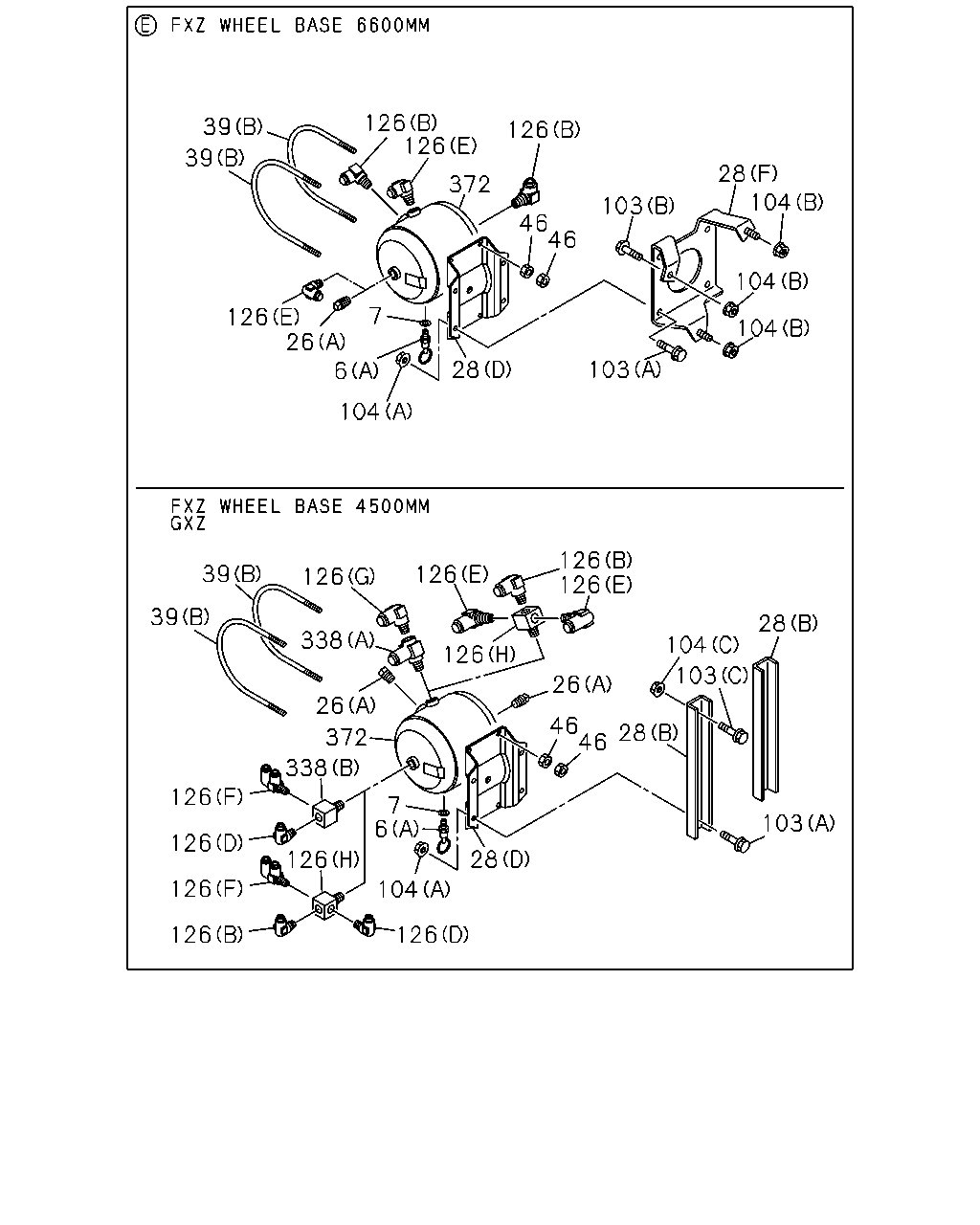

1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●
1	TANK ASM; AIR (B)	8-98187-713-0	02	1	1304-		●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1304-	●	●
3	VALVE; CHECK,AIR TANK (A)	1-48320-031-1	01	1	1304-	●	●
3	VALVE; CHECK,AIR TANK (B) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1304-		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1304-		●
5	UNION; AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A)	1-48312-015-0	01	1	1304-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1304-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-		●
8	CONNECTOR; AIR TANK (B)	1-09656-708-0	01	1	1304-		●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1304-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	04	1	1304-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	04	1	1304-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1304-	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	07	1	1304-		●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	02	1	1304-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1304-	●	●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (B)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (B)	8-98100-973-1	02	1	1304-		●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (D)	8-98092-756-1	01	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (D)	8-98092-756-1	01	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (D)	8-98092-756-1	01	1	1304-	●
28	BRACKET; AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D)	8-98092-756-1	01	1	1304-		●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (F)	8-98100-985-0	01	1	1304-	●
28	BRACKET; AIR TANK (C)	8-98237-155-1	02	1	1304-		●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (G)	8-98093-562-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (E)	8-98112-257-0	01	1	1304-	●	●
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
36	STAY; MAIN TANK	8-97618-091-1	02	1	1304-	●	●
39	U-BOLT; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B) L=210	1-48317-458-1	02	1	1304-	●
39	U-BOLT; AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (B) L=210	1-48317-458-1	02	1	1304-	●
39	U-BOLT; AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (B) L=210	1-48317-458-1	02	1	1304-	●
39	U-BOLT; AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (B) L=210	1-48317-458-1	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1304-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1304-		●
39	U-BOLT; AIR TANK (C)	1-48317-289-0	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-		●
49	BRACKET; AIR TANK	8-98110-683-0	01	1	1304-	●	●
51	BOLT; STAY TO BRKT M8X20 FLANGE	0-28650-820-0	10	1	1304-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1304-	●	●
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-	●	●
104	NUT; BRKT MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (A) M10	0-91110-510-0	04	1	1304-	●
104	NUT; BRKT WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (A) M10	0-91110-510-0	04	1	1304-	●
104	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (A) M10	0-91110-510-0	04	1	1304-	●
104	NUT; BRKT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) M10	0-91110-510-0	04	1	1304-		●
104	NUT; BRKT WHEEL BASE 6600MM(66W) (B) M10 FLANGE	0-91180-210-0	03	1	1304-	●
104	NUT; BRKT WHEEL BASE 4500MM(45W) (C) M12 FLANGE	0-91180-212-0	02	1	1304-	●
104	NUT; BRKT (C) M12 FLANGE	0-91180-212-0	02	1	1304-		●
104	NUT; BRKT (D) M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
119	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1304-	●	●
119	BOLT; STAY (B) M8X25 FLANGE	0-28650-825-0	03	1	1304-	●	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW RIGID SEAT WO/ARM REST(TAZ) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (H) PT3/8 4WAY	1-09661-489-0	02	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (J) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1304-1504	●
126	CONNECTOR; ELBOW (I)	1-09660-778-1	02	1	1304-		●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●
177	HOSE; RUBBER,DRAIN L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1304-	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	1304-	●	●
184	NUT; BRKT M14	1-09440-072-0	04	1	1304-	●	●
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1304-	●	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1304-	●	●

28 103 104 103 126 126 26 126 126 126 39 39 126 126 126 126 126 104 126 28 6 338 7 372 26 338 46 46 28 103 28 104 6 26 7 126 39 39 126 372 126 46 103 46 28 104 104 104 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A)	1-48312-015-0	01	1	1304-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1304-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-		●
26	PLUG; SUB AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	01	1	1304-	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-		●
26	PLUG; SUB AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-		●
26	PLUG; SUB AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-		●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (B)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (B)	8-98100-973-1	02	1	1304-		●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (D)	8-98092-756-1	01	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (D)	8-98092-756-1	01	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (D)	8-98092-756-1	01	1	1304-	●
28	BRACKET; AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D)	8-98092-756-1	01	1	1304-		●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (F)	8-98100-985-0	01	1	1304-	●
28	BRACKET; AIR TANK (C)	8-98237-155-1	02	1	1304-		●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (G)	8-98093-562-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (E)	8-98112-257-0	01	1	1304-	●	●
39	U-BOLT; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B) L=210	1-48317-458-1	02	1	1304-	●
39	U-BOLT; AIR TANK WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (B) L=210	1-48317-458-1	02	1	1304-	●
39	U-BOLT; AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (B) L=210	1-48317-458-1	02	1	1304-	●
39	U-BOLT; AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (B) L=210	1-48317-458-1	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1304-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1304-		●
39	U-BOLT; AIR TANK (C)	1-48317-289-0	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1304-	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-	●	●
46	NUT; U-BOLT MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-		●
103	BOLT; BRKT MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (A) M10X25 FLANGE	0-28651-025-0	04	1	1304-	●
103	BOLT; BRKT WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (A) M10X25 FLANGE	0-28651-025-0	04	1	1304-	●
103	BOLT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (A) M10X25 FLANGE	0-28651-025-0	04	1	1304-	●
103	BOLT; BRKT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) M10X25 FLANGE	0-28651-025-0	04	1	1304-		●
103	BOLT; BRKT WHEEL BASE 6600MM(66W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (E) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (D) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
103	BOLT; BRKT WHEEL BASE 4500MM(45W) (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-	●
103	BOLT; BRKT (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-		●
104	NUT; BRKT MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (A) M10	0-91110-510-0	04	1	1304-	●
104	NUT; BRKT WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (A) M10	0-91110-510-0	04	1	1304-	●
104	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (A) M10	0-91110-510-0	04	1	1304-	●
104	NUT; BRKT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) M10	0-91110-510-0	04	1	1304-		●
104	NUT; BRKT WHEEL BASE 6600MM(66W) (B) M10 FLANGE	0-91180-210-0	03	1	1304-	●
104	NUT; BRKT WHEEL BASE 4500MM(45W) (C) M12 FLANGE	0-91180-212-0	02	1	1304-	●
104	NUT; BRKT (C) M12 FLANGE	0-91180-212-0	02	1	1304-		●
104	NUT; BRKT (D) M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW RIGID SEAT WO/ARM REST(TAZ) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W) AIR SUSP DRIVER SEAT(A56) (H) PT3/8 4WAY	1-09661-489-0	02	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (J) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1304-1504	●
126	CONNECTOR; ELBOW (I)	1-09660-778-1	02	1	1304-		●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
338	CONNECTOR; 3WAY VLV MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ) (A) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1304-	●
338	CONNECTOR; 3WAY VLV RIGID SEAT WO/ARM REST(TAZ) (A) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1304-		●
338	CONNECTOR; 3WAY VLV AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (B) PT3/8 3WAY	1-09661-300-0	01	1	1304-		●
372	TANK; AIR,ACCESORY MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) RIGID SEAT WO/ARM REST(TAZ)	8-98090-803-1	01	1	1304-	●
372	TANK; AIR,ACCESORY WHEEL BASE 6600MM(66W) RIGID SEAT WO/ARM REST(TAZ)	8-98090-803-1	01	1	1304-	●
372	TANK; AIR,ACCESORY WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56)	8-98090-803-1	01	1	1304-	●
372	TANK; AIR,ACCESORY AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ)	8-98090-803-1	01	1	1304-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
