◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11529 - GXR(RHD)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#118549) — 241 parça

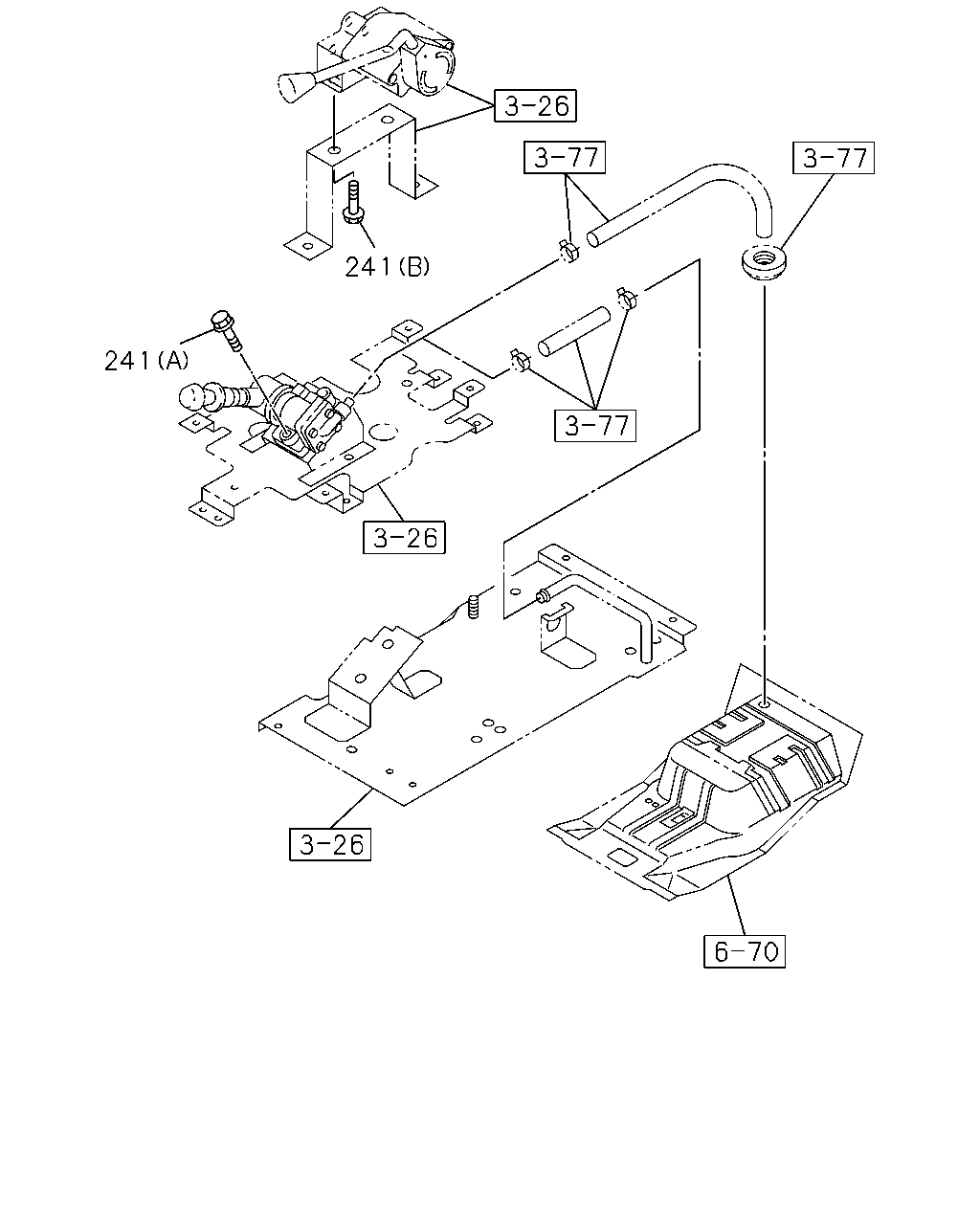

çizim 343020
241 241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1304-
241 BOLT; SET,CONT VLV
(B) M10X20 FLANGE 		0-28051-020-0 02 1 1304-

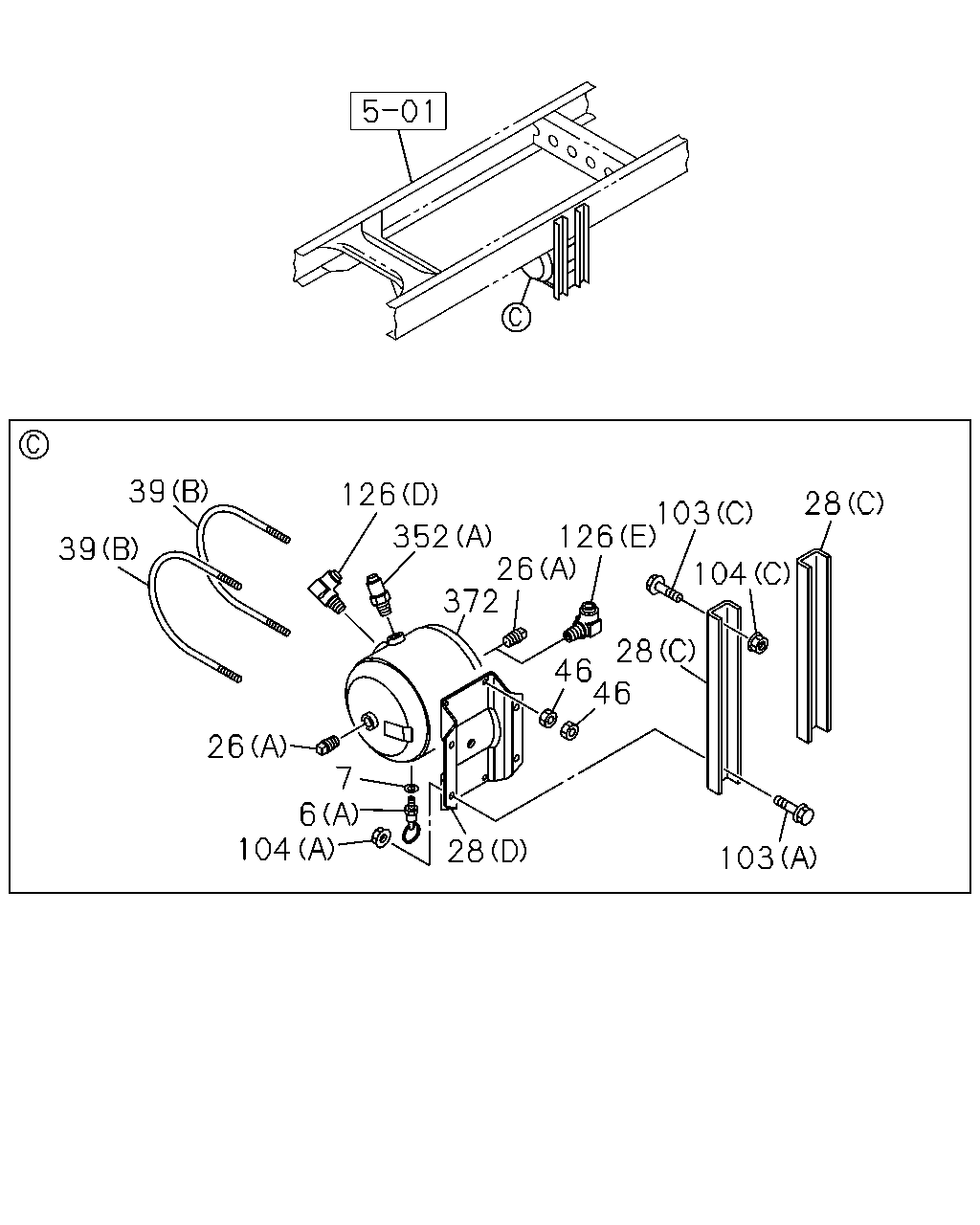

çizim 343044
39 39 126 28 103 126 26 372 352 104 28 46 46 26 7 6 104 28 103
BalonParca AdiParca NoAdetTipApplied Date
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1304-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1304-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
26 PLUG; SUB AIR TANK
AIR SUSP DRIVER SEAT(A56) (A) PT3/8 		9-09204-517-0 01 1 1304-
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1304-
26 PLUG; SUB AIR TANK
RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8 		9-09204-517-0 02 1 1304-
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1304-
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1304-
28 BRACKET; AIR TANK
(C) 		8-98100-973-1 02 1 1304-
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1304-
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1304-
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1304-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1304-
46 NUT; U-BOLT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8 		0-91110-508-0 08 1 1304-
103 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1304-
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28650-825-0 04 1 1304-
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1304-
104 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 1304-
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE 		0-91180-108-0 04 1 1304-
104 NUT; BRKT
(C) M12 FLANGE 		0-91180-212-0 02 1 1304-
104 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1304-
126 CONNECTOR; ELBOW
AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1304-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
352 CONNECTOR; STRAIGHT
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 1304-

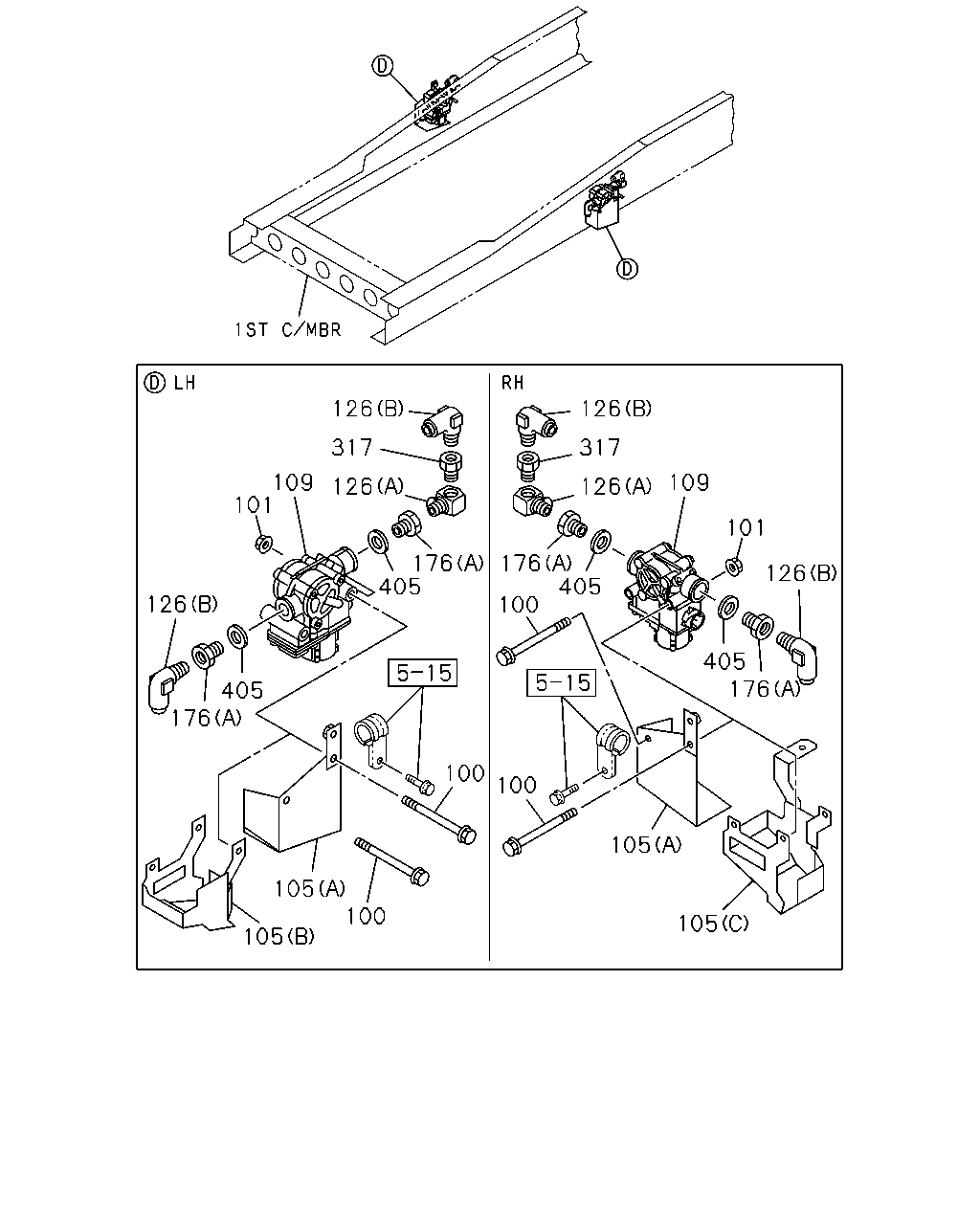

çizim 343121
126 317 109 101 126 176 405 126 405 176 105 105 100 100 100 105 105 176 405 405 176 100 126 317 126 109 101 126
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1304-1504
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1304-1504
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1505-
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 1304-
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98061-815-0 01 1 1304-1504
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98300-152-0 01 1 1505-
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98164-196-0 01 1 1304-1504
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98300-155-0 01 1 1505-
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 1304-1504
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1304-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 1304-
317 CONNECTOR; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		1-09664-210-0 01 1 1304-
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 1304-
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 1304-

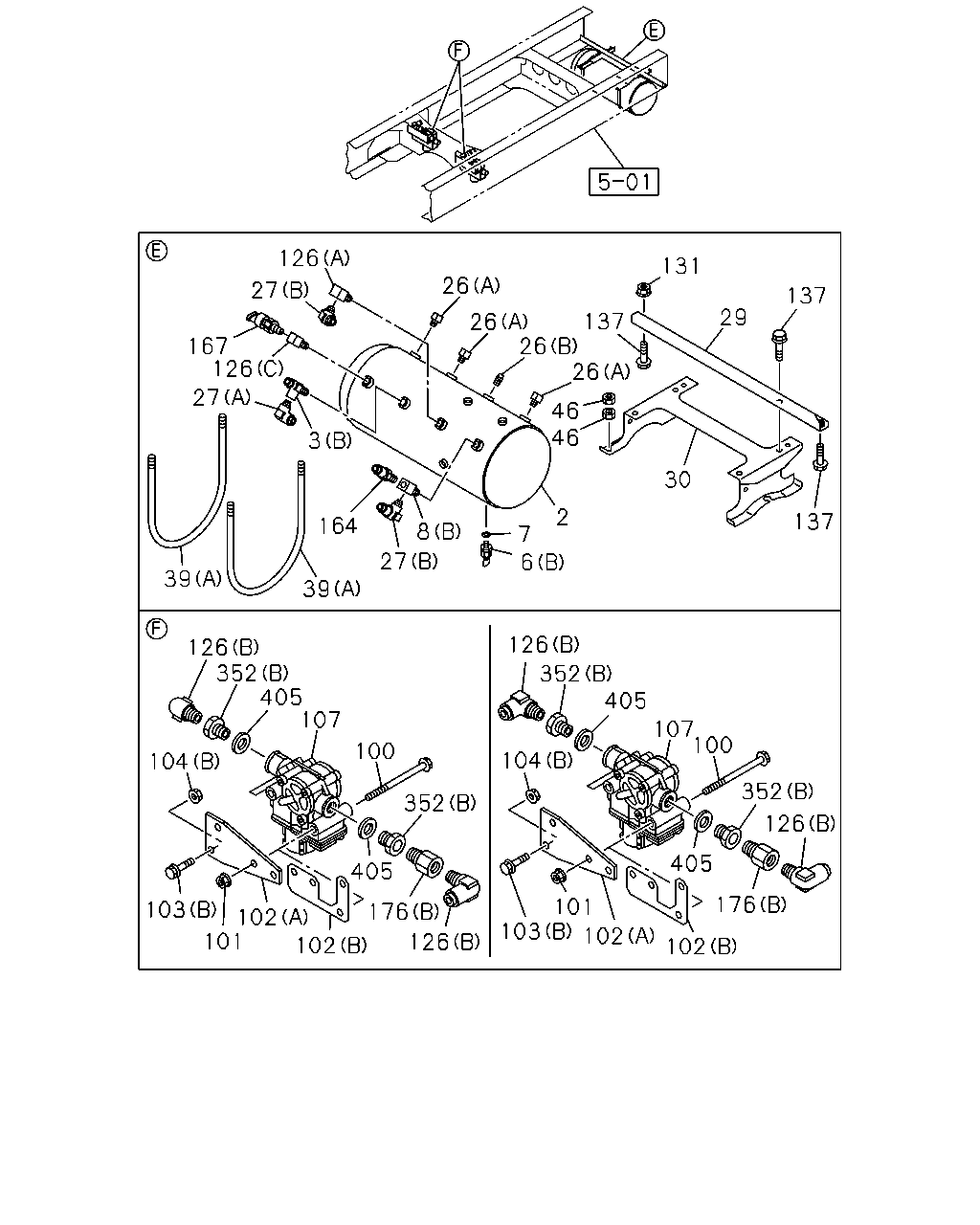

çizim 345171
167 27 126 27 126 3 164 27 39 39 126 352 405 107 100 352 405 176 126 102 102 101 103 104 103 102 101 102 104 126 352 405 107 100 352 126 176 405 6 7 8 2 46 46 30 26 137 26 26 26 131 29 137 137
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR 8-98187-713-0 01 1 1304-
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 1304-
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1304-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1304-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
8 CONNECTOR; AIR TANK
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1304-
26 PLUG; SUB AIR TANK
AIR SUSP DRIVER SEAT(A56) (A) PT3/8 		9-09204-517-0 01 1 1304-
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1304-
26 PLUG; SUB AIR TANK
RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8 		9-09204-517-0 02 1 1304-
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1304-
27 UNION; ELBOW,AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
27 UNION; ELBOW,AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1304-
29 BRACKET; AIR TANK 8-97620-998-0 01 1 1304-
30 BRACKET; AIR TANK,SUB 8-98234-791-0 01 1 1304-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1304-
46 NUT; U-BOLT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8 		0-91110-508-0 08 1 1304-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1304-1504
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1304-1504
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1505-
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 1304-
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47478-304-0 02 1 1304-1504
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98300-209-0 02 1 1505-
103 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1304-
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28650-825-0 04 1 1304-
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1304-
104 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 1304-
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE 		0-91180-108-0 04 1 1304-
104 NUT; BRKT
(C) M12 FLANGE 		0-91180-212-0 02 1 1304-
104 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1304-
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 1304-1504
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1304-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 05 1 1304-
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 02 1 1304-
137 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1304-
164 CONNECTOR; SUB AIR TANK
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 1304-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 1304-
352 CONNECTOR; STRAIGHT
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 1304-
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 1304-

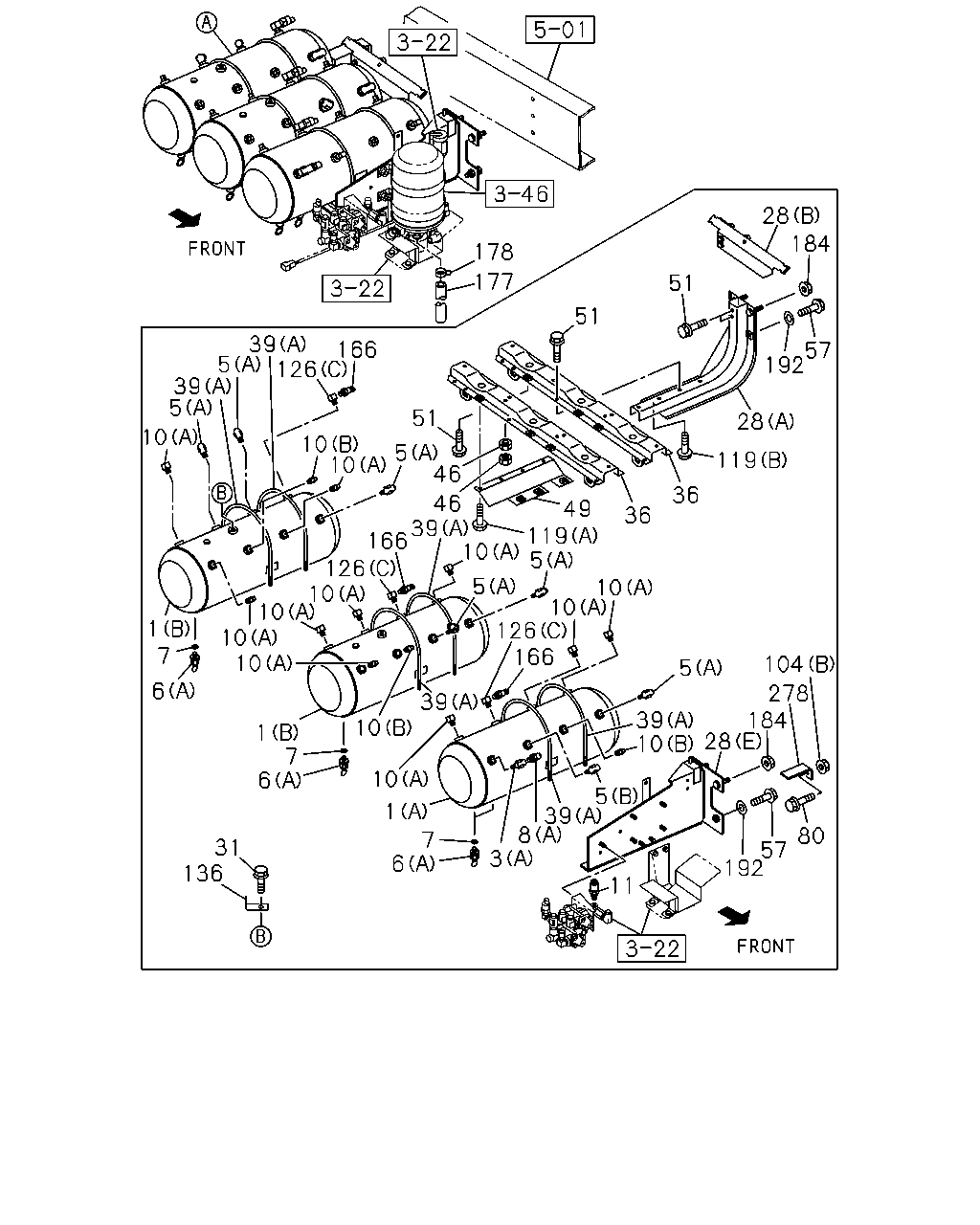

çizim 345198
178 177 39 5 39 5 10 126 166 51 5 10 10 51 51 28 184 57 192 28 119 36 36 49 119 10 46 46 39 166 126 10 10 10 1 7 6 10 1 6 10 10 1 6 31 136 7 3 8 39 5 10 39 5 104 278 184 28 57 80 192 166 10 10 126 39 7 5 5 11
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1304-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1304-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1304-
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 1304-
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1304-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1304-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1304-1310
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1311-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1304-
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1304-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1304-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
8 CONNECTOR; AIR TANK
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1304-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 1304-1310
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 1311-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1304-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1304-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1304-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1304-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1304-
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1304-
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1304-
28 BRACKET; AIR TANK
(C) 		8-98100-973-1 02 1 1304-
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1304-
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1304-
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1304-
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1304-
36 STAY; MAIN TANK 8-97618-091-1 02 1 1304-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1304-
46 NUT; U-BOLT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8 		0-91110-508-0 08 1 1304-
49 BRACKET; AIR TANK 8-98110-683-0 01 1 1304-
51 BOLT; STAY TO BRKT
M8X20 FLANGE 		0-28650-820-0 10 1 1304-
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 1304-
80 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1304-
104 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 1304-
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE 		0-91180-108-0 04 1 1304-
104 NUT; BRKT
(C) M12 FLANGE 		0-91180-212-0 02 1 1304-
104 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1304-
119 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1304-
119 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1304-
126 CONNECTOR; ELBOW
AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1304-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1304-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1304-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1304-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1304-
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 		0-03566-300-0 01 1 1304-
178 CLIP; HOSE
ID=21 		8-94242-034-0 01 1 1304-
184 NUT; BRKT
M14 		1-09440-072-0 04 1 1304-
192 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 1304-
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
