◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11528 - GXR(RHD)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#118548) — 242 parça

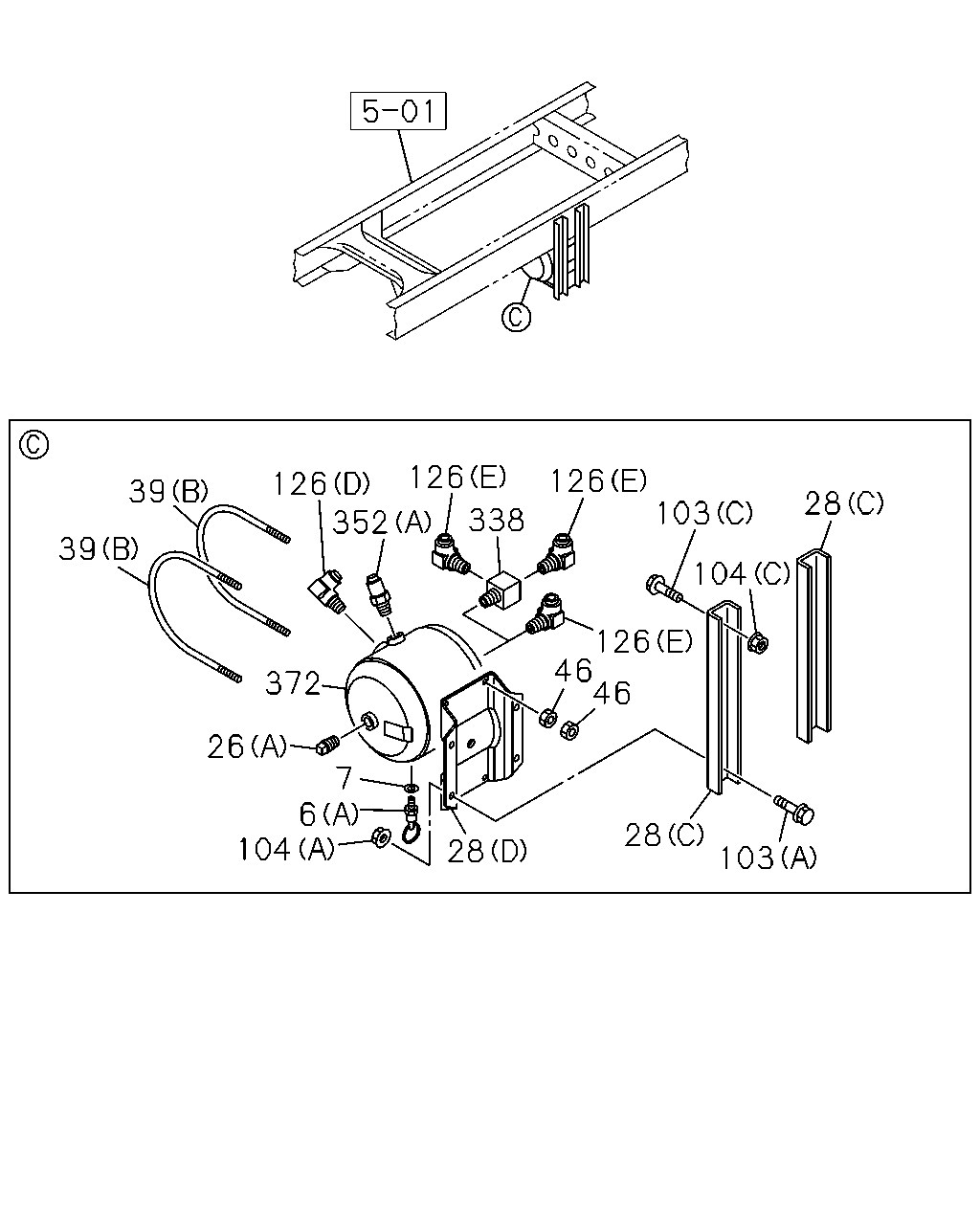

çizim 343043
103 46 46 104 6 7 26 372 126 104 103 126 338 352 126 126 39 39 28 28 28
BalonParca AdiParca NoAdetTipApplied Date
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1304-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1304-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1304-1310
7 GASKET; DRAIN COCK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14 		1-09630-145-0 01 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14 		1-09630-145-0 01 1 1311-
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1304-
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1304-
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1304-
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1304-
28 BRACKET; AIR TANK
(C) 		8-98100-973-1 02 1 1304-
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1304-
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1304-
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1304-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1304-
46 NUT; U-BOLT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8 		0-91110-508-0 08 1 1304-
103 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1304-
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28650-825-0 04 1 1304-
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1304-
104 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 1304-
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE 		0-91180-108-0 04 1 1304-
104 NUT; BRKT
(C) M12 FLANGE 		0-91180-212-0 02 1 1304-
104 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1304-
126 CONNECTOR; ELBOW
AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1304-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
RIGID SEAT WO/ARM REST(TAZ) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
338 CONNECTOR; 3WAY VLV
AIR SUSP DRIVER SEAT(A56) PT3/8 3WAY 		1-09661-300-0 01 1 1304-
352 CONNECTOR; STRAIGHT
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 1304-

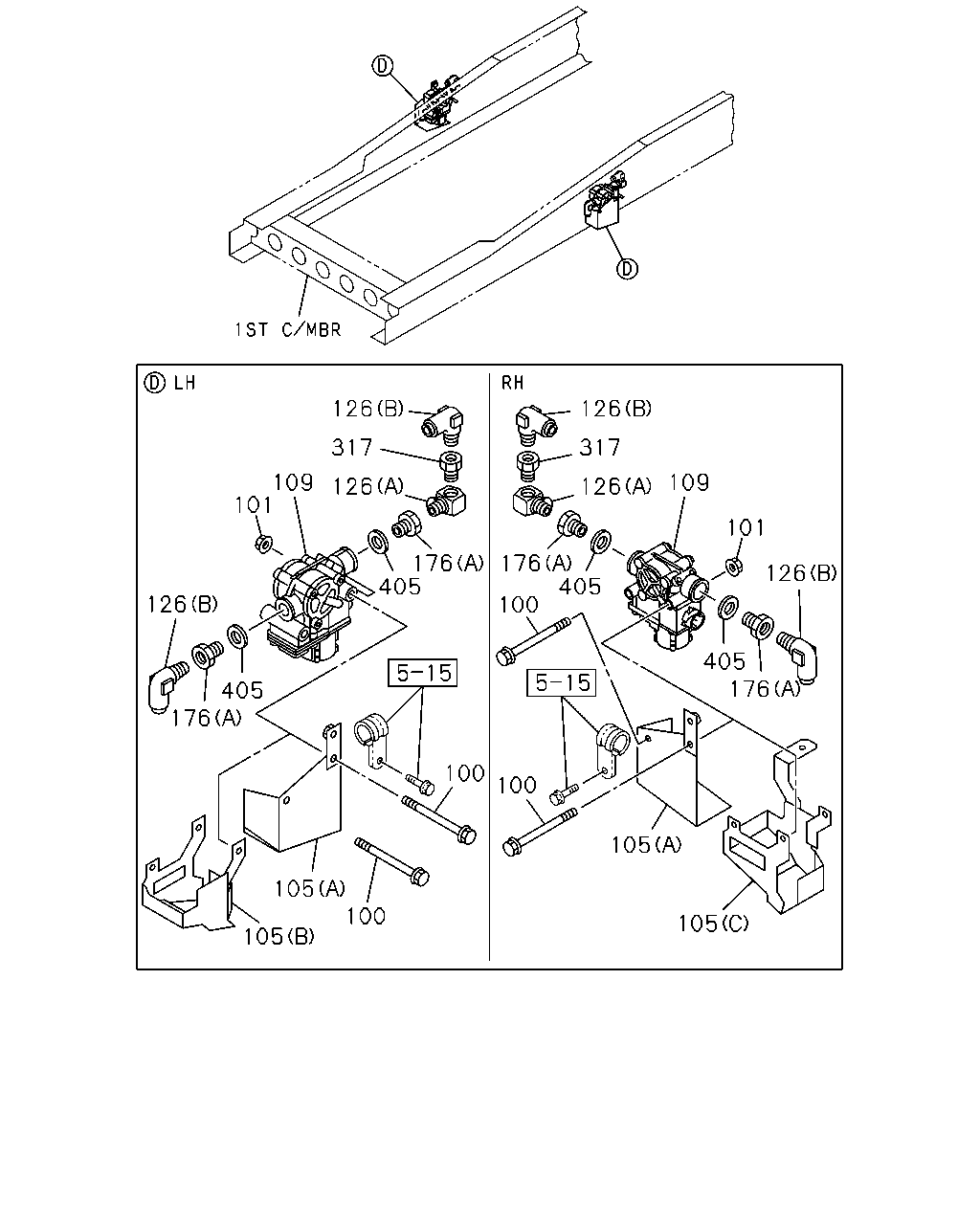

çizim 343112
126 109 101 126 76 405 126 405 176 105 105 100 100 100 100 176 405 126 317 126 109 101 126 405 176 105 105 317
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1304-1504
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1304-1504
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1505-
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 1304-
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98061-815-0 01 1 1304-1504
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98300-152-0 01 1 1505-
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98164-196-0 01 1 1304-1504
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98300-155-0 01 1 1505-
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 1304-1504
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1304-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
RIGID SEAT WO/ARM REST(TAZ) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 1304-
317 CONNECTOR; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		1-09664-210-0 01 1 1304-
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 1304-
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 1304-

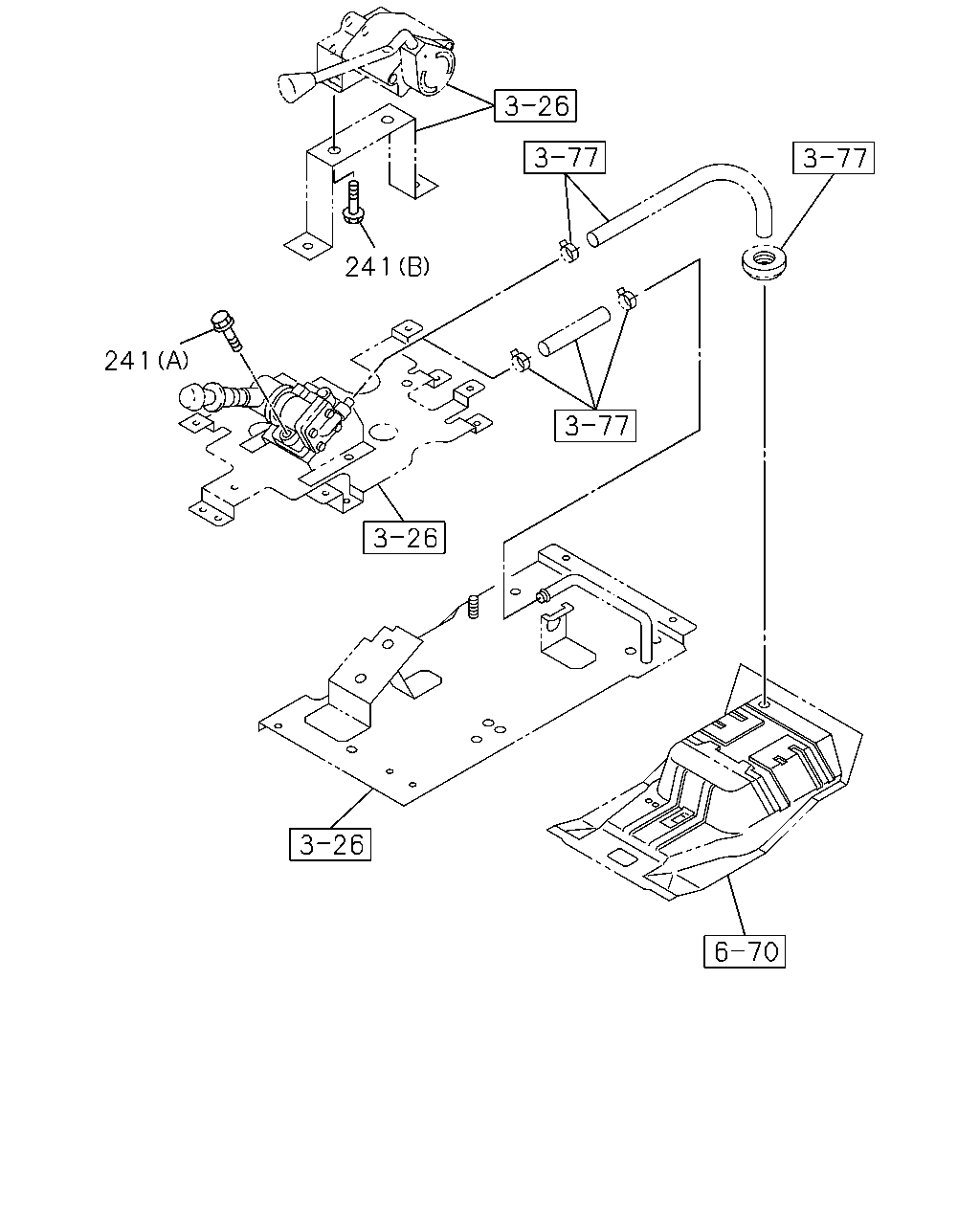

çizim 345256
241 241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1304-
241 BOLT; SET,CONT VLV
(B) M10X20 FLANGE 		0-28051-020-0 02 1 1304-

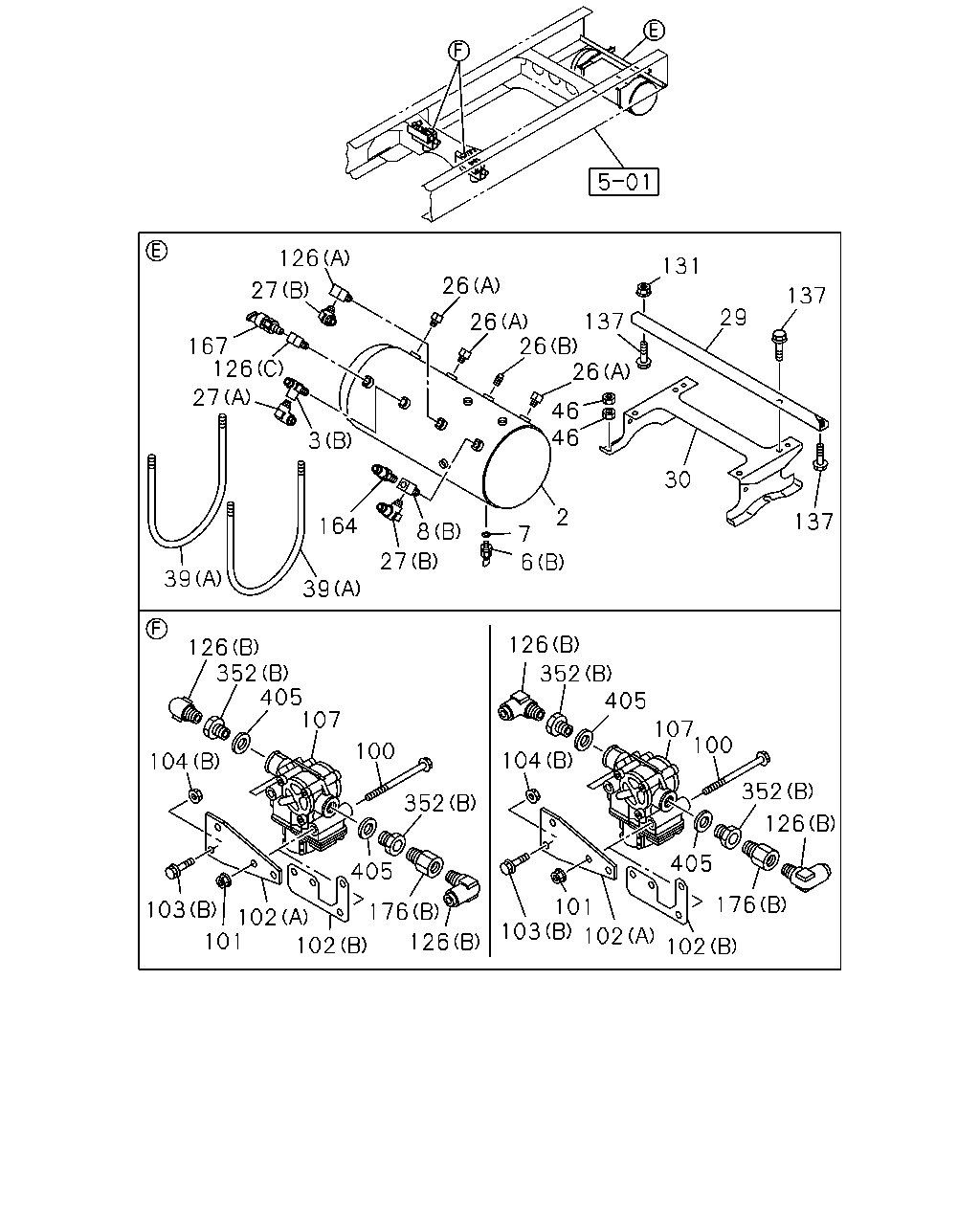

çizim 345579
39 39 164 27 8 7 6 2 46 46 26 26 26 26 126 27 167 27 3 126 352 405 107 100 352 405 176 126 102 102 101 103 104 103 102 101 102 405 176 126 352 100 107 405 352 126 104 137 30 137 137 29 131 126
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR 8-98187-713-0 01 1 1304-
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 1304-
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1304-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1304-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1304-1310
7 GASKET; DRAIN COCK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14 		1-09630-145-0 01 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14 		1-09630-145-0 01 1 1311-
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
8 CONNECTOR; AIR TANK
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1304-
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1304-
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1304-
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1304-
27 UNION; ELBOW,AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
27 UNION; ELBOW,AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1304-
29 BRACKET; AIR TANK 8-97620-998-0 01 1 1304-
30 BRACKET; AIR TANK,SUB 8-98234-791-0 01 1 1304-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1304-
46 NUT; U-BOLT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8 		0-91110-508-0 08 1 1304-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1304-1504
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1304-1504
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1505-
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 1304-
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47478-304-0 02 1 1304-1504
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98300-209-0 02 1 1505-
103 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1304-
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28650-825-0 04 1 1304-
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1304-
104 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 1304-
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE 		0-91180-108-0 04 1 1304-
104 NUT; BRKT
(C) M12 FLANGE 		0-91180-212-0 02 1 1304-
104 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1304-
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 1304-1504
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1304-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
RIGID SEAT WO/ARM REST(TAZ) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 05 1 1304-
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 02 1 1304-
137 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1304-
164 CONNECTOR; SUB AIR TANK
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 1304-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 1304-
352 CONNECTOR; STRAIGHT
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 1304-
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 1304-

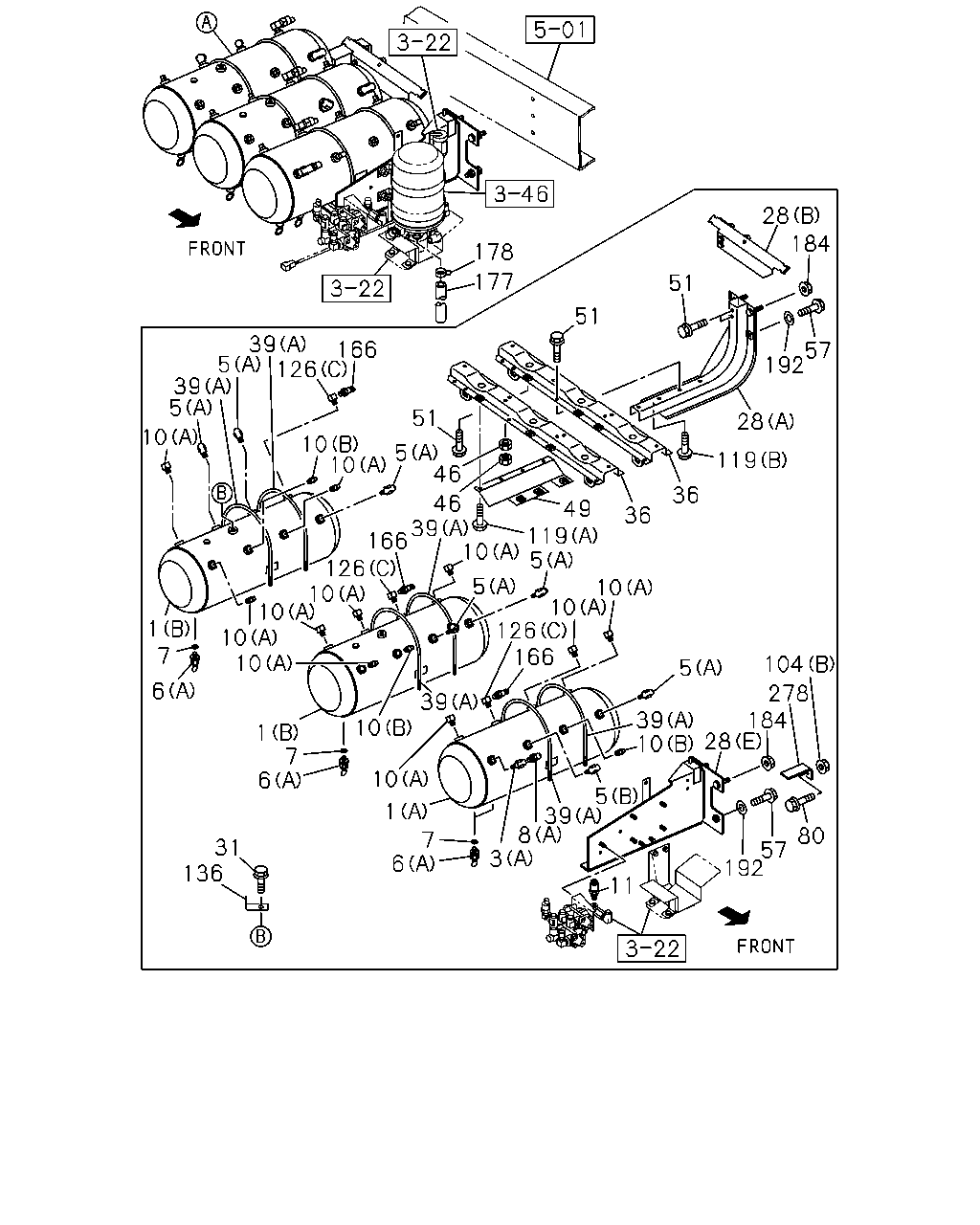

çizim 345813
178 177 39 5 39 5 126 10 51 10 51 51 28 184 57 192 28 119 36 36 49 119 5 46 46 39 166 10 5 5 126 166 10 10 10 1 7 6 10 10 1 6 31 136 6 1 10 10 39 126 166 10 10 5 39 104 278 184 28 5 39 8 3 192 57 80 7 7 10 11
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1304-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1304-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1304-
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 1304-
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1304-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1304-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1304-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1304-
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1304-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1304-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1304-1310
7 GASKET; DRAIN COCK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14 		1-09630-145-0 01 1 1304-1310
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1311-
7 GASKET; DRAIN COCK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14 		1-09630-145-0 01 1 1311-
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
8 CONNECTOR; AIR TANK
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1304-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 1304-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1304-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1304-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1304-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1304-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1304-
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1304-
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1304-
28 BRACKET; AIR TANK
(C) 		8-98100-973-1 02 1 1304-
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1304-
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1304-
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1304-
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1304-
36 STAY; MAIN TANK 8-97618-091-1 02 1 1304-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1304-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1304-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1304-
46 NUT; U-BOLT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8 		0-91110-508-0 08 1 1304-
49 BRACKET; AIR TANK 8-98110-683-0 01 1 1304-
51 BOLT; STAY TO BRKT
M8X20 FLANGE 		0-28650-820-0 10 1 1304-
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 1304-
80 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1304-
104 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 1304-
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE 		0-91180-108-0 04 1 1304-
104 NUT; BRKT
(C) M12 FLANGE 		0-91180-212-0 02 1 1304-
104 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1304-
119 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1304-
119 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1304-
126 CONNECTOR; ELBOW
AIR SUSP DRIVER SEAT(A56) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1304-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
RIGID SEAT WO/ARM REST(TAZ) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-1310
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1304-1310
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1304-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1304-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1304-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1304-
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 		0-03566-300-0 01 1 1304-
178 CLIP; HOSE
ID=21 		8-94242-034-0 01 1 1304-
184 NUT; BRKT
M14 		1-09440-072-0 04 1 1304-
192 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 1304-
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
