Sayfa 7-10 - Isuzu EPC

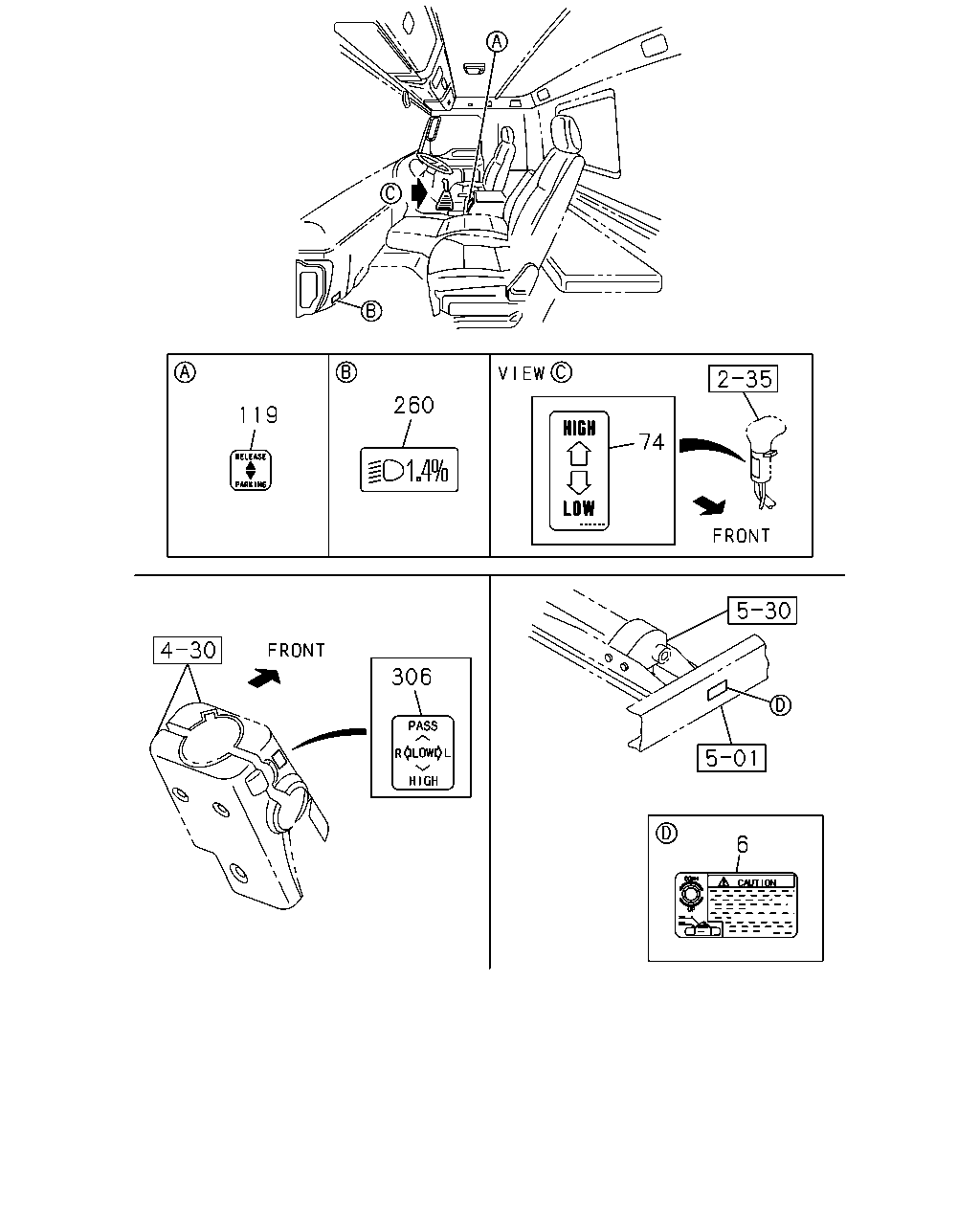

7-10 — CAUTION PLATE AND LABEL (#118533) — 9 parça

41 160 49 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	PLATE; CAUTION,CAB	8-98065-363-0	01	1	1304-
41	PLATE; CAUTION,HSA H.S.A SYSTEM<6EP>	8-98141-836-0	01	1	1304-
49	PLATE; CAUTION,FUSE BOX	8-98122-353-0	01	1	1304-
160	PLATE; CAUTION,TOWING	1-85888-737-1	01	1	1304-

260 74 6 306 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	8-98082-437-0	01	1	1304-
74	PLATE; CAUTION,CHANGE LEV ASSISTOR SHIFT CONTROL<WX8>	8-98118-493-0	01	1	1304-
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	1304-
260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	1304-
306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1304-
