Sayfa 7-01 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51472 - TFR/TFS MIDDLE EAST ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶

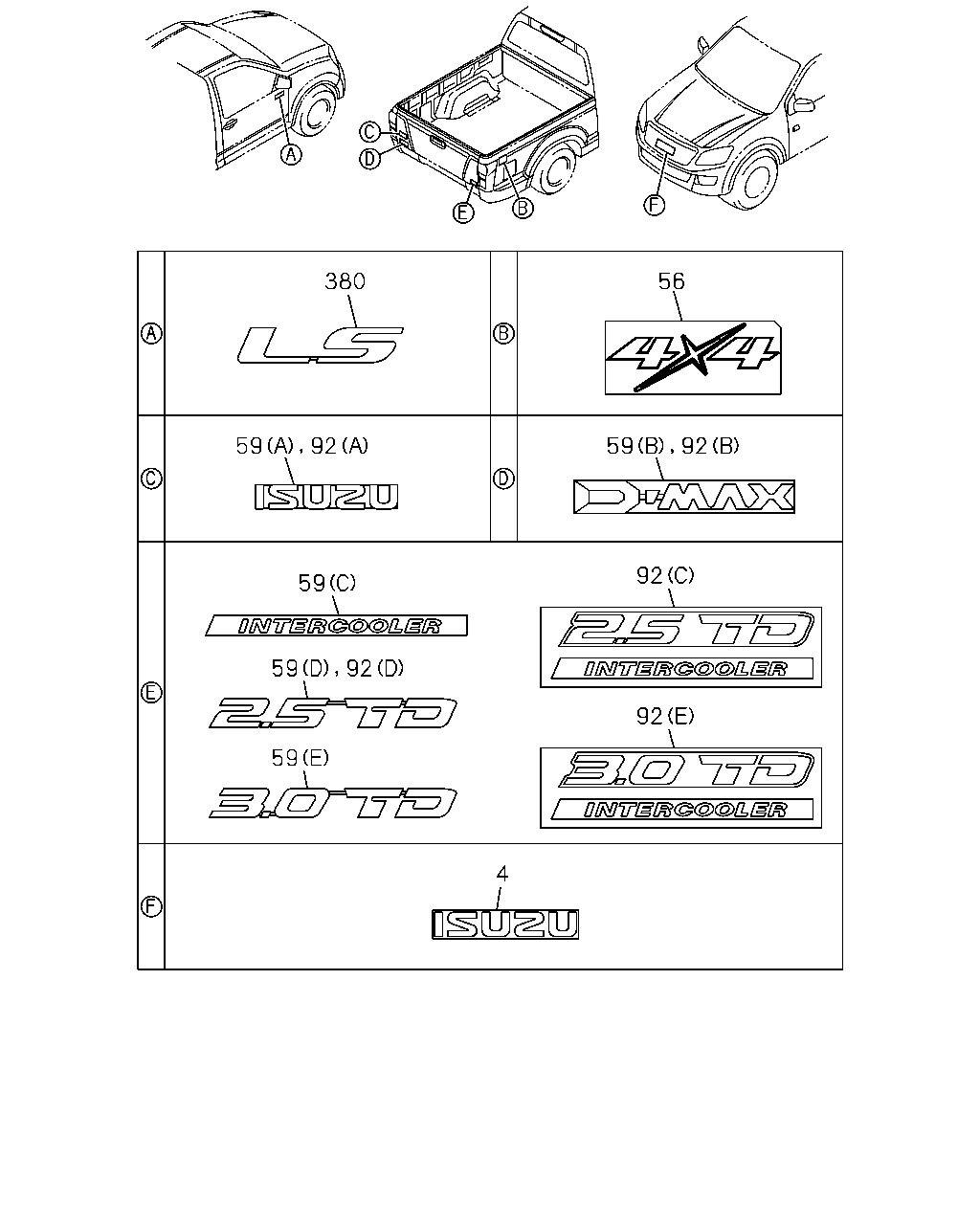

7-01 — EMBLEM AND NAME PLATE (#118530) — 20 parça

380 56 59 92 59 92 92 59 59 92 92 59 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	01.303 EMBLEM; RAD GRILLE	8-98164-912-0	01	1	1304-	●	●	●	●
56	08.147 DECAL; BODY SIDE BODY COLOR NAUTILUS BLUE MICA(521), BODYCOLOR COSMIC BLACK MICA(523),BODY COLO R GARNET RED MICA(528),BODY COLOR MINERAL GRAY MET(530),BODY COLOR TUNDRA GREE N MICA(533) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> LIGHT SILVER & RED	8-97421-195-1	02	1	1304-			●	●
56	08.147 DECAL; BODY SIDE BODY COLOR SPLASH WHITE(527),BODY COLORTITANIUM SILVER MET(529),BODY COLOR SO LEIL ORANGE MICA(532),BODY COLOR ASH BEIGE MET(541) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> DARK GRAY & RED	8-97421-196-1	02	1	1304-			●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) (A)	8-98129-896-0	01	1	1304-		●		●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) (B)	8-98134-860-0	01	1	1304-		●		●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (E)	8-98134-872-0	01	1	1304-		●		●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-903-0	01	1	1304-		●		●
59	01.303 DECAL; TAIL GATE 4JK1-TCS ENG(LKZ) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (D)	8-98134-871-0	01	1	1304-		●		●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) (A)	8-98129-861-0	01	1	1304-	●		●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) (B)	8-98129-863-0	01	1	1304-	●		●
92	08.147 DECAL; RR END 4JJ1-TCS ENG(LFB) REAR BODY DBL WALL CTR PULL(E63) (E)	8-98129-871-0	01	1	1304-	●		●
92	08.147 DECAL; RR END 4JJ1-TCS ENG(LFB) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (E)	8-98129-871-0	01	1	1304-		●		●
92	08.147 DECAL; RR END 4JK1-TCS ENG(LKZ) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-870-0	01	1	1304-1304	●	●	●	●
92	08.147 DECAL; RR END (C)	8-98129-870-0	01	1	1304-1304	●	●	●	●
92	08.147 DECAL; RR END 4JK1-TCS ENG(LKZ) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-870-0	01	1	1304-	●	●	●	●
92	08.147 DECAL; RR END 4JA1-T ENG(LP0) REAR BODY DBL WALL CTR PULL(E63) (D)	8-98129-869-0	01	1	1304-	●	●
380	17.215 PLATE; SIDE INTERIOR CUSTOM(RBD)	8-98129-894-0	02	1	1304-1401	●	●	●	●
380	17.215 PLATE; SIDE INTERIOR CUSTOM(RBD)	8-98129-894-0	02	1	1402-	●	●
380	17.215 PLATE; SIDE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR CUSTOM(RBD)	8-98129-894-0	02	1	1402-			●	●

231

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

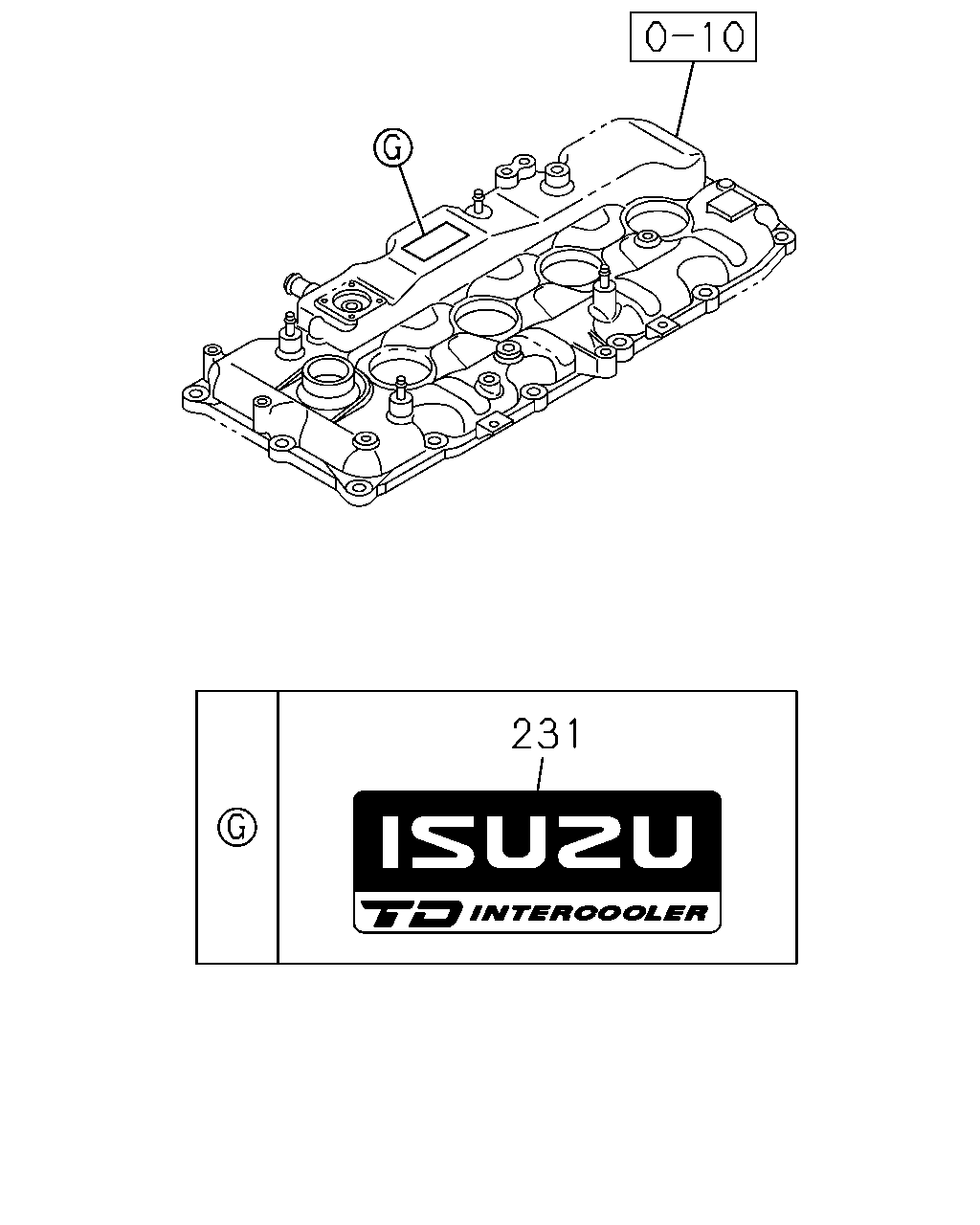

	231	01.303 EMBLEM; ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. ENG SIGHT SHIELD<8LQ>	8-98221-983-0	01	1	1304-	●	●
