◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51474 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#118527) — 33 parça

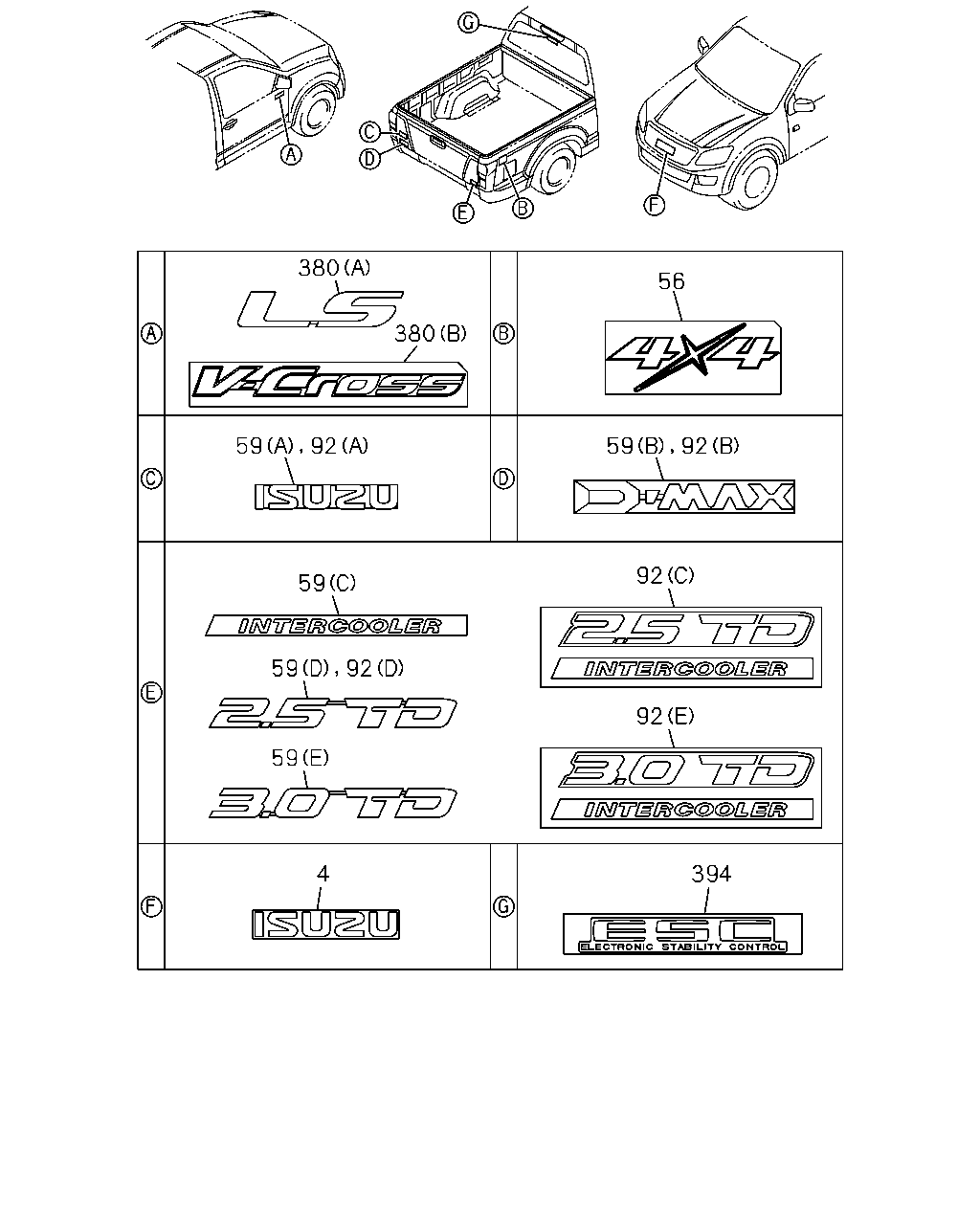

çizim 344055
380 380 59 92 59 59 92 59 4 394 92 92 59 92 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 01.303 EMBLEM; RAD GRILLE 8-98164-912-0 01 1 1304- ● ● ● ● ● ●
56 08.147 DECAL; BODY SIDE
BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR GARNET RED MICA(528),BODY COLORMINERAL GRAY MET(530),BODY COLOR TUN DRA GREEN MICA(533) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> LIGHT SILVER & RED 		8-97421-195-1 02 1 1304- ● ● ●
56 08.147 DECAL; BODY SIDE
BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR SOLEIL ORANGE MICA(532),BODY COLOR ASH BEIGE MET(541) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> DARK GRAY & RED 		8-97421-196-1 02 1 1304- ● ● ●
59 01.303 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98129-896-0 01 1 1304- ● ● ● ●
59 01.303 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98134-860-0 01 1 1304- ● ● ● ●
59 01.303 DECAL; TAIL GATE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-903-0 01 1 1304- ● ● ●
59 01.303 DECAL; TAIL GATE
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98134-872-0 01 1 1304- ● ● ●
59 01.303 DECAL; TAIL GATE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98134-871-0 01 1 1304- ● ● ●
92 08.147 DECAL; RR END
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98129-871-0 01 1 1304- ● ● ● ● ● ●
92 08.147 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98129-861-0 01 1 1304- ● ●
92 08.147 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98129-863-0 01 1 1304- ● ●
92 08.147 DECAL; RR END
(C) 		8-98129-870-0 01 1 1304-1304 ● ● ● ● ● ●
92 08.147 DECAL; RR END
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-870-0 01 1 1304-1304 ● ● ● ● ●
92 08.147 DECAL; RR END
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-870-0 01 1 1304- ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1-T ENG(LP0) REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98129-869-0 01 1 1304- ● ●
380 17.215 PLATE; SIDE
4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) MALAYSIA EQUIPMENT(B10) (B) 		8-98129-891-0 02 1 1402- ●
380 17.215 PLATE; SIDE
INTERIOR CUSTOM(RBD) (A) 		8-98129-894-0 02 1 1304-1401 ● ● ●
380 17.215 PLATE; SIDE
4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) MALAYSIA EQUIPMENT(B10) (A) 		8-98129-894-0 02 1 1402- ● ●
380 17.215 PLATE; SIDE
INTERIOR CUSTOM(RBD) EXC. MALAYSIA EQUIPMENT(B10) (A) 		8-98129-894-0 02 1 1402- ●
380 17.215 PLATE; SIDE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) (A) 		8-98129-894-0 02 1 1402- ●
380 17.215 PLATE; SIDE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) EXC. MALAYSIA EQUIPMENT(B10) (A) 		8-98129-894-0 02 1 1402- ●
394 16.507 DECAL; RR BODY 8-98129-857-2 01 1 1304-1312 ●
394 16.507 DECAL; RR BODY
ELECTRONIC TRACTION CONTROL<NW9> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-98129-857-2 01 1 1304-1312 ● ● ●
394 16.507 DECAL; RR BODY
ELECTRONIC TRACTION CONTROL<NW9> 		8-98129-857-2 01 1 1304-1312 ●
394 16.507 DECAL; RR BODY
ELECTRONIC TRACTION CONTROL<NW9> EXC. SINGAPORE EQUIPMENT(2G0) 		8-98129-857-2 01 1 1304-1312 ●
394 16.507 DECAL; RR BODY 8-98129-857-2 01 1 1401-1401 ●
394 16.507 DECAL; RR BODY
ELECTRONIC TRACTION CONTROL<NW9> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-98129-857-2 01 1 1401-1401 ● ●
394 16.507 DECAL; RR BODY
ELECTRONIC TRACTION CONTROL<NW9> 		8-98129-857-2 01 1 1401-1401 ●
394 16.507 DECAL; RR BODY 8-98129-857-2 01 1 1402- ●
394 16.507 DECAL; RR BODY
ELECTRONIC TRACTION CONTROL<NW9> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-98129-857-2 01 1 1402- ● ● ●
394 16.507 DECAL; RR BODY
ELECTRONIC TRACTION CONTROL<NW9> 		8-98129-857-2 01 1 1402- ●
394 16.507 DECAL; RR BODY
ELECTRONIC TRACTION CONTROL<NW9> EXC. SINGAPORE EQUIPMENT(2G0) 		8-98129-857-2 01 1 1402- ●

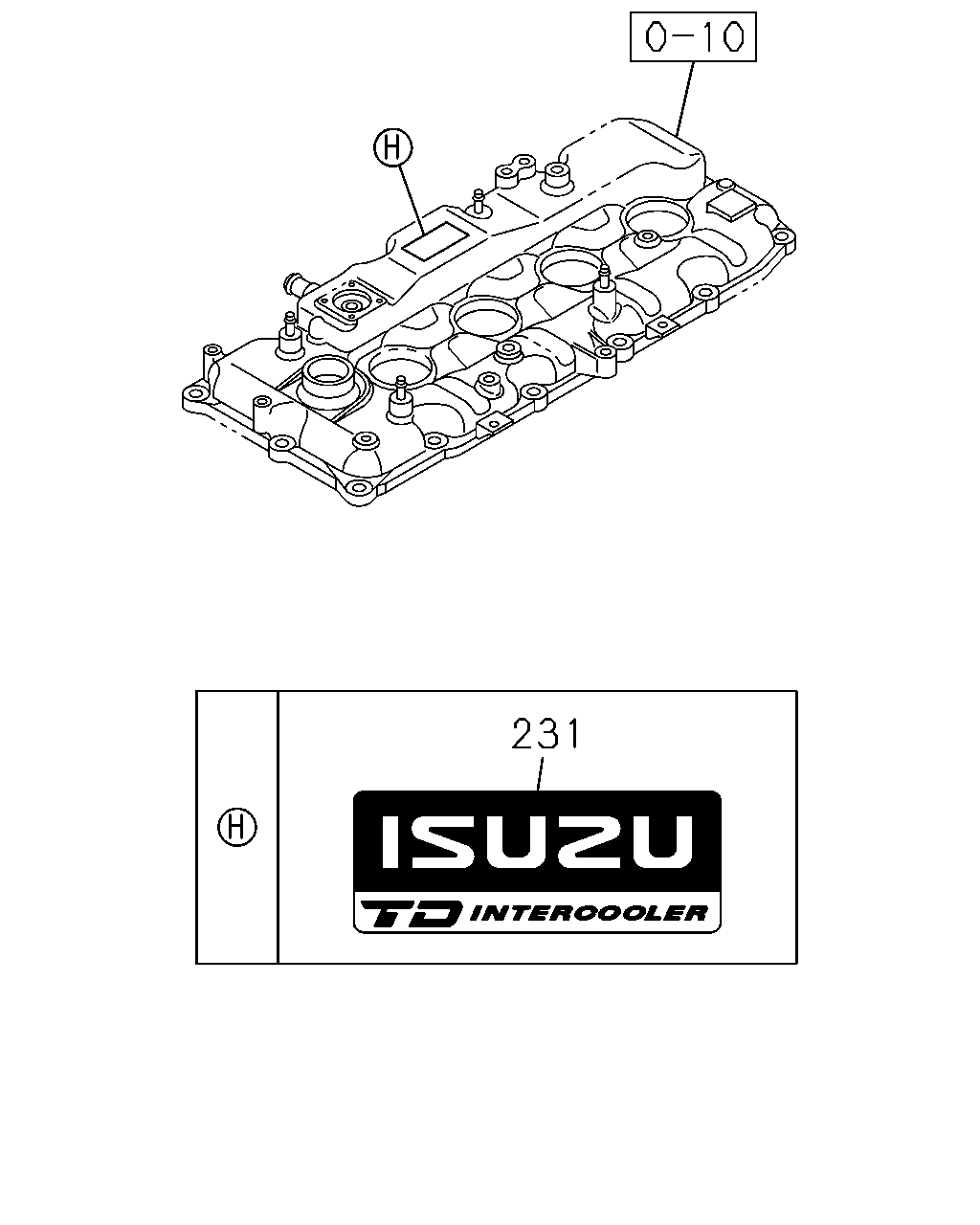

çizim 345335
231
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
231 01.303 EMBLEM; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. ENG SIGHT SHIELD<8LQ> 		8-98221-983-0 01 1 1304- ● ● ● ● ●
