Sayfa 6-84 - Isuzu EPC

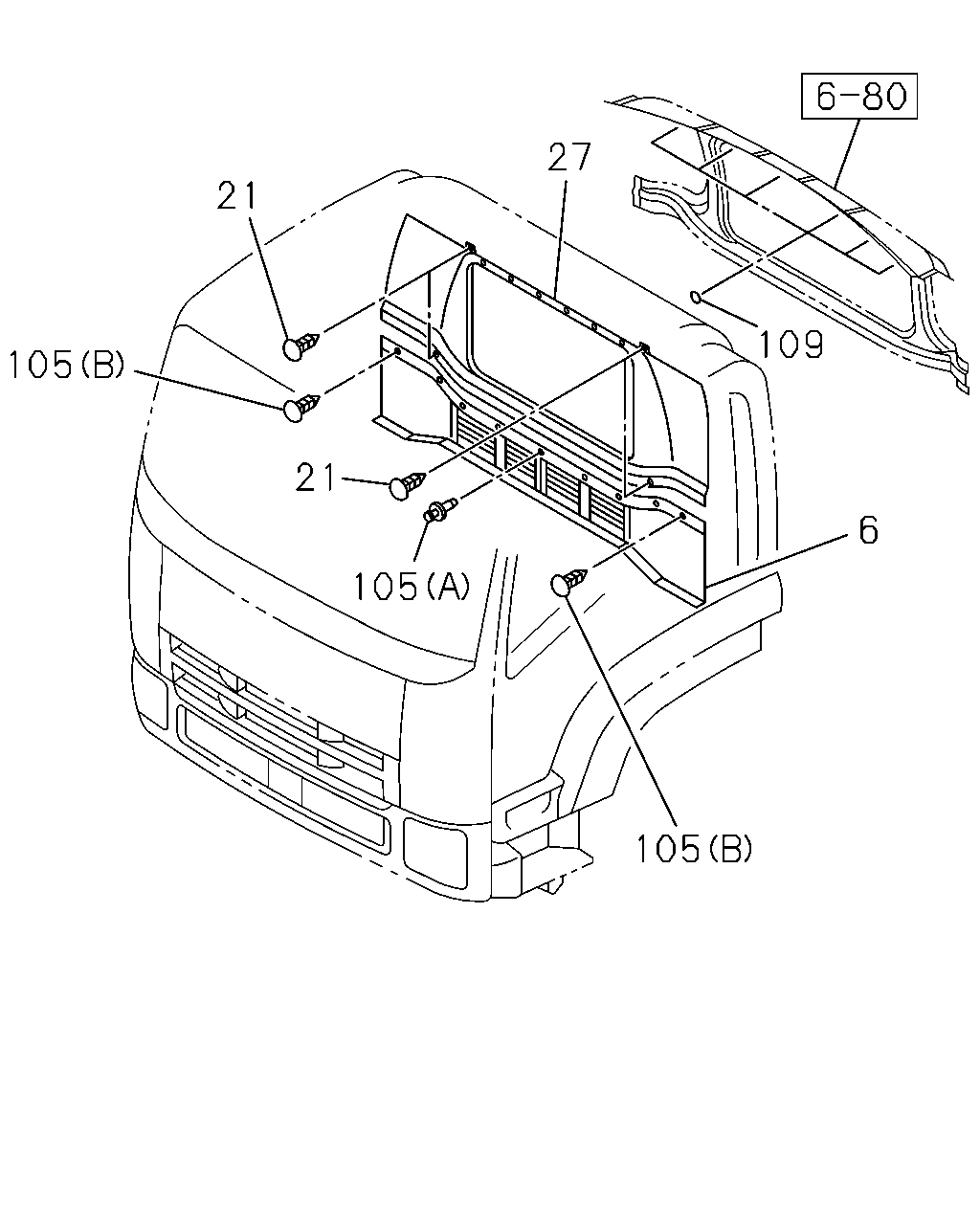

6-84 — BACK TRIM (#118517) — 7 parça

21 27 109 6 105 105 21 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	MAT; SILENCER,CAB BACK GRAY	8-97407-458-1	01	1	1304-
21	RETAINER; TRIM,BED ROOM INTERIOR FULL TRIM<WM3> GRAY	8-97407-467-0	04	1	1304-
27	COVER; TRIM,BACK INTERIOR FULL TRIM<WM3> DARK GRAY	8-97407-464-2	01	1	1304-
105	CLIP; BACK TRIM (B) GRAY	8-97407-467-0	02	1	1304-
105	CLIP; BACK TRIM (A) GRAY	8-97408-022-0	07	1	1304-
109	SEAL; HOLE BODY COLOR ARC WHITE(729) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE	8-98059-421-0	06	1	1304-
109	SEAL; HOLE BODY COLOR TOLL GREEN(543),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK	5-76777-036-0	06	1	1304-
