◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51473 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#118506) — 17 parça

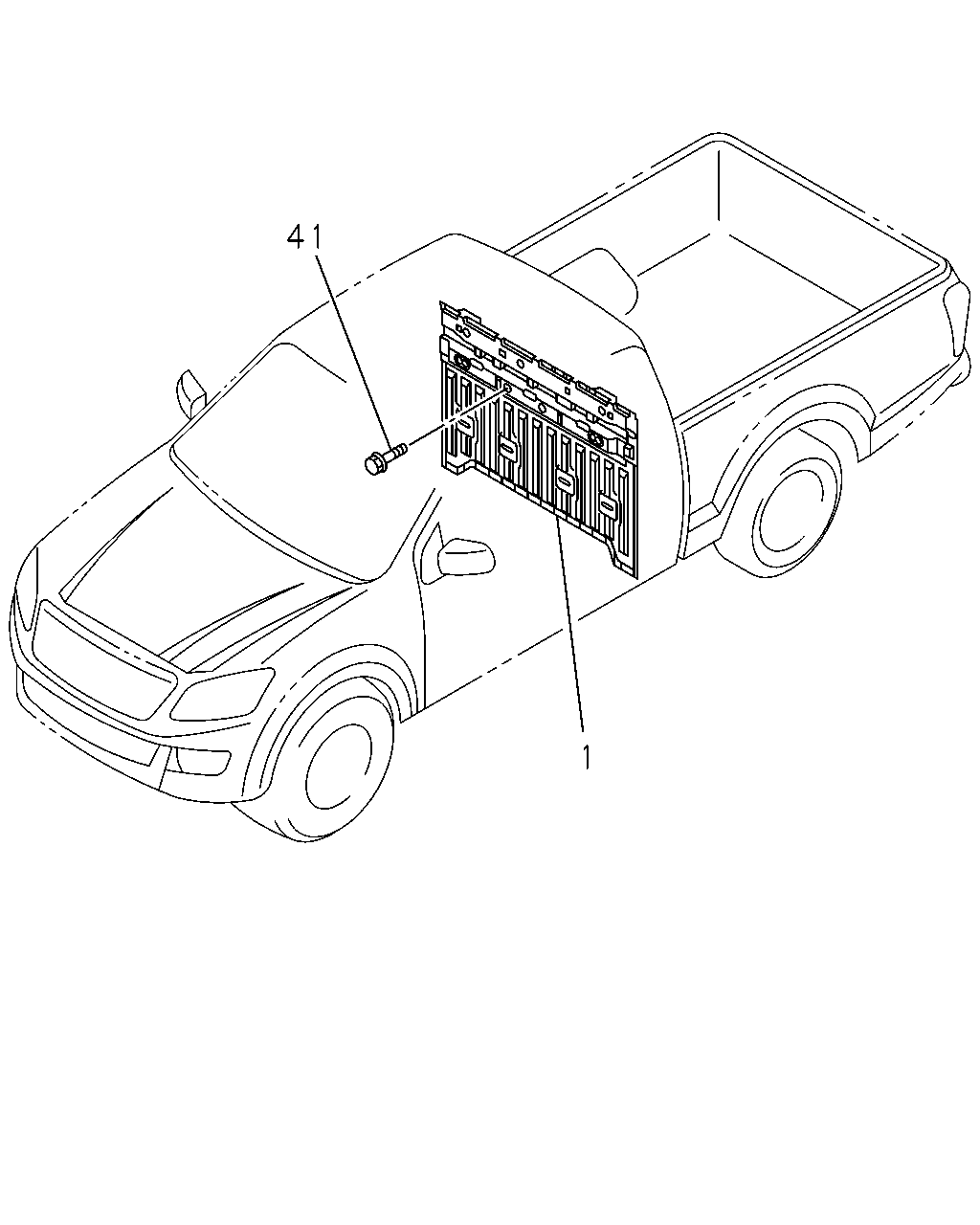

çizim 345382
41 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06),ECUAD OR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98234-975-0 01 1 1311-1312 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06),ECUAD OR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) ,ISRAEL EQUIPMENT(2G1) 		8-98234-975-1 01 1 1401- ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98234-974-0 01 1 1311-1312 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06), ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98234-974-1 01 1 1401- ● ●
1 16.587 PANEL; BACK OUTER 8-98103-271-2 01 1 1304-1310 ● ●
1 16.587 PANEL; BACK OUTER 8-98234-973-0 01 1 1311- ● ●
1 16.587 PANEL; BACK OUTER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98207-117-0 01 1 1304-1310 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06),ECUAD OR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98207-117-0 01 1 1311-1312 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06),ECUAD OR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) ,ISRAEL EQUIPMENT(2G1) 		8-98207-117-1 01 1 1401- ● ●
1 16.587 PANEL; BACK OUTER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98207-116-0 01 1 1304-1310 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98207-116-0 01 1 1311-1312 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06), ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98207-116-1 01 1 1401- ● ●
1 16.587 PANEL; BACK OUTER 8-98103-272-1 01 1 1304- ●
41 16.587 BOLT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1304-1312 ● ●
41 16.587 BOLT
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1304-1312 ● ●
41 16.587 BOLT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1401- ● ●
41 16.587 BOLT
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
