0-25 — INLET MANIFOLD (#1185) — 76 parça

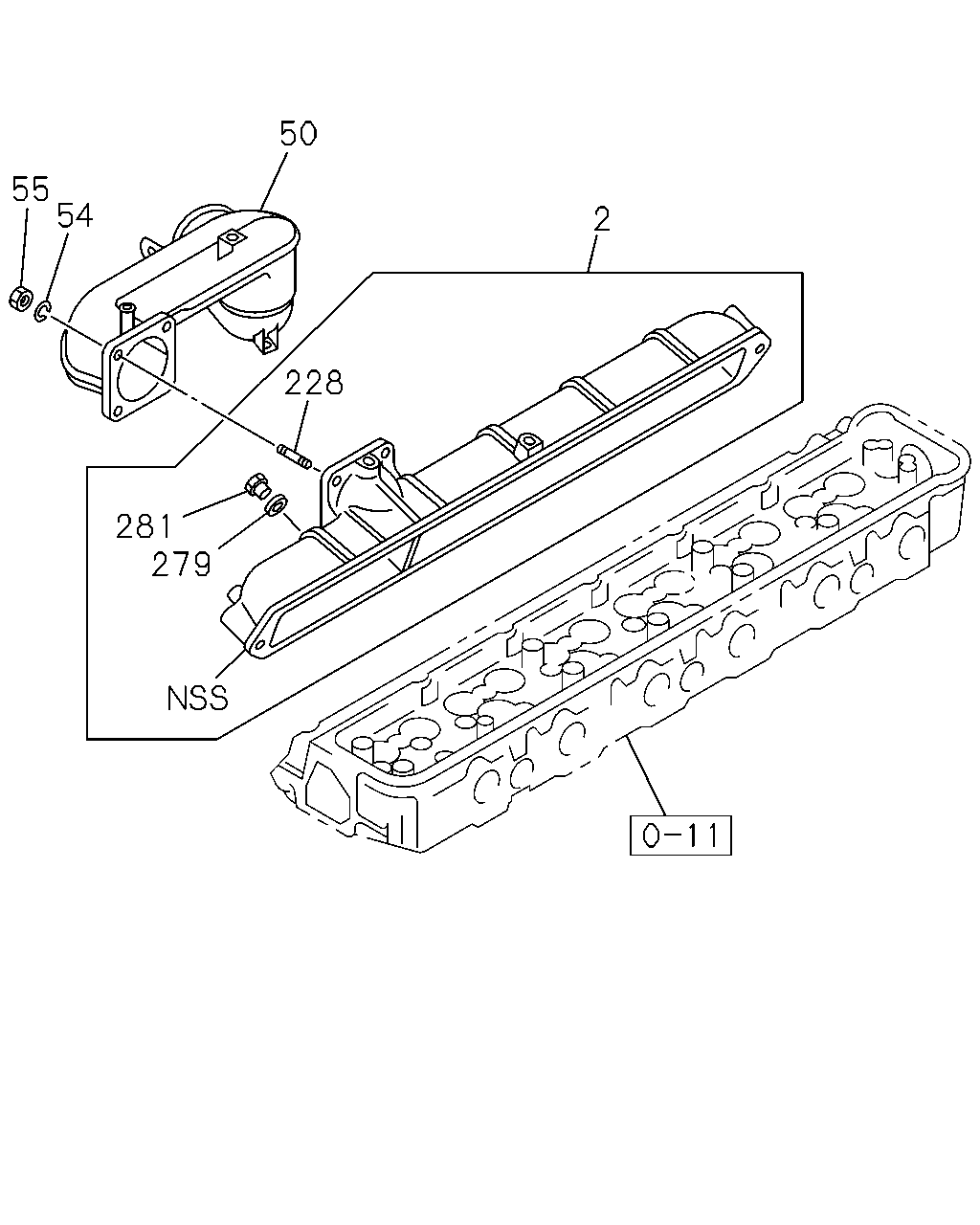

50 55 54 2 228 281 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	1-14110-333-0	01	1	9202-	●
2	COVER; INL	8-94396-348-0	01	1	9202-9504		●
2	COVER; INL	8-94395-959-0	01	1	9505-		●
2	COVER; INL	1-14110-380-2	01	1	9306-			●
50	PIPE; INL	1-14114-830-0	01	1	9202-	●
50	PIPE; INL	8-94397-063-2	01	1	9202-		●
54	WASHER; LK,INL PIPE ID=8.2	9-09150-508-0	02	1	9202-	●
55	NUT; INL PIPE M8	9-09110-408-0	02	1	9202-	●
228	STUD; INL COVER M8X25 L=37	9-04110-825-0	02	1	9202-	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94202-456-3	06	1	9202-	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	9306-			●
281	NUT; INL COVER	9-11175-011-0	06	1	9202-	●
281	NUT; INL COVER (A)	1-11175-011-1	04	1	9306-			●
281	NUT; INL COVER (B)	9-09110-508-0	01	1	9306-			●

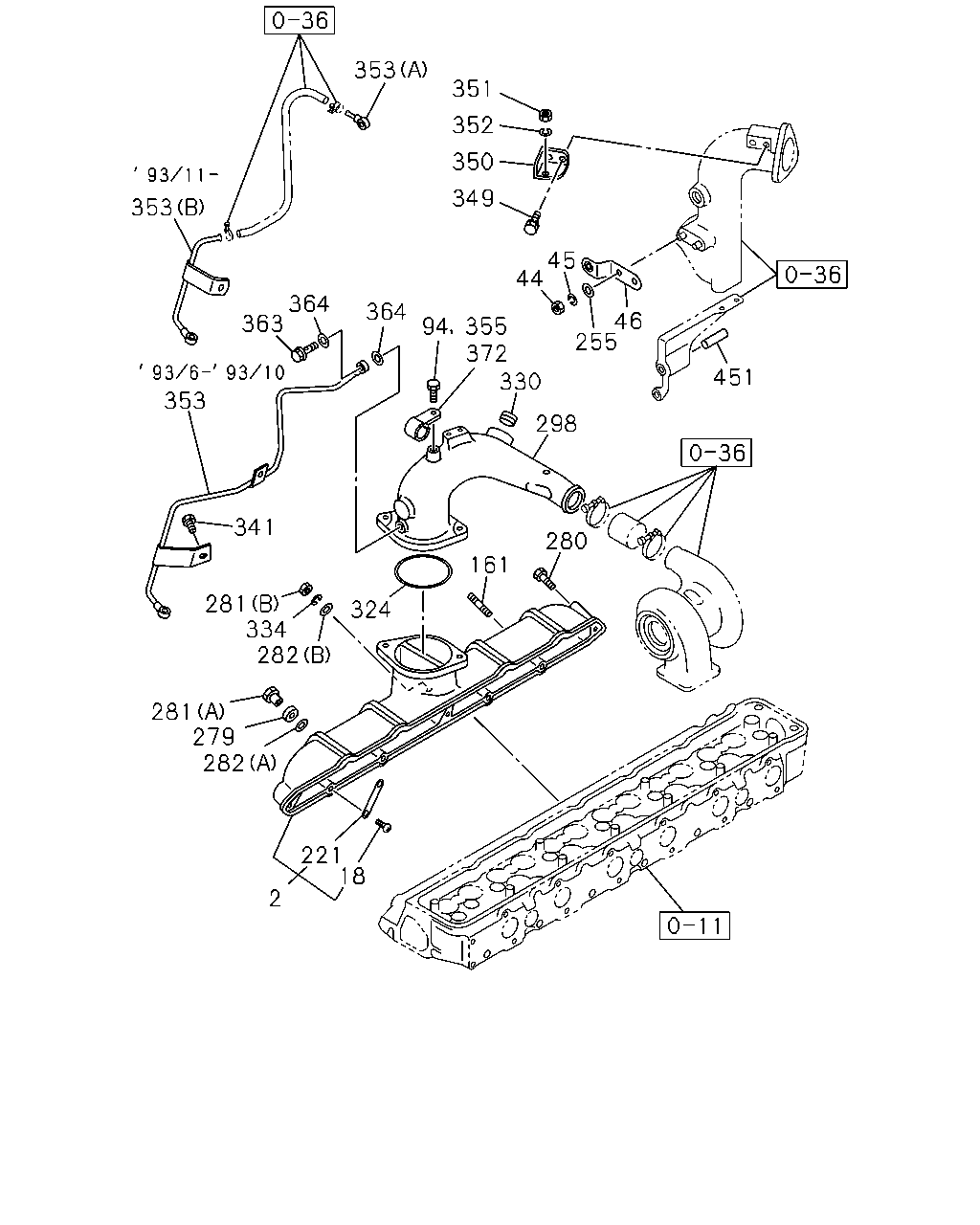

353 351 352 350 349 353 45 44 364 363 364 46 255 94 355 372 330 451 353 298 341 280 161 281 334 282 324 281 279 282 221 18 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	1-14110-333-0	01	1	9202-	●
2	COVER; INL	8-94396-348-0	01	1	9202-9504		●
2	COVER; INL	8-94395-959-0	01	1	9505-		●
2	COVER; INL	1-14110-380-2	01	1	9306-			●
18	SCREW; PLATE,INL CVR	1-09054-019-0	08	1	9306-			●
44	NUT; PIPE BRKT M8	9-09110-408-0	02	1	9306-			●
45	WASHER; LK,PIPE BRKT ID=8.2	9-09150-508-0	02	1	9306-			●
46	BRACKET; P/S PIPE	1-21119-074-0	01	1	9306-			●
94	BOLT EXC. TAIWAN EMISSION REGULATION<TAL> M8X12 W/LK WASHER	0-50040-812-0	01	1	9306-			●
161	STUD; BRKT,INJ PUMP M8X20 L=32	9-04110-820-0	04	1	9306-			●
221	PLATE; INL COVER	1-14119-261-0	04	1	9306-			●
255	WASHER; PL,BRKT ID=8.4 OD=18	9-09160-608-0	04	1	9306-			●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94202-456-3	06	1	9202-	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	9306-			●
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	12	1	9202-		●
280	BOLT; INL COVER M8X50	9-01065-850-0	02	1	9306-			●
281	NUT; INL COVER	9-11175-011-0	06	1	9202-	●
281	NUT; INL COVER (A)	1-11175-011-1	04	1	9306-			●
281	NUT; INL COVER (B)	9-09110-508-0	01	1	9306-			●
282	WASHER; PL,INL CVR FIX (A) ID=12.5	1-09503-186-0	04	1	9306-			●
282	WASHER; PL,INL CVR FIX (B) ID=8.4 OD=18	9-09164-608-0	03	1	9306-			●
298	PIPE; INL,TURBOCHARGER TO INL COVER TAIWAN EMISSION REGULATION<TAL>	1-14112-535-0	01	1	9306-			●
298	PIPE; INL,TURBOCHARGER TO INL COVER EXC. TAIWAN EMISSION REGULATION<TAL>	1-14112-178-1	01	1	9306-			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94399-417-0	01	1	9202-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-330-0	01	1	9306-			●
330	PLUG; INL PIPE PT1	1-09605-021-0	01	1	9306-			●
334	WASHER; LK,INL CVR FIX ID=8.2	9-09150-508-0	03	1	9306-			●
341	BOLT; BRKT,INL COVER TAIWAN EMISSION REGULATION<TAL> M8X16 FLANGE	0-28080-816-0	02	1	9306-9312			●
341	BOLT; BRKT,INL COVER TAIWAN EMISSION REGULATION<TAL> M8X16 FLANGE	0-28080-816-0	01	1	9401-			●
349	BOLT; BRKT,INL PIPE M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9306-			●
350	BRACKET; AIR DUCT TO INL PIPE	1-14119-248-1	01	1	9306-			●
351	NUT; BRKT,INL PIPE M8	9-09110-408-0	02	1	9306-9310			●
351	NUT; BRKT,INL PIPE M10	9-09110-410-0	02	1	9311-			●
352	WASHER; LK,BRKT,INL PIPE ID=8.2	9-09150-508-0	02	1	9306-9310			●
352	WASHER; LK,BRKT,INL PIPE ID=10.2	9-09150-510-0	02	1	9311-			●
353	PIPE; AIR,BOOST TAIWAN EMISSION REGULATION<TAL>	1-19192-810-0	01	1	9306-9310			●
353	PIPE; AIR,BOOST TAIWAN EMISSION REGULATION<TAL> (B)	1-19192-831-0	01	1	9311-			●
353	PIPE; AIR,BOOST TAIWAN EMISSION REGULATION<TAL> (A)	8-94430-128-0	01	1	9311-			●
355	BOLT; CLIP,AIR PIPE TAIWAN EMISSION REGULATION<TAL> M8X12 W/LK WASHER	0-50040-812-0	01	1	9306-			●
363	BOLT; EYE TAIWAN EMISSION REGULATION<TAL>	1-09675-184-0	01	1	9306-			●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EMISSION REGULATION<TAL> ID=10.2 OD=15.2	1-09630-083-0	02	1	9306-			●
372	CLIP; HOSE EXC. TAIWAN EMISSION REGULATION<TAL> ID=24 L=32	1-09700-766-1	01	1	9306-			●
451	TUBE; DIST,BRKT	1-19199-134-0	01	1	9306-			●

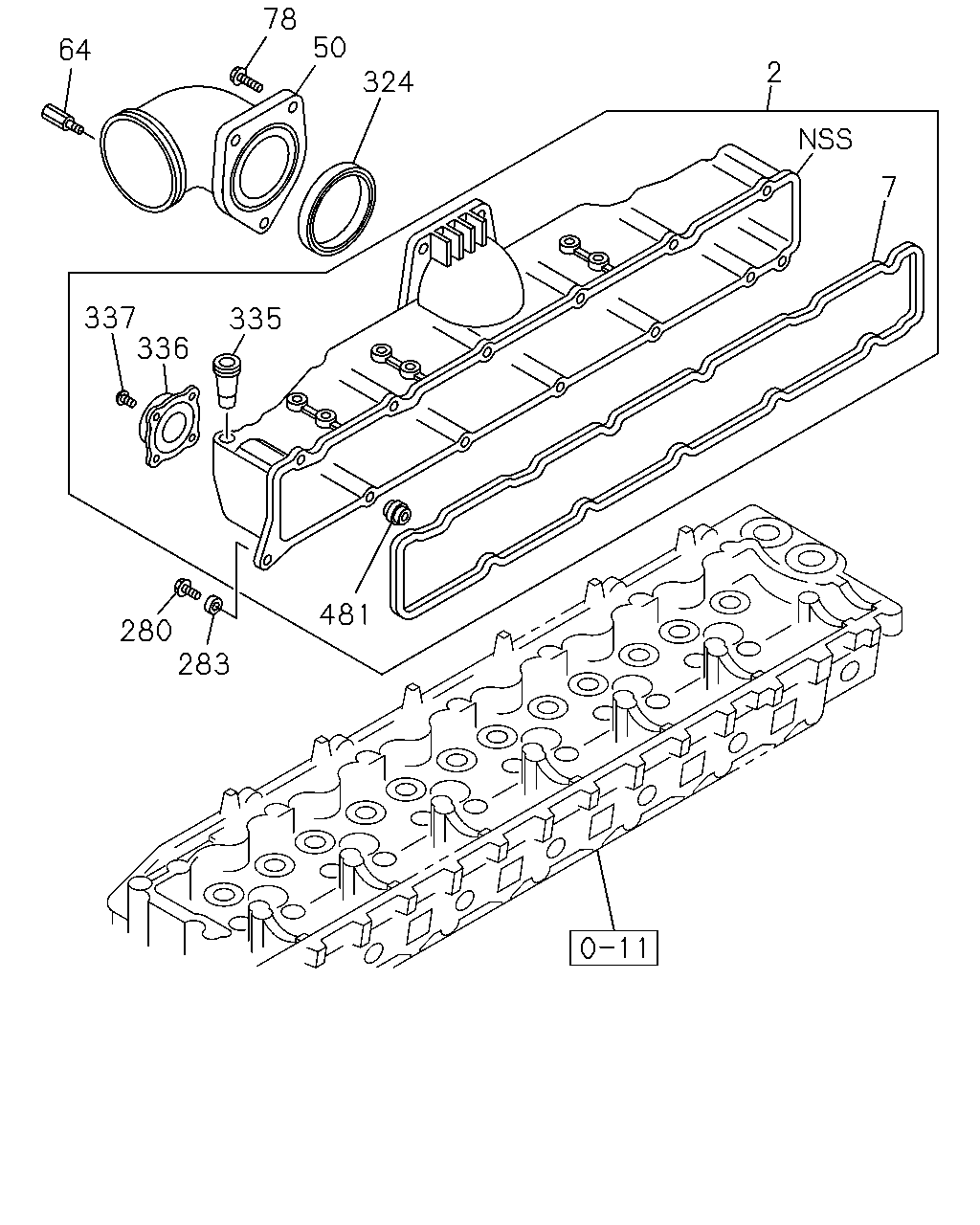

78 50 64 2 324 7 337 336 335 481 280 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	1-14110-333-0	01	1	9202-	●
2	COVER; INL	8-94396-348-0	01	1	9202-9504		●
2	COVER; INL	8-94395-959-0	01	1	9505-		●
2	COVER; INL	1-14110-380-2	01	1	9306-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9202-		●
50	PIPE; INL	1-14114-830-0	01	1	9202-	●
50	PIPE; INL	8-94397-063-2	01	1	9202-		●
64	STUD; INL PIPE M10X25 L=75	8-94397-086-0	01	1	9202-		●
78	BOLT; INL PIPE TO INL MANIF M10X30 FLANGE	0-28181-030-0	02	1	9202-		●
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	12	1	9202-		●
280	BOLT; INL COVER M8X50	9-01065-850-0	02	1	9306-			●
283	RUBBER	8-94397-059-1	12	1	9202-9504		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94399-417-0	01	1	9202-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-330-0	01	1	9306-			●
335	JOINT; BREATHER	8-94396-347-0	01	1	9202-		●
336	VALVE; VENTILATION	8-94396-346-0	01	1	9202-		●
337	BOLT; VENTILATION VLV M4X8 W/LK WASHER	9-03910-408-0	04	1	9202-		●
481	TUBE; DIST,INL COVER	8-94397-058-0	12	1	9202-9504		●
481	TUBE; DIST,INL COVER OD=22	8-94395-684-0	12	1	9505-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
