0-57 — EMISSION PIPING (#118475) — 16 parça

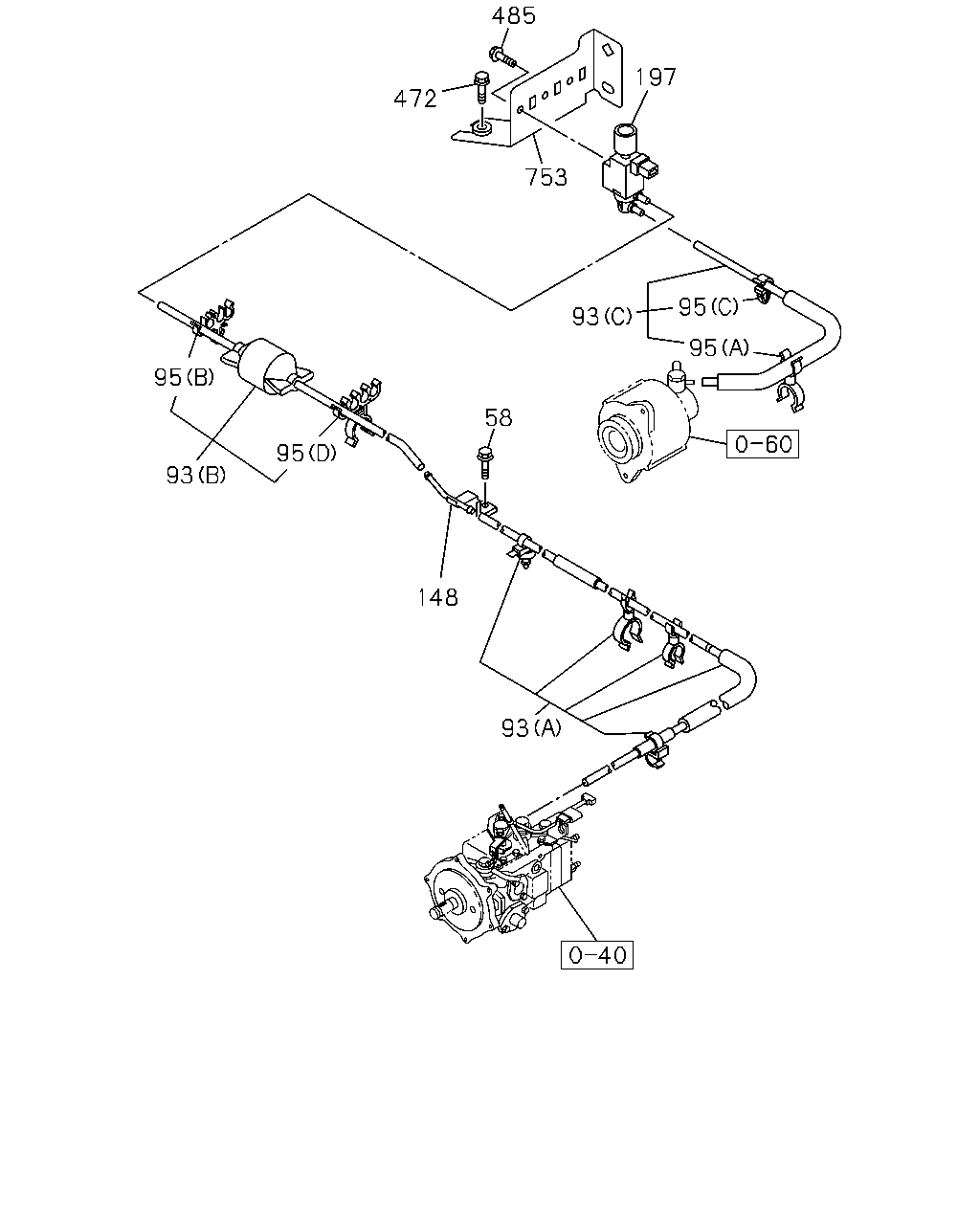

çizim 342483
485 472 197 753 93 95 93 148 95 93 95 95 58
BalonParca AdiParca NoAdetTipApplied Date A B C
58 03.417 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1304- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98192-325-0 01 1 1304- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98194-795-1 01 1 1304- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98194-794-2 01 1 1304- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) 02.589 (A) ID=13 & 16.5 		8-94169-028-0 01 1 1304- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) 4XID=6.7 		8-94315-422-0 01 1 1304- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) (D) ID=14.5 & 7X4 		8-94368-499-0 01 1 1304- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) ID=6.8 		8-97134-154-0 01 1 1304- ●
148 03.675 PIPE; VAC
AIR CONDITIONER MANUAL CONT(C60) 		8-98194-786-3 01 1 1304- ●
197 03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) 03.130 		8-94384-336-0 01 1 1304- ●
472 03.671 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1304- ●
485 03.671 BOLT; VSV
AIR CONDITIONER MANUAL CONT(C60) M5X8 W/LK WASHER 		0-36220-508-0 01 1 1304- ●
753 03.670 BRACKET; VALVE 8-98197-795-0 01 1 1304- ●

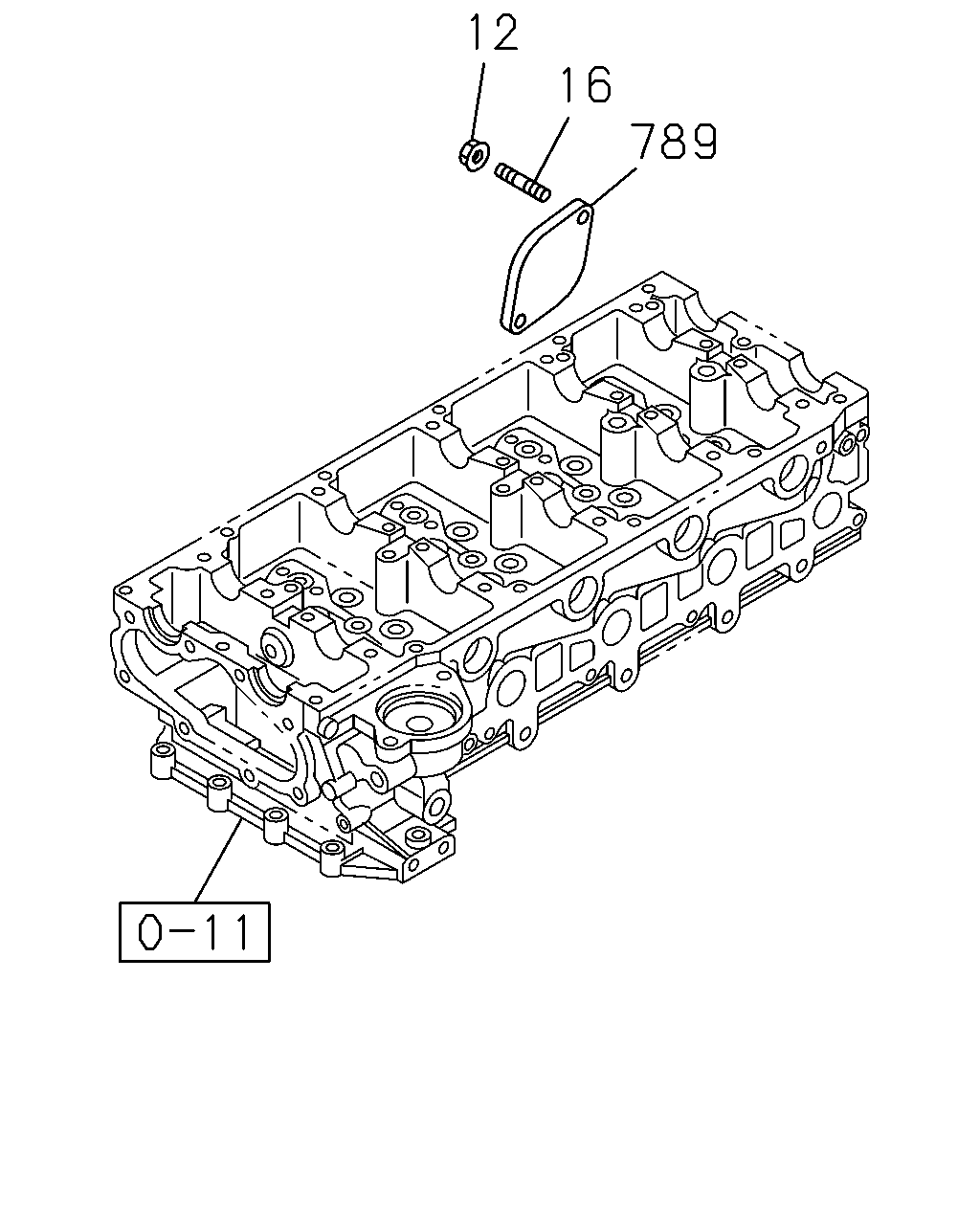

çizim 345264
12 789 16
BalonParca AdiParca NoAdetTipApplied Date A B C
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 1304- ● ●
16 03.275 STUD; EGR VLV
03.342 M8X22 L=33 		8-94257-319-0 02 1 1304- ● ●
789 03.670 COVER; COOLER,EGR 8-98105-261-0 01 1 1304- ● ●
