3-22 — AIR CONTROL PARTS (#118473) — 158 parça

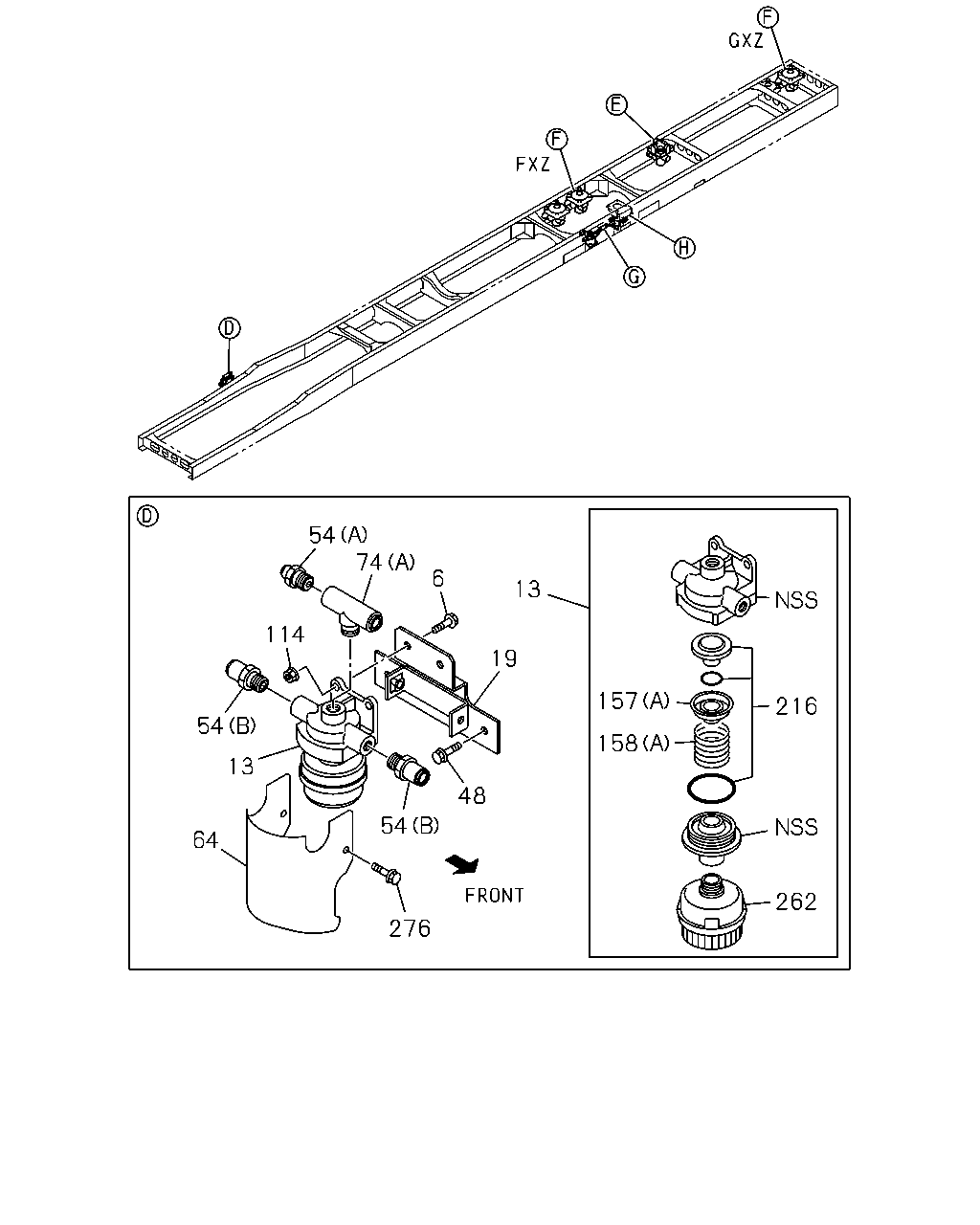

çizim 343154
54 74 6 13 19 48 54 13 54 114 64 276 216 262 157 158
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
6 BOLT; VLV
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ● ●
8 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
8 BOLT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
13 VALVE ASM; QUICK RELEASE 1-48410-726-1 01 1 1304- ● ●
19 BRACKET; QUICK RELEASE VLV 1-47471-014-0 01 1 1304- ● ●
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1304- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1304- ● ●
64 PROTECTOR; QUICK RELEASE VALVE 8-98043-421-0 01 1 1304- ● ●
74 CONNECTOR; 3WAY
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1304- ●
74 CONNECTOR; 3WAY
(E) 		8-98166-127-0 01 1 1304- ●
74 CONNECTOR; 3WAY
(A) 		1-09661-232-0 01 1 1304- ● ●
74 CONNECTOR; 3WAY
(A) 		1-09661-232-0 01 1 1304- ●
74 CONNECTOR; 3WAY
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1304- ●
74 CONNECTOR; 3WAY
(C) DIN8 & RC1/4 & R3/8 3WAY 		1-09661-536-0 01 1 1304- ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
157 RETAINER; VALVE
(A) 		1-48419-020-0 01 1 1304- ● ●
157 RETAINER; VALVE
(B) 		1-48213-002-0 02 1 1304- ● ●
158 SPRING; VALVE
(A) 		9-48419-003-0 01 1 1304- ● ●
158 SPRING; VALVE
(B) 		1-47819-089-0 02 1 1304- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-484-0 01 1 1304- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1304- ● ●
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 1304- ● ●
çizim 343176
259
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
8 BOLT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
259 REPAIR KIT; VALVE 1-85576-381-0 02 1 1304- ●
259 REPAIR KIT; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) 		1-85576-381-0 01 1 1304- ●
çizim 343177
240
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
8 BOLT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 1304- ● ●

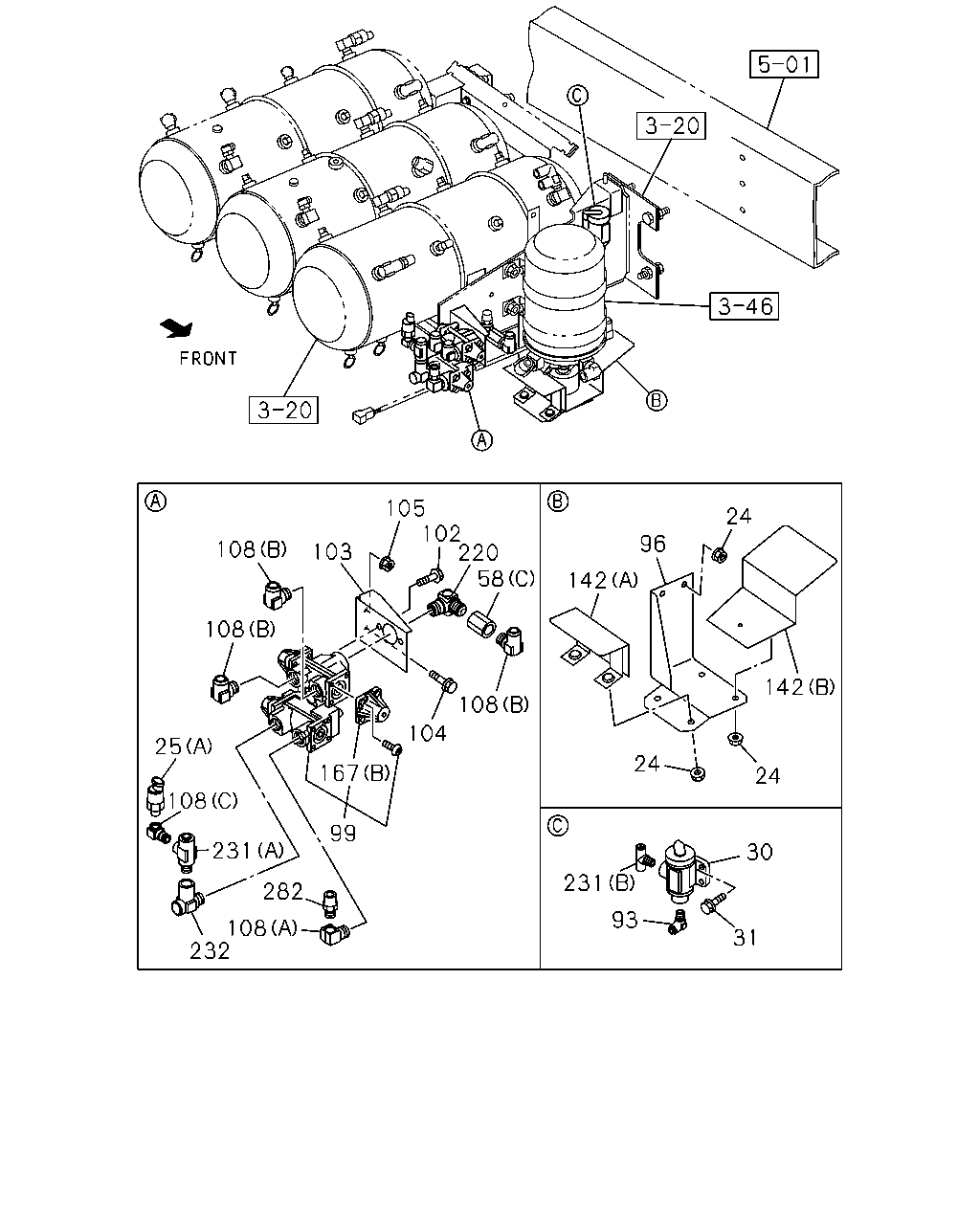

çizim 343189
105 102 220 58 108 104 167 99 282 108 232 231 108 25 108 108 103 142 96 24 142 24 24 231 93 30 31
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
8 BOLT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
24 NUT
M8 FLANGE 		0-91180-108-0 06 1 1304- ● ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1304- ● ●
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1304- ● ●
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 1304- ● ●
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ● ●
58 ADAPTER
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1304- ● ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 1304- ●
58 ADAPTER
(A) PT3/8 		1-48319-058-0 01 1 1304- ●
93 CONNECTOR; GOV
DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1304- ● ●
96 BRACKET 8-98093-436-0 01 1 1304- ● ●
99 VALVE; PROTECTION 1-48110-290-3 01 1 1304- ● ●
102 BOLT; PROTECTION VALVE
M8X16 FLANGE 		0-28050-816-0 02 1 1304- ● ●
103 BRACKET; PROTECTION VALVE 8-98093-563-0 01 1 1304- ● ●
104 BOLT; BRKT,VALVE
M10X20 FLANGE 		0-28651-020-0 01 1 1304- ● ●
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 01 1 1304- ● ●
108 CONNECTOR; ELBOW
(D) DIN12 & R1/4 ELBOW 		1-09660-958-0 04 1 1304- ●
108 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1304- ● ●
108 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1304- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1304- ● ●
108 CONNECTOR; ELBOW
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (D) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1304- ●
108 CONNECTOR; ELBOW
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (E) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 1304- ●
108 CONNECTOR; ELBOW
WHEEL BASE 6600MM(66W) (D) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 4304- ●
108 CONNECTOR; ELBOW
WHEEL BASE 6600MM(66W) (E) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 1304- ●
142 PROTECTOR; HEAT
(A) 		8-98093-437-1 01 1 1304- ● ●
142 PROTECTOR; HEAT
(B) 		8-98093-438-1 01 1 1304- ● ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1304- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1304- ● ●
220 CONNECTOR; 3WAY 8-98031-238-0 01 1 1304- ● ●
231 CONNECTOR; NYLON TUBE
(A) 		1-09661-027-0 01 1 1304- ● ●
231 CONNECTOR; NYLON TUBE
(B) 		1-09661-073-0 01 1 1304- ● ●
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1304- ● ●
282 CONNECTOR; STRAIGHT
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304- ● ●

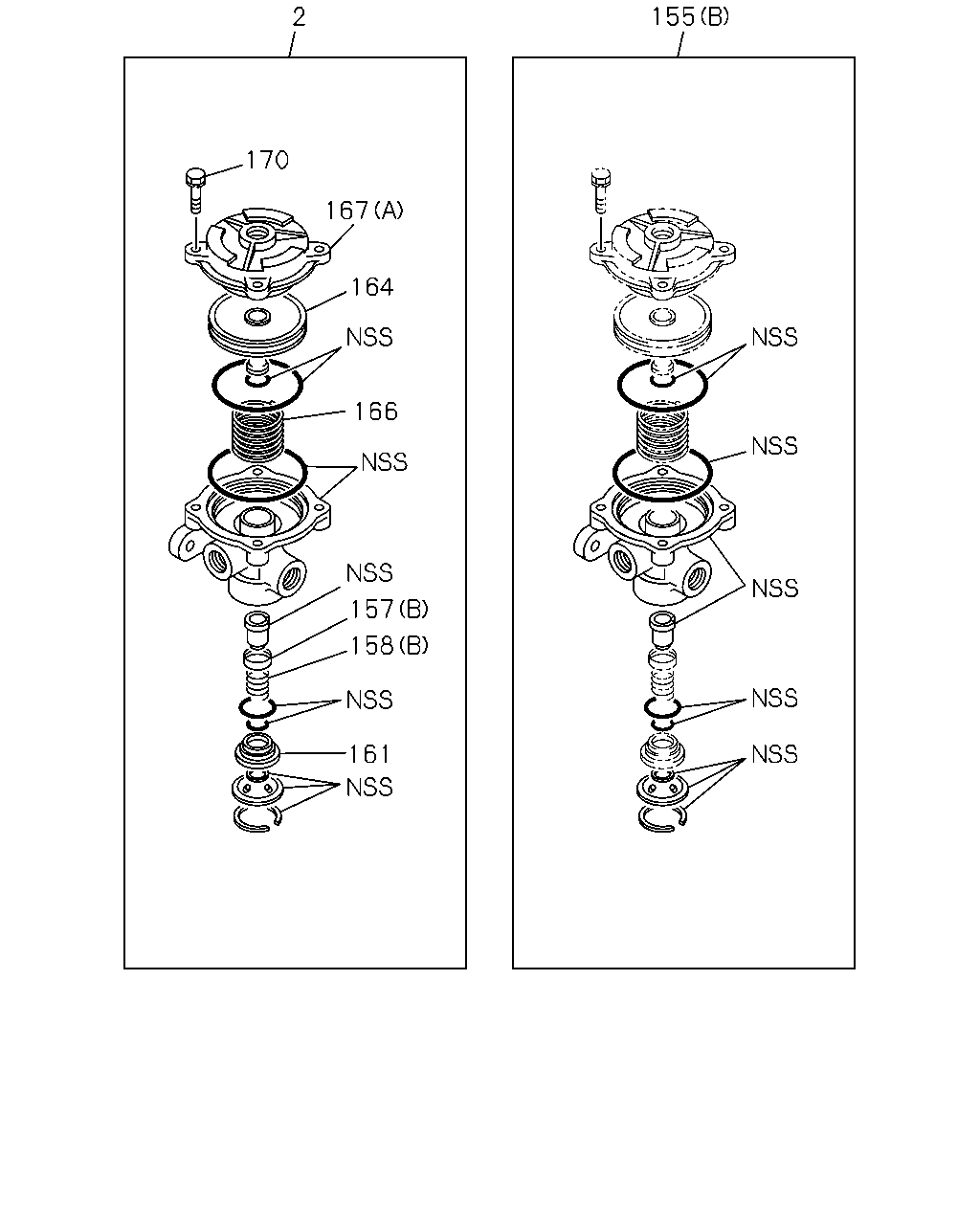

çizim 343242
155 2 170 167 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-875-0 02 1 1304- ● ●
8 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
8 BOLT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 02 1 1304- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-408-0 01 1 1304- ● ●
157 RETAINER; VALVE
(A) 		1-48419-020-0 01 1 1304- ● ●
157 RETAINER; VALVE
(B) 		1-48213-002-0 02 1 1304- ● ●
158 SPRING; VALVE
(A) 		9-48419-003-0 01 1 1304- ● ●
158 SPRING; VALVE
(B) 		1-47819-089-0 02 1 1304- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 1304- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 1304- ● ●
166 SPRING; PISTON 1-47819-090-0 02 1 1304- ● ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1304- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1304- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 1304- ● ●

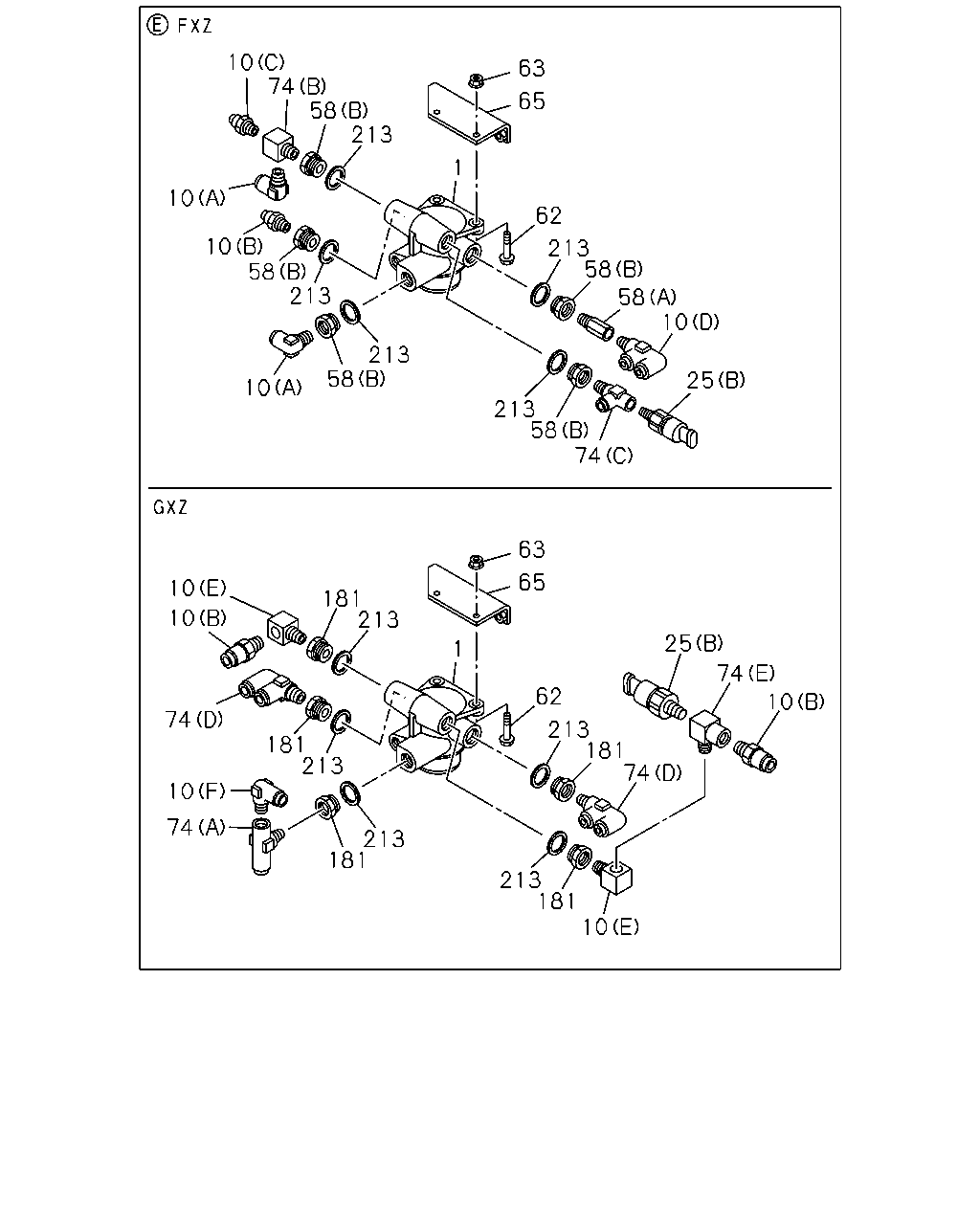

çizim 344927
10 74 58 213 10 10 58 213 213 10 58 213 58 74 25 10 58 58 213 62 63 65 1 10 10 181 213 74 10 74 181 213 213 181 181 10 213 74 181 213 62 25 74 10 63 65 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1304- ● ●
8 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
8 BOLT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
10 CONNECTOR
(E) PT3/8 ELBOW 		1-09660-696-0 02 1 1304- ●
10 CONNECTOR
(F) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304- ●
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 02 1 1304- ●
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1304- ●
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1304- ●
10 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304- ●
10 CONNECTOR
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1304- ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1304- ● ●
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1304- ● ●
58 ADAPTER
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1304- ● ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 1304- ●
58 ADAPTER
(A) PT3/8 		1-48319-058-0 01 1 1304- ●
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ● ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 1304- ● ●
74 CONNECTOR; 3WAY
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1304- ●
74 CONNECTOR; 3WAY
(E) 		8-98166-127-0 01 1 1304- ●
74 CONNECTOR; 3WAY
(A) 		1-09661-232-0 01 1 1304- ● ●
74 CONNECTOR; 3WAY
(A) 		1-09661-232-0 01 1 1304- ●
74 CONNECTOR; 3WAY
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1304- ●
74 CONNECTOR; 3WAY
(C) DIN8 & RC1/4 & R3/8 3WAY 		1-09661-536-0 01 1 1304- ●
181 ADAPTER; PRESSURE SW
INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 1304- ●
213 GASKET
ID=22.5 		9-09571-422-0 05 1 1304- ● ●

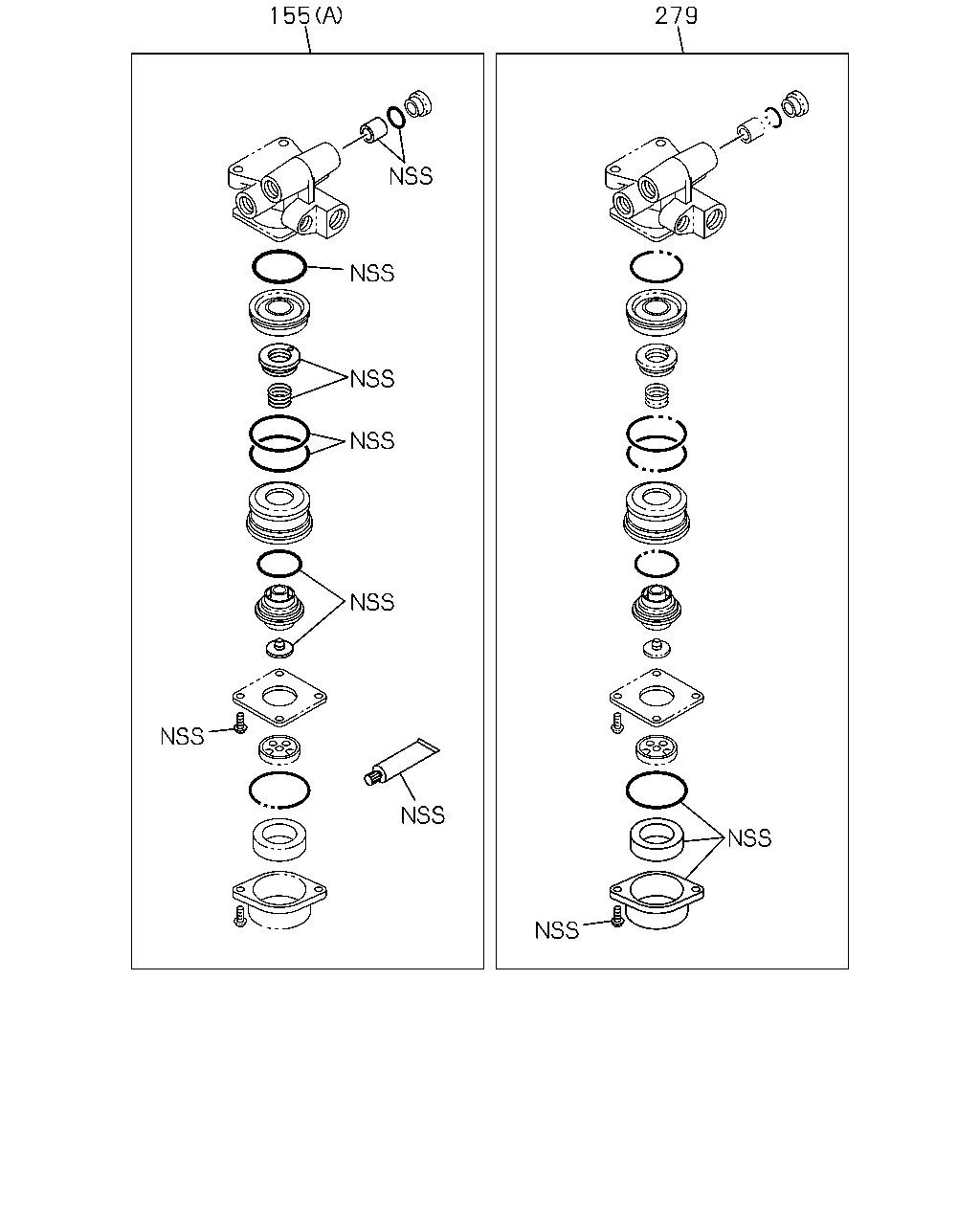

çizim 345210
155 279
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
8 BOLT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 02 1 1304- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-408-0 01 1 1304- ● ●
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 1304- ● ●
çizim 345236

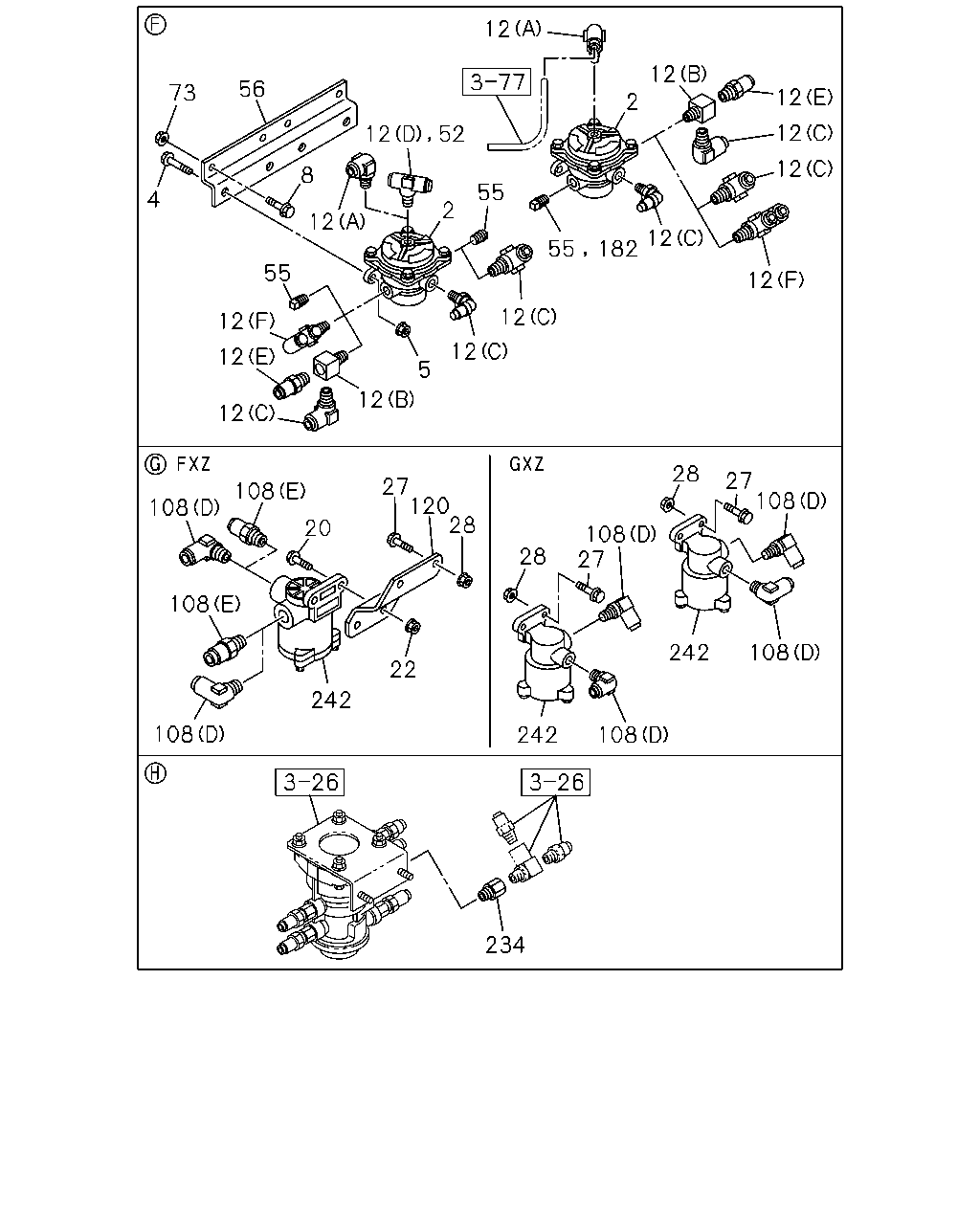

234 108 242 108 108 27 28 108 27 28 242 22 28 120 27 20 242 108 108 108 108 12 12 12 55 4 73 56 12 12 52 2 55 12 12 5 12 12 2 12 12 182 55 12 12 12 12
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-875-0 02 1 1304- ● ●
4 BOLT; RELAY VLV TO BRKT
EXC. ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE 		0-28651-030-0 04 1 1304- ●
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 1304- ●
4 BOLT; RELAY VLV TO BRKT
ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE 		0-28651-035-0 04 1 1304- ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1304- ● ●
8 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
8 BOLT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
12 CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM(BFA) (F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1304- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1304- ●
12 CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1304- ●
12 CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304- ●
12 CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 3WAY 		1-09661-300-0 01 1 1304- ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304- ●
12 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304- ●
12 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1304- ●
20 BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
22 NUT; BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 02 1 1304- ●
27 BOLT; AIR VLV
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
27 BOLT; AIR VLV
WHEEL BASE 6600MM(66W) M8X35 FLANGE 		0-28650-835-0 02 1 1304- ●
27 BOLT; AIR VLV
M8X35 FLANGE 		0-28650-835-0 04 1 1304- ●
28 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 1304- ●
28 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 04 1 1304- ●
52 CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1304- ●
55 PLUG; SUPPLY
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		9-09204-517-0 02 1 1304- ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 02 1 1304- ●
56 BRACKET; RELAY VLV 1-47479-937-0 01 1 1304- ● ●
73 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1304- ●
73 NUT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1304- ●
108 CONNECTOR; ELBOW
(D) DIN12 & R1/4 ELBOW 		1-09660-958-0 04 1 1304- ●
108 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1304- ● ●
108 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1304- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1304- ● ●
108 CONNECTOR; ELBOW
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (D) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1304- ●
108 CONNECTOR; ELBOW
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (E) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 1304- ●
108 CONNECTOR; ELBOW
WHEEL BASE 6600MM(66W) (D) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 4304- ●
108 CONNECTOR; ELBOW
WHEEL BASE 6600MM(66W) (E) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 1304- ●
120 BRACKET; VLV
WHEEL BASE 4500MM(45W) 		8-98088-292-0 01 1 1304- ●
182 PLUG; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		9-09204-517-0 01 1 1304- ●
234 UNION
PT3/8 		1-09664-210-0 01 1 1304- ●
242 VALVE; REGULATION 1-48410-722-0 02 1 1304- ●
242 VALVE; REGULATION
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) 		1-48410-722-0 01 1 1304- ●
242 VALVE; REGULATION
WHEEL BASE 6600MM(66W) 		1-48410-722-0 01 1 1304- ●
242 VALVE; REGULATION 1-48410-722-0 02 1 1304- ●
çizim 492469
241
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
8 BOLT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
