0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#118465) — 53 parça
◀

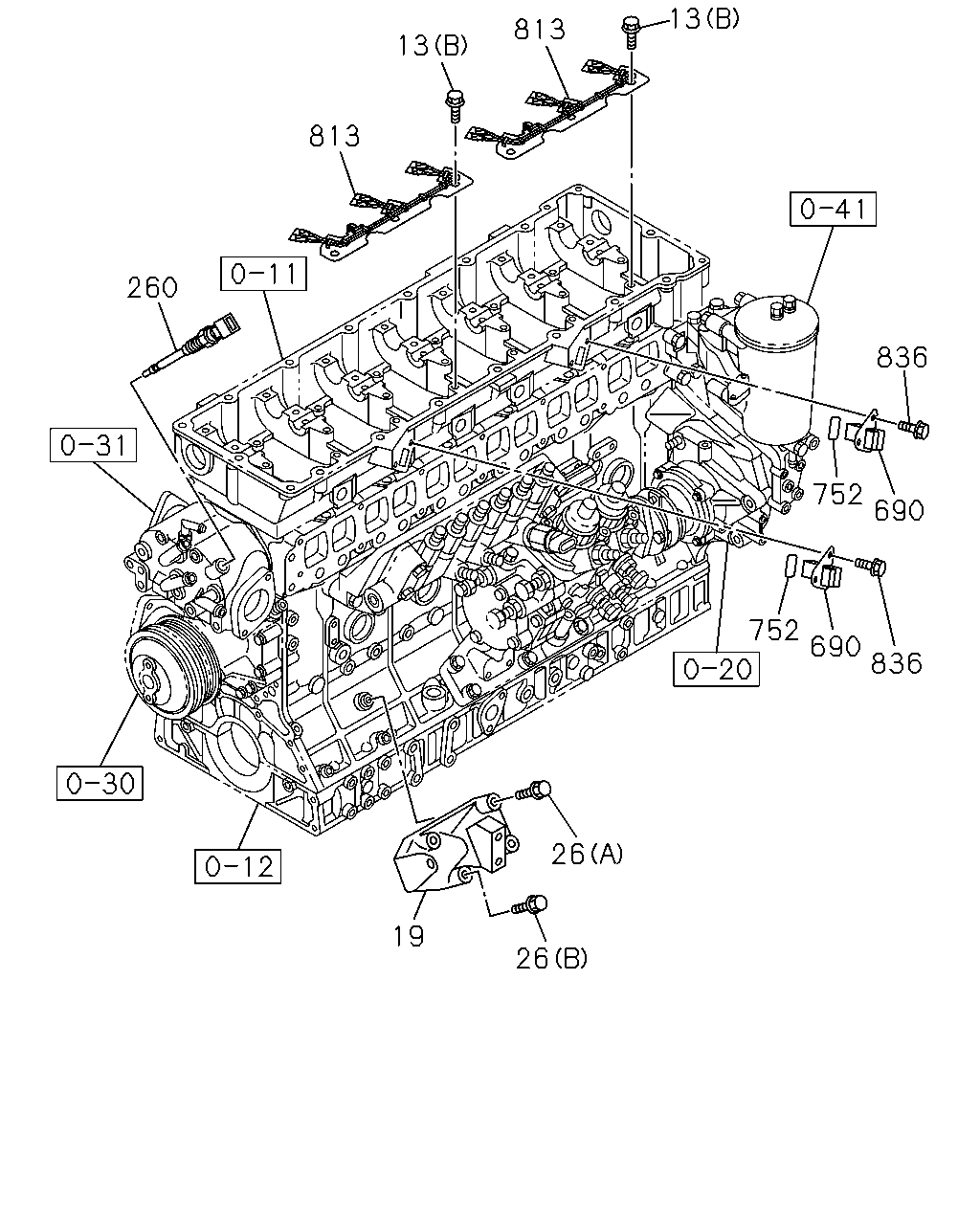

[060A] CYLINDE HEAD SIDE (11 parça)

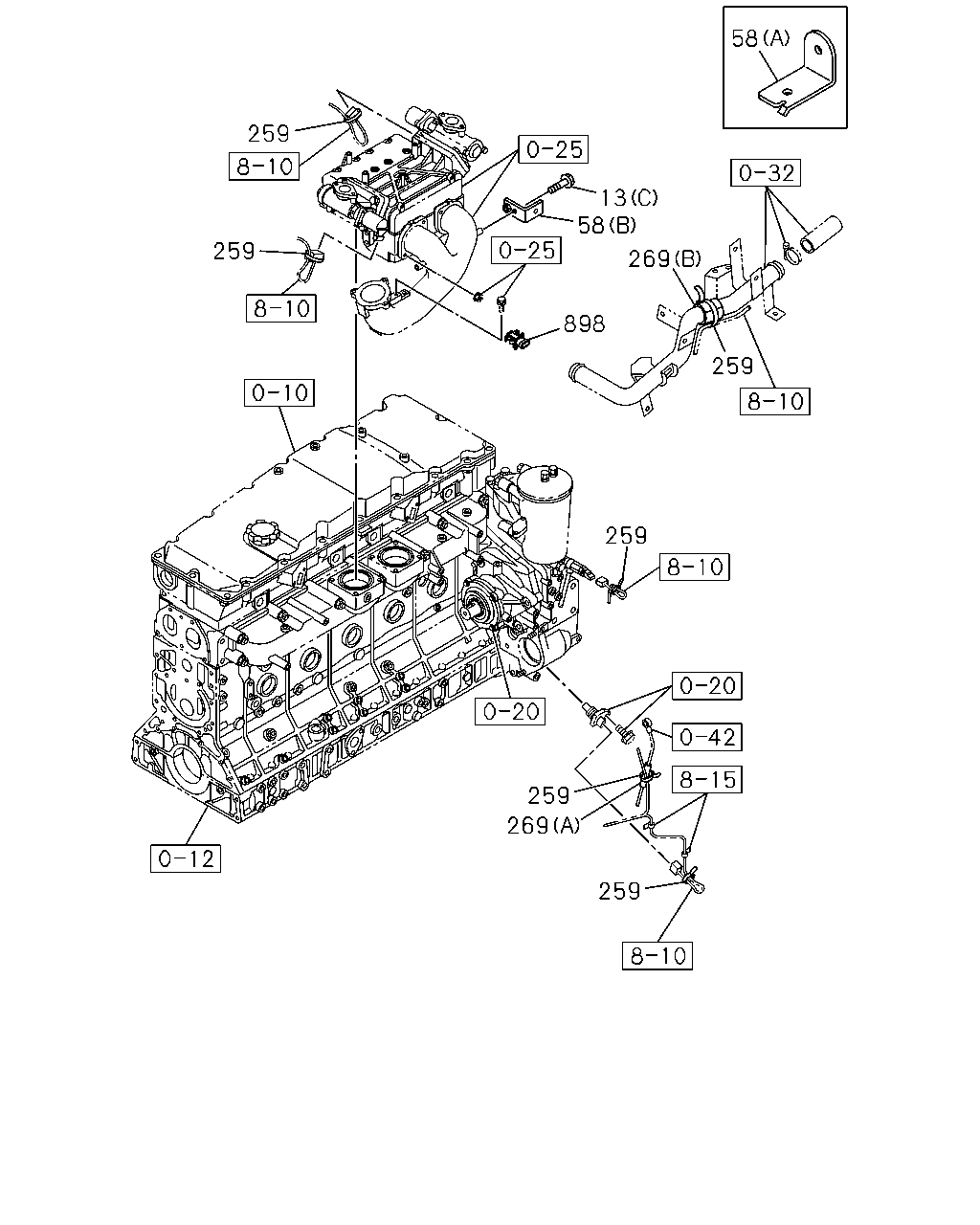

[060A] INLET MANIFOLD SIDE (10 parça)

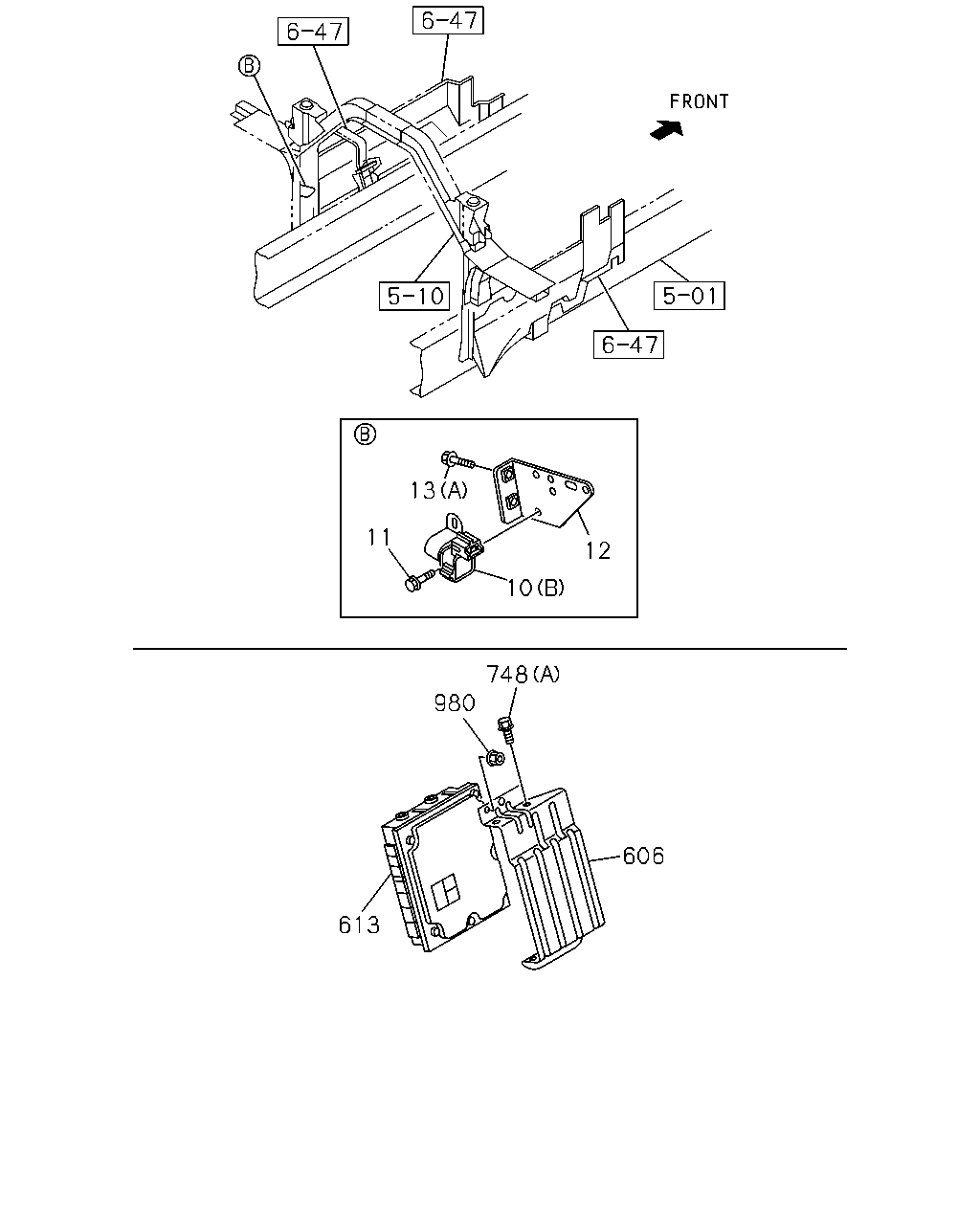

[060A] ENG CONTROL UNIT (12 parça)

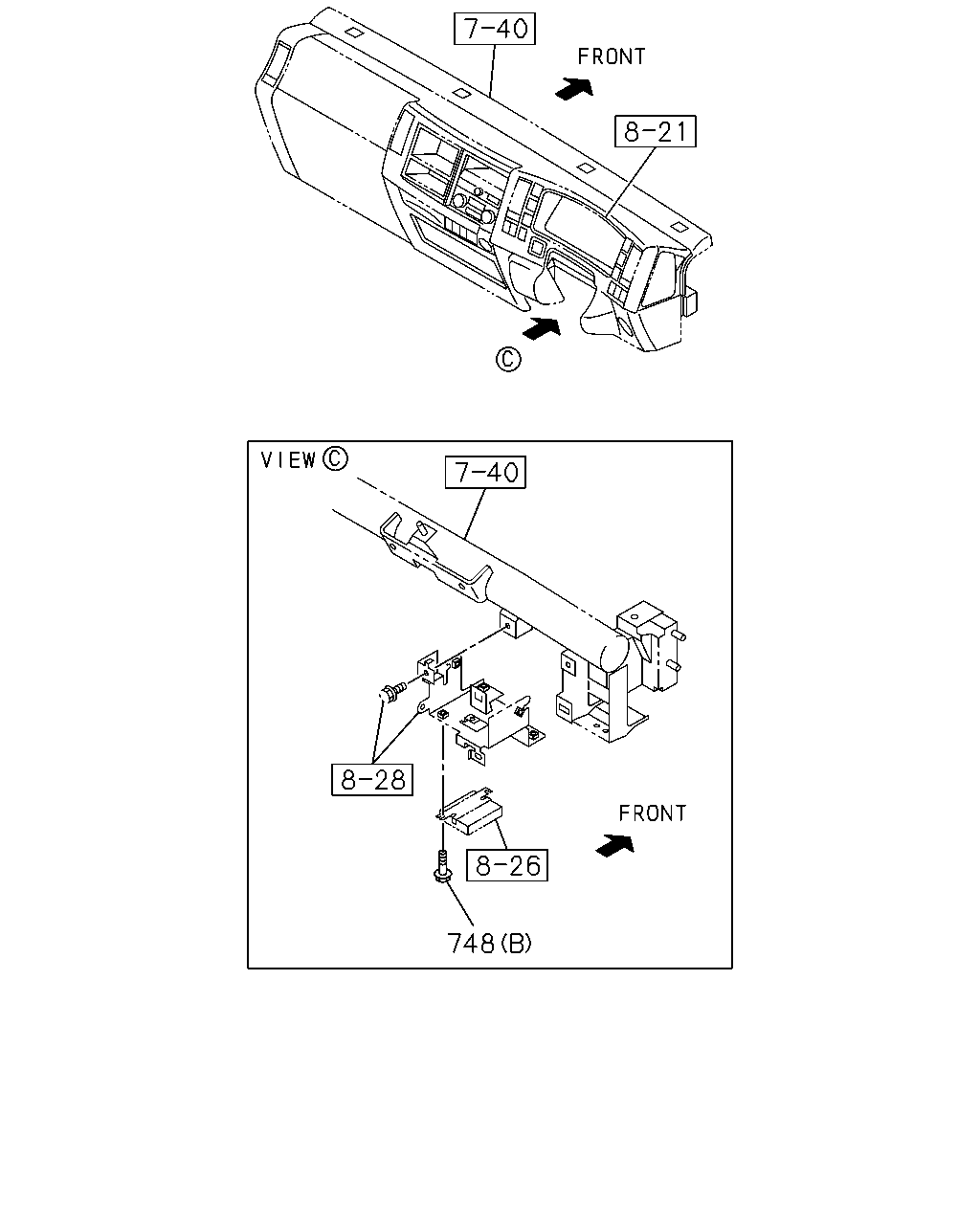

[060A] DRM (2 parça)
[060A] CLIP;CAB FRONT HARNESS (3 parça)
[060A] RELAY (2 parça)

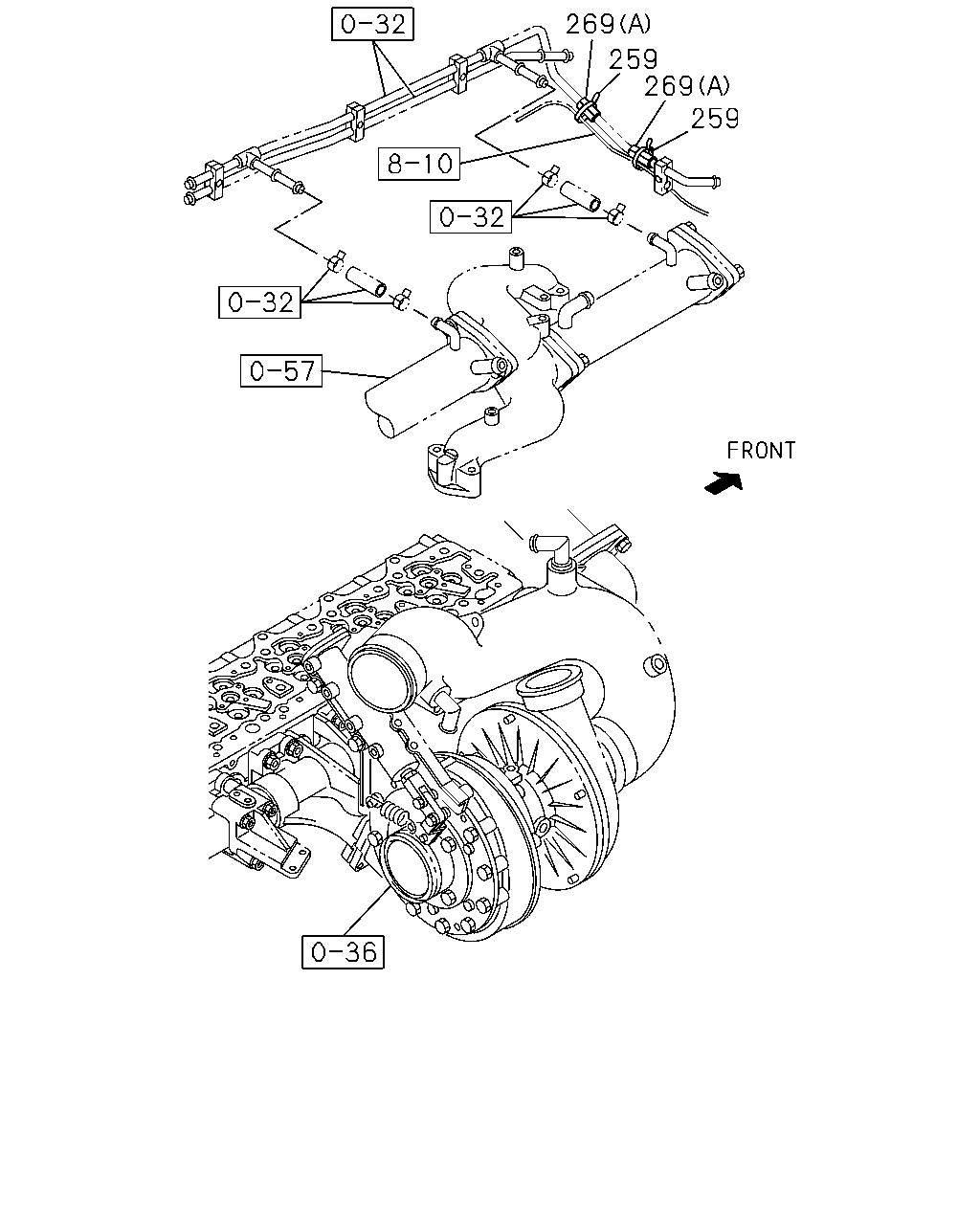

[060A] EGR COOLER SIDE (4 parça)

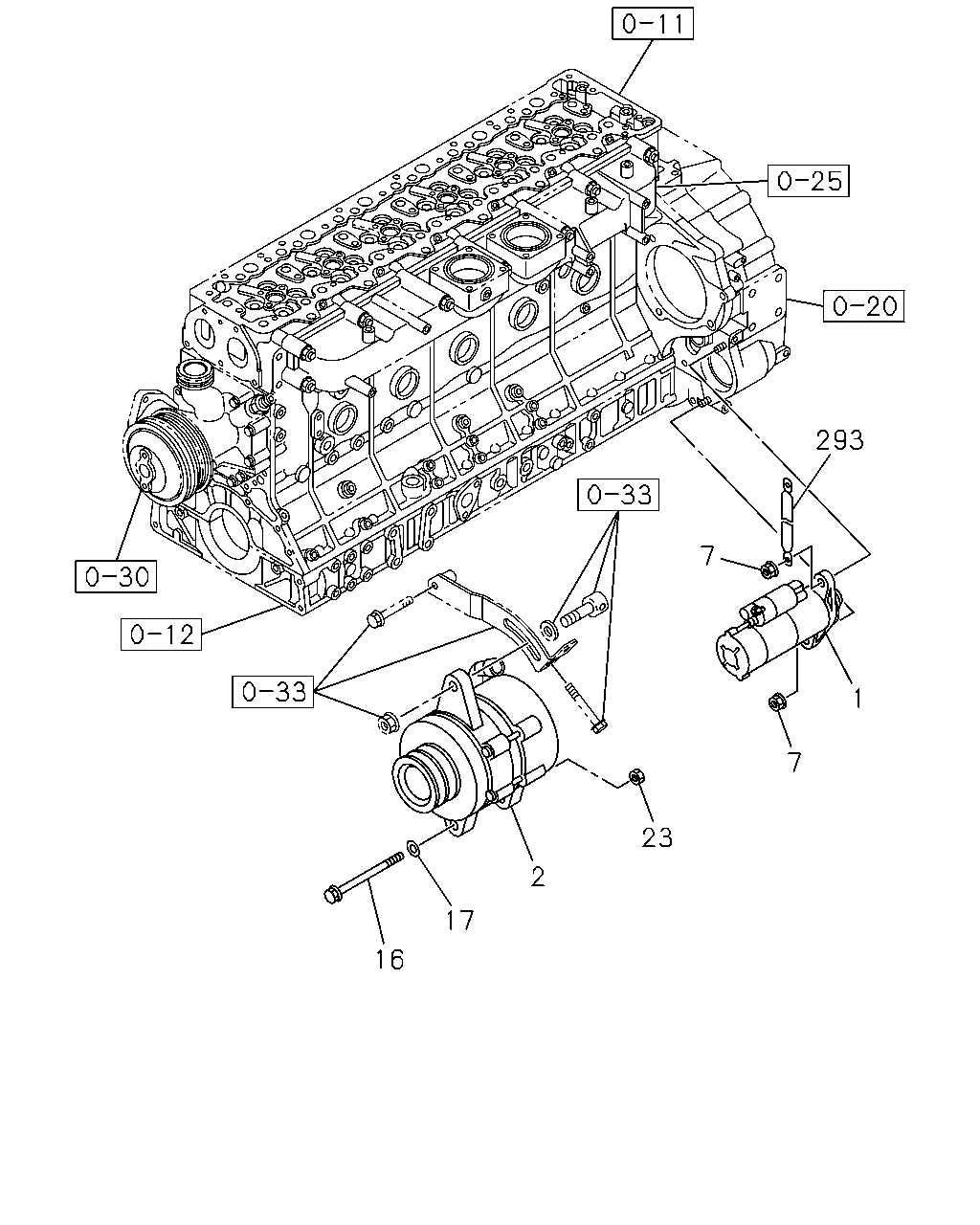

[060A] STARTER AND GENERATOR (9 parça)
▶
813
13
836
752
836
690
752
690
26
26
19
260
813
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; BRKT
(C) M8X16 FLANGE
0-28050-816-0
01
1
1304-
13
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
06
1
1304-
13
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1304-
19
BRACKET; GEN
8-97605-943-0
01
1
1304-
26
BOLT; GEN BRKT
(A) M12X50 FLANGE
0-28151-250-0
03
1
1304-
26
BOLT; GEN BRKT
(B) M12X70 FLANGE
0-28151-270-0
01
1
1304-
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
1304-
690
CONNECTOR
8-94390-858-1
02
1
1304-
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
1304-
813
HARNESS; INJECTOR
8-97603-762-1
02
1
1304-
836
BOLT; CONNECTOR
M8X12 FLANGE
0-28050-812-0
04
1
1304-
259
259
13
58
58
898
269
259
259
259
269
259
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; BRKT
(C) M8X16 FLANGE
0-28050-816-0
01
1
1304-
13
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
06
1
1304-
13
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1304-
58
BRACKET; CLIP
(B)
8-97612-496-0
01
1
1304-
58
BRACKET; CLIP
(A)
8-97633-825-1
01
1
1304-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=150
8-97355-273-0
01
1
1304-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
8-98216-430-0
10
1
1304-
269
SLEEVE; RUBBER,CABLE
(B) ID=38.1 L=25
1-09337-052-0
01
1
1304-
269
SLEEVE; RUBBER,CABLE
(A) ID=10 OD=14 L=30
9-09956-682-0
04
1
1304-
898
SENSOR; BOOST
8-98009-418-0
01
1
1304-
13
11
12
10
980
613
606
748
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
1305-
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-98167-173-0
01
1
1304-
11
BOLT; RELAY STARTER
M8X25 FLANGE
0-28650-825-0
02
1
1304-
12
BRACKET; STARTER RELAY
8-97620-875-2
01
1
1304-
13
BOLT; BRKT
(C) M8X16 FLANGE
0-28050-816-0
01
1
1304-
13
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
06
1
1304-
13
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1304-
606
BRACKET; CONT UNIT
8-98168-567-0
01
1
1304-
613
CONTROL UNIT; ENG
8-97638-642-1
01
1
1304-
748
BOLT; CONT UNIT
(B) M6X16 FLANGE
0-28650-616-0
02
1
1304-
748
BOLT; CONT UNIT
(A) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1304-
980
NUT; CONT UNIT
M8 FLANGE
0-91180-108-0
04
1
1304-
748
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
748
BOLT; CONT UNIT
(B) M6X16 FLANGE
0-28650-616-0
02
1
1304-
748
BOLT; CONT UNIT
(A) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1304-
441
428
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
428
CLIP; HARNESS
ID=32 L=35
1-09701-244-0
03
1
1304-
441
BOLT; HARNESS TO FRAME
M8X20 FLANGE
0-28650-820-0
01
1
1304-
441
BOLT; HARNESS TO FRAME
M8X35 FLANGE
0-28650-835-0
02
1
1304-
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
1305-
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-98167-173-0
01
1
1304-
259
269
259
269
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
259
CLIP; BAND,HARNESS TO OIL PIPE
L=150
8-97355-273-0
01
1
1304-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
8-98216-430-0
10
1
1304-
269
SLEEVE; RUBBER,CABLE
(B) ID=38.1 L=25
1-09337-052-0
01
1
1304-
269
SLEEVE; RUBBER,CABLE
(A) ID=10 OD=14 L=30
9-09956-682-0
04
1
1304-
293
7
7
1
23
2
17
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT.
8-98222-203-2
01
1
1304-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO
8-98169-360-1
01
1
1304-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A MITSUBISHI
8-98013-617-3
01
1
1304-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
02
1
1304-
16
BOLT; GEN
GENERATOR 24V60A(KG2) M14X123
9-09801-204-1
01
1
1304-
16
BOLT; GEN
GENERATOR 24V90A(K44) M14X157
1-09040-106-0
01
1
1304-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
1304-
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
1304-
293
CABLE; STARTER EARTH
1-82650-409-1
01
1
1304-
