Sayfa 2-20A - Isuzu EPC

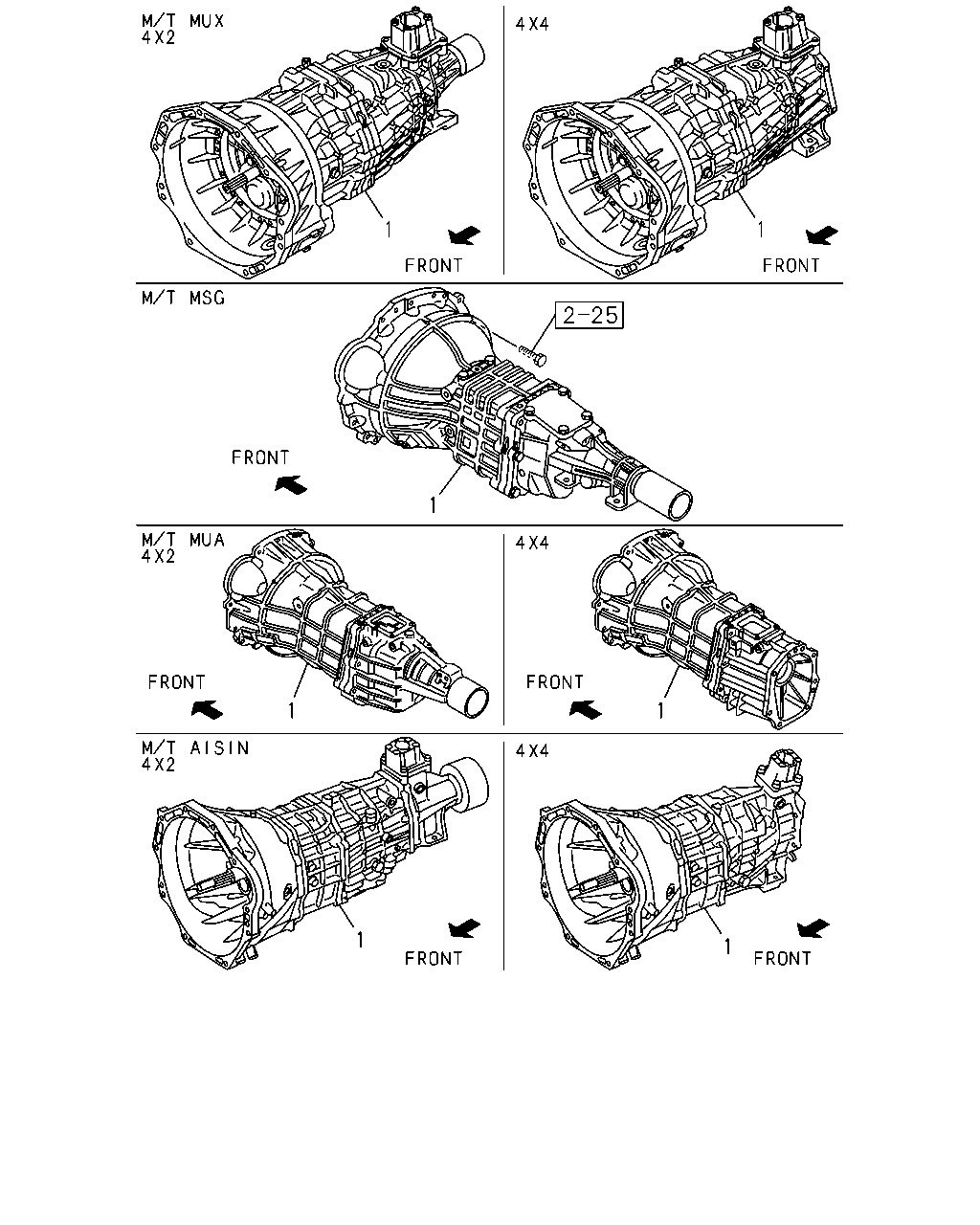

2-20A — MANUAL TRANSMISSION ASM AND CASE (#118463) — 786 parça

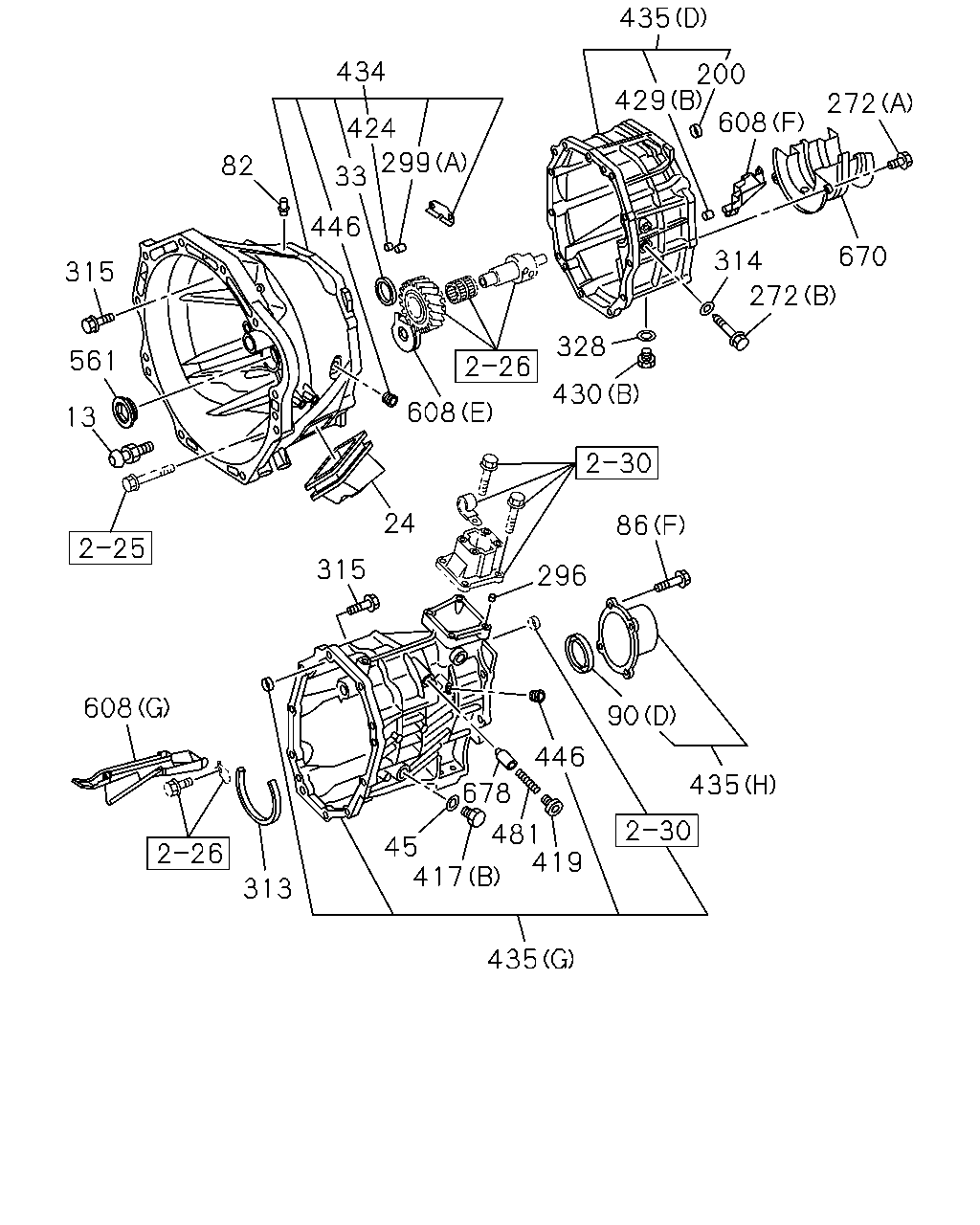

29 28 13 113 14 33 16 16 41 41 39 42 42 24 429 435 86 316 102 455 86 50 430 414 90 421 417 45 41 40 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1304-	●	●	●	●	●	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1304-		●			●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1304-	●	●			●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1304-		●			●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1304-				●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1304-	●					●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1304-			●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1304-	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1304-						●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1304-			●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1304-	●	●			●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1304-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1304-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1304-			●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1304-		●			●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1304-	●	●			●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1304-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1304-		●			●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1304-	●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1304-		●			●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1304-		●			●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1304-		●			●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1304-	●	●			●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1304-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1304-		●			●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-97164-900-0	02	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JK1-TCY ENG(RDX)	8-97164-900-0	01	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1304-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1304-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1304-		●	●	●
86	04.317 BOLT; RR COVER 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1304-			●
86	04.317 BOLT; RR COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1304-			●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1304-	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1304-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-180-0	08	1	1304-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JK1-TCY ENG(RDX) (F)	8-98203-112-0	04	1	1304-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1304-		●			●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1304-		●			●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1304-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1304-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) JTEKT	8-98004-531-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1304-	●					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1304-		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1304		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1304		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1307-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1307-		●			●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1304-		●			●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1304-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1304-		●			●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1304-		●	●		●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1304-		●	●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1304-	●				●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-98203-251-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	02	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-		●	●	●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1406-					●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (A)	8-98108-318-0	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98108-411-0	01	1	1304-			●
421	04.317 COVER; RR,TRANS (F)	8-98191-921-0	01	1	1304-1405					●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (F)	8-98191-921-0	01	1	1304-1405		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1406-					●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS (E)	8-98193-595-0	01	1	1304-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97382-905-2	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98214-238-0	01	1	1304-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-97978-061-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98121-716-0	01	1	1304-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98277-853-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97362-423-1	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (C)	8-98108-319-0	01	1	1304-			●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 4JK1-TCY ENG(RDX) 04.317 (B)	8-98203-096-0	04	1	1304-				●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1304-		●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 4JK1-TCY ENG(RDX) 04.317 (B)	8-98203-096-0	02	1	1304-				●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1304-	●	●			●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1304-				●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-		●	●	●
435	04.103 CASE; TRANS (A)	8-98108-317-1	01	1	1304-			●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-111-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (F)	8-98203-177-0	01	1	1304-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (H)	8-98203-101-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (G)	8-98203-108-0	01	1	1304-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1304-		●			●	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1304-		●			●	●

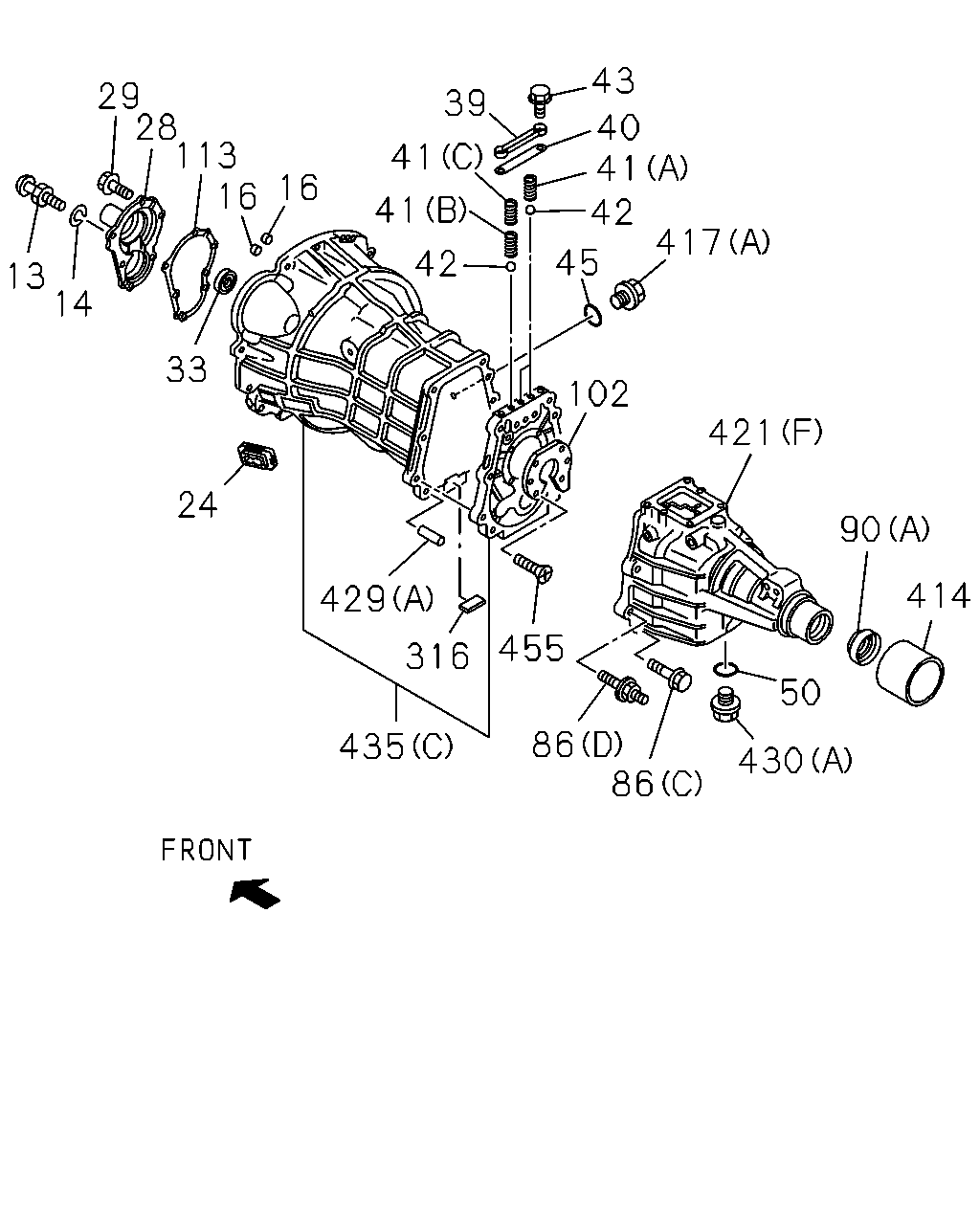

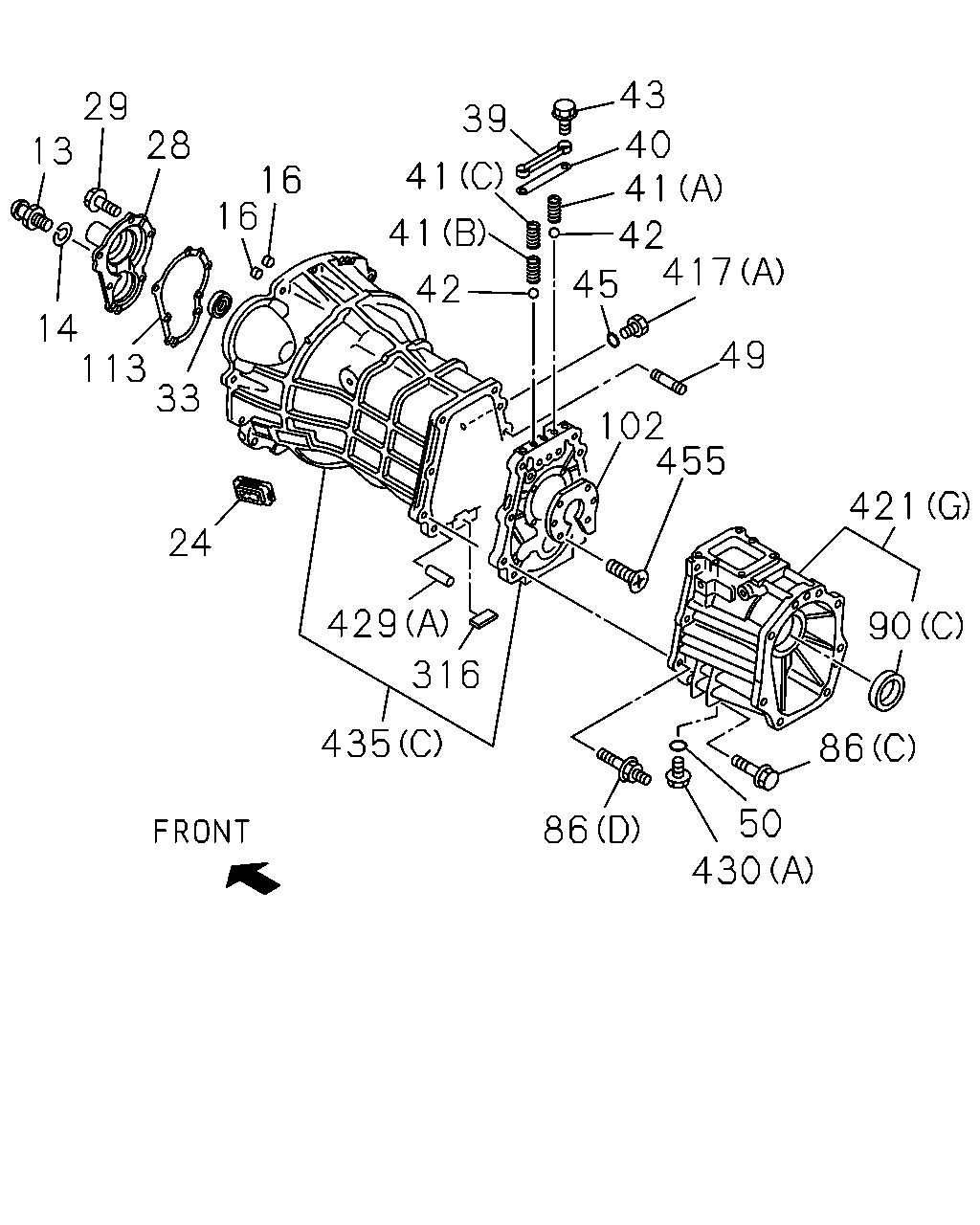

29 13 28 14 16 113 16 33 41 41 42 39 43 42 40 45 41 102 417 49 455 421 90 86 50 430 86 435 429 24 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1304-	●	●	●	●	●	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1304-		●			●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1304-	●	●			●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1304-		●			●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1304-				●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1304-	●					●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1304-			●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1304-	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1304-						●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1304-			●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1304-	●	●			●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1304-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1304-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1304-			●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1304-		●			●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1304-	●	●			●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1304-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1304-		●			●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1304-	●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1304-		●			●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1304-		●			●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1304-		●			●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1304-	●	●			●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1304-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1304-		●			●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-97164-900-0	02	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JK1-TCY ENG(RDX)	8-97164-900-0	01	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1304-	●	●	●		●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X30 L=45	8-98035-675-0	01	1	1304-		●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X27 L=43.5	8-98035-677-0	01	1	1304-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1304-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1304-		●	●	●
86	04.317 BOLT; RR COVER 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1304-			●
86	04.317 BOLT; RR COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1304-			●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1304-	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1304-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-180-0	08	1	1304-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JK1-TCY ENG(RDX) (F)	8-98203-112-0	04	1	1304-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1304-		●			●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1304-		●			●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1304-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1304-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) JTEKT	8-98004-531-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1304-	●					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1304-		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1304		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1304		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1307-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1307-		●			●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1304-		●			●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1304-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1304-		●			●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1304-		●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	02	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-		●	●	●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1406-					●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (A)	8-98108-318-0	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98108-411-0	01	1	1304-			●
421	04.317 COVER; RR,TRANS (F)	8-98191-921-0	01	1	1304-1405					●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (F)	8-98191-921-0	01	1	1304-1405		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1406-					●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS (E)	8-98193-595-0	01	1	1304-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97382-905-2	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98214-238-0	01	1	1304-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-97978-061-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98121-716-0	01	1	1304-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98277-853-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97362-423-1	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (C)	8-98108-319-0	01	1	1304-			●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 4JK1-TCY ENG(RDX) 04.317 (B)	8-98203-096-0	04	1	1304-				●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1304-		●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 4JK1-TCY ENG(RDX) 04.317 (B)	8-98203-096-0	02	1	1304-				●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1304-	●	●			●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1304-				●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-		●	●	●
435	04.103 CASE; TRANS (A)	8-98108-317-1	01	1	1304-			●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-111-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (F)	8-98203-177-0	01	1	1304-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (H)	8-98203-101-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (G)	8-98203-108-0	01	1	1304-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1304-		●			●	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1304-		●			●	●

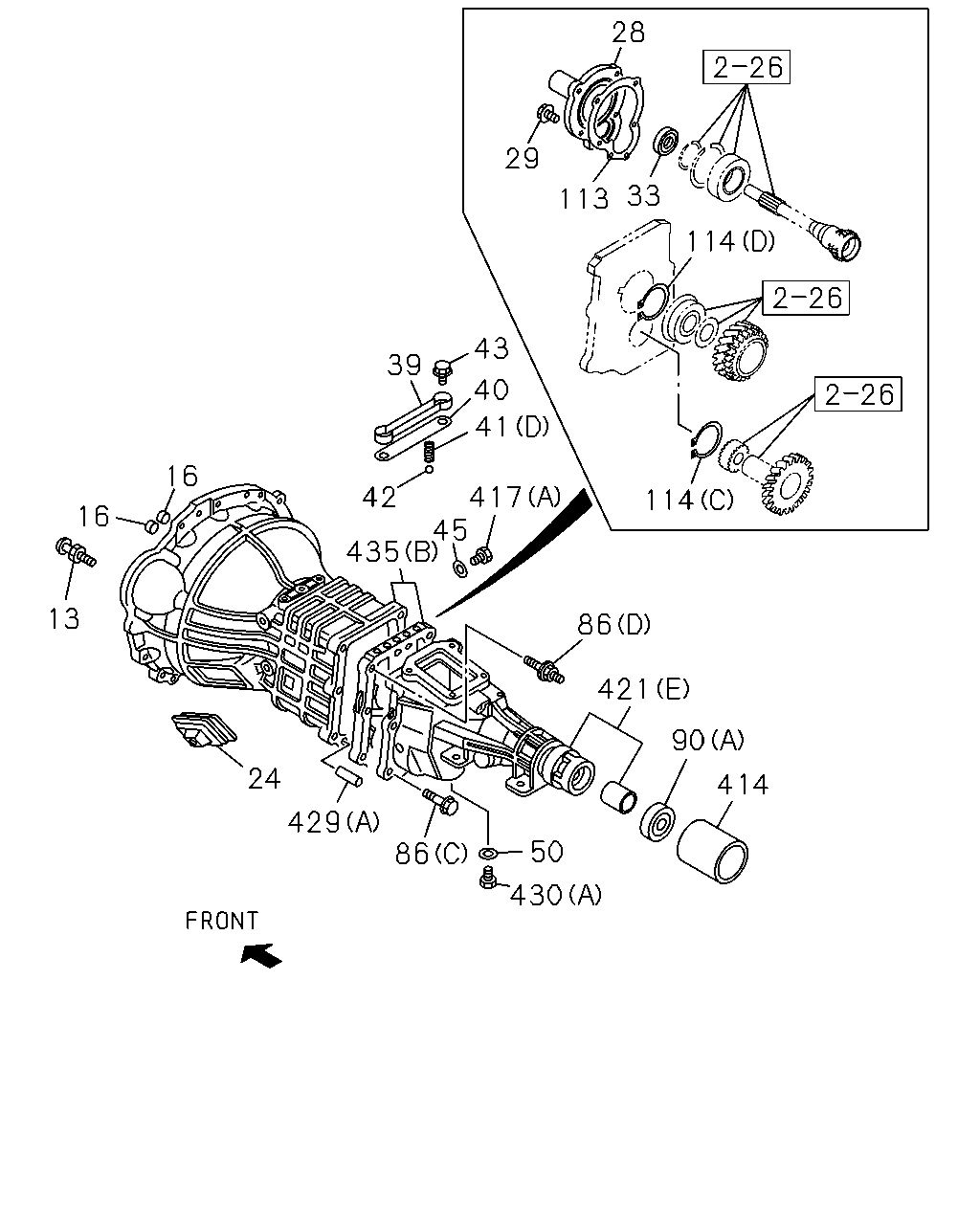

43 39 41 417 40 42 435 16 16 13 24 429 86 430 50 414 90 421 86 45 114 114 113 33 29 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1304-	●	●	●	●	●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1304-	●	●			●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1304-		●			●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1304-				●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1304-	●					●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1304-			●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1304-	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1304-						●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1304-			●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1304-	●	●			●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1304-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1304-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1304-			●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1304-		●			●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1304-	●	●			●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1304-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1304-		●			●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1304-	●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1304-		●			●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1304-		●			●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1304-		●			●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1304-	●	●			●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1304-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1304-		●			●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-97164-900-0	02	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JK1-TCY ENG(RDX)	8-97164-900-0	01	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1304-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1304-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1304-		●	●	●
86	04.317 BOLT; RR COVER 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1304-			●
86	04.317 BOLT; RR COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1304-			●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1304-	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1304-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-180-0	08	1	1304-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JK1-TCY ENG(RDX) (F)	8-98203-112-0	04	1	1304-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1304-		●			●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1304-		●			●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1304-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1304-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) JTEKT	8-98004-531-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1304-	●					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1304-		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1304		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1304		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1307-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1307-		●			●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1304-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1304-		●			●	●
114	04.105 RING; SNAP,BALL BRG (A) OD=77	8-98024-221-0	01	1	1304-			●
114	04.105 RING; SNAP,BALL BRG (B) OD=60.2	9-09180-156-0	01	1	1304-			●
114	04.105 RING; SNAP,BALL BRG 04.422 (C) ID=49.6	5-09589-004-0	01	1	1304-	●
114	04.105 RING; SNAP,BALL BRG 04.412 (D) ID=71.7	5-09589-005-0	01	1	1304-	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1304-		●	●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1304-	●				●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-98203-251-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	02	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-		●	●	●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1406-					●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (A)	8-98108-318-0	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98108-411-0	01	1	1304-			●
421	04.317 COVER; RR,TRANS (F)	8-98191-921-0	01	1	1304-1405					●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (F)	8-98191-921-0	01	1	1304-1405		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1406-					●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS (E)	8-98193-595-0	01	1	1304-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97382-905-2	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98214-238-0	01	1	1304-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-97978-061-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98121-716-0	01	1	1304-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98277-853-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97362-423-1	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (C)	8-98108-319-0	01	1	1304-			●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 4JK1-TCY ENG(RDX) 04.317 (B)	8-98203-096-0	04	1	1304-				●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1304-		●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 4JK1-TCY ENG(RDX) 04.317 (B)	8-98203-096-0	02	1	1304-				●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1304-	●	●			●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1304-				●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-		●	●	●
435	04.103 CASE; TRANS (A)	8-98108-317-1	01	1	1304-			●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-111-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (F)	8-98203-177-0	01	1	1304-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (H)	8-98203-101-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (G)	8-98203-108-0	01	1	1304-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1304-		●			●	●

1 1 1 1 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCS ENG(LKZ) CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-98211-725-0	01	1	1305-1407		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCS ENG(LKZ) CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-97978-027-0	01	1	1408-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-98211-727-0	01	1	1305-1407		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-97978-029-0	01	1	1408-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98087-608-0	01	1	1304-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98150-178-0	01	1	1304-1304		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-178-0	01	1	1304-1304		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98150-178-0	01	1	1305-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98103-188-0	01	1	1304-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98145-931-0	01	1	1304-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98211-726-0	01	1	1304-					●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98161-475-0	01	1	1304-					●
1	04.003 TRANSMISSION ASM; MANUAL	8-98212-290-0	01	1	1304-1304						●
1	04.003 TRANSMISSION ASM; MANUAL	8-98212-291-0	01	1	1305-1407						●
1	04.003 TRANSMISSION ASM; MANUAL	8-97978-028-0	01	1	1408-						●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98102-485-0	01	1	1304-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-98147-061-2	01	1	1304-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98172-462-0	01	1	1304-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98172-464-0	01	1	1304-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-180-0	01	1	1304-1304		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98150-180-0	01	1	1305-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98103-196-0	01	1	1304-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98102-382-0	01	1	1304-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98172-959-0	01	1	1304-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98172-465-0	01	1	1304-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCY ENG(RDX)	8-98147-062-3	01	1	1304-				●

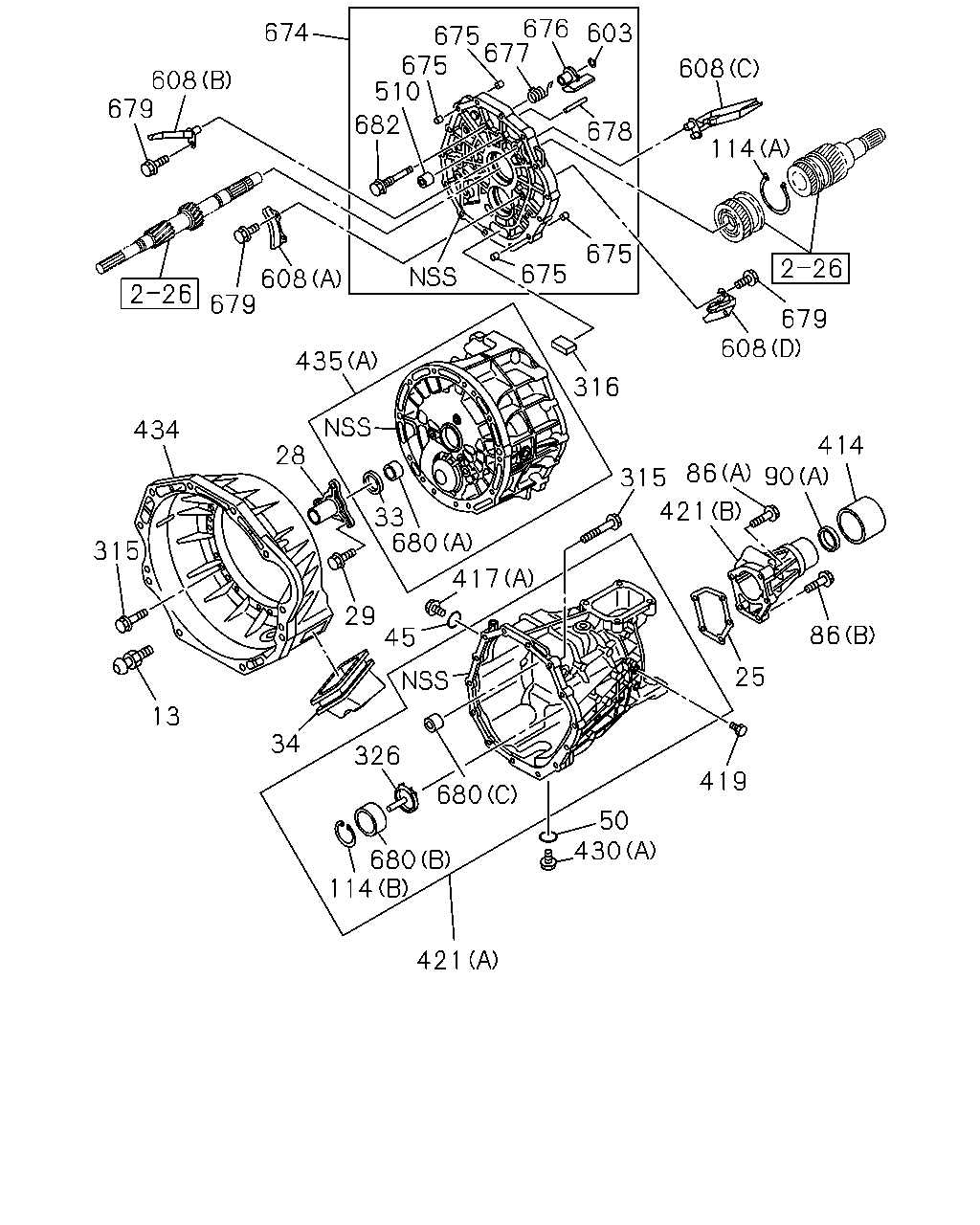

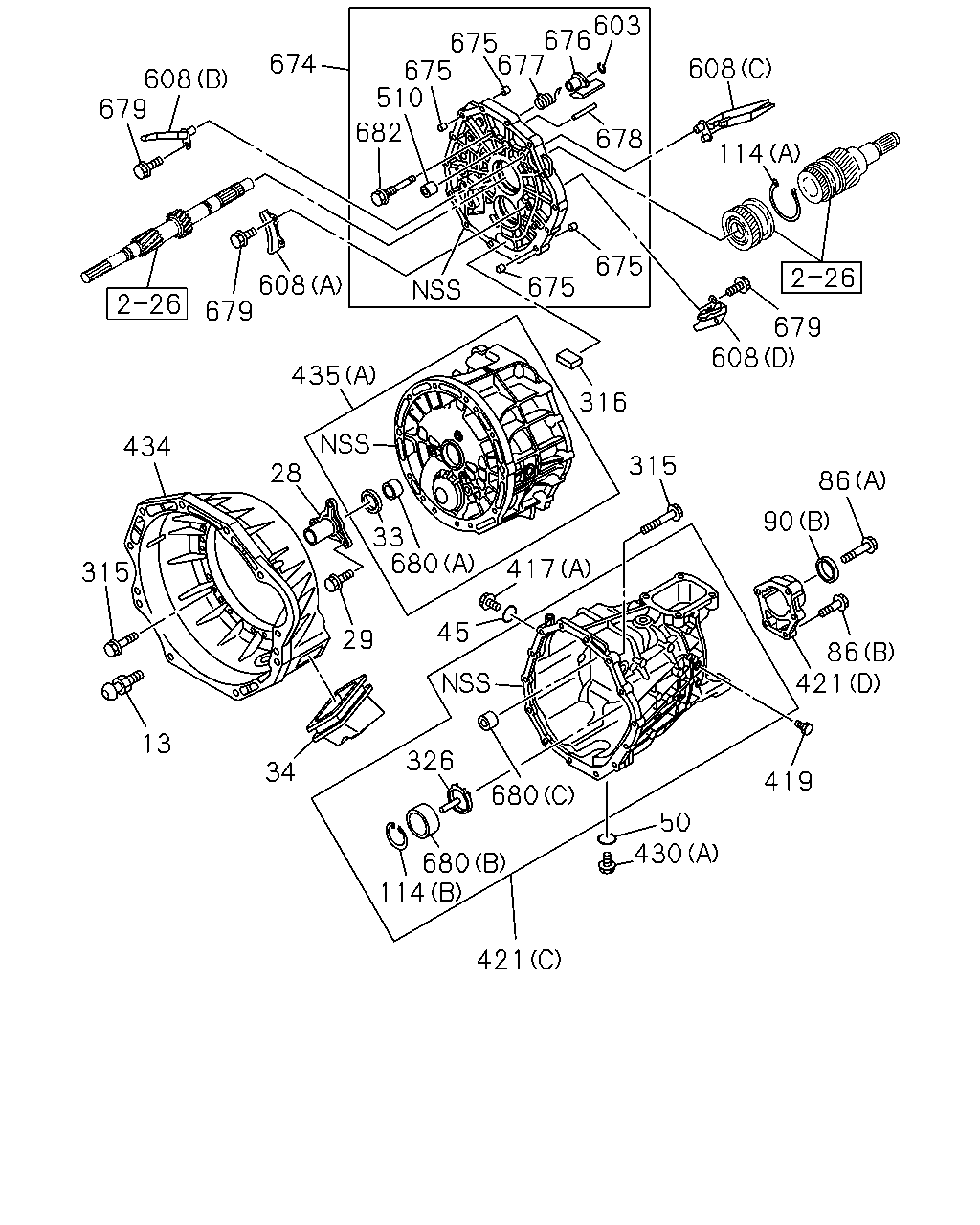

608 674 679 679 608 435 28 434 315 13 34 29 680 33 417 45 326 680 680 114 421 430 50 419 421 90 86 86 315 316 608 679 114 608 678 603 675 676 675 677 510 675 675 682

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1304-	●	●	●	●	●	●
28	04.356 COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1304-			●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1304-	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1304-						●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1304-			●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1304-	●	●			●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1304-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1304-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1304-			●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1304-		●			●
34	00.686 COVER; DUST,SHIFT FORK 00.859	8-98097-470-0	01	1	1304-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-97164-900-0	02	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JK1-TCY ENG(RDX)	8-97164-900-0	01	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1304-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1304-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1304-		●	●	●
86	04.317 BOLT; RR COVER 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1304-			●
86	04.317 BOLT; RR COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1304-			●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1304-	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1304-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-180-0	08	1	1304-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JK1-TCY ENG(RDX) (F)	8-98203-112-0	04	1	1304-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1304-		●			●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1304-		●			●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1304-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1304-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) JTEKT	8-98004-531-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1304-	●					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1304-		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1304		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1304		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1307-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1307-		●			●
114	04.105 RING; SNAP,BALL BRG (A) OD=77	8-98024-221-0	01	1	1304-			●
114	04.105 RING; SNAP,BALL BRG (B) OD=60.2	9-09180-156-0	01	1	1304-			●
114	04.105 RING; SNAP,BALL BRG 04.422 (C) ID=49.6	5-09589-004-0	01	1	1304-	●
114	04.105 RING; SNAP,BALL BRG 04.412 (D) ID=71.7	5-09589-005-0	01	1	1304-	●
315	04.104 BOLT; CASE 04.686 M8X60 FLANGE	0-28050-860-0	14	1	1304-			●
315	04.104 BOLT; CASE 16.069 M8X35 FLANGE	8-98046-876-0	11	1	1304-			●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1304-				●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1304-		●	●		●	●
326	04.020 NOZZLE; OIL,OUTLET	8-98023-517-0	01	1	1304-			●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	02	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-		●	●	●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1304-				●
419	04.317 PLUG; RR COVER M12X9	8-98047-054-0	01	1	1304-			●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1406-					●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (A)	8-98108-318-0	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98108-411-0	01	1	1304-			●
421	04.317 COVER; RR,TRANS (F)	8-98191-921-0	01	1	1304-1405					●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (F)	8-98191-921-0	01	1	1304-1405		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1406-					●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS (E)	8-98193-595-0	01	1	1304-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97382-905-2	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98214-238-0	01	1	1304-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-97978-061-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98121-716-0	01	1	1304-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98277-853-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97362-423-1	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (C)	8-98108-319-0	01	1	1304-			●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1304-				●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-		●	●	●
434	00.683 HOUSING; CLU	8-98108-316-0	01	1	1304-			●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1304-				●
435	04.103 CASE; TRANS (A)	8-98108-317-1	01	1	1304-			●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-111-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (F)	8-98203-177-0	01	1	1304-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (H)	8-98203-101-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (G)	8-98203-108-0	01	1	1304-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1304-		●			●	●
510	00.683 BEARING	8-97362-853-0	01	1	1304-			●
603	04.317 RING; SNAP	8-98039-270-0	01	1	1304-			●
608	04.317 GUTTER; OIL (A)	8-97362-391-0	01	1	1304-			●
608	04.317 GUTTER; OIL (B)	8-97362-564-1	01	1	1304-			●
608	04.317 GUTTER; OIL (D)	8-98004-505-0	01	1	1304-			●
608	04.317 GUTTER; OIL (C)	8-98142-574-0	01	1	1304-			●
608	04.317 GUTTER; OIL (E)	8-98203-103-0	01	1	1304-				●
608	04.317 GUTTER; OIL (F)	8-98203-104-0	01	1	1304-				●
608	04.317 GUTTER; OIL (G)	8-98203-105-0	01	1	1304-				●
674	00.886 PLATE; INTERMEDIATE	8-98042-863-0	01	1	1304-			●
675	00.206 DOWEL OD=11 L=8	9-11229-058-1	04	1	1304-			●
676	04.439 INHIBITOR	8-98037-604-1	01	1	1304-			●
677	00.683 SPRING; INHIBITOR	8-97362-852-0	01	1	1304-			●
678	04.317 PIN	9-08160-436-0	01	1	1304-			●
678	04.317 PIN	8-98203-165-0	01	1	1304-				●
679	04.104 BOLT; GUTTER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1304-			●
680	00.683 BEARING (A)	8-97362-720-1	01	1	1304-			●
680	00.683 BEARING (C)	8-97362-853-0	01	1	1304-			●
680	00.683 BEARING (B)	8-98024-431-0	01	1	1304-			●
682	00.683 BOLT; INHIBITOR M10X50	8-98042-618-0	01	1	1304-			●

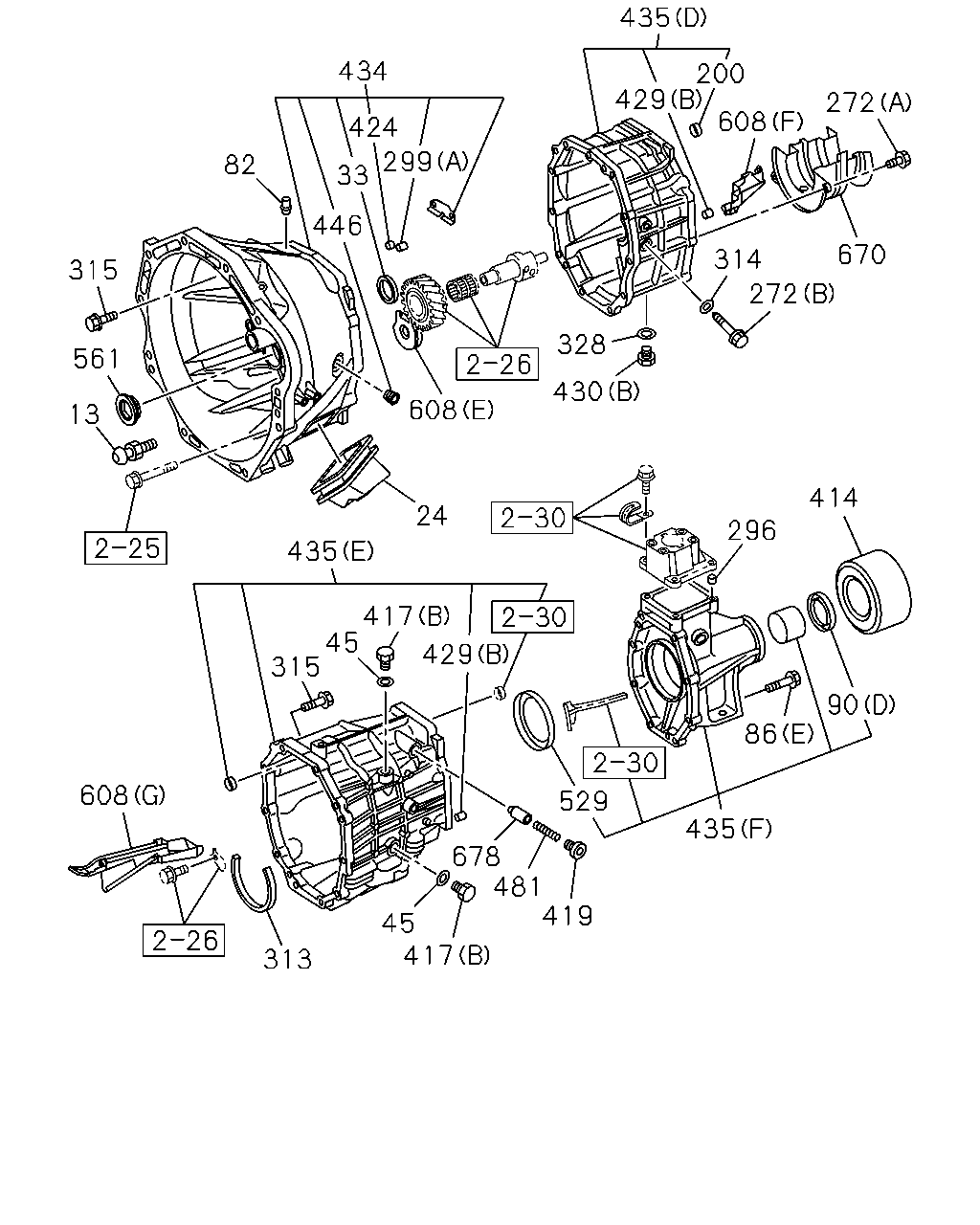

434 424 33 82 315 561 13 435 608 328 430 314 670 272 200 435 429 608 272 414 296 90 86 435 529 678 481 429 417 24 45 315 608 313 417 45 419 446 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1304-	●	●	●	●	●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1304-		●			●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1304-				●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1304-	●					●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1304-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1304-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1304-			●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1304-		●			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-97164-900-0	02	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JK1-TCY ENG(RDX)	8-97164-900-0	01	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1304-	●	●	●		●	●
82	04.105 PLUG; SCREW,CASE	8-98203-115-0	01	1	1304-				●
86	04.317 BOLT; RR COVER 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1304-			●
86	04.317 BOLT; RR COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1304-			●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1304-	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1304-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-180-0	08	1	1304-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JK1-TCY ENG(RDX) (F)	8-98203-112-0	04	1	1304-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1304-		●			●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1304-		●			●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1304-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1304-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) JTEKT	8-98004-531-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1304-	●					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1304-		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1304		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1304		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1307-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1307-		●			●
200	04.317 BUSHING; SHIFT FORK SHAFT	8-89048-304-0	01	1	1304-				●
272	00.683 BOLT (A)	8-89048-559-0	02	1	1304-				●
272	00.683 BOLT (B)	8-98203-117-0	01	1	1304-				●
296	04.510 PIN; QUAD BOX TO CASE	8-98203-099-0	02	1	1304-				●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1304-				●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-		●	●	●
313	04.318 SEAL; OIL	8-98203-113-0	01	1	1304-				●
314	04.318 GASKET; CASE	8-98203-119-0	01	1	1304-				●
315	04.104 BOLT; CASE 04.686 M8X60 FLANGE	0-28050-860-0	14	1	1304-			●
315	04.104 BOLT; CASE 16.069 M8X35 FLANGE	8-98046-876-0	11	1	1304-			●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1304-				●
328	04.105 GASKET; PLUG	8-97164-900-0	01	1	1304-				●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1304-		●	●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1304-	●				●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-98203-251-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	02	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-		●	●	●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1304-				●
419	04.317 PLUG; RR COVER M12X9	8-98047-054-0	01	1	1304-			●
424	04.384 RING; INSERT 04.510	8-98203-099-0	02	1	1304-				●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 4JK1-TCY ENG(RDX) 04.317 (B)	8-98203-096-0	04	1	1304-				●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1304-		●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 4JK1-TCY ENG(RDX) 04.317 (B)	8-98203-096-0	02	1	1304-				●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1304-	●	●			●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1304-				●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-		●	●	●
434	00.683 HOUSING; CLU	8-98108-316-0	01	1	1304-			●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1304-				●
435	04.103 CASE; TRANS (A)	8-98108-317-1	01	1	1304-			●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-111-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (F)	8-98203-177-0	01	1	1304-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (H)	8-98203-101-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (G)	8-98203-108-0	01	1	1304-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1304-		●			●	●
446	04.105 PLUG; CASE,TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-98203-100-0	01	1	1304-				●
446	04.105 PLUG; CASE,TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX)	8-98203-100-0	02	1	1304-				●
481	04.317 SPRING; SHIFTER ROD,OIL PUMP	8-98203-169-0	01	1	1304-				●
529	04.083 BRACKET; MISSION CASE 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-98203-179-0	01	1	1304-				●
561	04.104 PLUG	8-98203-114-0	01	1	1304-				●
608	04.317 GUTTER; OIL (A)	8-97362-391-0	01	1	1304-			●
608	04.317 GUTTER; OIL (B)	8-97362-564-1	01	1	1304-			●
608	04.317 GUTTER; OIL (D)	8-98004-505-0	01	1	1304-			●
608	04.317 GUTTER; OIL (C)	8-98142-574-0	01	1	1304-			●
608	04.317 GUTTER; OIL (E)	8-98203-103-0	01	1	1304-				●
608	04.317 GUTTER; OIL (F)	8-98203-104-0	01	1	1304-				●
608	04.317 GUTTER; OIL (G)	8-98203-105-0	01	1	1304-				●
670	04.457 BAFFLE	8-98203-106-0	01	1	1304-				●
678	04.317 PIN	9-08160-436-0	01	1	1304-			●
678	04.317 PIN	8-98203-165-0	01	1	1304-				●

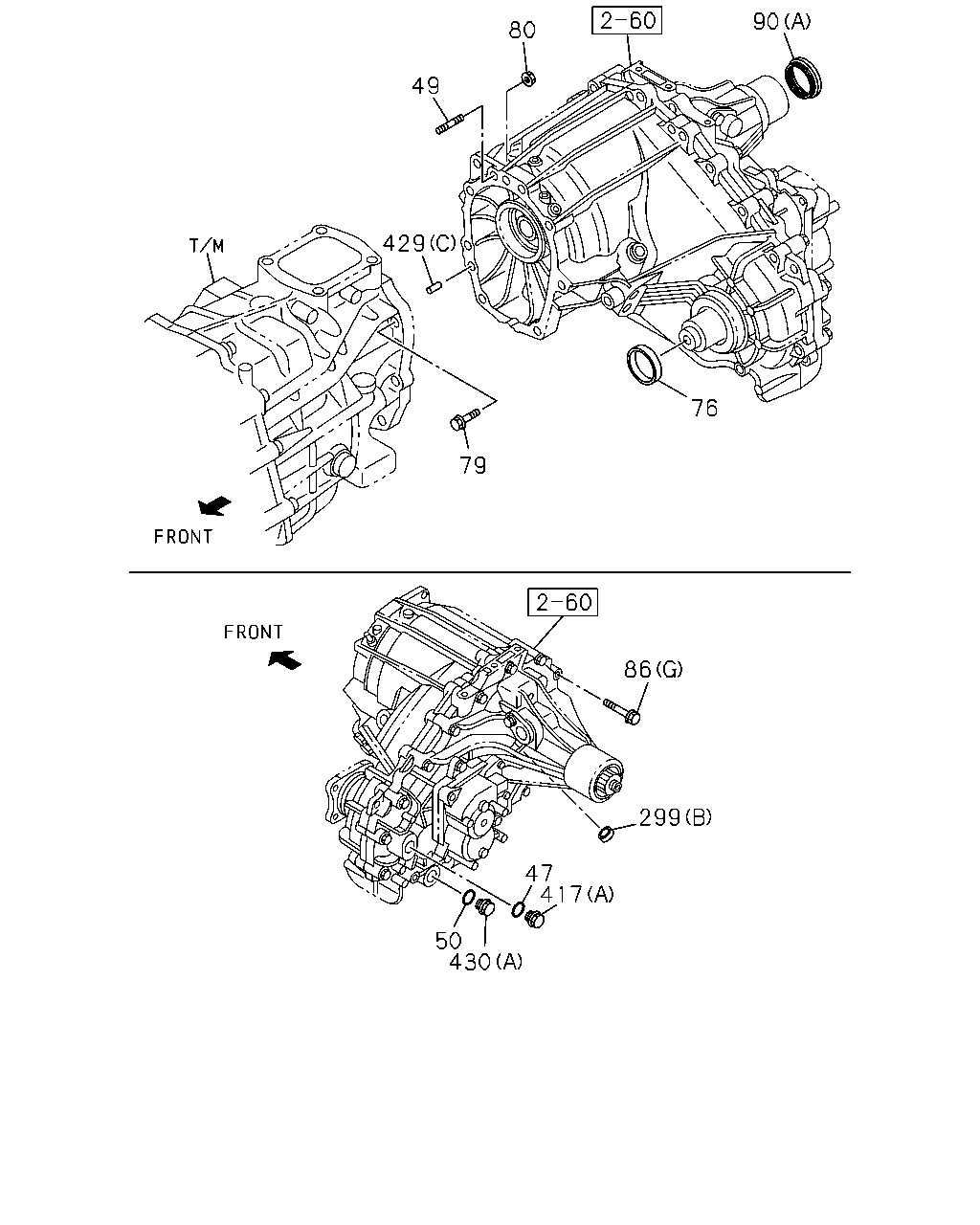

90 80 49 429 79 76 86 299 47 417 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1304-		●	●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X30 L=45	8-98035-675-0	01	1	1304-		●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X27 L=43.5	8-98035-677-0	01	1	1304-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1304-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1304-		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1304-		●	●	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1304-		●	●	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1304-		●	●	●
86	04.317 BOLT; RR COVER 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1304-			●
86	04.317 BOLT; RR COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1304-			●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1304-	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1304-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-180-0	08	1	1304-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JK1-TCY ENG(RDX) (F)	8-98203-112-0	04	1	1304-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1304-		●			●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1304-		●			●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1304-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1304-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) JTEKT	8-98004-531-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1304-	●					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1304-		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1304		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1304		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1307-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1307-		●			●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1304-				●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-		●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	02	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-		●	●	●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 4JK1-TCY ENG(RDX) 04.317 (B)	8-98203-096-0	04	1	1304-				●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1304-		●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 4JK1-TCY ENG(RDX) 04.317 (B)	8-98203-096-0	02	1	1304-				●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1304-	●	●			●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1304-				●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-		●	●	●

434 424 33 82 446 315 561 13 608 430 328 314 670 272 608 200 435 429 272 86 296 90 435 419 446 678 481 45 417 435 313 608 315 24 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1304-	●	●	●	●	●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1304-		●			●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1304-				●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1304-	●					●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1304-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1304-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1304-			●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1304-		●			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-97164-900-0	02	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JK1-TCY ENG(RDX)	8-97164-900-0	01	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1304-	●	●	●		●	●
82	04.105 PLUG; SCREW,CASE	8-98203-115-0	01	1	1304-				●
86	04.317 BOLT; RR COVER 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1304-			●
86	04.317 BOLT; RR COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1304-			●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1304-	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1304-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-180-0	08	1	1304-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JK1-TCY ENG(RDX) (F)	8-98203-112-0	04	1	1304-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1304-		●			●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1304-		●			●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1304-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1304-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) JTEKT	8-98004-531-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1304-	●					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1304-		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1304		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1304		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1307-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1307-		●			●
200	04.317 BUSHING; SHIFT FORK SHAFT	8-89048-304-0	01	1	1304-				●
272	00.683 BOLT (A)	8-89048-559-0	02	1	1304-				●
272	00.683 BOLT (B)	8-98203-117-0	01	1	1304-				●
296	04.510 PIN; QUAD BOX TO CASE	8-98203-099-0	02	1	1304-				●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1304-				●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-		●	●	●
313	04.318 SEAL; OIL	8-98203-113-0	01	1	1304-				●
314	04.318 GASKET; CASE	8-98203-119-0	01	1	1304-				●
315	04.104 BOLT; CASE 04.686 M8X60 FLANGE	0-28050-860-0	14	1	1304-			●
315	04.104 BOLT; CASE 16.069 M8X35 FLANGE	8-98046-876-0	11	1	1304-			●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1304-				●
328	04.105 GASKET; PLUG	8-97164-900-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	02	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-		●	●	●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1304-				●
419	04.317 PLUG; RR COVER M12X9	8-98047-054-0	01	1	1304-			●
424	04.384 RING; INSERT 04.510	8-98203-099-0	02	1	1304-				●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 4JK1-TCY ENG(RDX) 04.317 (B)	8-98203-096-0	04	1	1304-				●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1304-		●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 4JK1-TCY ENG(RDX) 04.317 (B)	8-98203-096-0	02	1	1304-				●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1304-	●	●			●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1304-				●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-		●	●	●
434	00.683 HOUSING; CLU	8-98108-316-0	01	1	1304-			●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1304-				●
435	04.103 CASE; TRANS (A)	8-98108-317-1	01	1	1304-			●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-111-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (F)	8-98203-177-0	01	1	1304-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (H)	8-98203-101-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (G)	8-98203-108-0	01	1	1304-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1304-		●			●	●
446	04.105 PLUG; CASE,TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-98203-100-0	01	1	1304-				●
446	04.105 PLUG; CASE,TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX)	8-98203-100-0	02	1	1304-				●
481	04.317 SPRING; SHIFTER ROD,OIL PUMP	8-98203-169-0	01	1	1304-				●
561	04.104 PLUG	8-98203-114-0	01	1	1304-				●
608	04.317 GUTTER; OIL (A)	8-97362-391-0	01	1	1304-			●
608	04.317 GUTTER; OIL (B)	8-97362-564-1	01	1	1304-			●
608	04.317 GUTTER; OIL (D)	8-98004-505-0	01	1	1304-			●
608	04.317 GUTTER; OIL (C)	8-98142-574-0	01	1	1304-			●
608	04.317 GUTTER; OIL (E)	8-98203-103-0	01	1	1304-				●
608	04.317 GUTTER; OIL (F)	8-98203-104-0	01	1	1304-				●
608	04.317 GUTTER; OIL (G)	8-98203-105-0	01	1	1304-				●
670	04.457 BAFFLE	8-98203-106-0	01	1	1304-				●
678	04.317 PIN	9-08160-436-0	01	1	1304-			●
678	04.317 PIN	8-98203-165-0	01	1	1304-				●

674 608 679 608 679 510 675 675 677 676 603 678 608 114 679 608 414 90 86 315 86 25 419 50 430 680 114 421 34 13 315 434 435 28 680 33 29 417 675 675 45 680 326 421 316 682

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1304-	●	●	●	●	●	●
25	00.686 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-98004-774-0	01	1	1304-			●
28	04.356 COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1304-			●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1304-	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1304-		●			●
28	04.356 COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1304-						●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1304-			●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1304-	●	●			●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1304-		●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1304-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1304-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1304-			●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1304-		●			●
34	00.686 COVER; DUST,SHIFT FORK 00.859	8-98097-470-0	01	1	1304-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-97164-900-0	02	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JK1-TCY ENG(RDX)	8-97164-900-0	01	1	1304-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1304-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1304-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1304-		●	●	●
86	04.317 BOLT; RR COVER 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1304-			●
86	04.317 BOLT; RR COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1304-			●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1304-	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1304-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-180-0	08	1	1304-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JK1-TCY ENG(RDX) (F)	8-98203-112-0	04	1	1304-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1304-		●			●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1304-		●			●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1304-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1304-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1304-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) JTEKT	8-98004-531-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1304-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1304-	●					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1304-		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1304		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1304		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1307-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1307-		●			●
114	04.105 RING; SNAP,BALL BRG (A) OD=77	8-98024-221-0	01	1	1304-			●
114	04.105 RING; SNAP,BALL BRG (B) OD=60.2	9-09180-156-0	01	1	1304-			●
114	04.105 RING; SNAP,BALL BRG 04.422 (C) ID=49.6	5-09589-004-0	01	1	1304-	●
114	04.105 RING; SNAP,BALL BRG 04.412 (D) ID=71.7	5-09589-005-0	01	1	1304-	●
315	04.104 BOLT; CASE 04.686 M8X60 FLANGE	0-28050-860-0	14	1	1304-			●
315	04.104 BOLT; CASE 16.069 M8X35 FLANGE	8-98046-876-0	11	1	1304-			●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1304-				●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1304-		●	●		●	●
326	04.020 NOZZLE; OIL,OUTLET	8-98023-517-0	01	1	1304-			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1304-		●	●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1304-	●				●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JK1-TCY ENG(RDX)	8-98203-251-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	02	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (B)	8-98203-118-0	01	1	1304-				●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-		●	●	●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1304-				●
419	04.317 PLUG; RR COVER M12X9	8-98047-054-0	01	1	1304-			●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1406-					●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (A)	8-98108-318-0	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98108-411-0	01	1	1304-			●
421	04.317 COVER; RR,TRANS (F)	8-98191-921-0	01	1	1304-1405					●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (F)	8-98191-921-0	01	1	1304-1405		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1406-					●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS (E)	8-98193-595-0	01	1	1304-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97382-905-2	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98214-238-0	01	1	1304-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-97978-061-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98121-716-0	01	1	1304-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98277-853-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97362-423-1	01	1	1304-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (C)	8-98108-319-0	01	1	1304-			●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1304-				●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-		●	●	●
434	00.683 HOUSING; CLU	8-98108-316-0	01	1	1304-			●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1304-				●
435	04.103 CASE; TRANS (A)	8-98108-317-1	01	1	1304-			●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1304-	●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (E)	8-98203-111-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X2(TFB***) 4JK1-TCY ENG(RDX) (F)	8-98203-177-0	01	1	1304-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (H)	8-98203-101-0	01	1	1304-				●
435	04.103 CASE; TRANS 4X4(TFS***) 4JK1-TCY ENG(RDX) (G)	8-98203-108-0	01	1	1304-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1304-		●			●	●
510	00.683 BEARING	8-97362-853-0	01	1	1304-			●
603	04.317 RING; SNAP	8-98039-270-0	01	1	1304-			●
608	04.317 GUTTER; OIL (A)	8-97362-391-0	01	1	1304-			●
608	04.317 GUTTER; OIL (B)	8-97362-564-1	01	1	1304-			●
608	04.317 GUTTER; OIL (D)	8-98004-505-0	01	1	1304-			●
608	04.317 GUTTER; OIL (C)	8-98142-574-0	01	1	1304-			●
608	04.317 GUTTER; OIL (E)	8-98203-103-0	01	1	1304-				●
608	04.317 GUTTER; OIL (F)	8-98203-104-0	01	1	1304-				●
608	04.317 GUTTER; OIL (G)	8-98203-105-0	01	1	1304-				●
674	00.886 PLATE; INTERMEDIATE	8-98042-863-0	01	1	1304-			●
675	00.206 DOWEL OD=11 L=8	9-11229-058-1	04	1	1304-			●
676	04.439 INHIBITOR	8-98037-604-1	01	1	1304-			●
677	00.683 SPRING; INHIBITOR	8-97362-852-0	01	1	1304-			●
678	04.317 PIN	9-08160-436-0	01	1	1304-			●
678	04.317 PIN	8-98203-165-0	01	1	1304-				●
679	04.104 BOLT; GUTTER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1304-			●
680	00.683 BEARING (A)	8-97362-720-1	01	1	1304-			●
680	00.683 BEARING (C)	8-97362-853-0	01	1	1304-			●
680	00.683 BEARING (B)	8-98024-431-0	01	1	1304-			●
682	00.683 BOLT; INHIBITOR M10X50	8-98042-618-0	01	1	1304-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
