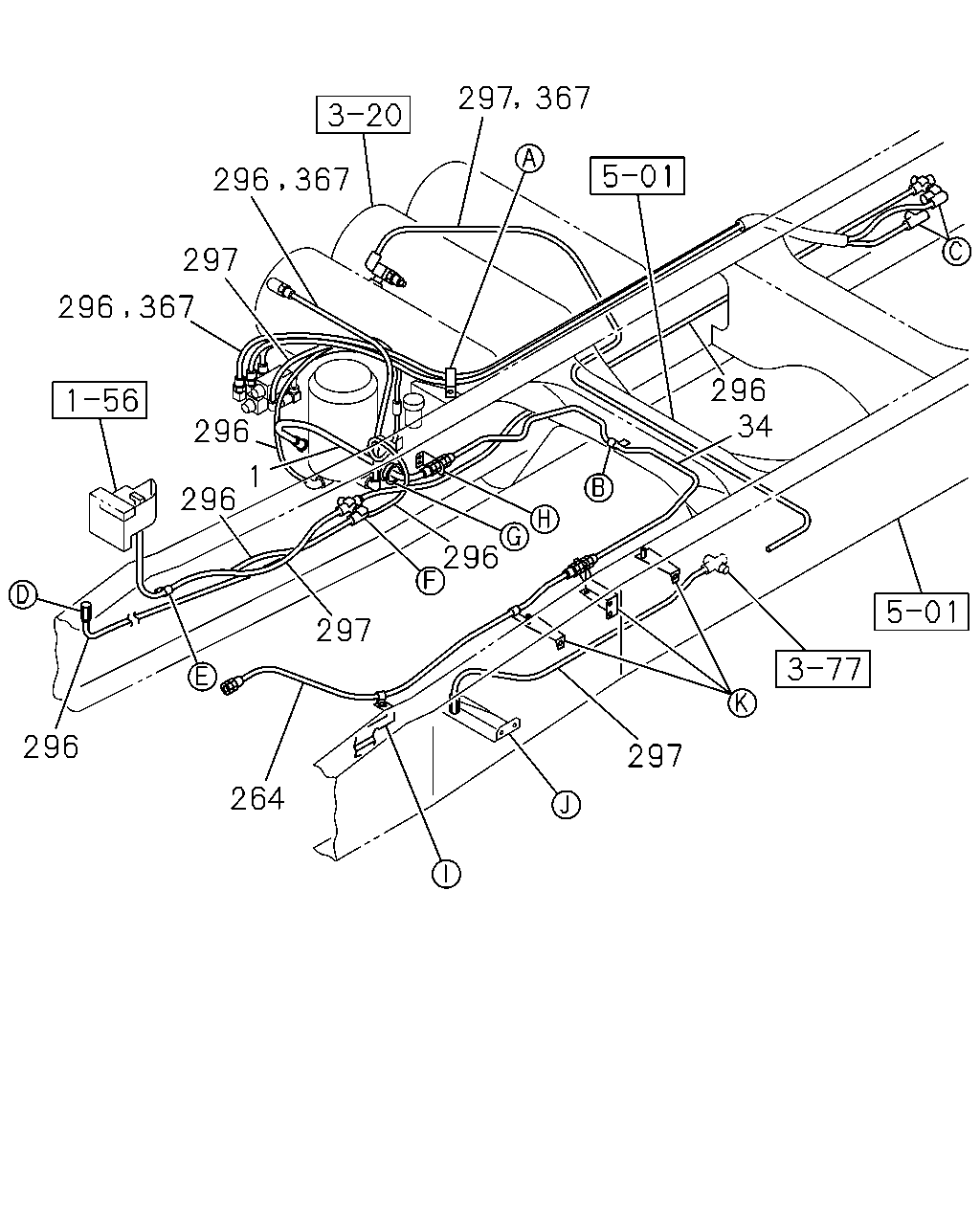

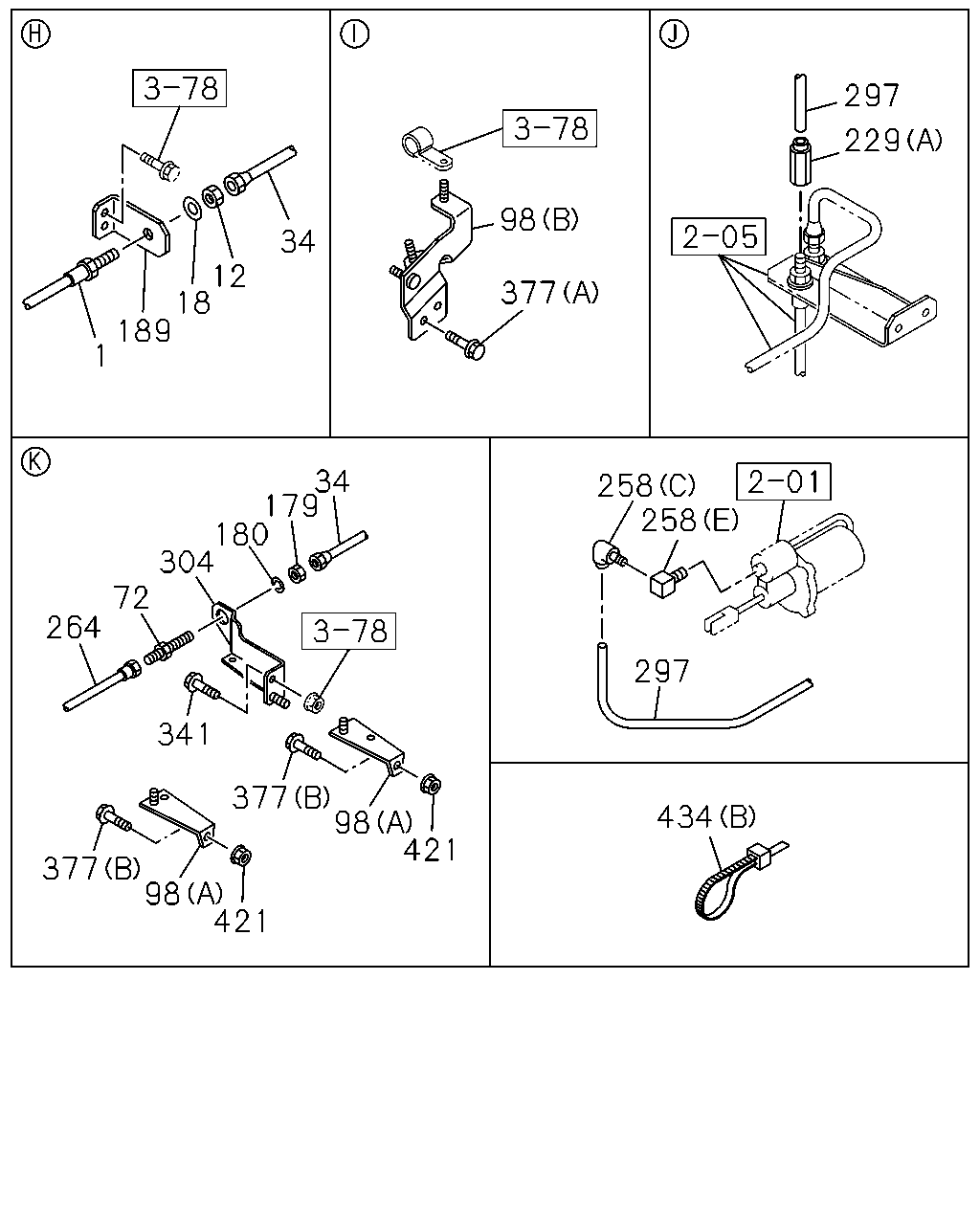

3-70 — BRAKE PIPING; AIR,AIR MASTER (#118451) — 102 parça

296 367 297 367 297 296 367 296 1 296 297 296 264 296 296 34 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK	1-09363-940-0	01	1	1302-	●	●
34	PIPE; AIR FRAME EQUIPMENT HEAVY DUTY<F01> L=1287 THA	8-97620-985-0	01	1	1302-	●
34	PIPE; AIR EXC. FRAME EQUIPMENT HEAVY DUTY<F01> L=1258 THA	8-97618-580-0	01	1	1302-	●
34	PIPE; AIR L=1258 THA	8-97618-580-0	01	1	1302-		●
264	HOSE; FLEX ENGINE REAR PTO<SV1> L=1000	1-09363-794-0	01	1	1302-	●
264	HOSE; FLEX EXC. ENGINE REAR PTO<SV1> L=1150	1-09363-791-0	01	1	1302-	●
264	HOSE; FLEX L=1150	1-09363-791-0	01	1	1302-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=6 THA	1-87411-001-0	AR	1	1302-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6 THA	1-87411-002-0	AR	1	1302-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	1302-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	1302-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	1302-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	1302-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	1302-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	1302-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12 THA	1-87411-012-0	AR	1	1302-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7 THA	1-87411-016-0	AR	1	1302-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10 THA	1-87411-019-0	AR	1	1302-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13 THA	1-87411-022-0	AR	1	1302-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25 THA	1-87411-031-0	AR	1	1302-	●	●

1 189 18 12 34 98 377 297 229 34 179 180 304 72 264 341 377 98 421 377 98 421 434 297 258 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK	1-09363-940-0	01	1	1302-	●	●
12	NUT; UNION M22	0-91111-522-0	01	1	1302-	●	●
18	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1302-	●	●
34	PIPE; AIR FRAME EQUIPMENT HEAVY DUTY<F01> L=1287 THA	8-97620-985-0	01	1	1302-	●
34	PIPE; AIR EXC. FRAME EQUIPMENT HEAVY DUTY<F01> L=1258 THA	8-97618-580-0	01	1	1302-	●
34	PIPE; AIR L=1258 THA	8-97618-580-0	01	1	1302-		●
72	UNION; AIR PIPE M22	0-92123-315-0	01	1	1302-	●	●
98	BRACKET; AIR PIPE (A)	8-97609-096-0	02	1	1302-	●	●
98	BRACKET; AIR PIPE (B)	8-97610-999-0	01	1	1302-	●	●
179	NUT; UNION M22	0-91111-522-0	01	1	1302-	●	●
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1302-	●	●
189	BRACKET; FLEX HOSE	1-47479-473-0	01	1	1302-	●	●
229	ADAPTER; NYLON TUBE MAL6R M/T<Y2J> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1302-	●
229	ADAPTER; NYLON TUBE MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-	●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-		●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-	●	●
258	CONNECTOR; NYLON TUBE MAL6R M/T<Y2J> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1302-	●
258	CONNECTOR; NYLON TUBE MAL6R M/T<Y2J> (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1302-	●
258	CONNECTOR; NYLON TUBE MJT7U M/T<Y4X> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-	●
258	CONNECTOR; NYLON TUBE MJT7U M/T<Y4X> (E)	1-09661-303-0	01	1	1302-	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T<Y5K> (D)	1-09660-969-0	01	1	1302-	●	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T<Y5K> (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1302-	●	●
264	HOSE; FLEX ENGINE REAR PTO<SV1> L=1000	1-09363-794-0	01	1	1302-	●
264	HOSE; FLEX EXC. ENGINE REAR PTO<SV1> L=1150	1-09363-791-0	01	1	1302-	●
264	HOSE; FLEX L=1150	1-09363-791-0	01	1	1302-		●
297	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	1302-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	1302-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	1302-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12 THA	1-87411-012-0	AR	1	1302-	●	●
304	BRACKET; UNION	8-97610-362-1	01	1	1302-	●	●
341	BOLT; BRKT M8X35 FLANGE THA	0-28650-835-0	01	1	1302-	●	●
377	BOLT; BRKT FIX (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1302-	●	●
377	BOLT; BRKT FIX (B) M8X35 FLANGE THA	0-28650-835-0	02	1	1302-	●	●
421	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1302-	●	●
434	CLIP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-	●
434	CLIP (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-		●
434	CLIP MJT7U M/T<Y4X> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1302-	●
434	CLIP MJT7U M/T<Y4X> (B) L=350	1-09707-183-0	02	1	1302-	●

90 436 435 229 296 374 296 367 374 374 444 296 374 80 80 258 296 367 296 444 444 434 444 297 80 80 258 258 297 273 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	UNION; 3 WAY MJT7U M/T<Y4X> DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	1302-	●
80	UNION; 3 WAY MAL6R M/T<Y2J> (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	02	1	1302-	●
80	UNION; 3 WAY ZF9S1310 M/T<Y5K> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1302-	●	●
80	UNION; 3 WAY ZF9S1310 M/T<Y5K> (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	1302-	●	●
90	NUT; TUBE CLIP M8 FLANGE THA	0-91180-108-0	01	1	1302-	●	●
229	ADAPTER; NYLON TUBE MAL6R M/T<Y2J> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1302-	●
229	ADAPTER; NYLON TUBE MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-	●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-		●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-	●	●
258	CONNECTOR; NYLON TUBE MAL6R M/T<Y2J> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1302-	●
258	CONNECTOR; NYLON TUBE MAL6R M/T<Y2J> (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1302-	●
258	CONNECTOR; NYLON TUBE MJT7U M/T<Y4X> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-	●
258	CONNECTOR; NYLON TUBE MJT7U M/T<Y4X> (E)	1-09661-303-0	01	1	1302-	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T<Y5K> (D)	1-09660-969-0	01	1	1302-	●	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T<Y5K> (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1302-	●	●
273	GROMMET ID=32 OD=40 T=18	1-09891-003-0	01	1	1302-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=6 THA	1-87411-001-0	AR	1	1302-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6 THA	1-87411-002-0	AR	1	1302-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	1302-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	1302-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	1302-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	1302-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	1302-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	1302-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12 THA	1-87411-012-0	AR	1	1302-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7 THA	1-87411-016-0	AR	1	1302-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10 THA	1-87411-019-0	AR	1	1302-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13 THA	1-87411-022-0	AR	1	1302-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25 THA	1-87411-031-0	AR	1	1302-	●	●
374	CONNECTOR MJT7U M/T<Y4X> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-	●
374	CONNECTOR MJT7U M/T<Y4X> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1302-	●
374	CONNECTOR MJT7U M/T<Y4X> (C) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1302-	●
374	CONNECTOR MJT7U M/T<Y4X> (D) PT3/8 4WAY	1-09661-489-0	01	1	1302-	●
434	CLIP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-	●
434	CLIP (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-		●
434	CLIP MJT7U M/T<Y4X> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1302-	●
434	CLIP MJT7U M/T<Y4X> (B) L=350	1-09707-183-0	02	1	1302-	●
435	BOLT; CLIP M8X25 FLANGE THA	0-28650-825-0	01	1	1302-	●	●
436	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1302-	●	●
444	BOLT; UNION WHEEL BASE 4700MM<47W> (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1302-	●
444	BOLT; UNION (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1302-		●
444	BOLT; UNION WHEEL BASE 5300MM<53W> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●
444	BOLT; UNION (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●
444	BOLT; UNION ZF9S1310 M/T<Y5K> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1302-		●
