Isuzu WW
▶
TRUCKS
▶
FVR
▶
11527 - FVR(MALAYSIA) 280PS
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#118450) — 36 parça
◀

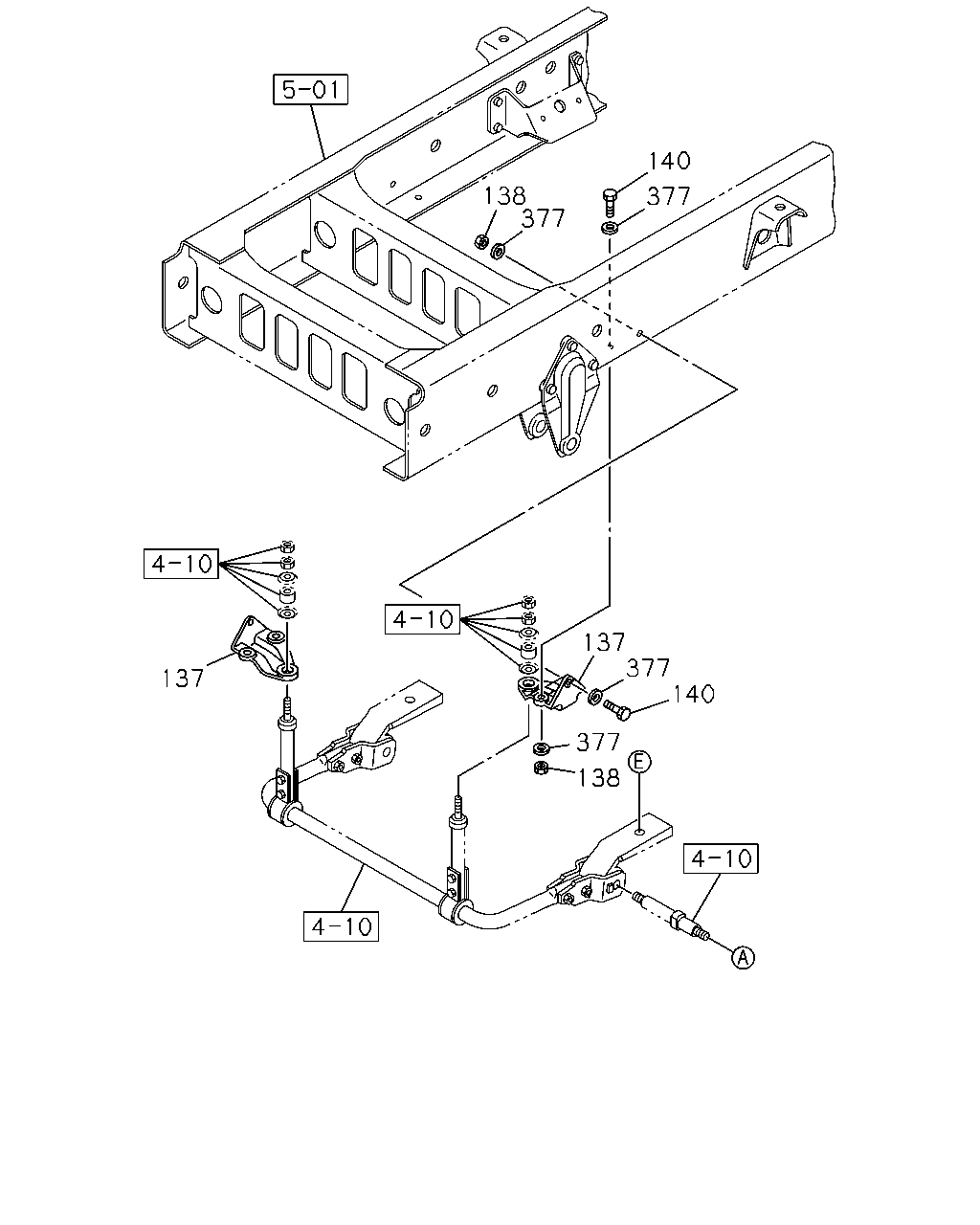

[450A] FRONT STABILIZER SHAFT (4 parça)

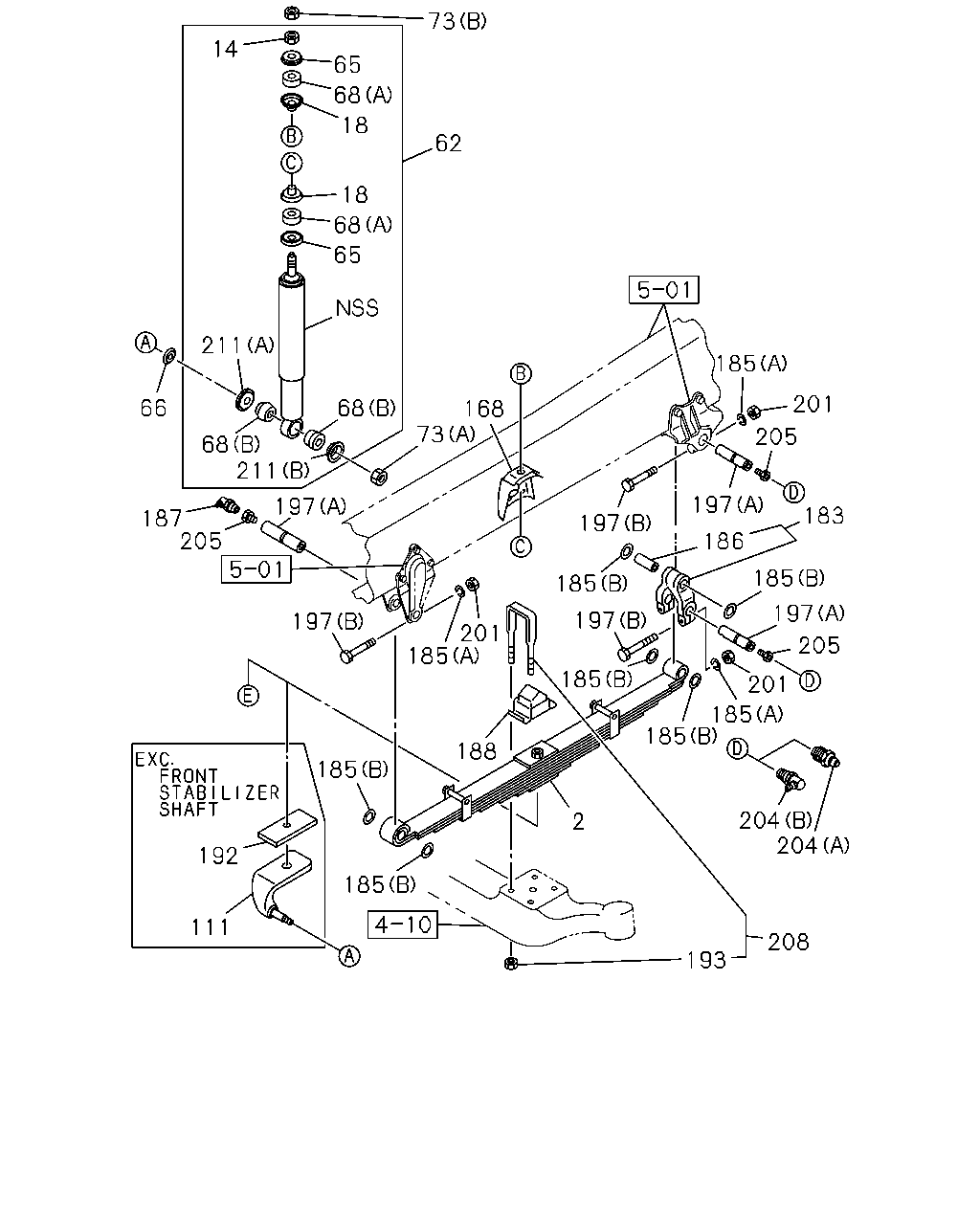

[450A] LEAF SPRING AND SHOCK ABSORBER (32 parça)
▶
138
140
377
377
137
137
377
140
377
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
137
BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59>
8-98128-356-1
02
1
1304-
138
NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14
0-91110-514-0
06
1
1304-
140
BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45
9-92061-445-0
06
1
1304-
377
WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15
8-98010-627-1
12
1
1304-
73
62
208
193
204
204
185
185
201
205
197
185
183
201
205
186
197
185
197
185
197
185
2
185
111
192
185
188
185
201
197
205
187
197
73
168
68
211
68
66
211
65
68
18
18
68
65
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98029-096-0
02
1
1304-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
1304-
18
WASHER; CENTERING,S/ABS
ID=20.8
9-51631-041-0
04
1
1304-
62
ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59>
8-98029-372-0
02
1
1304-
62
ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59>
1-51630-579-0
02
1
1304-
62
ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS
1-87610-155-0
02
1
1304-
65
WASHER; S/ABS
ID=16.5
9-51631-040-0
04
1
1304-
66
WASHER; LK,S/ABS SETTING
ID=21
0-91610-520-0
02
1
1304-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
1304-
68
BUSHING; S/ABS
(A)
9-51631-039-0
04
1
1304-
73
NUT; BRKT,SHOCK
(A) M20
0-91110-520-0
02
1
1304-
73
NUT; BRKT,SHOCK
(B) M14
0-91111-514-0
02
1
1304-
111
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59>
8-98121-195-0
01
1
1304-
111
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59>
8-98121-193-0
01
1
1304-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
1304-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1304-
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1304-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1304-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1304-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1304-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-125-1
02
1
1304-
192
PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5
1-51177-284-1
01
1
1304-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1304-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1304-
197
PIN; FRT SPR,FRT
(A)
1-51161-031-0
06
1
1304-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1304-
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1304-
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1304-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1304-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1304-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
1304-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
