Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11530 - FXZ/GXZ(RHD)EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

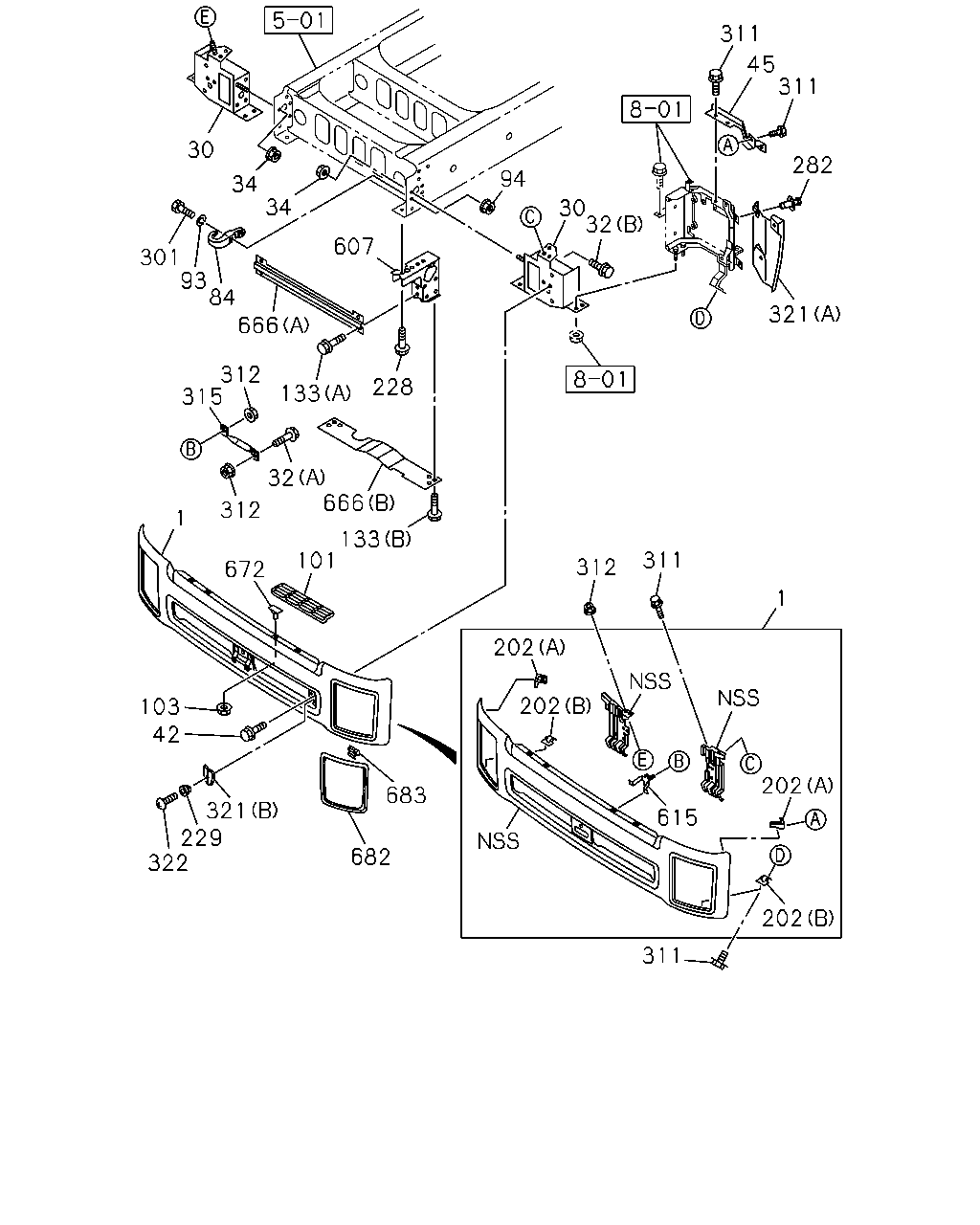

6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#118442) — 47 parça
Tümü
A - FGZ5MX
B - GGZ5MX
311
282
311
45
321
32
30
94
607
34
34
30
301
666
84
93
315
133
312
228
312
311
202
615
202
311
202
202
683
682
321
229
322
42
672
103
101
133
666
32
312
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER ASM; FRT
WHITE
8-97409-903-1
01
1
1304-
●
●
30
BRACKET; FRT BUMPER
8-98055-264-0
01
1
1304-
●
●
30
BRACKET; FRT BUMPER
8-98055-263-0
01
1
1304-
●
●
32
BOLT; BRKT,BUMPER
(B) M12X35 FLANGE
0-28051-235-0
10
1
1304-
●
●
32
BOLT; BRKT,BUMPER
(A) M10X30
8-94324-205-0
01
1
1304-
●
●
34
NUT; BRKT,BUMPER
M12 FLANGE
0-91180-212-0
06
1
1304-
●
●
42
BOLT; BUMPER
M10X30
8-94324-205-0
06
1
1304-
●
●
45
BRACKET; BRKT TO BUMPER
8-97613-648-2
01
1
1304-
●
●
45
BRACKET; BRKT TO BUMPER
8-97613-647-2
01
1
1304-
●
●
84
HOOK
8-98099-119-0
01
1
1304-
●
●
93
WASHER; LK,HOOK
ID=16.2
0-91510-816-0
02
1
1304-
●
●
94
NUT; HOOK
M16
0-91110-516-0
01
1
1304-
●
●
101
STEP; BUMPER
8-97611-543-0
01
1
1304-
●
●
101
STEP; BUMPER
8-97611-542-0
01
1
1304-
●
●
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
1304-
●
●
133
BOLT; PROTECTOR FIX
(A) M12X60 FLANGE
0-28051-260-0
04
1
1304-
●
●
133
BOLT; PROTECTOR FIX
(B) M12X30 FLANGE
0-28661-230-0
06
1
1304-
●
●
202
BRACKET; BUMPER SIDE
(A)
8-97613-636-0
01
1
1304-
●
●
202
BRACKET; BUMPER SIDE
(A)
8-97613-637-0
01
1
1304-
●
●
202
BRACKET; BUMPER SIDE
(B)
8-97613-640-1
01
1
1304-
●
●
202
BRACKET; BUMPER SIDE
(B)
8-97613-641-1
01
1
1304-
●
●
228
BOLT; BRKT
M16X50
0-20851-650-0
08
1
1304-
●
●
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1304-
●
●
282
FASTENER; BUMPER FILLER
D8X13.5
1-09987-248-1
08
1
1304-
●
●
301
BOLT; HOOK TO FRAME
M16X70
0-10861-670-0
01
1
1304-
●
●
301
BOLT; HOOK TO FRAME
M16X40
0-20851-640-0
01
1
1304-
●
●
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1304-
●
●
311
BOLT; BRKT
M10X30
8-94324-205-0
07
1
1304-
●
●
312
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1304-
●
●
315
STAY; BUMPER
8-97617-115-0
01
1
1304-
●
●
321
COVER; BUMPER FRT SIDE
(B)
8-97616-297-1
01
1
1304-
●
●
321
COVER; BUMPER FRT SIDE
(A)
8-97619-120-0
01
1
1304-
●
●
321
COVER; BUMPER FRT SIDE
(B)
8-97616-296-1
01
1
1304-
●
●
321
COVER; BUMPER FRT SIDE
(A)
8-97619-119-0
01
1
1304-
●
●
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1304-
●
●
607
BRACKET
RADIATOR PROTECTOR<YC6>
8-98234-552-0
01
1
1304-
●
●
607
BRACKET
RADIATOR PROTECTOR<YC6>
8-98234-551-0
01
1
1304-
●
●
607
BRACKET
EXC. RADIATOR PROTECTOR<YC6>
8-98055-268-1
01
1
1304-
●
●
607
BRACKET
EXC. RADIATOR PROTECTOR<YC6>
8-98055-267-1
01
1
1304-
●
●
615
BRACKET; BUMPER CENTER
8-97613-643-1
01
1
1304-
●
●
666
PROTECTOR; UNDER
(B)
8-97608-467-1
01
1
1304-
●
●
666
PROTECTOR; UNDER
RADIATOR PROTECTOR<YC6> (A)
8-98234-550-0
01
1
1304-
●
●
666
PROTECTOR; UNDER
EXC. RADIATOR PROTECTOR<YC6> (A)
8-97610-033-0
01
1
1304-
●
●
672
STUD; STEP
M6X20
8-97611-666-0
04
1
1304-
●
●
682
BEZEL; BUMPER
8-97611-531-2
01
1
1304-
●
●
682
BEZEL; BUMPER
8-97611-530-2
01
1
1304-
●
●
683
CLIP; BEZEL,BUMPER
8-98084-293-0
08
1
1304-
●
●
