Isuzu WW
▶
PICKUP
▶
TFR
▶
51477 - TFR/TFS(EUROPE)-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

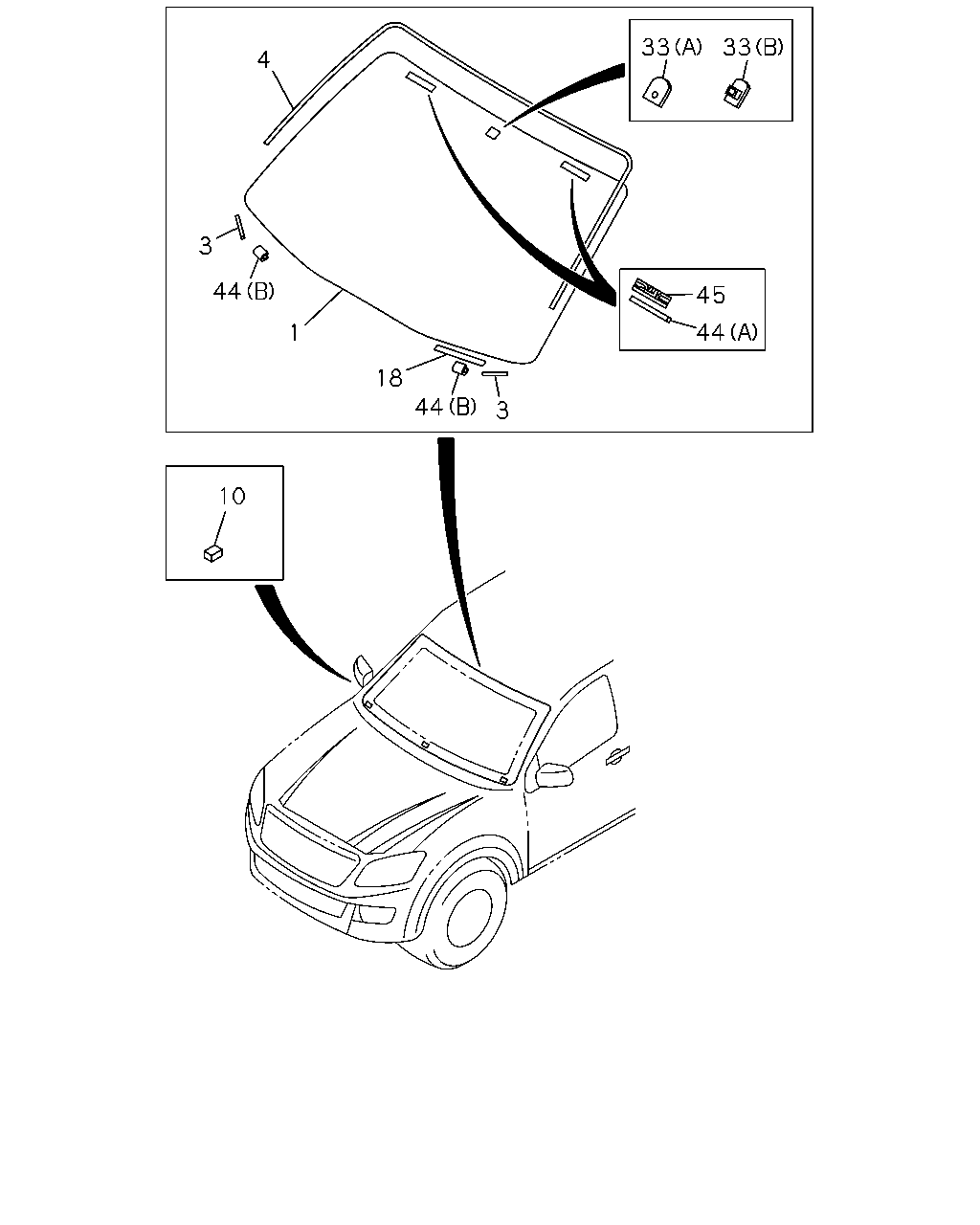

6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#118433) — 14 parça
Tümü
A - TFB5CF
B - TFB5WF
C - TFS5CF
D - TFS5WF
E - TFB5SF
F - TFS5SF
4
3
1
44
18
3
44
33
33
45
44
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
16.005 GLASS; WINDSHIELD
RR VIEW MIRROR TILT DAY & NIGHT<D31>
8-98140-683-3
01
1
1304-
●
●
●
●
1
16.005 GLASS; WINDSHIELD
8-98140-683-3
01
1
1304-
●
●
1
16.005 GLASS; WINDSHIELD
EXC. RR VIEW MIRROR TILT DAY & NIGHT<D31>
8-98140-684-3
01
1
1304-
●
●
●
●
3
16.470 MOLDING; WINDSHIELD
8-98194-205-0
01
1
1304-
●
●
●
●
●
●
3
16.470 MOLDING; WINDSHIELD
8-98194-206-0
01
1
1304-
●
●
●
●
●
●
4
16.475 MOLDING; WINDSHIELD,UPR
8-98140-685-0
01
1
1304-
●
●
●
●
●
●
10
08.160 SPACER; WINDSHIELD GLASS
12.180
8-94434-770-0
03
1
1304-
●
●
●
●
●
●
18
16.041 SEAL; WINDSHIELD
8-98140-686-0
01
1
1304-
●
●
●
●
●
●
33
08.133 SUPPORT; WINDSHIELD,LWR
RR VIEW MIRROR TILT DAY & NIGHT<D31> (A)
8-15954-649-0
01
1
1304-
●
●
●
●
33
08.133 SUPPORT; WINDSHIELD,LWR
(A)
8-15954-649-0
01
1
1304-
●
●
33
08.133 SUPPORT; WINDSHIELD,LWR
EXC. RR VIEW MIRROR TILT DAY & NIGHT<D31> (B)
8-97331-592-0
01
1
1304-
●
●
●
●
44
16.041 SPONGE
(A)
8-98194-201-0
02
1
1304-1308
●
●
●
●
●
●
44
16.041 SPONGE
(B)
8-98194-202-0
02
1
1304-
●
●
●
●
●
●
45
16.041 SUPPORT; WINDSHIELD
8-98140-687-0
02
1
1304-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
