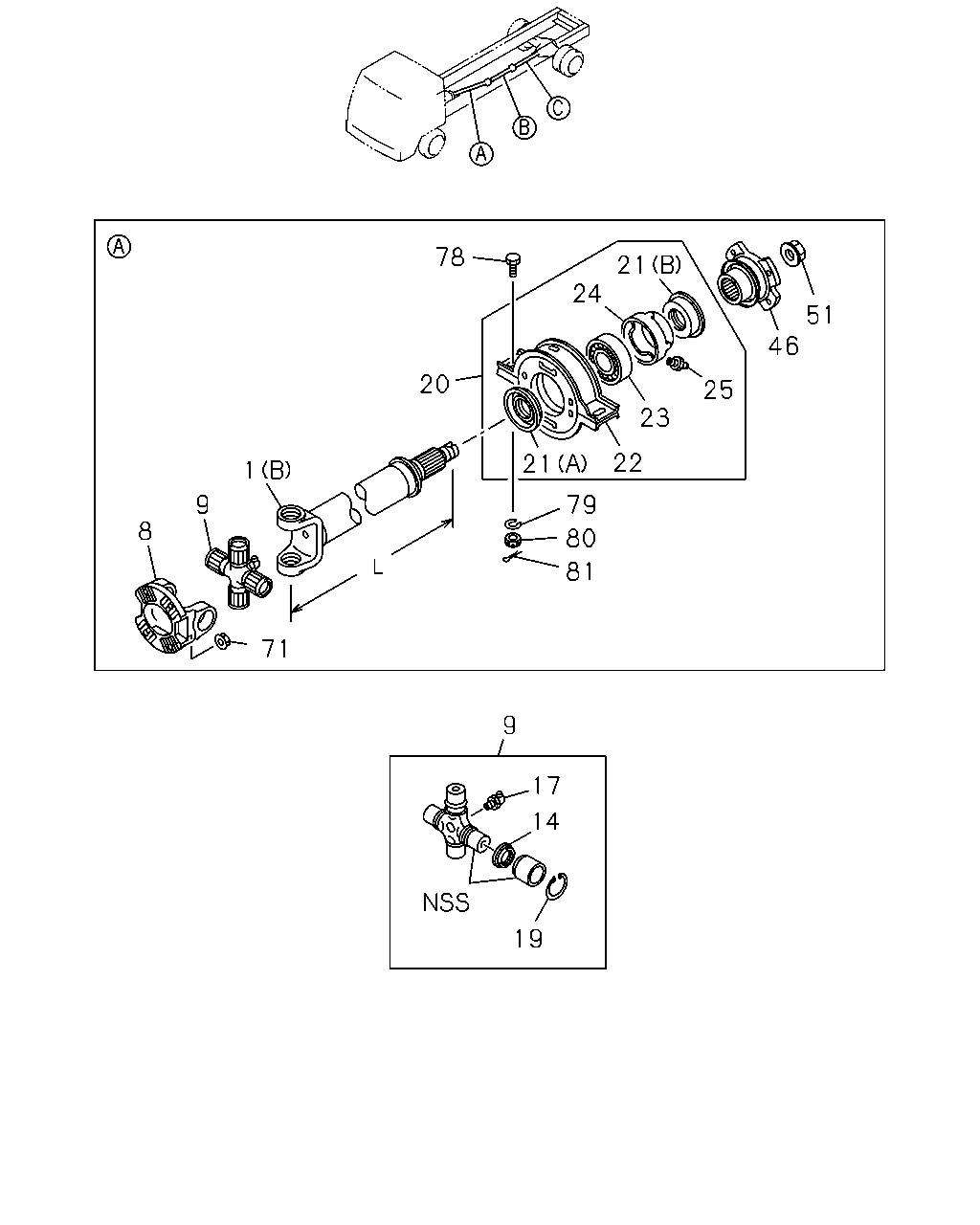

4-01 — PROPELLER SHAFT (#118425) — 133 parça

1 9 8 9 17 14 19 71 20 21 21 22 23 24 25 46 51 78 79 80 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (A) L=974	1-37124-611-1	01	1	1304-
1	SHAFT; PROP (B) L=1095	8-98091-482-1	01	1	1304-
1	SHAFT; PROP (C) L=1480	8-98232-010-1	01	1	1304-
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	02	1	1304-1405
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	1406-
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	1304-1405
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	1304-1405
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	03	1	1406-
9	JOURNAL ASM; PROP SHAFT 1ST	1-37300-110-0	01	1	1304-
9	JOURNAL ASM; PROP SHAFT END	1-37300-110-0	02	1	1304-
9	JOURNAL ASM; PROP SHAFT 2ND	1-37300-111-0	01	1	1304-
14	COVER; DUST,SPIDER	1-37249-131-0	08	1	1304-1405
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	1406-
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	1304-1405
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	1304-1405
14	COVER; DUST,SPIDER	1-37249-131-0	12	1	1406-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1304-1405
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1406-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1304-1405
17	NIPPLE; GREASE,PROP SHAFT 90 DEGREES PT1/8 ELBOW	0-90301-610-0	01	1	1304-1505
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	08	1	1304-1405
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	1406-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	1304-1405
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	1304-1405
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	12	1	1406-
20	BEARING ASM; CTR,PROP SHAFT ID=60	1-37510-115-0	01	1	1304-
20	BEARING ASM; CTR,PROP SHAFT ID=60	1-37510-115-0	01	1	1304-
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1304-
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1304-
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1304-
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1304-
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-048-2	01	1	1304-
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-048-2	01	1	1304-
23	BEARING; CENTER,PROP SHAFT	9-00090-256-0	01	1	1304-
23	BEARING; CENTER,PROP SHAFT	9-00090-256-0	01	1	1304-
24	RETAINER; CENTER BRG,1ST	1-37529-109-0	01	1	1304-
24	RETAINER; CENTER BRG,1ST	1-37529-109-0	01	1	1304-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1304-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1304-
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-348-0	01	1	1304-
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-348-0	01	1	1304-
51	NUT; FLANGE,SPLINED M39 FLANGE	1-09440-046-0	01	1	1304-
51	NUT; FLANGE,SPLINED M39 FLANGE	1-09440-046-0	01	1	1304-
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1304-
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	1304-
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	1304-
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1304-
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	1304-

74 8 9 56 104 225 128 106 1 9 56 8 74 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (A) L=974	1-37124-611-1	01	1	1304-
1	SHAFT; PROP (B) L=1095	8-98091-482-1	01	1	1304-
1	SHAFT; PROP (C) L=1480	8-98232-010-1	01	1	1304-
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	02	1	1304-1405
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	1406-
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	1304-1405
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	1304-1405
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	03	1	1406-
9	JOURNAL ASM; PROP SHAFT 1ST	1-37300-110-0	01	1	1304-
9	JOURNAL ASM; PROP SHAFT END	1-37300-110-0	02	1	1304-
9	JOURNAL ASM; PROP SHAFT 2ND	1-37300-111-0	01	1	1304-
14	COVER; DUST,SPIDER	1-37249-131-0	08	1	1304-1405
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	1406-
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	1304-1405
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	1304-1405
14	COVER; DUST,SPIDER	1-37249-131-0	12	1	1406-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1304-1405
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1406-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1304-1405
17	NIPPLE; GREASE,PROP SHAFT 90 DEGREES PT1/8 ELBOW	0-90301-610-0	01	1	1304-1505
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	08	1	1304-1405
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	1406-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	1304-1405
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	1304-1405
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	12	1	1406-
56	NUT; YOKE M14 FLANGE	8-97365-444-0	08	1	1304-
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	1304-
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	08	1	1304-
104	PLUG; SLEEVE YOKE	1-09600-067-0	01	1	1304-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1304-
128	SEAL; SLEEVE	1-37247-019-0	01	1	1304-
225	YOKE; SLEEVE,PROP SHAFT L=330	1-37241-124-0	01	1	1304-

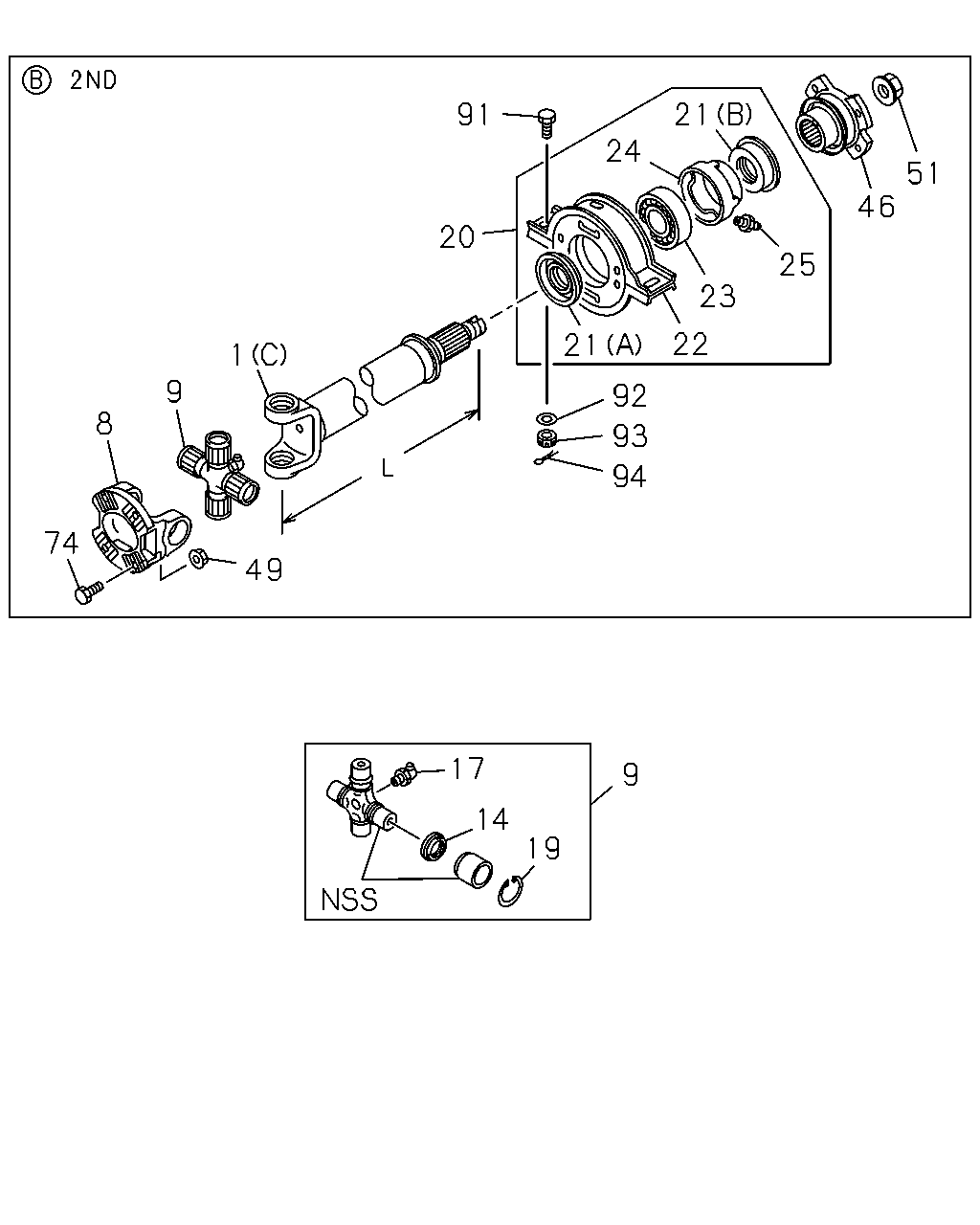

74 8 9 1 49 91 20 21 92 93 94 24 22 21 23 25 46 51 17 14 19 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (A) L=974	1-37124-611-1	01	1	1304-
1	SHAFT; PROP (B) L=1095	8-98091-482-1	01	1	1304-
1	SHAFT; PROP (C) L=1480	8-98232-010-1	01	1	1304-
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	02	1	1304-1405
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	1406-
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	1304-1405
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	1304-1405
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	03	1	1406-
9	JOURNAL ASM; PROP SHAFT 1ST	1-37300-110-0	01	1	1304-
9	JOURNAL ASM; PROP SHAFT END	1-37300-110-0	02	1	1304-
9	JOURNAL ASM; PROP SHAFT 2ND	1-37300-111-0	01	1	1304-
14	COVER; DUST,SPIDER	1-37249-131-0	08	1	1304-1405
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	1406-
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	1304-1405
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	1304-1405
14	COVER; DUST,SPIDER	1-37249-131-0	12	1	1406-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1304-1405
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1406-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1304-1405
17	NIPPLE; GREASE,PROP SHAFT 90 DEGREES PT1/8 ELBOW	0-90301-610-0	01	1	1304-1505
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	08	1	1304-1405
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	1406-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	1304-1405
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	1304-1405
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	12	1	1406-
20	BEARING ASM; CTR,PROP SHAFT ID=60	1-37510-115-0	01	1	1304-
20	BEARING ASM; CTR,PROP SHAFT ID=60	1-37510-115-0	01	1	1304-
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1304-
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1304-
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1304-
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1304-
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-048-2	01	1	1304-
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-048-2	01	1	1304-
23	BEARING; CENTER,PROP SHAFT	9-00090-256-0	01	1	1304-
23	BEARING; CENTER,PROP SHAFT	9-00090-256-0	01	1	1304-
24	RETAINER; CENTER BRG,1ST	1-37529-109-0	01	1	1304-
24	RETAINER; CENTER BRG,1ST	1-37529-109-0	01	1	1304-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1304-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1304-
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-348-0	01	1	1304-
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-348-0	01	1	1304-
49	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1304-
51	NUT; FLANGE,SPLINED M39 FLANGE	1-09440-046-0	01	1	1304-
51	NUT; FLANGE,SPLINED M39 FLANGE	1-09440-046-0	01	1	1304-
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	1304-
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	08	1	1304-
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	1304-
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	1304-
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	8-98049-689-0	02	1	1304-
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	1304-
