0-60 — ENGINE ELECTRICAL CONTROL PARTS (#118413) — 63 parça

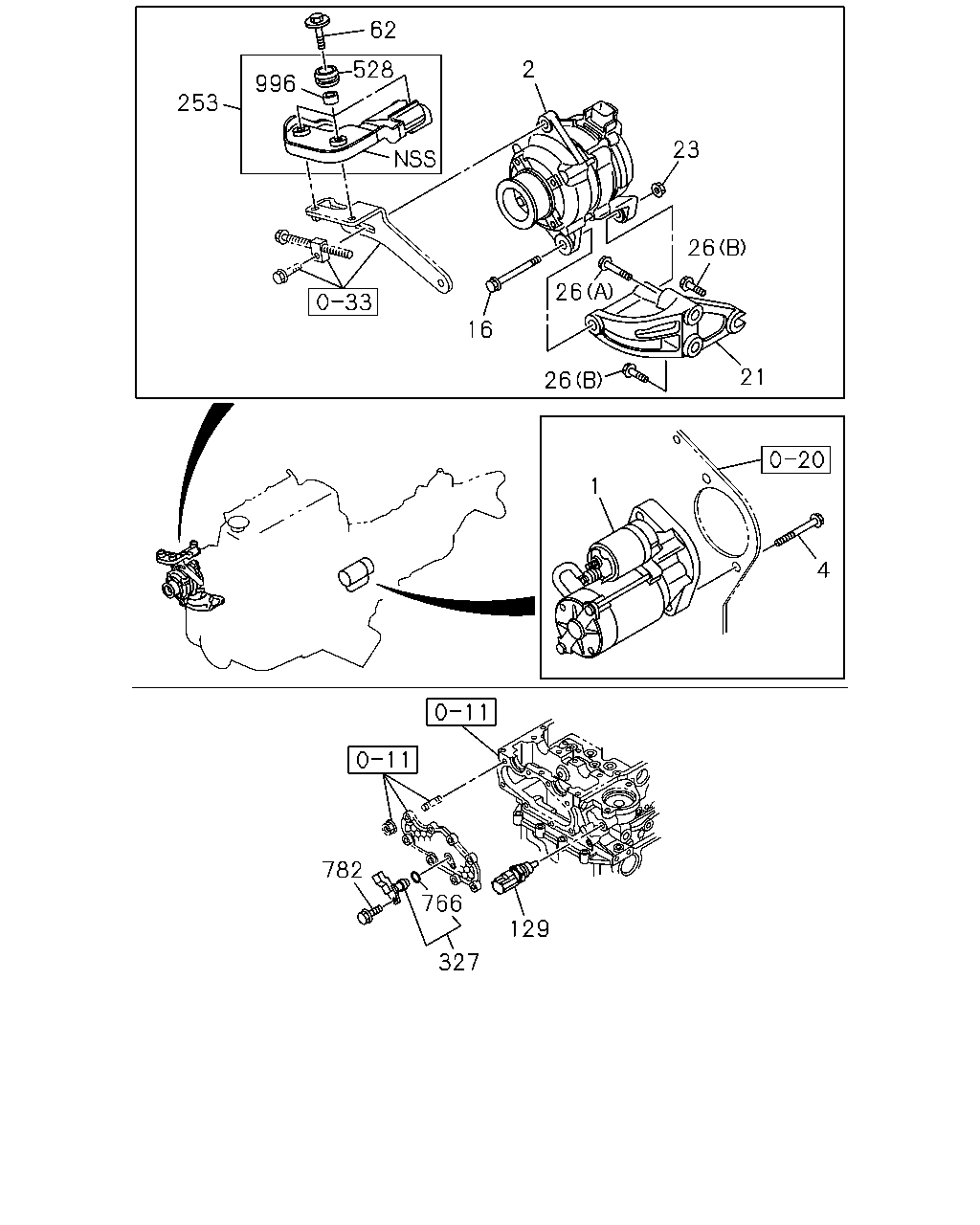

çizim 342499
327 766 782 1 4 21 26 16 26 26 23 2 528 62 996 253 129
BalonParca AdiParca NoAdetTipApplied Date
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98183-655-0 01 1 1304-
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1304-
4 02.042 BOLT; STARTER
A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1304-1311
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1312-
4 02.042 BOLT; STARTER
M12X70 FLANGE 		8-98183-142-0 02 1 1304-
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1304-
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1304-
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1304-
26 02.277 BOLT; GEN BRKT
00.685 (A) M10X60 FLANGE 		0-28051-060-0 01 1 1304-
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1304-
62 02.277 BOLT; PROTECTOR 8-97383-407-0 03 1 1304-
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1304-1412
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1501-
253 02.277 PROTECTOR; HEAT,GEN 8-98157-835-2 01 1 1304-
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1304-
528 02.270 BUSHING 8-98158-298-0 03 1 1304-
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1304-
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1304-
996 02.042 MOUNT; PROTECTOR 8-98158-299-0 03 1 1304-

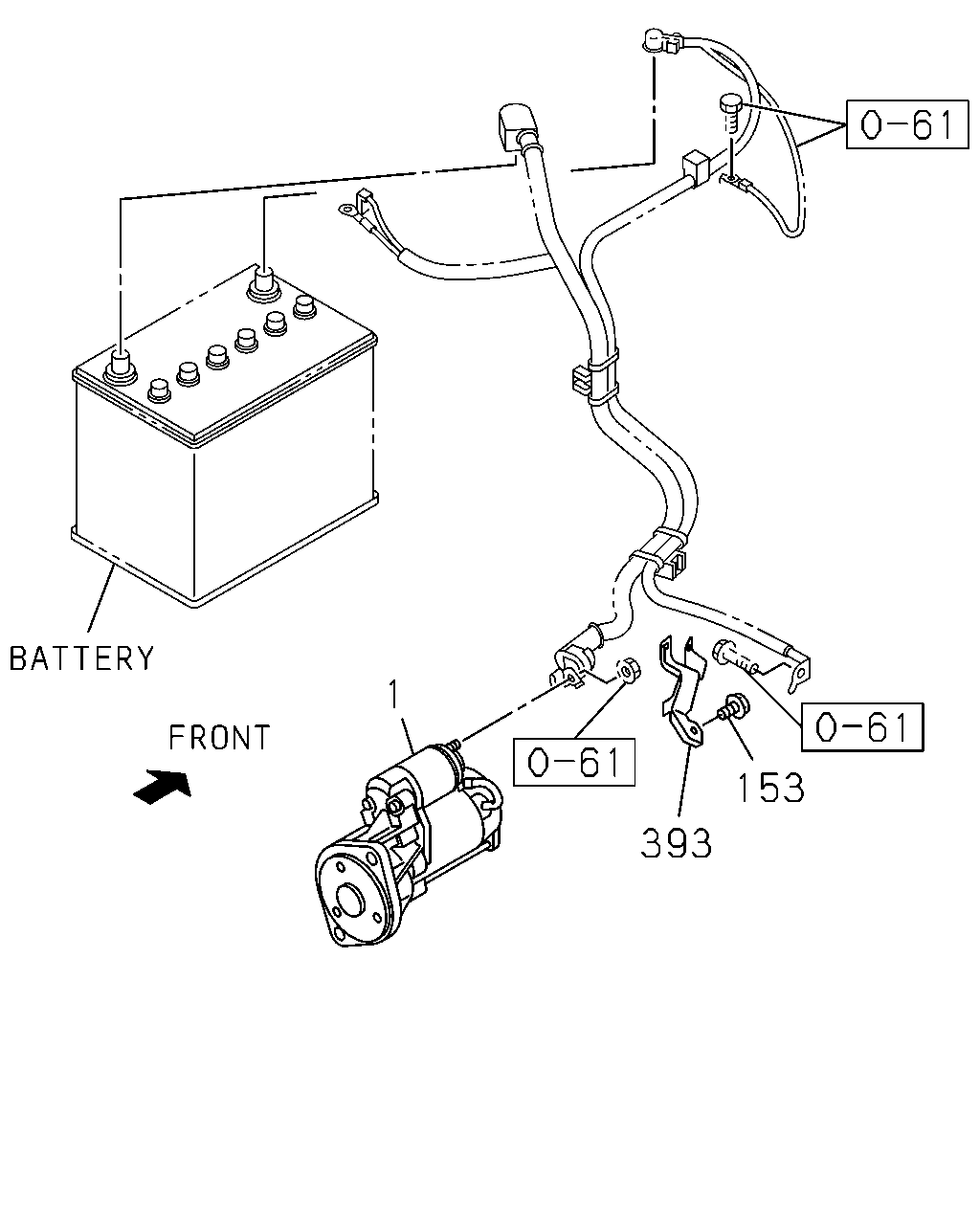

çizim 345617
153 393 1
BalonParca AdiParca NoAdetTipApplied Date
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98183-655-0 01 1 1304-
153 02.510 BOLT; BRKT FIX
03.604 M6X10 FLANGE 		8-98043-527-0 01 1 1304-
393 02.343 BRACKET; HARNESS TO BODY 8-98102-992-4 01 1 1304-

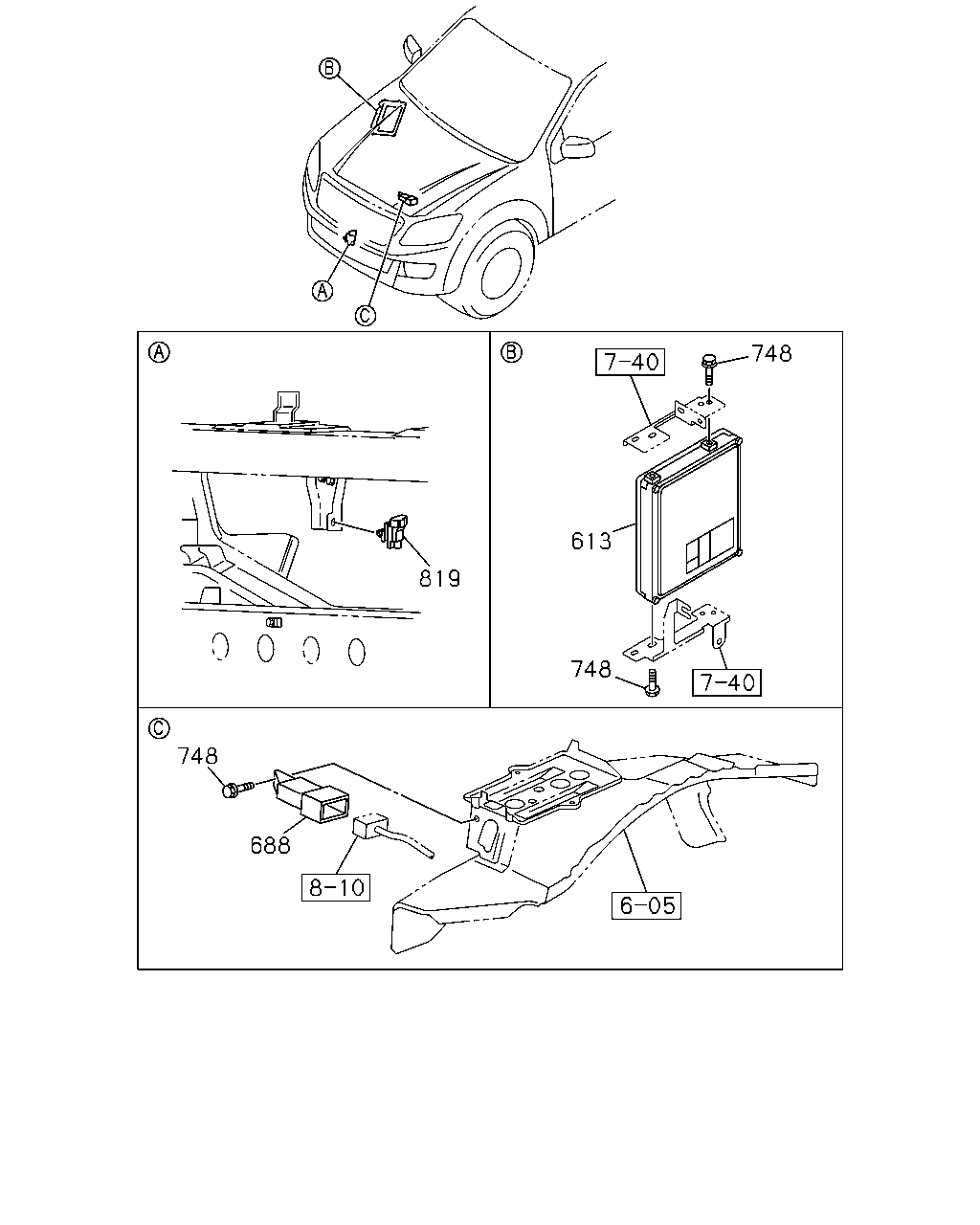

çizim 345712
819 748 613 748 748 688
BalonParca AdiParca NoAdetTipApplied Date
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IU PR<8PW> 		8-98224-140-2 01 1 1307-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IU PR<8PW> 		8-98224-140-2 01 1 1307-
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IU PR<8PW> EXC. AUTO CRUISE CONT<K30> 		8-98224-139-2 01 1 1307-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IU PR<8PW> EXC. AUTO CRUISE CONT<K30> 		8-98224-139-2 01 1 1307-
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IU PR<8PW> EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98224-138-2 01 1 1307-
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IU PR<8PW> 		8-98224-142-3 01 1 1307-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IU PR<8PW> 		8-98224-142-3 01 1 1307-
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IU PR<8PW> EXC. AUTO CRUISE CONT<K30> 		8-98224-141-3 01 1 1307-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IU PR<8PW> EXC. AUTO CRUISE CONT<K30> 		8-98224-141-3 01 1 1307-
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98234-570-0 01 1 1304-1306
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> 		8-98234-570-0 01 1 1304-1306
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENSOR F OR IUPR<8PW> 		8-98234-570-1 01 1 1307-1310
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> EXC. EGR SYSTEM W/WIDE RANGE TEMP SENSOR F OR IUPR<8PW> 		8-98234-570-1 01 1 1307-1310
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENSOR F OR IUPR<8PW> 		8-98250-656-1 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> EXC. EGR SYSTEM W/WIDE RANGE TEMP SENSOR F OR IUPR<8PW> 		8-98250-656-1 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98234-569-0 01 1 1304-1306
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30> 		8-98234-569-0 01 1 1304-1306
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>,EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IUPR<8PW> 		8-98234-569-1 01 1 1307-1310
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IUPR<8PW> 		8-98234-569-1 01 1 1307-1310
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>,EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IUPR<8PW> 		8-98250-655-1 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IUPR<8PW> 		8-98250-655-1 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98234-568-0 01 1 1304-1306
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC),EGR SYSTEM W/WIDE RANGE TEMP SE NSOR FOR IUPR<8PW> 		8-98234-568-1 01 1 1307-1310
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC),EGR SYSTEM W/WIDE RANGE TEMP SE NSOR FOR IUPR<8PW> 		8-98250-654-1 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> 		8-98234-572-0 01 1 1304-1306
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENSOR F OR IUPR<8PW> 		8-98234-572-1 01 1 1307-1310
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EXC. EGR SYSTEM W/WIDE RANGE TEMP SENSOR F OR IUPR<8PW> 		8-98234-572-1 01 1 1307-1310
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENSOR F OR IUPR<8PW> 		8-98250-658-2 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EXC. EGR SYSTEM W/WIDE RANGE TEMP SENSOR F OR IUPR<8PW> 		8-98250-658-2 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98234-571-0 01 1 1304-1306
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>,EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IUPR<8PW> 		8-98234-571-1 01 1 1307-1310
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30>,EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IUPR<8PW> 		8-98234-571-1 01 1 1307-1310
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>,EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IUPR<8PW> 		8-98250-657-2 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30>,EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IUPR<8PW> 		8-98250-657-2 01 1 1311-
688 02.510 CONTROLLER; GLOW PLUG 8-98176-474-0 01 1 1304-
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1304-
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1304-
819 01.150 SENSOR; MASS AIR FLOW (MAF)
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> 		8-98008-687-0 01 1 1304-

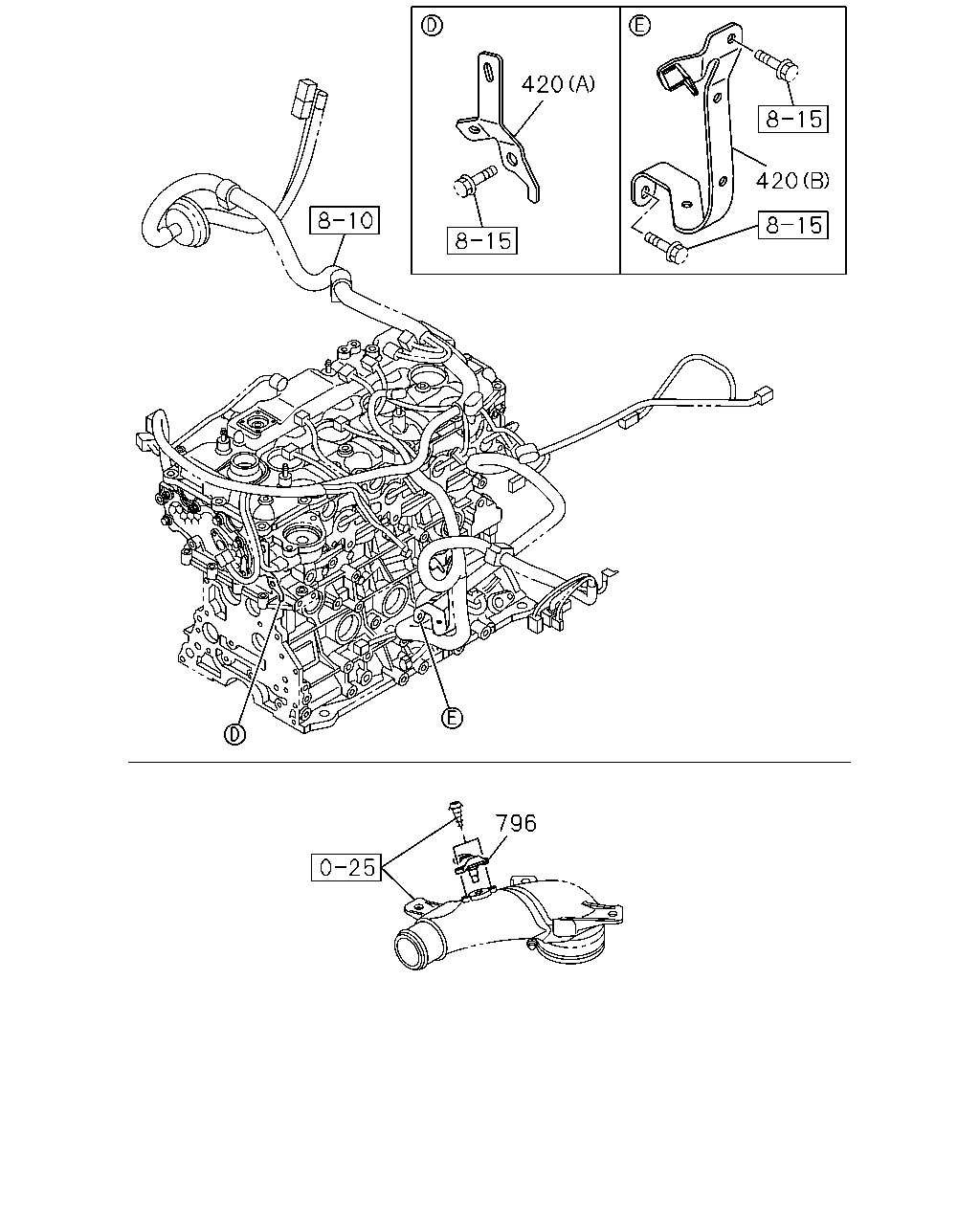

çizim 345806
796 420 420
BalonParca AdiParca NoAdetTipApplied Date
420 02.183 BRACKET; HARNESS
(A) 		8-98132-062-1 01 1 1304-
420 02.183 BRACKET; HARNESS
(B) 		8-98166-379-0 01 1 1304-
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1304-
