Sayfa 2-26A - Isuzu EPC

2-26A — MANUAL TRANSMISSION GEAR (#118404) — 664 parça

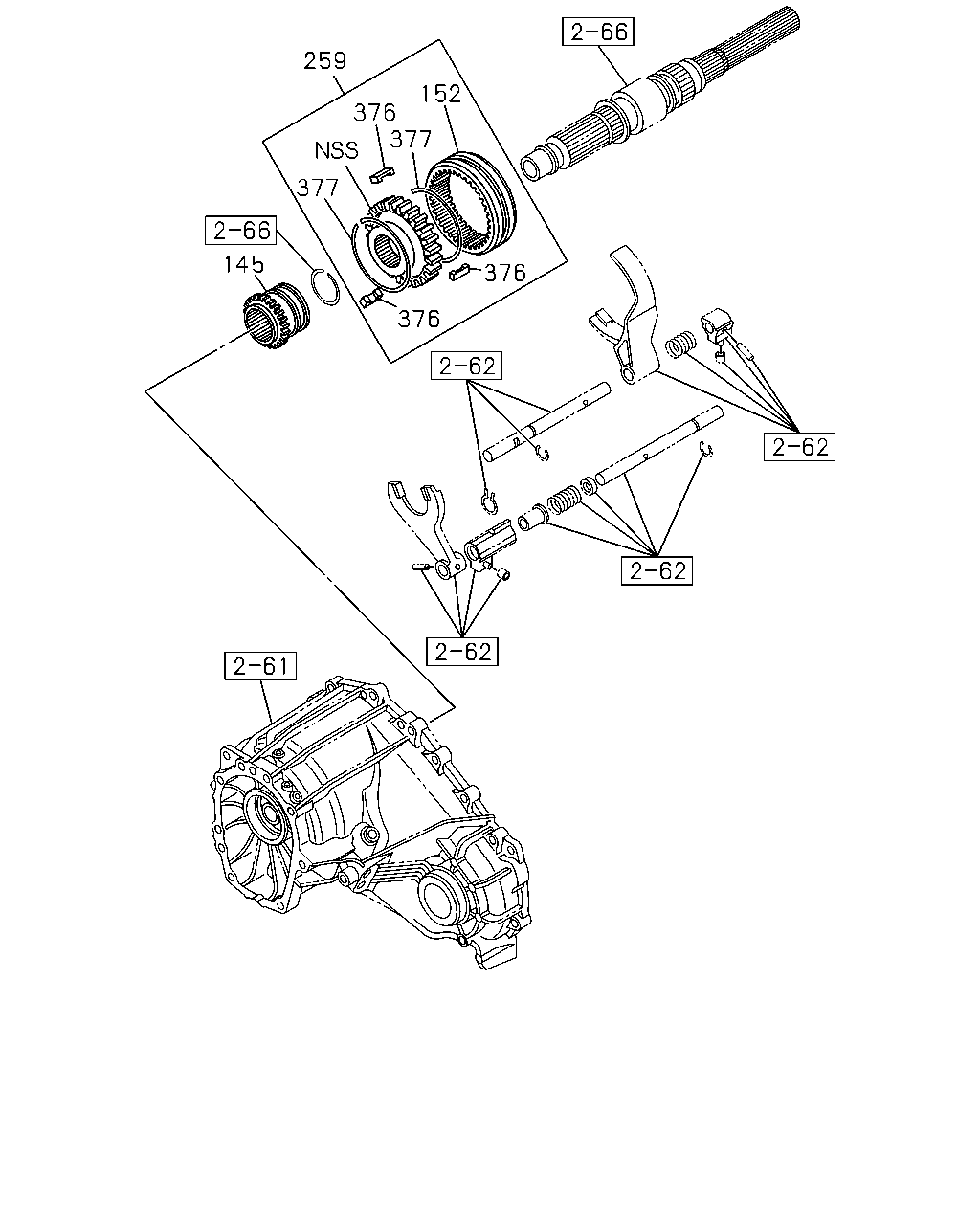

259 152 376 377 145 376 376 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1304-1304	●	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98063-369-1	01	1	1304-1306	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1304-1306		●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1307-	●	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1304-1304	●	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-060-0	01	1	1304-1306	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1304-1306		●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1307-	●	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1304-1304	●	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97234-225-0	01	1	1304-1306	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1304-1306		●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1307-	●	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1304-1304	●	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97238-590-0	03	1	1304-1306	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1304-1306		●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1307-	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	1304-1304	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94448-045-0	02	1	1304-1306	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	1304-1306		●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	1307-	●	●

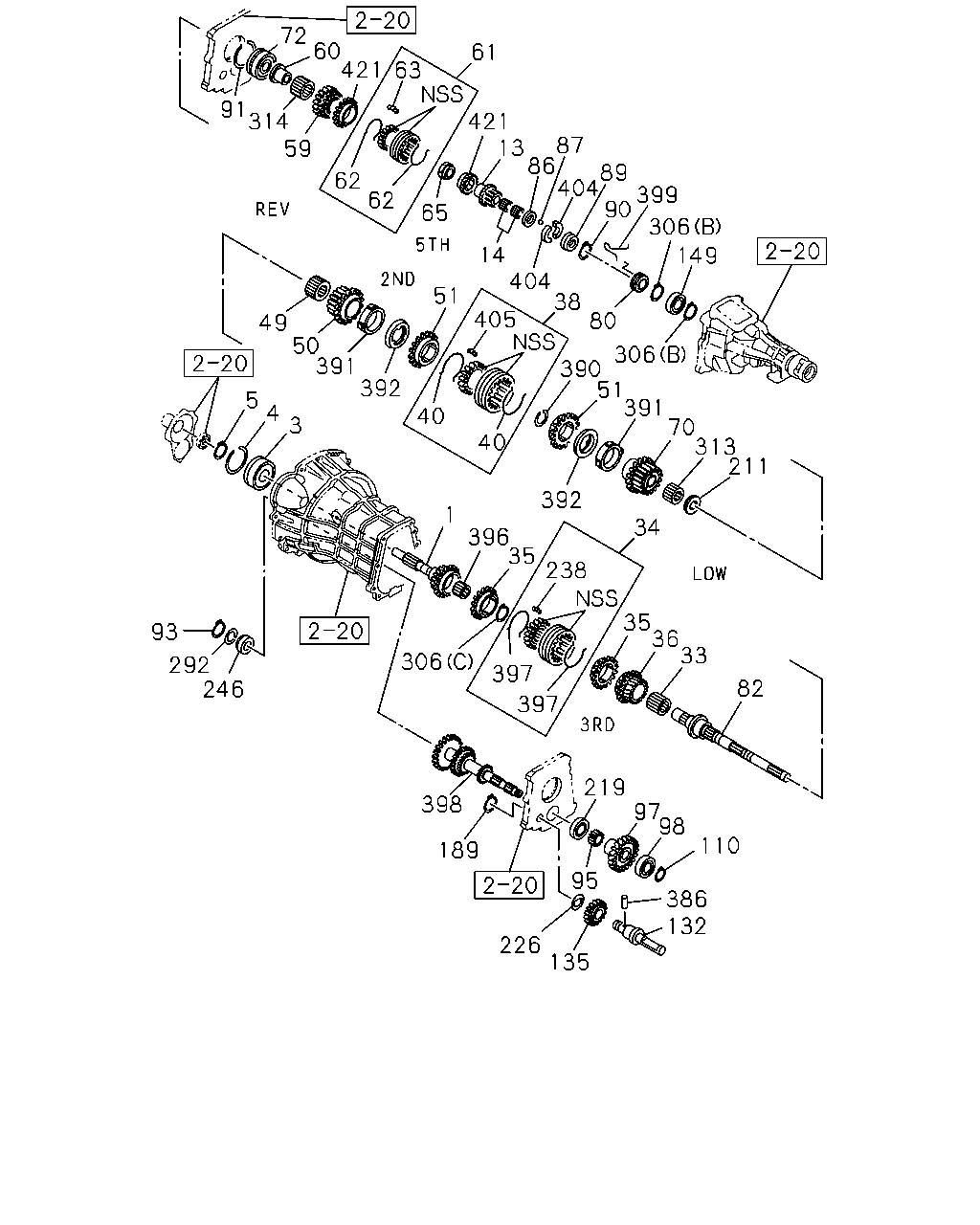

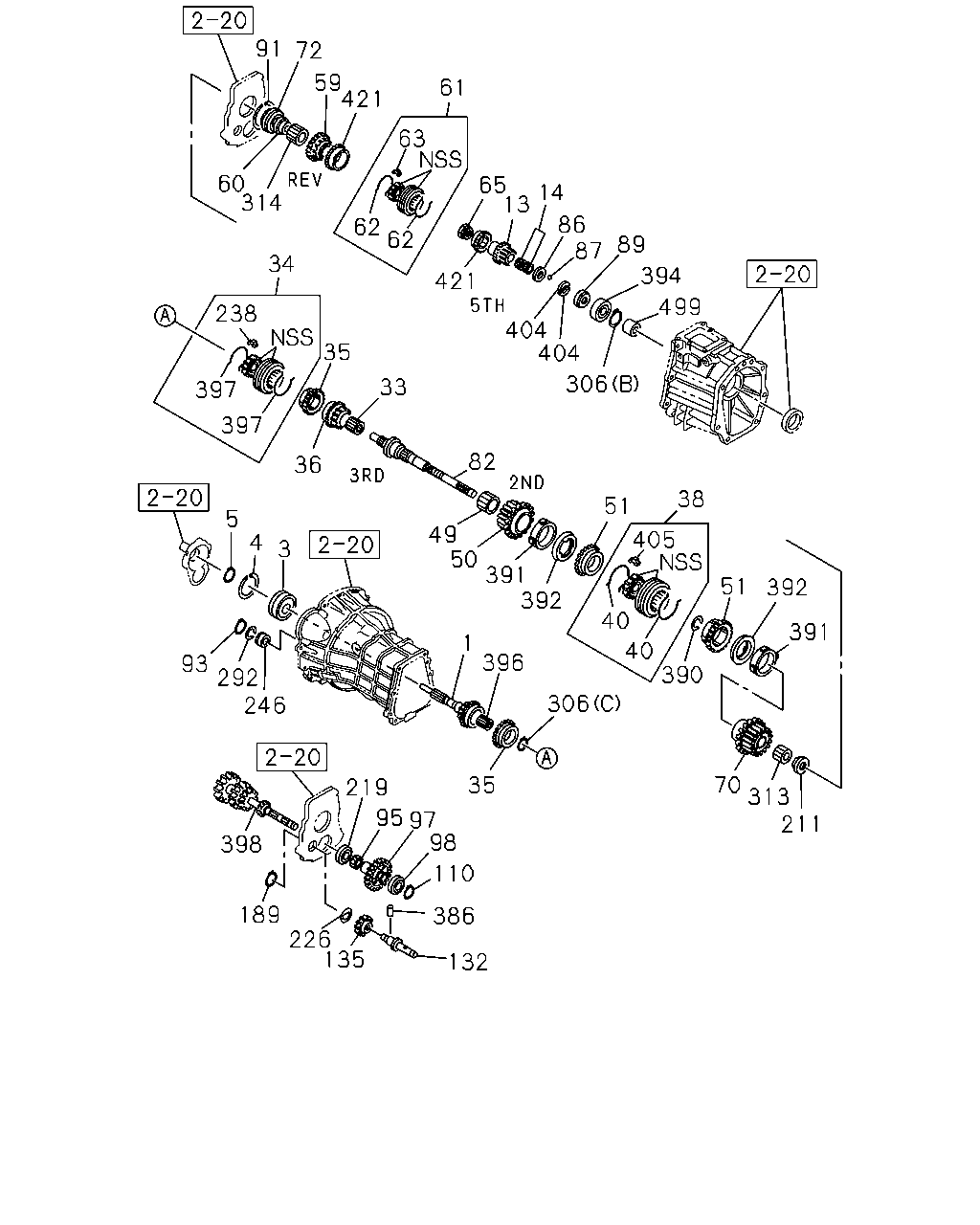

91 421 59 72 61 63 314 60 62 421 62 65 404 87 86 14 13 404 499 394 89 306 38 51 405 51 392 391 70 313 211 390 40 40 392 391 50 49 82 33 35 238 34 397 36 397 5 4 3 306 396 1 110 386 132 98 97 95 219 398 189 226 135 35 292 93 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1304-1307	●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1308-	●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1304-	●		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	1304-				●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-98210-240-0	01	1	1304-					●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-248-0	01	1	1304-1307	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98233-594-0	01	1	1308-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-247-0	01	1	1304-	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-015-1	01	1	1304-	●		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	1304-				●
3	04.403 BEARING; TOP GEAR SHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97943-879-0	01	1	1304-	●		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-879-0	01	1	1304-					●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	1304-				●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1304-	●		●		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1304-				●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1304-	●		●		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1304-					●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1304-	●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1304-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	1304-				●
13	04.415 GEAR; 5TH,MAINSHAFT 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=24	8-98210-254-0	01	1	1304-			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1304-			●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1304-				●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1304-	●		●		●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-98203-209-0	01	1	1304-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1304-	●		●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1402-	●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97977-991-0	01	1	1402-					●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1304-				●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	1304-1401	●		●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1402-	●		●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	1304-				●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1304-	●		●		●
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98210-226-0	01	1	1304-	●		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	1304-				●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-98210-249-0	01	1	1304-					●
36	04.415 GEAR; 3RD,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98233-597-0	01	1	1304-	●		●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1402-	●		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97977-989-0	01	1	1402-					●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1304-				●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	1304-1401	●		●		●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1402-	●		●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1304-				●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1304-	●		●		●
49	04.352 BEARING; NEEDLE,2ND GEAR	8-98203-208-0	01	1	1304-		●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1304-	●		●		●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97300-953-1	01	1	1304-	●		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	1304-				●
50	04.395 GEAR; 2ND,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97301-183-1	01	1	1304-	●		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97301-183-1	01	1	1304-					●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1304-				●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1304-	●		●		●
59	04.417 GEAR; REV MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1304-	●		●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	1304-				●
59	04.417 GEAR; REV MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1304-	●		●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1304-					●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	1304-	●		●		●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	1304-				●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1304-	●		●		●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	1304-				●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1304-	●		●		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	1304-				●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1304-	●		●		●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	1304-				●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1304-	●		●		●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97300-952-1	01	1	1304-	●		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	1304-				●
70	04.417 GEAR; 1ST,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97301-182-1	01	1	1304-	●		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97301-182-1	01	1	1304-					●
72	04.352 BEARING; BALL,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1304-	●		●
72	04.352 BEARING; BALL,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1304-	●		●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	1304-					●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1304-			●		●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1304-	●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	1304-				●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1304-	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1304-	●		●		●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1304-	●		●		●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1304-	●		●		●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1304-	●		●		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1304-	●		●	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1304-	●		●		●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1304-	●		●		●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	1304-	●		●		●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1304-	●		●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1304-				●
95	04.417 GEAR; REV,COUNTER	8-98203-243-0	01	1	1304-		●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1304-	●		●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1304-					●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1304-					●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1304-	●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1304-	●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1304-				●
97	04.415 GEAR; 5TH,COUNTER 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=49	8-97216-154-0	01	1	1304-			●
97	04.415 GEAR; 5TH,COUNTER 4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1304-			●
98	04.422 BEARING; BALL,COUNTER END EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1304-	●		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	1304-				●
98	04.422 BEARING; BALL,COUNTER END IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1304-	●		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1304-					●
110	04.422 RING; SNAP,COUNTER BRG	8-98203-219-0	01	1	1304-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1304-	●		●		●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1309-	●		●
132	04.433 SHAFT; REV	8-98245-493-0	01	1	1309-					●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1304-				●
132	04.433 SHAFT; REV	8-98203-238-0	01	1	1304-		●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	1304-1308	●		●		●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1309-	●		●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1304-	●		●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1304-				●
135	04.430 GEAR; REV IDLER	8-98203-240-0	01	1	1304-		●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1304-	●		●
135	04.430 GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1304-					●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1304-	●		●		●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1304-	●		●		●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1304-	●		●		●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1304-	●		●		●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1304-	●		●		●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1304-	●		●		●
238	04.384 INSERT	8-94448-202-2	03	1	1304-	●		●		●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	1304-	●		●		●
292	04.422 RING; SNAP,BRG OUTER	8-98203-225-0	01	1	1304-		●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1304-	●		●		●
306	04.416 RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1304-			●		●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1304-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT (D)	8-98203-220-0	01	1	1304-		●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1304-	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1304-	●		●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1304-	●		●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1304-	●		●		●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1304-	●		●		●
314	04.419 BEARING; NEEDLE,REV GEAR	8-98203-212-0	01	1	1304-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1304-	●		●		●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1304-	●		●		●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1304-	●		●		●
390	04.383 RING; SNAP,CLU HUB	8-98203-221-0	01	1	1304-		●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1304-	●		●		●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1304-	●		●		●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1304-	●		●		●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1304-	●		●		●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1304-	●		●		●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> 04.352 NSK	8-97018-921-1	01	1	1304-	●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.352 NSK	8-97018-921-1	01	1	1304-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1304-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-98203-210-0	01	1	1304-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1304-	●		●		●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	1304-				●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1304-	●		●		●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1304-	●		●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1304-				●
398	04.421 GEAR; COUNTER Z=46-32-25-19	8-97209-758-1	01	1	1304-					●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1304-	●		●
404	04.307 PLATE; THRUST	8-98203-202-0	02	1	1304-		●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	1304-	●		●		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1304-				●
405	04.384 INSERT; SYN,LOW & 2ND	8-98203-191-0	03	1	1304-		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1304-	●		●		●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1304-	●		●		●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT>	8-97300-954-0	01	1	1304-	●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97300-954-0	01	1	1304-	●

72 63 60 61 421 421 91 62 59 314 62 13 87 399 89 86 65 14 80 38 404 51 404 149 306 90 49 392 391 50 306 390 405 391 211 313 70 392 5 93 292 246 306 398 189 397 397 238 35 396 35 33 36 82 34 110 98 97 219 95 135 226 132 386 4 40 3 1 40 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

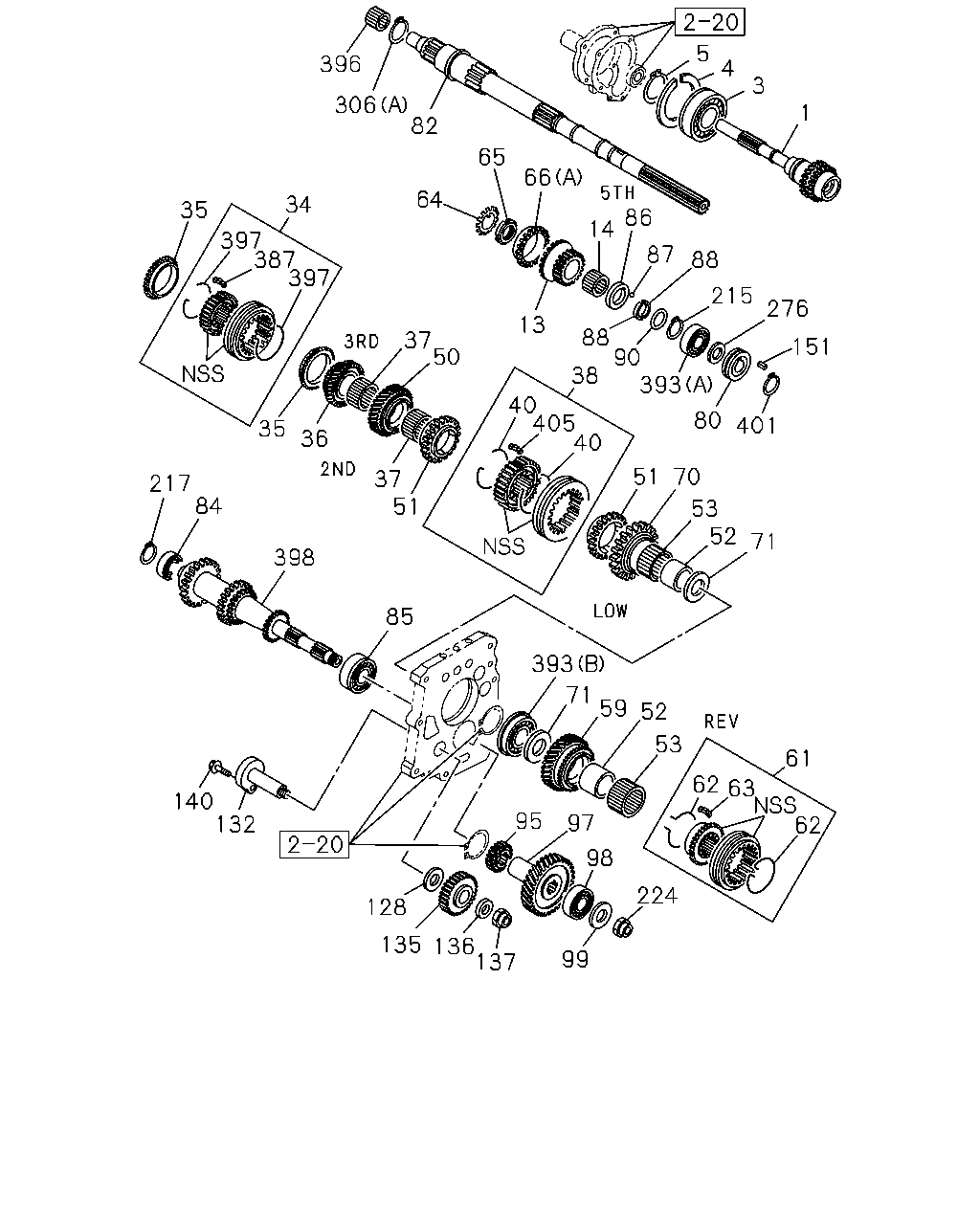

1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1304-1307	●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1308-	●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1304-	●		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	1304-				●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-98210-240-0	01	1	1304-					●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-248-0	01	1	1304-1307	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98233-594-0	01	1	1308-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-247-0	01	1	1304-	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-015-1	01	1	1304-	●		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	1304-				●
3	04.403 BEARING; TOP GEAR SHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97943-879-0	01	1	1304-	●		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-879-0	01	1	1304-					●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	1304-				●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1304-	●		●		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1304-				●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1304-	●		●		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1304-					●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1304-	●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1304-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	1304-				●
13	04.415 GEAR; 5TH,MAINSHAFT 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=24	8-98210-254-0	01	1	1304-			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1304-			●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1304-				●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1304-	●		●		●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-98203-209-0	01	1	1304-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1304-	●		●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1402-	●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97977-991-0	01	1	1402-					●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1304-				●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	1304-1401	●		●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1402-	●		●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	1304-				●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1304-	●		●		●
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98210-226-0	01	1	1304-	●		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	1304-				●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-98210-249-0	01	1	1304-					●
36	04.415 GEAR; 3RD,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98233-597-0	01	1	1304-	●		●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1402-	●		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97977-989-0	01	1	1402-					●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1304-				●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	1304-1401	●		●		●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1402-	●		●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1304-				●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1304-	●		●		●
49	04.352 BEARING; NEEDLE,2ND GEAR	8-98203-208-0	01	1	1304-		●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1304-	●		●		●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97300-953-1	01	1	1304-	●		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	1304-				●
50	04.395 GEAR; 2ND,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97301-183-1	01	1	1304-	●		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97301-183-1	01	1	1304-					●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1304-				●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1304-	●		●		●
59	04.417 GEAR; REV MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1304-	●		●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	1304-				●
59	04.417 GEAR; REV MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1304-	●		●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1304-					●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	1304-	●		●		●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	1304-				●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1304-	●		●		●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	1304-				●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1304-	●		●		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	1304-				●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1304-	●		●		●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	1304-				●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1304-	●		●		●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97300-952-1	01	1	1304-	●		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	1304-				●
70	04.417 GEAR; 1ST,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97301-182-1	01	1	1304-	●		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97301-182-1	01	1	1304-					●
72	04.352 BEARING; BALL,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1304-	●		●
72	04.352 BEARING; BALL,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1304-	●		●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	1304-					●
80	04.343 GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	1304-			●		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1304-	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	1304-				●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1304-			●		●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1304-	●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	1304-				●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1304-	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1304-	●		●		●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1304-	●		●		●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1304-	●		●		●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1304-	●		●		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1304-	●		●	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1304-	●		●		●
90	04.416 RING; SNAP,THRUST RING 04.422 ID=29.6	9-09180-032-0	01	1	1304-			●		●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	1304-	●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	1304-				●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1304-	●		●		●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	1304-	●		●		●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1304-	●		●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1304-				●
95	04.417 GEAR; REV,COUNTER	8-98203-243-0	01	1	1304-		●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1304-	●		●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1304-					●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1304-					●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1304-	●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1304-	●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1304-				●
97	04.415 GEAR; 5TH,COUNTER 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=49	8-97216-154-0	01	1	1304-			●
97	04.415 GEAR; 5TH,COUNTER 4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1304-			●
98	04.422 BEARING; BALL,COUNTER END EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1304-	●		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	1304-				●
98	04.422 BEARING; BALL,COUNTER END IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1304-	●		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1304-					●
110	04.422 RING; SNAP,COUNTER BRG	8-98203-219-0	01	1	1304-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1304-	●		●		●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1309-	●		●
132	04.433 SHAFT; REV	8-98245-493-0	01	1	1309-					●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1304-				●
132	04.433 SHAFT; REV	8-98203-238-0	01	1	1304-		●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	1304-1308	●		●		●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1309-	●		●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1304-	●		●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1304-				●
135	04.430 GEAR; REV IDLER	8-98203-240-0	01	1	1304-		●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1304-	●		●
135	04.430 GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1304-					●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1304-			●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 04.422 NSK	8-94173-863-0	01	1	1304-					●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1304-	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1304-			●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1304-	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1304-	●		●		●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1304-	●		●		●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1304-	●		●		●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1304-	●		●		●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1304-	●		●		●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1304-	●		●		●
238	04.384 INSERT	8-94448-202-2	03	1	1304-	●		●		●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	1304-	●		●		●
292	04.422 RING; SNAP,BRG OUTER	8-98203-225-0	01	1	1304-		●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1304-	●		●		●
306	04.416 RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1304-			●		●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1304-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT (D)	8-98203-220-0	01	1	1304-		●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1304-	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1304-	●		●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1304-	●		●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1304-	●		●		●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1304-	●		●		●
314	04.419 BEARING; NEEDLE,REV GEAR	8-98203-212-0	01	1	1304-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1304-	●		●		●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1304-	●		●		●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1304-	●		●		●
390	04.383 RING; SNAP,CLU HUB	8-98203-221-0	01	1	1304-		●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1304-	●		●		●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1304-	●		●		●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1304-	●		●		●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1304-	●		●		●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1304-	●		●		●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1304-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-98203-210-0	01	1	1304-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1304-	●		●		●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	1304-				●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1304-	●		●		●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1304-	●		●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1304-				●
398	04.421 GEAR; COUNTER Z=46-32-25-19	8-97209-758-1	01	1	1304-					●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1304-	●		●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	1304-			●		●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	1304-	●
404	04.307 PLATE; THRUST	8-98203-202-0	02	1	1304-		●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	1304-	●		●		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1304-				●
405	04.384 INSERT; SYN,LOW & 2ND	8-98203-191-0	03	1	1304-		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1304-	●		●		●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1304-	●		●		●

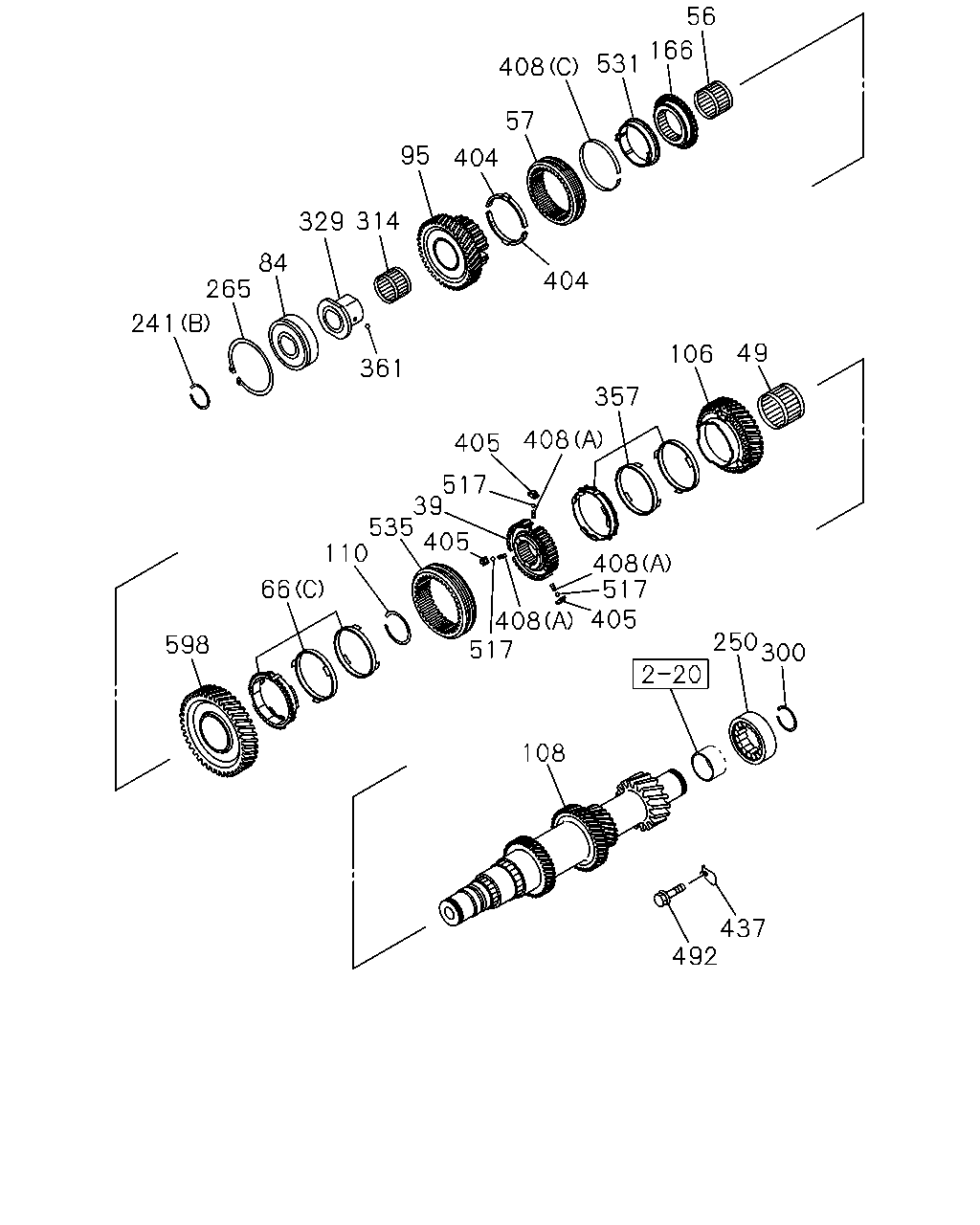

241 265 84 329 314 95 404 57 408 531 166 56 404 361 357 106 49 408 405 517 39 535 110 66 598 405 408 517 250 300 405 408 517 108 437 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
39	04.384 HUB; CLU,LOW & 2ND	8-98203-187-0	01	1	1304-		●
49	04.352 BEARING; NEEDLE,2ND GEAR	8-98203-208-0	01	1	1304-		●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1304-	●		●		●
56	04.419 BEARING; NEEDLE,1ST,REV	8-98203-207-0	01	1	1304-		●
57	04.419 SLEEVE; REV	8-98203-203-0	01	1	1304-		●
66	04.383 RING; BLOCK,SYN (A) Z=30	8-94463-830-1	01	1	1304-				●
66	04.383 RING; BLOCK,SYN (C)	8-98203-181-0	01	1	1304-		●
66	04.383 RING; BLOCK,SYN (B)	8-98203-194-0	01	1	1304-		●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	1304-				●
84	04.422 BEARING; COUNTER SHAFT,FRT	8-98203-206-0	01	1	1304-		●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1304-	●		●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1304-				●
95	04.417 GEAR; REV,COUNTER	8-98203-243-0	01	1	1304-		●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1304-	●		●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1304-					●
106	04.395 GEAR; 2ND,COUNTER	8-98203-237-0	01	1	1304-		●
108	04.428 SHAFT; COUNTER	8-98203-235-0	01	1	1304-		●
110	04.422 RING; SNAP,COUNTER BRG	8-98203-219-0	01	1	1304-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1304-	●		●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1304-	●		●		●
166	04.435 PIECE; DIST	8-98203-184-0	01	1	1304-		●
241	04.416 RING; SNAP (B)	8-98203-218-0	01	1	1304-		●
241	04.416 RING; SNAP (A)	8-98203-223-0	01	1	1304-		●
250	04.352 BEARING; COUNTER SHAFT RR	8-98203-215-0	01	1	1304-		●
265	04.525 RING; SNAP,BRG OUTER	8-98203-224-0	01	1	1304-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.416	8-98203-218-0	01	1	1304-		●
314	04.419 BEARING; NEEDLE,REV GEAR	8-98203-212-0	01	1	1304-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1304-	●		●		●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1304-	●		●		●
329	04.352 COLLAR; BEARING	8-98203-186-0	01	1	1304-		●
357	04.383 RING	8-98203-182-0	01	1	1304-		●
361	04.419 BALL; LK,THRUST WASHER,REV GEAR 04.345	8-89048-423-0	01	1	1304-		●
404	04.307 PLATE; THRUST	8-98203-202-0	02	1	1304-		●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	1304-	●		●		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1304-				●
405	04.384 INSERT; SYN,LOW & 2ND	8-98203-191-0	03	1	1304-		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1304-	●		●		●
408	04.384 SPRING (A)	8-98203-195-0	03	1	1304-		●
408	04.384 SPRING (B)	8-98203-196-0	06	1	1304-		●
408	04.384 SPRING (C)	8-98203-198-0	01	1	1304-		●
437	04.435 PLATE; LOCK	8-98203-107-0	01	1	1304-		●
492	04.435 BOLT; PLATE	8-98203-122-0	01	1	1304-		●
517	04.384 BALL; SYNCHRO,INDEX	8-98203-204-0	09	1	1304-		●
531	04.383 RING; BLOCK,REV	8-98203-197-0	01	1	1304-		●
535	04.395 SLEEVE; HUB,LOW-2ND	8-98203-189-0	01	1	1304-		●
598	04.421 GEAR; 1ST,COUNTER	8-98203-236-0	01	1	1304-		●

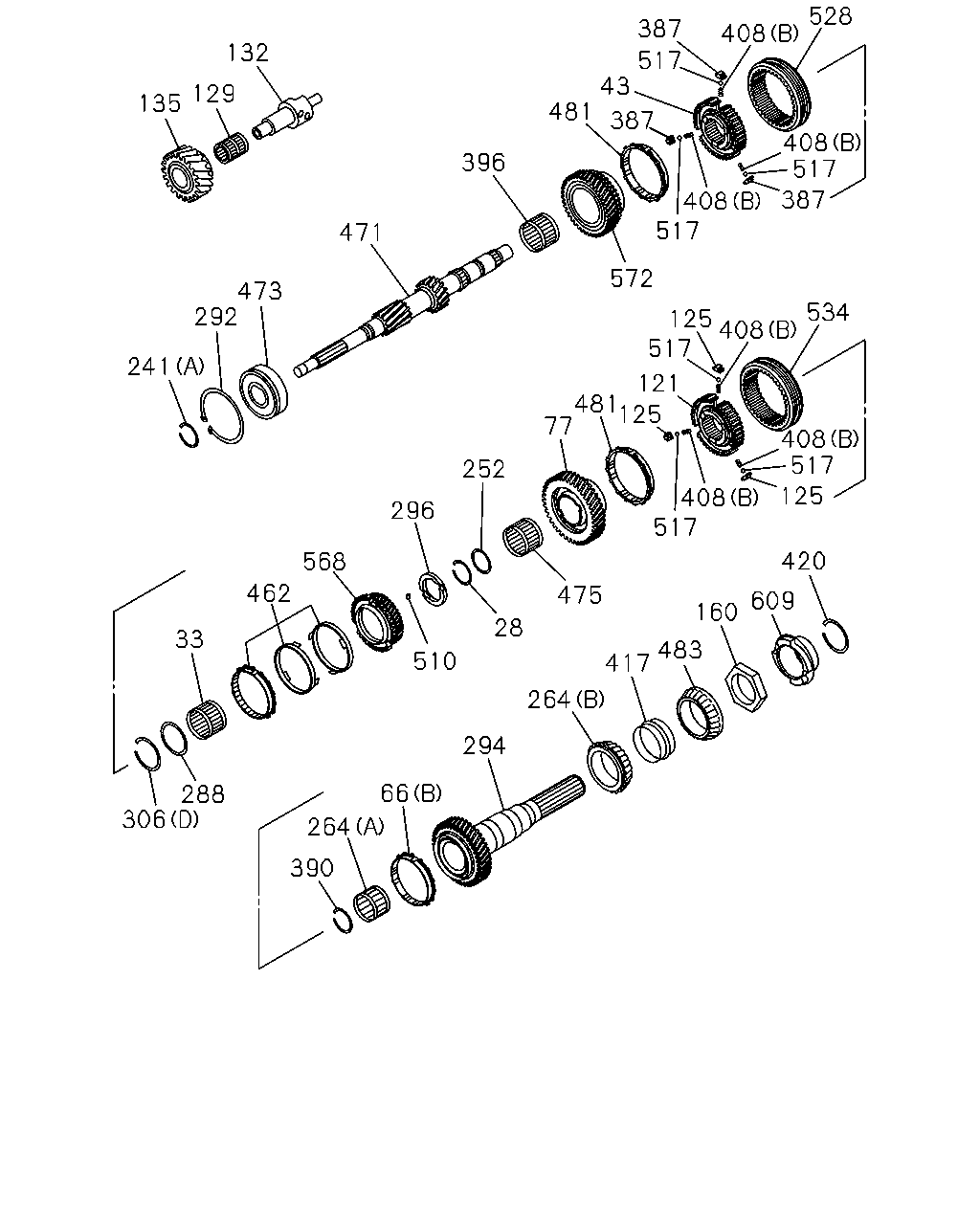

132 129 135 471 396 481 43 517 408 528 408 517 408 517 534 408 125 572 517 121 125 481 77 252 296 568 462 33 288 306 390 264 66 294 264 483 417 475 28 510 517 408 125 517 408 420 609 160 387 387 473 292 241 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
28	04.416 RING; SNAP,3RD GEAR	8-98203-222-0	01	1	1304-		●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-98203-209-0	01	1	1304-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1304-	●		●		●
43	04.384 HUB; CLU,3RD & 4TH,MAIN	8-98203-188-0	01	1	1304-		●
66	04.383 RING; BLOCK,SYN (A) Z=30	8-94463-830-1	01	1	1304-				●
66	04.383 RING; BLOCK,SYN (C)	8-98203-181-0	01	1	1304-		●
66	04.383 RING; BLOCK,SYN (B)	8-98203-194-0	01	1	1304-		●
77	04.421 GEAR; 6TH,MAINSHAFT	8-98203-231-0	01	1	1304-		●
121	04.384 HUB; CLU,6TH	8-98203-199-0	01	1	1304-		●
125	04.384 INSERT; 6TH SYN	8-98203-192-0	03	1	1304-		●
129	04.431 BEARING; NEEDLE,IDLER	8-98203-213-0	01	1	1304-		●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1309-	●		●
132	04.433 SHAFT; REV	8-98245-493-0	01	1	1309-					●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1304-				●
132	04.433 SHAFT; REV	8-98203-238-0	01	1	1304-		●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	1304-1308	●		●		●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1309-	●		●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1304-	●		●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1304-				●
135	04.430 GEAR; REV IDLER	8-98203-240-0	01	1	1304-		●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1304-	●		●
135	04.430 GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1304-					●
160	04.525 NUT; OUTPUT SHAFT END	8-98203-252-0	01	1	1304-		●
241	04.416 RING; SNAP (B)	8-98203-218-0	01	1	1304-		●
241	04.416 RING; SNAP (A)	8-98203-223-0	01	1	1304-		●
252	04.412 SPACER	8-98203-226-0	01	1	1304-		●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT (A)	8-98203-214-0	01	1	1304-		●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT (B)	8-98203-216-0	01	1	1304-		●
288	04.399 SPACER; BRG,MAINSHAFT	8-98203-227-0	01	1	1304-		●
292	04.422 RING; SNAP,BRG OUTER	8-98203-225-0	01	1	1304-		●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1304-	●		●		●
294	04.530 SHAFT; OUTPUT 4X2(TFB***)	8-98203-233-0	01	1	1304-		●
294	04.530 SHAFT; OUTPUT 4X4(TFS***)	8-98203-232-0	01	1	1304-		●
296	04.406 WASHER; THRUST	8-98203-185-0	01	1	1304-		●
306	04.416 RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1304-			●		●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1304-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT (D)	8-98203-220-0	01	1	1304-		●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1304-	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1304-	●		●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1304-	●		●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1304-	●		●		●
387	04.384 INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	1304-				●
387	04.384 INSERT; SYN,4TH & 3RD	8-98203-192-0	03	1	1304-		●
390	04.383 RING; SNAP,CLU HUB	8-98203-221-0	01	1	1304-		●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1304-	●		●		●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1304-	●		●		●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1304-	●		●		●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1304-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-98203-210-0	01	1	1304-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1304-	●		●		●
408	04.384 SPRING (A)	8-98203-195-0	03	1	1304-		●
408	04.384 SPRING (B)	8-98203-196-0	06	1	1304-		●
408	04.384 SPRING (C)	8-98203-198-0	01	1	1304-		●
417	04.384 SPACER; OUTPUT SHAFT 4X2(TFB***)	8-98203-255-0	01	1	1304-		●
417	04.384 SPACER; OUTPUT SHAFT 4X4(TFS***)	8-98203-254-0	01	1	1304-		●
420	04.416 RING; SNAP,OUTPUT SHAFT	8-98203-257-0	01	1	1304-		●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER	8-98203-183-0	01	1	1304-		●
471	04.530 SHAFT; INPUT	8-98203-234-0	01	1	1304-		●
473	04.352 BEARING; INPUT SHAFT	8-98203-205-0	01	1	1304-		●
475	04.419 BEARING; 6TH	8-98203-211-0	01	1	1304-		●
481	04.383 RING; BLOCK	8-98203-193-0	02	1	1304-		●
483	04.352 BEARING; TAPER	8-98203-217-0	01	1	1304-		●
510	04.540 PIN; STRAIGHT,ANTI LASH	8-98203-228-0	01	1	1304-		●
517	04.384 BALL; SYNCHRO,INDEX	8-98203-204-0	09	1	1304-		●
528	04.384 SLEEVE; 6TH	8-98203-190-0	01	1	1304-		●
534	04.395 SLEEVE; HUB,4TH-3RD 04.384	8-98203-190-0	01	1	1304-		●
568	04.415 GEAR; 3RD,INPUT SHAFT	8-98203-229-0	01	1	1304-		●
572	04.415 GEAR; 4TH,INPUT	8-98203-230-0	01	1	1304-		●
609	04.384 PIPE; OUTPUT SHAFT 4X2(TFB***)	8-98203-250-0	01	1	1304-		●
609	04.384 PIPE; OUTPUT SHAFT 4X4(TFS***)	8-98203-249-0	01	1	1304-		●

1 3 4 5 151 276 215 88 87 86 14 66 65 64 13 38 88 90 393 80 401 70 53 52 71 51 40 405 40 50 37 397 387 397 34 35 35 36 37 51 85 398 84 217 140 132 128 135 136 137 99 224 98 97 95 53 62 63 61 62 52 59 71 393 82 306 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1304-1307	●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1308-	●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1304-	●		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	1304-				●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-98210-240-0	01	1	1304-					●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-248-0	01	1	1304-1307	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98233-594-0	01	1	1308-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-247-0	01	1	1304-	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-015-1	01	1	1304-	●		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	1304-				●
3	04.403 BEARING; TOP GEAR SHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97943-879-0	01	1	1304-	●		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-879-0	01	1	1304-					●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	1304-				●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1304-	●		●		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1304-				●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1304-	●		●		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1304-					●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1304-	●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1304-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	1304-				●
13	04.415 GEAR; 5TH,MAINSHAFT 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=24	8-98210-254-0	01	1	1304-			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1304-			●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1304-				●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1304-	●		●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1402-	●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97977-991-0	01	1	1402-					●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1304-				●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	1304-1401	●		●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1402-	●		●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	1304-				●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1304-	●		●		●
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98210-226-0	01	1	1304-	●		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	1304-				●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-98210-249-0	01	1	1304-					●
36	04.415 GEAR; 3RD,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98233-597-0	01	1	1304-	●		●
37	04.352 BEARING; NEEDLE,2ND & 3RD NTN	8-94161-988-2	02	1	1304-				●
37	04.352 BEARING; NEEDLE,2ND & 3RD NSK	8-94161-989-0	02	1	1304-				●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1402-	●		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97977-989-0	01	1	1402-					●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1304-				●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	1304-1401	●		●		●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1402-	●		●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1304-				●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1304-	●		●		●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97300-953-1	01	1	1304-	●		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	1304-				●
50	04.395 GEAR; 2ND,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97301-183-1	01	1	1304-	●		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97301-183-1	01	1	1304-					●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1304-				●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1304-	●		●		●
52	04.419 COLLAR; NEEDLE BRG,LOW	8-97238-834-0	02	1	1304-				●
53	04.419 BEARING; NEEDLE,LOW & REV NTN	8-94161-990-2	02	1	1304-				●
53	04.419 BEARING; NEEDLE,LOW & REV NSK	8-94161-991-0	02	1	1304-				●
59	04.417 GEAR; REV MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1304-	●		●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	1304-				●
59	04.417 GEAR; REV MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1304-	●		●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1304-					●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	1304-				●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1304-	●		●		●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	1304-				●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1304-	●		●		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	1304-				●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1304-	●		●		●
64	04.419 WASHER; LK,LOW 04.412	8-94238-095-0	01	1	1304-				●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	1304-				●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1304-	●		●		●
66	04.383 RING; BLOCK,SYN (A) Z=30	8-94463-830-1	01	1	1304-				●
66	04.383 RING; BLOCK,SYN (C)	8-98203-181-0	01	1	1304-		●
66	04.383 RING; BLOCK,SYN (B)	8-98203-194-0	01	1	1304-		●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97300-952-1	01	1	1304-	●		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	1304-				●
70	04.417 GEAR; 1ST,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97301-182-1	01	1	1304-	●		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97301-182-1	01	1	1304-					●
71	04.406 WASHER; THRUST,LOW ID=32.0	5-33239-043-3	02	1	1304-				●
80	04.343 GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	1304-			●		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1304-	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	1304-				●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1304-			●		●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1304-	●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	1304-				●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1304-	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	1304-				●
84	04.422 BEARING; COUNTER SHAFT,FRT	8-98203-206-0	01	1	1304-		●
85	04.422 BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-97365-931-0	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	1304-				●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1304-	●		●		●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1304-	●		●		●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1304-	●		●		●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1304-	●		●		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1304-	●		●	●	●
88	04.416 RING; THRUST,THRUST WASHER	8-94473-936-2	02	1	1304-				●
90	04.416 RING; SNAP,THRUST RING 04.422 ID=29.6	9-09180-032-0	01	1	1304-			●		●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	1304-	●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	1304-				●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1304-	●		●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1304-				●
95	04.417 GEAR; REV,COUNTER	8-98203-243-0	01	1	1304-		●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1304-	●		●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1304-					●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1304-					●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1304-	●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1304-	●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1304-				●
97	04.415 GEAR; 5TH,COUNTER 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=49	8-97216-154-0	01	1	1304-			●
97	04.415 GEAR; 5TH,COUNTER 4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1304-			●
98	04.422 BEARING; BALL,COUNTER END EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1304-	●		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	1304-				●
98	04.422 BEARING; BALL,COUNTER END IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1304-	●		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1304-					●
99	04.429 WASHER; PL,COUNTER 5TH GEAR ID=17 OD=30	0-91610-516-0	01	1	1304-				●
128	04.437 WASHER; THRUST,REV SHAFT ID=22.0	5-33363-004-0	01	1	1304-				●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1309-	●		●
132	04.433 SHAFT; REV	8-98245-493-0	01	1	1309-					●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1304-				●
132	04.433 SHAFT; REV	8-98203-238-0	01	1	1304-		●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	1304-1308	●		●		●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1309-	●		●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1304-	●		●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1304-				●
135	04.430 GEAR; REV IDLER	8-98203-240-0	01	1	1304-		●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1304-	●		●
135	04.430 GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1304-					●
136	04.437 WASHER; THRUST,REV IDLE,RR ID=16.2	5-33363-003-3	01	1	1304-				●
137	04.429 NUT; REV GEAR M16	8-98035-678-0	01	1	1304-				●
140	04.435 BOLT; LK PIECE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1304-				●
151	04.345 KEY; FEATHER,SPD DRIVE GEAR 08.960	9-08020-510-0	01	1	1304-				●
215	04.416 RING; SNAP,BALL BRG ID=27.9	9-09180-030-0	01	1	1304-				●
217	04.376 RING; SNAP,COUNTER FRT BRG 04.422 ID=18.5	9-09180-020-0	01	1	1304-				●
224	04.429 NUT; SELF LK,COUNTER M16	8-98035-678-0	01	1	1304-				●
276	04.419 SPACER; BRG TO DRIVE GEAR 04.423	8-94161-087-0	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1304-			●		●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1304-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1304-				●
306	04.416 RING; SNAP,MAINSHAFT (D)	8-98203-220-0	01	1	1304-		●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1304-	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1304-	●		●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1304-	●		●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1304-	●		●		●
387	04.384 INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	1304-				●
387	04.384 INSERT; SYN,4TH & 3RD	8-98203-192-0	03	1	1304-		●
393	04.352 BEARING; MAINSHAFT END 04.408 (B) NSK	8-94173-866-0	01	1	1304-				●
393	04.352 BEARING; MAINSHAFT END 04.422 (A) NSK	8-94173-863-0	01	1	1304-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1304-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-98203-210-0	01	1	1304-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1304-	●		●		●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	1304-				●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1304-	●		●		●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1304-	●		●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1304-				●
398	04.421 GEAR; COUNTER Z=46-32-25-19	8-97209-758-1	01	1	1304-					●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1304-	●		●
401	04.345 RING; SNAP,SPD DRIVE GEAR 04.416 ID=27.9	9-09180-030-0	01	1	1304-				●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1304-				●
405	04.384 INSERT; SYN,LOW & 2ND	8-98203-191-0	03	1	1304-		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1304-	●		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
