◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#1184) — 72 parça

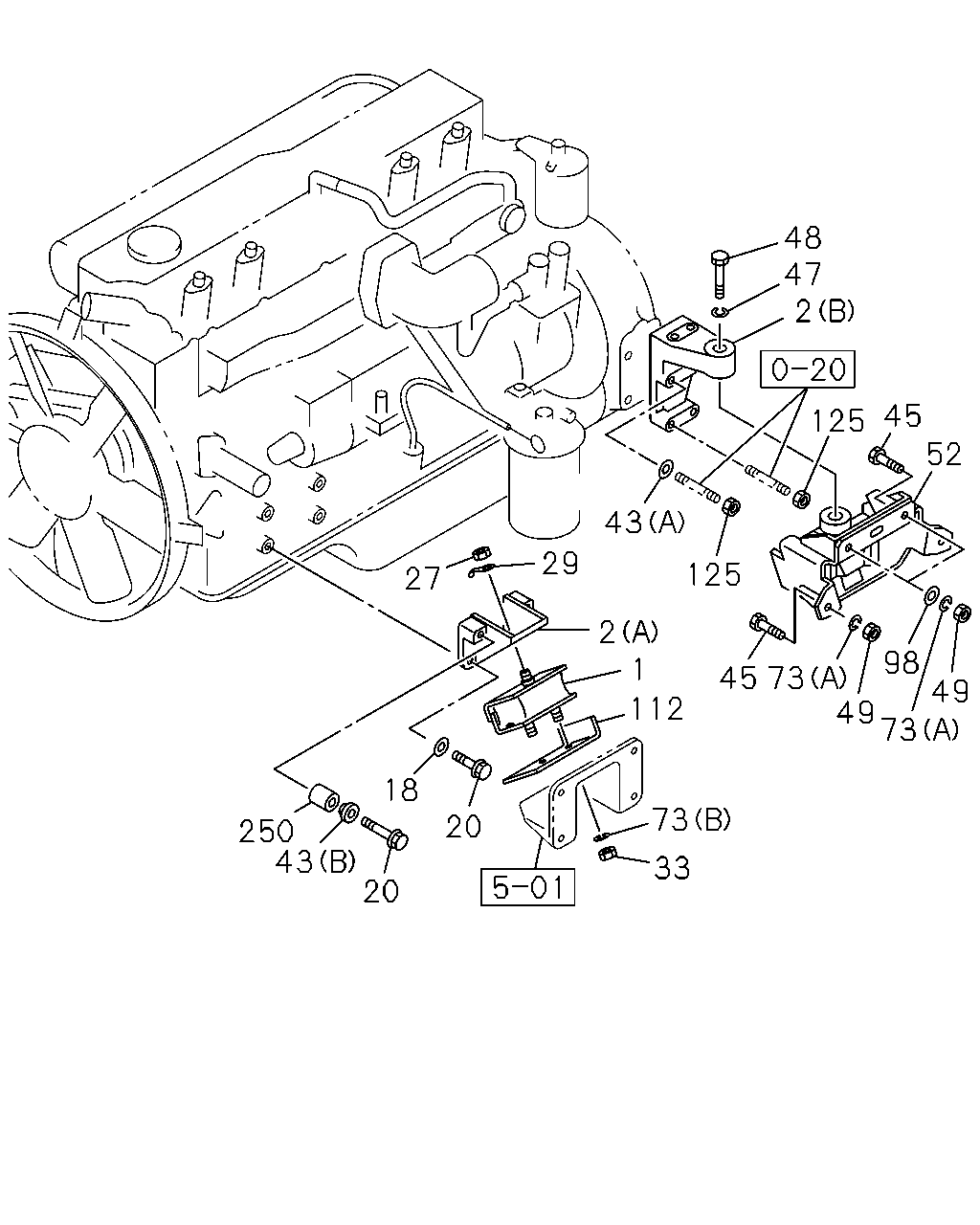

çizim 92511
48 47 2 45 52 125 43 29 125 27 2 1 98 49 45 49 73 112 18 73 20 250 43 20 33 73
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT 1-53215-135-0 02 1 9202- ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-176-0 02 1 9202- ●
2 FOOT; ENG 1-11771-169-1 02 1 9202- ● ●
2 FOOT; ENG
(B) 		8-94396-953-3 02 1 9202- ●
2 FOOT; ENG
(A) 		8-94393-147-0 01 1 9202- ●
2 FOOT; ENG
(A) 		8-94393-146-0 01 1 9202- ●
18 WASHER; PL,ENG FOOT
ID=10.5 		9-09851-866-0 08 1 9202- ● ●
18 WASHER; PL,ENG FOOT
OD=22 T=7 		9-53319-024-0 04 1 9202-9410 ●
20 BOLT; ENG FOOT
M10X29 		1-09020-092-0 04 1 9202- ● ●
20 BOLT; ENG FOOT
M10X24.5 		1-09020-093-0 04 1 9202- ● ●
20 BOLT; ENG FOOT
M10X30 		8-97011-732-0 04 1 9202-9410 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		8-94395-721-0 08 1 9411- ●
20 BOLT; ENG FOOT
M10X70 		8-97011-733-0 04 1 9202-9410 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M14 		9-99110-514-0 02 1 9202- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 		9-99110-512-0 02 1 9202- ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-037-3 02 1 9202- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9202- ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 9202- ● ● ●
43 WASHER; ENG FOOT
(A) T=2.2 		1-09556-015-0 04 1 9202-9310 ●
43 WASHER; ENG FOOT
(B) T=5.5 		1-14149-042-0 04 1 9202-9410 ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 9202- ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=22.5 		9-09150-622-0 02 1 9202- ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X75 		1-09020-087-2 02 1 9202- ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X60 		1-09020-143-0 02 1 9212- ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 9202- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53225-193-1 02 1 9202- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53225-193-1 02 1 9202- ●
52 RUBBER; CUSHION,ENG MTG,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53225-192-1 02 1 9202- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
WHEEL BASE 6000MM(60W) 		1-53225-192-1 02 1 9202- ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2 		9-09150-514-0 04 1 9202- ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=14.2 		9-09150-614-0 08 1 9202- ● ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 16 1 9202- ● ● ●
112 PROTECTOR; HEAT 1-53219-255-1 01 1 9202-9302 ● ●
112 PROTECTOR; HEAT 1-53219-322-0 01 1 9303- ● ●
112 PROTECTOR; HEAT 1-53219-395-1 01 1 9202- ●
125 NUT; ENG FOOT
M12 FLANGE 		0-91150-212-0 08 1 9202-9206 ●
125 NUT; ENG FOOT
M12 FLANGE 		8-94394-704-0 08 1 9207- ●
250 SPACER; ENG FOOT
L=43 		8-94396-406-0 04 1 9202-9410 ●

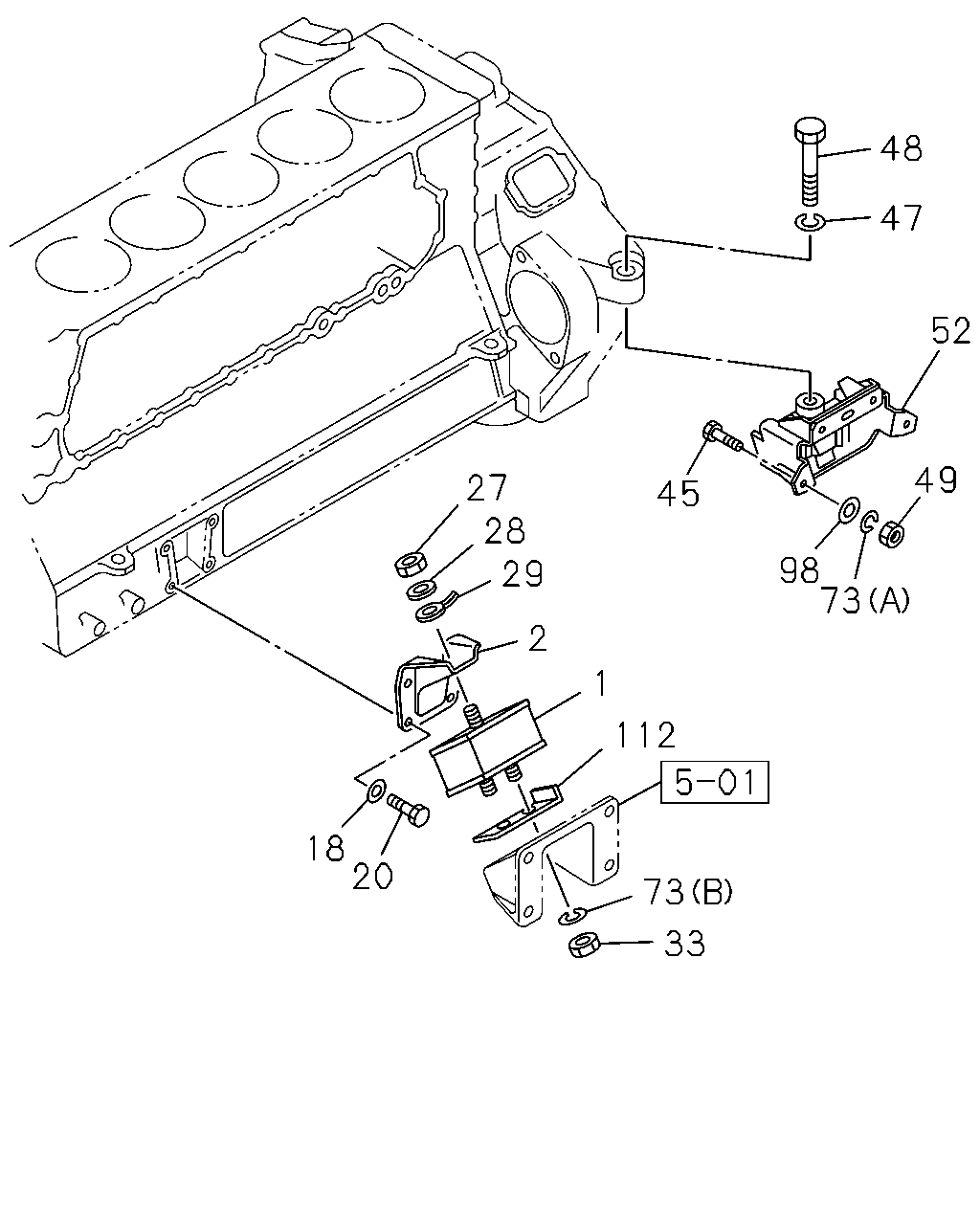

çizim 95609
48 47 52 49 27 28 29 45 98 73 2 1 112 18 20 73 33
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT 1-53215-135-0 02 1 9202- ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-176-0 02 1 9202- ●
2 FOOT; ENG 1-11771-169-1 02 1 9202- ● ●
2 FOOT; ENG
(B) 		8-94396-953-3 02 1 9202- ●
2 FOOT; ENG
(A) 		8-94393-147-0 01 1 9202- ●
2 FOOT; ENG
(A) 		8-94393-146-0 01 1 9202- ●
18 WASHER; PL,ENG FOOT
ID=10.5 		9-09851-866-0 08 1 9202- ● ●
18 WASHER; PL,ENG FOOT
OD=22 T=7 		9-53319-024-0 04 1 9202-9410 ●
20 BOLT; ENG FOOT
M10X29 		1-09020-092-0 04 1 9202- ● ●
20 BOLT; ENG FOOT
M10X24.5 		1-09020-093-0 04 1 9202- ● ●
20 BOLT; ENG FOOT
M10X30 		8-97011-732-0 04 1 9202-9410 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		8-94395-721-0 08 1 9411- ●
20 BOLT; ENG FOOT
M10X70 		8-97011-733-0 04 1 9202-9410 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M14 		9-99110-514-0 02 1 9202- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 		9-99110-512-0 02 1 9202- ●
28 WASHER; LK,SUPPORT BRKT
ID=14.2 		9-09150-814-0 02 1 9202- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-037-3 02 1 9202- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9202- ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 9202- ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 9202- ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=22.5 		9-09150-622-0 02 1 9202- ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X75 		1-09020-087-2 02 1 9202- ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X60 		1-09020-143-0 02 1 9212- ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 9202- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53225-193-1 02 1 9202- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53225-193-1 02 1 9202- ●
52 RUBBER; CUSHION,ENG MTG,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53225-192-1 02 1 9202- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
WHEEL BASE 6000MM(60W) 		1-53225-192-1 02 1 9202- ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2 		9-09150-514-0 04 1 9202- ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=14.2 		9-09150-614-0 08 1 9202- ● ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 16 1 9202- ● ● ●
112 PROTECTOR; HEAT 1-53219-255-1 01 1 9202-9302 ● ●
112 PROTECTOR; HEAT 1-53219-322-0 01 1 9303- ● ●
112 PROTECTOR; HEAT 1-53219-395-1 01 1 9202- ●
