3-75 — BRAKE PIPING; AIR,FRONT
(#118387) — 60 parça
◀

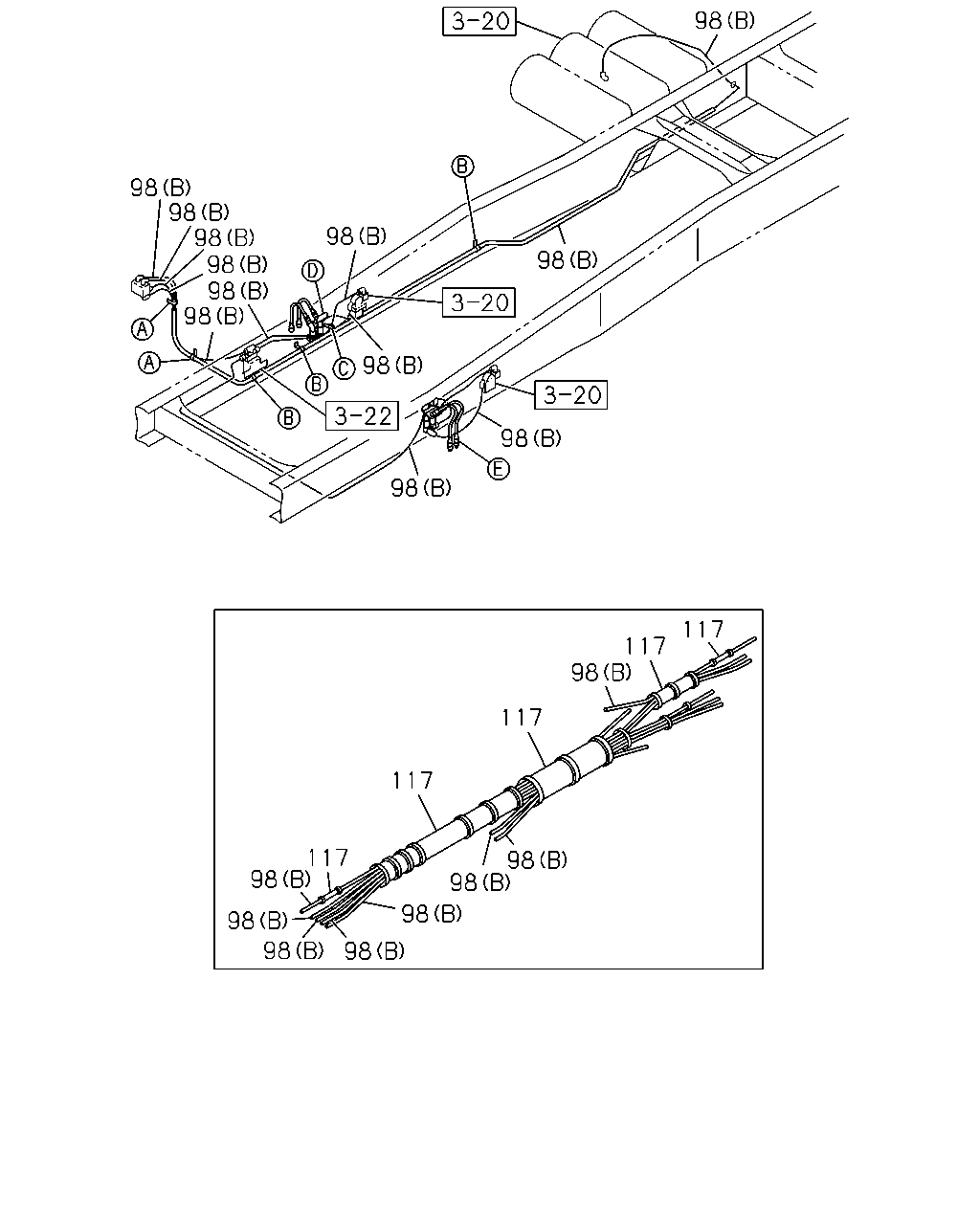

[375A] FRAME SIDE NO.1 (13 parça)

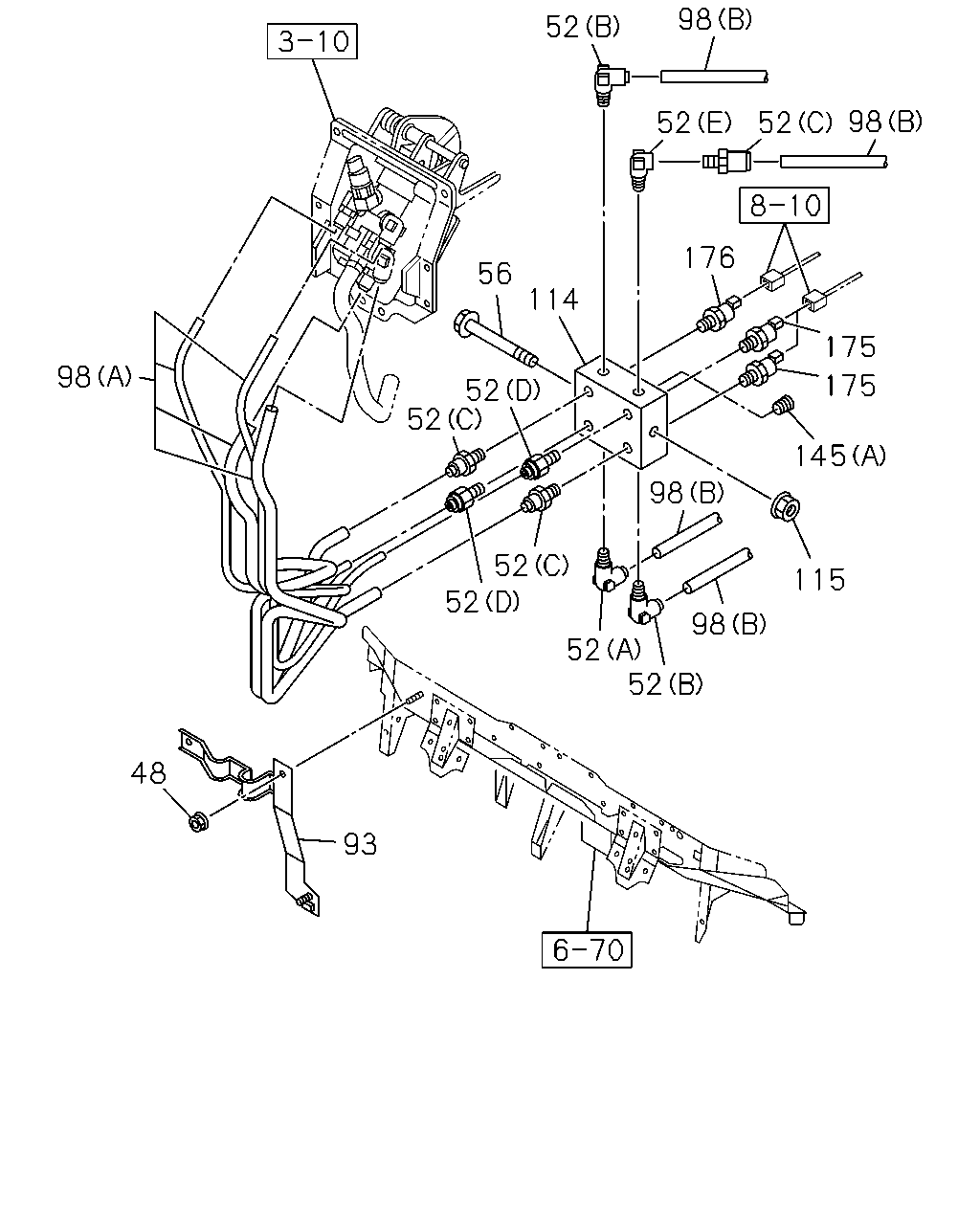

[375A] CAB UNDER (20 parça)

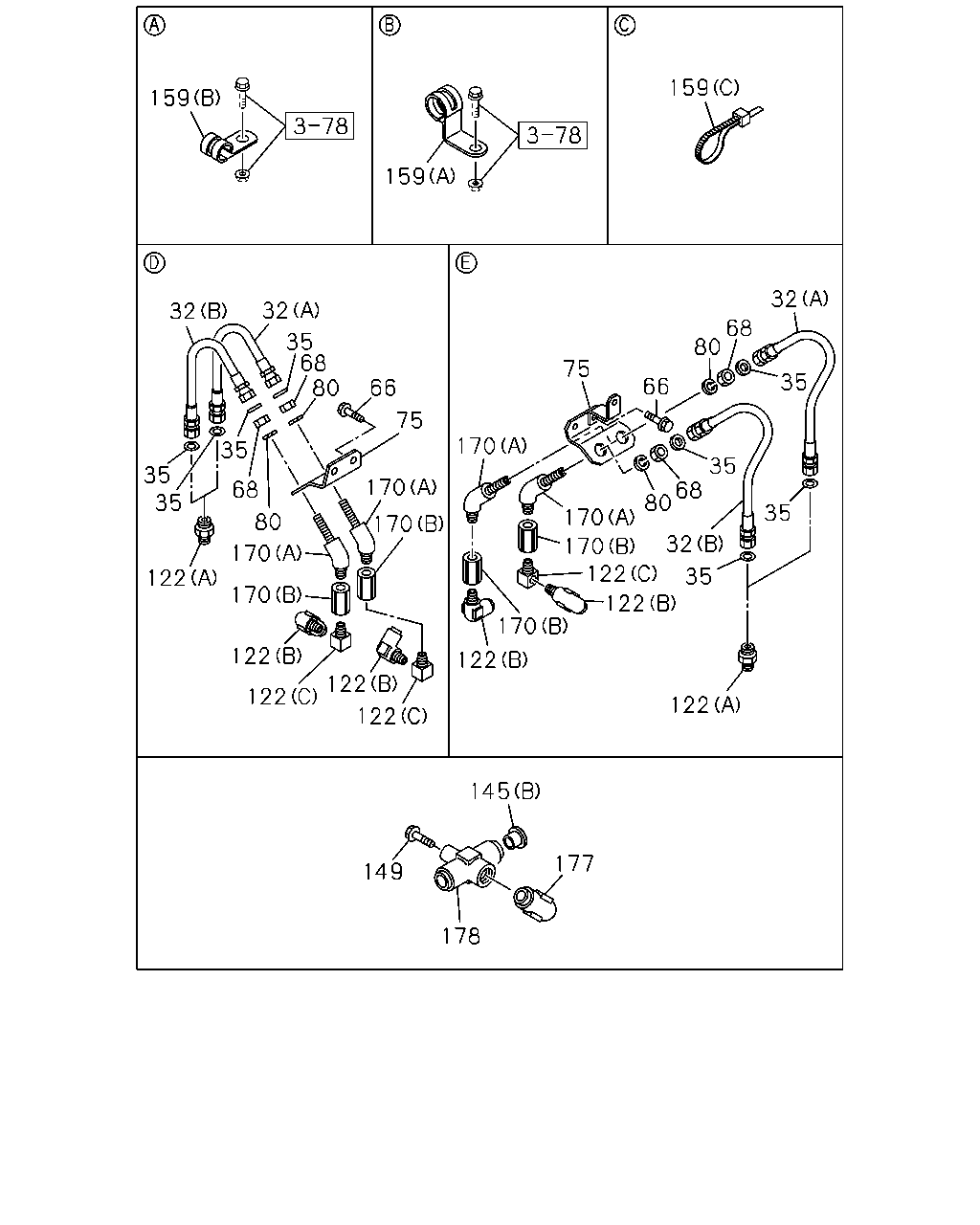

[375A] FRAME SIDE NO.2 (27 parça)
▶
98
98
98
98
98
98
98
98
98
98
98
98
98
98
117
117
117
98
117
117
98
98
98
98
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
(A)
8-98091-307-0
01
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=7
1-87411-016-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=13
1-87411-023-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
1304-
52
98
52
52
98
176
175
145
175
115
98
98
52
52
52
52
93
48
98
56
52
114
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
NUT; UNION BRKT
M6 FLANGE
0-91180-106-0
02
1
1304-
52
CONNECTOR; NYLON TUBE
(E) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
1304-
52
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1304-
52
CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW
1-09660-958-0
02
1
1304-
52
CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
1304-
52
CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT
1-09660-967-0
03
1
1304-
56
BOLT; UNION BRKT
M8X100 FLANGE
0-28050-800-0
01
1
1304-
93
BRACKET; UNION,TUBE
8-98186-924-0
01
1
1304-
98
TUBE; NYLON
(A)
8-98091-307-0
01
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1304-
114
UNION; NYLON TUBE
8-98057-394-1
01
1
1304-
115
NUT; TUBE UNION
M8 FLANGE
0-91180-108-0
01
1
1304-
145
PLUG
(A) PT1/4
9-99204-513-0
01
1
1304-
145
PLUG
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) OD=12
1-09661-617-0
02
1
1304-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1304-
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1304-
159
159
159
32
68
80
66
75
170
122
170
80
68
35
35
35
32
170
122
122
170
122
32
32
68
75
80
66
35
35
35
35
68
170
170
170
122
122
122
122
122
170
80
32
145
177
149
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
HOSE; FLEX,FRT
(A)
0-87847-430-1
02
1
1304-
32
HOSE; FLEX,FRT
(B)
0-87847-470-1
02
1
1304-
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
08
1
1304-
66
BOLT; HOSE BRKT
M8X30 FLANGE
0-28650-830-0
04
1
1304-
68
NUT; UNION
M20
0-91111-520-0
04
1
1304-
75
BRACKET; UNION
8-98234-766-0
01
1
1304-
75
BRACKET; UNION
8-98234-767-0
01
1
1304-
80
WASHER; LK,UNION
ID=20.2
0-91510-520-0
04
1
1304-
122
CONNECTOR; FLEX HOSE
(C) PT3/8 ELBOW
1-09660-696-0
03
1
1304-1307
122
CONNECTOR; FLEX HOSE
(C) PT3/8 ELBOW
1-09660-696-0
04
1
1308-
122
CONNECTOR; FLEX HOSE
(A) M20 & PT3/8
1-09660-731-1
04
1
1304-
122
CONNECTOR; FLEX HOSE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1304-
145
PLUG
(A) PT1/4
9-99204-513-0
01
1
1304-
145
PLUG
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) OD=12
1-09661-617-0
02
1
1304-
149
BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE
0-28650-820-0
02
1
1304-
159
CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=31 H=30 L=35
1-09700-994-0
03
1
1304-
159
CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) (C) L=350
1-09707-183-0
20
1
1304-
159
CLIP; NYLON TUBE
(B) ID=26 L=26
1-09701-236-0
01
1
1304-
159
CLIP; NYLON TUBE
(B) ID=29 L=35
5-09700-293-1
01
1
1304-
159
CLIP; NYLON TUBE
(B) ID=39 L=33
8-98009-359-0
01
1
1304-
159
CLIP; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=31 H=30 L=35
1-09700-994-0
02
1
1304-
159
CLIP; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=350
1-09707-183-0
18
1
1304-1304
159
CLIP; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=350
1-09707-183-0
21
1
1305-
170
UNION; FLARE
(A) M20
1-09654-199-2
04
1
1304-
170
UNION; FLARE
(B) M20 & RC3/8 STRAIGHT
1-09660-883-0
04
1
1304-
177
CONNECTOR
EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1304-
178
UNION
EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN12X2 & R3/8 3WAY
1-09661-131-0
02
1
1304-
