Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#11838) — 233 parça

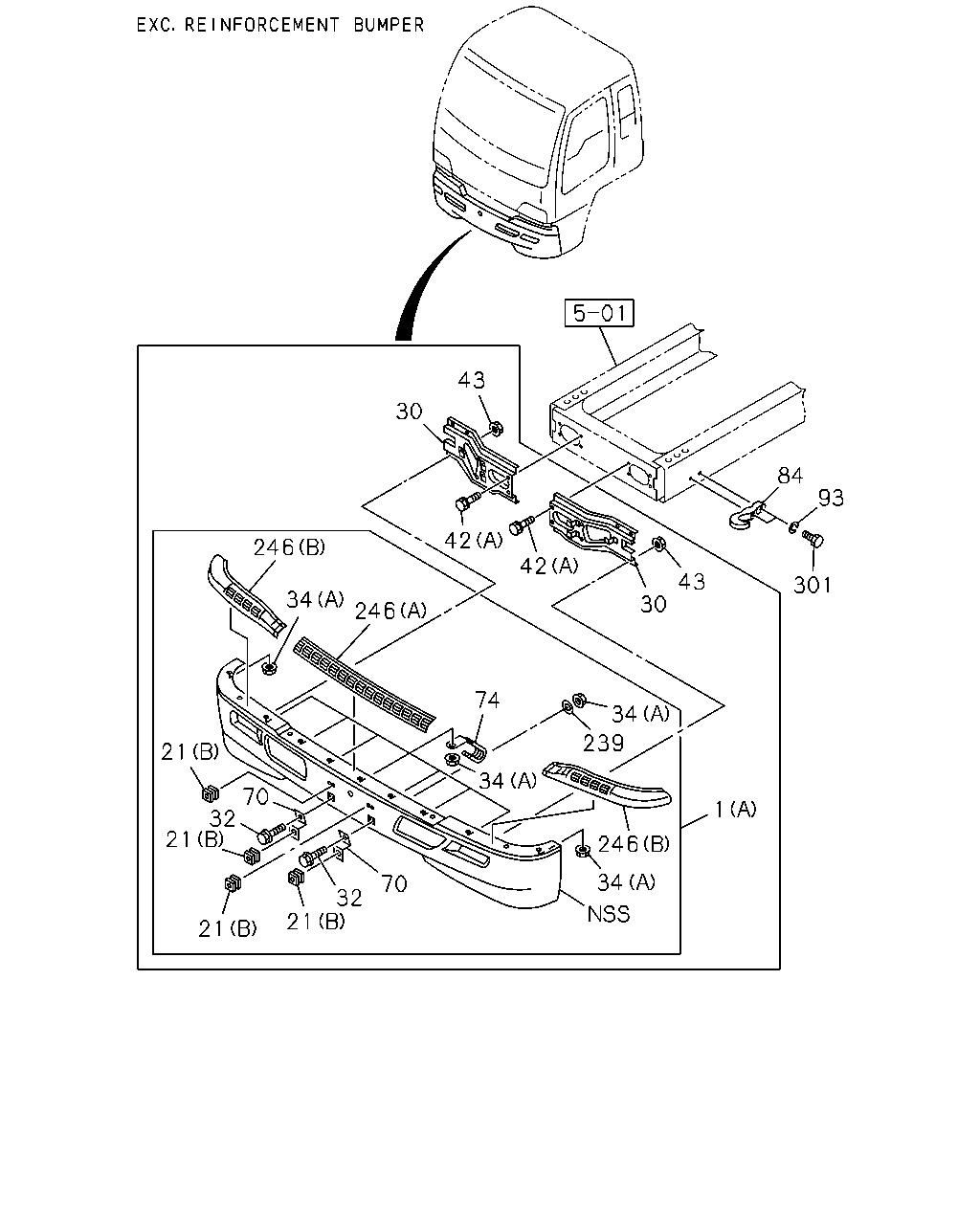

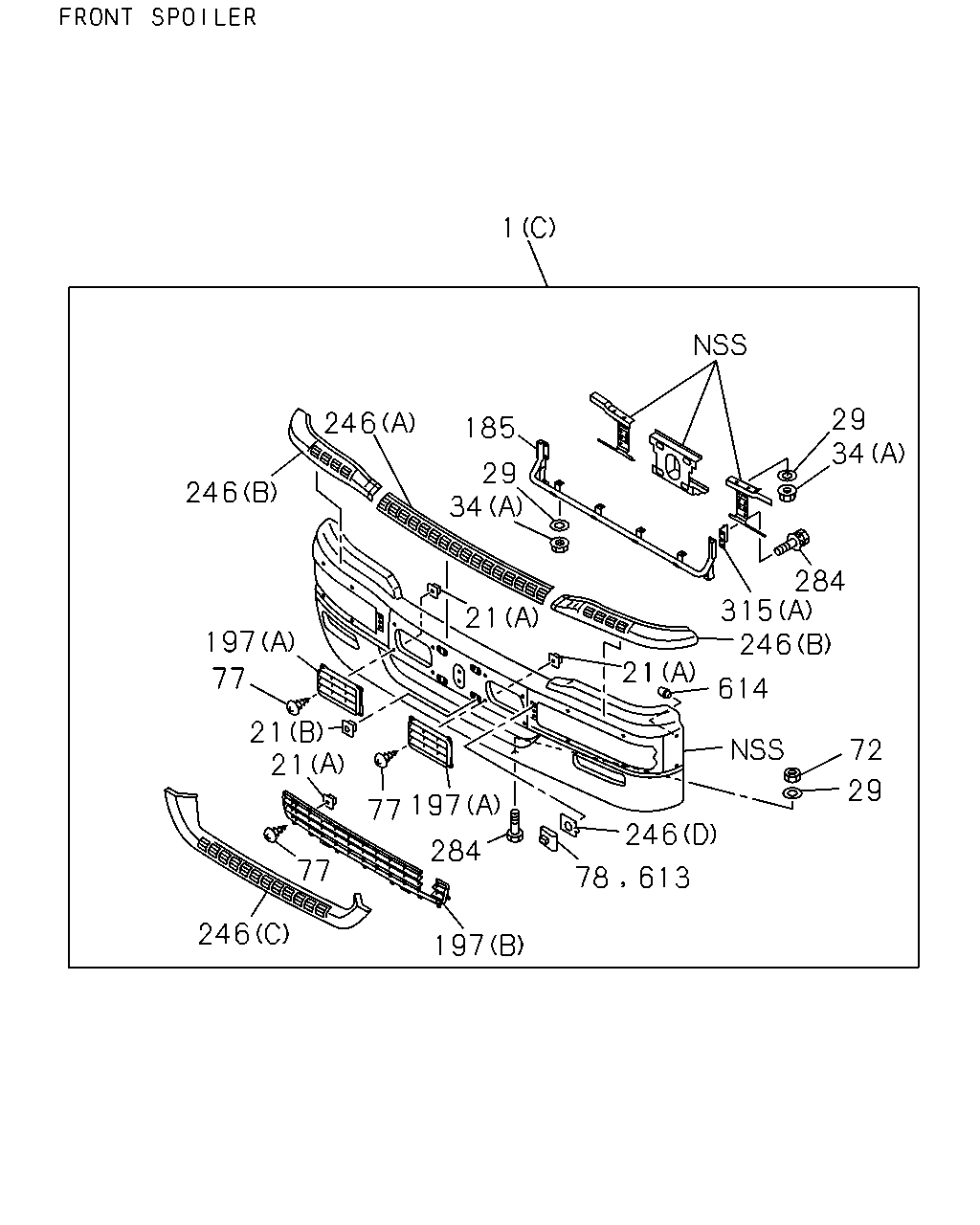

1 29 34 246 185 29 34 21 246 284 315 246 197 21 77 614 21 21 72 29 77 197 246 284 77 78 613 246 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-769-7	01	1	0105-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71210-949-0	01	1	0105-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-817-0	01	1	0105-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	0105-0211
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) D=9X9 L=7 M5	8-94163-979-0	22	1	0212-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) D=9X9 L=8 M6	8-94222-314-0	08	1	0105-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B) D=9X9 L=8 M6	8-94222-314-0	04	1	0105-
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4 OD=22	9-09160-708-0	19	1	0105-0211
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4 OD=22	9-09160-708-0	17	1	0212-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	17	1	0105-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M14 FLANGE	0-91150-114-0	04	1	0105-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M8 FLANGE	0-91150-108-0	15	1	0105-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	02	1	0105-
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8	9-09110-508-0	02	1	0105-0211
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M5X20	9-93490-520-0	24	1	0105-0211
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M5X16 TAPPING	9-07076-516-0	22	1	0212-
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-152-0	06	1	0105-0211
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-174-0	06	1	0212-
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-416-0	01	1	0105-0211
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-117-0	01	1	0105-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-115-1	01	1	0105-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-116-1	01	1	0105-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	0105-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D)	1-71260-162-0	06	1	0105-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	0105-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	0105-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	0105-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	0105-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	0105-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	0105-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0105-0211
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-503-0	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-502-0	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-390-0	01	1	0105-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-381-1	01	1	0105-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-380-0	01	1	0105-
613	CLIP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> OD=9 H=17.5	1-09709-181-0	02	1	0105-
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-163-0	12	1	0105-

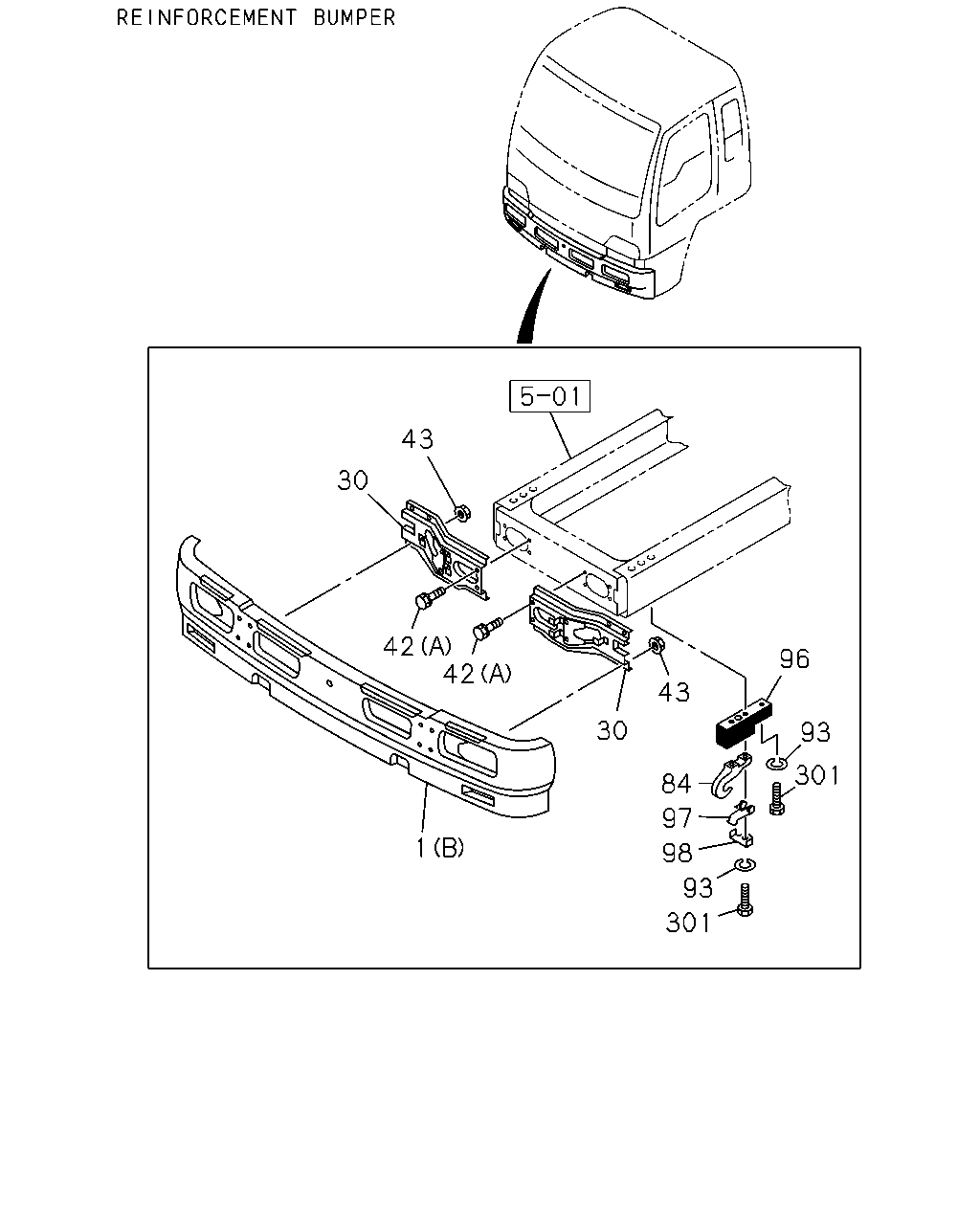

43 30 42 42 96 43 30 93 301 84 97 1 98 93 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-769-7	01	1	0105-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71210-949-0	01	1	0105-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-817-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-428-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-429-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-71230-438-1	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-71230-439-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-283-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-282-1	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-421-0	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-420-0	01	1	0105-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M10X20 FLANGE	0-28081-020-0	06	1	0105-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	0105-
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	0105-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	04	1	0105-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X30 FLANGE	0-28081-030-0	04	1	0105-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10 FLANGE	0-91150-210-0	01	1	0105-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M10 CAP NUT	1-09650-480-0	08	1	0105-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	0105-
84	HOOK	1-57181-027-1	01	1	0105-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0105-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0105-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-53497-473-0	01	1	0105-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>	1-57189-203-1	01	1	0105-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	0105-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	0105-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	0105-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	0105-

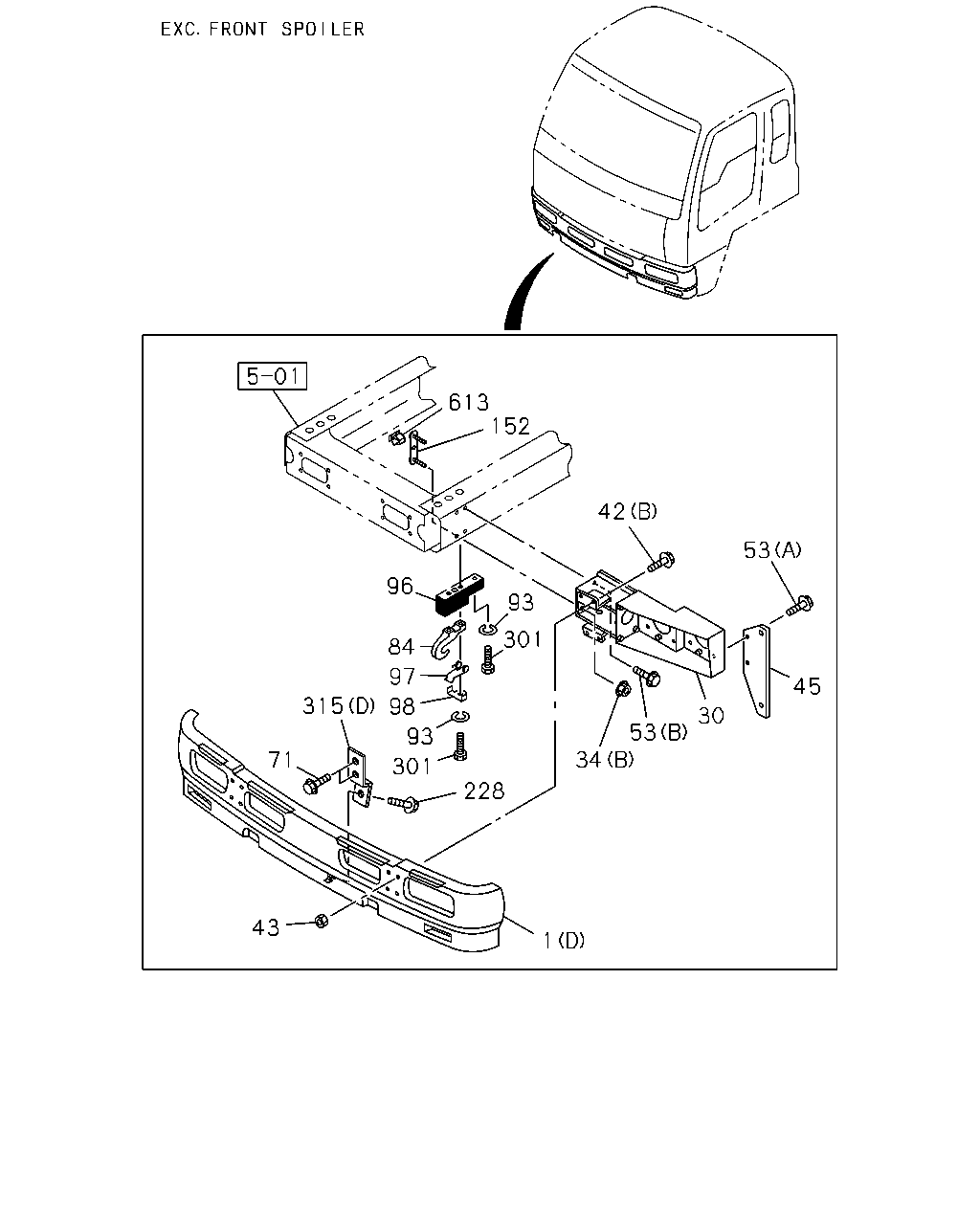

613 152 42 53 96 93 301 84 97 45 315 98 30 53 34 93 71 301 228 43 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-769-7	01	1	0105-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71210-949-0	01	1	0105-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-817-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-428-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-429-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-71230-438-1	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-71230-439-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-283-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-282-1	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-421-0	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-420-0	01	1	0105-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	17	1	0105-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M14 FLANGE	0-91150-114-0	04	1	0105-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M8 FLANGE	0-91150-108-0	15	1	0105-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	02	1	0105-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M10X20 FLANGE	0-28081-020-0	06	1	0105-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	0105-
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	0105-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	04	1	0105-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X30 FLANGE	0-28081-030-0	04	1	0105-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10 FLANGE	0-91150-210-0	01	1	0105-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M10 CAP NUT	1-09650-480-0	08	1	0105-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	0105-
45	BRACKET; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-71230-366-0	02	1	0105-
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M14X35	0-28081-435-0	04	1	0105-
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) M10X20 FLANGE	0-28681-020-0	08	1	0105-
71	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M10X20 FLANGE	0-28081-020-0	02	1	0105-
84	HOOK	1-57181-027-1	01	1	0105-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0105-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0105-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-53497-473-0	01	1	0105-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>	1-57189-203-1	01	1	0105-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	0105-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	0105-
152	PLATE; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-53497-546-1	02	1	0105-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M10X20 FLANGE	0-28081-020-0	01	1	0105-
228	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	0105-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	0105-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-503-0	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-502-0	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-390-0	01	1	0105-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-381-1	01	1	0105-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-380-0	01	1	0105-
613	CLIP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> OD=9 H=17.5	1-09709-181-0	02	1	0105-

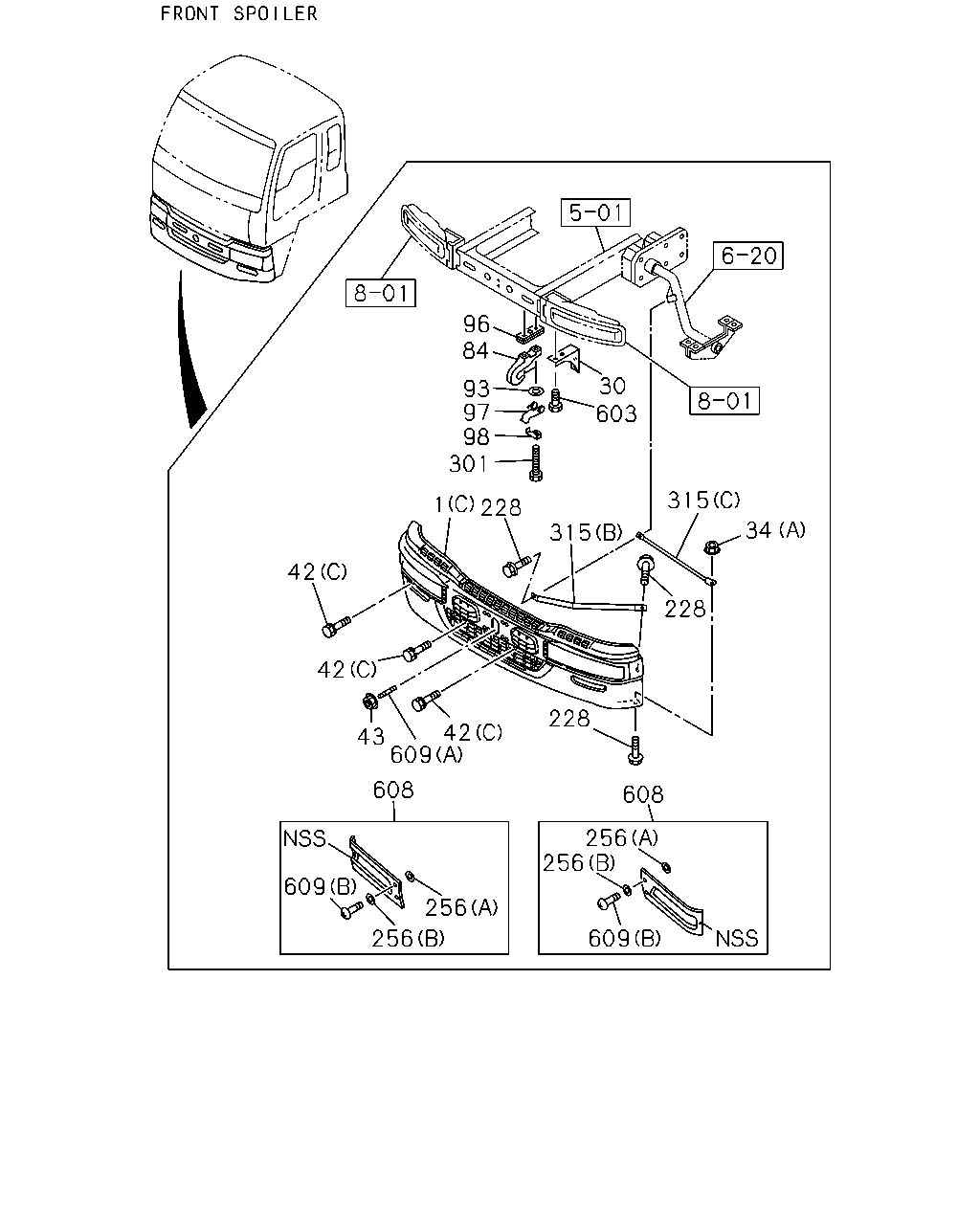

96 84 30 603 93 97 98 301 315 228 34 315 42 228 42 228 43 42 609 608 608 256 256 609 256 609 256 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-769-7	01	1	0105-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71210-949-0	01	1	0105-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-817-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-428-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-429-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-71230-438-1	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-71230-439-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-283-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-282-1	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-421-0	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-420-0	01	1	0105-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	17	1	0105-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M14 FLANGE	0-91150-114-0	04	1	0105-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M8 FLANGE	0-91150-108-0	15	1	0105-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	02	1	0105-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M10X20 FLANGE	0-28081-020-0	06	1	0105-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	0105-
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	0105-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	04	1	0105-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X30 FLANGE	0-28081-030-0	04	1	0105-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10 FLANGE	0-91150-210-0	01	1	0105-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M10 CAP NUT	1-09650-480-0	08	1	0105-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	0105-
84	HOOK	1-57181-027-1	01	1	0105-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0105-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0105-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-53497-473-0	01	1	0105-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>	1-57189-203-1	01	1	0105-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	0105-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	0105-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M10X20 FLANGE	0-28081-020-0	01	1	0105-
228	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	0105-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	0105-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	0105-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	0105-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-503-0	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-502-0	01	1	0105-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-390-0	01	1	0105-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-381-1	01	1	0105-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-380-0	01	1	0105-
603	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	04	1	0105-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	0105-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	0105-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	0105-
609	STUD; BUMPER FRONT SPOILER<VP1> (A) M10X35 L=50	5-09300-050-0	01	1	0105-

43 30 84 93 42 246 42 43 301 34 30 246 74 34 239 21 34 70 32 21 1 246 34 70 32 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-769-7	01	1	0105-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71210-949-0	01	1	0105-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-817-0	01	1	0105-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	0105-0211
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) D=9X9 L=7 M5	8-94163-979-0	22	1	0212-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) D=9X9 L=8 M6	8-94222-314-0	08	1	0105-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B) D=9X9 L=8 M6	8-94222-314-0	04	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-428-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-429-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-71230-438-1	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-71230-439-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-283-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-282-1	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-421-0	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-420-0	01	1	0105-
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0105-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	17	1	0105-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M14 FLANGE	0-91150-114-0	04	1	0105-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M8 FLANGE	0-91150-108-0	15	1	0105-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	02	1	0105-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M10X20 FLANGE	0-28081-020-0	06	1	0105-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	0105-
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	0105-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	04	1	0105-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X30 FLANGE	0-28081-030-0	04	1	0105-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10 FLANGE	0-91150-210-0	01	1	0105-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M10 CAP NUT	1-09650-480-0	08	1	0105-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	0105-
70	BRACKET; LICENSE PLATE,FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71260-150-0	02	1	0105-
74	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-09701-203-0	07	1	0105-
84	HOOK	1-57181-027-1	01	1	0105-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0105-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0105-
239	WASHER; PL,BRKT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=8.4 OD=22	9-09160-708-0	02	1	0105-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	0105-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D)	1-71260-162-0	06	1	0105-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	0105-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	0105-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	0105-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	0105-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	0105-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	0105-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	0105-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
