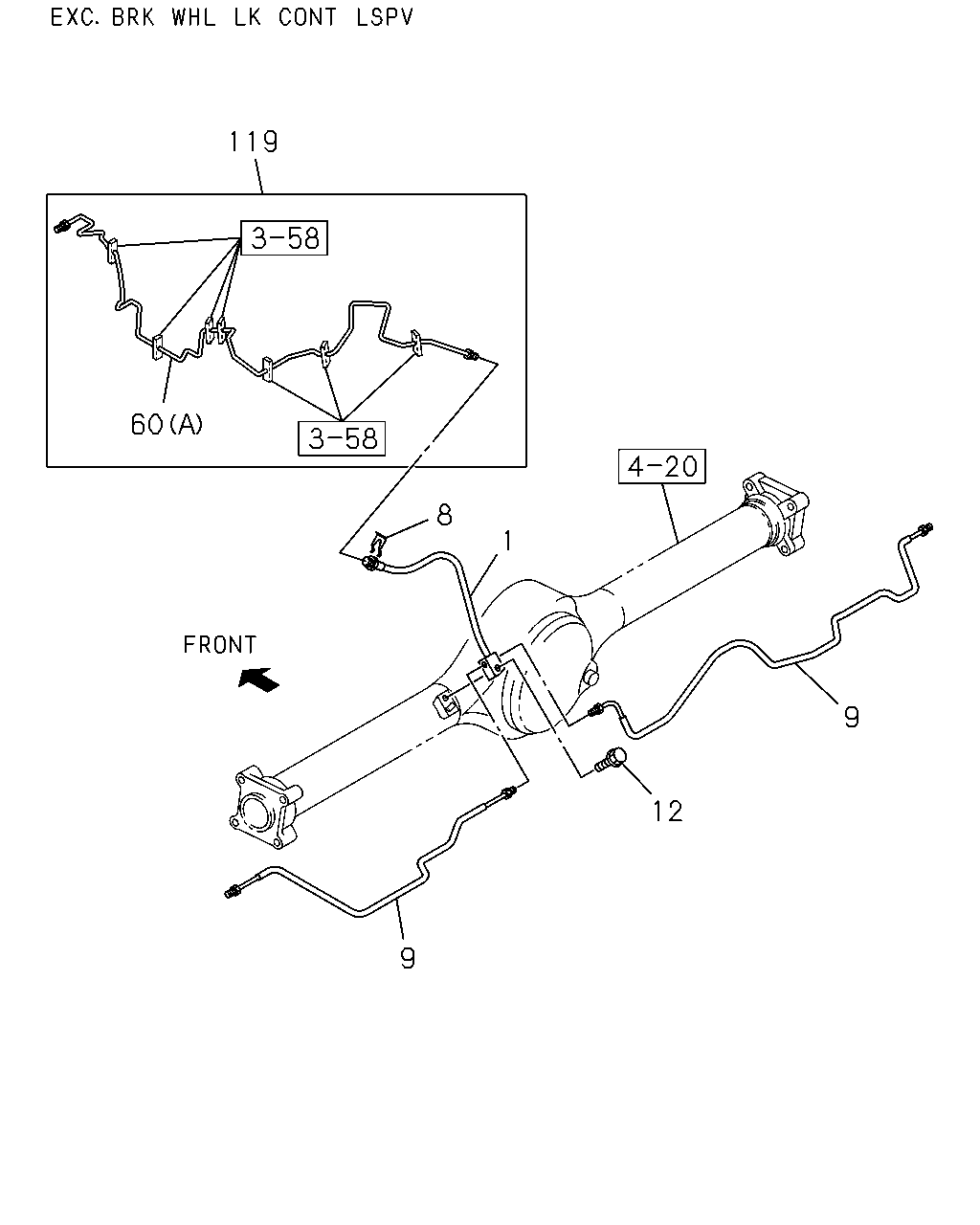

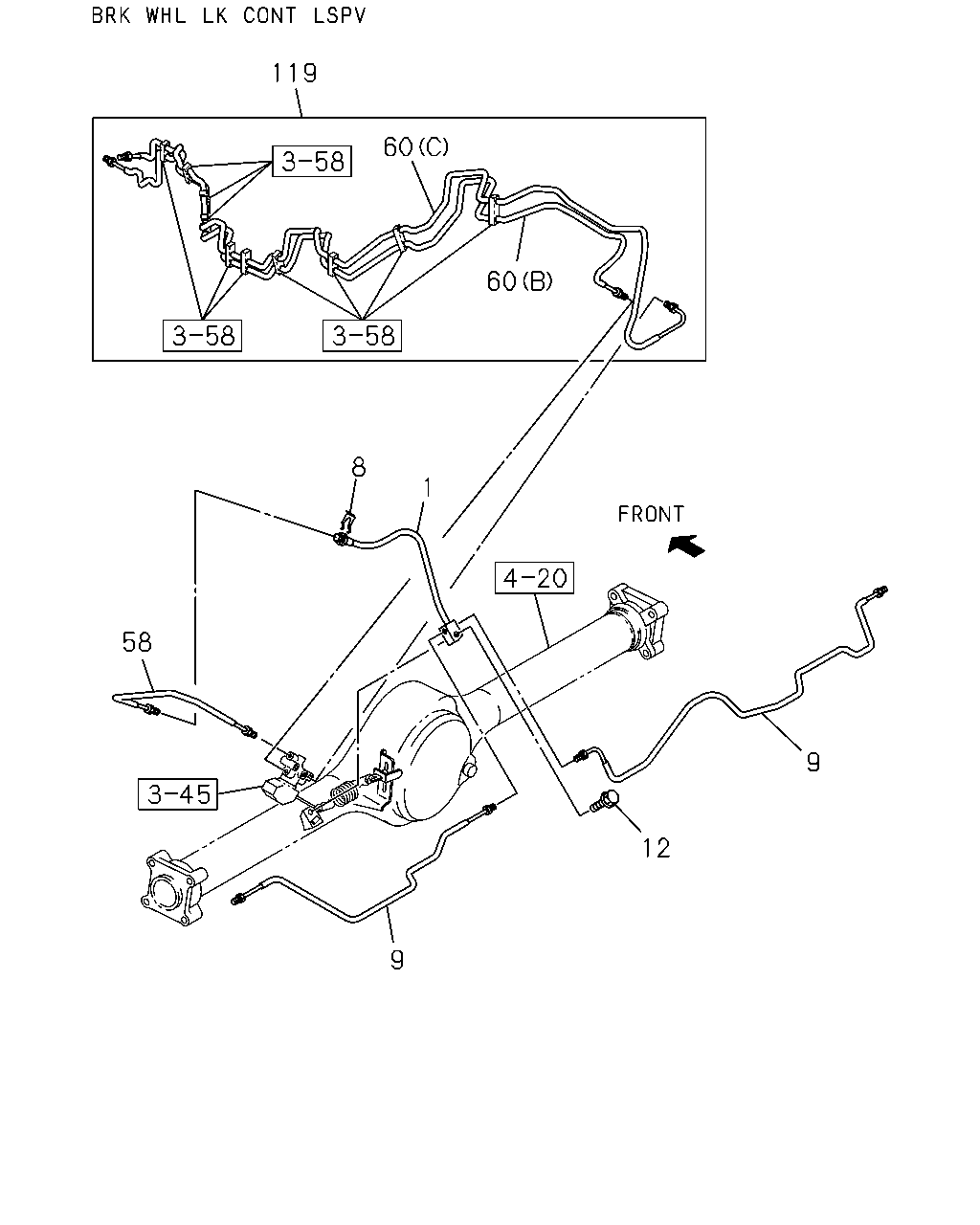

3-55 — BRAKE PIPING; OIL,REAR (#118374) — 123 parça

119 60 60 8 12 9 58 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.680 HOSE; FLEX,RR BRK	8-98067-084-1	01	1	1304-	●	●	●	●
8	04.686 CLIP; RR BRK	8-97360-054-0	01	1	1304-	●	●	●	●
9	04.685 PIPE; BRK,RR AXLE	8-98103-451-0	01	1	1304-	●
9	04.685 PIPE; BRK,RR AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98103-451-0	01	1	1304-		●
9	04.685 PIPE; BRK,RR AXLE	8-98103-452-0	01	1	1304-	●
9	04.685 PIPE; BRK,RR AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98103-452-0	01	1	1304-		●
9	04.685 PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION(7YC)	8-98103-453-0	01	1	1304-		●
9	04.685 PIPE; BRK,RR AXLE	8-98103-453-0	01	1	1304-			●	●
9	04.685 PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION(7YC)	8-98103-454-0	01	1	1304-		●
9	04.685 PIPE; BRK,RR AXLE	8-98103-454-0	01	1	1304-			●	●
12	04.685 BOLT; FLEX HOSE TO RR AXLE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1304-	●	●	●	●
58	04.686 PIPE; BRK,LSV TO RR AXLE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> L=295	8-98099-765-2	01	1	1304-	●	●
58	04.686 PIPE; BRK,LSV TO RR AXLE BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> L=328	8-98099-777-1	01	1	1304-		●
58	04.686 PIPE; BRK,LSV TO RR AXLE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> L=328	8-98099-777-1	01	1	1304-			●	●
60	04.685 PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98099-715-4	01	1	1304-1306	●	●
60	04.685 PIPE ASM; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (A)	8-98099-715-4	01	1	1304-1306	●	●
60	04.685 PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98099-715-4	01	1	1307-1312	●	●
60	04.685 PIPE ASM; BRK EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (A)	8-98099-715-4	01	1	1307-1312	●	●
60	04.685 PIPE ASM; BRK EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (A)	8-98099-715-4	01	1	1401-	●	●
60	04.685 PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-98099-723-4	01	1	1304-1306		●
60	04.685 PIPE ASM; BRK HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1304-1306		●
60	04.685 PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98099-723-4	01	1	1304-1306			●	●
60	04.685 PIPE ASM; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1304-1306			●	●
60	04.685 PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (A)	8-98099-723-4	01	1	1307-1312		●
60	04.685 PIPE ASM; BRK HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1307-1312		●
60	04.685 PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1307-1312			●	●
60	04.685 PIPE ASM; BRK EXC. BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1307-1312			●	●
60	04.685 PIPE ASM; BRK HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1401-		●
60	04.685 PIPE ASM; BRK EXC. BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1401-			●	●
60	04.685 PIPE ASM; BRK BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98099-763-5	01	1	1304-	●	●
60	04.685 PIPE ASM; BRK BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98099-764-5	01	1	1304-	●	●
60	04.685 PIPE ASM; BRK BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98099-779-4	01	1	1304-		●
60	04.685 PIPE ASM; BRK BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98099-779-4	01	1	1304-			●	●
60	04.685 PIPE ASM; BRK BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98099-780-4	01	1	1304-		●
60	04.685 PIPE ASM; BRK BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98099-780-4	01	1	1304-			●	●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1304-1306	●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1304-1306	●	●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1307-1312	●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1307-1312	●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1401-	●	●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98099-722-4	01	1	1304-1306		●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1304-1306		●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98099-722-4	01	1	1304-1306			●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1304-1306			●	●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC)	8-98099-722-4	01	1	1307-1312		●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1307-1312		●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1307-1312			●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1307-1312			●	●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1401-		●
119	04.685 PIPE; BRK,2WAY TO RR EXC. BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1401-			●	●
119	04.685 PIPE; BRK,2WAY TO RR BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC)	8-98099-762-5	01	1	1304-	●	●
119	04.685 PIPE; BRK,2WAY TO RR BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98099-778-4	01	1	1304-		●
119	04.685 PIPE; BRK,2WAY TO RR BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98099-778-4	01	1	1304-			●	●

119 119 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	04.686 CONNECTOR EXC. BRK WHL LK CONT LSPV<JR9> (A)	8-98099-784-1	01	1	1304-	●	●	●	●
25	04.686 CONNECTOR BRK WHL LK CONT LSPV<JR9> (B)	8-98099-783-1	01	1	1304-	●	●	●	●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1304-1306	●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1304-1306	●	●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1307-1312	●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1307-1312	●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1401-	●	●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98099-722-4	01	1	1304-1306		●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1304-1306		●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98099-722-4	01	1	1304-1306			●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1304-1306			●	●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC)	8-98099-722-4	01	1	1307-1312		●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1307-1312		●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1307-1312			●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1307-1312			●	●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1401-		●
119	04.685 PIPE; BRK,2WAY TO RR EXC. BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1401-			●	●
119	04.685 PIPE; BRK,2WAY TO RR BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC)	8-98099-762-5	01	1	1304-	●	●
119	04.685 PIPE; BRK,2WAY TO RR BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98099-778-4	01	1	1304-		●
119	04.685 PIPE; BRK,2WAY TO RR BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98099-778-4	01	1	1304-			●	●

119 60 9 12 9 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.680 HOSE; FLEX,RR BRK	8-98067-084-1	01	1	1304-	●	●	●	●
8	04.686 CLIP; RR BRK	8-97360-054-0	01	1	1304-	●	●	●	●
9	04.685 PIPE; BRK,RR AXLE	8-98103-451-0	01	1	1304-	●
9	04.685 PIPE; BRK,RR AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98103-451-0	01	1	1304-		●
9	04.685 PIPE; BRK,RR AXLE	8-98103-452-0	01	1	1304-	●
9	04.685 PIPE; BRK,RR AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98103-452-0	01	1	1304-		●
9	04.685 PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION(7YC)	8-98103-453-0	01	1	1304-		●
9	04.685 PIPE; BRK,RR AXLE	8-98103-453-0	01	1	1304-			●	●
9	04.685 PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION(7YC)	8-98103-454-0	01	1	1304-		●
9	04.685 PIPE; BRK,RR AXLE	8-98103-454-0	01	1	1304-			●	●
12	04.685 BOLT; FLEX HOSE TO RR AXLE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1304-	●	●	●	●
60	04.685 PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98099-715-4	01	1	1304-1306	●	●
60	04.685 PIPE ASM; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (A)	8-98099-715-4	01	1	1304-1306	●	●
60	04.685 PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98099-715-4	01	1	1307-1312	●	●
60	04.685 PIPE ASM; BRK EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (A)	8-98099-715-4	01	1	1307-1312	●	●
60	04.685 PIPE ASM; BRK EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (A)	8-98099-715-4	01	1	1401-	●	●
60	04.685 PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-98099-723-4	01	1	1304-1306		●
60	04.685 PIPE ASM; BRK HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1304-1306		●
60	04.685 PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98099-723-4	01	1	1304-1306			●	●
60	04.685 PIPE ASM; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1304-1306			●	●
60	04.685 PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (A)	8-98099-723-4	01	1	1307-1312		●
60	04.685 PIPE ASM; BRK HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1307-1312		●
60	04.685 PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1307-1312			●	●
60	04.685 PIPE ASM; BRK EXC. BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1307-1312			●	●
60	04.685 PIPE ASM; BRK HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1401-		●
60	04.685 PIPE ASM; BRK EXC. BRK WHL LK CONT LSPV<JR9> (A)	8-98099-723-4	01	1	1401-			●	●
60	04.685 PIPE ASM; BRK BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98099-763-5	01	1	1304-	●	●
60	04.685 PIPE ASM; BRK BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98099-764-5	01	1	1304-	●	●
60	04.685 PIPE ASM; BRK BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98099-779-4	01	1	1304-		●
60	04.685 PIPE ASM; BRK BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98099-779-4	01	1	1304-			●	●
60	04.685 PIPE ASM; BRK BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98099-780-4	01	1	1304-		●
60	04.685 PIPE ASM; BRK BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98099-780-4	01	1	1304-			●	●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1304-1306	●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1304-1306	●	●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1307-1312	●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1307-1312	●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)	8-98099-714-4	01	1	1401-	●	●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98099-722-4	01	1	1304-1306		●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1304-1306		●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98099-722-4	01	1	1304-1306			●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1304-1306			●	●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC)	8-98099-722-4	01	1	1307-1312		●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1307-1312		●
119	04.685 PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1307-1312			●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1307-1312			●	●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1401-		●
119	04.685 PIPE; BRK,2WAY TO RR EXC. BRK WHL LK CONT LSPV<JR9>	8-98099-722-4	01	1	1401-			●	●
119	04.685 PIPE; BRK,2WAY TO RR BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC)	8-98099-762-5	01	1	1304-	●	●
119	04.685 PIPE; BRK,2WAY TO RR BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98099-778-4	01	1	1304-		●
119	04.685 PIPE; BRK,2WAY TO RR BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98099-778-4	01	1	1304-			●	●
