6-03 — RADIATOR GRILLE (#118367) — 48 parça

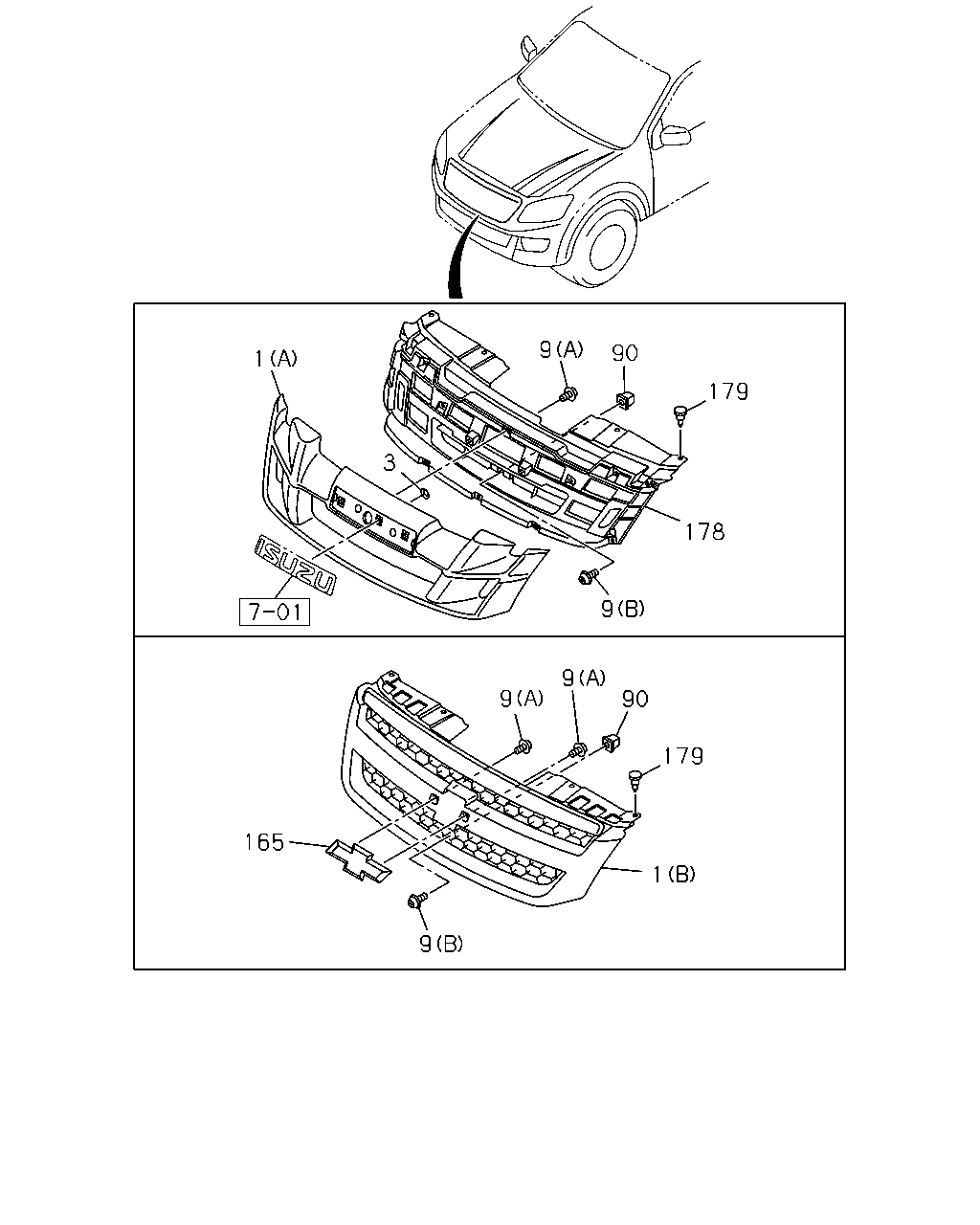

çizim 343678
1 3 9 179 90 178 9 165 9 9 90 9 179 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> (B) 		8-98211-894-0 01 1 1304- ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> KD-PREPARATORY PACK VAR4<7TV> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98211-894-0 01 1 1304- ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,KD-PREPARATORY PACK VAR4<7TV> (B) 		8-98211-894-0 01 1 1304- ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1> EXC. KD-PREPARATORY PACK VAR4<7TV> (B) 		8-98211-894-0 01 1 1304- ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> (A) 		8-98193-867-0 01 1 1304- ● ●
1 01.266 GRILLE; RAD
KD-PREPARATORY PACK VAR4<7TV> ISUZU BRAND<7WL> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-98193-867-0 01 1 1304- ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,KD-PREPARATORY PACK VAR4<7TV> (A) 		8-98193-867-0 01 1 1304- ● ●
1 01.266 GRILLE; RAD
EXC. BRIGHT RAD GRILLE<V22> (A) 		8-98193-867-0 01 1 1304- ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (A) PLEASE PAINT TO MATCH BODY COLOR 		8-98196-514-1 01 1 1304- ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A) PLATED 		8-98193-869-0 01 1 1304- ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (A) PLATED 		8-98193-869-0 01 1 1304- ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> 		8-98211-687-0 03 1 1304- ● ● ● ●
3 01.269 CLIP; GRILLE 8-98211-687-0 03 1 1304- ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> (A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 02 1 1304- ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> KD-PREPARATORY PACK VAR4<7TV> EXC. BRIGHT RAD GRILLE<V22> (A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 02 1 1304- ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,KD-PREPARATORY PACK VAR4<7TV> (A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 02 1 1304- ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1> EXC. KD-PREPARATORY PACK VAR4<7TV> (A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 02 1 1304- ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> (A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 12 1 1304- ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 12 1 1304- ●
9 01.269 SCREW; RAD GRILLE
(B) M5X16 		8-98167-352-0 01 1 1304- ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1304- ● ● ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> 		8-98211-893-0 01 1 1304- ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> KD-PREPARATORY PACK VAR4<7TV> EXC. BRIGHT RAD GRILLE<V22> 		8-98211-893-0 01 1 1304- ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,KD-PREPARATORY PACK VAR4<7TV> 		8-98211-893-0 01 1 1304- ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1> EXC. KD-PREPARATORY PACK VAR4<7TV> 		8-98211-893-0 01 1 1304- ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> 		8-98193-871-0 01 1 1304- ● ● ● ●
178 01.269 GRILLE; INNER,RAD 8-98193-871-0 01 1 1304- ●
179 01.269 RETAINER; GRILLE,RAD
07.832 		8-97301-188-0 04 1 1304- ● ● ● ● ●

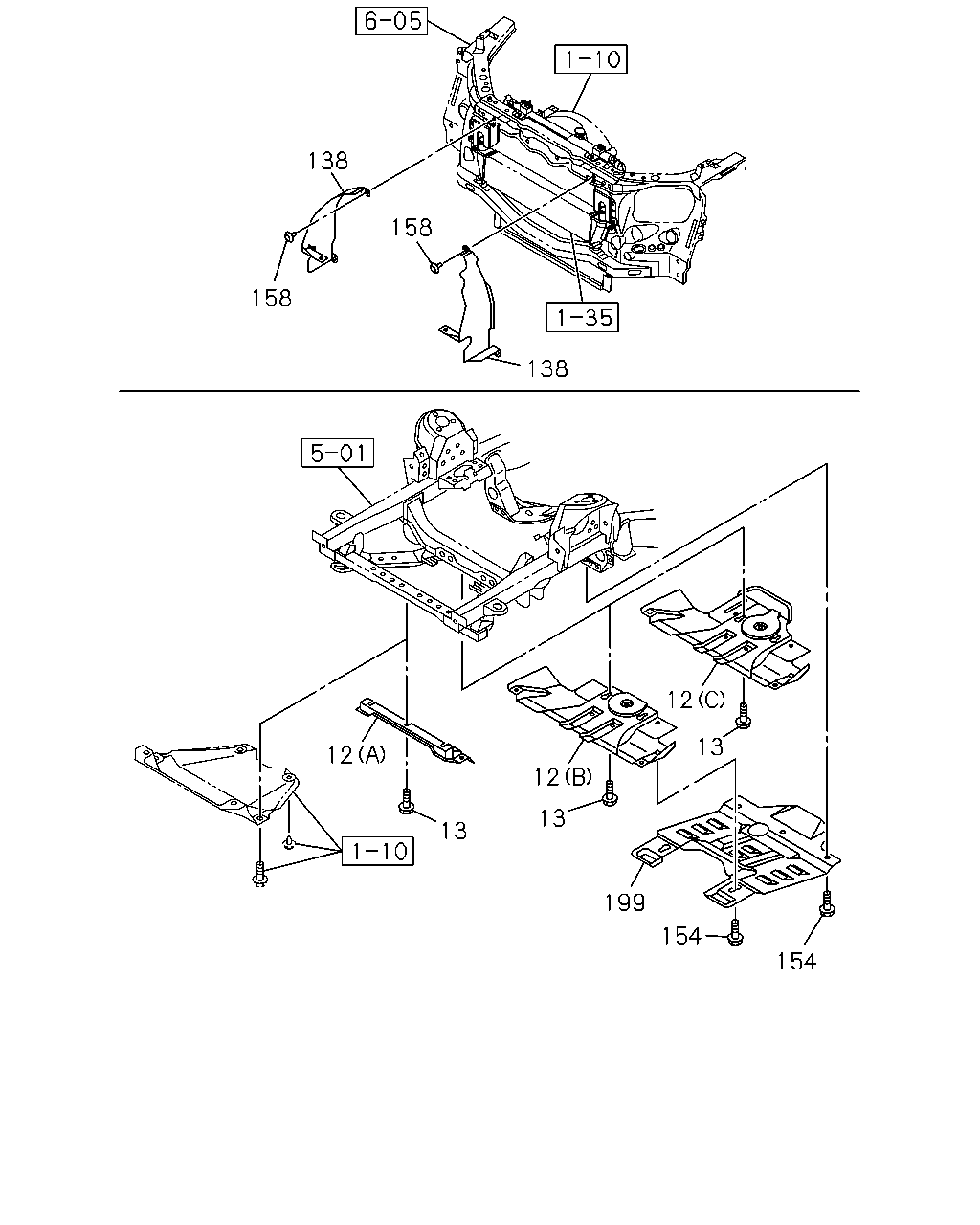

çizim 343694
138 158 138 158 12 13 12 13 199 154 154 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (A) 		8-98102-129-1 01 1 1304- ● ●
12 01.274 PLATE; SKID,RAD
(A) 		8-98102-129-1 01 1 1304- ● ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98102-133-3 01 1 1304-1307 ● ●
12 01.274 PLATE; SKID,RAD
UNDER FRT GUARD<6RJ> (B) 		8-98102-133-3 01 1 1304-1307 ● ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1308- ● ●
12 01.274 PLATE; SKID,RAD
UNDER FRT GUARD<6RJ> (B) 		8-98229-406-0 01 1 1308- ● ● ●
12 01.274 PLATE; SKID,RAD
EXC. UNDER FRT GUARD<6RJ> (C) 		8-98102-131-2 01 1 1304- ● ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1304- ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1304- ● ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 		8-98137-586-1 01 1 1304- ● ● ● ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 		8-98137-587-1 01 1 1304- ● ● ● ● ●
154 01.267 BOLT; COVER
UNDER FRT GUARD<6RJ> HIGH RIDE SUSPENSION(7YC) 01.428 M10X28 W/PL WASHER 		8-98186-487-0 04 1 1304-1307 ● ●
154 01.267 BOLT; COVER
UNDER FRT GUARD<6RJ> 01.428 M10X28 W/PL WASHER 		8-98186-487-0 04 1 1304-1307 ● ● ●
154 01.267 BOLT; COVER
UNDER FRT GUARD<6RJ> HIGH RIDE SUSPENSION(7YC) 01.428 M12X25 FLANGE 		8-98230-015-0 04 1 1308- ● ●
154 01.267 BOLT; COVER
UNDER FRT GUARD<6RJ> 01.428 M12X25 FLANGE 		8-98230-015-0 04 1 1308- ● ● ●
158 01.269 CLIP; PROTECTOR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1304- ● ● ● ● ●
199 01.274 PLATE; OIL PAN
UNDER FRT GUARD<6RJ> HIGH RIDE SUSPENSION(7YC) 01.426 		8-98131-898-1 01 1 1304-1307 ● ●
199 01.274 PLATE; OIL PAN
UNDER FRT GUARD<6RJ> 01.426 		8-98131-898-1 01 1 1304-1307 ● ● ●
199 01.274 PLATE; OIL PAN
UNDER FRT GUARD<6RJ> HIGH RIDE SUSPENSION(7YC) 01.426 		8-98229-404-0 01 1 1308- ● ●
199 01.274 PLATE; OIL PAN
UNDER FRT GUARD<6RJ> 01.426 		8-98229-404-0 01 1 1308- ● ● ●
