Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#118366) — 72 parça

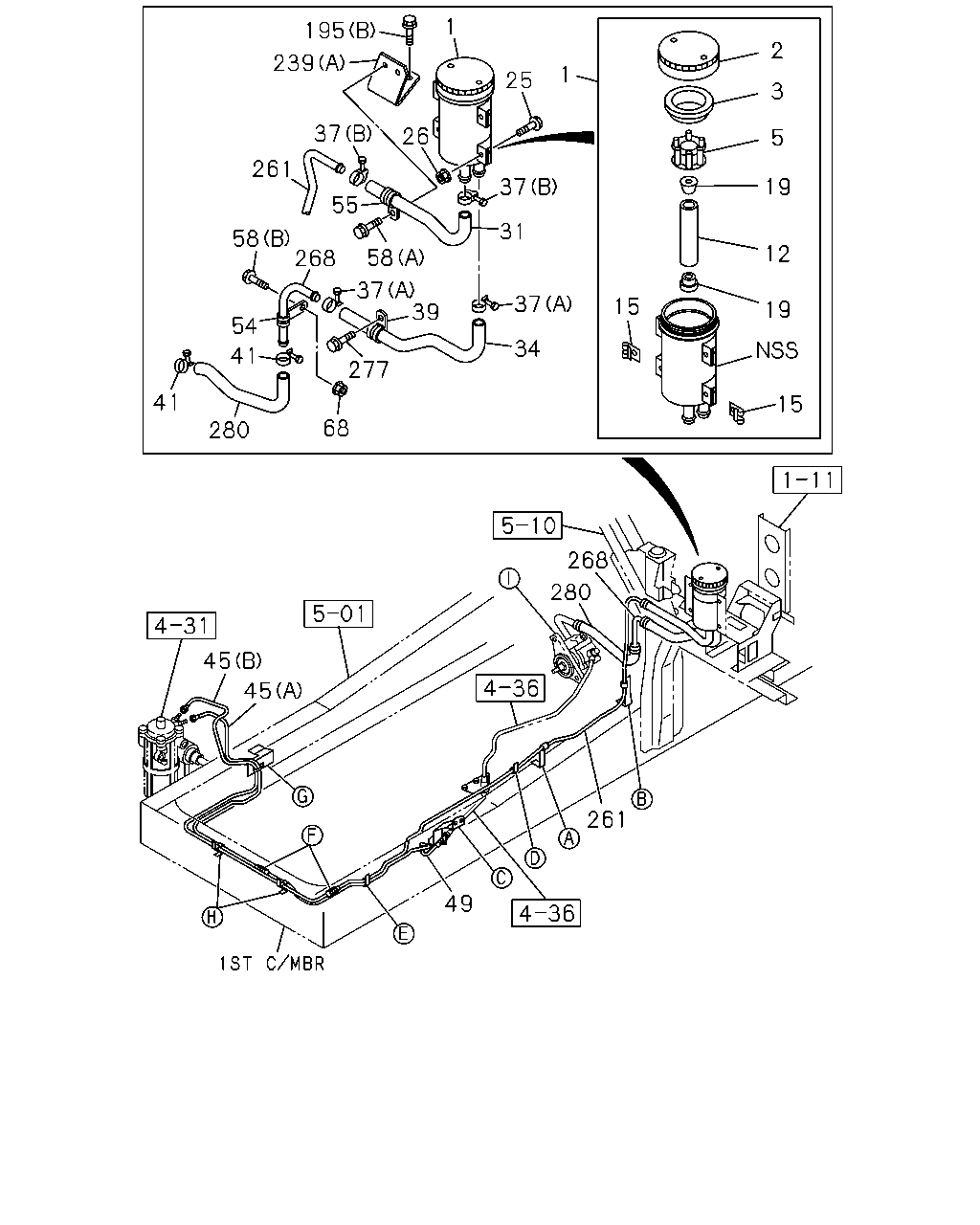

2 3 5 19 12 19 15 15 1 25 1 195 239 26 37 31 37 55 261 58 37 37 34 39 268 58 54 41 277 41 280 68 268 280 261 49 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-958-0	01	1	1304-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1304-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1304-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1304-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1304-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1304-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1304-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1304-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	1304-	●	●
31	HOSE; P/S OIL TANK,INL	8-97618-666-1	01	1	1304-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-97618-665-1	01	1	1304-	●	●
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	1304-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1304-	●	●
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1304-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1304-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98123-061-0	01	1	1304-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98123-062-0	01	1	1304-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-634-0	01	1	1304-	●	●
54	CLIP; OIL PIPE ID=19 L=60	0-95235-896-0	01	1	1304-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1304-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1304-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1304-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1304-	●	●
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1304-	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1304-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98226-407-0	01	1	1304-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-97618-672-0	01	1	1304-	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1304-	●	●

157 266 111 257 256 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1304-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1304-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1304-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1304-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1304-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1304-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1304-	●	●

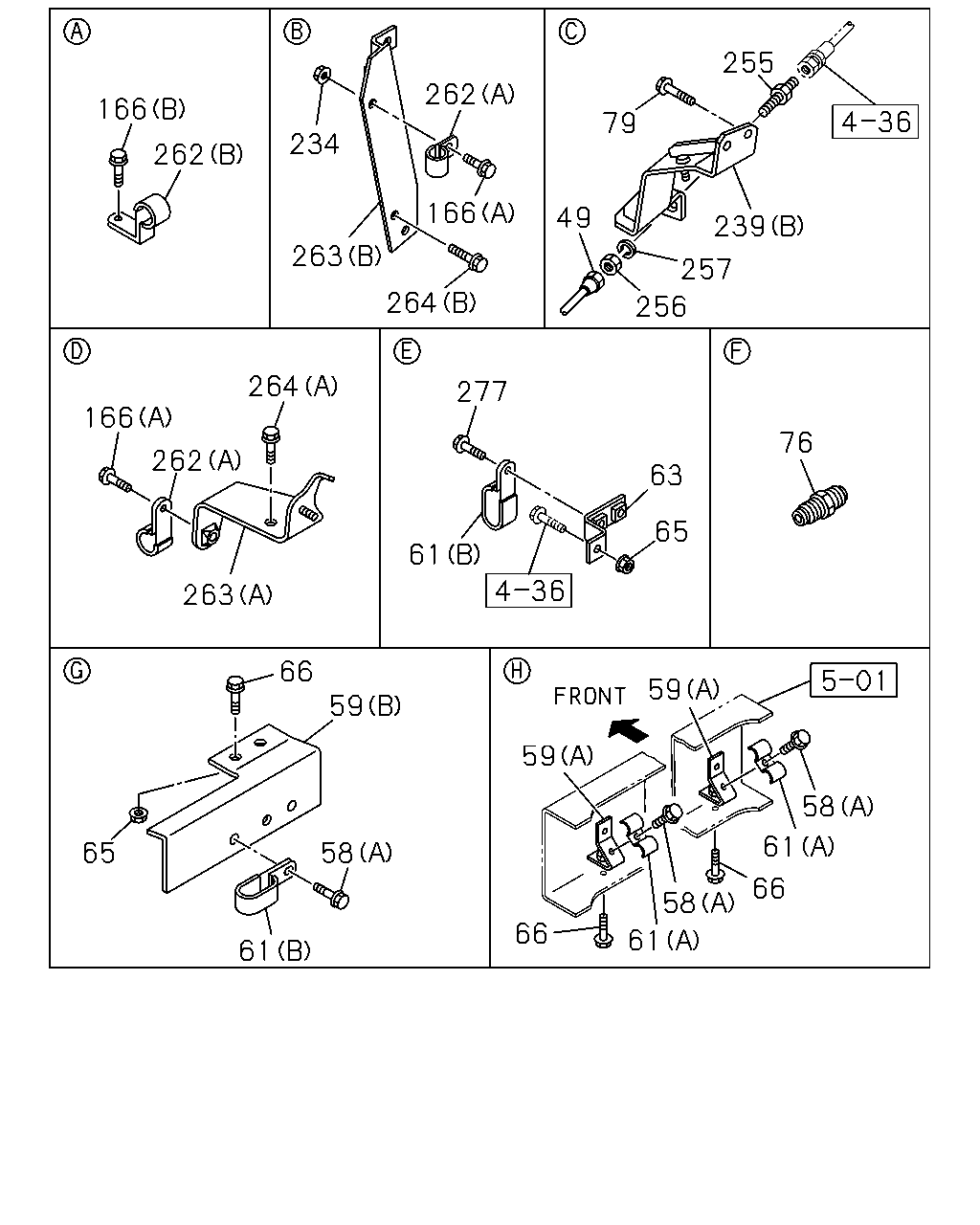

166 234 262 79 255 239 257 256 49 166 263 262 264 166 264 277 63 61 65 66 58 61 66 59 58 61 66 58 61 262 263 65 59 59 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-634-0	01	1	1304-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1304-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1304-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98169-340-0	01	1	1304-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1304-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1304-	●	●
63	BRACKET; CLIP,P/S	1-47479-482-0	01	1	1304-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28050-820-0	02	1	1304-	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1304-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1304-	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1304-	●	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1304-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1304-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1304-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-	●	●
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1304-	●	●
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1304-	●	●
263	BRACKET; P/S PIPE (A)	8-98089-895-2	01	1	1304-	●	●
263	BRACKET; P/S PIPE (B)	8-98090-366-0	01	1	1304-	●	●
264	BOLT; PIPE BRKT WHEEL BASE 6600MM(66W) (B) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●
264	BOLT; PIPE BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
264	BOLT; PIPE BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
264	BOLT; PIPE BRKT WHEEL BASE 4500MM(45W) (B) M8X35 FLANGE	0-28650-835-0	02	1	1304-	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●
