5-01 — FRAME AND OTHER PARTS
(#118362) — 53 parça
◀

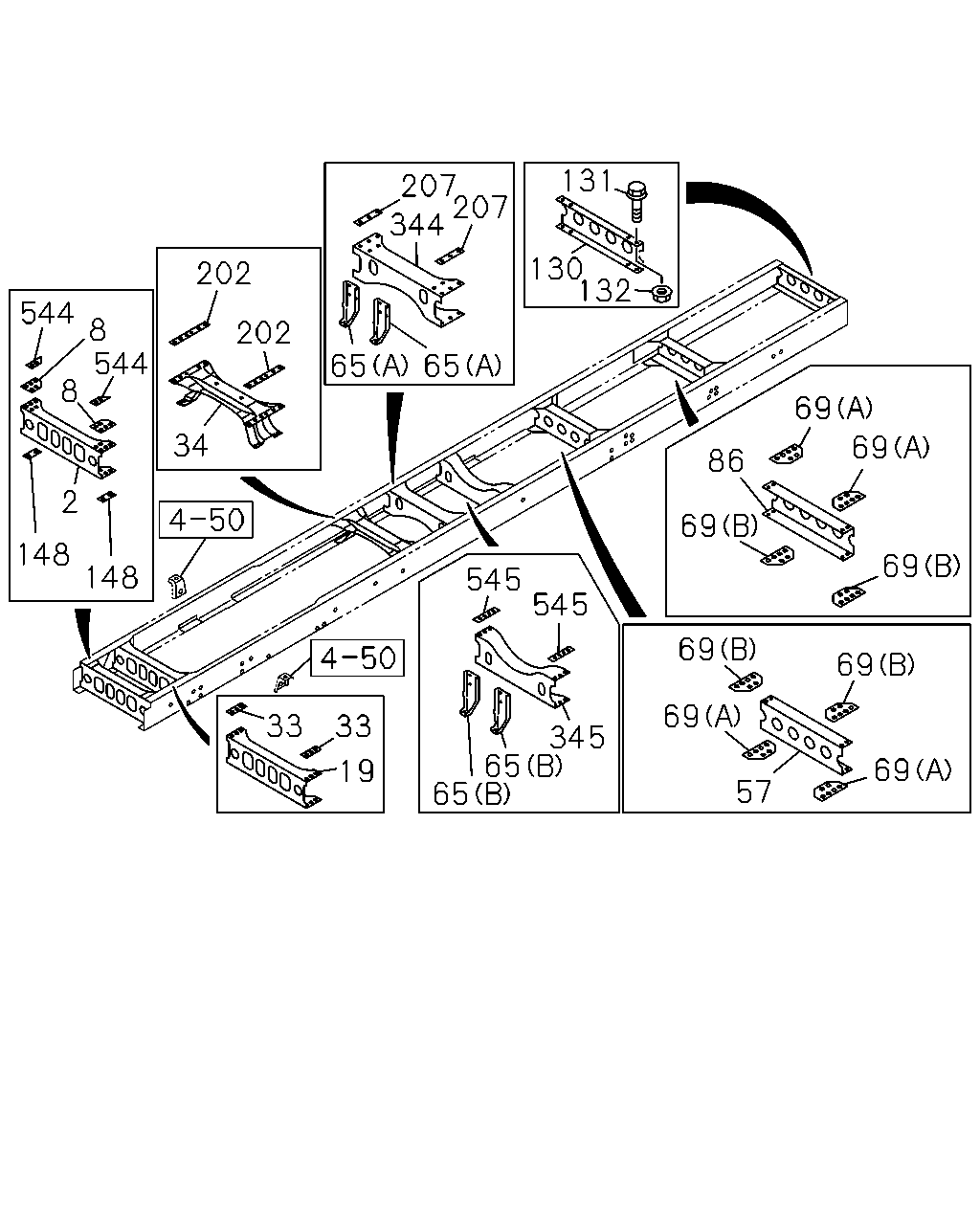

[501A] CROSS MEMBER (21 parça)
[501A] BRACKET AND OTHER PARTS (32 parça)
▶
544
8
8
2
544
148
148
202
202
34
207
344
207
65
65
131
130
132
33
33
19
545
545
345
65
65
57
69
69
69
69
69
69
69
69
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-7
01
1
1304-
8
GUSSET; 1ST C/MBR
8-97611-027-0
02
1
1304-
19
MEMBER; CROSS,2ND
8-97610-853-5
01
1
1304-
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
1304-
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
1304-
57
MEMBER; CROSS,RR SUSP FRT
8-97619-888-3
01
1
1304-
65
BRACKET; CENTER BRG
(A)
8-97612-486-0
02
1
1304-
65
BRACKET; CENTER BRG
(B)
8-97614-134-0
02
1
1304-
69
GUSSET; RR SUSP,UPR
(A)
8-97619-889-0
04
1
1304-
69
GUSSET; RR SUSP,UPR
(B)
8-97619-890-0
04
1
1304-
86
MEMBER; CROSS,RR SUSP RR
8-97619-888-3
01
1
1304-
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1304-
131
BOLT; END C/MBR
M12X30 W/LK WASHER
0-50541-230-0
04
1
1304-
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1304-
148
SPACER; C/MBR
8-97611-039-0
02
1
1304-
202
SPACER; 3RD C/MBR
8-97610-872-0
02
1
1304-
207
SPACER; 4TH C/MBR
0.25KG
8-97611-244-0
02
1
1304-
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1304-
345
MEMBER; CROSS,5TH
8-97611-238-1
01
1
1304-
544
PLATE; CAB FRT MTG
8-97615-598-0
02
1
1304-
545
SPACER; 5TH C/MBR
0.24KG
8-97611-245-0
02
1
1304-
18
11
82
138
106
138
101
118
103
98
117
13
23
25
25
23
25
25
26
24
26
25
46
25
26
25
26
39
46
25
111
82
138
89
281
138
106
129
96
129
105
281
110
97
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97619-550-0
02
1
1304-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1304-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1304-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1304-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1304-
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1304-
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1304-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1304-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1304-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
1304-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1304-
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
1304-
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
1304-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1304-
82
NUT; BRKT
M14
0-91110-514-0
24
1
1304-
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
1304-
96
PAD; RR SPR
1-53359-047-0
02
1
1304-
97
WASHER; LK,PAD
ID=14.2
0-91510-514-0
04
1
1304-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-814-0
16
1
1304-
101
BRACKET; RR SPR,FRT
1-53353-078-1
02
1
1304-
103
STOPPER; SUB SPR
1-53356-057-0
04
1
1304-
105
BRACKET; RR SPR,RR
1-53354-064-1
02
1
1304-
106
BOLT; BRKT
M14X50
0-20951-450-0
24
1
1304-
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
02
1
1304-
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
0-81123-028-0
02
1
1304-
112
BOLT; PAD
M14X35
0-20851-435-0
04
1
1304-
117
BOLT; STOPPER
M14X50
0-20951-450-0
16
1
1304-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1304-
129
SHIM; SIDE
T=4.5
1-53359-061-1
02
1
1304-
129
SHIM; SIDE
T=3.2
1-53359-062-1
02
1
1304-
138
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
24
1
1304-
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30
9-09160-614-0
04
1
1304-
