2-61 — TRANSFER CASE AND GEAR SHIFTER (#118347) — 21 parça

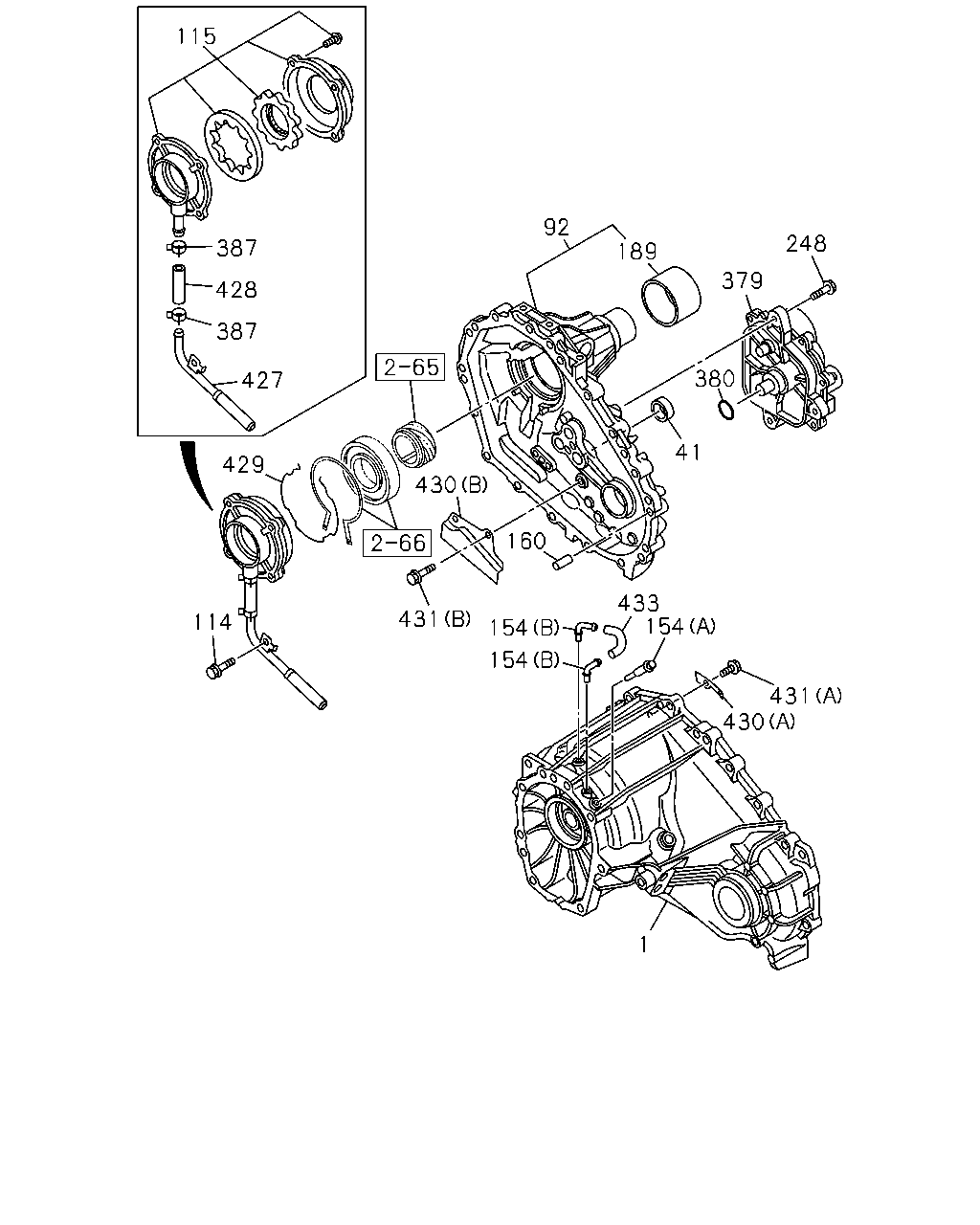

çizim 343014
1 430 154 431 433 154 154 431 114 429 160 430 41 380 379 248 189 92 427 387 428 387 115
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.510 CASE; TRANSFER 8-98177-505-0 01 1 1304- ● ● ●
41 04.515 SEAL; OIL,SHIFT ROD 8-97238-998-0 01 1 1304- ● ● ●
92 04.552 COVER; RR,TRANSFER 8-98118-921-0 01 1 1304- ● ● ●
114 04.200 BOLT; OIL PUMP,TRANSFER
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ● ●
115 04.200 PUMP ASM; OIL,TRANSFER 8-98029-157-0 01 1 1304- ● ● ●
154 04.510 PIPE; BREATHER
(B) 		8-97358-318-0 02 1 1304- ● ● ●
154 04.510 PIPE; BREATHER
(A) 		8-97358-319-0 01 1 1304- ● ● ●
160 04.107 PIN; KNOCK,SHIFT CASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 1304- ● ● ●
189 04.510 COVER; DUST,OIL SEAL 8-98173-748-0 01 1 1304- ● ● ●
248 04.105 BOLT
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1304- ● ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT 8-98196-415-0 01 1 1304- ● ● ●
380 04.505 GASKET; ACTUATOR
ID=29.7 OD=36.7 		8-97318-475-0 01 1 1304- ● ● ●
387 04.319 CLAMP; HOSE
01.097 ID=16 		8-97329-628-0 02 1 1304- ● ● ●
427 04.510 SCREEN; OIL PUMP 8-98063-358-0 01 1 1304- ● ● ●
428 04.510 HOSE; OIL PUMP
L=50 		8-98064-220-0 01 1 1304- ● ● ●
429 04.525 RING; SNAP,OIL PUMP 8-97240-666-0 01 1 1304- ● ● ●
430 04.500 PLATE; BAFFLE
(A) 		8-97239-130-0 01 1 1304- ● ● ●
430 04.500 PLATE; BAFFLE
(B) 		8-98063-360-0 01 1 1304- ● ● ●
431 04.200 BOLT; BAFFLE PLATE
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1304- ● ● ●
431 04.200 BOLT; BAFFLE PLATE
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1304- ● ● ●
433 04.510 HOSE; AIR,TRANSFER 8-97236-080-0 01 1 1304- ● ● ●
