0-50 — OIL COOLER AND OIL FILTER (#118345) — 45 parça

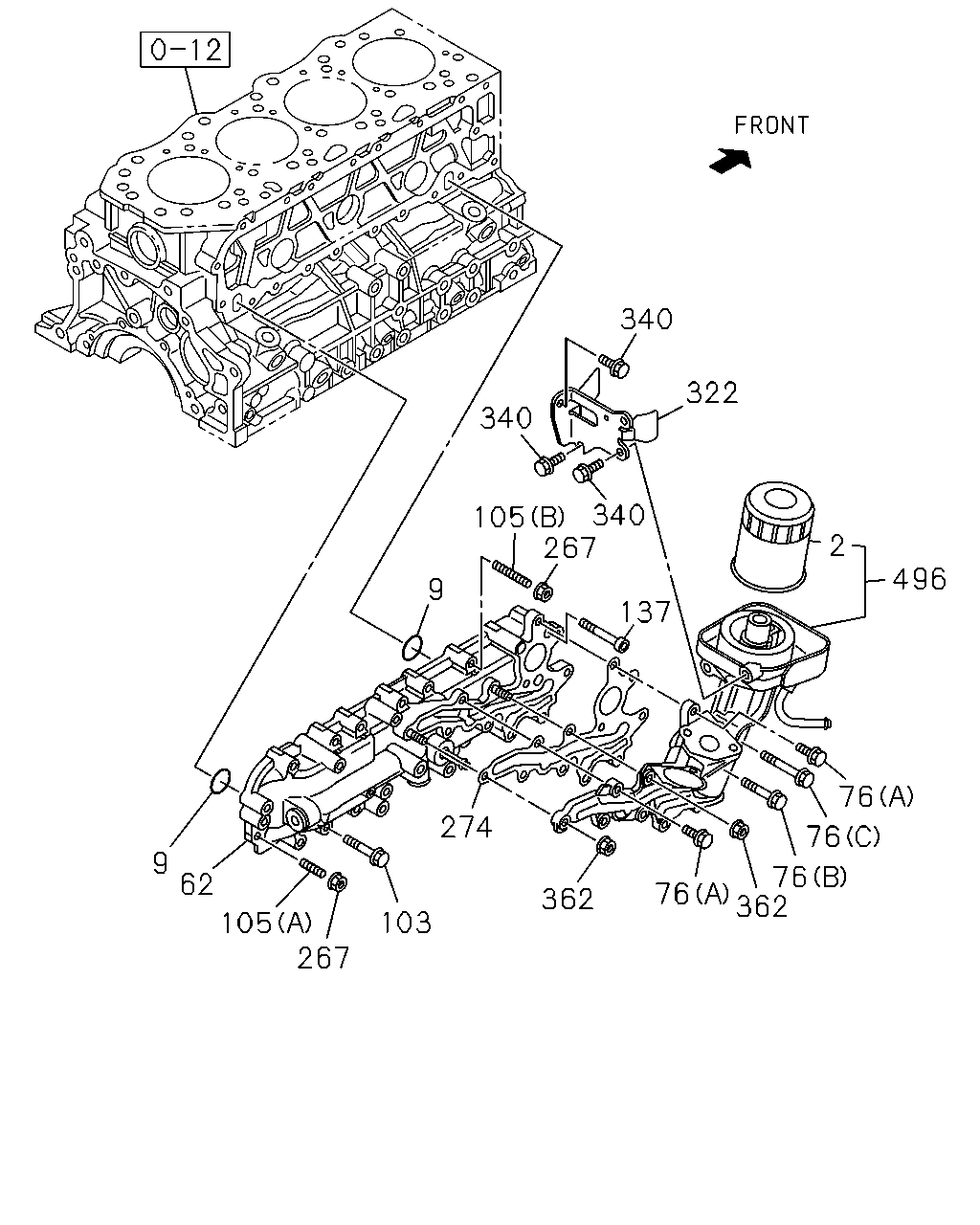

çizim 342406
340 322 340 340 105 267 2 496 76 76 76 362 76 362 274 103 267 105 62 9 9 137
BalonParca AdiParca NoAdetTipApplied Date A B C
2 01.836 ELEMENT; OIL FILTER 8-98165-071-0 01 1 1304- ● ●
2 01.836 ELEMENT; OIL FILTER 8-97309-927-0 01 1 1304- ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 		9-09566-226-0 02 1 1304- ● ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97288-938-0 01 1 1304- ●
62 01.540 COOLER ASM; OIL 8-98124-173-1 01 1 1304- ● ●
62 01.540 COOLER ASM; OIL 8-97319-556-1 01 1 1304- ●
76 01.840 BOLT; OIL FILTER
03.275 (A) M8X25 FLANGE 		0-28050-825-0 07 1 1304- ● ●
76 01.840 BOLT; OIL FILTER
09.173 (B) M8X45 FLANGE 		0-28050-845-0 01 1 1304- ● ●
76 01.840 BOLT; OIL FILTER
04.686 (C) M8X60 FLANGE 		0-28050-860-0 01 1 1304- ● ●
103 01.540 BOLT; OIL COOLER
09.173 M8X45 FLANGE 		0-28050-845-0 15 1 1304- ● ●
105 01.540 STUD; OIL COOLER
02.510 (A) M8X20 L=32 		0-41010-820-0 01 1 1304- ● ●
105 01.540 STUD; OIL COOLER
01.252 (B) M8X45 L=57 		0-41010-845-0 01 1 1304- ● ●
137 01.840 BOLT
00.206 M8X60 HEX SOCKET 		0-58330-860-0 03 1 1304- ● ●
267 01.840 NUT; OIL COOLER
01.540 M8 FLANGE 		0-91180-208-0 02 1 1304- ● ●
274 01.844 GASKET; OIL FILTER 8-98124-080-1 01 1 1304- ● ●
322 01.840 BRACKET; OIL FILTER 8-98132-020-1 01 1 1304- ● ●
340 01.840 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1304- ● ●
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 1304- ● ●
362 01.837 NUT; OIL FILTER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1304- ●
496 01.835 FILTER ASM; OIL 8-98186-452-1 01 1 1304- ● ●
çizim 342411
496 343 342 343 343 343 278 201 278 342 462
BalonParca AdiParca NoAdetTipApplied Date A B C
201 01.540 PIPE; VINYL,OIL DRAIN 8-98199-904-0 01 1 1304- ● ●
278 01.540 CLAMP; RUBBER HOSE
03.162 ID=14 		8-97173-221-0 02 1 1304- ● ●
342 03.675 HOSE; OIL DRAIN
(A) 		8-98199-910-0 01 1 1304- ● ●
342 03.675 HOSE; OIL DRAIN
(B) 		8-98200-230-1 01 1 1304- ● ●
343 01.540 CLIP; HOSE,OIL DRAIN
02.559 (A) ID=16 		8-97040-812-0 01 1 1304- ● ●
343 01.540 CLIP; HOSE,OIL DRAIN
(B) 		8-98074-648-0 02 1 1304- ● ●
343 01.540 CLIP; HOSE,OIL DRAIN
(C) 		8-98074-650-0 01 1 1304- ● ●
462 01.540 CLIP; HOSE,DRAIN
04.681 		8-97025-737-1 01 1 1304- ● ●
496 01.835 FILTER ASM; OIL 8-98186-452-1 01 1 1304- ● ●

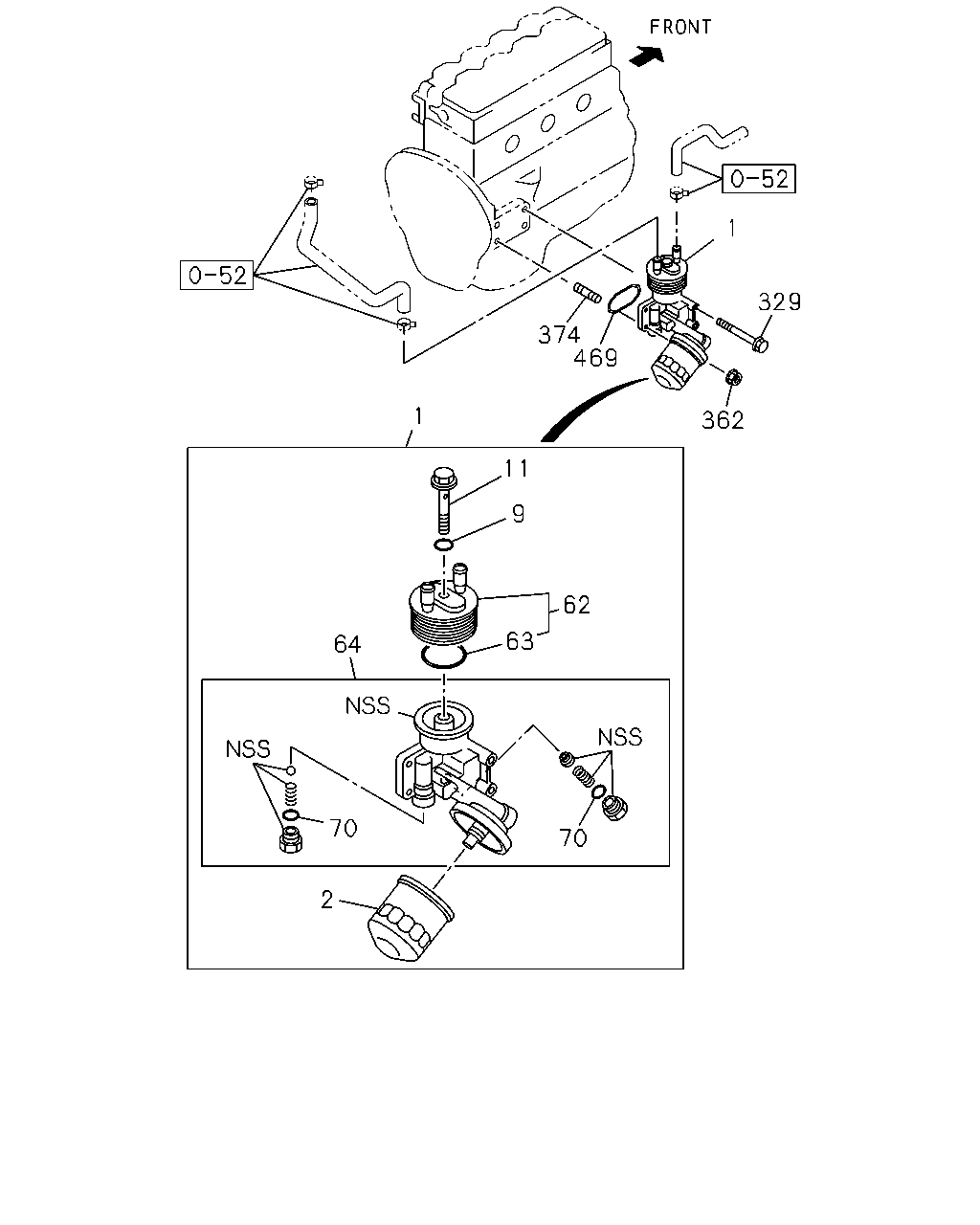

çizim 342427
1 329 469 362 374 1 11 9 62 63 64 70 2 70
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.540 FILTER & COOLER ASM; OIL 8-97373-137-1 01 1 1304- ●
2 01.836 ELEMENT; OIL FILTER 8-98165-071-0 01 1 1304- ● ●
2 01.836 ELEMENT; OIL FILTER 8-97309-927-0 01 1 1304- ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 		9-09566-226-0 02 1 1304- ● ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97288-938-0 01 1 1304- ●
11 01.840 BOLT; CENTER 8-97288-935-0 01 1 1304- ●
62 01.540 COOLER ASM; OIL 8-98124-173-1 01 1 1304- ● ●
62 01.540 COOLER ASM; OIL 8-97319-556-1 01 1 1304- ●
63 01.550 GASKET; COOLER TO BRKT 8-94450-917-0 01 1 1304- ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97373-138-0 01 1 1304- ●
70 01.844 GASKET; PLUG,OIL FILTER 8-97914-706-0 02 1 1304- ●
329 01.840 BOLT; OIL FILTER
01.062 M8X95 FLANGE 		1-09044-075-1 02 1 1304- ●
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 1304- ● ●
362 01.837 NUT; OIL FILTER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1304- ●
374 01.840 STUD; OIL FILTER
03.275 M8X25 L=37 		0-41010-825-0 02 1 1304- ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98087-965-0 01 1 1304- ●
