2-08 — CLUTCH MASTER CYLINDER (#118337) — 21 parça

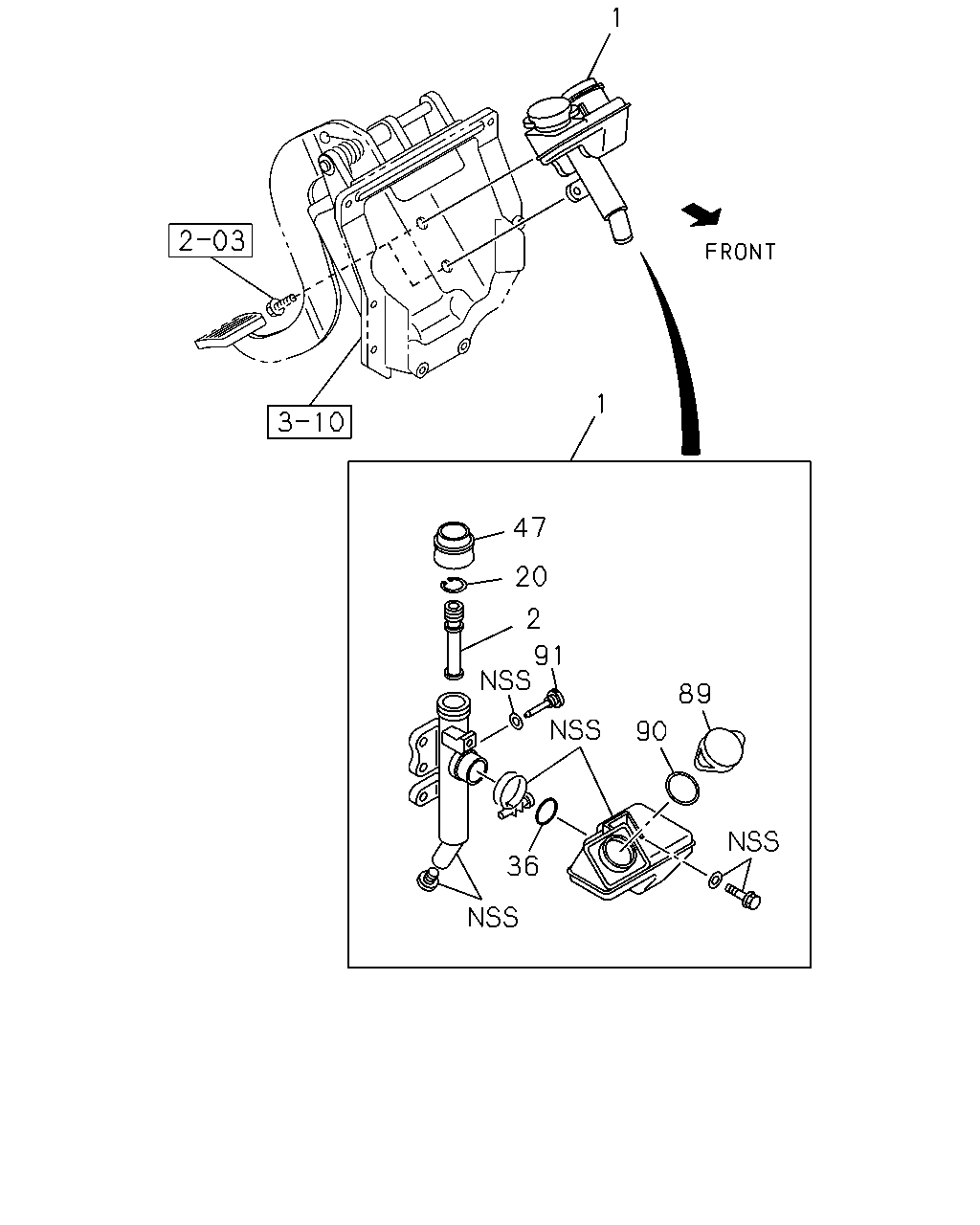

36 89 90 91 2 20 47 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; CLUTCH MASTER MJT7U M/T(Y4X)	1-47500-250-2	01	1	1304-	●
1	CYLINDER ASM; CLUTCH MASTER ZF9S1310 M/T(Y5K)	1-47500-357-3	01	1	1304-	●	●
2	REPAIR KIT; CLU M/CYL MJT7U M/T(Y4X)	1-85576-461-0	01	1	1304-	●
2	REPAIR KIT; CLU M/CYL ZF9S1310 M/T(Y5K)	1-47550-052-1	01	1	1304-	●	●
20	RING; SNAP,BODY MJT7U M/T(Y4X)	1-47519-013-0	01	1	1304-	●
20	RING; SNAP,BODY ZF9S1310 M/T(Y5K)	1-47515-009-0	01	1	1304-	●	●
36	GASKET; CLU M/CYL MJT7U M/T(Y4X)	1-47519-014-0	01	1	1304-	●
47	COVER; DUST,PUSH ROD MJT7U M/T(Y4X)	1-47519-018-0	01	1	1304-	●
89	CAP; OIL FILLER,CLU M/CYL MJT7U M/T(Y4X)	1-47519-017-0	01	1	1304-	●
90	GASKET; OIL FILLER,CLU M/CYL MJT7U M/T(Y4X)	1-47519-016-0	01	1	1304-	●
91	BOLT; STOPPER MJT7U M/T(Y4X)	1-47519-015-0	01	1	1304-	●

13 21 11 2 20 19 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; CLUTCH MASTER MJT7U M/T(Y4X)	1-47500-250-2	01	1	1304-	●
1	CYLINDER ASM; CLUTCH MASTER ZF9S1310 M/T(Y5K)	1-47500-357-3	01	1	1304-	●	●
2	REPAIR KIT; CLU M/CYL MJT7U M/T(Y4X)	1-85576-461-0	01	1	1304-	●
2	REPAIR KIT; CLU M/CYL ZF9S1310 M/T(Y5K)	1-47550-052-1	01	1	1304-	●	●
11	CAP; OUTER,CLU M/CYL ZF9S1310 M/T(Y5K)	1-47519-017-0	01	1	1304-	●	●
13	GASKET; OIL TANK ZF9S1310 M/T(Y5K)	1-47519-016-0	01	1	1304-	●	●
19	BOOT; CLU M/CYL ZF9S1310 M/T(Y5K)	1-47519-018-0	01	1	1304-	●	●
20	RING; SNAP,BODY MJT7U M/T(Y4X)	1-47519-013-0	01	1	1304-	●
20	RING; SNAP,BODY ZF9S1310 M/T(Y5K)	1-47515-009-0	01	1	1304-	●	●
21	VALVE; CHECK ZF9S1310 M/T(Y5K)	1-47565-004-0	01	1	1304-	●	●
