Isuzu WW
▶
PICKUP
▶
TFR
▶
51472 - TFR/TFS MIDDLE EAST
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶
2-53 — TRANSMISSION OIL COOLER SYSTEM
(#118336) — 18 parça
◀

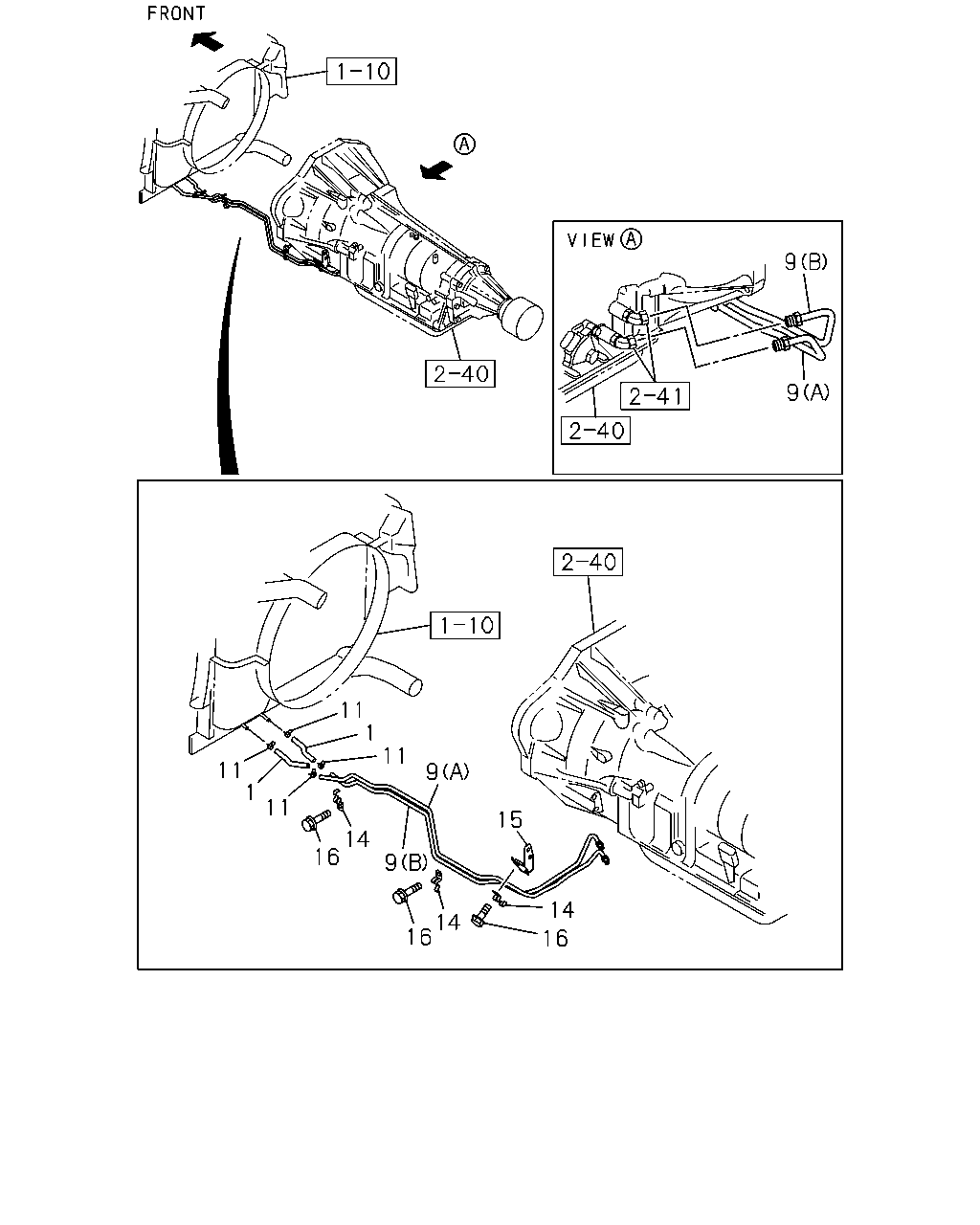

[253A] 4X2 (9 parça)

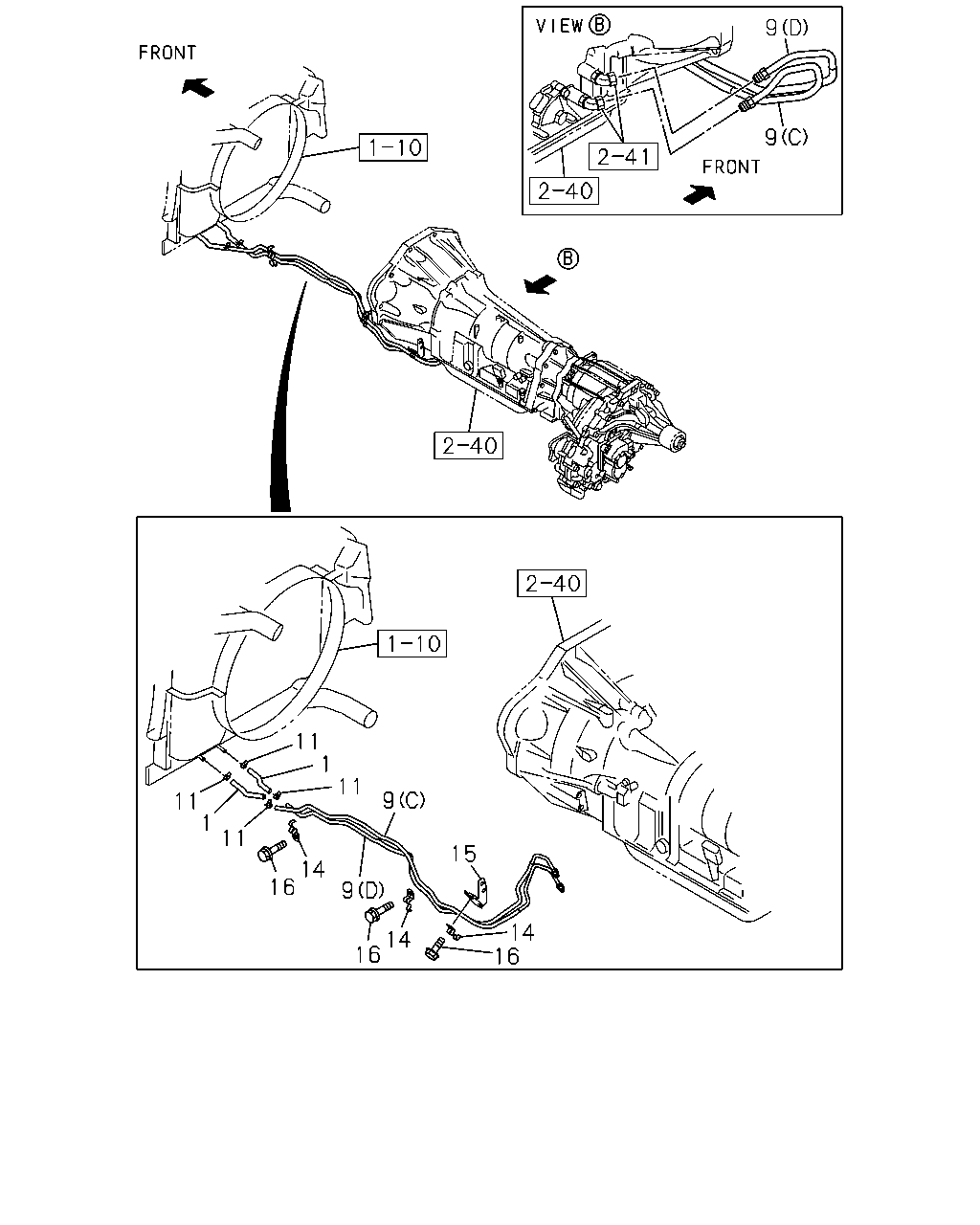

[253A] 4X4 (9 parça)
▶
9
9
11
1
11
9
11
1
11
16
9
14
16
14
14
16
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.128 HOSE; ATF
L=180 SERVICED BY L=3000
0-02259-300-0
02
1
1304-
9
04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB) (A) INLET
8-98100-272-2
01
1
1304-
9
04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB) (B) RETURN
8-98100-274-2
01
1
1304-
9
04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB) (C) INLET
8-98100-273-3
01
1
1304-
9
04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB) (D) RETURN
8-98100-275-3
01
1
1304-
11
04.128 CLIP; PIPE
8-98008-165-0
04
1
1304-
14
04.128 CLIP; PIPE TO ENG SIDE
8-98008-163-0
03
1
1304-
15
04.128 BRACKET; ATF PIPE
8-98100-277-0
01
1
1304-
16
04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE
0-28050-816-0
03
1
1304-
9
9
11
1
11
11
1
11
16
14
9
9
15
14
16
14
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.128 HOSE; ATF
L=180 SERVICED BY L=3000
0-02259-300-0
02
1
1304-
9
04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB) (A) INLET
8-98100-272-2
01
1
1304-
9
04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB) (B) RETURN
8-98100-274-2
01
1
1304-
9
04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB) (C) INLET
8-98100-273-3
01
1
1304-
9
04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB) (D) RETURN
8-98100-275-3
01
1
1304-
11
04.128 CLIP; PIPE
8-98008-165-0
04
1
1304-
14
04.128 CLIP; PIPE TO ENG SIDE
8-98008-163-0
03
1
1304-
15
04.128 BRACKET; ATF PIPE
8-98100-277-0
01
1
1304-
16
04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE
0-28050-816-0
03
1
1304-
